EWC1801DZ - Wine cellar Avanti - Free user manual and instructions
Find the device manual for free EWC1801DZ Avanti in PDF.
| Product Type | Freestanding Wine Cellar |
| Model | EWC1801DZ |
| Brand | Avanti |
| Capacity | 18 Bottles (standard 750ml) |
| Temperature Range | 41°F – 64°F (5°C – 18°C) |
| Number of Shelves | 5 sliding shelves |
| Interior Light | LED blue interior light |
| Control Type | Digital touch control with temperature display |
| Cooling System | Compressor-based |
| Defrost Type | Automatic defrost |
| Dimensions (H x W x D) | 34.5 in x 23.5 in x 23.5 in (87.6 x 59.7 x 59.7 cm) |
| Weight | 100 lbs (45.4 kg) |
| Power Supply | 115V / 60Hz |
| Power Consumption | 150W (typical) |
| Noise Level | < 42 dB |
| Door Type | Tempered glass door with stainless steel frame |
| Lock | Yes, with key |
| Leveling Legs | Yes, front adjustable |
| Climate Class | SN-ST (Subnormal to Subtropical) |
| Refrigerant | R600a |
| Installation | Freestanding, allow 2 inches clearance on sides and back |
| Recommended Cleaning | Mild soap and water, soft cloth |
| Safety Features | Child lock on control panel, auto shutoff for door open? |
| Warranty | 1 year limited parts and labor |
Frequently Asked Questions - EWC1801DZ Avanti
User questions about EWC1801DZ Avanti
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual EWC1801DZ - Avanti and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EWC1801DZ by Avanti.
USER MANUAL EWC1801DZ Avanti
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
TABLE OF CONTENTS
| Help Us Help You 4 | |
| Parts and Features 5 | |
| Important Safety Instructions 6 | |
| Installation Instructions 6 | |
| Before Using Your Wine Chiller 6 | |
| Installation of Your Wine Chiller 6 | |
| Electrical Connection 7 | |
| Extension Cord 7 | |
| Installing the Metal Handle 8 | |
| Operating Your Wine Chiller 9 | |
| Temperature Control 9 | |
| Storage Capacity 10 | |
| Interior Light 10 | |
| Care and Maintenance 10 | |
| Cleaning Your Wine Chiller | 10 |
| Power Failure | 10 |
| Vacation Time | 10 |
| Moving Your Wine Chiller | 11 |
| Energy Saving Tips | 11 |
| Troubleshooting Guide 11 | |
| Service for Your Appliance | 12 |
| Wiring Diagram | 12 |
| Your Avanti Products Warranty | 13 |
| Instrucciones en Español | 14 – 16 |
| Registration Information and Registration Card | 19 |
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain your new Wine Chiller properly.
Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:
Avanti Customer Service 800-220-5570
Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.
CAUTION:
THIS WINE CHILLER IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.
Write down the model and serial numbers.
You'll find them on a plate located on the rear outside wall of the Wine Chiller.
Please write these numbers here:
Date of Purchase
Model Number
Serial Number
Use these numbers in any correspondence or service calls concerning your Wine Chiller.
If you received a damaged Wine Chiller, immediately contact the dealer (or builder) that sold you the Wine Chiller.
Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.
FIRST, contact the people who serviced your Wine Chiller. Explain why you are not pleased. In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:
Customer
Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA

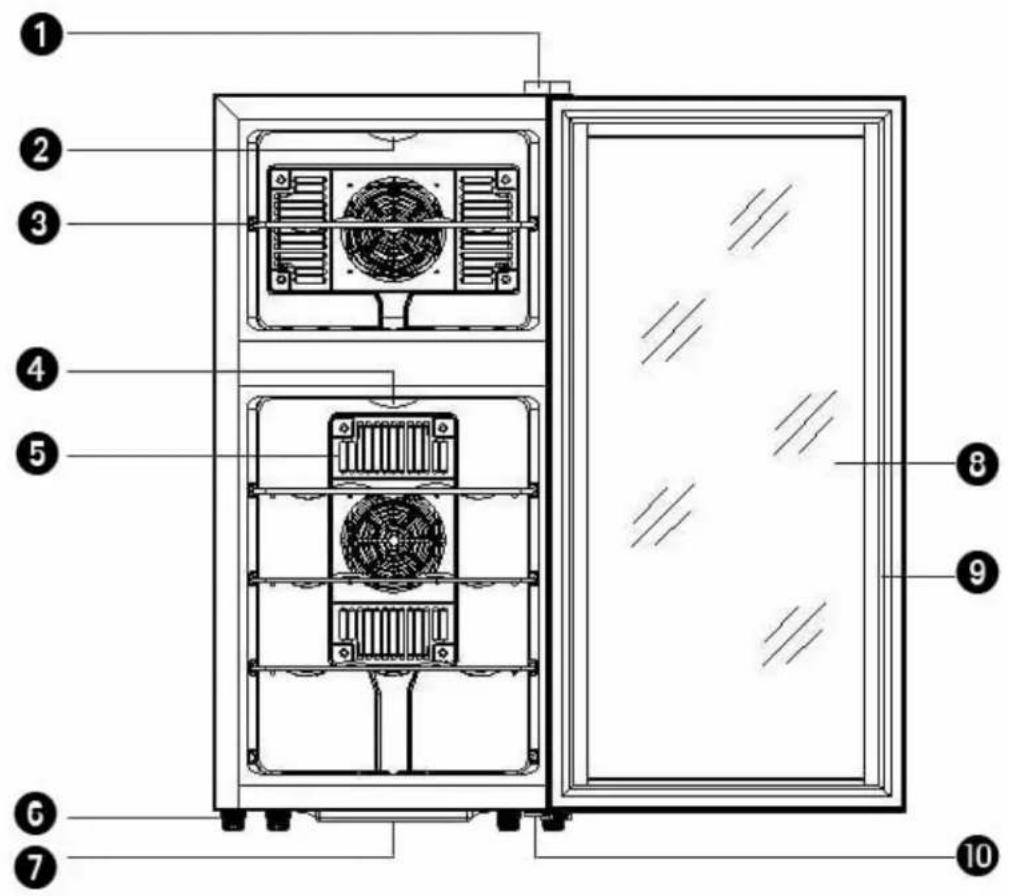

PARTS & FEATURES
| 1 | Upper Door Hinge 6 Leveling Leg | ||
| 2 | Interior Light (Upper Zone) 7 Water | Condensation Tray | |
| 3 | Upper Zone 8 Glass Door | ||
| 4 | Interior Light (Lower Zone) 9 Door Gasket | ||
| 5 | Lower Zone 10 Lower Door Hinge | ||
IMPORTANT SAFETY INSTRUCTIONS
| WARNING | To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions: |
| Read all instructions before using the Wine Chiller.DANGER or WARNING:Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine Chiller:Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.Do not repair or replace any part of the refrigerator or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type.-Save these instructions- | |
INSTALLATION INSTRUCTIONS
Before Using Your Wine Chiller
- Remove the exterior and interior packing.
-
Check to be sure you have all of the following parts:
-
6 Shelves
• 1 Instruction Manual
• 1 Metal Handle
- Clean the interior surface with lukewarm water using a soft cloth.
Installation of Your Wine Chiller
- This Wine Chiller is designed to be free standing installation only, and should not be recessed or built-in (Fully recessed).
- Place your Wine Chiller on a surface that is strong enough to support it when it is fully loaded.
- Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air circulation to cool the heat sink.
- Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
- This Wine Chiller uses thermoelectric refrigeration technology (no compressor) and is not designed for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a maximum of 30 degrees below the ambient temperature.
- Avoid locating the unit in moist areas.
- Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
• After plugging the Wine Chiller into a wall outlet, allow the unit to cool down for 2-3 hours before
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

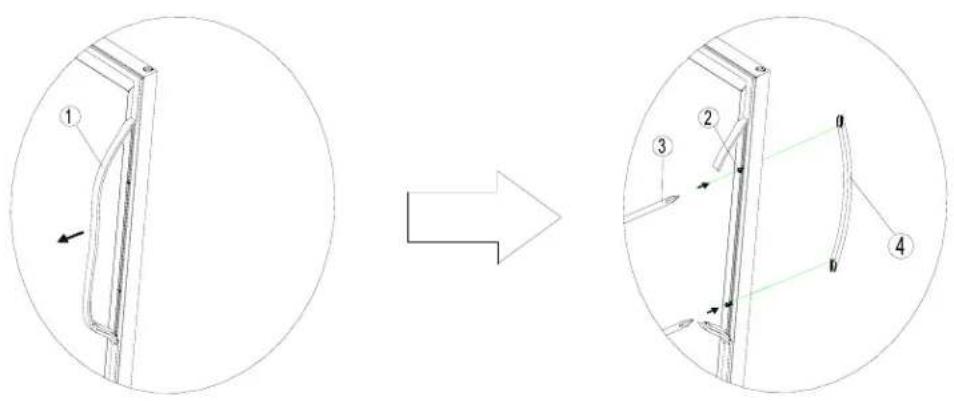

INSTALLING THE METAL HANDLE
This wine chiller includes a stainless steel handle that is not required to operate this unit. To install the handle please follow the below instructions:
- Pull away the door gasket in the area where the handle is to be installed on the left side as shown below in Illustration # 1. The gasket is easily displaced by hand, no tools are necessary.
-
Align the handle with the screws already installed in the door frame for your convenience. Tighten the screws using a Phillips head screwdriver until the handle sets both flush and secured tightly against the door frame. (DO NOT overtighten as this will cause damage to the handle assembly).
-
Replace the door gasket to its original position.
| 1 Gasket 2 Phillips Head Screw | |||
| , | Phillips Head Screw Driver 4 | S/S | Handle |
It is recommended you install the Wine Chiller in a place where the ambient temperature is between 23^-26^/72^-78^ . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 8^-18^/46^-64^ may not be reached.
Recommended Temperatures for Chilling Wine.
| Red Wines 15° - 18° C 58 – 64° F | ||
| Dry/White Wines 9° - 14° C 48 – | 57° F | |
| Rose Wines | 10° - 11° C 49 – 51° F | |
| Sparkling Wines | 5° - 9° C 40 – 47° F | |
Temperature Ranges For Your Wine Chiller
| Upper Zone 7 - 18°C 44 – 64°F | |
| Lower Zone 11 - 18°C 51 - 64°F |

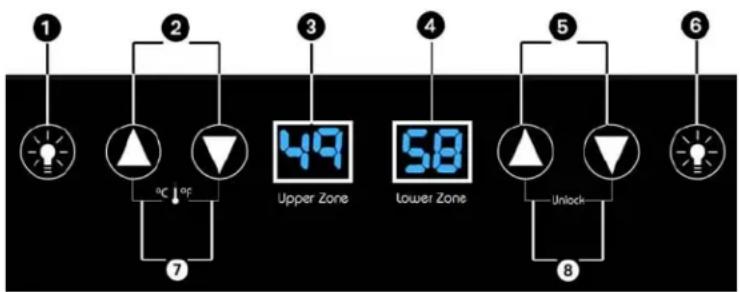

CONTROL PANEL
| 1 | Interior Light Button (Upper Zone) |
| 2 | Temperature Controls (Upper Zone) |
| 3 | Temperature Display (Upper Zone) |
| 4 | Temperature Display (Lower Zone) |
| 5 | Temperature Controls (Lower Zone) |
| 6 | Interior Light Button (Lower Zone) |
| 7 | °F / °C Display Selector Buttons |
| 8 | Control Panel Unlock Buttons |
You can select temperature display setting from Fahrenheit to Celsius degree by pushing the ▼ and ⚠ buttons (marked # 7 in the graphic above) and holding for 3 seconds. Fahrenheit or Celsius degrees indicator will appear in blue color in the LED temperature display window.
Your wine cooler has been equipped with an “automatic” control panel lock that will activate 12 seconds after the last time a button has been touched. Push the Ⓐ and Ⓥ button simultaneously for 3 seconds to unlock the control panel. You will hear a “BEEP” sound to alert you that the control panel is now active.
SETTING THE TEMPERATURE CONTROL
You can set the temperature for each zone (Upper and Lower) as you desire by pushing the ▼ or ▲ button on the control panel for each zone. The temperature that you desire to set will increase 1°F or 1°C if you push the ▲ button once, on the contrary the temperature will decrease 1°F or 1°C if you push the ▼ button once.
When you store mostly red wines, the temperature which you control by pushing the above two buttons need to be set at between 15° - 19°C (58° - 64°F).
When you store mostly white wines, the temperature needs to be set at between 9^ - 14^ C ( 48^ - 57^ F).
When you store mostly sparkling wines, the temperature needs to be set at between 5^ - 9^ C ( 40^ - 47^ F).
NOTE:
- When you use the wine chiller for the first time or restart the wine chiller after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine chiller is running for a few hours everything will be back to normal.
Storage Capacity
NOTE: You can place 18 standard bottles in this wine chiller.
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles and include bulk storage.
Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the "bulb" symbol ⚙. The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button marked with the "bulb" symbol ⚙ again and the light will turn back on.
CARE AND MAINTENANCE
Cleaning Your Wine Chiller
- UNPLUG the Wine Chiller, and remove all items including shelves.
- Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
- Wash the shelves with a mild detergent solution.
- Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
- Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
- Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with steel particles and rusting may occur.
CAUTION
Failure to unplug the Wine Chiller could result in electrical shock or personal injury.
Power Failure
- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.
Vacation Time
- Short vacations: Leave the Wine Chiller operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove all items and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.
Moving Your Wine Chiller
- Remove all bottles.
- Securely tape down all loose items (shelves) inside your appliance.
- Tape the door shut.
- Protect outside of appliance with a blanket, or similar item.
Energy Saving Tips
- The Wine Chiller should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
- One characteristic of thermoelectric units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for this type of unit.
- Thermoelectric technology costs just pennies to operate. It is environmentally friendly due to the lack of CFC's.
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Chiller problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
| PROBLEM | POSSIBLE |
| Wine Chiller does not operate. | Not plugged in.The circuit breaker tripped or a blown fuse. |
| Wine Chiller is not cold enough. Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The Wine Chiller does not have the correct clearances.Abnormal voltage. | |
| The light does not work. | Not plugged in.The circuit breaker tripped or a blown fuse.The light button is “OFF”. |
| Vibrations. | Check to assure that the Wine Chiller is level. |
| The door will not close properly. | The Wine Chiller is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position. |
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
| Product Information800-323-5029 | Whatever your questions are about our products, help is available. |
| Part Orders800-220-5570 | You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa. |
| In-Home Repair Service800-220-5570 | An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out. |

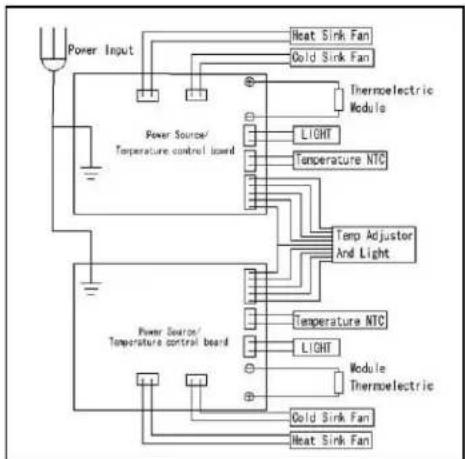

WIRING DIAGRAM
TECHNICAL / ELECTRICAL SPECIFICATIONS
| Rated Voltage 115V | |
| Rated Frequency 60Hz | |
| Rated Input Power | 140W |
| Estimated Power Consumption | 1.05KwH/24 hours |
| YOUR Avanti Products WARRANTY Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty. |
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. Avanti Products will provide you with a reasonably similar replacement product that is either new or factory refurbished. All Avanti Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.
WHAT IS NOT COVERED
- Content losses of food or other, due to spoilage.
- Incidental or consequential damages.
- Parts and labor costs for the following will not be considered as warranty:
- Door springs, and/or frames.
- Inner door panels, door rails and/or door supports.
• Light bulbs and/or plastic housing. - Plastic cabinet liners.
• Repairs performed by unauthorized servicers. -
Shipping and handling costs associated with the replacement of the unit.
-
Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
- Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
- Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the State of Alaska
- Replacement of house fuses or resetting circuit breakers.
- Failure of the product if it is used for other
than its intended purpose.
- This warranty does not apply outside the
Continental USA.
Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:
Avanti Products, A Division of The Mackle Co., Inc.
P.O.Box 520604 – Miami, Florida 33152
Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.
➢ Promote better products:
We value your input. Your responses will help us develop products designed to best meet your future needs.
-(detach here)-
Avanti Registration Card
| Name | Model # | Serial # | |
| Address | Date Purchased | Store / Dealer Name | |
| City | State | Zip E-mail Address | |
| Area Code | Phone Number | Occupation | |
| Did You Purchase An Additional Warranty As your Primary Residence, Do You: | |||
| ☐ Extended☐ None | ☐ Own ☐ RentYour | ||
| Reason for Choosing This Avanti Product:Please indicate the most important factorsThat influenced your decision to purchasethis product: | ☐ under 18 ☐ 18-25 ☐ 26-30☐ 31-35 ☐ 36-50 ☐ over 50Marital Status:☐ Married ☐ Single | ||
| ☐ Price☐ Product Features☐ Avanti Reputation☐ Product Quality☐ Salesperson Recommendation☐ Other: ____☐ Friend / Relative Recommendation☐ Warranty☐ Other: ____ | Is This Product Used In The:☐ Home ☐ BusinessHow Did You Learn About This Product:☐ Advertising☐ In-Store Demo☐ Personal Demo | ||
Comments:
Age:
VER: EWC1801DZ-1.0-040811 PRINTED IN CHINA
- TABLE OF CONTENTS
- HELP US HELP YOU...
- Read this guide carefully.
- Avanti Customer Service 800-220-5570
- CAUTION:
- Write down the model and serial numbers.
- IF YOU NEED SERVICE
- IMPORTANT SAFETY INSTRUCTIONS
- INSTALLATION INSTRUCTIONS
- Before Using Your Wine Chiller
- Installation of Your Wine Chiller
- Warning
- EXTENSION CORD
- SURGE PROTECTOR
- INSTALLING THE METAL HANDLE
- CONTROL PANEL
- SETTING THE TEMPERATURE CONTROL
- NOTE:
- Storage Capacity
- Interior Light
- CARE AND MAINTENANCE
- Cleaning Your Wine Chiller
- CAUTION
- Power Failure
- Vacation Time
- Moving Your Wine Chiller
- Energy Saving Tips
- PROBLEMS WITH YOUR WINE CHILLER?
- WHAT IS COVERED
- LIMITED ONE-YEAR
- WARRANTY
- WHAT IS NOT COVERED
- Protect your product:
- ➢ Promote better products:
- Avanti Registration Card
Brand : Avanti
Model : EWC1801DZ
Category : Wine cellar
