Product Type	Dual Bay Hard Drive Docking Station
Brand	StarTech.com
Model	SDOCK2U33EB
Host Interface	USB 3.0, eSATA
Supported Drives	2.5" and 3.5" SATA HDD/SSD
Number of Bays	2
Maximum Data Transfer Rate	USB 3.0: 5 Gbit/s; eSATA: 6 Gbit/s
External Connectors	1 x USB 3.0 B Female, 1 x eSATA Female
Internal Connectors	2 x SATA Data + Power (7+15 pin)
Power Supply	Universal AC Adapter (NA/JP, EU, UK, ANZ)
LED Indicators	1 per bay: power/activity (blinks on access)
OEM Support	UASP (USB Attached SCSI Protocol)
Compatible Operating Systems	Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7/8/8.1 (32/64-bit), Mac OS 9.x/10, Linux, Chrome OS
Dimensions (Approximate)	150 x 100 x 70 mm (5.9 x 3.9 x 2.8 in)
Weight (Approximate)	500 g (1.1 lb)
Warranty	2 Years
Included Accessories	USB 3.0 Cable, eSATA Cable, Power Adapter, Manual
Drive Formats Supported	MBR (≤2TB) and GPT (>2TB)
Safety Notes	Power off before inserting/removing drives; use anti-static precautions
Technical Support	Lifetime Technical Support (www.startech.com/support)

Frequently Asked Questions - SDOCK2U33EB StarTech.com

What is the maximum storage capacity supported by the SDOCK2U33EB?

The docking station supports any standard 2.5" or 3.5" SATA drive, including large capacity drives. For drives larger than 2 TB, you must initialize the drive using GPT partition style to access the full capacity. Older operating systems may require MBR which limits to 2 TB.

Can I use both USB 3.0 and eSATA simultaneously?

The SDOCK2U33EB connects to the host computer via either USB 3.0 or eSATA, but not both at the same time. You must choose one interface for connection.

Does this dock support SSD drives?

Yes, the docking station supports both HDD and SSD drives with SATA interface. Both 2.5" and 3.5" form factors are compatible.

Why is my drive not recognized by the computer?

First ensure the dock is powered on and the drive is properly seated. If still not recognized, the drive may need to be initialized and formatted. In Windows, go to Disk Management, initialize the disk (MBR or GPT), then create a new partition and format it.

How do I safely remove a drive from the docking station?

Always use the Safely Remove Hardware feature in Windows (or drag to Trash on Mac) before powering off the dock. Then press the power button to turn off the dock, press the corresponding eject button, and gently lift the drive out. Never remove a drive while the LED is flashing.

Can I use two different sized drives at the same time?

Yes, the dock has two independent bays that can accommodate one 2.5" and one 3.5" drive simultaneously, as long as both are SATA drives.

Is the power adapter universal?

Yes, the package includes a universal power adapter with interchangeable plugs for NA/JP, EU, UK, and ANZ regions. You can select the appropriate plug for your location.

What is UASP and does this dock support it?

UASP (USB Attached SCSI Protocol) improves data transfer speeds over USB 3.0 by reducing latency. The SDOCK2U33EB supports UASP when used with a compatible host controller and operating system. It can significantly improve performance with SSDs.

Does this dock support hot-swapping?

Yes, the dock supports hot-swapping of drives, but it is strongly recommended to power off the dock before inserting or removing drives to avoid data loss or damage. Always safely disconnect the drive via the operating system before removal.

What should I do if the LED light is not working?

Ensure the power adapter is properly connected and the dock is turned on. The LED indicates power and activity; if it remains off, try a different power outlet or check the adapter. If the LED stays on but does not blink during drive access, the drive may not be fully inserted or the drive may be faulty.

USER MANUAL SDOCK2U33EB StarTech.com

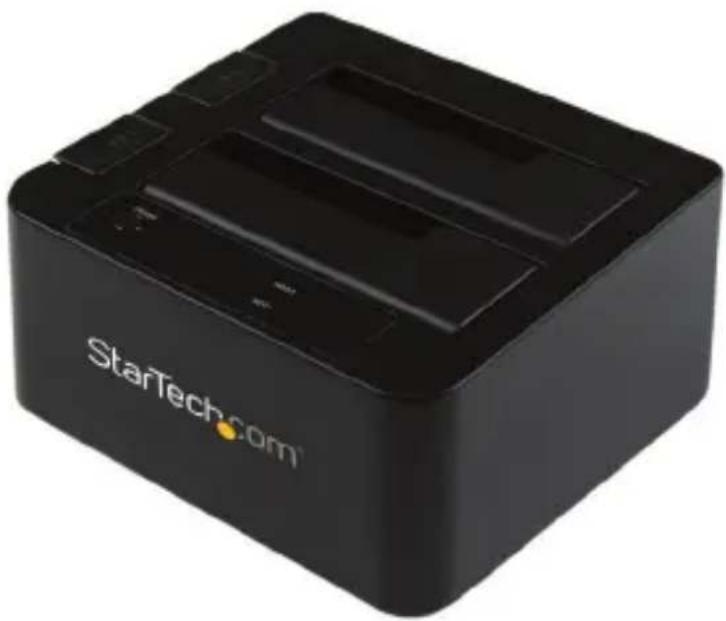

USB 3.0/eSATA Dual 2.5/3.5" SATA HDD Dock with UASP

SDOCK2U33EB

Black StarTech.com 13-branded electronic device with dual drive bays (no visible text or symbols on body)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Product Overview .... 1

Front View .... 1

Rear View....1

Introduction......2

Packaging Contents 2

System Requirements....2

Installation 3

Docking Station Installation....3

Drive Installation 3

Drive Removal....4

Docking Station Operation....5

Drive Initialization .... 5

LED Indicator 6

Disconnecting the Hard Drive....6

Specifications....7

Technical Support 8

Warranty Information......8

Product Overview

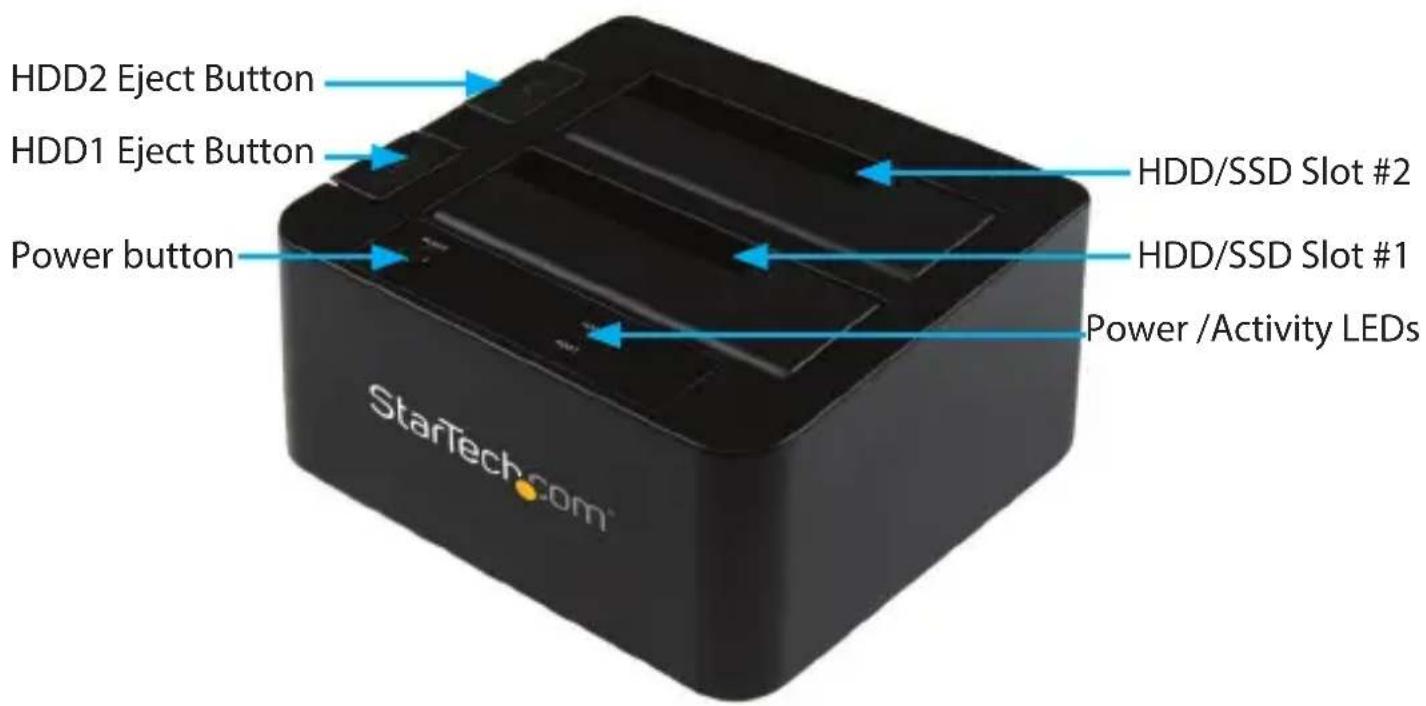

Front View

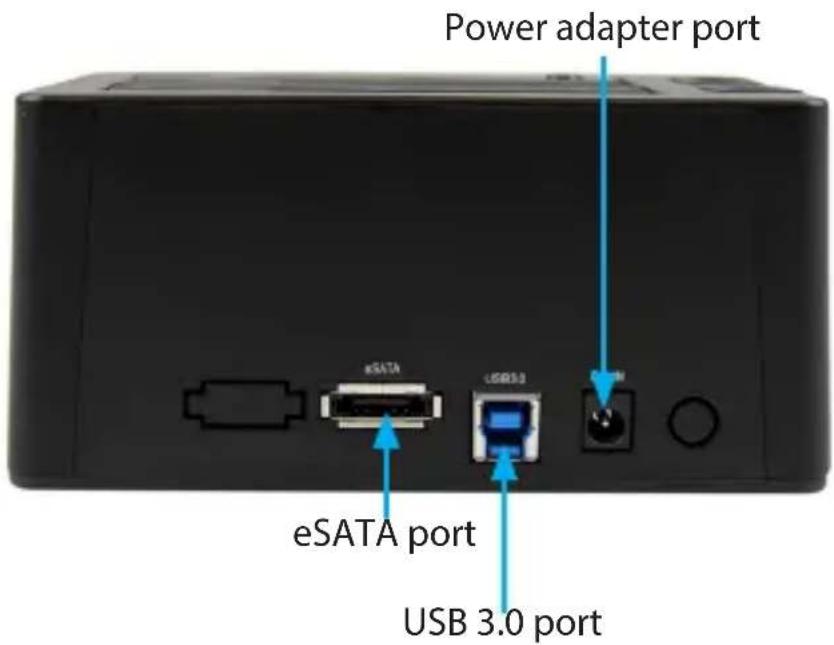

Rear View

Introduction

Packaging Contents

• 1 x USB 3.0/eSATA to Dual 2.5/3.5in SATA hard drive docking station
• 1 x USB 3.0 Cable
• 1 x eSATA cable
  • 1 x universal power adapter (NA/JP, EU, UK, ANZ)
• 1 x instruction manual

System Requirements

• Computer system with available USB or eSATA port
• Up to two 2.5" or 3.5" SATA Hard Drives (HDD) or Solid State Drives (SSD)
• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7/8/8.1 (32/64-bit), Apple® Mac® OS 9.x/10, Chrome OS or Linux®

Installation

WARNING! Hard drives and docking stations require careful handling. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and docking station with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds.

Docking Station Installation

1. Connect the Dock to an available power outlet, using the provided power adapter.
2. Connect the Dock to your computer system, using the provided USB/eSATA cable.

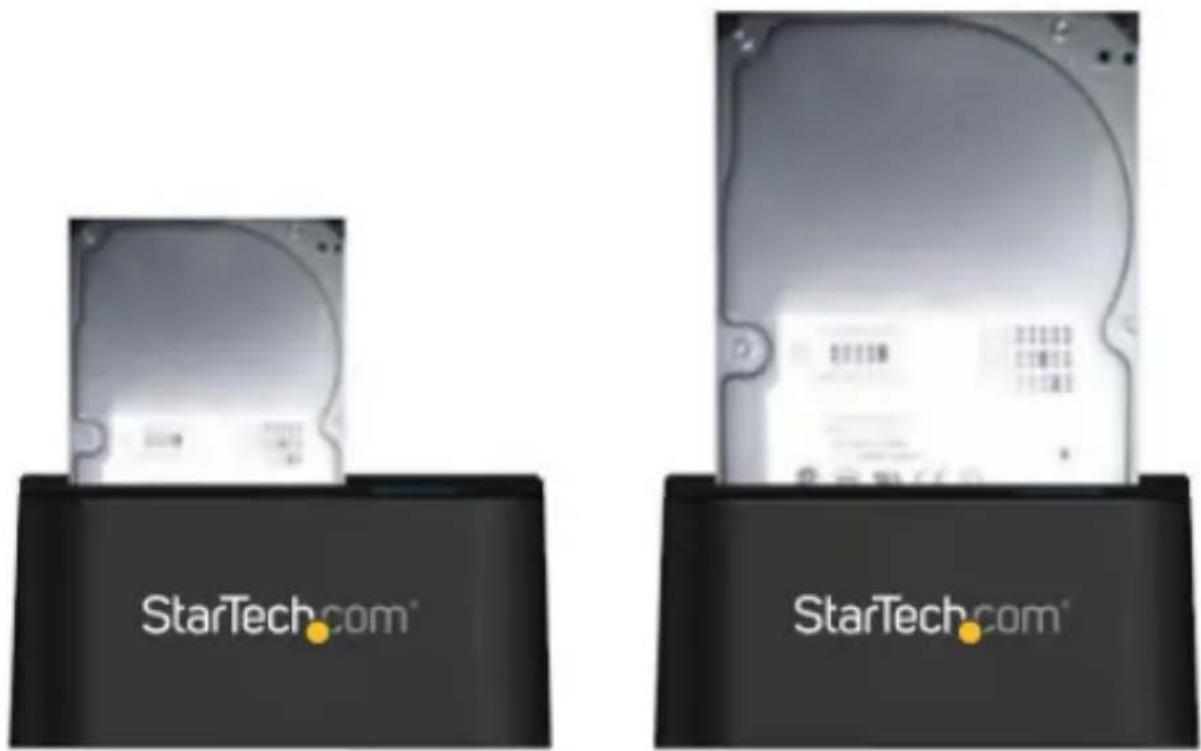

Drive Installation

1. Carefully align and insert the 2.5" or 3.5" SATA drive(s) you wish to dock in the desired hard drive slot on the docking station, such that the SATA power and data connectors on the drive are properly aligned with the corresponding connectors inside the hard drive slot.
2. Press the power button so the docking station is turned on.

Note: The single power button operates both drive slots.

Two black hard drives with 'StarTech.com' branding, shown from different angles (no text or symbols on the drives themselves)

1. Once the drives have been installed and the docking station has been powered on, the computer Operating System will automatically recognize the drive(s) and it will be accessible as though it were installed in the system internally.

Note: If your computer fails to automatically recognize your drive it is likely your drive has not been initialized or formatted correctly. (See Drive Initialization in Software operation for further instructions.)

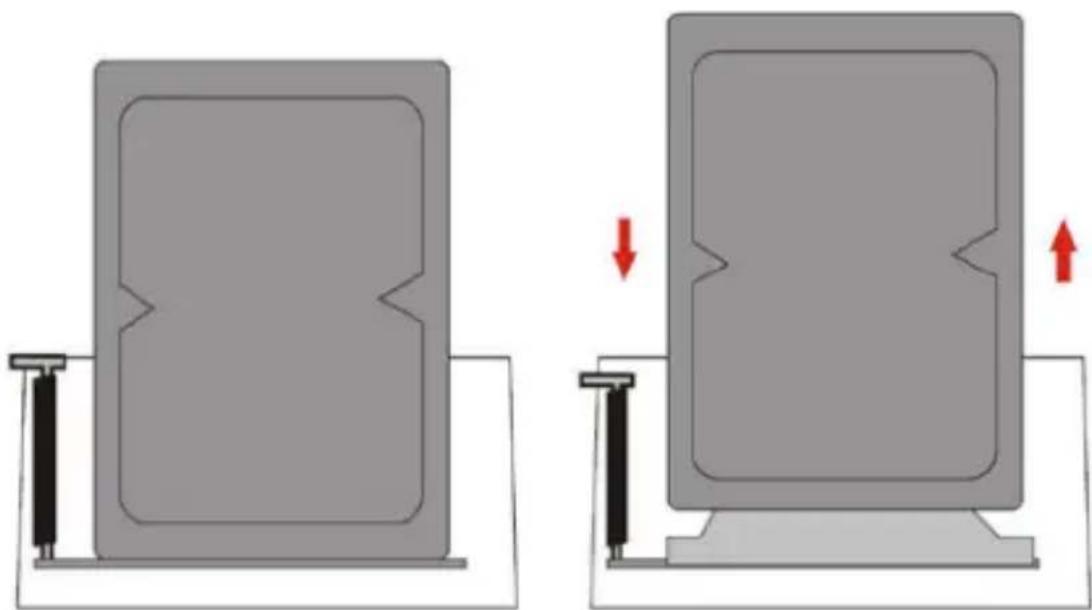

Drive Removal

WARNING! Ensure your hard drive(s) has been disconnected from your computer operating system prior to attempting drive removal. Failure to properly disconnect your drive may result in lost data or drive damage. (See Disconnecting the Hard Drive in Docking Station Operation for further instructions.)

1. Turn off the docking station by pressing the power button.
2. Press the eject button that corresponds with the drive you wish to remove.
3. Carefully grasp the ejected drive and lift it upwards until the bottom of the drive has completely risen above the hard drive slot.
4. Safely and carefully store your drive in a secure location. (See your hard drive manual for proper storage instructions.)

Two identical diagrams showing a mechanical component with a red arrow indicating upward motion, no text or symbols present.

Note: We recommend ensuring the docking station is powered off before any drive is physically inserted or removed from the docking station. If two drives are docked simultaneously, and one drive is removed while the docking station is still powered on the other drive will momentarily disconnect from your computer which could cause drive damage or loss of data if other drive is still mounted.

Docking Station Operation

Drive Initialization

Prior to using your installed drive, it will need to be initialized and formatted to the operating system requirements in order for your computer system to recognize it.

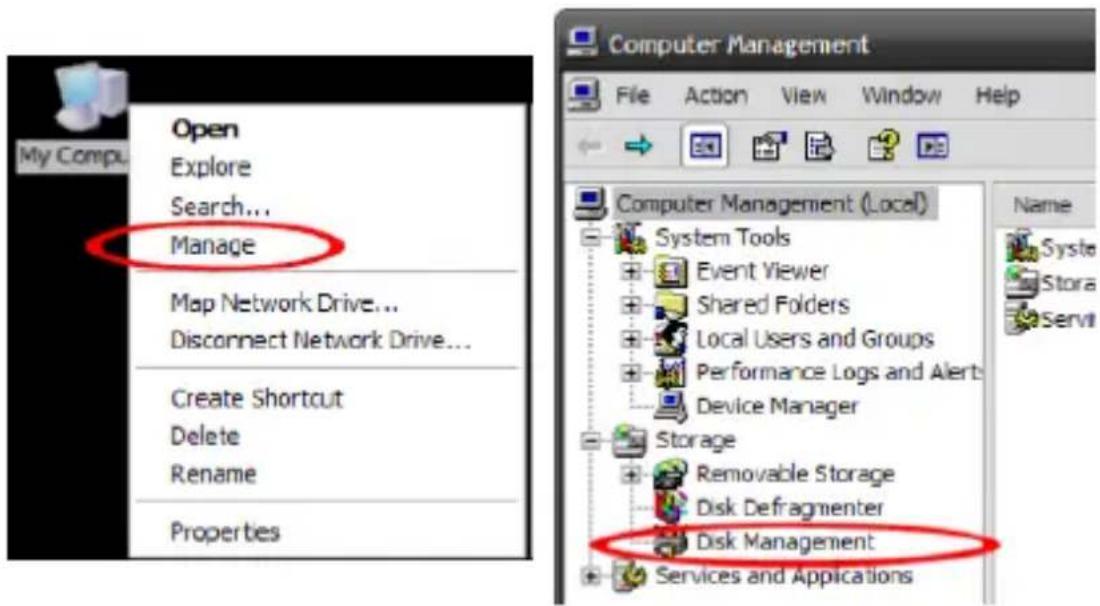

1. From the main Windows desktop, right-click on "My Computer" ("Computer" in Vista/7/8/8.1), then select Manage. In the new Computer Management window, select Disk Management from the left window panel.

1. A dialog window will automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an "MBR" or "GPT" disk.

Note: GPT (GUID partition) is required for drives larger than 2TB but is not compatible with some older operating systems, while MBR is supported by newer and older operating systems.

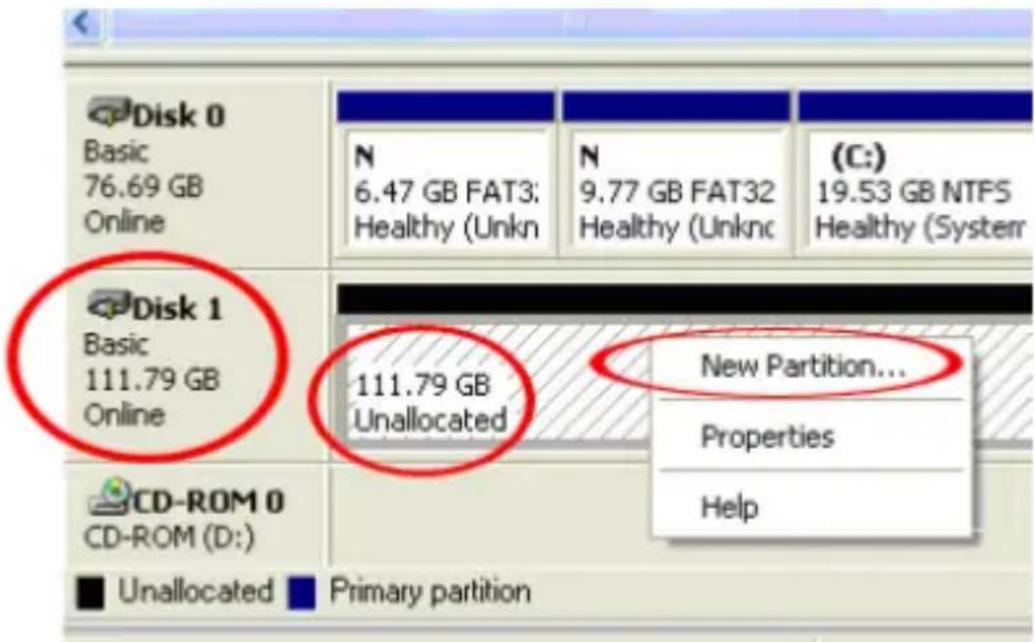

1. Once initialized, locate the Disk that says it is "Unallocated" (check the listed hard drive capacity to confirm it's the correct hard drive) and then right-click in the section that says "Unallocated" and select "New Partition".

1. Follow the on screen prompts to initialize the drive in the format of your choice.

LED Indicator

The docking station offers an LED indicator for each drive, to enable you to monitor drive activity. When the docking station is powered on, the LED will illuminate. While the hard drive is being accessed, the LED will blink. Do not remove your drive from the docking station while the LED is flashing, as it could damage to your drive, resulting in data loss.

Disconnecting the Hard Drive

Windows

1. Select the "Safely remove Hardware and Eject Media" icon, located in the task bar.
2. Select the storage device from the list that appears.
3. Wait for the message indicating that it is now safe to remove the device.

Note: Removing the connected drive prior to receiving notification that it is safe to do so, could result in losing or corrupting data stored on the drive. Once the Safe to Remove Hardware message appears, please remove the drive from the docking station. (See Drive Removal.)

Mac OS X

To safely disconnect the attached drive from the host computer, close any windows listing the contents of the removable drive. Once all windows are closed, click on the USB storage icon on the desktop, and drag it to the Trash Can icon on the desktop. Allow 5 seconds before physically removing the drive from the docking station.

Specifications

Host Interface	USB 3.0eSATA
External Connectors	1 x USB 3.0 B female1 x eSATA female
Internal Connectors	2 x SATA DATA (7 pin) + Power (15 pin)reciprocal
Maximum Data Transfer Rate	USB 3.0: 5Gbit/seSATA: 6Gbit/s
Compatible Operating Systems	Windows 2000/XP/Server 2003/Vista/Server2008 R2/7/8/8.1 (32/64-bit), Mac OS 9/10,Linux, Chrome OS

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
