Product Type	Automatic Front Loader Washing Machine
Model	KL60FLW
Brand	Kelvinator
Dimensions (W x D x H)	695 x 530 x 845 mm
Net Weight / Gross Weight	51 kg / 58 kg
Power Supply	220-240V~50Hz
Rated Power	2100 W
Washing and Spin Capacity	6.0 kg
Maximum Spin Speed	800 rpm
Water Pressure Range	0.02-0.8 MPa
Average Energy Consumption	0.851 kWh
Average Water Consumption	43 L
Remaining Moisture Content Class	D
Power Consumption (Off-mode / Left-on mode)	0.35 W / 0.35 W
Number of Programs	8
Programs	Cotton, Standard Cotton, Quick Wash, Spin, Sterilization, Delicate, Wool, Synthetic
Temperature Options	Cold, 20°C, 40°C, 60°C, 90°C (Sterilization)
Control Panel	Program knob, Temperature button, Start/Pause button, Power button
Dispenser Type	Pull-out drawer for detergent and fabric softener
Safety Features	Door lock, overheating protection, imbalance control, child safety instructions
Installation Requirements	Transit bolts removal, leveling feet, drain hose connection (max 4m extension), water inlet connection (3/4" thread)
Maintenance Intervals	Drum cleaning (Sterilization program every 3 months), drawer cleaning (regular), water inlet filter (every 6 months), drain pump filter (every 2 months)
Accessories Included	Inlet hose (1), U piece (1), Transit bolt caps (4), Manual (1)
Guarantee Period	24 months for domestic use (conditions apply)

Frequently Asked Questions - KL60FLW KELVINATOR

What is the capacity of the Kelvinator KL60FLW washing machine?

The washing machine has a 6.0 kg capacity for both washing and spinning.

What are the dimensions of this washing machine?

The dimensions are 695 mm in width, 530 mm in depth, and 845 mm in height (W x D x H).

How do I clean the drain pump filter?

Disconnect the machine from power. Open the pump cover with a screwdriver, place a container under the pump, unscrew the filter, and clean it thoroughly. Reinstall. It is recommended to clean the filter every 2 months or when the 'Rinse' and 'Spin' LEDs flash.

What should I do if the machine displays error code with 'Rinse' and 'Spin' LEDs flashing?

This indicates the machine is draining overtime. Possible causes include a squashed or kinked drain hose, a blocked drain pump filter, or blocked drainage pipes. Check and clean the hose and filter, and inspect the drainage system.

Can I wash wool or delicate fabrics in this machine?

Yes, the machine has dedicated Wool and Delicate programs suitable for machine-washable wool, silk, and delicate synthetics. Use cold water for wool if no temperature is specified.

How do I remove the transit bolts?

Remove all four transit bolts at the back of the machine using a tool. Plug the holes with the supplied transit bolt caps. Keep the bolts for future transport. Spinning with transit bolts in place can cause damage.

What is the energy and water consumption of this washing machine?

The average energy consumption is 0.851 kWh and average water consumption is 43 liters per cycle (based on standard cotton program). Actual consumption may vary.

How do I clean the detergent drawer?

Pull out the drawer until resistance is felt, press the release catch, and remove it completely. Remove the siphon, clean all parts with a brush and warm water, then reassemble. Also clean the housing with a bottle brush.

What is the maximum spin speed?

The maximum spin speed is 800 rpm. Lower speeds are available for delicate items.

Does this washing machine have a child lock?

The machine does not have an electronic child lock. However, it is recommended to keep children away and supervise them. The door locks automatically during operation and unlocks two minutes after the cycle ends or when powered off.

USER MANUAL KL60FLW KELVINATOR

In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local Kelvinator Service Centre by telephoning:

021 681 7500 (South African Customers) [phone] (International Customers)

Help us to help you

Please determine your type of enquiry before writing or telephoning. When you contact us we need to know:

• Your name
• Telephone Number
  ■ Physical Address where appliance is located
  ■ Model and Serial Number of the appliance
  ■ Clear and concise details of the fault

Customer Care

For general enquiries or information regarding Kelvinator appliances contact:

Customer Care Department

Electrolux

PO Box 50

Paarden Eiland

Cape Town

7420

South African Customers: 021 681 7500

International Customers: [phone]

E-mail: [e-mail]

Website : www.kelvinator.co.za

Kelvinator Guarantee Conditions

FOR DOMESTIC USE ONLY

NOT FOR COMMERCIAL OR INDUSTRIAL USE

ANY ALTERATION OR MODIFICATION OF THE EQUIPMENT VOIDS THE GUARANTEE

FAILURE TO USE A CERTIFIED ELECTRICIAN OR KELVINATOR AUTHORISED SERVICE AGENT OR GENUINE PARTS FOR INSTALLATION OR SERVICE VOIDS THE GUARANTEE

1. Kelvinator guarantees the equipment against defective material or faulty manufacture, provided it is used for domestic purposes only, for a period of 24 (twenty four) months, from the date of purchase by the original retail purchaser. This guarantee only applies to Kelvinator large appliances.
2. (a) In the first 6 (six) months from date of purchase, for valid guarantee claims, collection, return and installation (Built-in and gas appliances) of the appliance will be free of charge within South Africa if installed by an authorized Kelvinator service agent.
   (b) For the remainder of the guarantee period where the repaired appliance is used or installed more than 50 kilometres from the nearest Kelvinator service agent or elsewhere in South Africa, travel costs to the place of use or installation shall be for the account of the purchaser.
3. This guarantee is given on condition that only labour, parts and accessories supplied by authorised agents are at all times used in connection with the appliance, including the installation thereof, and that an authorised Kelvinator service agent installs and/or services the appliance
4. Kelvinator shall not be responsible for damage of any kind resulting from electricity fluctuations, faults in the building wiring, faulty installations, and improper use of controls or failure to use the appliance in accordance with the operating instructions and/or general misuse and/or abuse, or if not used for domestic purposes only, or for damage caused by a superior force (viz minor). Any repair or tampering by an unauthorised person or attempt to repair or tamper with the equipment, or use of parts not supplied by authorised agents, or alterations or modification to the equipment, shall render the guarantee null and void.
5. After the first 6 (six) months from the date of purchase, this guarantee does not apply to light bulbs, loose glass, glass oven doors and enamelled surfaces; filters and other parts subject to wear and tear or discolouring, as well as damage caused by abrasive and highly concentrated cleaners and/or cleaning materials or cleaners prohibited by the user manual.
6. Kelvinator shall not be responsible in terms of this guarantee for the replacement or repair of any part of the equipment which may have been damaged in transit if delivery is undertaken by any party other than Kelvinator or an authorised agent.
7. All gas appliances are to be installed by a gas installer, registered with SAQCC GAS. Electrical appliances are to be installed by a qualified electrician who is an authorised service agent or assisted by an authorised service agent from who proof of installation will be required.
8. Repairs carried out under guarantee have a guarantee period of 3 (three) months on the parts and labour supplied to repair the unit. Parts removed during guarantee repairs become the property of Kelvinator.
9. After expiry of 6 (six) months from the date of purchase the guarantee shall be available only to the original retail purchaser of Kelvinator domestic appliances from an authorised Kelvinator Dealer or Distributor and only where the appliance has been retained for use in the Republic of South Africa.
10. Failure to produce documentary proof of the date of original acquisition by the original purchaser to Kelvinator or an authorised service agent, will result in normal charges being levied for travel costs, the work carried out and the parts supplied, unless a production date can be proved to be within the 6 (six) months preceding the guarantee claim.
11. After 6 (six) months from the date of purchase of the appliance the liability of Kelvinator under this guarantee is limited to the replacement and/or repair of the defective parts within the guarantee period and does not extend to the installation or removal of the appliance.

(Effective 01 March 2011)

Automatic Front Loader

This washing machine conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the washing machine, please read this manual carefully before using it for the first time. They contain important information on its installation, safety, use and maintenance.

Keep this manual in a safe place for future reference.

Safety Notices

Before Use

WARNING

Read and understand thoroughly these safety instructions before use. The items indicated here are very important safety precautions, which must be followed. We cannot be held liable for damage caused by non-compliance with the warning and safety instructions or resulting from incorrect use or operation.

This washing machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised whilst using it or have been shown how to use it by a person responsible for their safety.

Technical safety

• Before setting up the washing machine, check it for any externally visible damage. Do not install or use a damaged washing machine.
• Before connecting the washing machine, ensure that the connection data on the data plate (voltage and current) match the electricity supply. If in any doubt, consult a qualified electrician.
• The electrical safety of this washing machine can only be guaranteed when continuity is complete between it and an effective earthing system which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and regularly tested, and where there is any doubt the household wiring system should be inspected by a qualified electrician
  The manufacturer cannot be held liable for the consequences of an inadequate earthing system.
• Do not connect the washing machine to the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance.
• Unauthorized repairs could result in unforeseen dangers for the user, for which manufacturer cannot accept liability. Repairs should only be undertaken by an approved service technician. Ensure current is not supplied to the machine until after maintenance or repair work has been carried out.
• If the connection cable is damaged or broken it must only be replaced by an approved service technician to protect the user from danger.
• Faulty components must only be replaced by genuine manufacturer original spare parts. Only when these parts are fitted can the safety standards of the machine be guaranteed.

Note

THIS WASHING MACHINE MUST BE EARTHED.

Safety Notices

Before Use

Correct use

• To avoid the risk of personal injury or damage to the washing machine, do not install it in place where it is damp and where it suffers from rainfall.
• Do not install the washing machine in place where it suffers from the sun directly, in which plastic or components will be damaged. It will be shortened the life of your washing machine.
• Do not install the washing machine in place where temperatures below freezing may occur. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

- Do not shoot the washing machine with water when you clean it.

- Keep the washing machine away from fire or heat sources.

- Before using the washing machine for the first time, check that the transit bolts at the rear of the machine have been removed. During spinning, transit bolts which is still in place may result in damage to both the machine and adjacent furniture or appliances.

- Turn off the tap if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.

- Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. drum), which in turn can result in damage to the laundry.

- Do not wash water-repellent things(e.g. raincoats) with washing machine.

- Only remove laundry from the washing machine once the drum has stopped turning. Reaching into a moving drum is extremely dangerous and could result in injury.

Safety with children

• Keep children away from the washing machine at all times. To avoid the risk of injury do not allow children to play on or near it or to
  play with its controls. Supervise children whilst you are using it.
  Older children may only use the washing machine if its operation has been clearly explained to them and they are able to use it safely,
  • recognising the dangers of misuse.
  For machines with a 'porthole' door, remember that the porthole glass will be hot when washing at very high temperatures. Do not let children touch it.

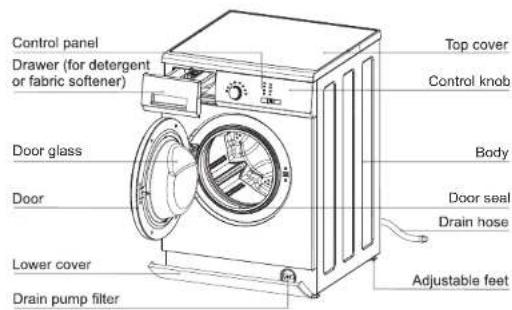

Parts and Features

Before Use

Unscrew the drain pump filter to let water run out when the machine is not used for a long time.

The drawing of machine in the manual is only used for instruction. It may vary from the model you buy.

Installation

Before Use

Unpacking

• Remove all the packing (including the foam base) or the vibration and noise may occur.
• Dispose all the wrappage safely and keep them out of the reach of children. Danger of suffocation!
• It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.

Accessories

Make sure that you have received all of the items shown below.

Accessories		Name	Qty.	Accessories		Name	Qty.
		Inlet hose	1			“U” piece	1
		Transit bolts caps	4			Manual	1

Removing transit bolts

- Remove all the transit bolts at the back of the machine with tools. - Plug the holes with the transit bolts caps supplied.

Strong vibration, noise or failures may occur if the transit bolts are not removed.

- Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted.

Installation

Use Process

Installation place requirement

• A concrete floor is the most suitable installation surface for a washing machine, being far less prone to vibration during the spin cycle than wooden floorboards or a carpeted surface.
• The machine must be level and securely positioned. The distance between the machine and wall must be more than 10 cm.
• To avoid vibrations during spinning, the machine should not be installed on soft floor coverings.

Level adjustment

The machine must stand perfectly level on all four feet to ensure safe and proper operation. Incorrect installation may increase electricity and water consumption and may cause the machine to move about.
To do these when the machine is not level: - Using the spanner turn locknut in a clockwise direction. Then turn locknuts together with adjust feet to unscrew.
- Use a spirit level to check the machine is standing level.
- Hold adjust feet securely with a pipe wrench. Turn locknut again using the spanner until it sits firmly up against the housing.

Note

Vibration and noise may occur if the locknuts do not sit firmly up against the houses.

Drain hose connection

1. Direct into a sink
   If the outlet spigot has not been used before, remove any blanking plug that may be in place.
   Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose to prevent waste from the sink entering the washing machine.
   If required, the drain hose can be extended to a length of 4 m.

Installation

Use Process

1. Connected securely to a standpipe.

Firstly form a hook in the end of the drain hose using the "U" piece supplied.

Place the drain hose into your standpipe, which should have an internal diameter of approximately 38mm thus ensuring there is an air break between the drain hose and standpipe.

When discharging into a standpipe ensure that the top of the standpipe is no more than 90cm and no less than 60cm above floor level.

Water inlet connection

Connect the inlet hose supplied with the machine to a tap with a 3/4" thread.

Do not use previously employed hoses.

Installation should comply with local water authority and building regulations' requirements.

When there is a inlet valve at the back of the machine, it must be connected to a cold water supply.

The functions of the control panel

Use Process

The control panel

1. Knob

Tum this knob clockwise or anticlockwise to select a required wash program. The available programs are Synthetic, Wool, Delicate, Sterilization, Cotton, Standard, Quick Wash and Spin. Once the "Start/Pause" button is pressed and the machine is running, the program can not be changed. The details of programs are on page 8.

2. Temp.

Press this button and select a required wash temperature. The details are on page 8. When all the lights of temperature are off, the wash temperature is "Cold".

3. Start/Pause

Press this button to start or pause the machine. The LED of "Start/Pause" flickers when the machine is in standby mode or pauses, and it is lit when running.

4. Power

Press this button to switch the machine on or off.

Important

Be sure to switch the machine off at the end of a wash cycle.

Note:

Standard Cotton at 60 °C and 40 °C are suitable to clean normally soiled cotton laundry and they are the most efficient programs in terms of combined energy and water consumptions for washing that type of cotton laundry; in addition, the actual water temperature may differ from the declared cycle temperature.

The functions of the control panel

Use Process

The content of programs

Program	Time(min)	Temp.(°C)	Rinse times	Spin speed (rpm)	MAX. Load (kg)
Cotton	85	Cold20/40/60	2	800	6
Standard Cotton	108	Cold20/40/60	2	800	6
Quick Wash	16	Cold20/40	1	800	1.5
Spin	13	--	0	800	6
Sterilization	138	90	2	800	3.5
Delicate	50	Cold20/40	2	400	2
Wool	50	Cold20/40	2	600	1.5
Synthetic	59	Cold20/40/60	2	800	3.5

Note: The running time above is for the default programs, which is only for reference, and it may different because of different laundries, weights and washing temperature. The default options of the programs are in boldface.

How to use washer

Use Process

Before washing clothes for the first time, you must run a complete cycle without clothes.

To do these:

1. Connect the power and turn on the tap.

2. Press the "Power" button, then turn the knob to position "Cotton".

3. Press "start/ pause"

It can remove the water which is left in the tub because of manufacturer's checking out.

Washing preparation

1. Connect the inlet hoses well and turn on the tap.

2. After making sure the power socket is grounded reliably, insert the power plug into the power socket.

3. Place the drain hose well.

Preparation of clothes

1. Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.

2. Make sure all the pockets are empty, Foreign objects (e.g. nails, coins, paper clips, etc.) can cause damage to garments and components in the machine.

3. Close any zips, fasten hooks and eyes etc before washing.

4. Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.

5. Badly soiled areas, stains etc. should be pre-treated with liquid detergent, stain removers etc.

6. Turn over the clothes which pull easily and is with woolen surface before putting them into the machine.

Put clothes into the washer

Unfold the laundry and load loosely in the drum. Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning. The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this causes creases and reduces cleaning efficiency.

Diagram 2

Diagram 3

Make sure that no garments are caught between the door and the seal.

How to use washer

Use Process

Using the detergent drawer

1. Open the drawer and add adequate detergent into main wash compartment marked "☐" or "II".
2. Add the fabric softener into compartment marked "☒" or "☒".

Do not exceed the maximum level mark.

1. Add the detergent into the pre-wash compartment marked "U" or "I" according to the programme you select.

2. Close the drawer.

The right amount to dispenser will depend on the following: • The quantity of laundry

• The soiling level of the laundry

Lightly soiled

No visible dirt or stains. Possibly slight body odour.

- Normally soiled

Visibly dirty and/or just a few slight stains.

Heavily soiled

Visible dirt and stains and/or dried on soiling.

• The water hardness level.

It is recommended to use low foaming powder.

Washing steps

1. Turn on the water tap, and connect the power.
   2.Open the door, and put the cloth into the drum one by one.
2. Close the door, and put suitable amount of detergent and fabric softener into the dispenser, then close the drawer.
3. Press the "Power" button, and choose a programme you need by turning the knob.
4. Press the "Temp." button and select a wash temperature.
5. Press * Start/Pause* button to start the washing machine.
6. When the cycle is finished, there is a warning tone sounds.

When washing cycle is finished, the machine will change into a standby mode. And the power will be off after 10 minutes without any control on the control panel.

How to use washer

Use Process

Washing programme chart

Programme	Washing symbol	Fabric
Cotton		Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, underwear, T-shirts etc.
Quick Wash		Small loads of items which require freshening up and which can be washed in a Cotton programme.
Spin		Separate spin for cotton and linen items
Standard Cotton		Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, underwear, T-shirts etc.
Synthetic		Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts.
Wool		Machine-washable or hand-washable wool or wool blend fabrics. If the care label does not specify a temperature, wash using the cold setting. Also suitable for hand-washable silks. Reduce the spin speed.
Delicate		For delicate garments made of synthetic fibres, mixed fibres, rayon and easy care cottons. Also suitable for machine-washable silks.

Note

The machine is fitted with a balance control device, which ensures the machine is stable during the spin. To protect the machine, it will cut in if the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 15 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistributed the load manually and reselect the spin programme.

Door lock

• When the machine is started, the door lock is locked when you press the "Start/Pause" button.
  Press the "power" button to switch off the machine and the door lock is unlocked in two minutes.
• When the temperature inside the drum is above 53°C, the door lock is locked.
• When the water is above a certain level, the door lock is locked.
• When the washing cycle is finished, the door lock is unlocked after two minutes.

Important:

Do not try to open the door when the washing cycle is not finished or power supply is cut off during the washing cycle, because the temperature may be high and you may be scalded.

Cleanness and Maintenance

Use Process

Disconnect the machine from the mains electricity supply and withdraw the plug from the socket before cleaning the machine.

The washing machine must not be hosed down.

Cleaning the exterior

Clean the exterior with a mild non-abrasive cleaning agent or soap and water using a well wrung-out cloth. Wipe dry with a soft cloth.

Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents. These might damage plastic surfaces and other components because of the chemicals they contain.

The washing drum

Clean the drum every 3 months by using the "programme.Sterilization

Cleaning the drawer

Remove detergent residues regularly. Clear the drawer following these:

• Pull out the drawer until a resistance is felt. Press down the release catch and at the same time pull the drawer right out of the machine.
• Remove the siphon from compartment and clean it.
• Clean the dispenser using a brush and warm water.

Cleanness and Maintenance

After Use

Cleaning the drawer housing

Use a bottle brush to remove detergent residues inside the drawer housing.

Cleaning the water inlet filter

Use pointed nose pliers to withdraw the plastic filter. Clean, put back and secure. These filter should be checked every 6 months or so, or more often if there are frequent interruptions to the water supply.

The filter must be put back in place after cleaning.

Cleaning the drain pump filter

1. Disconnect the machine from the mains electricity supply and open the pump cover with a screwdriver.

1. Place a container under the pump. Unscrew and remove the filter.

1. Clean the filler carefully.

The filter should be cleaned every 2 months or so, or when there is fault that the "Rinse" and "Spin" LEDs flicker.

Important:

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.
1. Turn off the water tap. 2. Unscrew the inlet hose
3. Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hose in a bowl. Run the spin programme.
4. Disconnect the appliance.
5. Screw the inlet hose and reposition the drain hose.
6. When you intend to start the machine up again, make sure that the room temperature is above 0^ C.

Troubleshooting guide

Difficult explanation

Problem	Error Code	Possible Cause	Solutions
The machine fills overtime.	"Spin" LED flickers.	1. The water tap is not open.2. The drain hose is put down.3. The water inlet valve is damaged.	1. Open the water tap.2. Hook up the hose.3. Change the water inlet valve.
There is a Door lock alarm.	"Rinse" LED flickers.	1. The door is not locked well.2. garment is caught between the door and the seal.3. The door lock is damaged.	1. Lock the door well.2. Put the garment into the drum.3. Change the door lock.
The machine drains overtime.	"Rinse" and "Spin" LEDs flicker.	1. The drain hose is squashed or kinked.2. The drain pump filler is block.3. The drainage system pipes are blocked.	1. Check the drain hose.2. Clean the filler.3. Check the drainage system and clean it.
Water overflows the machine./ Water sensor works abnormal.	"Washing" LED flickers.	1. The water inlet valve is damaged.2. The connection between the water sensor and wire is not secure.3. The water sensor is damaged.	1. Change the water inlet.2. Check the connection and ensure it is secure.3. Change the water sensor.
The motor does not work.	"Washing" and "Spin" LEDs flicker.	1. The connection between the motor and wire is not secure.2. The motor is protected because of over-heat.3. The motor is damaged.	1. Check the connection and ensure it is secure.2. Check if the machine is overloaded. Switch off the machine, and retry when the motor becomes cool.3. Change the motor.
There is a heating tube fault.	"Washing" and "Rinse" LEDs flicker.	1. The connection between the heating tube and wire is not secure.2. The heating tube is damaged.	1. Check the connection and ensure it is secure.2. Change the heating tube.
There is a temperature sensor fault.	"Washing", "Rinse" and "Spin" LEDs flicker.	1. The connection between the temperature sensor and wire is not secure.2. The temperature sensor is damaged.	1. Check the connection and ensure it is secure.2. Change the temperature sensor.

Automatic Front Loader

Technical parameters

Appendix

Appendix

Model Parameter	KL60FLW//KL60FLME
Power	220V~240V~50Hz
Washing / spin capacity	6.0kg
Rated power	2100W
Water pressure	0.02~0.8MPa
Power of off-mode	0.35W
Power of left-on mode	0.35W
Program time (min)	147
Remaining moisture content	Class D
Average Energy consumption	0.851kWh
Average Water consumption	431
Net weight / gross weight	51kg/58kg
Outer dimension (W x D x H) mm	695x530x845

Note:

Data can vary from the nominal values given depending on water pressure, water hardness, water inlet temperature, room temperature, type and volume of load, fluctuations in the electricity supply and any extra options selected.

Symbol expalanation

V	Volt	-	Alternating current
W	Watt	Hz	Hertz
	Safe test		CE symbol

Environmental Protection

Correct Disposal of this product

This marking indicates that this product should not be disposed with other house hold wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Electric Diagram

