Product TypeWireless Outdoor Access Point
ModelTEW-715APO
BrandTRENDnet
Wireless StandardIEEE 802.11b/g/n (N150)
Frequency Band2.4 GHz
Maximum Data Rate150 Mbps
Interface1 x RJ-45 PoE Port
PoE TypeProprietary Power over Ethernet (included injector)
Operation ModesAccess Point, WDS Bridge
AntennaInternal + External N-Type Connector
Maximum Output Power25 dBm (per chain)
SecurityWEP, WPA/WPA2-PSK, WPA2-AES
Default IP Address192.168.10.100
Default Login CredentialsUsername: admin, Password: admin
MountingPole Mount (max pole diameter 63 mm / 2.48 in)
GroundingGrounding wire included for outdoor installation
Package ContentsAccess Point, PoE Injector, Power Cord, Pole Mounting Clamp, Grounding Wire, CD-ROM (User Guide), Quick Installation Guide, 2 x RJ-45 Network Cables
LED IndicatorsPower (Solid Green), LAN (Blinking Green), Signal Strength (Green/Yellow/Red)
CertificationsFCC, CE
Included SoftwareUser Guide on CD-ROM

Frequently Asked Questions - TEW-715APO TRENDNET

How do I configure the TEW-715APO for the first time?
Connect the device to your computer via the PoE injector. Set a static IP in the 192.168.10.x subnet (e.g., 192.168.10.25). Open a browser to http://192.168.10.100, login with admin/admin, then configure wireless settings.
Can I use a standard IEEE 802.3af PoE switch with this access point?
No, the TEW-715APO does not support IEEE 802.3af. You must use the proprietary Power over Ethernet injector supplied with the device.
How do I set up a WDS bridge between two TEW-715APOs?
Configure each unit with a static IP, set Operation Mode to Bridge under Wireless > Basic Settings, then enable WDS and enter the remote AP's MAC address. Ensure both units are within range and facing each other.
What is the default IP address and login?
Default IP is 192.168.10.100. Username: admin, Password: admin (case-sensitive).
How do I mount the TEW-715APO on a pole?
Use the included pole mounting clamp. Loosen the screw, insert the clamp through the device, wrap around the pole (max 63mm diameter), and tighten the screw.
How do I connect the grounding wire?
Loosen the metal O-ring on the N-type connector, insert the grounding wire, tighten the O-ring, and connect the other end to a grounding object like a ground rod.
What do the LED indicators mean?
Power LED solid green indicates power on. LAN LED blinking green indicates network activity. Signal LED shows wireless signal strength: Green (strong), Yellow (medium), Red (weak).
How can I reset the access point to factory defaults?
There is no physical reset button mentioned. To reset, you may need to access the web interface and perform a factory reset under System > System Settings, or refer to the user guide on the CD-ROM.
What wireless security options are available?
The device supports WEP, WPA/WPA2-PSK, and WPA2-AES encryption. It is recommended to enable encryption to protect your network.
How do I update the firmware?
Firmware update instructions are not detailed in the quick guide. Please refer to the full User Guide on the CD-ROM or visit TRENDnet's support website for the latest firmware and update procedures.

User questions about TEW-715APO TRENDNET

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Access Point in PDF format for free! Find your manual TEW-715APO - TRENDNET and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TEW-715APO by TRENDNET.

USER MANUAL TEW-715APO TRENDNET

N150 Wireless Outdoor PoE Access Point TEW-715APO

• Quick Installation Guide (1)

1. Before You Start

Package Contents

  • TEW-715APO
    • CD-ROM (User's Guide)
    • Multi-Language Quick Installation Guide
  • PoE injector
  • Power cord
  • Pole mounting clamp
  • Grounding wire

Minimum Requirements

  • Computer with an Ethernet port and Web Browser
  • A network switch or router with an available network LAN port
    • 2 x RJ-45 network cables

Note: The TEW-715APO does not support IEEE 802.3af. You must use the proprietary Power over Ethernet injector that is supplied with the TEW-715APO.

2. Hardware Configuration

Note:

  1. The default IP address of the TEW-715APO is 192.168.10.100. To configure the TEW-715APO, your network adapter must have an IP address within the 192.168.10.x subnet (e.g. 192.168.10.50). Please refer to the Appendix in the User's Guide for more information.
  2. Disable any anti-virus and firewall programs before configuring the access point.

Phase 1: Configuration

Note:

  1. The initial configuration should be completed in a testing environment with the two TEW-715APO's approximately 15 ft. (5 meters) apart from one another.

  2. Configure and connect the devices before mounting.

  1. Write the MAC address of the two TEW-715APOs. The MAC address can be found on the back of the unit.

TEW-715APO Project Description: WTR Wireless Connection Pack Access Code P Address: 102.168.42-10D Password: admin FCC Domain: FCS MAC: X93XDD0000 WIN: 1523M218AM8XX085 Made in Office Made in Office

  1. Pinch the tab and slide the cover down.

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

  1. Connect one end of a network cable into the TEW-715APO #1.
  2. Remove the bottom cover and connect a network cable to the PoE port.
  3. Connect the opposite end of the network cable to the POE port on the Power over Ethernet Injector.
  4. Connect one end of another network cable to the LAN port on the Power over Ethernet Injector.
  5. Connect the other end of a network cable to your computer's Ethernet port.
  6. Connect the power adapter into the Power over Ethernet Injector. Then connect the power adapter into a power outlet.

  7. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.

  8. Open your web browser, type the IP address of the access point in the address bar, and then press Enter. The default IP address is 192.168.10.100

http://192.168.10.100 File Edit View Favorites Tools Help

  1. Enter the User name and Password, and then click Login. By default:

User Name: admin

Password: admin

Note: User Name and Password are case sensitive.

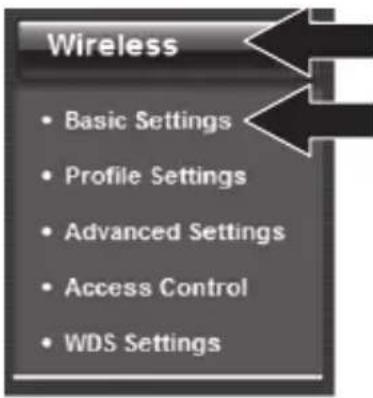

  1. Click Wireless and then click Basic Settings.

Wireless • Basic Settings • Profile Settings • Advanced Settings • Access Control • WDS Settings

  1. Select Bridge for Operation Mode.
  2. Click Apply.

Double Wireless LAN Interface Operation Mode: Hedge M2.91 Mode: 803.116154V Frequency/Channel: 2137MHz (K) Extension Channel: None Channel Mode: 20 MHz Antenna: Internal (3 GHz) External (N-Type) Maximum Output: Power (per chain): 25 dBm Data Rate: Auto External Channel Protection: None Apply - Cont…

  1. Click OK.

Change settings successfully! OK

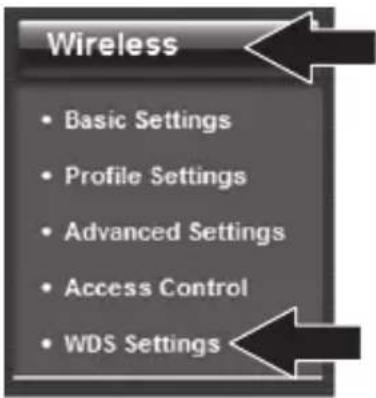

  1. Click Wireless and then click WDS Settings.

Wireless • Basic Settings • Profile Settings • Advanced Settings • Access Control • WDS Settings

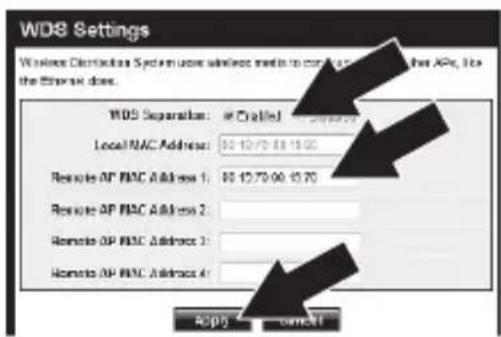

  1. C lick Enabled for WDS Separation.

  2. Enter the MAC address of the TEW-715APO that you are connecting to.

  3. Click Apply.

WDS Settings Wireless Classification System user wireless mode to control the IPe, it is the Ethernet does. WDS Separation: C:\Created\Local MAC Address Local MAC Address: $5.10/70 48.19/20 Remote AP MAC Address 1: $5.15/70 00.15/70 Remote AP MAC Address 2: Remote AP MAC Address 3: Remote AP MAC Add…

  1. Click OK.

  2. Please refer to the user manual for the steps in setting up wireless encryption.

Note: To protect your network from any unauthorized access it is recommended to enable wireless encryption.

  1. Click Back.


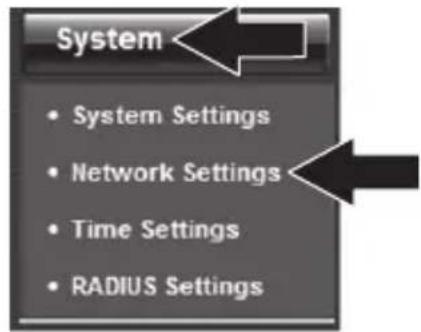

  1. Click System and then click Network Settings.

System • System Settings • Network Settings • Time Settings • RADIUS Settings

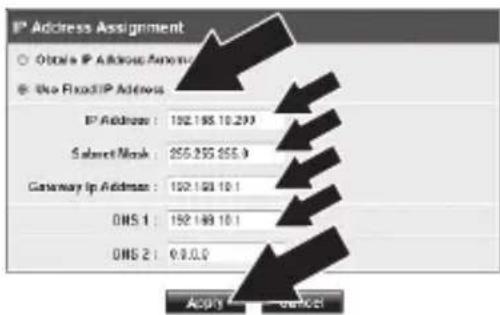

  1. Select Use Fixed IP Address.

  2. Configure the TEW-715APO's IP address to a valid IP address within the subnet defined by the Router. Avoid using an IP address within the DHCP pool of your router. In this example, we will assume the following:

Router IP Address: 192.168.10.1

Subnet Mask: 255.255.255.0

DHCP Pool:

192.168.10.100\~192.168.10.199

The TEW-715APO will be setup with the following IP address assignment:

IP Address: 192.168.10.200

Subnet Mask: 255.255.255.0

Gateway IP Address: 192.168.10.1

DNS 1: 192.168.10.1

25. Click Apply.

IP Address Assignment ○ Optale IP Address Amounts ● Use FixedIP Address IP Address : 192.195.10.293 Select Mask : 255.255.255.9 Gateway IP Address : 192.193.10.1 DNS 1 : 192.199.10.1 DNS 2 : 0.0.0.0 Apply Cancel

  1. Click OK.
  2. Repeat steps 2-26 for TEW-715APO #2.

Phase 2: Confirm Connectivity

Note:

  1. Leave TEW-715APO #2 connected to your computer.
  2. Connect TEW-715APO #1 to a LAN port of a router on your network.
  3. To verify connectivity, run your computer's command prompt and ping TEW-715APO #1's assigned IP address from your computer.
  4. A successful ping reply determines that both TEW-715APOs are configured properly and connected.

3. Hardware Installation

Point-to-Point (WDS Bridge) Configuration

Building 1
Building 2

  1. Refer to the above diagram.
  2. Mount the TEW-715APOs in your desired location. See Pole Mounting the TEW-715APO for mounting instructions.
  3. Connect the TEW-715APOs to their respective network.
  4. Confirm that the TEW-715APOs are facing each other.
  5. Verify that the status LED indicators on both TEW-715APOs are fully functional: Power (Solid/Green), LAN (Blinking/Green) and Signal Indicator [Wireless] (Green, Yellow or Red).

Connecting the Grounding Wire

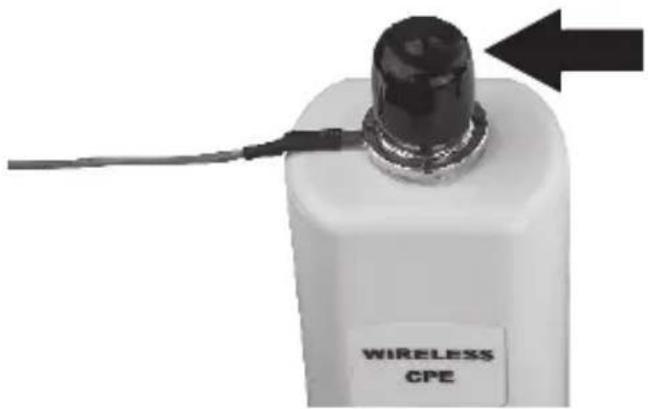

  1. Loosen and remove the metal O-ring on the N-type connector.
  2. Put the grounding wire into the connector and tighten up with the O-ring.

Close-up of a white cylindrical device with a black top and cable, labeled 'WIRELESS CPE' (no additional text or symbols visible)

  1. Connect the grounding wire to a grounding object. e.g. Earth driven rod or grounded electrical system.

Close-up of a white wireless CPE device with a black sensor and cable, no visible text or symbols on the device itself.

Pole Mounting the TEW-715APO

Note:

The pole mounting clamp supports poles with a maximum diameter of 63mm (2.48 inches).

  1. Turn the screw on the pole mounting clamp counter clockwise.

Close-up of a metal clamp ring with a black arrow pointing to it (no text or symbols)

  1. Insert the pole mounting clamp through the middle of the TEW-715APO.

White industrial device with attached cable and label (no readable text or symbols)

  1. Wrap the mounting clamp around a pole.

Illustration of a cylindrical mechanical device with attached clamps and a control panel (no text or symbols visible)

  1. Secure the TEW-715APO to pole by turning the screw clockwise.

Close-up of a metallic mechanical component with a black arrow pointing downward (no text or symbols visible)

Wireless outdoor access point installation is now complete.

For detailed information regarding the TEW-715APO's configuration and advanced settings and mounting instructions, please refer to the User's Guide on the provided CD-ROM.

Company Information:

Company Name:

TRENDnet, Inc.

Company Address:

20675 Manhattan Place

Torrance, CA 90501

USA

Product Information:

Product Description:

N150 Wireless Outdoor PoE Access Point

Model Number:

TEW-715APO

Brand name:

TRENDnet

CE!

Technical Standards:

EN 300 328 V1.7.1: 10-2006

EN 301 489-1 V1.9.2:09-2011

EN 301 489-17 V2.1.1:09-2011

EN 50385 : 2002

The product is herewith confirmed to comply with t he requirements of Directive 1999/5/EC of the Council (European Parliament) on the radio and telecommunications terminal equipment and Energy-related products Directive 2009/125/EC.

I hereby declare that the products and devices mentioned above are consistent with the standards and provisions of the guidelines.

Sonny Su

Full Name

July 16, 2012

Date

Director of Technology

Position/Title

lloyd Signature

GPL/LGPL General Information

This TRENDnet product includes free software written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. The details of the GNU GPL and LGPL are included in the product CD-ROM. Please also go to (http://www.gnu.org/licenses/gpl.txt) or (http://www.gnu.org/licenses/lgpl.txt) for specific terms of each license. The source codes are available for download from TRENDnet's web site (http://trendnet.com/downloads/list_gpl.asp) for at least three years from the product shipping date. You could also request the source codes by contacting TRENDnet. 20675 Manhattan Place, Torrance, CA 90501, USA. Tel: +1-310-961-5500 Fax: +1-310-961-5511.

Product Warranty Registration

Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register

Certifications

This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.

TRENDNET TEW-715APO - Certifications - 1

TRENDNET TEW-715APO - Certifications - 2

Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with you Local Authority or Retailer for recycling advice.

TRENDNET TEW-715APO - Certifications - 3

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
