USER MANUAL TV1070 ENERGY SISTEM

User Manual

I. INTRODUCTION

To ensure your safety and the safety of others, please ensure that you read all the safety information before operating this product.

Keep this information in a safe place for future reference.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Safety Considerations.

• Position the cables so that they cannot be walked on or pinched by items placed on or against them.
• Do not use the device in humid or damp conditions.
  Do not allow the device to get wet.
  ▶ Do not expose the device to dripping or splashing.
  Do not place water filled objects such as vases on top of the device.
  Do not place naked flame sources, such as candles, on the top of the device.

Ventilation

The slots and openings on the device are for ventilation. Do not cover or block them as it may cause overheating.

NEVER let children push anything into the holes or slots on the case.

Battery Disposal

Please ensure batteries are disposed of safely.

Never dispose of batteries in a fire or with other household waste.

Check with your local authority for disposal regulations.

Cleaning

ALWAYS unplug the product before you clean it.

Do not use liquid or aerosol cleaners.

Clean the device with a soft, damp (not wet) cloth.

ENERGYTV handling and care
Place the product in a well-ventilated area Don’t install it in the cold or under direct sunlight
Leave a minimum 10cm gap all around the product	Do not disassemble, repair, or reorganize the product
Don’t place cups with water or other liquids on the top of the product	Don’t place objects on the top of the product

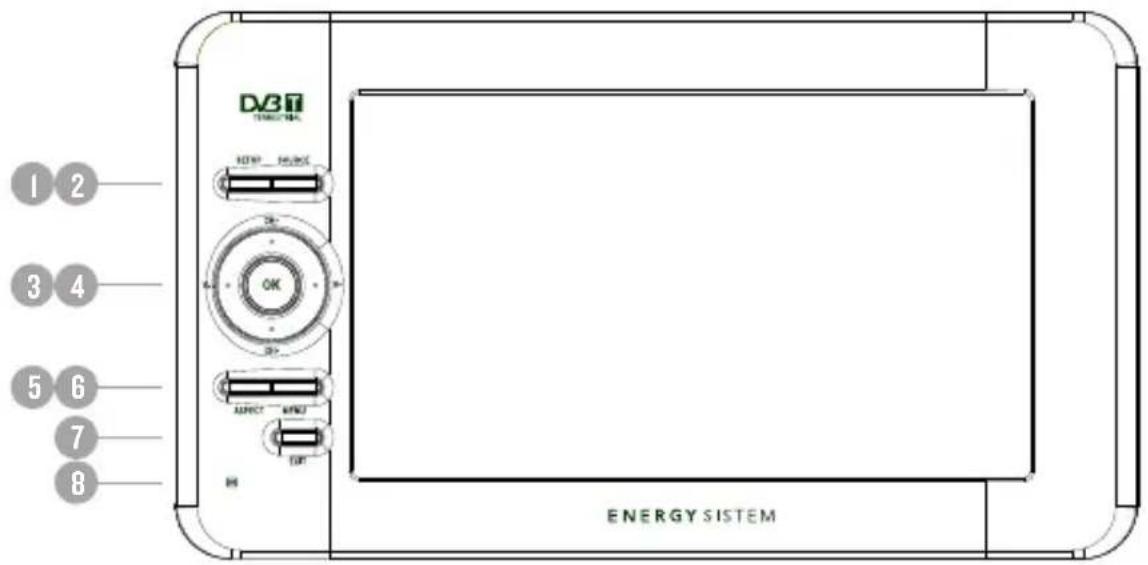

2. CONTROLS AND CONNECTIONS

1. SETUP: Adjust brightness/contrast/color/hue of the screen in playback mode.
2. SOURCE: Select the input source.
3. CH+/- V+/-: Navigation buttons. Used to browse the menus and to confirm selection. In playback mode changes channel / adjusts volume.
4. OK: Confirm a selection within a menu or show the channel list in DVB-T mode.
5. ASPECT: Switch between 4:3 and 16:9 aspect ratios.
6. MENU: Access the setup menu.
7. EXIT: Leave the current menu.
8. IR Sensor: Receives the signal from the remote control.
9. Antenna coaxial connector.
10. 3.5 mm (1/8") TRRS A/V input.
    II. 3.5 mm (1/8") TRRS A/V output.
11. 3.5 mm (1/8") Stereo earphone output.
12. Power Switch.
13. DC Power connection DC (I2 V).
14. USB connector.
15. Card reader.

3. REMOTE CONTROL

3.1. BUTTON DESCRIPTION

1. MUTE: Mute/unmute the sound.
2. EPG: Electronic Program Guide.
3. PAUSE: Pause or resume the playback.
4. FAV: Access your favorite channels.
5. TV/RADIO: Switch between TV and radio channels.
6. STOP: Stops the playback or recording.
7. CH+/- V+/-: Navigation buttons. Used to browse the menus and to confirm selection. In playback mode changes channel / adjusts volume.
8. OK: Confirms the selection.
9. MENU: Access the main menu.
10. SETUP: Adjust the brightness/contrast/color/hue parameter of TFT screen.
    II. SCREEN: Switch on/off the screen.
11. INFO: Display information about the channel being viewed or special function indicated on the menu.
12. RECORD: Record the program manually and select the record duration if pressed twice.
13. Number keys: Select channels by number or use

when numerical input is required.

1. AUDIO: Selects between available audio tracks or sets the sound mode as LR (stereo), LL (left) or RR (right).

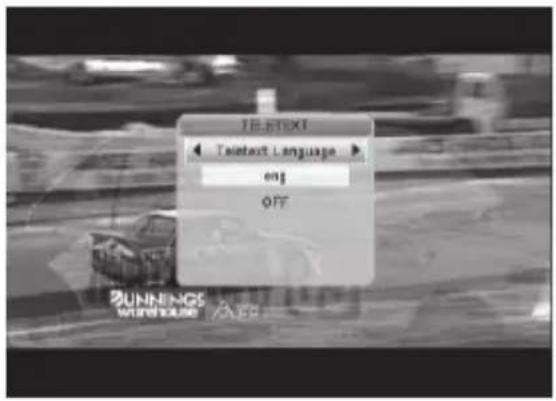

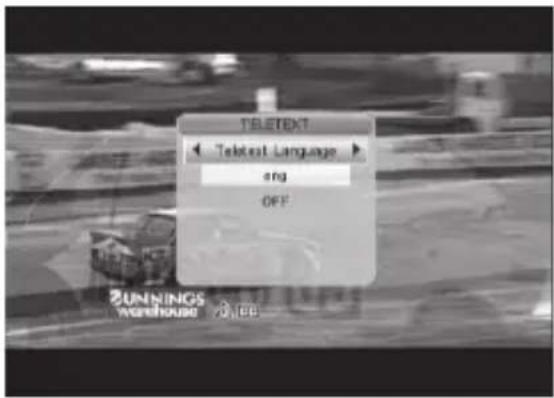

2. TTX: Teletext in DVB-T mode.
3. EXIT/RECALL: Return to the previous screen or menu.

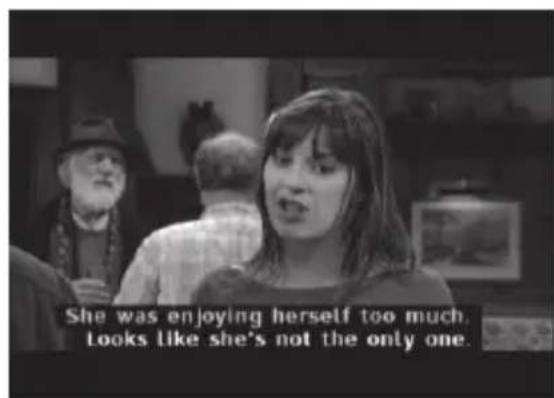

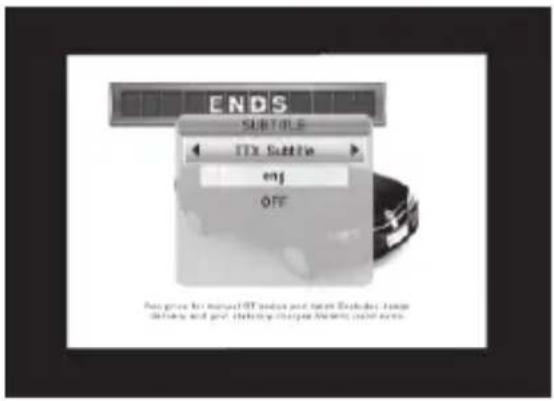

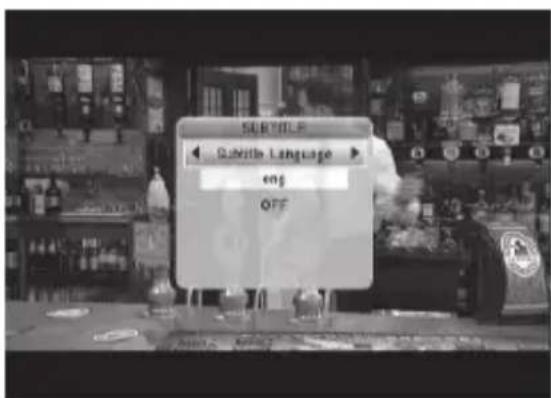

4. SUBTITLE: Switch among available subtitles.
5. SPEAKER: Enables/disables the integrated speakers.
6. ASPECT: Switch between 4:3 and 16:9 aspect ratios.

Note:

SUBTITLES/TEXT/AUDIO may not be available for all channels.

A/V output is unavailable when working in A/V in mode: it only works in DVB-T mode.

FUNCTION/SCREEN/SPEAKER/ASPECT will act as RED/GREEN/YELLOW/BLUE key depending on context.

3.2. BATTERy

Pull the battery loader out and insert a CR2025 battery.

Make sure to place the battery in the correct direction.

When not using the remote control for a long time remove the battery.

When operating range reduces replace the battery.

4. BUILT-IN RECHARgEABLE BATTERy (2070/2090 MODELS ONLY)

This portable TV uses a smart battery management system with low-battery detection.

If the battery voltage falls below a specific value, the unit will enter low battery mode displaying a flashing low battery icon in the OSD, indicating the user needs to recharge the TV immediately.
If the AC/DC adapter is connected the battery will be charged whatever the power switch is on or off.
When the battery is almost exhausted a blinking empty battery icon will be displayed on the left-up corner. The screen and audio will be disabled but the system is still working. If the user plugs the DC adaptor soon enough the system will resume playback.

5. USER INTERFACE

Note that the first time you use EnergyTV it will automatically show the Setup->Installation screen in order to scan for TV and radio channels. Please refer to Setup->Installation in page 8.

Once the channel scan is finished and all the channels are stored into the database, you can start to watch the digital terrestrial TV channel or listen to the radio broadcast, some typical operations are given in this chapter.

Press

to enter Main Menu. See Figure 1.

Press to display EnergyTV version information.

Figure I. Main Menu - Setup

5.1. SETUP

Set the system settings. See Figure 1.

5.1.1. Installation

Figure 2. SETUP - Installation Figure 3. SETUP - Installation (continued)

Set the receiving and playing program settings of EnergyTV. See Figure 2, Figure 3.

Antenna Setting

Set the antenna power on or off to supply +5V power to antenna or not.

Note: The default is OFF, set this option to ON only if EnergyTV is connected to an active antenna which amplifies the received RF signal, otherwise please set it to OFF.

Country Setting

Set the country for Auto Scan, Manual Scan and Time Zone.

Note: Change the Country Setting will automatically change the default Time Zone and set the default

Frequency and Bandwidth for Auto Scan.

OSD Language

Set the On Screen Display Language.

Audio Language

Set the audio language for watching a program (availability depends on channel broadcaster).

Subtitle Language

Set the language for displaying subtitle program (availability depends on channel broadcaster).

LCN

Set the Logical Channel Number to ON or OFF.

Note: LCN is a number that uniquely identifies a logical channel, which is popular in some European countries such as England or France.

Auto Time Zone / Time Zone

Allows you to enable or disable auto time zone update. If you know the GMT (Greenwich Mean Time) time zone offset of your location, set the Auto Time Zone to OFF and select an appropriate Time Zone, otherwise set it to ON and let the system update the time zone automatically according to the transport stream. See Figure 3

Note: Some Countries are covered with more than one Time Zone.

Auto Scan

Auto Scan will erase the database first, and scan default frequency and bandwidth by Country Setting.

Press button to start Auto Scan.

Press button to confirm clear action and start Auto Scan.

It costs time to do Auto Scan, you can press button to exit at anytime. See Figure 4, Figure 5.

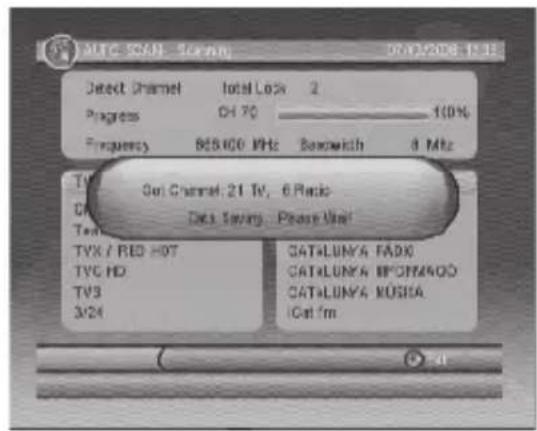

Figure 4. Clear database message Figure 5. AutoScan Finished

Manual Scan

Press button to start Manual Scan.

Manual Scan adds the scanning results into database, it doesn't erase the database. But you have to indicate the Frequency and Bandwidth for scanning. If you scan the same Frequency and Bandwidth more than once, the previous programs will be overwritten.

Press button to enter Manual Scan Page.

Press button to select Frequency option.

Press <0\~9> button to input the Frequency value.

Press button to select Bandwidth option.

Press button to set Bandwidth value.

Press button to start scan or exit. See Figure 6, Figure 7.

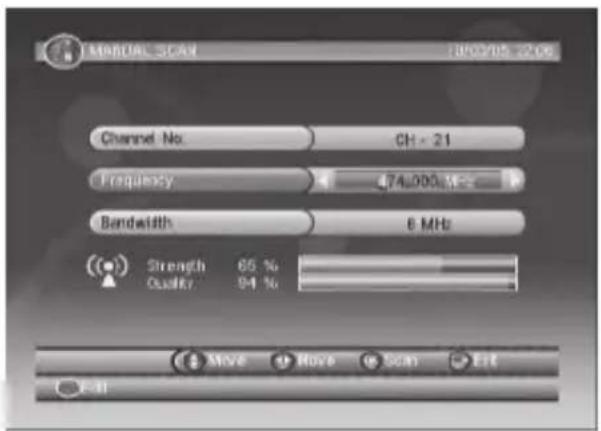

Figure 6. Manual Scan edit Figure 7. Manual Scan finished

5.1.2. TV Setup

Setup the display mode for TV. See Figure 8

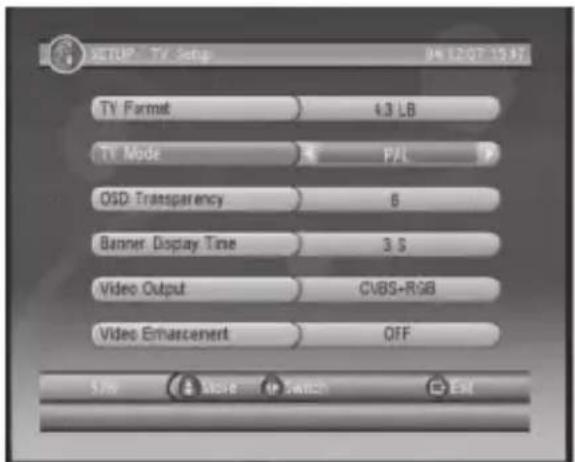

Figure 8. TV Setup

TV Format

4:3LB(LetterBox): Typically for wide screen content on conventional 4:3 TV with black bars above and below the picture.
4:3PS(PanScan): Typically for wide screen content on conventional 4:3 TV with left and right edges cropped.
16:9PB(PillarBox)/16:9 AUTO: Typically for wide screen 16:9 TV.

TV Mode

Set PAL, NTSC or AUTO for display. AUTO will switch PAL or NTSC by program content. This setting should be matched with user's TV.

OSD Transparency

Set the On Screen Display transparency. "I" is the most transparent.

Banner Display Time

Set Banner display time. Banner does not automatically disappear when set as "Always" and disappears at timeout when set to other values.

Figure 9. Password page

5.1.3. Password

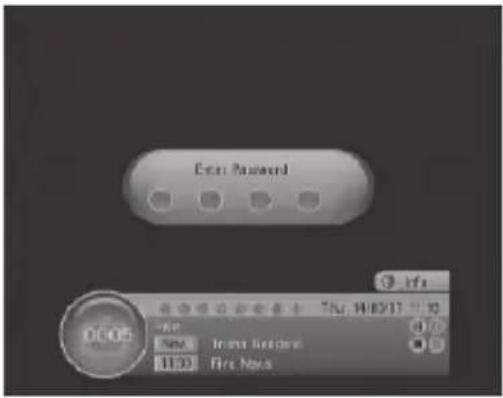

Set password for menu, channel or censorship lock. And the user can change password here, the default Password is 6666. See Figure 9

Menu Lock

Password-lock the menus.

Channel Lock

Lock the channel which has been set to lock status when turning on the Channel Lock. Please see

section "Lock" on page 13 for details.

Censorship Lock

Lock the program by password and censorship threshold. The censorship info is in program content. Under the censorship rating, user has to enter the right password for watching program.

Change Password

To change the Password, select this option, press button to trigger changing password and <0\~9> buttons to enter old password, new password and confirm new password. If succeed, the Password Changed message will be displayed, otherwise the Password Error message will be displayed.

5.1.4. Advance Timer

User can set timer for watching the program by date and time manually or from the TV/Radio Guide(see section "Guide" on page 14). When scheduled date/time arrives, EnergyTV will automatically switch to the scheduled program. Press any key except button, EnergyTV will ask you to abort it or not when watching booked program. You can delete the event while it is not running.

5.1.5. Set Default

Restore EnergyTV to factory default settings. All user settings will be restored to factory default values and the TV/radio channel database will be erased together.

5.1.6. SW Update

Updates EnergyTV firmware by USB.

5.2. TV/RADIO

There are two types of programs: TV and Radio.

The operation of the List and Guide of TV and Radio are almost the same. Herein take TV as an example.

5.2.1. List

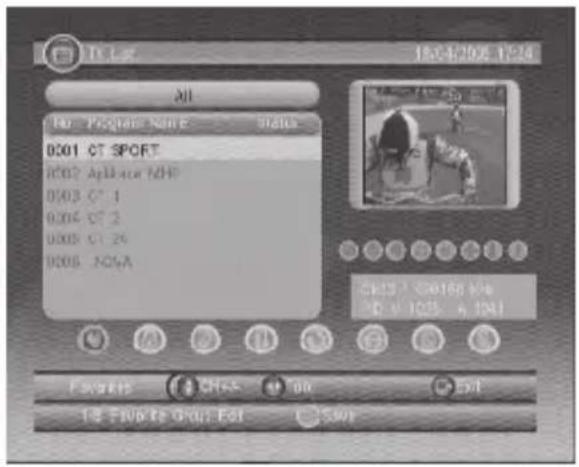

Figure 10. TV List

There are several options to manage channels:

Favorites

User can quickly arrange the favorite programs by favorite filter. There are 8 groups of favorite channels: News, Sport, Movie, Music, Shopping, Travel, Boy and Girl. Press <1\~8> button to set or clear the favorite group when Favorites option is selected.

Lock

Lock will ask for the password before watching this program when Setup -> Password -> Channel Lock is turned on. Please see section "Channel Lock" on page II for details. Press button to set or clear lock status when Lock option is selected.

Edit

You can edit the program name, maximum length is 20 characters.

Press button to select Edit option and button to select the program.

Press button to display program info and press it again to edit program name.

Press button to select the character.

Press button to finish the editing and return to previous program info page.

Press button to save the editing and return to List or press button to return to List without saving.

Move

Move will allow you to move the position of the channels in the list.

Note: This option will not appear when SETUP->Installation->LCN is set to ON.

Sort

Sort will allow you to sort the channels by A<->Z or Pay<->Free.

Note: This option will not appear when SETUP->Installation->LCN is set to ON.

Skip

Skip will skip the program when changing a program by CH+/-. Press button to set or clear skip status when Skip option is selected.

Delete

Delete will delete the program permanently from the database. You must rescan to recover it.

Press button to set delete one or delete all when Delete option is selected.

Search

User can search the program name by partial keyword.

Press button to select Search option.

Press button to entry search page.

Press button to input keyword.

Press button to Search and return List. The matched program will be focused.

Press button to the next or previous matched program.

5.2.2. guide

Guide is also known as EPG (Electronic Program Guide). See Figure II, Figure 12.

Press button to select program or EPG event.

Press button to change event or date.

Press button to exit all the menus or show the detailed information of a selected event (availability depends on channel broadcaster).

Press button to exit to previous menu.

Press button to enter Book page and button to save after edition. If it's in conflict with itself or other event, a conflict message will be displayed. The successful booking will be added to Main Menu-> Setup-> Advanced Timer(see section 51.4 on page 12).

Figure 11. Guide - Event Figure 12. Guide - Event (detail)

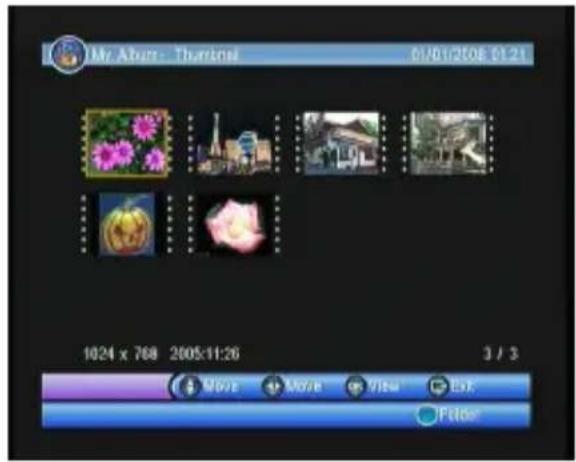

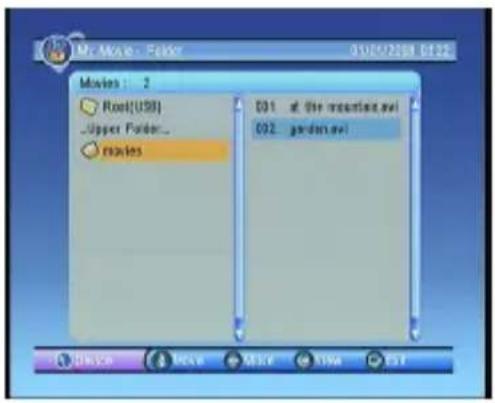

5.3. MULTIMEDIA

Multimedia must be used with external USB device inserted, otherwise the "Device is not ready!" message will be displayed. If you remove the USB device a "Device is removed!" message will be shown and the system will return to Main Menu.

5.3.1. My Album

Use this option to view JPEG/BMP/GIF files.

If there are photos in the device root folder it will start in Thumbnail mode, otherwise it will start in Folder mode. Press button to switch to Folder mode and button to return to Thumbnail mode again.

The info (width x height and date) of selected photo will be displayed at the left bottom in Thumbnail mode and right up in Folder mode. See Figure 13 Figure 14.

Figure 13. My Album - Thumbnails Figure 14. My Album - Folder

Use to browse folders or files.

Press to view the selected photo and press again to start slide show.

Press to view the available functions.

Zoom

Press to zoom in / zoom out the photo in view mode. The zoom factor can be: 25-50-100-150-200 %

If zoom factor is greater than 100% you can use to move through the zoomed picture.

Rotation

Press to rotate clock/counterclockwise and to flip horizontal or vertical direction.

Slide show

Press to view the photo in Thumbnail or Folder mode and press it again to start the slide show.

Press to play/pause the slide show.

Press to set background music while slide show is running.

Press to switch between repeating modes.

Press to set the time gap between photos.

Press to manually select the previous/next photo.

5.3.2. My Music

Use this option to listen to MP3/WMA files.

The music jukebox display includes (see Figure 15 Figure 16):

Progress bar with elapsed and total playing time.
▶ Audio spectrum visualizer.

Press to browse folders and files.

Press to play or pause.

Press to stop.

Press to set play mode as Repeat All / Repeat Random / Repeat Off.

Press to set fast forward speed as x2 / x3 / x4 / normal.

Press button to adjust volume while playing.

Figure 15. My Music - Browser Figure 16. My Music - Play

5.3.3. My Movie

My Movie can play most of MPEG2, DivX, Xvid standard-resolution files.*

It displays the playing file name at the top left corner and use the INFO key to get the current playing time and total time information while playing. See Figure 17, Figure 18.

Press INFO button to select device if an external USB hub connected while browsing, and to show the control info bar while playing.

Press to select folders and files during browsing

Press button to select a file to play.

Press button to play or pause while playing.

Press button to play the frame one by one while playing.

Press button to set fast backguard speed as x2,x4,x8,x16,x32, normal.

Figure 17. My Movie - Browser Figure 18. My Movie - Play
* Multimedia files compatibility depends on container file format and audio / video codec

5.3.4. My Record

Within My Record you can view the programs already recorded and configure recording options.

Note: the external storage device file system must be FAT or FAT32.

Recorded List

View or delete recorded programs.

Recording Device

Select the storage device and partition where the recordings will be stored.

Recording Preference

Time Shift Size

Note that Time Shift Size is calculated automatically according to the current storage device or partition and cannot be modified.

Time Shift

Pause: Timeshift starts when button is pressed.

Auto: Timeshift is continuously active.

Off: Timeshift disabled

One Button recording

On: EnergyTV starts recording with a simple button press.

Off: After pushing you have to specify the lenght of the recording.

Default recording period

Specify the default recording period from 15 minutes to 8 hours in 15-minutes steps.

Figure 19. My Record Figure 20. Recorded list

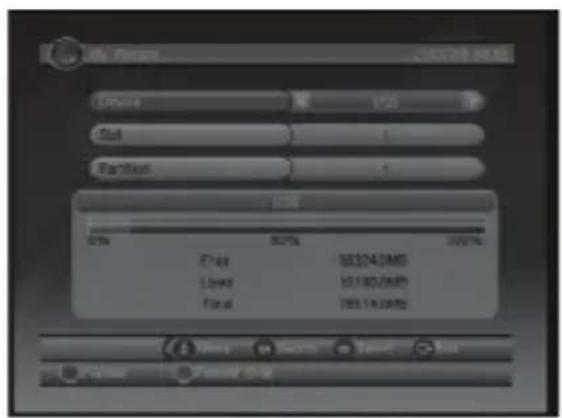

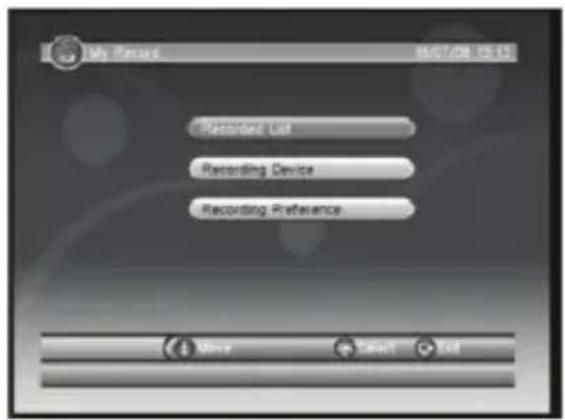

Figure 21. Recording Device Figure 22. Recording Preferences

5.4. ACCESSORy

There are three options: Gomoku, Calendar, Calculator.

5.4.1. gomoku

Press button to set play mode and difficulty. Press button to start play Gomoku.

Press button to select the position. Press button to place the piece.

5.4.2. Calendar

Displays the year, month and day.

5.4.3. Calculator

For mathematical calculations.

6. NORMAL PLAy

Normal Play means EnergyTV under watching TV or listening to the Radio. See Figure 23, Figure 24, .

Figure 23. Normal Play - TV Figure 24. Normal Play - Radio

6.1. INFORMATION

Press button once to display info banner. Banner displays the program No., favorite setting, current time, program name, now and next event, lock, scramble, subtitle and teletext info. See

Figure 25.

Press button when banner exists to display detailed info of a present event Press button when detail exist to display current program info. See Figure 26.

Figure 25. Information banner Figure 26. Program Info

6.2. SWITCH PROgRAM

User can switch program by or input channel number directly. If the input program number doesn't exist, EnergyTV will ignore the input.

Press button to switch to the last watched channel from the current program.

6.3. VOLUME

Press button to adjust the volume. Press button to mute.

If you adjust the volume while on mute, mute will be cancelled.

6.4. PROgRAM LIST

Press button to display Program List with No., name and lock/scramble/skip status. See Figure 27.

Press to change the channel. Press to return to the normal play mode.

Figure 27. Program List Figure 28. Audio Channels

6.5. AUDIO

Switch the sound channel and switch sound mode to LR(stereo) or LL(left) or RR(right). If setting audio language at Setup->Installation->Audio Language, the audio channel default language will be chosen by setting. See Figure 28. Press

Press button to select Channel/Audio PID or Sound Mode option.

Press button to set the value.

6.6. PAUSE

Pause video and audio. But it will be cancelled by any input.

6.7. FAVORITES

User can switch the favorite programs in the same favorite group. About favorites settings, see section "Favorites" on page 13 for details.

Press button to switch to the favorite group in Program list.

Press button to switch to the same favorite program in normal play mode.

6.8. TELETEXT

Display teletext on screen, the style of teletext may be different by content provider. See Figure 29, Figure 30.

Press button to display the teletext setting page.

Press button to select the teletext language if the program has teletext (availability depends on channel broadcaster).

Press button to exit the teletext setting page.

Press <0\~9/Up/Down/Left/Right> button to change teletext page (if available).

Figure 29. Teletext settings Figure 30. Teletext

6.9. SUBTITLES

Display subtitles on screen. The style of subtitles may be different by content provider (availability depends on channel broadcaster). See Figure 31, Figure 32.

Press button to display subtitle setting page.

Press button to select subtitle language, if subtitles are available.

Press button to exit subtitle setting page.

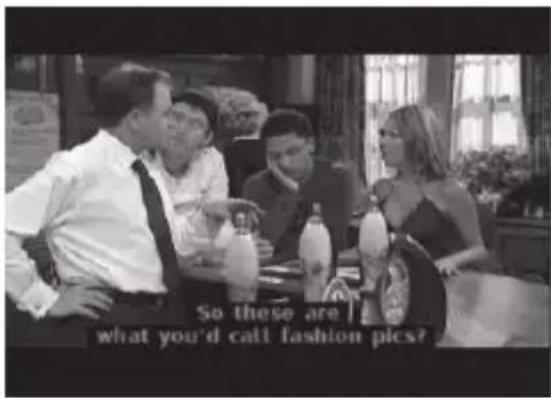

Figure 31. Subtitle settings Figure 32. Subtitles

6.10. TELETEXT SUBTITLE

Display subtitle by teletext, the style of the teletext subtitle may be different by content provider (availability depends on channel broadcaster). See Figure 33. Figure 34.

Press button to display teletext or subtitle setting page. Press button to select "TTX Subtitle".

Press button to select teletext subtitle language. Press button to exit the setting page.

Figure 33. Teletext language Figure 34. Teletext subtitles

6.11. gUIDE

Press button at normal play state, see section "Guide" on page 14 for details.

6.12. MESSAgES

There are some messages to inform user the current status of the EnergyTV.

No Signal
If the EnergyTV can't get the signal, for example if the antenna cable is disconnected.
No Service
Program doesn't have any contents to play.
▶Encoded Service
Program is encoded for payment, you need to contact with the content provider to know how to decode it.
Antenna Overload
The power of antenna is overloaded.
HDTV Not Support
If the program content is HDTV format, EnergyTV doesn't support it.
Channel Locked

Program is locked by setting lock (see section "Lock" on page 13) and turning on channel lock in password setting (see section "Channel Lock" on page 11). You must input the correct password to watch the channel. See Figure 35

Figure 35. Password-locked channel

6.13. SCREEN SETTING

Press the SETUP button to change the parameters of the image.

Figure 36. Picture settings

7. TROUBLESHOOTING

If you experience problems with this receiver or its installation, in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section.

Problem Possible cause Solution
No signal found Aerial	is disconnected Check aerial lead
	Aerial is damaged/misaligned Check aerial
	Out of digital signal area Check with dealer
No picture or sound	Viewing incorrect output Press the DTV/AV buttonPress the SCREEN buttonPress the SPEAKER button
Encrypted channel message	It's a pay-per-view channel Select an alternative channel
No response from remote control	Device is switched off Plug in and turn on the device
	Remote control is not aimed correctly	Aim the remote control directly at the sensor on the front of the player
	Front panel is obstructed Remove any obstacles between the remote control and the sensor
	Remote control batteries inserted incorrectly	Check the polarity of the batteries
	Remote control batteries exhausted	Replace the batteries if necessary
Square blocks in picture or picture freezes	Aerial may not be compatible Check with dealer
	Aerial is damaged/misaligned Check aerial

8. SPECIFICATIONS

Item Specification
Connectors RF in IEC	69-2 female connector
	Stereo headphones 3.5 mm jack
	A/V out 3.5 mm Composite video (CVBS) + audio L/R
	A/V in 3.5 mm Composite video (CVBS) + audio L/R
	USB Multimedia playback	FAT32Some external hard disks may not be supported
	Card Reader Secure Digital / MMC / Memory Stick
RF signal VHF: 174 - 230 MHz		UHF: 470 - 862 MHz
Power Input AC 100—	240 V 50/60 Hz
		DC 12 V
	Consumption 12 W max.
Screen Type Color TFT-LCD
		Size 7" (1070/2070 models) or 9" (2090 model)
		Resolution 480 x 234 pixels
Dimensions		220 x 125 x 31.5 mm (1070/2070 models)265 x 155 x 32 mm (2090 model)

Specifications are subject to change without further notice.

WARRANTy

Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase.

The warranty period is 36 months from the date of purchase.

WARRANTy PROCEDURE

Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions). The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates.
If you cannot find an appropriate solution in the Support section, you may send us your enquiry or warranty service request by email: [e-mail]
Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Specifications are subject to change without notice.

© 2010 by Energy Sistem®. All rights reserved.

TRADEMARKS.

All company, brand and product names are trademarks or registered trademarks of their respective companies.

DECLARATION OF CONFORMITY

Manufacturer Name: Energy Sistem Soyntec S. A.

Address: Pol. Ind. Finestrat – C/ Calpe, I – 03509 Finestrat Alicante

Tel: [phone]

Fax: [phone]

NIF: A53107488

We declare under our own exclusive responsibility that the products:

Energy Sistem® Portable Multimedia TV Energy™ TVI070 Black

Energy Sistem® Portable Multimedia TV Energy™ TV2070 Black/White/Pink

Energy Sistem® Portable Multimedia TV Energy™ TV2090 Black

Are in compliance with the essential directives, norms and standards of the European Union 89/336/EEC (EMC Directive).

Manufacturing country: China
