Product Type	E-ATX Cube Case
Brand	Thermaltake
Model	Level 20 XT
Dimensions (H x W x D)	515 x 394 x 623 mm (20.3 x 15.5 x 24.5 in)
Material	SPCC, Aluminum, 4mm Tempered Glass
Side Panel	4mm Tempered Glass x 4 (Left, Right, Front, Top)
Motherboard Support	Mini ITX, Micro ATX, ATX, E-ATX (up to 12" x 13")
Expansion Slots	8
Drive Bays	6 x 3.5" or 2.5" (HDD Cage); 1 x 3.5", 2 x 2.5" (M/B Tray)
I/O Ports	USB 2.0 x 2, USB 3.0 x 2, HD Audio x 1, USB Type-C x 1
Cooling System (Pre-installed)	Rear: 140mm fan (1000 rpm, 16 dBA)
Fan Support	Front: 3x120/2x140/2x200mm; Top: 8x120/6x140/2x200mm; Rear: 2x120/2x140mm; Left/Right: 4x120/3x140mm; Bottom: 3x120mm
Radiator Support	Front: 1x360/280mm; Top: 2x480/420mm; Rear: 1x120/140mm; Left/Right: 1x480/420mm; Bottom: 1x480/420mm
CPU Cooler Clearance	Up to 250 mm
VGA Length Clearance	Up to 590 mm
PSU Length Clearance	Up to 220 mm (with bottom fan)
Maintenance & Cleaning	Clean tempered glass with soft cloth; remove and wash dust filters regularly
Safety	Handle tempered glass panels with care; avoid impacts
Spare Parts	Replacement fans, dust filters, screws, and tempered glass panels available
Repairability	Modular design; easy access to replace fans, PSU, and drives

Frequently Asked Questions - Level 20 XT THERMALTAKE

What motherboard sizes does the Level 20 XT support?

The Level 20 XT supports Mini ITX, Micro ATX, ATX, and E-ATX motherboards up to 12" x 13".

What is the maximum GPU length supported?

The maximum VGA length is 590 mm, allowing for most high-end graphics cards including triple-fan models.

Does the case come with pre-installed fans?

Yes, it comes with one 140mm rear fan (1000 rpm, 16 dBA) already installed.

What liquid cooling radiators can I install?

The case supports multiple radiator sizes: up to 2x480mm on top, 480mm on left/right/bottom, 360mm on front, and 120/140mm on rear.

How many drive bays does it have?

It has 6x 3.5" or 2.5" drive positions in the HDD cage, plus 1x 3.5" and 2x 2.5" on the motherboard tray.

What are the dimensions of the case?

The dimensions are 515 x 394 x 623 mm (20.3 x 15.5 x 24.5 inches), making it a spacious E-ATX cube.

Does the case have USB Type-C?

Yes, the front I/O panel includes USB Type-C along with USB 2.0, USB 3.0, and HD Audio.

What is the maximum CPU cooler height?

The case accommodates CPU coolers up to 250 mm in height, supporting large air coolers.

Are the tempered glass panels removable?

Yes, all four glass panels (front, left, right, top) are removable for easy access and building.

How do I clean the dust filters?

The removable dust filters (top, front, bottom) can be washed with water and air-dried before reinstallation.

USER MANUAL Level 20 XT THERMALTAKE

20 Years of Excellence 03

Level 20 04

Level 20 GT 07

Level 20 GT RGB Plus 10

Level 20 XT 13

Level 20 VT 16

Specification 19

TT RGB PLUS ECOSYSTEM

SyncALL, Say "Hello TT"

Download on the App Store

Android app on Google play

Circular logo with a microphone icon inside a rainbow ring, featuring stylized 'T' and text 'thermatake' above it (no additional symbols or text)

TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that combines the most advanced addressable LED lighting with Thermaltake's patented TT RGB PLUS Software. TT RGB PLUS ecosystem provides nearly unlimited possibilities for playing with colors, synchronizing lights to games, music, CPU temperatures or other TT RGB PLUS products, including case fans, CPU/VGA waterblocks, AIO CPU coolers, PSUs, LED strips, gaming keyboards, headsets, mice and mouse pad. The patented software allows users to change the light modes, colors, speeds, brightness, fan speeds, and even supports AI voice control in iOS and Android devices. *Functions vary by product.

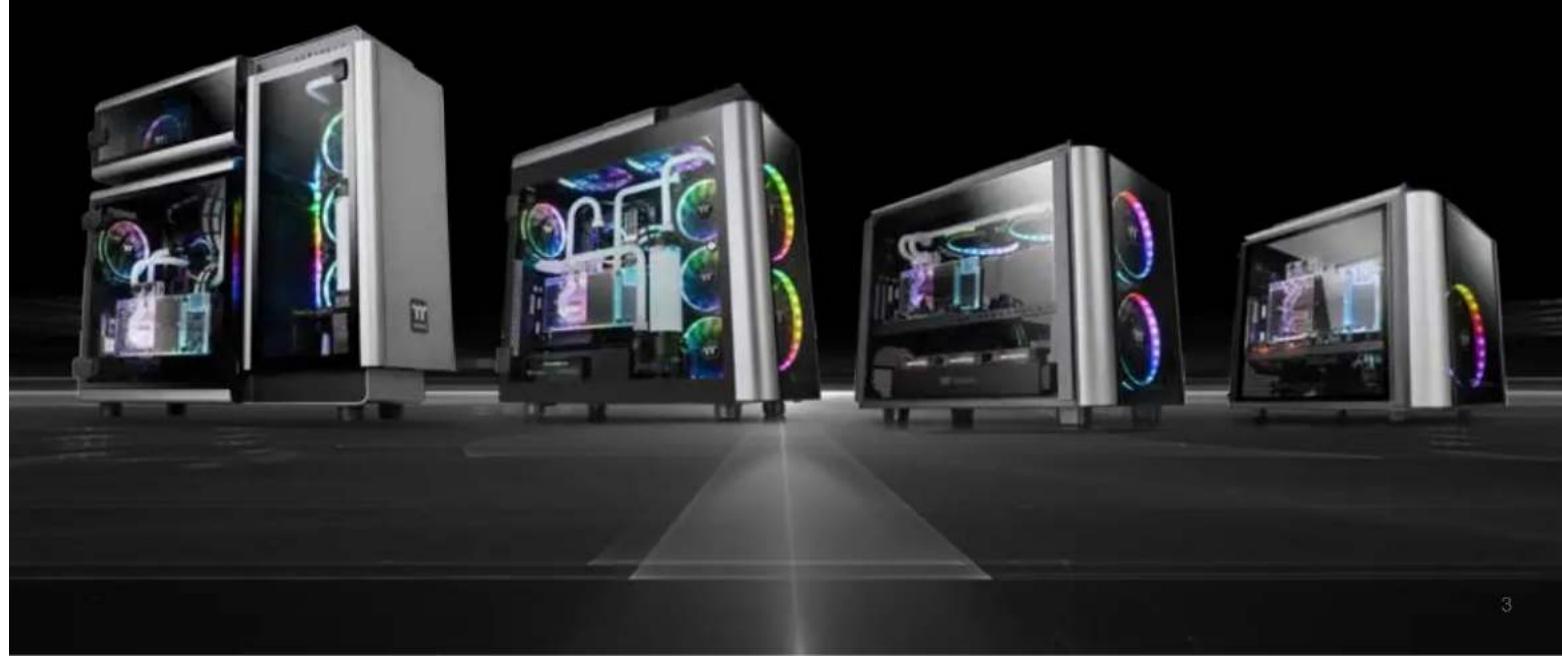

20 Years of Excellence

Founded in 1999, Thermaltake has been evolving continuously over the past two decades in the PC DIY industry. From developing thermal ventilation optimization, gaming oriented design to architectural aesthetics, we never stop striving to provide the best to the consumers. Thermaltake, while constantly improves on the PC hardware components, also always advocate for the Modding community. We understand the importance of appreciating innovation and maker movement, so we continually support and work with modders to advance the PC DIY industry together.

To commemorate our 20th anniversary and reflect on our achievements, we gathered all the successful elements on what we have learned and advanced over the past two decades to form the Level 20 Series.

Five modern computer cabinets with glowing internal components displayed on a dark floor, no visible text or symbols.

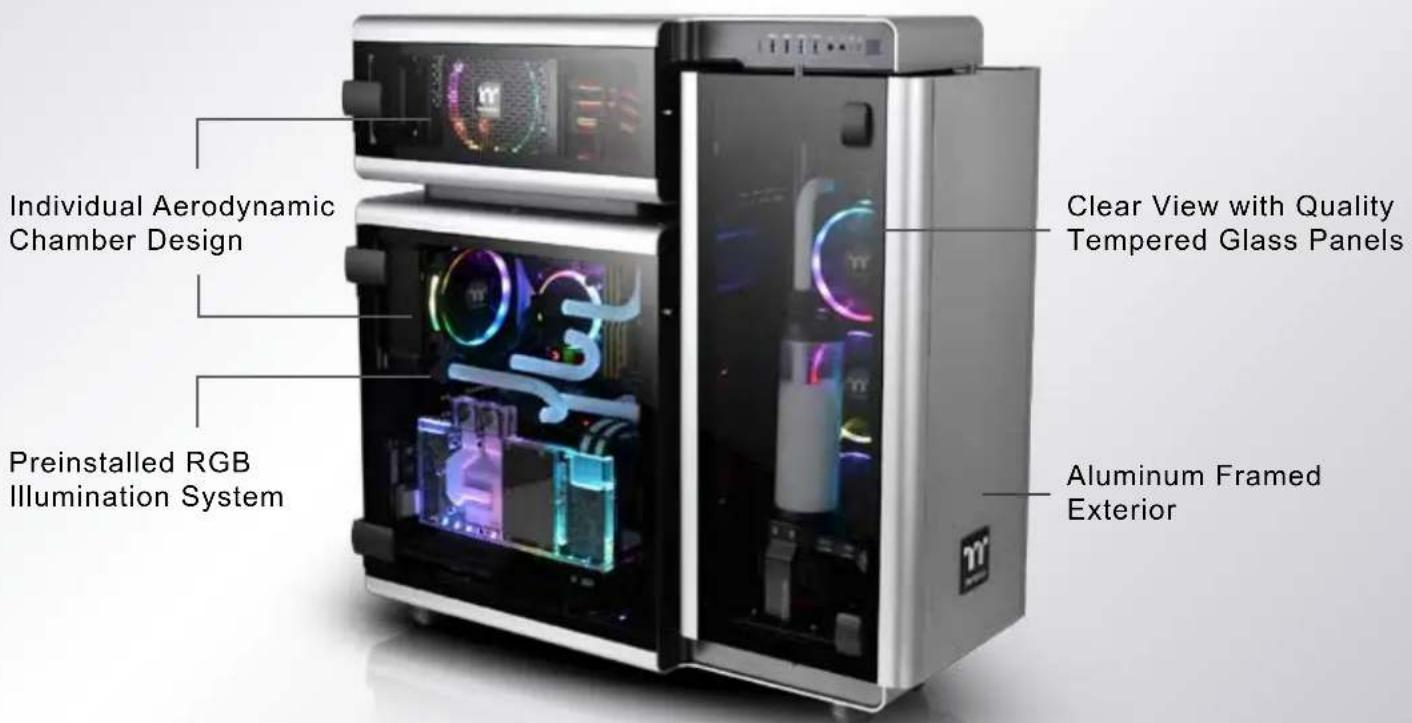

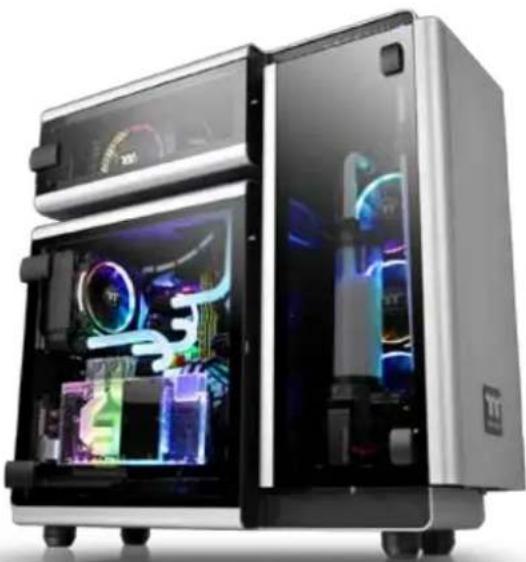

LEVEL 20

Full Tower Chassis

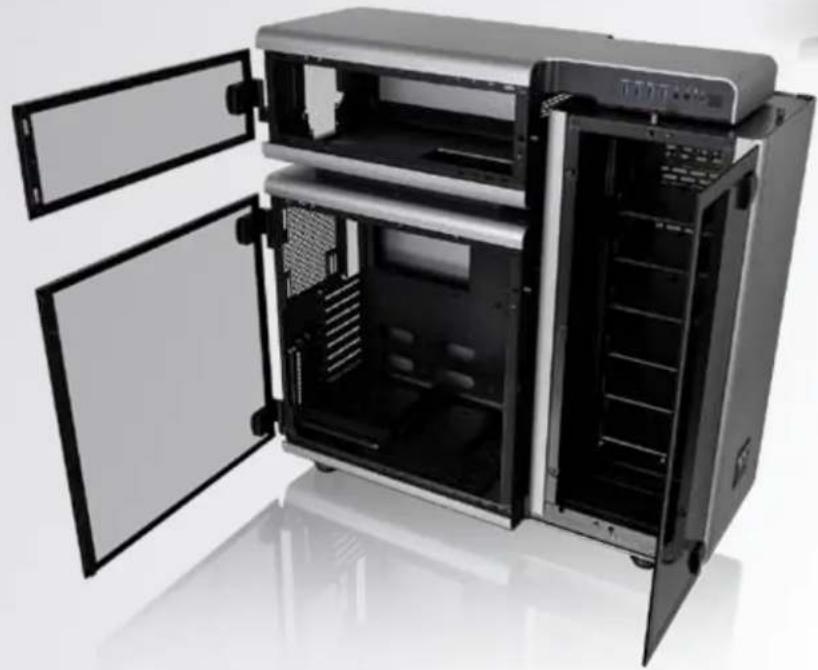

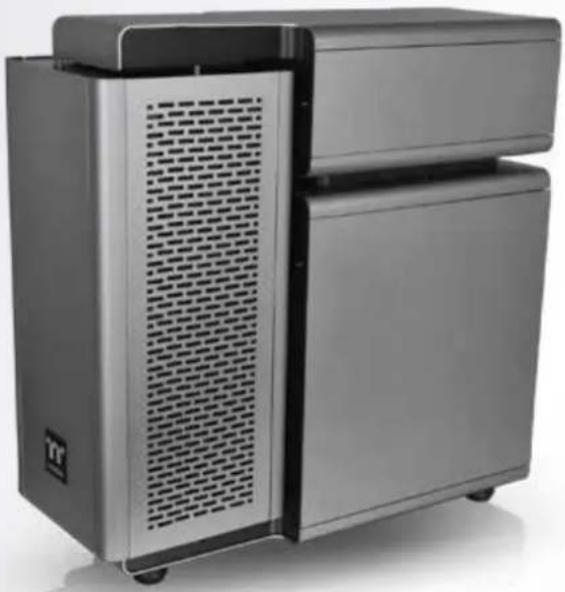

Aluminum Frame

Level 20 features aluminum panels of which the aluminum anodizing process establishes water and corrosion resistant performance.

Exterior view of a modern stainless steel industrial machine (no visible text or symbols)

Interior view of a server rack cabinet with open doors and internal compartments (no visible text or labels)

Clear View of PC Gaming

Three hinged swing-doors with premium-quality 4mm thick tempered glass design guarantee window durability and viewing capability to encourage users to thoroughly display superb inner components.

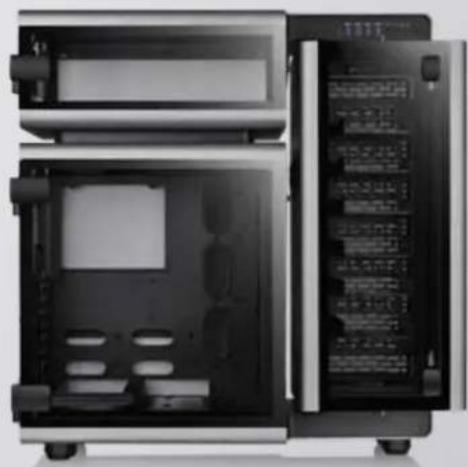

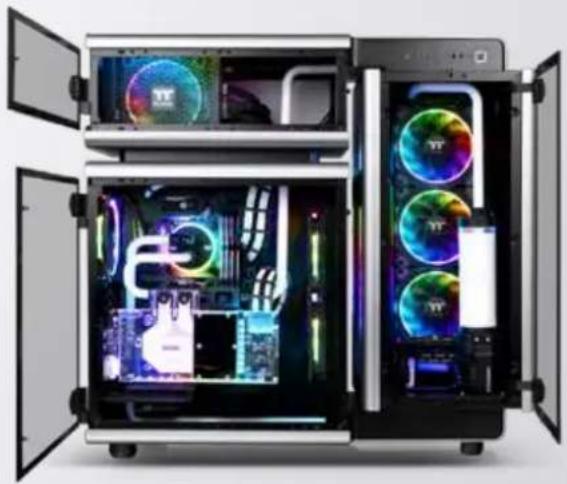

Individual Aerodynamic Chamber Design

Level 20 utilizes trio chamber design to achieve ventilation and space management optimization. By separating PSU, Motherboard, and Storage/LCS into different compartments, Level 20 creates a unique component landscape with tempered glass to celebrate the ensemble of the individual modules.

Exterior view of a dual-chamber computer rack unit with open doors and internal compartments (no visible text or labels)

Interior view of a dual-chamber computer setup with visible CPU, RAM, and memory modules (no text or symbols)

Preinstalled RGB Illumination System

Level 20 is preinstalled with 3 Riing Plus 14 RGB Fans and 2 Lumi Plus LED Strips. Monitor and customized the 16.8 million colors system with the patented TT RGB PLUS software.

LEVEL 20 GT

Full Tower Chassis

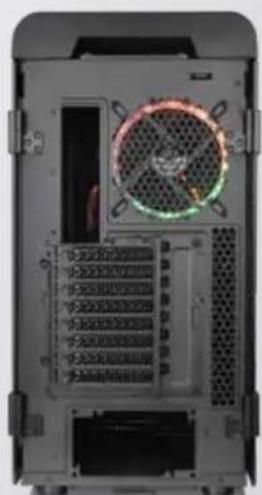

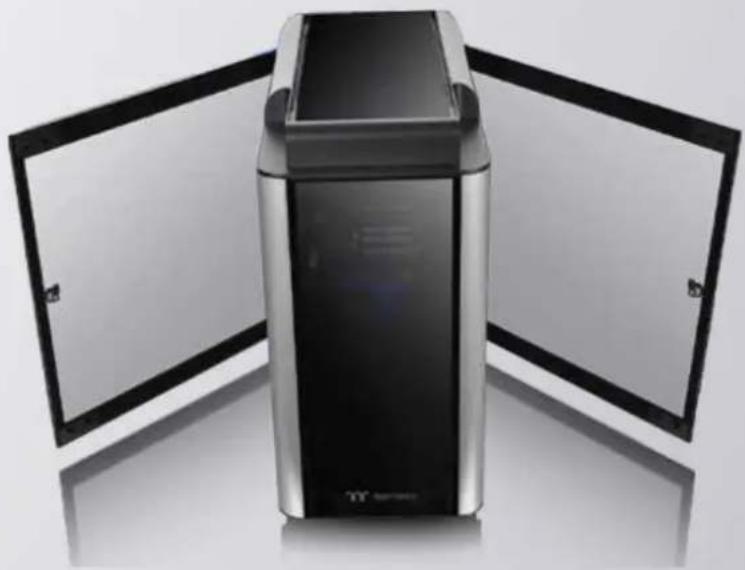

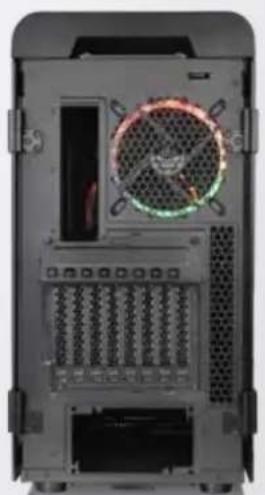

Tempered Glass Aesthetic

The Level 20 GT is built with tempered glass panels on the front, top and both sides. The left and right hinged doors are also equipped with smart lock security systems to secure the inner components of your case.

Exterior view of a modern office building (no signage)

Back view of a desktop computer tower case showing internal components like CPU socket and fan (no text or labels visible)

Back view of a computer tower case showing internal ventilation grilles and a fan (no visible text or labels)

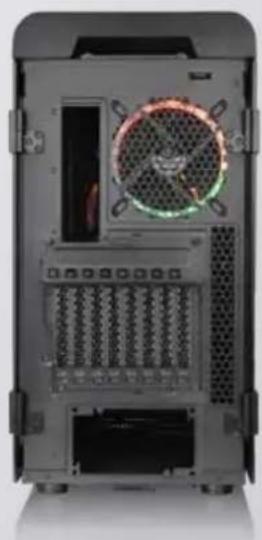

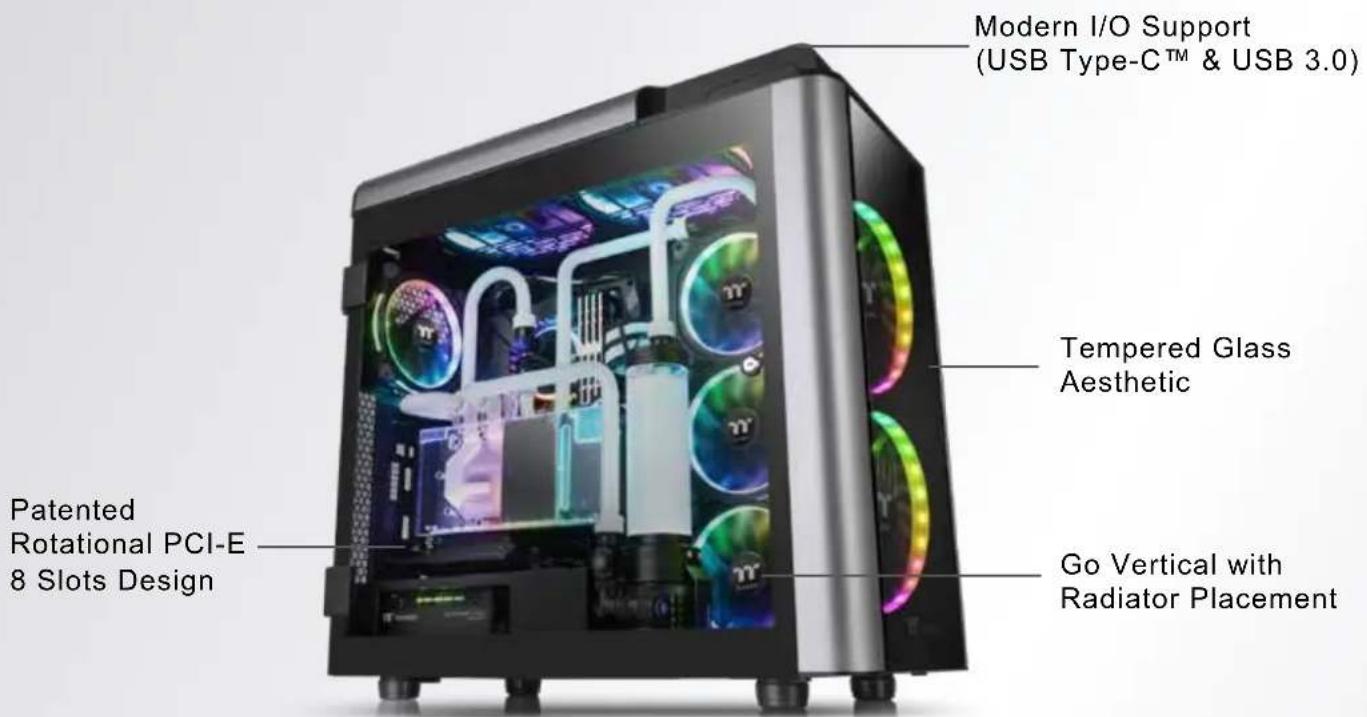

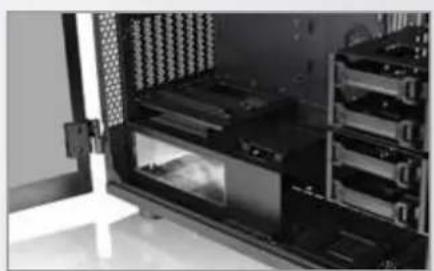

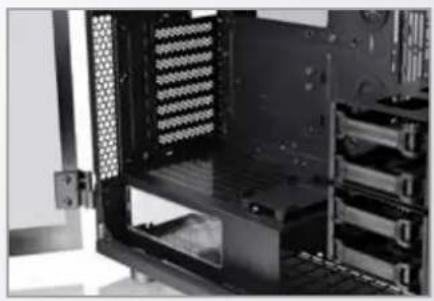

Patented Rotational PCI-E 8 Slots Design

Our brand new rotational PCI-E system allows you to stack multiple GPUs either vertically or horizontally, depending on how you want to build your system.

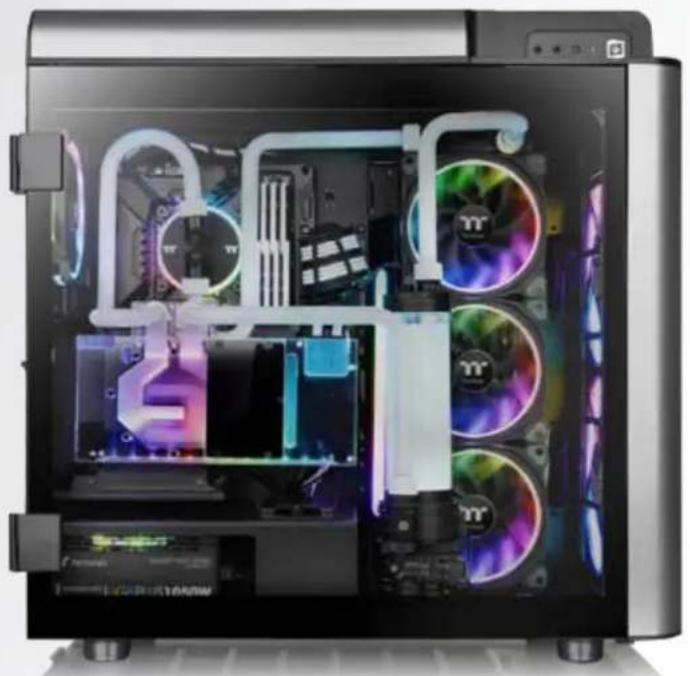

Go Vertical with Radiator Placement

Whether you're building a custom loop or running an AIO CPU cooler, the Level 20 GT lets you mount your radiator against the back panel to show off your RGB fans. The back panel provides adequate exhaust while putting your RGB fans on display, with support for up to a 420mm radiator as well as radiator support on the front and top of the chassis.

Cutaway view of a computer tower case showing internal components like CPU, fans, and drive dials (no text or symbols visible)

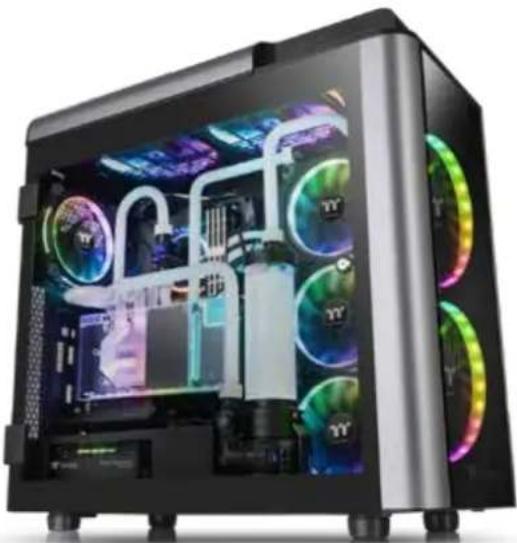

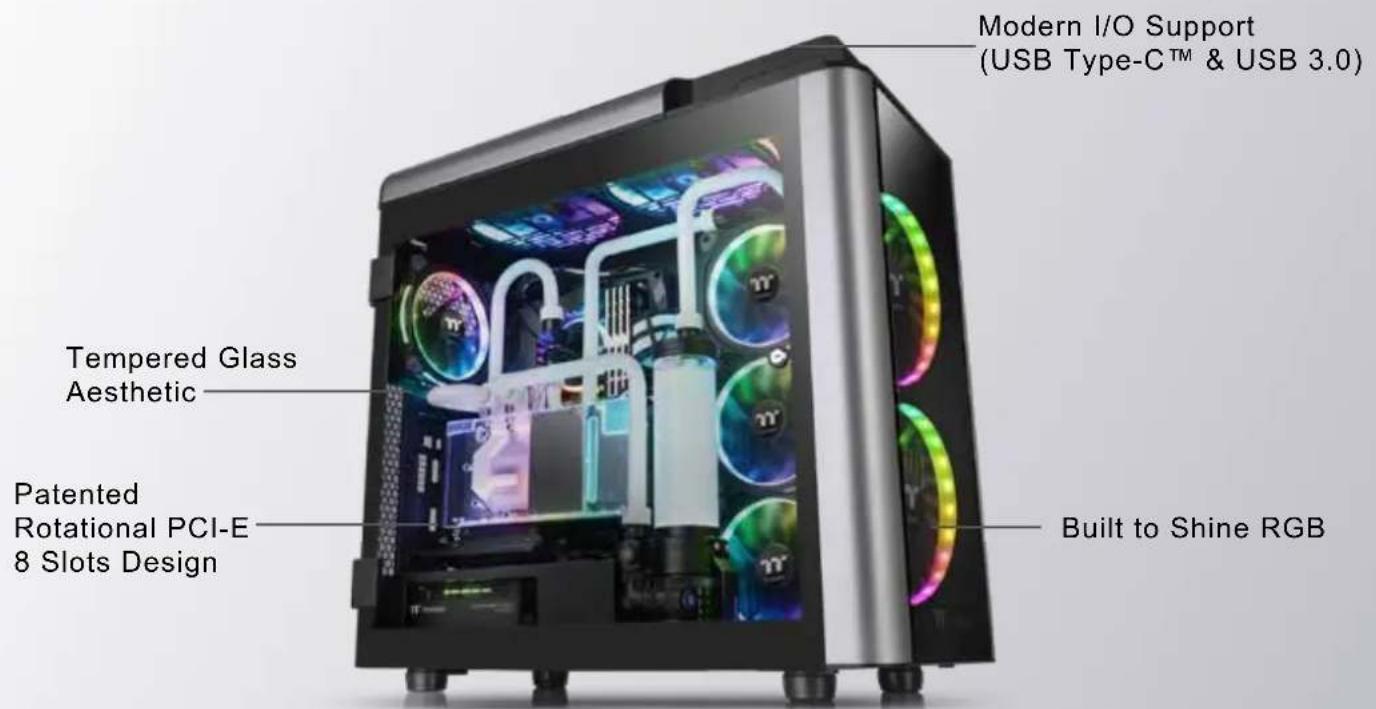

LEVEL 20 GT RGB Plus

Full Tower Chassis

amazon alexa

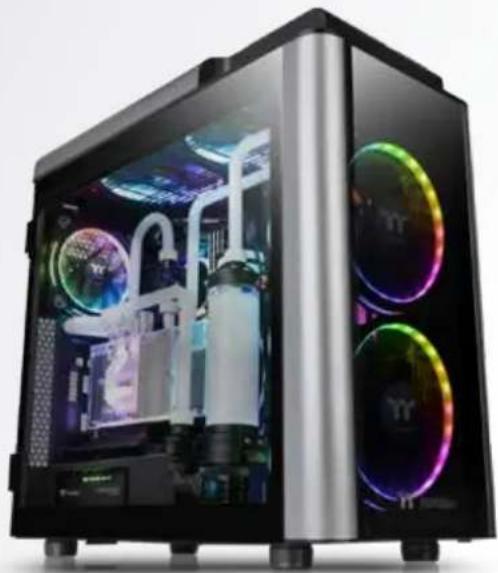

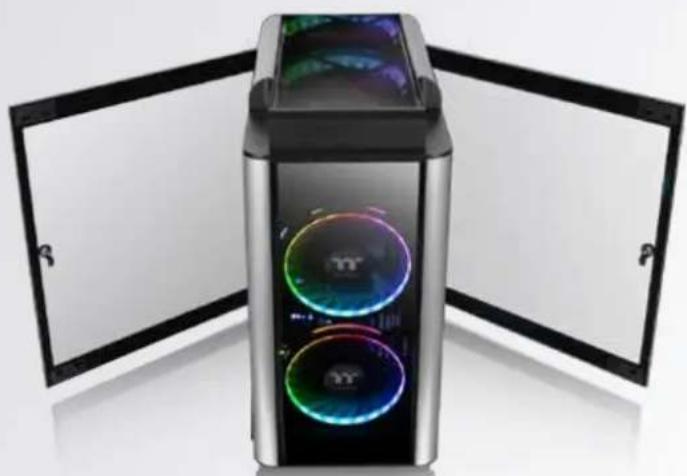

Built to Shine RGB

Preinstalled with two Riing Plus 20 RGB and one Riing Plus 14 RGB fans that can be monitored and customized via the patented TT RGB PLUS software. Let your system shine with 16.8 million RGB colors!

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

Tempered Glass Aesthetic

The Level 20 GT RGB is built with tempered glass panels on the front, top and both sides. The left and right hinged doors are also equipped with smart lock security systems to secure the inner components of your case.

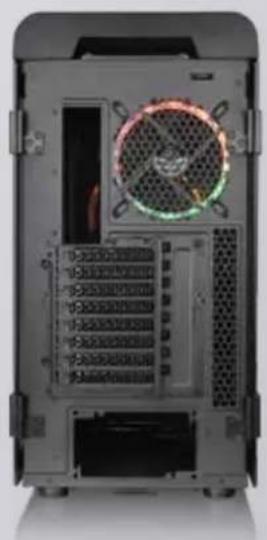

Patented Rotational PCI-E 8 Slots Design

Our brand new rotational PCI-E system allows you to stack multiple GPUs either vertically or horizontally, depending on how you want to build your system.

Interior view of a server rack with ventilation slots and rack-mounted components (no visible text or labels)

Interior view of a server rack cabinet with multiple drive bays and ventilation grilles (no visible text or labels)

Back view of a desktop computer tower case showing internal components like CPU socket and drive bays (no visible text or labels)

Back view of a desktop computer tower case showing internal CPU socket and fan (no visible text or labels)

Modern I/O Support

The top-right panel features two USB 3.0 and two USB 2.0 data transfer ports, along with one USB 3.1 Type-C port.

Close-up of a mechanical device with a button and mounting bracket (no visible text or symbols)

Close-up of a printer's front panel showing ports and cover (no visible text or symbols)

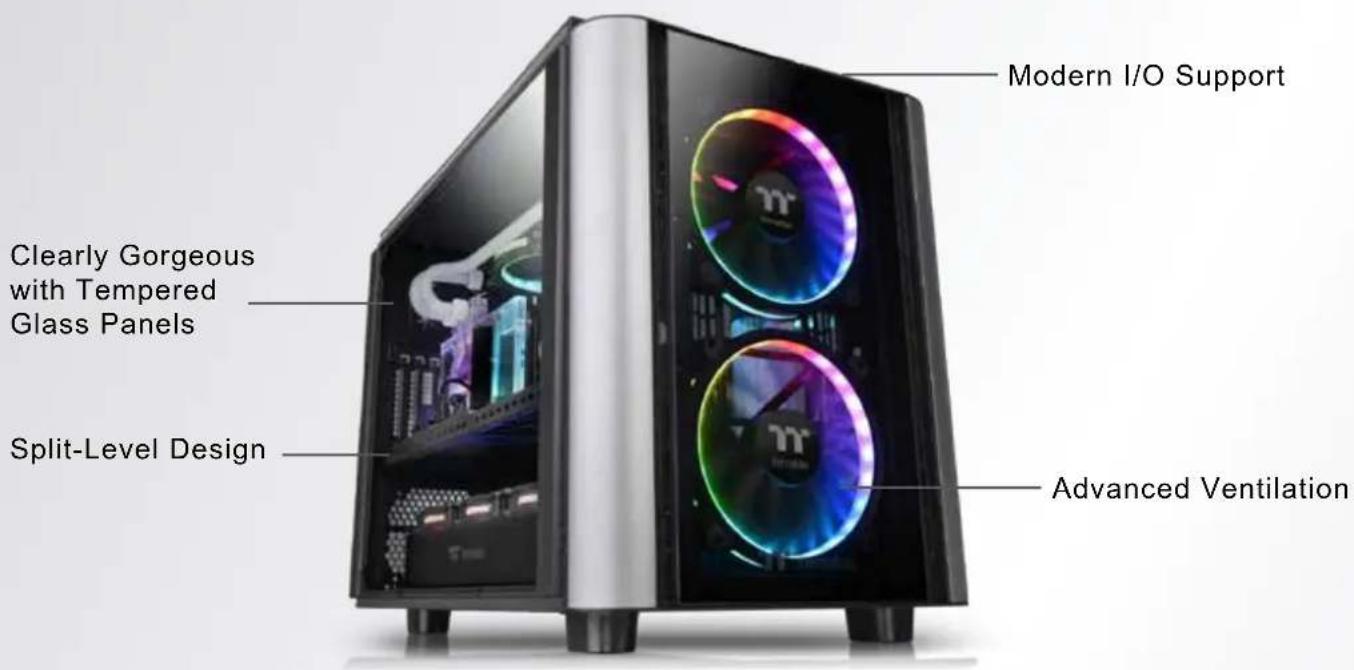

LEVEL 20XT

E-ATX Cube Chassis

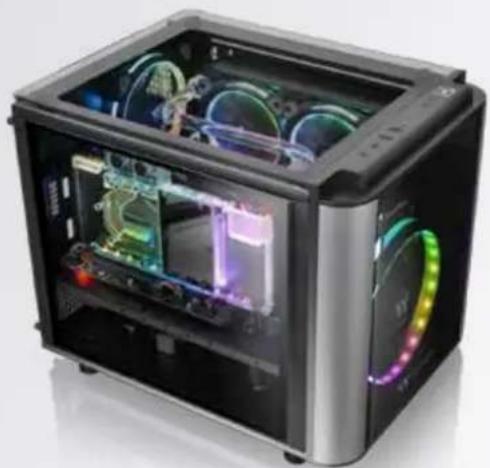

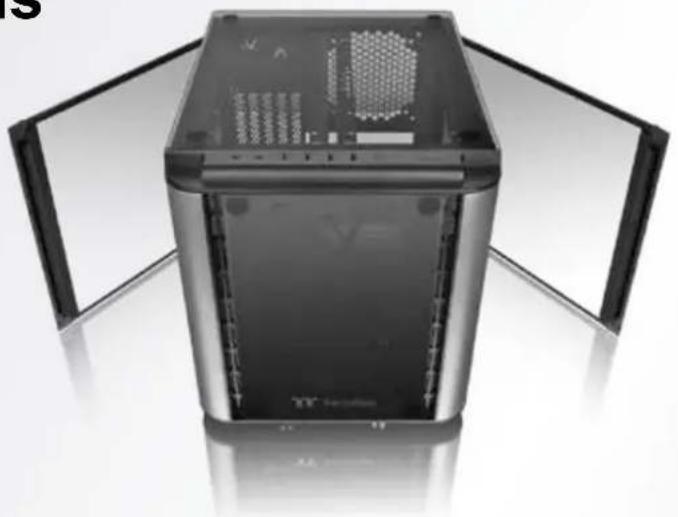

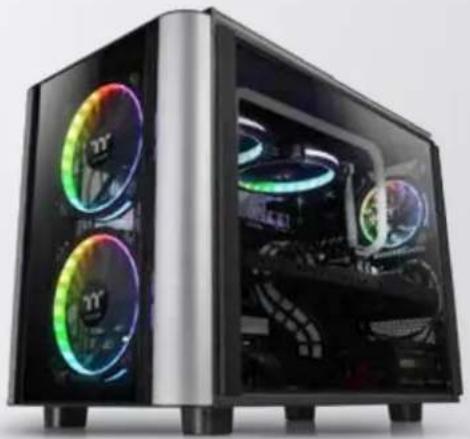

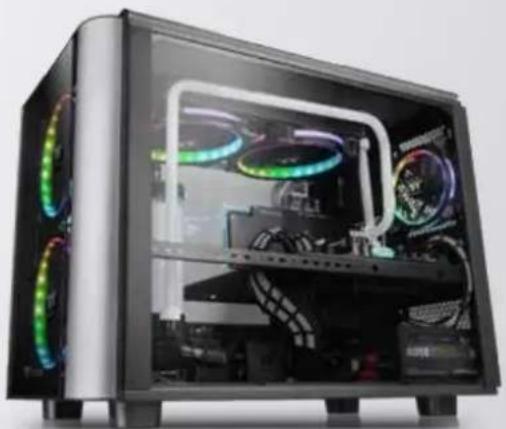

Clearly Gorgeous with Tempered Glass Panels

The front, top and side panels are all built from our ultra-durable 4mm tempered glass. This means the panels are more resistant to dust and scratches than acrylic and provide a clearer view of internal components.

Exterior view of a black server tower with multiple colorful circular fans (no visible text or symbols)

Front view of a black CPU tower case with two blue-lit circular fans (no visible text or symbols)

Exterior view of a black hard disk computer case with visible internal circuitry and fan blades (no text or symbols)

Chamber Design

The Level 20 XT carries over the innovations of some of our earlier cube case designs by splitting the chassis into two chambers. The chamber houses the motherboard tray GPU and other PCI-E cards, while the lower chamber houses the power supply, storage devices and cooling elements.

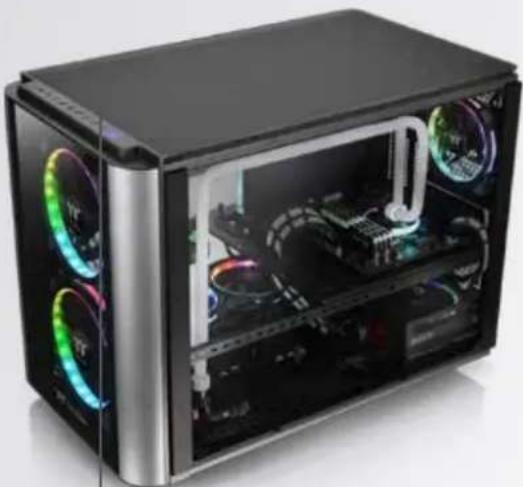

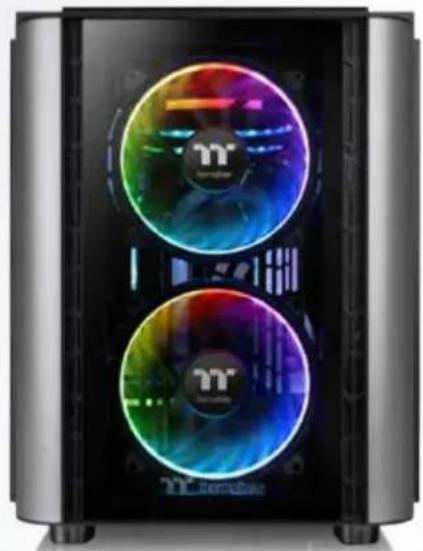

Advanced Ventilation

Level 20 XT is preinstalled with one 140mm rear fan. Level 20 XT enables users to build a complete high-end system with ample room for up to two front 200mm fans and is fully compatible with 420mm, 360mm, 280mm, 240mm, 140mm and 120mm radiators. Removable top magnetic fan filter, front fan filter, and bottom filter provide excellent reduction against dust, and better airflow.

Exterior view of a black and silver computer case with visible internal components and glowing fans (no text or symbols)

Close-up of a black plastic electronic device with a curved top and mounting bracket (no visible text or symbols)

Exterior view of a modern office building (no signage)

Modern I/O Support

The side I/O ports features two USB 3.0, two USB2.0 and one Type-C port, to grant users easy access for speedy transmission.

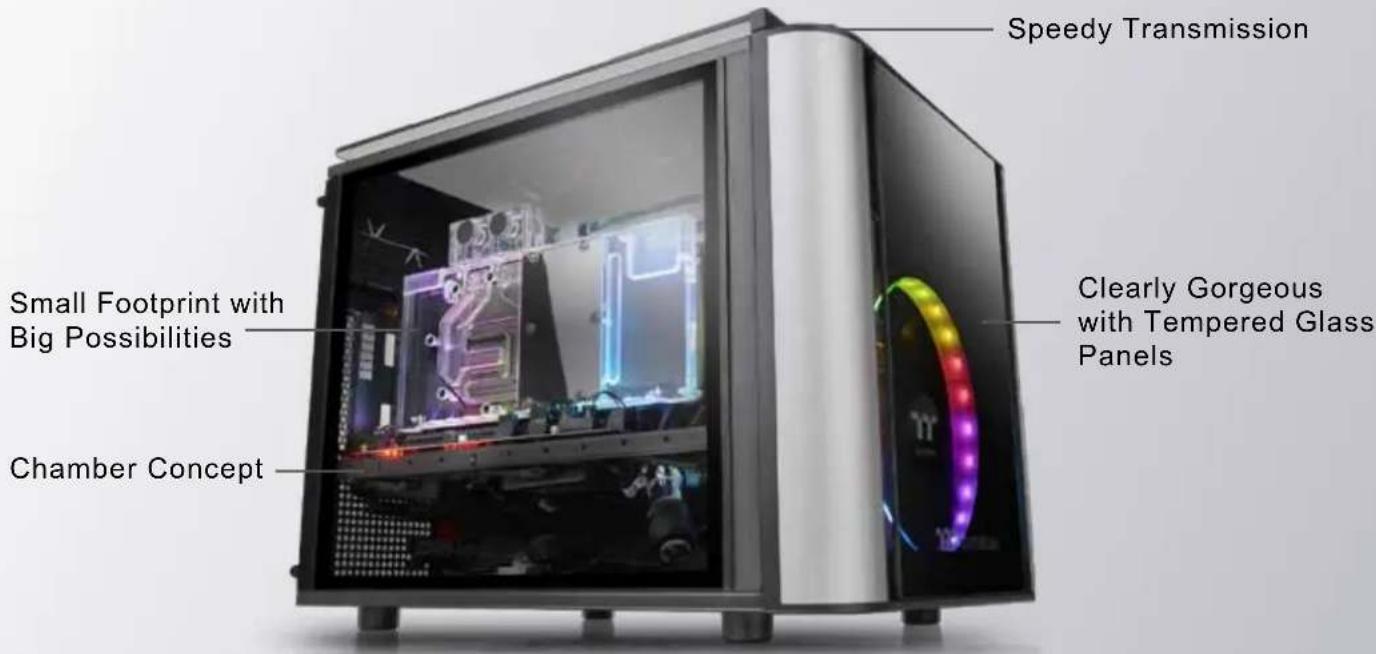

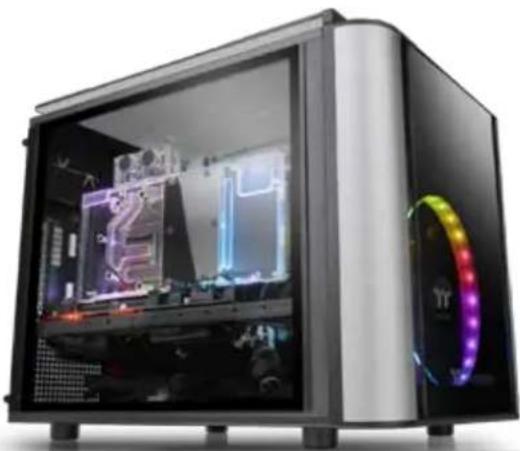

LEVEL 20 VT

Micro Chassis

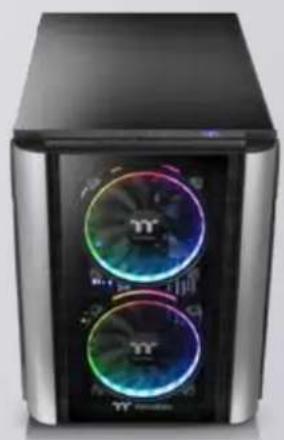

Clearly Gorgeous with Tempered Glass Panels

The front, top and side panels are all built from our ultra-durable 4mm tempered glass. This means the panels are more resistant to dust and scratches than acrylic and provide a clearer view of internal components.

Exterior view of a black desktop computer case with visible internal components and ventilation slots (no text or symbols)

Internal view of a black and silver computer case with visible internal circuitry and glowing components (no text or symbols)

Small Footprint with Big Possibilities

The Level 20 VT is all about big things coming in small packages. The VT supports M-ATX motherboards, as well as CPU coolers up to 185mm in height, VGA lengths up to 350mm and PSU sizes up to 200mm in length. It also supports up to two 240mm radiators side-by-side in the top panel, or one 280mm at the top or along the side. Meaning you can fit plenty of top-end hardware in this little case.

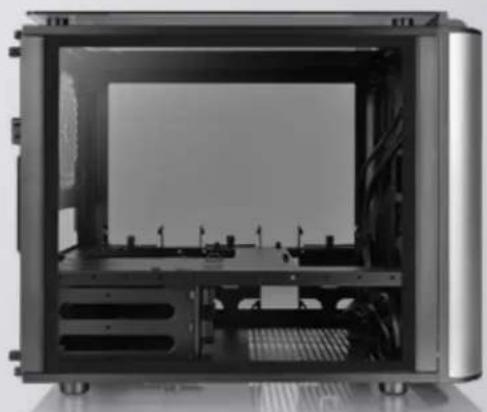

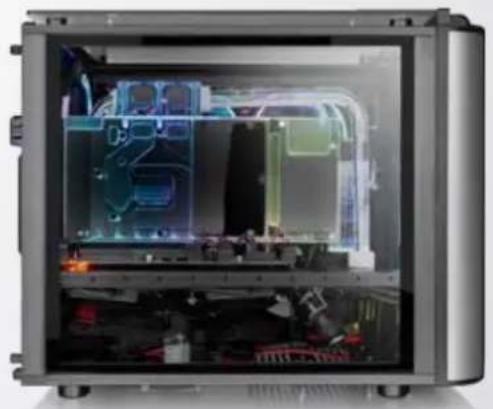

Chamber Concept

The Level 20 VT is optimized for space management. It's divided into two main chambers: the upper chamber is made to house the motherboard and PCI-E components, while the lower one is made for the PSU and drive bays. Thanks to the removable 2.5"/3.5" drive device racks, there is plenty of flexibility to fit larger components or build a custom liquid cooling loop.

Interior view of a 3D printer case with visible circuitry and components (no text or symbols)

Interior view of a server rack unit with visible drive bays and ventilation slots (no text or labels)

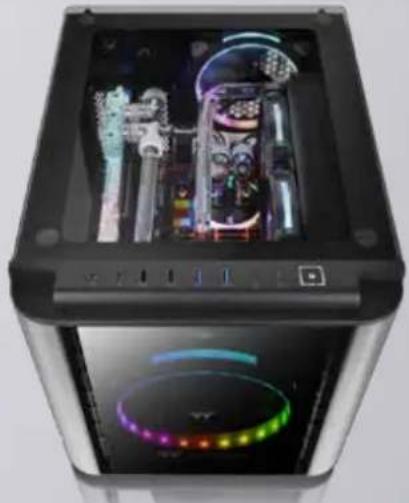

Speedy Transmission

The side I/O ports features two USB 3.0 and two USB 2.0 to grant users easy access for speedy transmission.

Interior view of a modern electronic device with visible internal components and indicator lights (no text or symbols)

Specification

LEVEL 20

Modern kitchen appliance with illuminated glass doors and internal electronics display (no visible text or symbols)

Case Type	Full Tower
Chassis Dimension (D*W*H)	732 x 280 x 688 mm (28.8 x 11 x 27.1 inch)
Side Panel	4 mm Tempered Glass x 3 (Left)
Color	Exterior: Space Gray(Aluminum); Interior: Black
Material	SPCC + Aluminum
Cooling System (M/B Chamber)	Rear (exhaust): 140 x 140 x 25 mm Riing Plus RGB fan (500-1400 rpm, 27.2dBA) Front (intake): 140 x 140 x 25 mm Riing Plus RGB fan (500-1400 rpm, 27.2dBA) x2
Drive Bays - Accessible - Hidden	2.5" or 3.5"x6 (HDD Cage), 2.5" or 3.5" x 2 (HDD Bracket) 2.5"x 3 or 3.5"x2 (HDD Bracket)
Expansion Slots	8+2
Motherboards	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX)
I/O Port	USB 3.0 x 4, Type-C x 1, HD Audio x 1
Fan Support	Storage/LCS Chamber 4 x 120 mm, 3 x 140 mm M/B Chamber Front: 3 x 120 mm, 2 x 140 mm Rear: 1 x 120 mm, 1 x 140 mm
Radiator Support	Storage/LCS Chamber 1 x 480 mm, 1 x 420 mm M/B Chamber Front: 1 x 360 mm, 1 x 280 mm Rear: 1 x 120 mm, 1 x 140 mm
Clearance	CPU cooler height limitation: 200 mm VGA length limitation: 260 mm (With Thick Radiator + Fan) 310 mm (Without Radiator) PSU length limitation: 220 mm

Specification

LEVEL 20 GT

Black desktop computer case with illuminated internal components and colorful circular screens (no visible text or symbols)

Case Type	Full Tower
Dimension (H*W*D)	580 x 294 x 592 mm (22.9 x 11.6 x 23.3 inch)
Side Panel	5mm Tempered Glass x 4 (Left & Right & Front & Top)
Cooling System	Rear (exhaust):140 x 140 x 25 mm Riing LED Blue fan(500 ~ 1400 rpm, 28 dBA)(500 ~ 1400, 22 dBA with LNC)
Drive Bays- Accessible- Hidden	2.5" x 4 or 3.5" x 4 (HDD Rack)2.5" x 6 or 3.5" x 3
Expansion Slots	8
Motherboards	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX),12" x 9.6" (ATX), 12" x 13" (E-ATX)
I/O Port	USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Type-C x 1
Fan Support	Front: 3 x 120 mm, 3 x 140 mm, 2 x 200 mmTop: 3 x 120 mm, 3 x 140 mm, 2 x 200 mmRear: 1 x 120 mm, 1 x 140 mmBottom: 2 x 120 mm
Radiator Support	Front: 1 x 360 mm, 1 x 420 mm, 1 x 360 mm(For 200 mm fan)Top: 1 x 360 mm, 1 x 420 mm, 1 x 360 mm(For 200 mm fan)Rear: 1 x 120 mm, 1 x 140 mmRight: 1 x 360 mm, 1 x 420 mm (AIO: 1 x360 mm, 1 x 280 mm)Bottom: 1 x 240 mm
Clearance	CPU cooler height limitation: 200 mmVGA length limitation: 310 mm (With HDD Rack)410 mm (Without HDD Rack)PSU length limitation: 220 mm (Without Bottom Fan)

Specification

LEVEL 20 GT RGB Plus

Black desktop computer case with visible internal components and colorful circular screens (no text or symbols)

Case Type	Full Tower
Dimension (H*W*D)	580 x 294 x 592 mm (22.9 x 11.6 x 23.3 inch)
Side Panel	5mm Tempered Glass x 4 (Left & Right & Front & Top)
Cooling System	Front (intake): 200 x 200 x 30 mm Riing Plus RGB Fan (500 ~ 1000rpm, 29.2dBA) x2 Rear (exhaust): 140 x 140 x 25 mm Riing Plus RGB Fan (500 ~ 1400rpm, 28dBA)
Drive Bays - Accessible - Hidden	2.5" x 4 or 3.5" x 4 (HDD Rack) 2.5" x 6 or 3.5" x 3
Expansion Slots	8
Motherboards	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX)
I/O Port	USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Type-C x 1
Fan Support	Front: 3 × 120 mm,3 × 140 mm,2 × 200 mm Top: 3 × 120 mm,3 × 140 mm,2 × 200 mm Rear: 1 × 120 mm,1 × 140 mm Bottom: 2 × 120 mm
Radiator Support	Front: 1 × 360 mm,1 × 420 mm,1 × 360 mm (For 200 mm fan) Top: 1 × 360 mm,1 × 420 mm,1 × 360 mm (For 200 mm fan) Rear: 1 × 120 mm,1 × 140 mm Right: 1 × 360 mm,1 × 420 mm (AIO: 1 × 360 mm,1 × 280 mm ) Bottom: 1 × 240 mm
Clearance	CPU cooler height limitation: 200 mm VGA length limitation: 310 mm (With HDD Rack) 410 mm (Without HDD Rack) PSU length limitation: 220 mm (Without Bottom Fan)

Specification

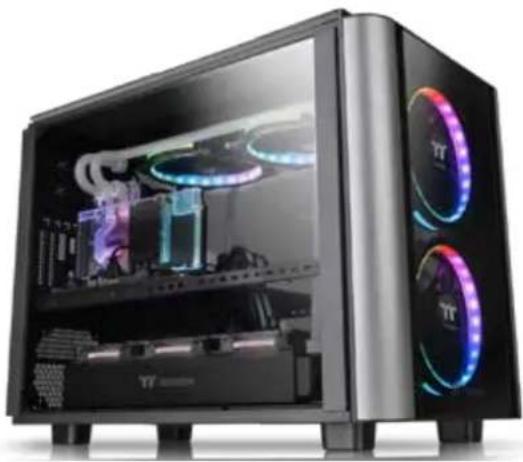

LEVEL 20XT

Exterior view of a black desktop computer tower with dual-lit cyclical screens and internal graphics (no visible text or symbols)

Case Type	E-ATX Cube Case
Dimension (H*W*D)	515 x 394 x 623 mm (20.3 x 15.5 x 24.5 inch)
Side Panel	4 mm Tempered Glass x 4 (Left & Right & Front & Top)
Cooling System	Rear (exhaust):140 x 140 x 25 mm fan (1000rpm, 16dBA)
Drive Bays-Accessible-Hidden	6 x 3.5" or 2.5" (HDD Cage)1 x 3.5", 2 x 2.5" (M/B Tray)
Expansion Slots	8
Motherboard	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX),12" x 9.6" (ATX), 12" x 13" (Extend ATX)
I/O Port	USB 2.0 x2, USB 3.0 x2, HD Audio x 1, Type-C x1
Fan Support	Front:3 x 120 mm, 2 x 140 mm, 2 x 200 mmTop:8 x 120 mm, 6 x 140 mm, 2 x 200 mmRear:2 x 120 mm or 2 x 140 mm	Left / Right Side:4 x 120 mm, 3 x 140 mmBottom:3 x 120 mm
Radiator Support	Front:1 x 360 mm, 1 x 280 mm,1x 360 mm (200 mm series)Top:2 x 480 mm, 2 x 420 mm,1 x 360 mm (200 mm series)Rear:1 x 120 mm, 1 x 140 mm	Left / Right Side:1 x 480 mm, 1 x 420 mmBottom:1 x 480 mm, 1 x 420 mm
Clearance	CPU cooler height limitation: 250 mmVGA length limitation:590 mmPSU length limitation: 220 mm (With Bottom Fan)

Specification

LEVEL 20VT

Exterior view of a modern office computer case with visible internal components and a colorful circular display (no text or symbols)

Case Type	Micro Case
Dimension (H*W*D)	348 x 330 x 430 mm (13.7 x 13 x 16.9 inch)
Side Panel	4mm Tempered Glass x 4 (Left & Right & Front & Top)
Cooling System	Front (intake):200 x 200 x 30 mm fan (800rpm, 13dBA)
Drive Bays -Hidden	3.5" or 2.5" x 3, 2.5" x 3
Expansion Slots	5
Motherboard	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
I/O Port	USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
Fan Support	Front:2 x 120 mm, 2 x 140 mm, 1 x 200 mmTop:4 x 120 mm, 2 x 140 mm	Rear:1 x 120 mm, 1 x 140 mmBottom:2 x 120 mm
Radiator Support	Front:1 x 240 mm, 1 x 140 mm1 x 180 mm (200 mm series)Top:2 x 240 mm, 1 x 280 mm1 x 180 mm (200 mm series)	Rear:1 x 120 mm
Clearance	CPU cooler height limitation: 185 mmVGA length limitation: 350 mmPSU length limitation: 200 mm (With Bottom Fan)

Abstract geometric pattern with white and black shapes (no text or symbols)

thermaltake

Headquarters

Thermaltake Technology Co., Ltd.

Address: 5F., No.185, Sec. 2, Tiding Blvd., Neihu Dist.,

Taipei City 114, Taiwan (R.O.C.)

E-MAIL: [e-mail]

www.thermaltake.com

Overseas Branches

Thermaltake (U.S.A.) Inc.

Address: 20420 Business Parkway, City of Industry, CA 91789, USA

TEL: [phone] FAX: [phone]

SUPPORT: [phone]

E-MAIL:[e-mail]

www.thermaltakeusa.com

Thermaltake Germany GmbH

Address: Oststrasse 26, 22844 Norderstedt, Germany

TEL: [phone] FAX: [phone]

E-MAIL:[e-mail]

de.thermaltake.com

Thermaltake Capital Beijing Co., Ltd.

Address: #907, HaiTai Plaza, No. 229, North 4th Ring Road,

Haidian District, Beijing, 100083, PRC

TEL: [phone] FAX: [phone]

E-MAIL: [e-mail]

www.thermaltake.com.cn

Thermaltake Australia and New Zealand Pty Ltd.

Address: Unit 60, 170 Forster Road,

Mount Waverley VIC 3149, Australia

TEL: [phone]

E-MAIL:[e-mail]

www.thermaltake.com.au

Thermaltake Russia Representative Office

Address: Russia, 115172 Moscow, Bolshie Kamenshiki St., 8 bld.

TEL: [phone]

E-MAIL:[e-mail]

ru.thermaltake.com
