SopranoRS 101 - PC Case THERMALTAKE - Free user manual and instructions

Brand	Thermaltake
Model	SopranoRS 101 (VG7000BNS / VG7000BWS)
Product Type	PC Case (Middle Tower)
Dimensions (H x W x D)	440 x 200 x 500 mm (17.3 x 7.9 x 19.7 inches)
Net Weight	6.35 kg (14 lb) without window / 6.19 kg (13.65 lb) with window
Material	SECC Steel
Color	Black
Motherboard Support	Micro ATX, Standard ATX
Expansion Slots	7
Drive Bays - 5.25" (accessible)	1
Drive Bays - 3.5" (accessible)	2
Drive Bays - 3.5" (hidden)	5
Front I/O Ports	USB 2.0 x 2, MIC & Speaker
Cooling System - Rear Exhaust	120 x 120 x 25 mm fan, 1300 rpm, 17 dBA (included)
Cooling System - Front Intake	120 x 120 x 25 mm fan (optional)
Side Panel	Transparent window (model VG7000BWS) or solid (model VG7000BNS)
Power Supply Support	Standard ATX PS2 (optional)
Fan Filter	Removable front filter for easy cleaning
Lock Mechanism	Tool-less locks for 5.25" and 3.5" drive bays
PCI Slot Usage	Supports full-height graphics cards
Included Fans	1 rear 120mm fan
Optional Accessories	RSI Cooler (CL-P0441 for LGA775, CL-P0444 for AMD), Litepower 400W PSU

Frequently Asked Questions - SopranoRS 101 THERMALTAKE

What are the dimensions and weight of the Thermaltake SopranoRS 101?

The case measures 440 x 200 x 500 mm (17.3 x 7.9 x 19.7 inches) and weighs 6.35 kg (14 lb) without window or 6.19 kg (13.65 lb) with transparent side panel.

What type of motherboard does the SopranoRS 101 support?

It supports Micro ATX and Standard ATX motherboards.

How many drive bays are available?

There is 1 external 5.25" bay, 2 external 3.5" bays, and 5 internal 3.5" bays (hidden) for HDDs.

Does the case come with fans?

Yes, it includes one 120mm rear exhaust fan (1300 rpm, 17 dBA). Front intake fans are optional.

How do I remove the side panel?

Remove the thumb screws at the top and bottom of the rear panel, then slide the side panel backwards to release it.

Can I install a power supply unit (PSU) easily?

Yes, place the PSU in the designated compartment at the bottom rear and secure it with screws. The case supports standard ATX PS2 units.

How do I clean the front fan filter?

Open the front door, remove the fan grille, then take out the filter for cleaning. Reinstall in reverse order.

What I/O ports are on the front panel?

The front panel has USB 2.0 x 2, Microphone (Ear) and Speaker (MIC) jacks.

Is the case compatible with liquid cooling radiators?

The case has limited radiator support due to its design. Only a 120mm rear fan is included; front fan mounting is optional for 120mm fans, but official radiator support is not specified.

How do I install a 5.25" or 3.5" device?

Remove the front door and the plastic and metal covers from the bay. Unlock the tool-less lock mechanism by turning it counter-clockwise, insert the device, align the mounting holes, and lock it by turning clockwise.

USER MANUAL SopranoRS 101 THERMALTAKE

Abstract logo design with stylized 'Tt' and '®' letters inside a circular gear-like pattern (no text or symbols beyond the logo)

Thermaltake

Coolall YOUR LIFE

User's Manual

ContensContens

Chapter 1. Product Introduction

1.1 Specification 1

Chapter 2 Case Mechanical Operation

2.1 How to open the side panel 2
2.2 How to install PSU 3
2.3 5.25" device installation 3
2.4 3.5" device installation 4
2.5 HDD installation 6
2.6 PCI slot usage 7
2.7 Fan filter removal and cleaning 7
2.8 Front Fan Installation (Optional) 8

Chapter 3 Motherboard & Leads Installation

3.1 Motherboard Installation 9
3.2 Case LED connections 10
3.3 USB2.0 connection 11
3.4 Ear & MIC connections 11

Chapter 4 RSI Cooler and Power Supply

4.1 RSI Cooler (Optional) 12
4.2 RSI Power Supply (Optional) 13

Chapter1. Product Introduction Chapter1. Product

1.1 Specification

Model	VG7000BNS	VG7000BWS
Case Type	Middle Tower
Side Panel	-	Transparent window
Net Weight	6.35 kg / 14 lb	6.19 kg / 13.65 lb
Dimension (H*W*D)	440.0 x 200.0 x 500.0 mm(17.3 x 7.9 x 19.7 inch)
Cooling System	Front (Intake):120 x 120 x 25 mm (optional)Rear (Exhaust):120 x 120 x 25 mm, 1300rpm, 17dBA
Drive Bays - Accessible - Hidden	114 x 5.25",22x3.5"5 x 3.5"
Material	SECC
Color	Black
Expansion Slots	7
Motherboards	Micro ATX, Standard ATX
I/O Ports	USB 2.0 x 2, MIC & Speaker

Chapter 2 Case Mechanical Operation Chapter 2 (C) 2.1 How to open the side panel

Close-up of a gloved hand inserting a small electronic component into a black device (no visible text or symbols)

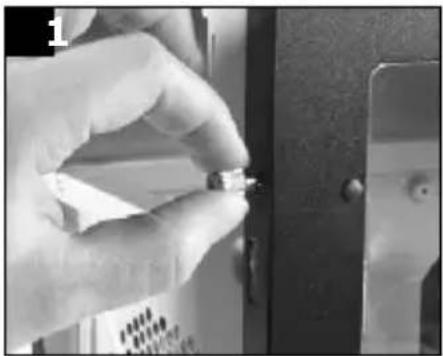

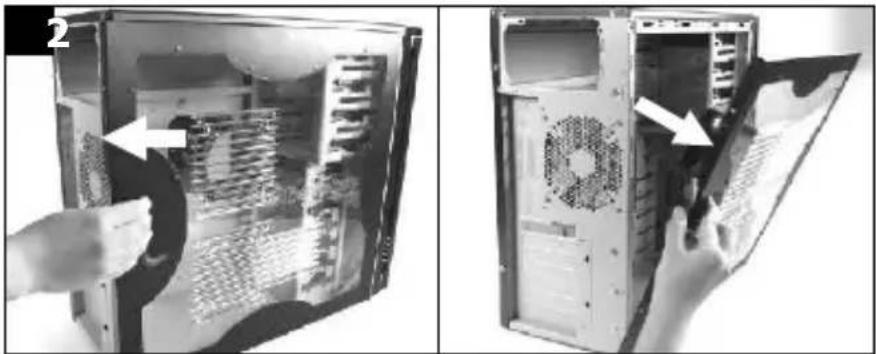

To remove the side panel, please remove upper and bottom thumb screws on the back of the case.

Two-panel black-and-white photo showing a computer tower case with internal hardware and a hand inserting a component (no text or symbols visible)

Pull the side panel to release it.

Two-panel black-and-white photo showing a cooling fan inside and a hand holding a black plastic fan (no text or symbols visible)

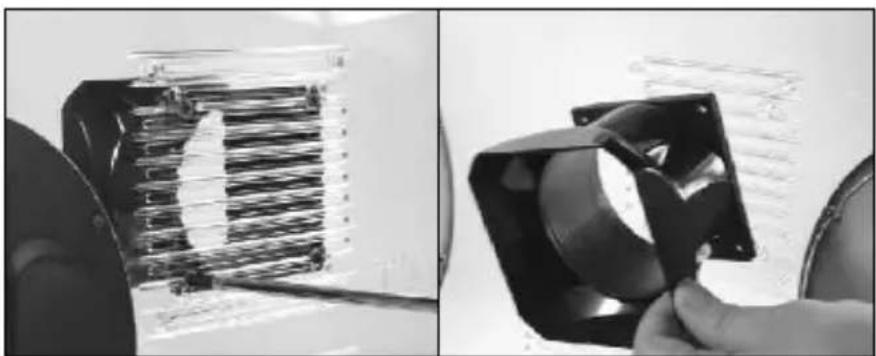

Important Notice: If the air guide interferes with CPU cooling fan, please remove the CPU air guide as shown.

Case Mechanical Operation

2.2 How to install PSU

Close-up of a computer hard drive showing internal components and ventilation slots (no readable text or symbols)

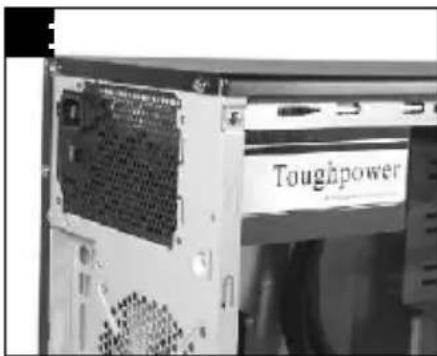

Place power supply unit in the right position.

Close-up of a computer power drive rear panel showing internal components and mounting holes (no text or symbols visible)

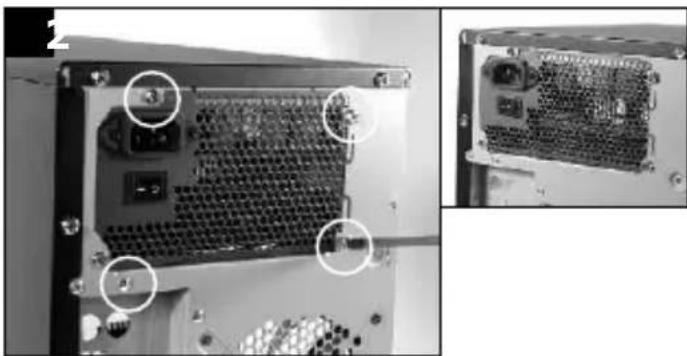

Then, secure it by screws as shown.

2.3 5.25" device installation

Person installing a server tower with fan and drive mechanism (no visible text or symbols)

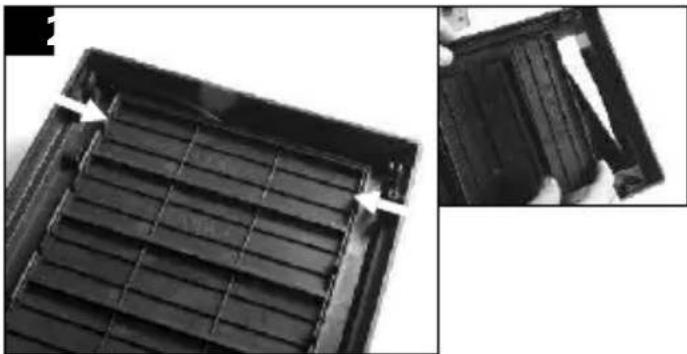

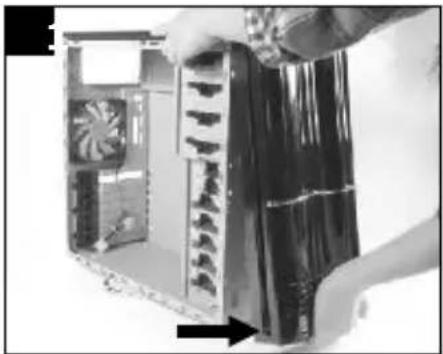

Remove the front door first. Remove the 5.25" drive bay plastic cover.

Close-up of a black plastic vent or vent with ribbed structure, showing side and top views (no text or symbols)

Close-up of a computer hard drive with a screwdriver inserted, showing internal components and a curved arrow indicating motion (no text or symbols)

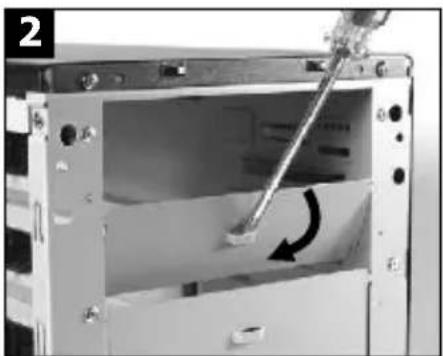

Remove the 5.25" drive bay metal cover.

Close-up of a computer tower case showing internal components and a close-up view of the base panel (no text or symbols visible)

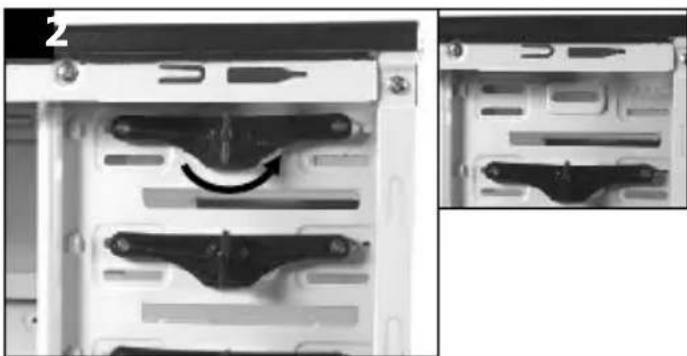

Turn lock device counter-clockwise to unlock and remove lock device.

Close-up of a hand inserting a CD into a computer drive into a rack (no visible text or symbols)

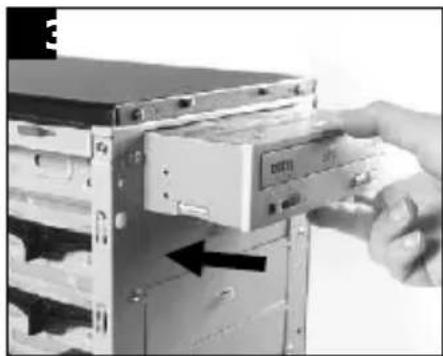

Insert the device into the 5.25" drive bay.

Close-up of a computer tower case with visible slots and mounting brackets (no text or symbols)

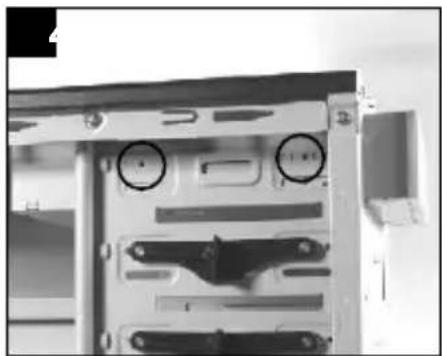

Find the proper openings.

Close-up of a mechanical device showing internal components and a curved arrow indicating rotation (no text or symbols visible)

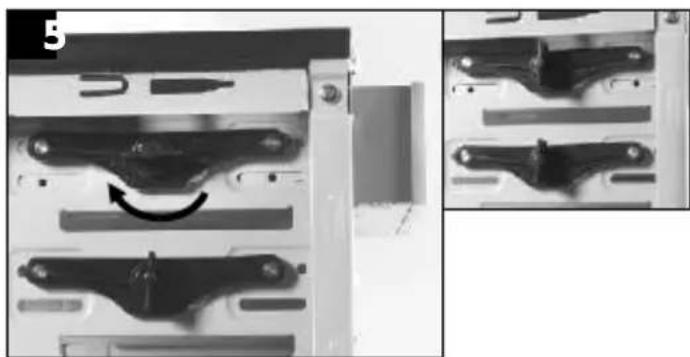

Put back the lock device and turn lock device clockwise to lock.

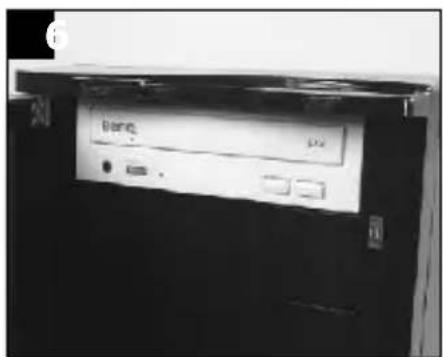

5.25" device installation complete.

2.4 3.5" device installation

Close-up of a black metal tray with two side panels, showing internal structure and a close-up view of the tray (no text or symbols visible)

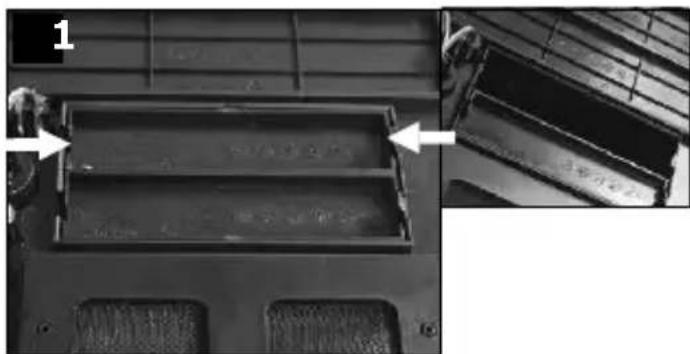

Remove the 3.5" drive bay plastic cover.

Interior view of a computer room with a door, ventilation grilles, and a hand inserting a component (no visible text or symbols)

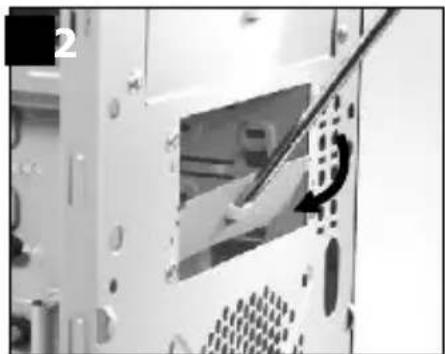

Remove the 3.5" drive bay metal cover.

Close-up of a mechanical component with black components and mounting brackets, shown from two angles (no text or symbols visible)

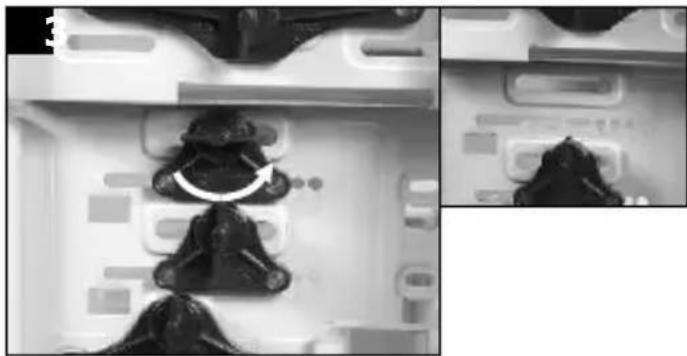

Turn lock device counter-clockwise to unlock and remove lock device.

Close-up of a hand inserting a CD into a computer drive into a hard drive (no visible text or symbols)

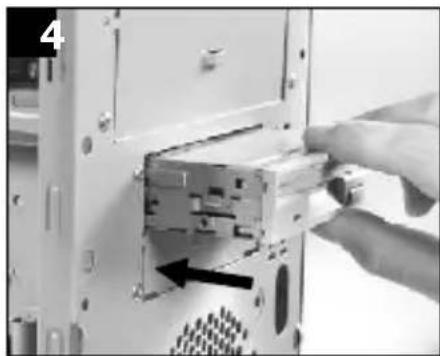

Insert the device into the 3.5" drive bay.

Close-up of a mechanical component with circular eyes and black plastic parts, no visible text or symbols

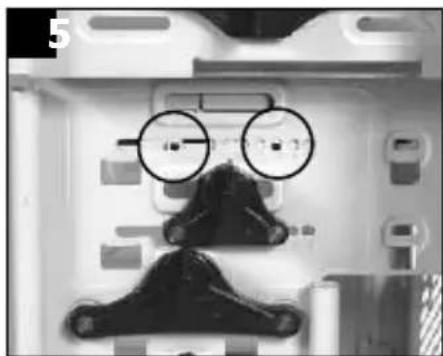

Find the proper openings.

Close-up of mechanical components inside a device housing, showing internal mechanisms and mounting brackets (no text or symbols visible)

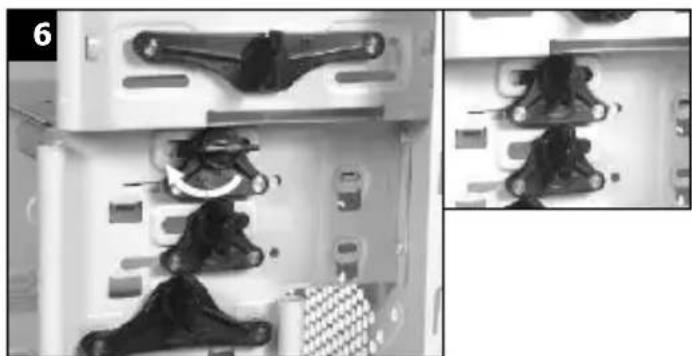

Put back the lock device and turn lock device clockwise to lock.

Interior view of a server room with a computer monitor and control panel (no visible text or symbols)

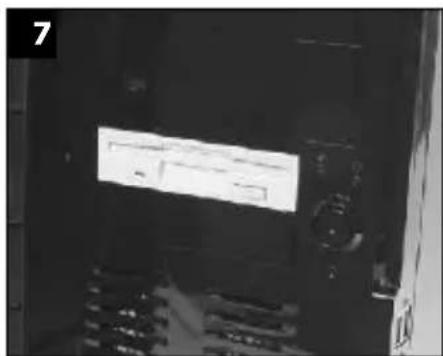

3.5" device installation complete.

2.5 HDD installation

Close-up of mechanical components with a circular arrow indicating rotation, shown in two views (no text or symbols)

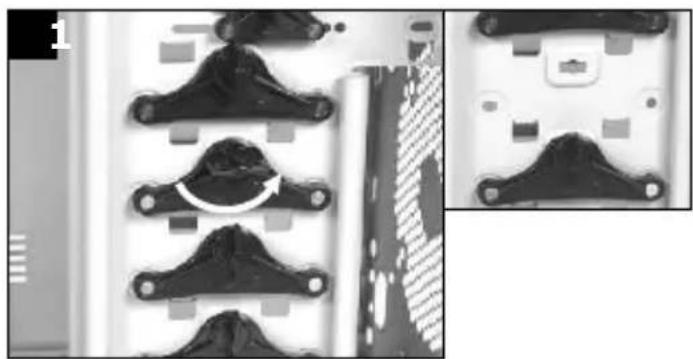

Turn lock device counter-clockwise to unlock and remove lock device.

Close-up of a computer socket with black plastic components and a white panel, showing no visible text or symbols.

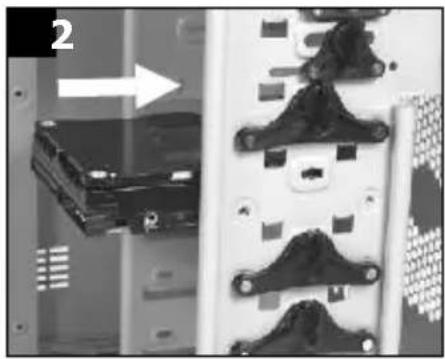

Place HDD into the drive bay.

Close-up of mechanical clamps arranged vertically with a curved arrow indicating rotation (no text or symbols visible)

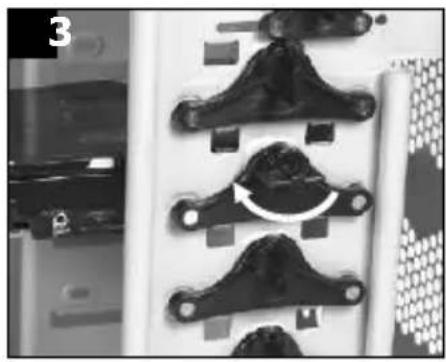

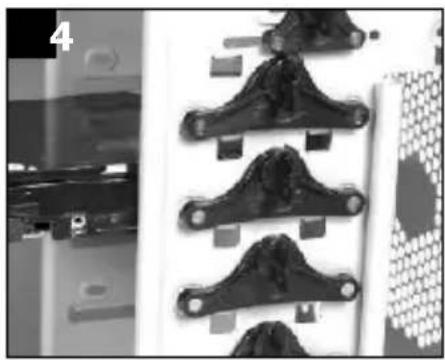

Put back the lock device and turn lock device clockwise to secure the HDD.

Close-up of mechanical components with black brackets and mounting holes, no visible text or symbols

HDD installation complete.

2.6 PCI slot usage

Close-up of a computer motherboard showing a CPU socket and heatsink, with a hand adjusting the socket (no visible text or symbols)

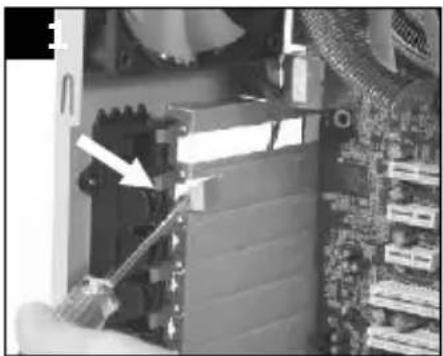

Take off the PCI bracket as shown.

Close-up of a computer motherboard with visible CPU socket and drive bays (no text or symbols)

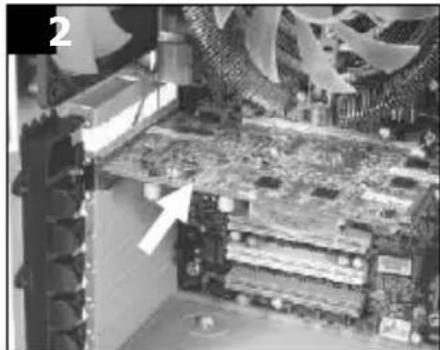

Locate Graphic Card to the motherboard through fixing it on the space of PCI bracket.

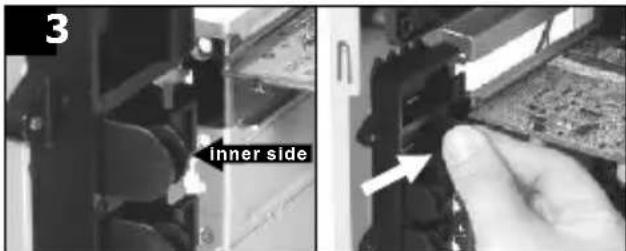

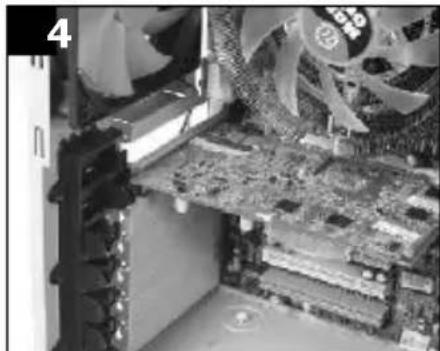

Press the inner side of the clip and pull to the right side to lock the Graphic Card as shown.

Close-up of a computer motherboard with CPU socket and fan blade (no visible text or symbols)

Installation complete.

2.7 Fan filter removal and cleaning

Close-up of a metallic mechanical component with four rectangular cutouts and mounting flanges (no visible text or symbols)

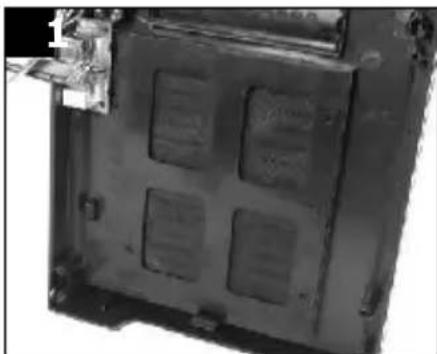

Firstly, open up the whole front door.

Close-up of a mechanical component with a white arrow pointing to a feature, no visible text or symbols.

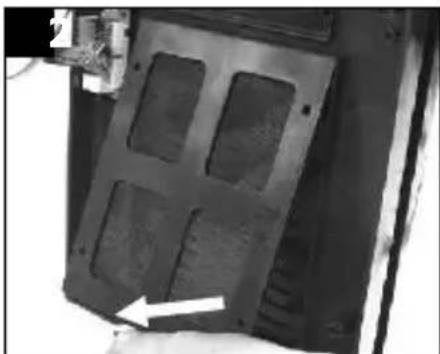

Take off the fan grille, then the filter can be removed.

2.8 Front Fan Installation (Optional)

Person installing a tower-mounted computer tower with visible fan and drive slots (no text or symbols)

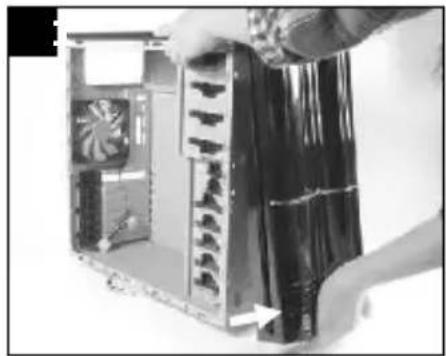

Remove the front door first.

Close-up of a hand inserting a component into a device panel with multiple black metal components (no visible text or symbols)

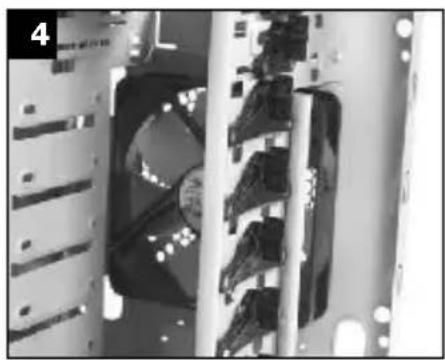

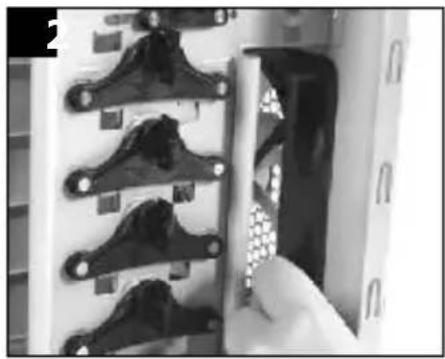

Place the fan as shown.

Close-up of a computer monitor with hexagonal grid pattern and screwdriver inserted (no visible text or symbols)

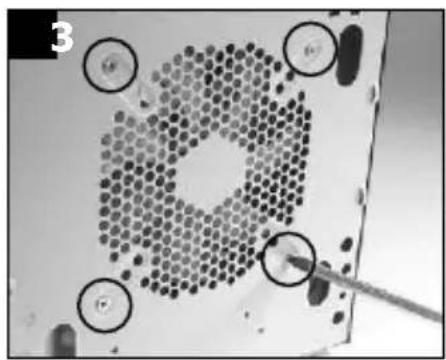

Secure the fan by screws.

Close-up of a mechanical device with visible gears and shafts (no text or symbols)

Front fan installation complete.

Chapter3 Motherboard & Leads Installation

3.1 Motherboard Installation

Each motherboard has different standoff layout. It is highly suggested that you refer to your motherboard's manual when installing motherboard into the Case. The cases are applicable with Standard ATX, Micro ATX motherboards.

Your motherboard may require a special I/O Panel, which should be included with your motherboard.

Placement Direction:

When installing the motherboard, make sure you follow the direction provided by your motherboard manufacturer. On most standard motherboards, the edge with external ports goes to the rear part of the chassis. It is highly recommended that you install CPU, heat sink and modular components before fixing the motherboard inside the chassis.

This side towards the rear of the chassis

= the locations of the screw holes. Note these locations and place included standoffs on the chassis first.

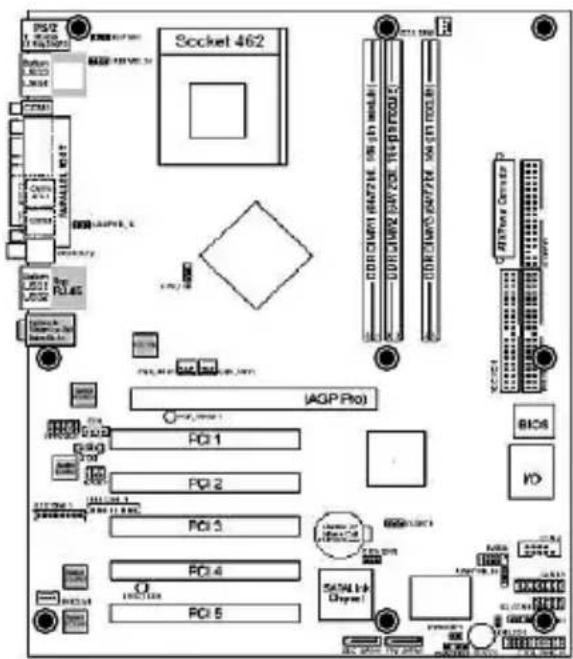

Above illustration is a sample of what the motherboard's layout. For more detail screw hole placement, please refer to your motherboard manual.

3.2 Case LED connections

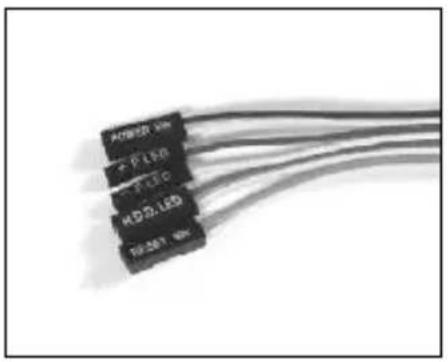

On the front of the case, you can find some LEDs and switch leads (POWER SW*1, POWER LED*1, H.D.D. LED*1, RESET SW*1).

Please consult user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard. These leads are usually labeled; if not, please trace them back to the case front to find out their source.

• POWER LED connects to your M/B at the PLED
• POWER SW connects to the PWR connector on the motherboard.
• H.D.D LED connects to the 2-pin labeled HDD LED connector.
• RESET SW connects to the RSW connector on the motherboard.

Close-up of three black USB flash drives with coiled wires extending outward (no visible text or symbols)

3.3 USB2.0 connection

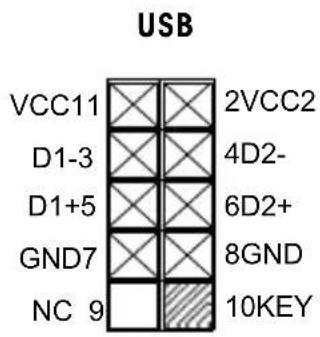

USB connection

Please consult your motherboard manual to find out the section of "USB connection".

Close-up of a USB cable with multiple wires (no text or symbols visible)

3.4 Ear & MIC connections

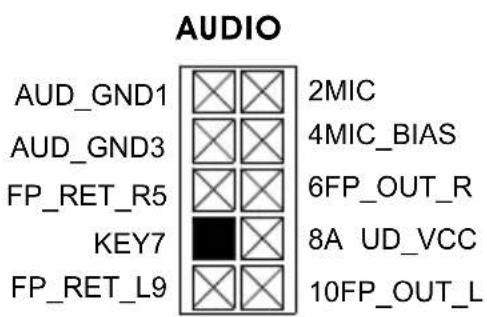

Please consult your motherboard manual to find out the section of "front panel audio connector".

Close-up of a black audio chip labeled 'AUDIO' attached to a coiled cable (no additional text or symbols visible)

Chapter4 RSI Cooler and Power Supply Chapter4

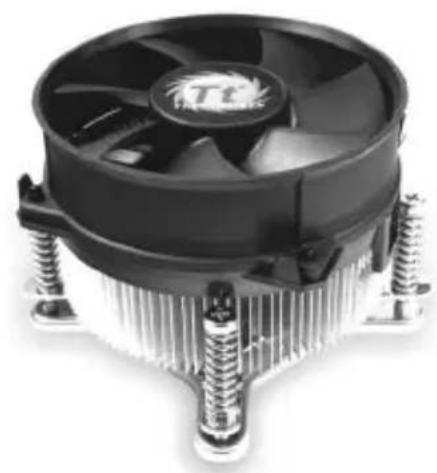

4.1 RSI Cooler (Optional)

Close-up of a black CPU fan with cooling fins and three heatsink (no visible text or symbols)

P/N : CL-P0441

Designed for Intel Core 2 Duo Processor Application for Intel Core 2 Duo / Pentium D / Celeron series (Socket LGA775)

FEATURES:

• Aluminum Crotch Fin provides more heat dissipation area.
• Silent operation.
  Optimized solution for low power processors.
• Back plate & Spring Screw mounting method ensure safe installation when shipping.

Close-up of a black CPU fan with visible cooling fins and heatsink (no text or symbols)

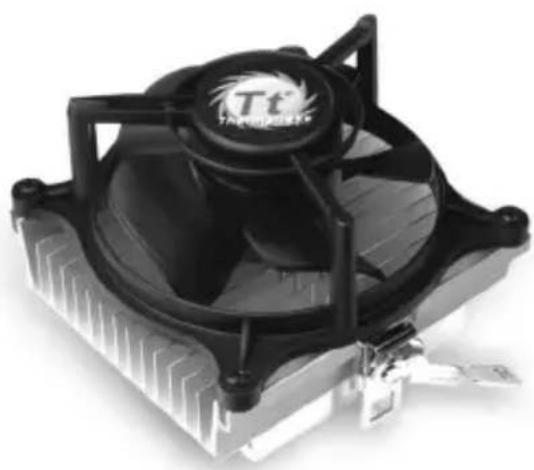

P/N : CL-P0444

Application for

AMD Athlon 64 X2/Athlon 64 FX/

Athlon 64(Socket AM2/939/754) and

Sempron (Socket AM2/754)

FEATURES :

• Perfect ratio aluminum extrusion heatsink for better heat dissipation.
• Tool-less clip, easy installation.
• Silent Solution

RSI Cooler and Power Supply

4.2 RSI Power Supply (Optional)

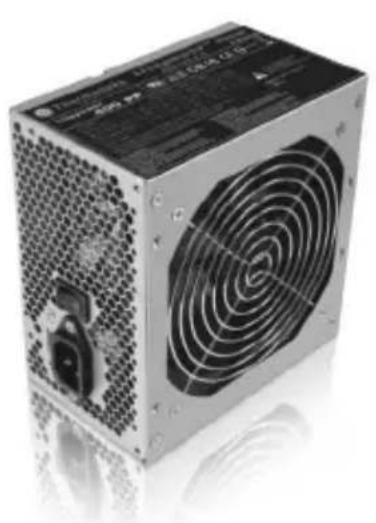

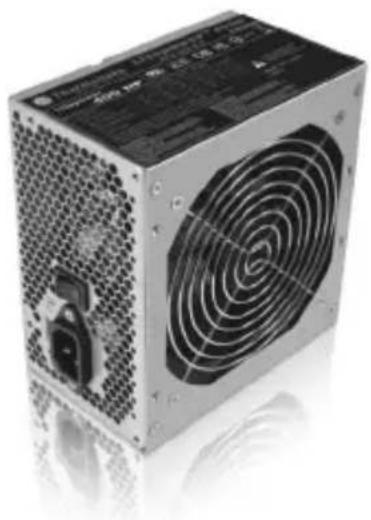

Litepower 400W

Exterior view of a black and silver computer power supply unit with visible circuit patterns and ventilation grille (no text or symbols)

Exterior view of a power supply unit with visible circuit patterns and ventilation grille (no text or symbols)

P/N: W0161 W/PFC P/N: W0162 No PFC

FEATURES:

• Intel ATX 12V 2.0 Compatible.
• Supports 6-pin PCI-Express, 2 SATA, and 20+4 pin connector.
• Dual +12V output circuit provides steady output for system.
• Super quiet and stable 12cm ball bearing fan.
• Build-in Over Current Protection, Over Voltage protection, and Short-Circuit protection.
• Safety : UL, CUL, CE, NEMKO, TUV+CB, BSMI, FCC certification.
