USER MANUAL UNIDOOR-X D12572-04 DreamLine

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model's web page on DreamLine.com

Two isometric line drawings of a two-story building facade with internal doorways and window grilles (no text or symbols)

Right Hand Door installation shown

DreamLine UNIDOOR-X D12572-04 - 2

Questions?

Please Call DreamLine Customer Support: 1-855-831-2126

Hours of Operation M-F 8AM - 7PM EST and Saturday 9AM - 5PM EST

Support@DreamLine.com

DreamLine UNIDOOR-X D12572-04 - 3

For more information about DreamLine® products please visit DreamLine.com

This model is treated with DreamLine's exclusive ClearMaxTM Glass technology. This is a specially-formulated coating that prevents the build up of soap and water spots.

Install the surface with the ClearMax™ label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.

For best results, squeegee the glass after each use and dry with a soft cloth.

Model Numbers

Isometric line drawing of a single door mounted on a grid-patterned cabinet (no text or symbols)

UNIDOOR-X Style M

with 6" hinge panel with Hinge Panel Glass Bracket

D12372-##

D12472-##

D12572-##

D12672-##

D12772-##

D12872-##

D12972-##

D13072-##

Isometric line drawing of a modular cabinet or enclosure with diagonal panels and doorways (no text or symbols)

UNIDOOR-X Style M

with 24" hinge panel with Left or Right L-Bracket

D32372L-##

D32372R-##

D32472L-##

D32472R-##

D32572L-##

D32572R-##

D32672L-##

D32672R-##

D32772L-##

D32772R-##

D32872L-##

D32872R-##

D32972L-##

D32972R-##

D33072L-##

D33072R-##

- hardware finish

01- Chrome

04- Brushed Nickel

06- Oil Rubbed Bronze

09 - Satin Black

Unidoor-X Style M manual used with the following Model Styles:

Isometric line drawing of a two-door shower enclosure with no text or symbols

Style L1
Isometric line drawing of a two-story cabinet or enclosure with mounting holes and ventilation grilles (no text or symbols)

Isometric line drawing of a door opening inside a wall-mounted cabinet (no text or symbols)

Isometric line drawing of a two-story building with windows and doors (no text or symbols)

Style M

Isometric line drawing of a two-story window with a door and front panel (no text or symbols)

Style M1
Isometric line drawing of a cabinet or enclosure with windows and doors, no text or symbols present

Isometric line drawing of a two-story window with a door and grid-patterned walls (no text or symbols)

Isometric line drawing of a two-story building with windows and door (no text or symbols)

Style M2

Isometric line drawing of a two-door industrial enclosure or cabinet (no text or symbols)

Style M3
Isometric line drawing of a two-story cabinet or enclosure with windows and doors (no text or symbols)

Isometric line drawing of a two-story building with a door and windows (no text or symbols)

Isometric line drawing of a 3D rectangular enclosure or cabinet with internal partitions and mounting holes (no text or symbols)

Style M4

DreamLine UNIDOOR-X D12572-04 - Unidoor-X Style M manual used with the following Model Styles: - 13

When installing one of the configurations shown above with glass-to-glass hinges, discard the Style A manual that is packaged with the door glass and use this Style M manual for the installation of the hinge panel glass and door glass.

Next, use the manual that is packaged with the panel glass for the panel installation instructions based on the Style or configuration:

■ for Style M1 - use manuals for Style M & Style F

■ for Style M2 - use manuals for Style M & Style G

■ for Style M3 - use manuals for Style M & Style I

■ for Style M4 - use manuals for Style M & Style J

■ for Style L1 - use manuals for Style M & Style L

STYLE L1 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel and with 30"-34" full height return panel secured using u-channel

STYLE M *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel secured using u-channel

STYLE M1 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel and with 6", 6-1/2", 14", 14-1/2", 22" or 22-1/2" full height inline panel secured using u-channel

STYLE M2 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel with 12", 18", 24" or 26" inline buttress panel secured using u-channel

STYLE M3 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel, with 6", 6-1/2", 14", 14-1/2", 22" or 22-1/2" full height inline panel and 30" - 34" full height return panel secured using u-channel

STYLE M4 *

UNIDOOR-X Shower door 23"\~30" with 6" or 24" hinge panel, with 12", 18", 24" or 26" in-line buttress panel and 30", 36" or 40" buttress return panel secured using u-channel

* For the panel installation instructions, please refer to the separate manual included in the panel glass packaging.

Depending on the panel glass size, some panel glass may have both an inline panel manual and a return panel manual. Use the appropriate manual for the model style/configuration.

For Example: a 30" full height panel can be used as an inline panel or a full height return panel.

NOTE: The Unidoor series doors and enclosures are reversible for left or right-hand door installation. This manual will show the right-hand door installation. For a left-hand door installation, simply begin on the opposite wall and reverse the orientation of the parts as necessary.

Diagram showing two 3D door arrangements with grid walls and a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of two identical 3D door compartments with grid walls, no text or symbols present

use Right-hand L-bracket
use Left-hand L-bracket

Preparation

  1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the "Detailed Diagram of Shower Door Components". If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DreamLine® if you have any questions, and please provide an order number, job name or other proof of purchase to help us identify your original order.
  2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.
  3. If this unit is going to be installed in a new construction, please install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.
  4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Note that some adjustments and drilling will be necessary during the installation process.
  5. Please protect all primary surfaces of the product during installation. Never set the glass down directly onto a tile floor. Leave corner protectors in place until it is necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.
  6. This unit must be installed upon a finished threshold and against finished walls.
  7. The hinge panel glass for this model should not be adjusted more than 1/4" for out-of-plumb within the U-channel. This model does NOT have any adjustment for overall width. Verify that the model size ordered will fit the finished opening before beginning installation.
  8. This model requires that you drill into the threshold for proper installation.
  9. It is recommended to install the hinge-side U-channel into a stud.
  10. This model requires minimum 5/8" of flat threshold space for installation.

DreamLine UNIDOOR-X D12572-04 - Professional installation recommended - 1

NOTE: DO NOT install the handle onto the door glass until instructed to do so. DO NOT attempt to lift the glass using the handle. This could result in damage to the glass and/or serious personal injury. Always use an assistant or a professional grade glass suction cup when handling heavy glass.

Tools

DreamLine UNIDOOR-X D12572-04 - Tools - 1

DreamLine UNIDOOR-X D12572-04 - Tools - 2
Tape Phillips Measure

DreamLine UNIDOOR-X D12572-04 - Tools - 3
PencilLevel

DreamLine UNIDOOR-X D12572-04 - Tools - 4
Screwdriver

DreamLine UNIDOOR-X D12572-04 - Tools - 5
Hammer

DreamLine UNIDOOR-X D12572-04 - Tools - 6
Drill bit (∅=5/16")

DreamLine UNIDOOR-X D12572-04 - Tools - 7

Drill bit Power ( =1/8" )
DreamLine UNIDOOR-X D12572-04 - Tools - 8
Drill

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Miter saw

DreamLine UNIDOOR-X D12572-04 - Tools - 10
or Hacksaw

DreamLine UNIDOOR-X D12572-04 - Tools - 11
Metal File

DreamLine UNIDOOR-X D12572-04 - Tools - 12
Silicone*

*Quick-drying/fast curing silicone recommended for the installation of hinge panels.

Table of Contents

Section titlePage #
Preparation6
Tools7
Parts List8
Hinge Panel Glass Bracket installation10~14
Hinge Panel Glass with L-Bracket installation15~21
Hinges and Door Glass installation22~23
Vinyl Seals24~25
Adjustable Hinge instructions27
Product maintenance28

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed diagram and packing list in your manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration.

Retain these installation instructions for future reference.

Detailed Diagram of shower door components
used with 24" hinge panel glass Left-hand L-bracket (shown) Right-hand L-bracket 35 9 32 36 used with 6" hinge panel glass 24" hinge panel glass 6" hinge panel glass 13 1 23 34 33 7 8 29 5 2 1 Parts List ClearMax™ The glass surface with the ClearMax™ label must be installed to face inside of the sho…

01Door Glass1pc23Countersunk screw ST4.2x408pcs
02Handle1pc29U-channel 2 (44", bottom profile)1pc
05Glass-to-Glass Hinge2pcs32Hinge panel glass (6" or 24")***1pc
07Bottom anti-water strip1pc33Flanged anti-water strip1pc
08L-shaped strip *1pc34PVC glass spacer (0.5mm)1pc
09U-channel 1 (76", wall profile)1pc35L-Bracket (Left or Right) (for 24")**1pc
13∅5/16" Wall anchor5pcs36Hinge Panel Glass Bracket (for 6") ^1pc

* L-shaped strip (#08) only used for Style M configuration

** L-Bracket (for 24" hinge panel glass) is not included with 6" hinge panel glass

*** Hinge panel glass - the top hinge cutout is 7-7/8" to center, the bottom cutout is 8-3/8" to center.

^ Hinge Panel Glass Bracket (#36) is for the 6" hinge panel only and is not to be used with the 24" hinge panel glass

Installation steps

Style M - 6" & 24" Inline Panel and Shower Door Installation

NOTE: The following shower door installation instructions should be used as a general guide and prerequisite to the installation of the UNIDOOR Style M, M1, M2, M3, M4 and L1 models. Before you begin the installation, please check your finished opening size and model dimensions to ensure proper placement of the Hinge Panel Glass (#32) and Door Glass (#01). Specific size information can be found on our website: DreamLine.com.

NOTE: The 24" Hinge Panel Glass (#32) installs with either a left or right L-Bracket (#35). (Fig 1)

The 6" Hinge Panel Glass installs with the Hinge Panel Glass Bracket (#36). (Fig 2)

This manual includes the instructions for both methods.

DreamLine UNIDOOR-X D12572-04 - Installation steps - 1

NOTE: There is a top and a bottom to the Hinge Panel Glass (#32): The top hinge cutout is 7-7/8" to center, the bottom hinge cutout is 8-3/8" to center. The hinge panel glass must be installed correctly.

NOTE: For the 6" Hinge Panel Glass (#32) installation, begin with Step #1. The Hinge Panel Glass Bracket (#36) installs at the top of the vertical U-channel. (Fig 2)

The Hinge Panel Glass Bracket (#36) is only for use with the 6" Hinge Panel Glass (#32). DO NOT USE this bracket with the 24" hinge panel glass.

For the 24" Hinge Panel Glass (#32) installation with the L-Bracket (#35), begin with Step #10 on Page 15.

Note: The L-Bracket (#35) is not included with the 6" hinge panel installation.

NOTE: It is strongly recommended that the silicone be allowed to fully cure in the U-channels before hanging the door glass.

inside rubber gasket #36 outside rubber gasket

NOTE: The Hinge Panel Glass Bracket (#36) is only to be installed with the 6" Hinge Panel Glass (#32) for the UNIDOOR-X models. Maximum out-of-plumb adjustment for Hinge Panel Glass = 1/4"

top 24" Hinge Panel

24" Hinge Panel with left L-bracket (#35)
Fig 1

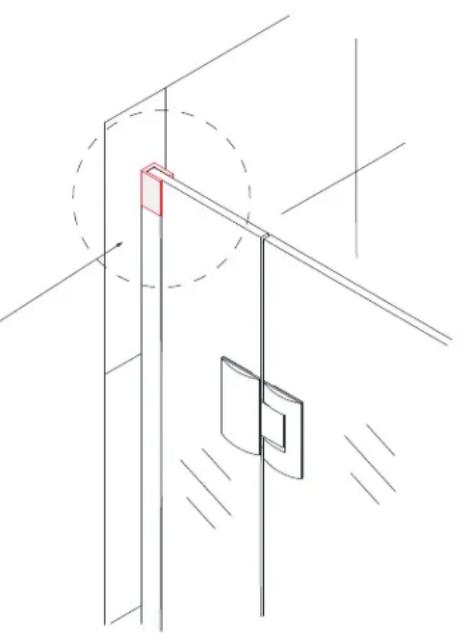

Pure architectural line drawing of a vertical structure with a circular detail and diagonal lines, no text or symbols present.

6" Hinge Panel with Hinge Panel Glass Bracket (#36)
Fig 2

Installation steps for 6" hinge panel with Hinge Panel Glass Bracket

  1. Draw a line on the threshold and on the wall to represent the centerline of the U-channel. Make sure the line is parallel to the front edge of the threshold. (Fig 3)

  2. Cut the vertical U-channel to 69-7/16". Cut the bottom U-channel** to 6". (Fig 4)

Model height of 72" Carpenter's Square

Fig 3

1-9/16" Hinge panel Glass bracket vertical U-channel 69-7/16" bottom U-channel** 6"

Plumb line Out-of-plumb at the bottom

![](images/8ba4d88e21ef3c0e8c63206538bfc63e53ca4cb36aacc7f89a53419235201c64.jpg) Fig 6Fig 5 5. Drill ∅5/16" holes in the wall and install the wall anchors. Drill ∅1/8" holes into an acrylic threshold (or ∅5/16" holes and anchors for a tile threshold). (Fig 7) 6. Apply silicone to the back of the U-channels and the screw holes, then install the U-channels and Hinge Panel Glass Bracket (#36) using the ST4.2 x 40mm screws (#23). (Fig 8) ![](images/b4947e565f8a996206127dfd2a9ba00cdaa6d94303f8869ba294a7cf08551b9b.jpg) Fig 7 ![](images/cb02d55b5634e8e6e63f3707ac183ceccf6ca804275138ebc35abcf17cb3fc70.jpg) Fig 8 7. Add the 0.5mm shims into the bottom U-channel to protect the bottom corners of the glass. Apply a bead of silicone into the length of the U-channels. (Fig 9) Quick-drying/fast curing silicone is recommended for the installation of hinge panel glass into u-channels. ![](images/f371efb022dcaa2ccce62289e57b9d1fe92c9ae7480834ae1204f63bbbba8923.jpg) Cut and install two 2"pcs of the 0.5 mm shims (#34) into the bottom U-channel to protect the corners of the glass Fig 9 8. Install the Hinge Panel Glass (#32) into the U-channel, checking for level and plumb. Install the gasket into the Hinge Panel Glass Bracket. (Note: Make sure the top of the hinge panel glass is at the top). (Fig 10) Hinge Panel Glass Bracket with gasket ![](images/969c9de4b92ca3aec7a718b6725cfbe5498edcb45d44a722fe7aec9df6d3359e.jpg) Fig 10 9. Tighten the rubber-tipped set screws on the Hinge Panel Glass Bracket (#36) to secure the glass. Do Not overtighten! (Fig 11) ![](images/ffefac4ed785f8cb76f857f18604c2bfb5a43fb1b4fef34092083269b717d7c9.jpg) Fig 11 ![](images/5fb061fc62e3b4ab7e76f7e5eb1b302fd644845255503fe0ccedf75f14407381.jpg) NOTE: Following the installation of the Hinge Panel Glass (#32), it is strongly recommended that the silicone be allowed to fully cure before hanging the door glass. (Fig 12) Go to Step #18 on Page 21 to continue the installation of the Hinges, Door Glass and other components. ![](images/90a5fbfbbc6f3b689bee3c6085ce95e9513250ff73cfcc28c42a2fc310504575.jpg) Fig 12

Installation steps for 24" hinge panel glass with L-Bracket

10. Cut the vertical U-channel 1 (#09) to 71". (Fig 13)

![](images/2bd37b8715ce57c691ab37fc15bf7110c93465598c0019aff36747b3a539de6f.jpg) Fig 13

11. Cut the bottom U-channel 2 (#29) to 24" (see note** below). (Fig 14)

![](images/cda252df105bf73d77af09f0067dbc72e348748d4e1d276e438d7db66a0d30f8.jpg) Fig 14 12. Position the U-channel 2 (bottom profile) (#29) onto the threshold, parallel to the outside edge. Mark the position of the U-channel and mark the position of the holes for drilling. You need to use at least 3 holes for the U-channel 2 (bottom profile) (#29): one near each end and one near the center. \- Drill the holes into the threshold using an 1 / 8'' drill bit. (Or use a 5 / 16'' bit and anchor for tile) \- Apply a bead of silicone to the bottom of the U-channel 2 (bottom profile) (#29) and attach it to the threshold using the ST4.2 x 40mm screws (#23) (Fig. 15) NOTE: If installing this hinge panel and door for one of the Unidoor-X enclosure configurations, it is important that the hinge panel is installed at the correct dimension for the enclosure model size. Refer to panel installation manual packaged with the panel glass for details and dimensions. ![](images/31645ea6ad700770339f614cf341dfcf60f03c8eb2e17a3d180b51b189d39550.jpg) ![](images/712349d5a36b1cf6616fd0f630be6747d715cfe7c9cf0437ed53936046e485c7.jpg) ![](images/436a6b40fa67a08f5330b81d935951422717d701ba5c7ac4ff5622325b531d95.jpg) ![](images/c3c46b0503b3ac3c1ea257b6087278e11881e17d99966bf618c8e8fc1b8fbfad.jpg) ![](images/33fd5b13c671eeb7bbcdb7aa06364049b908123a7248fd66826cfa68c3ca9765.jpg) Fig 15 ![](images/ba8327068a35d14d02a7c9473ef73768e13cbe2c18f2d12717530a2a85665c2b.jpg) 13. Next, position the vertical U-channel 1 (#09) (wall profile) on top of the installed bottom U-channel. Use a level to plumb the U-channel 1 (#09) (wall profile) and mark the positions of the holes for drilling. You need to use at least four holes for the U-channel 1 (#09) (wall profile). - Drill the holes into the wall using a ∅5/16" drill bit. - Insert the Wall Anchors (#13) into the 5/16" holes. - Apply silicone to the back of the U-channel 1 (#09) (wall profile) and attach it to the wall using the ST4.2 x 40mm screws (#23). (Fig 16) ![](images/e8a4656553ac64f987226d135c9a7cc412602a4d71ec3d9aed47673d87dc4f6e.jpg) 14. Add several 2" pieces of the 0.5mm Adjustment Spacers (#34) into the bottom U-channel to protect the bottom and corners of the glass. Apply a good quality mildew-resistant silicone into both U-channels. (Fig 17) ![](images/b6f4a8581eaba11a9cd16f46a4899dbe356b33ace292671646cc7e828fe1115a.jpg) ![](images/a2950172761e842dbbaf76536e579ab8ce6ea0a5db82fc2792300ee61981d6c9.jpg) ![](images/216e888116e0944abba22eacd902c811767bbf57bf29ed8a56f3f5ecad656b25.jpg) ![](images/af816bb401bae4a9bf42384f76dd860f771fbe685cda7283f2216be8bcca5c3c.jpg) ![](images/b51a6ebc2f34c71b307fed9e6f6a1ed852bea55fd60a07805fee3793a46f54f0.jpg) Fig 16 ![](images/f71145bb5cc04c323a15303db7b188d282f8f7827051599b20cb3449c6db4f74.jpg) ![](images/bda711578a031ce3276c1ab9ea5d056a7e424a1658b6aa4805810407593d9a36.jpg) ![](images/cf9ee18bc349aa0abcd3d568db80e7c87e2f184eb06d1815d93750043bc30c1b.jpg) Fig 17 NOTE: There is a top and a bottom to the Hinge Panel Glass (#32): The top hinge cutout is 7-7/8" to center, the bottom hinge cutout is 8-3/8" to center. The hinge panel glass must be installed correctly so that the door glass can be installed correctly. 15. Install the Hinge Panel glass (#32) into the U-channel 2 (#29) (bottom profile) and the U-channel 1 (#09) (wall profile). Apply a dab of silicone to the exposed end of the bottom u-channel. (Fig 18 and 19) ![](images/5d2f2810ef2011d0fda780837f0a19d590249c7fa5e814947d361cbb990dc99b.jpg) ![](images/071db36af3197f4442ee3a290a4d5ead02f526ff7ee0352588f3d6920cf14cb7.jpg) ![](images/1d350467899b7b72ef49c411fcf6733cf907d52aa2ecd4675ee41ef1fd5e45f7.jpg) ![](images/100c5f0a76e9837072e2335b884cbbbe5181b8bf7de64f8b779f2b34ff705f87.jpg) Fig 18 ![](images/fcfd20a030778ffb9656938dcd3ce1008d65ea140af3e937ff6321ad6d7cd475.jpg)

Installation steps for 24" hinge panel glass with L-Bracket

L- Bracket Assembly Parts List** ![](images/fed3ca814676713caf92870f4e520bb02db77f2414e4aa59ba39a86770cbedf6.jpg)
35.1PVC spacer 1 pc 35.6 Wall plate 1 pc
35.2Rubber tip set screw 2 pcs 35.7 Truss Head Screw ST 4.2 x 40 2 pcs
35.3L-Bracket (left hand shown) 1 pc 35.8 Flat head Screw M5 x 14 2 pcs
35.4Decorative cover 1 pc 35.9 Wall Plate adjustment set screw 2 pcs
35.5∅5/16" Wall anchor 6 pcs
**L- Bracket Assembly not included with the 6" hinge panel

(Left-hand bracket installation shown)

16. Position the L-Bracket assembly (#35) onto the Hinge Panel Glass (#32) as shown and mark its position on the wall. Remove the Wall Plate (#35.6) from the L-bracket. Hold the Wall Plate (#35.6) to the marks on the wall. Check for level and mark the holes for drilling through the wider, untapped holes. (Fig 20.2) Drill two ∅5/16" (8mm) holes and insert the ∅5/16" Wall anchors (#35.5). (Fig 20) ![](images/5a8c7d7ca952c808a6eccdcd1202e5a1e6769ec02bfed19ccd6ad788a8d6299a.jpg) ![](images/df73593c1c7684f33c45d7ea94fdcefbea81923bbe0a99e47ff2363f070af0da.jpg) ![](images/8d974e7077f932d92d0f1fcac9d87f28b119503bb78c69b2689e391719ab7638.jpg) ![](images/4ed0787bab560ed45c24ae9efd7caec3582901fdb2ee0192aedaf501838dc9bd.jpg) Fig 20 17. Attach the Wall Plate (#06) to the wall using the ST4.2 x 40 (#35.7) screws. Re-attach the L-Bracket (#35.3) to the Wall Plate (#35.6) using the Flat Head Screw M5x14 (#35.8) and adjust the angle if necessary by using the Wall Plate Adjustment Set Screws (#35.9). (Fig 21.7 and 21.8) ![](images/9594eec0c7217e8dd9a021fe08e3f169fc5db28e346ce8afec2768bd94cdead3.jpg) ![](images/72dfee4438fea49f8adf6ffba3dc552e1156a6e50bb5f7dda7d8759725a87dc0.jpg) ![](images/fa570b6726f2dfac3d1a9b5cfbb6cedece16ff87ade5fc86cd84d16808537c11.jpg) ![](images/557c8b6422b1ece2da2bcf262f468344d06c47810513cc56edd0d23e8e27c098.jpg) Fig 21 18. Adjust the Stationary Glass to plumb and tighten the screws. Attach the Decorative Cover (#35.4). Secure the L-Bracket (#35.5) to the top of the Stationary Glass using the clear gasket and rubber-tipped set screws. Do not overtighten! (Fig 22) ![](images/a42c3a3eb55547ba9e230b6ab6fd0b726c884d0b6fd58594b80ab51a0c06076b.jpg) ![](images/d300ee1ea0c65e9d1485b438fc600cb34eec2e5df17d02c521981d913335628f.jpg) ![](images/7c47878afc04cfbdc9e9aa81869bf4f275321f480101808a8c462e8e5ebc48e7.jpg) Fig 22 ![](images/e9109b3a50ed4ed8200d0c0cd87440ddc2392eb94f9374382836d630e3e8cc0e.jpg) Left-hand bracket installation ![](images/6144d5221bb885b1ea1c62f156168651f989102797b56a112d70cb165b87465e.jpg) Fig 23 Right-hand bracket installation NOTE: The left-hand L-bracket installation is shown. Follow the same steps for installing the right-hand L-bracket. 19. Attach the Hinges (#05) to the Hinge Panel Glass (#32) with the bolts facing inside the shower. Install the hinges onto the Hinge Panel Glass (#32) flush with the edge of the glass. Use at least one 2mm hinge gasket per side. Tighten the hinge bolts evenly and snap in the decorative bolt caps. (Figs 24 and 25) ![](images/ea83528067bf69a6986be9ff991e33b1c0be0fe51b58d89a0d6f455dd148f7f8.jpg) ![](images/2a2e2ed0fb5a1c9cfcea13ce619ccab7e208d5f9e0ae25c8f3767a915fc284dc.jpg) Fig 24 NOTE: These adjustable hinges are factory set to overclose. See Page 27 for instructions regarding the adjustment features of these hinges. ![](images/9fd97c9811336ab20d947aead803adaafc289bc09d2f47d92ed59628b27ca1f8.jpg) NOTE: Do not attach the handle to the door glass until instructed. Do not attempt to lift the door glass with the handle as this may result in damage to the glass and/or serious personal injury. Use a professional grade glass suction cup and an assistant when handling heavy glass. 20. The Door Glass (#01) ships with four 5/8" spacers attached to the top (2pcs) and bottom (2pcs). These 5/8" spacers will create the proper spacing at the bottom of the door glass and will ensure the installed door height finishes at 72", but always confirm with a measurement. ![](images/0d1f7268598e3b052c5d88371e13121b73bd199b0b5428f8fb9be75c25c3ff68.jpg) ![](images/1d143d460a87c6c3532ec784a8772cef441ce74835489220b886ed7c87821ac9.jpg) ![](images/cd198843ef8bec7de4bf88b48d108f19e3ac04f6958b7c070e63712f01243bc1.jpg) Set the Door Glass (#01) with the 5/8" spacers attached onto the threshold, inline with the Hinge Panel Glass (#32). Level up the Door Glass (#01) with the Hinge Panel Glass (#32) and fasten the hinges onto the Door Glass (#01) using one 2mm hinge gasket per side. Make sure the top edges of the Door Glass (#01) and Hinge Panel Glass (#32) are aligned and that there is an even reveal between the door and panel glass. Remove the 5/8" spacers from beneath the Door Glass (#01) once the hinge panel glass is fully secured.** (Figs 24 and 25) ** NOTE: It is strongly recommended that the 5/8" shims be left beneath the door glass until the silicone securing the hinge panel glass has fully cured. ![](images/08b52f3a53b7d20bd6f8441684e6516b9cd8d896cebc5362a35efb9ef591cf55.jpg) Fig 26 ![](images/f051d6144426926f674ab5aed62fde70d37762dbb7c683b1de72b76420ab5c2a.jpg) Use the 5/8" spacers included with the door glass 21. Mount the Handle (#02) to the Glass door (#01). (Fig 26) 22. Measure the bottom of the Door Glass (#01) from side to side to determine the actual width of the door. Cut the Bottom Anti-Water Strip (#07) to the size of your measurement and notch 3/8" of the inner side of the Bottom Anti-Water Strip (#07) as shown in Fig 27.2. Press the Bottom Anti-Water Strip (#07) onto the bottom edge of the Glass Door (#01). NOTE: Make sure the Bottom Anti-Water Strip (#07) is flush to the vertical edge of the handle side of the Door Glass (#01). (Fig 27) ![](images/b0590455e9108c8684c50320bd2862763634fe0aedd4c24167b97c24fa74d61c.jpg) Fig 27 23. To install the Flanged Anti-Water Strip (#33), take three measurements: \- from the top edge of the Door Glass (#01) to the top of the center portion of the top Hinge (#06) (see Fig 28.1 for an example to use for taking all three measurements) • from the bottom of the center portion of the top Hinge to the top of the center portion of the bottom Hinge (#05) • from the bottom of the center portion of the bottom Hinge (#05) to the threshold Cut the Flanged Anti-Water Strip (#33) according to these measurements. Notch the cut strips to slide them into the hinges and around the installed Bottom Anti-Water Strip (#07) to cover the space between both glass panels. Open the door and press the cut strips onto the vertical edge of the Door Glass (#01) so they will overlap the panel glass. (Fig. 28) ![](images/a2c4a84fb366548fcb36779e737087aabdc002489b2ed3d64d3d431280c52173.jpg) Fig 28 For Style M only: If your model does not include additional panel glass, proceed to the next step to install the L-shaped Strip (#08) to the wall.

ATTENTION:

Prior to the next step, please be sure the section of the wall where you need to attach the L-shaped Strip (#08) is clean, dry, and free from soap, oil or any construction debris. 24. With the door closed, place the L-shaped Strip (#08) on the door edge and mark its location on the wall. Please note that the corner of the L-shaped Strip (#08) should face into the shower. (Fig 29.1 and 29.2) With the door open, remove the tape backing from the adhesive strip and firmly press the L-shaped Strip (#08) to the wall. Allow time for the adhesive to set before allowing the door to close against the L-shaped Strip (#08). (Fig 29)

NOTE:

The above procedure for installing the L-shaped Strip (#08) is for the Unidoor Style M shower door only. If installing another model, please refer to the separate panel glass installation manual located in the glass packaging for model specific instructions. Hinges set to overclose require the use of the L-shaped Strip (#08) or other strike vinyl that ships with the panel glass. ![](images/c613cb233ba46d1d7e3518cc3683062a120f77fa54b6c93d694fcd5ef79527d9.jpg) ![](images/d9d88707bd9f0dfee73e8a985f32b521d2cdc43f171809595080bed7496d8822.jpg) Fig 29 ![](images/6cf0f105116e910b47197518fce8274dfc80f042dd1e6b71a20babace89a3488.jpg) Fig 30 ![](images/5b08691dd3e0700b5e0b401891b4b234b1902c8e455cd3fb8e1d1fc89be22a77.jpg) 25. With the door open, apply a good quality mildew-resistant/waterproof silicone along the connection of both U-Channels to the wall and threshold on the inside of the shower. NOTE: The surface needs to be clean and free of debris before applying silicone. Let the silicone cure before closing the door to avoid contact with the Bottom anti-water strip (#33) (Fig. 31) ![](images/0b6f7ee7de4d69d6f28edc569250f22b110841b1190818e55c74483879a81c5f.jpg) Fig 31 26. Allow 24 hours for the silicone to fully cure before using the shower. ![](images/783904299000e095ad2a5005f79be156775e7c1bc05b57f0b2eb7a3d6e5e726d.jpg) ![](images/cebaf1de74de5439fc14fff1c904c6c39c95fe893774788e3e15d00611a46d02.jpg) NOTE: If your model includes additional panel glass, please find the manual for the panel glass installation in the panel glass packaging. (See page 4 for details) ![](images/930f54e6379f13fe097fa65afe0e0059ce126c2c0041fae7737bf5f11d11e4c6.jpg) HG-PRS20A Adjustable Hinge Manual ![](images/dbe6f7bf9f831a94f3d87fad8d7072cf79a39688f435b89c6ea35c54898222a0.jpg)

Installation & Adjustment

1. Make sure the door glass is plumb and the edge of the hinge is installed flush with the glass edge. Tighten the faceplate screws. (Figure 1) 2. The hinges are set to overclose at 172° degrees. You can change this angle by using the adjustment screws on the hinge plate. (Figure 2) 3. Use the supplied Allen Key to loosen the adjustment screws on the hinge plate, adjust the door to the desired angle then tighten the adjustment screws. (Figure 3) ![](images/cc81bb0624d4c313454831fa2fdba1127f881e478bf979d7265d866e73a8fe41.jpg) Figure 1 ![](images/a24127cc2049406287088eadda27a006076c5bb8abb6c20a9f6d3e076ab29476.jpg) Figure 2 ![](images/6ad7d397ff9ebd4cd5281f1e0f401b390772d0884e3f5ca0d898ffdbdb407456.jpg) Figure 3

Safe Use & Daily Maintenance

- The overclose setting requires strike vinyl for the door to close against and seal. - Use a soft cloth to clean the hinge surfaces. Do not use abrasives or acidic liquids as this will damage the finish. - Be careful not to scratch the finished surfaces of the hinge during installation.

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface. GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface. HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces. NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns.

DREAMLINE®

THE ULTIMATE SHOWER DOOR

TEL: 866-731-2244 FAX: 866-857-3638 DREAMLINE.COM For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : DreamLine

Model : UNIDOOR-X D12572-04

Category : Shower system
