Product Type	Shower Door System (Sliding)
Brand	DreamLine
Model	Infinity-Z SHDR-0954720-04
Available Sizes (Width)	48 in, 54 in, 60 in
Glass Thickness	1/4 in (6 mm)
Glass Type	Tempered Glass - Clear or Frosted
Finishes Available	Chrome, Brushed Nickel, Oil Rubbed Bronze, Satin Black
Door Operation	Sliding (top and bottom roller assemblies)
Included Components	Door Glass, Inline Panel Glass, Glass Profiles, Wall Profiles, Guide Rails, Handle with Knob, Towel Bar, Vinyl Seals, Hardware Kit
Adjustable Wall Profiles	Yes, adjustable for width and out-of-plumb correction
Professional Installation	Recommended
Average Installation Time	1 hour
Safety	Tempered glass; do not install damaged glass; periodic inspection
Maintenance	Wipe with soft cloth after use; use non-abrasive cleaners
Spare Parts Availability	Factory parts available from DreamLine (see manual)
Customer Support	Phone: [phone], Email: [e-mail]
Manual Language	English
Warranty	See DreamLine.com for details

Frequently Asked Questions - Infinity-Z SHDR-0954720-04 DreamLine

What tools are needed for installation?

You will need: level, tape measure, pencil, Phillips screwdriver, silicone, drill bits (5/16 in, 3/16 in, 1/8 in), power drill, soft head hammer, hacksaw, mitre saw, metal file, extender driver bit, safety glasses, work gloves, and a professional-grade glass suction cup.

How do I cut the guide rails to size?

Measure the finished opening width, subtract 3-3/8 in (86 mm) to get the finished cut length. Cut the top and bottom guide rails from the door end only (the end farthest from the glass clip hole) using a hacksaw or mitre saw. File any burrs.

My door glass is not rolling smoothly. What should I do?

Use a #2 Phillips screwdriver to evenly adjust the top roller assemblies (item #17a) until the door rolls smoothly and closes tightly. Do not overtighten the roller assemblies.

There is water leakage under the bottom rail. How to fix it?

Ensure the bottom guide rail is tight against the threshold and that silicone sealant has been applied along the entire length of the rail. If necessary, redo installation steps 6 and 7 to improve the seal. Allow 24 hours for silicone to cure before use.

The panel glass shakes or rattles during operation. What can I do?

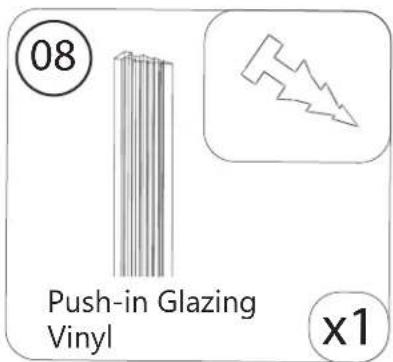

Check that the push-in glazing vinyl (item #08) is inserted correctly between the panel glass and the glass profile. Also inspect the glass clips (item #16) for correct installation and tighten if necessary.

How should I clean the glass and hardware?

Use a soft cloth and non-abrasive cleaners. For glass, use a squeegee after each use to prevent soap buildup. Avoid aerosol sprays, abrasive sponges, and cleaners containing ammonia, bleach, or acid. For stainless steel, clean with the grain.

What finishes are available for this model?

Available finishes are Chrome (01), Brushed Nickel (04), Oil Rubbed Bronze (06), and Satin Black (09). The last two digits of the model number indicate the finish (e.g., SHDR-0954720-04 is Brushed Nickel).

Can I install this shower door myself?

Professional installation is recommended due to the weight and handling of tempered glass. Improper installation can cause glass breakage. Use an assistant and a professional-grade glass suction cup when handling heavy glass.

What should I do if parts are missing or damaged?

Inspect all boxes within 3 business days of delivery. If parts are missing or damaged, contact DreamLine Customer Support at 1-866-731-2244 or [e-mail]. Have your purchase order number and model number ready. Do not install if glass is damaged.

What is the warranty coverage?

Complete warranty information is available on DreamLine.com. Contact DreamLine support for specific warranty details. Retain your purchase order and installation date records.

USER MANUAL Infinity-Z SHDR-0954720-04 DreamLine

DO NOT RETURN PRODUCT TO STORE. CONTACT DREAMLINE® WITH ANY QUESTIONS

QUESTIONS?

Please Contact DreamLine Customer Support:

CALL 1-866-731-2244

EMAIL [e-mail]

INFINITY-Z

SHOWER AND TUB DOOR INSTALLATION INSTRUCTIONS

PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

SHDR-0948720-##

SHDR-0954720-##

SHDR-0960720-##

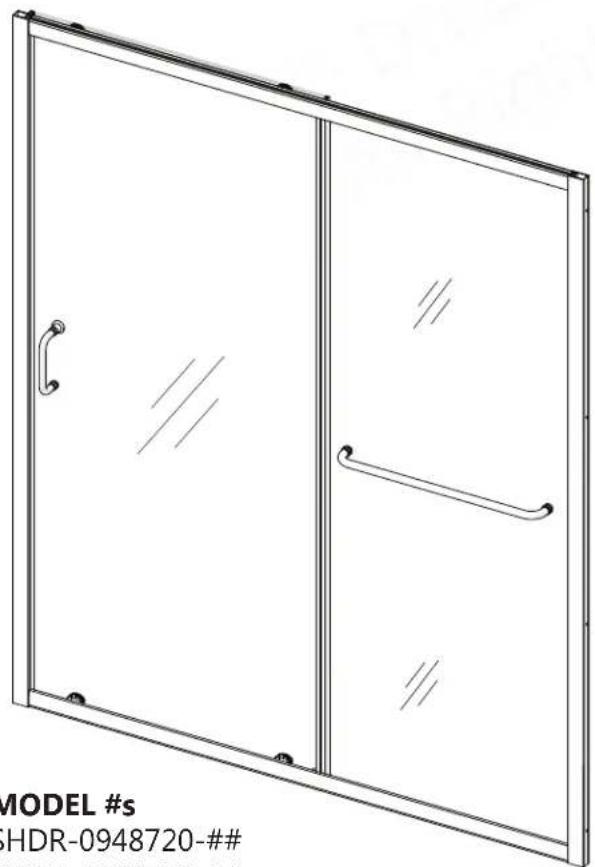

Left-hand door installation shown*

MODEL #s

SHDR-0960580-##

## = finish

01-Chrome

04-Brushed Nickel

06-Oil Rubbed Bronze

09-Satin Black

FR-Frosted Glass

IMPORTANT!

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice for the purpose of product improvement and customer experience. Please refer to the model's web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

Questions?

Please contact DreamLine Customer Support

See DreamLine.com for hours of operation

[e-mail]

1-866-731-2244

DREAMLINE® dream in style

Record the following purchase information for your records or in the event you need to contact DreamLine®:

Purchase Order

Number

Installation Date

Installed By:

Store/Vendor

Purchased From

OD Number

(optional)

SKU Number

*found on the shipping box or label if available.

Table of Contents

Section Title Page #
General Preparations and Warnings 2
Model Specific Preparation 3
Adjustable Wall Profile System 4
Tools 5
Detailed Diagram of Shower Door Components 6
Parts List 7-8
Installation Steps 9-24
Top and Bottom Roller Assembly Installation 16, 21
Handle and Vinyl(s) Installation 23

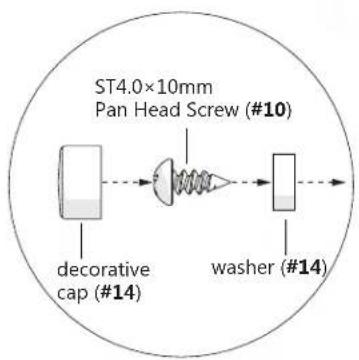

Decorative Cap with Washer Installation 22
Product Maintenance 25
Troubleshooting 26
Factory Parts Information 27-33

Symbol Legend

TIP - for ease of installation.

CORRECT - recommended.

NOTE - take note of special feature; additional information.

INCORRECT - not recommended.

REQUIRED - requires special attention; signifies a warning.

Average Installation Time

DREAMLINE® dream in style

IMPORTANT

• DreamLine® reserves the right to alter, modify or redesign products any time without prior notice for product improvement and customer experience. Please refer to the model's web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.
• This product should be installed by someone familiar with the construction requirements for this type of project and the care necessary for the safe installation and operation of the product.
  • The safety of any installation is the responsibility of the installer.
  • Professional installation required. (Enigma Series)
  • Professional installation recommended. (All models)
  • To prevent damage or serious injury, Do Not lean against the installed panel/door/glass.
  • To prevent damage or serious injury: Do Not attempt to lift or move a heavy lite of glass alone. Use an assistant and/or a professional grade glass suction cup.
• The installation of some models may require drilling down into the threshold. Contact the manufacturer of the base, tub, or threshold material with any questions regarding the drilling of holes into their product.
• All drawings in this installation manual are for illustrative purposes only and are not drawn to scale.

TEMPERED GLASS WARNING

• Your Shower Door Glass Could Shatter Without Warning if Improperly Installed or Mishandled
• Do Not install or operate a shower door if the glass has chipped corners, slivered edges or is otherwise damaged and/or has been dropped or banged into a hard surface such as tile, marble or glass.

- The main causes of tempered glass breakage are:

• Improper handling, storage or installation
  c Misuse/abuse
• Lack of maintenance
• Failure to replace damaged glass

Improper handling during storage, unpacking and installation:

Corners and edges are the most susceptible area to damage on a lite of tempered glass and should be protected and handled with care during storage, unpacking, installation and operation. A concentrated point of pressure or impact with a surface harder than itself may cause the tempered glass to shatter. The tempered glass may release immediately, within several hours or even days later.

- Incorrect installation of door hardware, rollers, hinges, channels, stopper or glass:

Improper installation may include: loose hardware and/or lack of proper gaskets between the hardware and glass. Additionally, improper alignment of guide rails, wall profiles or other hardware during installation or operation may place stress on the glass edges and cause it to break.

This product must be installed by a professional and experienced installer familiar with the safe handling of tempered glass.

- Improper use of this product:

Aggressively opening or closing the door may cause trauma to the glass, which can lead to breakage. This may occur immediately or hours or even days later.

The shower door hardware and glass should be inspected periodically:

• Instruct the homeowner how to perform a periodic inspection of the shower hardware and glass - some minor adjustments may be necessary based upon the use (or misuse) of the shower door. Ensure that the hardware remains tight and that the door alignment and operation are correct. Any adjustments should be made upon discovery to prevent damage to the product.
• Additional considerations should be given to the installation of frameless tempered glass products in households with young children or an elderly person due to an increased chance of improper handling. In such cases, alternatives such as shower curtains or grab bars should be considered.

GENERAL PREPARATION

• After opening all boxes and packages, read this introduction carefully. Check that all the items are included in the package by marking off the components on the "Detailed Diagram of Product Components" page. Examine all boxes and packages for shipping damage. If the unit has been damaged, has a finishing defect, or is missing parts; please contact our Customer Support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Please contact DreamLine® if you have any questions.
• Please note that you should refer to your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.
• If this unit is going to be installed in a new construction, install all the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.
• Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please not that some adjustments and drilling will be necessary during the installation process.
• Protect all primary surfaces of the product during installation. Never set your glass down directly onto a tile floor. Leave corner protectors in place until it is necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.
  • This unit must be installed upon a finished threshold and against finished walls.
• DreamLine shower doors are not designed to be installed into a fiberglass surround due to the radius comers and lack of a solid surface to mount the hardware.

WARNING: TO AVOID THE RISK OF DAMAGE OR INJURY:

• Follow all recommendations and requirements as shown in the installation instructions.
• Perform a thorough inspection of the glass and all parts for any damage prior to installation. Any damage to tempered glass can cause breakage. Do Not install damaged glass!
• Do Not install or operate a shower or tub door if the glass has chipped corners, slivered edges or is otherwise damaged. Do Not install or operate a shower or tub door that has been dropped or banged into a hard surface such as tile, marble or glass.
  • CAUTION: Contact with any hard surface can damage tempered glass and cause it to shatter.
• This product uses tempered glass. Glass cannot be cut after it has been tempered. Do Not attempt to cut tempered glass.
• DreamLine ^® Glass Shower doors, Tub doors, Inline panels, and Return panels can shatter due to improper handling or lack of maintenance. Conduct periodic inspections of glass and all parts for possible damage, missing or loose parts.
  • Always wear proper safety equipment such as: safety goggles, work gloves and appropriate footwear during the installation process.
• WARNING. Risk of leakage and/or damage. Follow all instructions regarding the application of silicone sealant or caulk. Allow 24 hours for the sealant to cure before the initial use of the shower or tub product. Follow the silicone manufacturer's recommendations regarding the use of their product.
  • Thoroughly read these instructions before installing or using this product.
• Leave this manual for the end-user of the product.

Professional Installation recommended

This product should be installed by someone familiar with the construction requirements for this type of product and the care necessary for the safe installation and operation of the product.

Model Specific Preparation

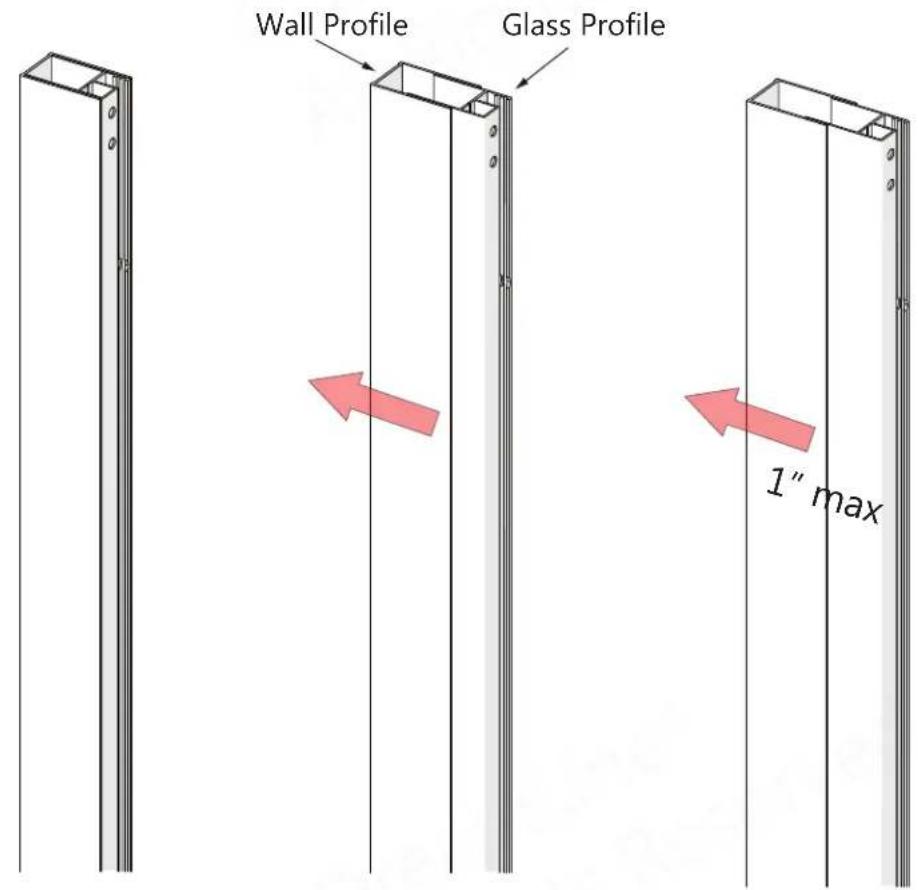

Adjustable Wall Profile System

The Glass Profiles can be adjusted within the Wall Profiles for overall width or to correct for out-of-plumb conditions within the model size. Screw them together after making final adjustments.

Tools

Level

Tape Measure

Pencil

Phillips Screwdriver

Silicone

Drill Bit Ø5/16" (8mm)

Drill Bit ∅3/16" (4mm)

Drill Bit Ø1/8" (3mm)

Power Drill

Soft Head Hammer

Hacksaw

Mitre Saw

Metal File

Extender Driver Bit

Safety Glasses

Work Gloves

Professional-grade Glass suction cup

To be sure that the correct model size has been ordered, measure the finished opening before proceeding with the installation.

Cover the shower/tub drain with tape prior to installation to prevent the loss of screws or small parts.

To prevent stripping the screw heads, set power drill to a low setting when installing screws.

Unpack your unit carefully and inspect it. Lay it out and identify all parts using the Detailed Diagram on page 6 and the included packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration.

Retain these installation instructions for future reference.

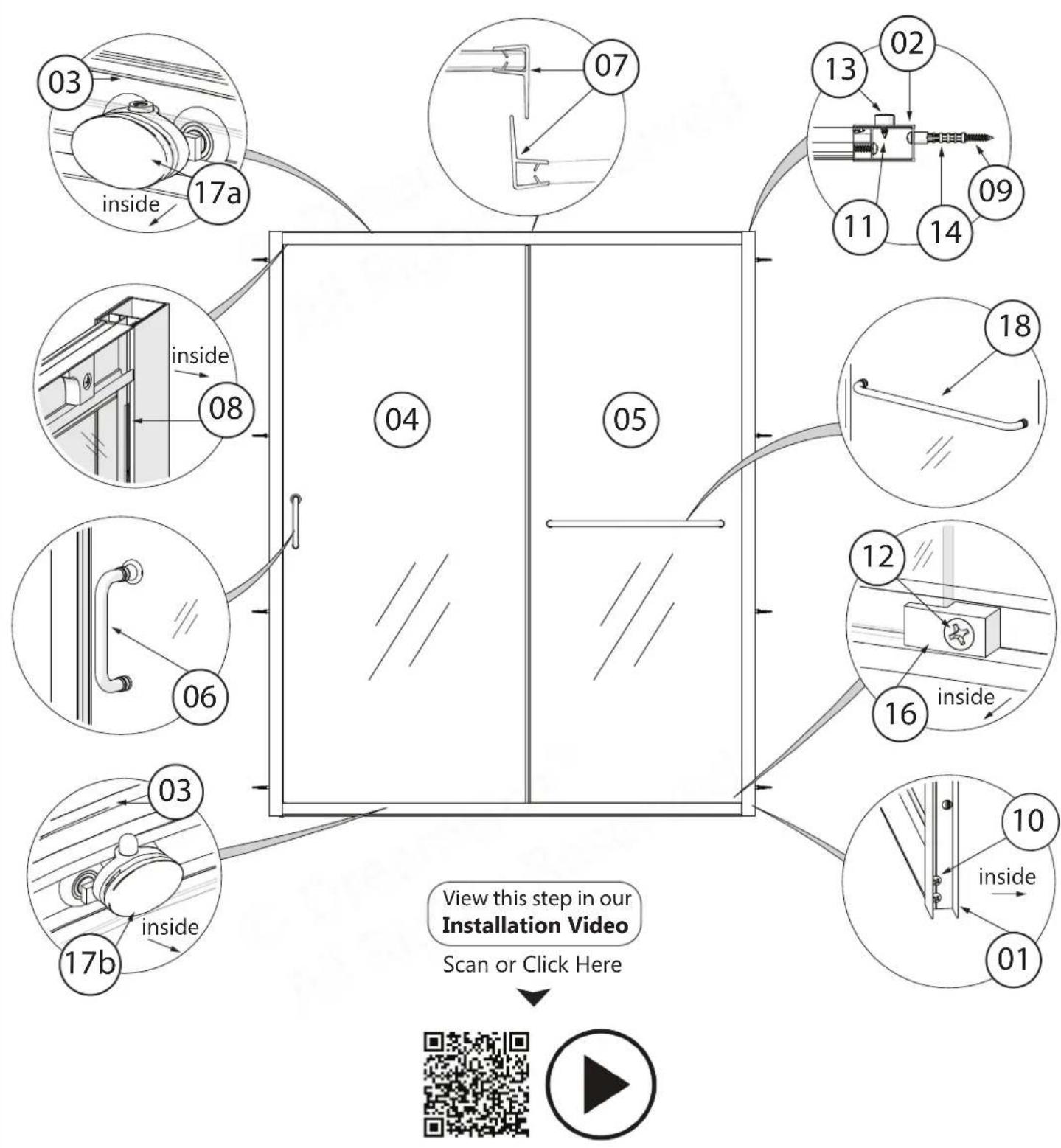

Detailed Diagram of Shower Door Components

Left-hand door installation shown

Parts List

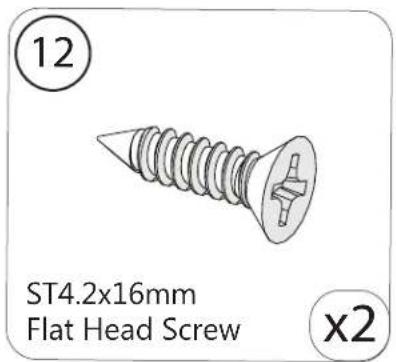

Parts List

1
Installation Steps

Use the smallest measurement from Fig 1 to determine the finished cut length of the Guide Rails (#03).

The Top and Bottom Guide Rails (#03) are shorter than the model size by design. They have been precut for the model width and are designed to fit between the wall profiles, (not wall-to-wall). See Table A below.

Table A

Model Size	Precut Rail Length
48" (for shower)	44-5/8"
54" (for shower)	50-5/8"
60" (for shower)	56-5/8"
60" (for tub)	56-5/8"

View this step in our Installation Video

Scan or Click Here

Tools Needed

2

MODEL SIZE
*from Table A

Finished
Opening (W)

Cut-off Length (C)
*from Door End only

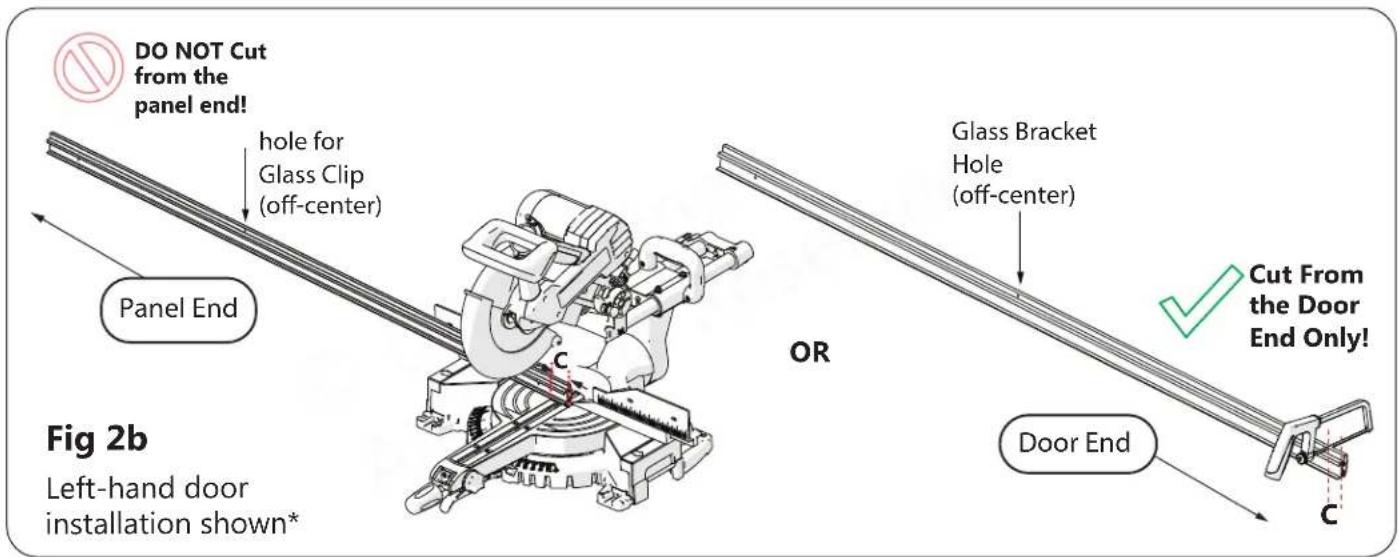

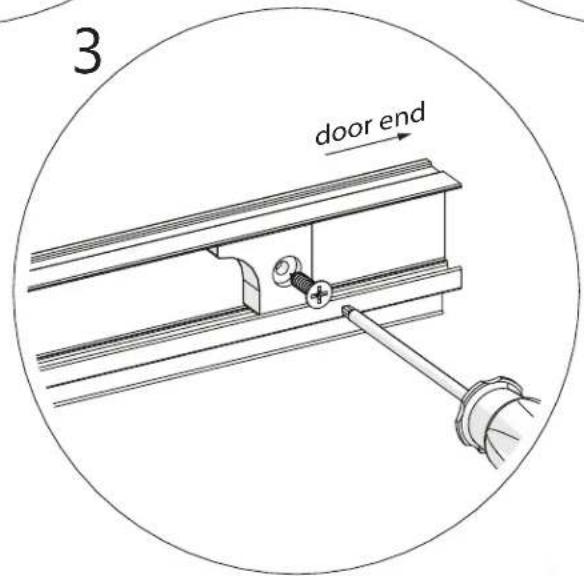

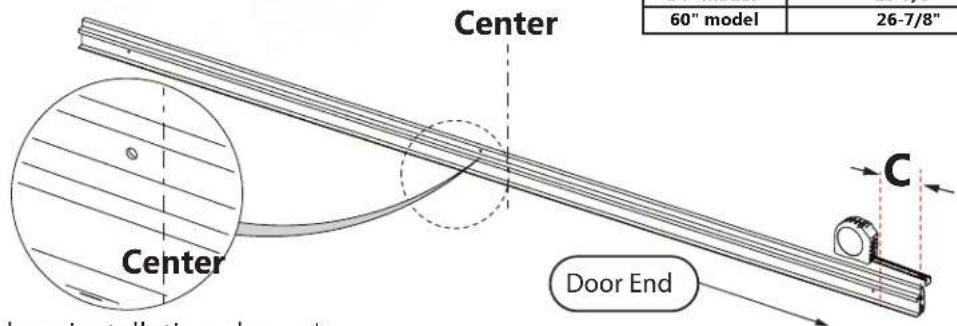

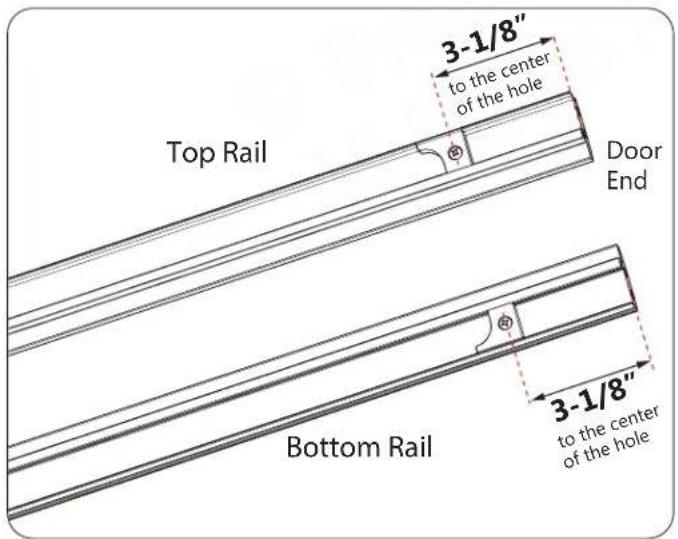

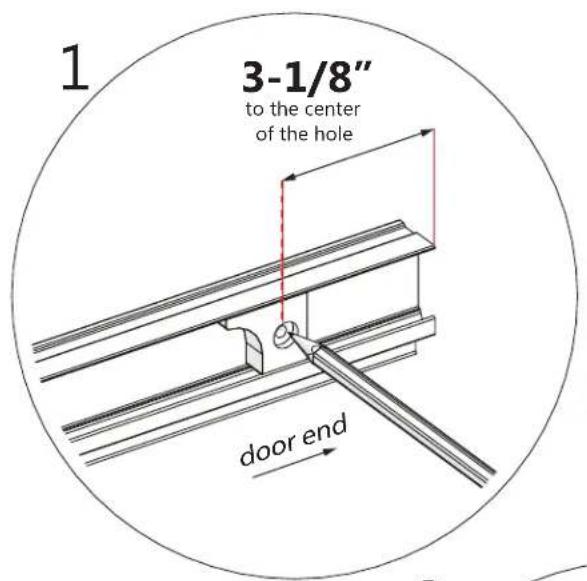

Cut the Top and Bottom Guide Rails (#03) from the Door End only, (which is the end farthest from the Glass Clip hole) and cut each rail to the same length (D) from the same end.

Table B

	Distance from the Glass Bracket Hole to the:
Model Size	Panel Side	Door Side
48" model	21-3/8"	23-1/4"
54" model	23-7/8"	26-5/8"
60" model	26-7/8"	29-3/4"

Fig 2a Left-hand door installation shown*

CUTTING FORMULA: FINISHED OPENING - 3-3/8" = FINISHED CUT LENGTH "D"

Tools NeededParts N

3

Fig 3

Parts Needed

Tools Needed

INFINITY-Z Shower and Tub Door Manual Ver 6 05/2023 12

Tools NeededParts

5

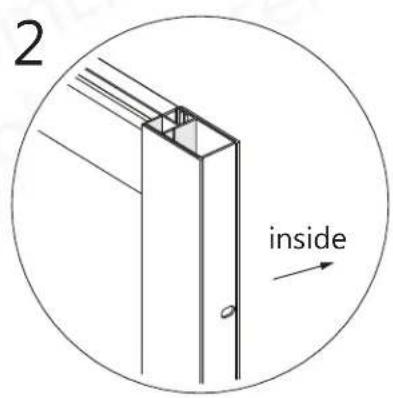

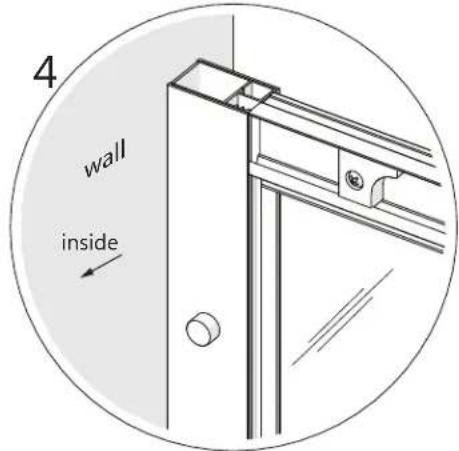

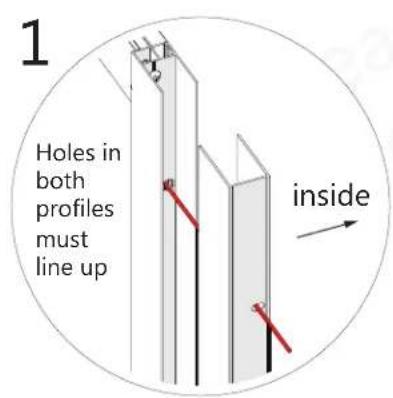

The holes in the Wall Profiles (#02) are off-center, and must line up with the corresponding holes in the Glass Profiles (#01).

Parts Needed

6

At this step, decide on the handing of the door and panel prior to placing the assembly into the opening to mark the location of the holes for drilling. Flip the assembly so that the Inline Panel Glass (#06) will be installed on the desired side of the opening.

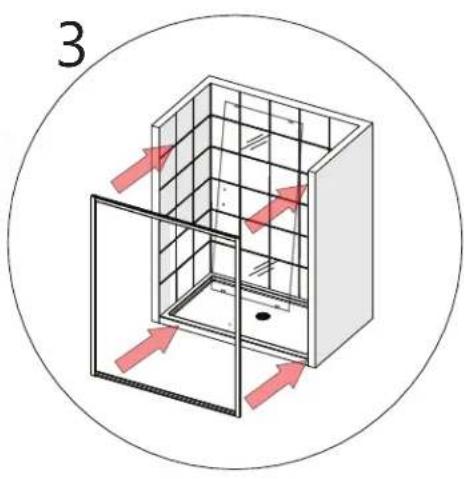

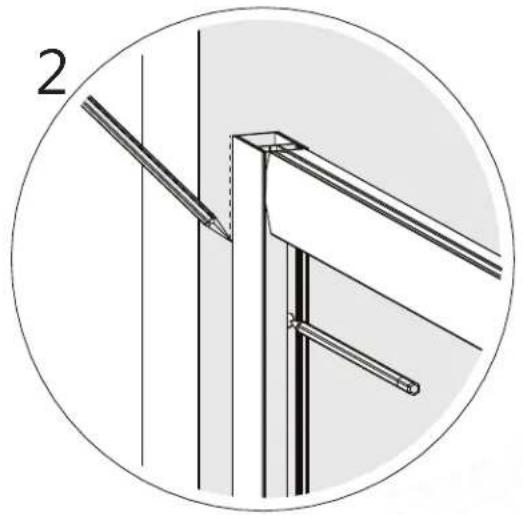

Before marking the holes for drilling, confirm the assembled frame is tight to the threshold, the Wall Profiles(#02) are tight to the walls and the frame is level and plumb.

View this step in our Installation Video

Scan or Click Here

Tools Needed

7

Fig 7

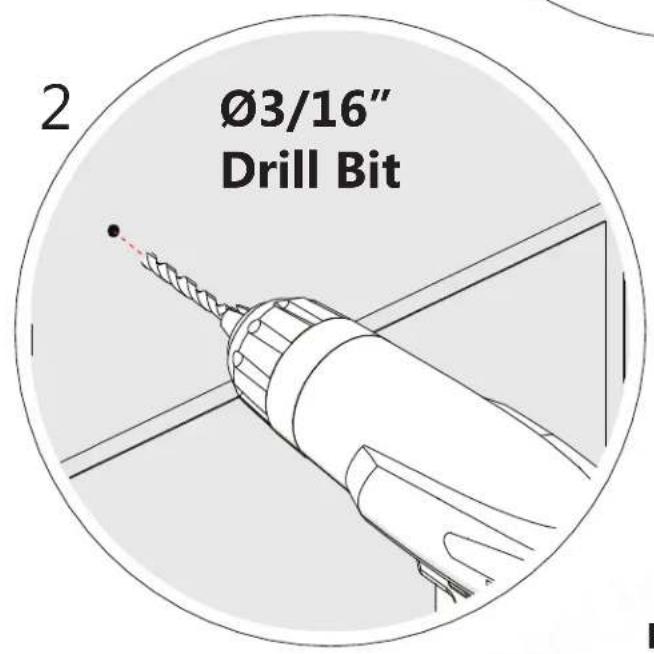

If a stud is present behind the wall, drill a hole using a ∅3/16" drill bit and do not use wall anchors.

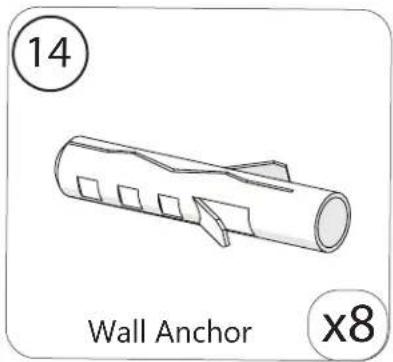

If no stud is present, drill the hole using a ∅5/16" drill bit and insert Wall Anchors (#14) as shown in Fig 7.3.

Tools NeededParts Need

8

Fig 8
*Left-hand door installation shown
NOTE

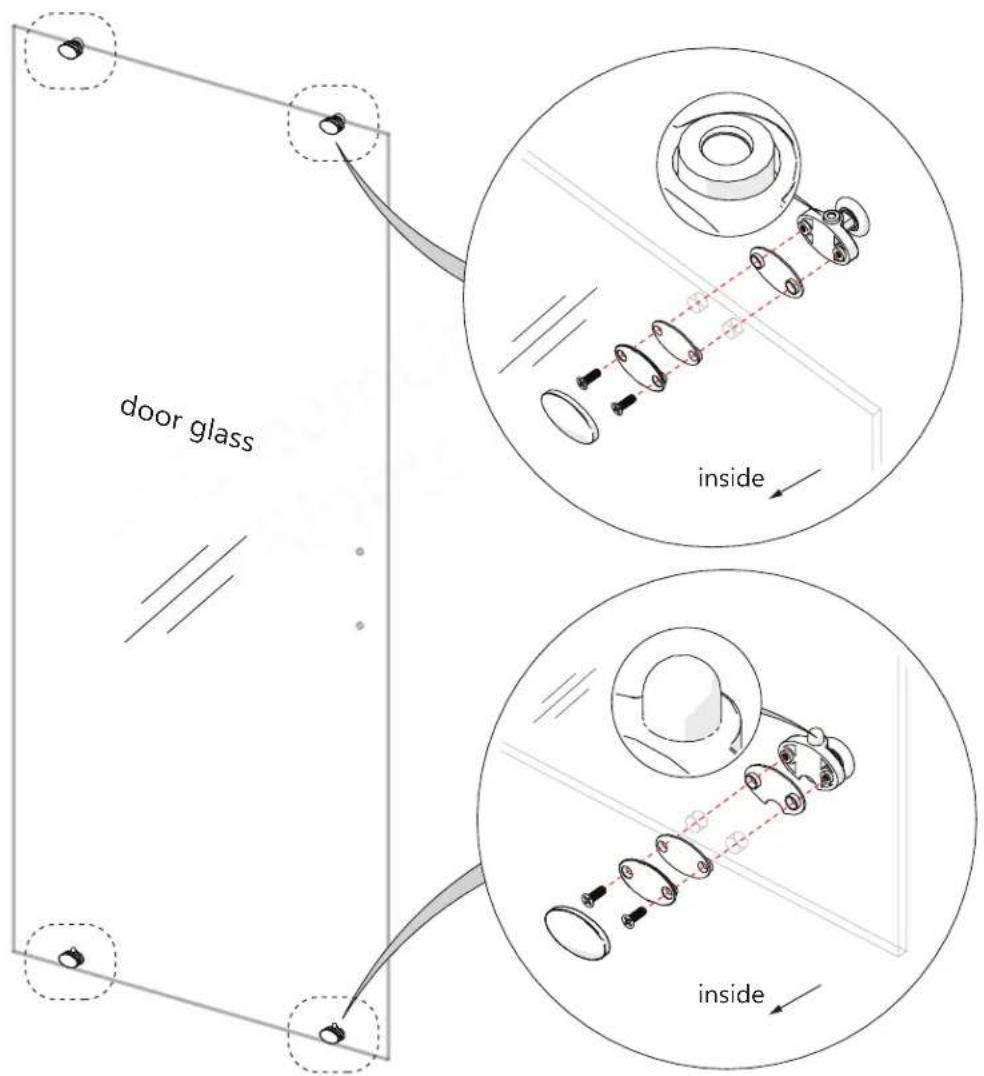

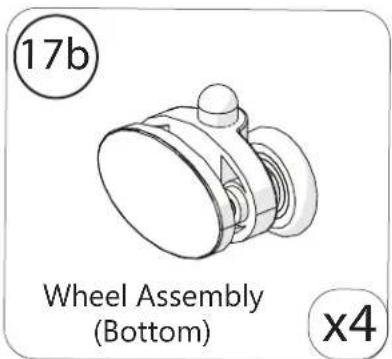

The lock nut on the Top Roller Assembly (#17a) and the push-button on the Bottom Roller Assembly (#17b) should both be installed pointing up. DO NOT overtighten the Roller Assemblies (#17a/17b).

Top Wheels

Bottom Wheels

Button faces upFaces DownFaces

View this step in our Installation Video
Scan or Click Here

Tools NeededParts N

9

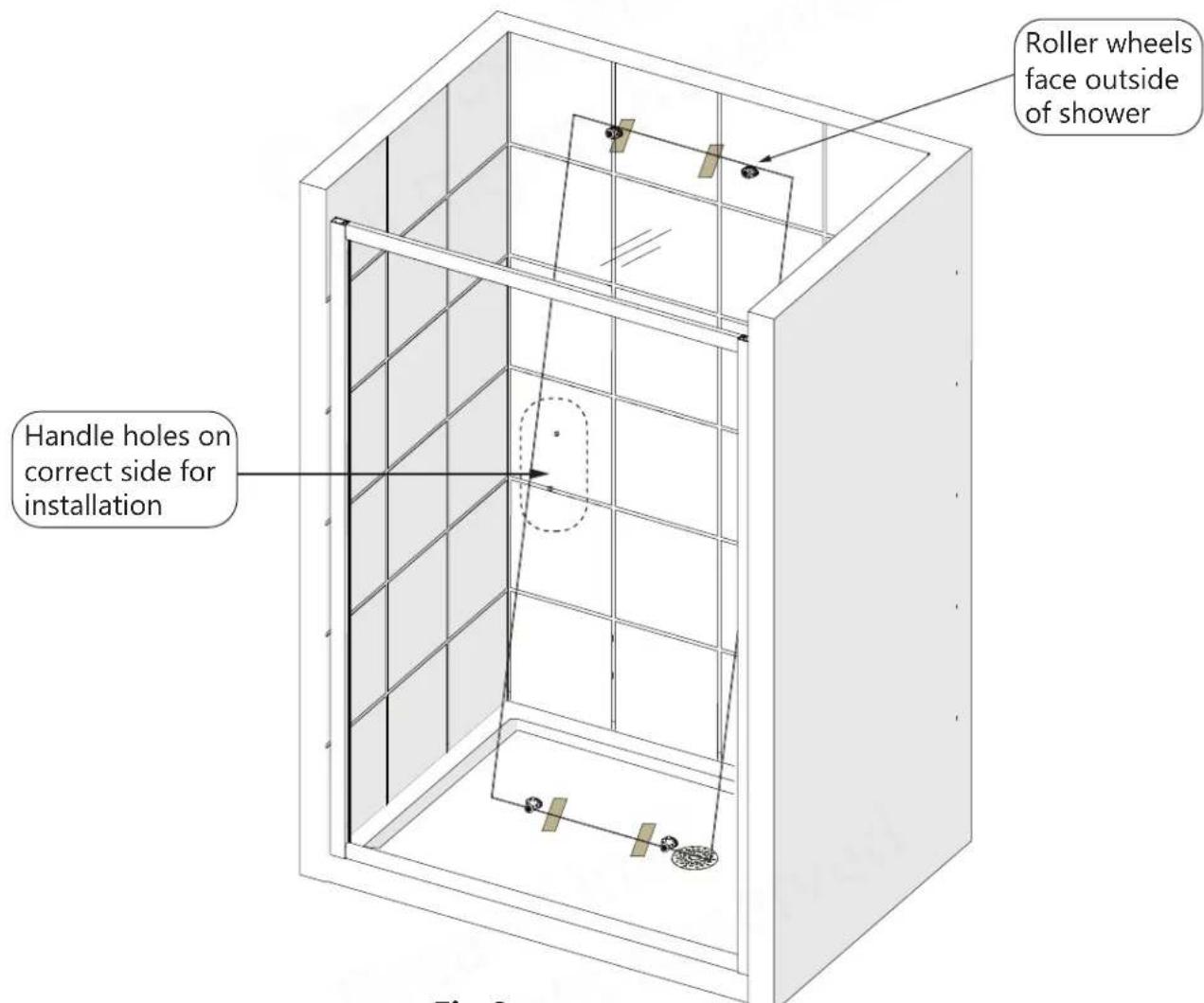

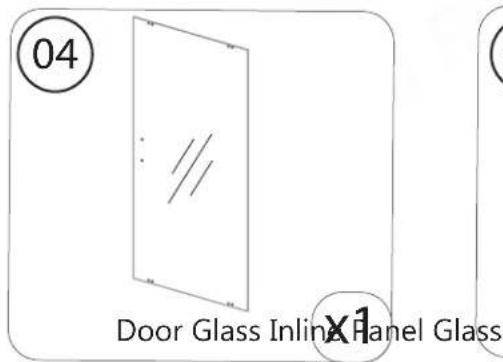

Before securing the frame assembly, bring the Door Glass (#04) into the shower area and lean it safely against the wall, using padding to protect the glass, walls, and base. Make sure the handle holes on the Door Glass (#04) are on the correct side for installation. The Wheel Assemblies (#17a/17b) can be attached prior to setting the glass into the shower. (see Step 11)

Fig 9

DO NOT install the towel bar or handle onto the glass until instructed to do so. DO NOT attempt to lift the glass using the towel bar or handle. This could result in damage to the glass and/or serious personal injury. Always use an assistant on a professional grade suction cup when handling heavy glass.

Tools NeededParts

10

Fig 10

Extender Driver Bit recommended for the installation of these screws.

Tools NeededParts

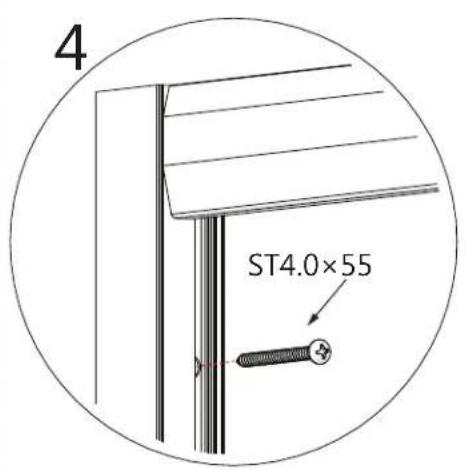

The screwheads on the ST4.0×55 Pan Head Screws (#09) will pass through the larger holes in the Glass Profiles (#01) and then secure the Wall Profiles (#02) to each wall.

11

Fig 11a

For models with Frosted glass, install the textured (Frosted) surface facing towards the outside of the shower.

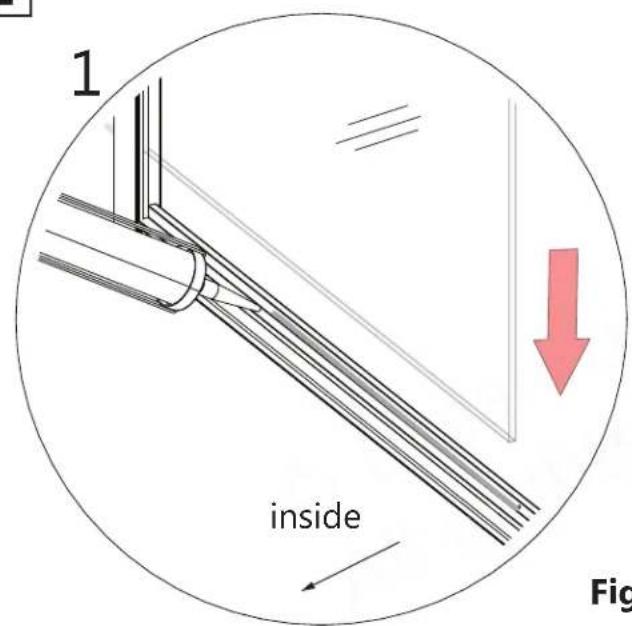

Use caution when installing the Inline Panel Glass (#05) into the frame to prevent damage to the edges of the glass.

Tools NeededParts Needed

12

Fig 12
*Right-hand panel installation shown

To prevent scratching or damaging the glass and aluminum, DO NOT use a screwdriver or other metal tool to install the Push-in Glazing Vinyl (#08). Use a plastic putty knife or similar if necessary.

Parts Needed

13

Fig 13

View this step in our Installation Video

Scan or Click Here

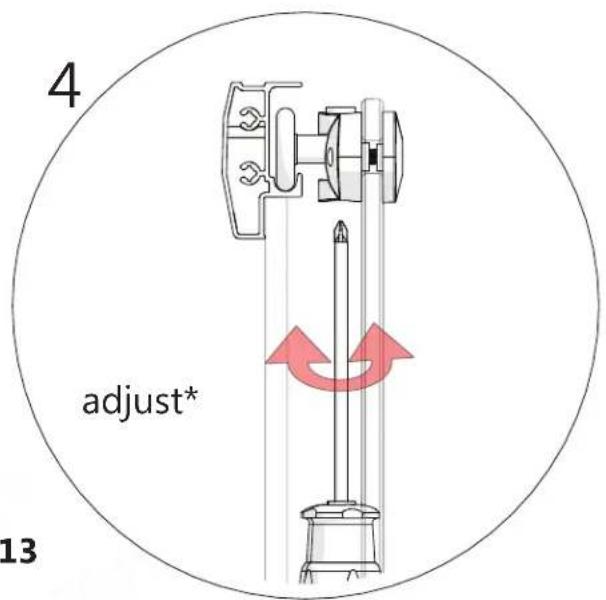

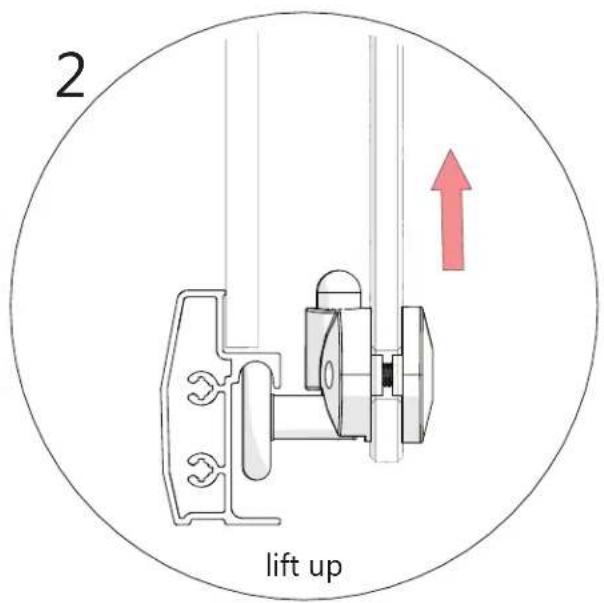

*If necessary: Adjust the Top Roller Assemblies (#17a) for smoother operation.

NOTE

Be sure to center the frame within the Wall Profiles before the next step.

Tools Needed

14

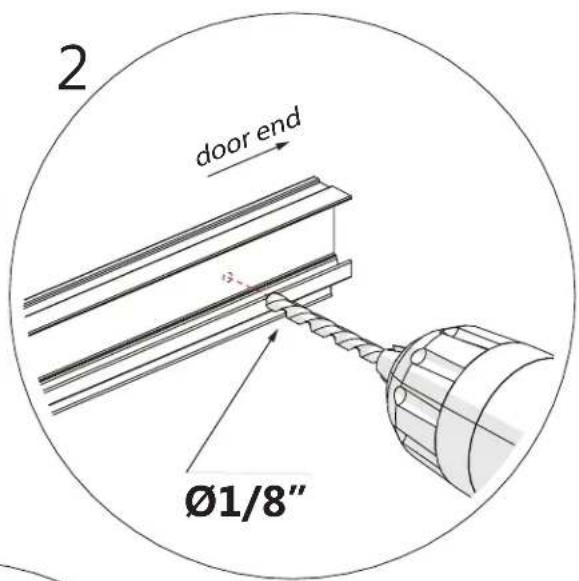

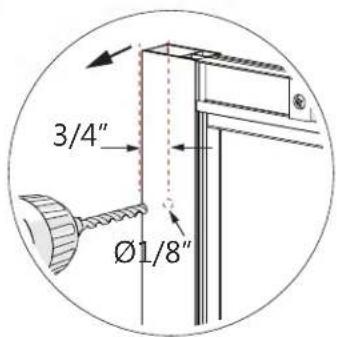

DO NOT drill the profiles throughout, ONLY through the first layer of the Wall Profile (#02) and Glass Profile (#01).

Fig 14

Make sure the Bottom Rail is tight to the threshold before screwing the Wall Profiles and Glass Profiles together.

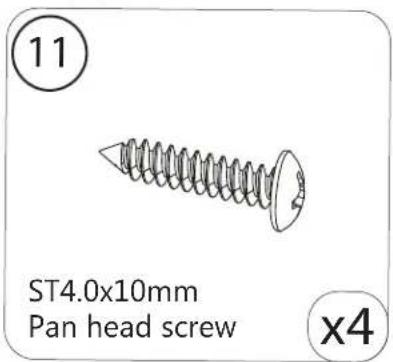

The ST4.0×10mm Pan Head Screws (#11) and Decorative Covers (#13) should be installed to both the top and bottom of each profile.

Tools NeededParts N

15
Handle and Vinyl Installation

NOTE

The longer Vertical Vinyl Seals (#07) attach to the edges of the Door Glass (#04); the shorter Vertical Vinyl Seal (#07) attaches to the edge of the Inline Panel Glass (#05).

View this step in our Installation Video

Scan or Click Here

*Left-hand door installation shown

Parts Needed

16

NOTE

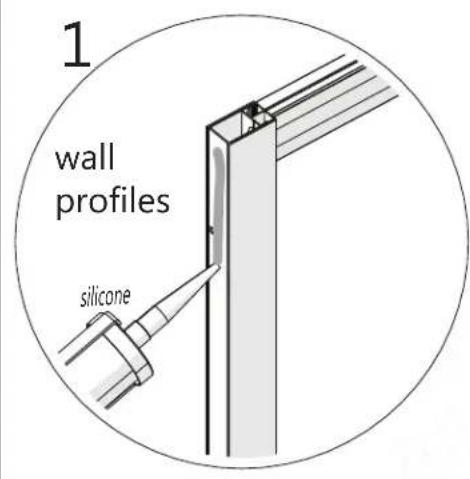

The surfaces need to be clean and free of debris before applying silicone.

Fig 16

Tools Needed

Allow 24 hours for the silicone caulk to cure before using shower.

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could permanently scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface of the glass.

HARDWARE: To ensure a long lasting finish: wipe off all metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft clean-cloth.

Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with the grain (not across the grain). Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine® with any questions or concerns.

INFINITY-Z Maintenance Checklist

□ Inspect the Roller Assemblies; tighten if necessary
□ Inspect Handle and towel bar; tighten if necessary
□ Inspect glass clips; tighten if necessary
□ Inspect and replace damaged or missing Vinyl Seals.
□ Remove Vinyl Seals to inspect the edges of the glass for concealed damage.

Damaged glass must be replaced!

□ Inspect silicone application. Replace as necessary to prevent leakage. (refer to the manufacturer's recommendations on the proper application of their product).

Troubleshooting

Problem/Symptom Suggested Solution
Missing Parts	•Check all shipping/packaging material for missing parts/components.•If not found, contact DreamLine Customer Support [1-855-831-2126] to order factory part replacement.
Water Leakage: underneath Bottom Guide Rail (#03)	•Make certain that the bottom rail is tight to the threshold and that silicone is creating a seal along the entire length of the bottom rail.•If the bottom rail is not making contact with the threshold, it may be necessary to redo Steps 6-7 to create a better seal.
Water Leakage: Panel/Door Glass (#05/04)	•Starting from the bottom, confirm that the Push-in Glazing Vinyl (#08) is correctly inserted into the glass profile. [see Fig 7]•If possible, direct the flow of water away from the area.
Door Glass (#04) is not rolling smoothly/closing tightly.	•Use a #2 phillips screwdriver to evenly adjust the Top Wheel Assemblies (#17a) until the Door Glass (#04) rolls smoothly and tightly closes. [see Fig 12.4]
Panel Glass (#05) shakes/rattles while in operation.	•Starting from the bottom, confirm that the Push-in Glazing Vinyl (#08) is installed tightly between the Panel Glass (#05) and Glass Profile (#01).•Inspect the Glass Clips (#16) for correct installation and tighten if necessary. [see Step 10]

Prior to contacting DreamLine® Customer Service, please have the following information readily available:

• Purchase Order Information
• Name, PO Number, Dealer/Vendor Name, etc.
• SKU/Model Number (see Pages 27-33)
• Factory Part Information (see Pages 27-33)

Product Parts Information

INFINITY-Z 48x72 Clear Glass		FACTORY PARTS INFORMATION
ITEM #	FACTORY PART NUMBER ITEM DES	CRIPTION QTY
01	04002011-1830 / 04002041-1830 / 04002061-1830	Left or Right Glass Profile for 6mm (1/4in) Glass	2 pcs
02	04183011-1830 / 04183041-1830 / 04183061-1830	Left or Right Wall Profile	2 pcs
03	04001011-1134 / 04004011-1134 / 04006011-1134	Top or Bottom Guide Rail	2 pcs
04	010021014	Door Glass	1 pc
05	010022007	Inline Panel Glass	1 pc
06	07221006 / 07224006 / 07226006	Single Sided Curved Handle with Knob for 6mm (1/4in) Glass	1 pc
07a	063001060-1743	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel)	1 pc
07b	063001060-1814	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door)	2 pcs
08	060001000-1765	Push-in Glazing Vinyl for 6mm (1/4in) Glass	1 pc
09	091131	ST4.0 × 55mm Pan Head Screw	11 pcs
10	091104	ST4.0 × 25mm Pan Head Screw	11 pcs
11	091101	ST4.0 × 10mm Pan Head Screw	7 pcs
12	092102	ST4.2 × 16mm Countersunk Screw (pre-attached to #03)	4 pcs
12	092102	ST4.2 × 16mm Countersunk Screw	2 pcs
13	07551011 / 07554011 / 07556011	Decorative Cover and Washer	7 pcs
14	07550045	Wall Anchor 8mm (5/16in)	11 pcs
15	060007060-1800	Vinyl Insert for Glass Profile	1 pc
16	07551014 / 07554014 / 07556014	Glass Clip for 6mm (1/4in) Glass	2 pcs
17a	7341008	Single Roller Assembly (top) for 6mm (1/4in) Glass	2 pcs
17b	7341009	Single Roller Assembly (bottom) for 6mm (1/4in) Glass	2 pcs
18	7221024	Towel Bar Assembly for 6mm (1/4in) Glass	1 pc
---	07550009	Roller Stopper (pre-attached to #03)	4 pcs

BOLD digit indicates finish: 1 = Chrome; 4 = Brushed Nickel; 06 = Oil Rubbed Bronze

Contact [e-mail] for Part replacement, installation assistance or additional information Complete Warranty information is available on DreamLine.com

Product Parts Information

INFINITY-Z 48x72 Frosted Glass		FACTORY PARTS INFORMATION
ITEM #	FACTORY PART NUMBER ITEM DESCRIPTION QTY
01	04002011-1830 / 04002041-1830 / 04002061-1830	Left or Right Glass Profile for 6mm (1/4in) Glass	2 pcs
02	04183011-1830 / 04183041-1830 / 04183061-1830	Left or Right Wall Profile	2 pcs
03	04001011-1134 / 04004011-1134 / 04006011-1134	Top or Bottom Guide Rail	2 pcs
04 010	021016	Door Glass	1 pc
05 010	022008	Inline Panel Glass	1 pc
06	07221006 / 07224006 / 07226006	Single Sided Curved Handle with Knob for 6mm (1/4in) Glass	1 pc
07a 06	3001060-1743	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel)	1 pc
07b 06	3001060-1814	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door)	2 pcs
08 06	001000-1765	Push-in Glazing Vinyl for 6mm (1/4in) Glass	1 pc
09 09	131	ST4.0 × 55mm Pan Head Screw	11 pcs
10 09	104	ST4.0 × 25mm Pan Head Screw	11 pcs
11 09	101	ST4.0 × 10mm Pan Head Screw	7 pcs
12 09	102	ST4.2 × 16mm Countersunk Screw (pre-attached to #03)	4 pcs
12 09	102	ST4.2 × 16mm Countersunk Screw	2 pcs
13	07551011 / 07554011 / 07556011	Decorative Cover and Washer	7 pcs
14 075	50045	Wall Anchor 8mm (5/16in)	11 pcs
15 06	007060-1800	Vinyl Insert for Glass Profile	1 pc
16	07551014 / 07554014 / 07556014	Glass Clip for 6mm (1/4in) Glass	2 pcs
17a 07	341008	Single Roller Assembly (top) for 6mm (1/4in) Glass	2 pcs
17b 07	341009	Single Roller Assembly (bottom) for 6mm (1/4in) Glass	2 pcs
18	07221024 / 07224024 / 07226024	Towel Bar Assembly for 6mm (1/4in) Glass	1 pc
--- 075	50009	Roller Stopper (pre-attached to #03)	4 pcs

BOLD digit indicates finish: 1 = Chrome; 4 = Brushed Nickel; 06 = Oil Rubbed Bronze

Contact [e-mail] for Part replacement, installation assistance or additional information Complete Warranty information is available on DreamLine.com

Product Parts Information

INFINITY-Z 54x72 Clear Glass		FACTORY PARTS INFORMATION
ITEM #	FACTORY PART NUMBER ITEM DES	CRIPTION QTY
01	04002011-1830 / 04002041-1830 / 04002061-1830	Left or Right Glass Profile for 6mm (1/4in) Glass	2 pcs
02	04183011-1830 / 04183041-1830 / 04183061-1830	Left or Right Wall Profile	2 pcs
03	04001011-1283 / 04004011-1283 / 04006011-1283	Top or Bottom Guide Rail	2 pcs
04 010	022011	Door Glass	1 pc
05 010	022010	Inline Panel Glass	1 pc
06	07221006 / 07224006 / 07226006	Single Sided Curved Handle with Knob for 6mm (1/4in) Glass	1 pc
07a 063	001060-1743	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel)	1 pc
07b 063	001060-1814	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door)	2 pcs
08 060	001000-1765	Push-in Glazing Vinyl for 6mm (1/4in) Glass	1 pc
09 091	131	ST4.0 × 55mm Pan Head Screw	11 pcs
10 091	104	ST4.0 x 25mm Pan Head Screw	11 pcs
11 091	101	ST4.0 x 10mm Pan Head Screw	7 pcs
12 092	102	ST4.2 x 16mm Countersunk Screw (pre-attached to #03)	4 pcs
12 092	102	ST4.2 x 16mm Countersunk Screw	2 pcs
13	07551011 / 07554011 / 07556011	Decorative Cover and Washer	7 pcs
14 075	50045	Wall Anchor 8mm (5/16in)	11 pcs
15 060	007060-1800	Vinyl Insert for Glass Profile	1 pc
16	07551014 / 07554014 / 07556014	Glass Clip for 6mm (1/4in) Glass	2 pcs
17a 073	41008	Single Roller Assembly (top) for 6mm (1/4in) Glass	2 pcs
17b 073	41009	Single Roller Assembly (bottom) for 6mm (1/4in) Glass	2 pcs
18	07221051 / 07224051 / 07226051	Towel Bar Assembly for 6mm (1/4in) Glass	1 pc
--- 075	50009	Roller Stopper (pre-attached to #03)	4 pcs

BOLD digit indicates finish: 1 = Chrome; 4 = Brushed Nickel; 06 = Oil Rubbed Bronze

Contact [e-mail] for Part replacement, installation assistance or additional information Complete Warranty information is available on DreamLine.com

Product Parts Information

INFINITY-Z 54x72 Frosted Glass		FACTORY PARTS INFORMATION
ITEM #	FACTORY PART NUMBER ITEM DES	CRIPTION QTY
01	04002011-1830 / 04002041-1830 / 04002061-1830	Left or Right Glass Profile for 6mm (1/4in) Glass	2 pcs
02	04183011-1830 / 04183041-1830 / 04183061-1830	Left or Right Wall Profile	2 pcs
03	04001011-1283 / 04004011-1283 / 04006011-1283	Top or Bottom Guide Rail	2 pcs
04 010	022013	Door Glass	1 pc
05 010	022012	Inline Panel Glass	1 pc
06	07221006 / 07224006 / 07226006	Single Sided Curved Handle with Knob for 6mm (1/4in) Glass	1 pc
07a 063	001060-1743	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel)	1 pc
07b 063	001060-1814	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door)	2 pcs
08 060	001000-1765	Push-in Glazing Vinyl for 6mm (1/4in) Glass	1 pc
09 091	131	ST4.0 × 55mm Pan Head Screw	11 pcs
10 091	104	ST4.0 × 25mm Pan Head Screw	11 pcs
11 091	101	ST4.0 × 10mm Pan Head Screw	7 pcs
12 092	102	ST4.2 × 16mm Countersunk Screw (pre-attached to #03)	4 pcs
12 092	102	ST4.2 × 16mm Countersunk Screw	2 pcs
13	07551011 / 07554011 / 07556011	Decorative Cover and Washer	7 pcs
14 075	50045	Wall Anchor 8mm (5/16in)	11 pcs
15 060	007060-1800	Vinyl Insert for Glass Profile	1 pc
16	07551014 / 07554014 / 07556014	Glass Clip for 6mm (1/4in) Glass	2 pcs
17a 073	41008	Single Roller Assembly (top) for 6mm (1/4in) Glass	2 pcs
17b 073	41009	Single Roller Assembly (bottom) for 6mm (1/4in) Glass	2 pcs
18	07221051 / 07224051 / 07226051	Towel Bar Assembly for 6mm (1/4in) Glass	1 pc
--- 075	50009	Roller Stopper (pre-attached to #03)	4 pcs

BOLD digit indicates finish: 1 = Chrome; 4 = Brushed Nickel; 06 = Oil Rubbed Bronze

Contact [e-mail] for Part replacement, installation assistance or additional information Complete Warranty information is available on DreamLine.com

Product Parts Information

INFINITY-Z 60x72 Clear Glass		FACTORY PARTS INFORMATION
ITEM #	FACTORY PART NUMBER ITEM DESCRIPTION QTY
01	04002011-1830 / 04002041-1830 / 04002061-1830	Left or Right Glass Profile for 6mm (1/4in) Glass	2 pcs
02	04183011-1830 / 04183041-1830 / 04183061-1830	Left or Right Wall Profile	2 pcs
03	04001011-1437 / 04004011-1437 / 04006011-1437	Top or Bottom Guide Rail	2 pcs
04 010021010		Door Glass	1 pc
05 010022004		Inline Panel Glass	1 pc
06	07221006 / 07224006 / 07226006	Single Sided Curved Handle with Knob for 6mm (1/4in) Glass	1 pc
07a 063001060-1743		Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel	1 pc
07b 063001060-1814		Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door)	2 pcs
08 060001000-1765		Push-in Glazing Vinyl for 6mm (1/4in) Glass	1 pc
09 091131		ST4.0 × 55mm Pan Head Screw	11 pcs
10 091104		ST4.0 × 25mm Pan Head Screw	11 pcs
11 091101		ST4.0 × 10mm Pan Head Screw	7 pcs
12 092102		ST4.2 × 16mm Countersunk Screw (pre-attached to #03)	4 pcs
12 092102		ST4.2 × 16mm Countersunk Screw	2 pcs
13	07551011 / 07554011 / 07556011	Decorative Cover and Washer	7 pcs
14 07550045		Wall Anchor 8mm (5/16in)	11 pcs
15 060007060-1800		Vinyl Insert for Glass Profile	1 pc
16	07551014 / 07554014 / 07556014	Glass Clip for 6mm (1/4in) Glass	2 pcs
17a 07341008		Single Roller Assembly (top) for 6mm (1/4in) Glass	2 pcs
17b 07341009		Single Roller Assembly (bottom) for 6mm (1/4in) Glass	2 pcs
18	07221023 / 07224023 / 07226023	Towel Bar Assembly for 6mm (1/4in) Glass	1 pc
--- 07550009		Roller Stopper (pre-attached to #03)	4 pcs

BOLD digit indicates finish: 1 = Chrome; 4 = Brushed Nickel; 06 = Oil Rubbed Bronze

Contact [e-mail] for Part replacement, installation assistance or additional information Complete Warranty information is available on DreamLine.com

Product Parts Information

INFINITY-Z 60x72 Frosted Glass		FACTORY PARTS INFORMATION
ITEM #	FACTORY PART NUMBER ITEM DESCRIPTION QTY
01	04002011-1830 / 04002041-1830 / 04002061-1830	Left or Right Glass Profile for 6mm (1/4in) Glass	2 pcs
02	04183011-1830 / 04183041-1830 / 04183061-1830	Left or Right Wall Profile	2 pcs
03	04001011-1437 / 04004011-1437 / 04006011-1437	Top or Bottom Guide Rail	2 pcs
04 010	021011	Door Glass	1 pc
05 010	022005	Inline Panel Glass	1 pc
06	07221006 / 07224006 / 07226006	Single Sided Curved Handle with Knob for 6mm (1/4in) Glass	1 pc
07a 06	3001060-1743	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel)	1 pc
07b 06	3001060-1814	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door)	2 pcs
08 06	001000-1765	Push-in Glazing Vinyl for 6mm (1/4in) Glass	1 pc
09 091	131	ST4.0 × 55mm Pan Head Screw	11 pcs
10 091	104	ST4.0 x 25mm Pan Head Screw	11 pcs
11 091	101	ST4.0 x 10mm Pan Head Screw	7 pcs
12 092	102	ST4.2 x 16mm Countersunk Screw (pre-attached to #03)	4 pcs
12 092	102	ST4.2 x 16mm Countersunk Screw	2 pcs
13	07551011 / 07554011 / 07556011	Decorative Cover and Washer	7 pcs
14 075	50045	Wall Anchor 8mm (5/16in)	11 pcs
15 060	007060-1800	Vinyl Insert for Glass Profile	1 pc
16	07551014 / 07554014 / 07556014	Glass Clip for 6mm (1/4in) Glass	2 pcs
17a 07	341008	Single Roller Assembly (top) for 6mm (1/4in) Glass	2 pcs
17b 07	341009	Single Roller Assembly (bottom) for 6mm (1/4in) Glass	2 pcs
18	07221023 / 07224023 / 07226023	Towel Bar Assembly for 6mm (1/4in) Glass	1 pc
--- 07	550009	Roller Stopper (pre-attached to #03)	4 pcs

BOLD digit indicates finish: 1 = Chrome; 4 = Brushed Nickel; 06 = Oil Rubbed Bronze

Contact [e-mail] for Part replacement, installation assistance or additional information Complete Warranty information is available on DreamLine.com

Product Parts Information

INFINITY-Z 60x58 Clear Glass		FACTORY PARTS INFORMATION
ITEM #	FACTORY PART NUMBER ITEM DESCRIPTION QTY
01	04002011-1474 / 04002041-1474 / 04002061-1474	Left or Right Glass Profile for 6mm (1/4in) Glass	2 pcs
02 041	83011-1474 / 04183041-1474	Left or Right Wall Profile	2 pcs
03	04001011-1437 / 04004011-1437 / 04006011-1437	Top or Bottom Guide Rail	2 pcs
04 010	021007	Door Glass	1 pc
05 010	022001	Inline Panel Glass	1 pc
06 072	21006 / 07224006	Single Sided Curved Handle with Knob for 6mm (1/4in) Glass	1 pc
07a 063	001060-1387	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel)	1 pc
07b 063	001060-1458	Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door)	2 pcs
08 060	001000-1410	Push-in Glazing Vinyl for 6mm (1/4in) Glass	1 pc
09 091	131	ST4.0 × 55mm Pan Head Screw	11 pcs
10 091	104	ST4.0 x 25mm Pan Head Screw	11 pcs
11 091	101	ST4.0 x 10mm Pan Head Screw	7 pcs
12 092	102	ST4.2 x 16mm Countersunk Screw (pre-attached to #03)	4 pcs
12 092	102	ST4.2 x 16mm Countersunk Screw	2 pcs
13	07551011 / 07554011	Decorative Cover and Washer	7 pcs
14 075	50045	Wall Anchor 8mm (5/16in)	11 pcs
15 060	007060-1411	Vinyl Insert for Glass Profile	1 pc
16	07551014 / 07554014	Glass Clip for 6mm (1/4in) Glass	2 pcs
17a 073	41008	Single Roller Assembly (top) for 6mm (1/4in) Glass	2 pcs
17b 073	41009	Single Roller Assembly (bottom) for 6mm (1/4in) Glass	2 pcs
18 072	21023 / 07224023	Towel Bar Assembly for 6mm (1/4in) Glass	1 pc
--- 075	50009	Roller Stopper (pre-attached to #03)	4 pcs

BOLD digit indicates finish: 1 = Chrome; 4 = Brushed Nickel; 06 = Oil Rubbed Bronze

Contact [e-mail] for Part replacement, installation assistance or additional information Complete Warranty information is available on DreamLine.com

DREAMLINE® dream in style

TEL: [phone]

FAX: [phone]

DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com
