Product Type	Air Fryer
Brand	Termozeta
Model	Frittosnella 3.5
Power Supply	220-240 V~, 50/60 Hz, 1400 W
Temperature Range	80°C to 200°C
Timer Range	1 to 30 minutes
Capacity	3.5 L (approximate)
Dimensions (approx.)	30 x 30 x 30 cm
Weight (approx.)	4 kg
Material	Plastic body, non-stick coated basket and container
Control Type	Mechanical thermostat dial and timer dial
Automatic Shut-off	Yes, at end of timer or when container removed
Cool-touch Handle	Yes
Dishwasher Safe Parts	Basket and container are dishwasher safe
Safety Features	Overheat protection, automatic shut-off, cool-touch handle
Cleaning Method	Wash basket and container in dishwasher or with mild soap; wipe body with damp cloth
Repair Service	Contact authorized service center via toll-free number 800-200899
Spare Parts Availability	Contact service center for replacement basket or container
Country of Origin	China
Warranty	Standard warranty applies; void if used improperly
Compliance	CE certified, complies with European safety regulations

Frequently Asked Questions - Frittosnella 3.5 TERMOZETA

Can I use oil in the Frittosnella 3.5?

No, do not fill the container with oil. This is a hot air fryer that uses circulating hot air to cook food. Adding oil poses a fire hazard.

How do I preheat the air fryer?

Set the desired temperature with the thermostat knob and run the appliance empty for 3-5 minutes. Then insert the food and set the timer.

What should I do if black smoke comes out?

Turn off the appliance immediately, unplug it, and wait for the smoke to stop. Then remove the container and inspect for burnt food residues. Clean thoroughly before next use.

Can I wash the basket and container in the dishwasher?

Yes, both the basket and container are dishwasher safe. Alternatively, you can wash them with mild dish soap and a soft sponge.

Why does the operation light turn on and off during cooking?

This is normal. The thermostat cycles to maintain the set temperature, turning the heating element on and off as needed.

How do I stop the fryer before the timer ends?

Turn the timer knob counterclockwise to the '0' position. The appliance will switch off immediately.

Can I cook frozen foods directly?

Yes, you can cook frozen foods like French fries, vegetables, and seafood. Check the cooking guide in the manual for recommended times and temperatures.

How much space should I leave around the appliance?

Ensure at least 10 cm of free space around the appliance to allow proper air circulation and avoid overheating.

What if the appliance does not start?

Make sure the container is fully inserted into the appliance body. The fryer has a safety switch that prevents operation if the container is not correctly placed.

How do I clean the heating elements?

After the appliance has cooled and unplugged, wipe the heating elements with a dry cloth to remove any food residues. Do not use water or liquid cleaners.

USER MANUAL Frittosnella 3.5 TERMOZETA

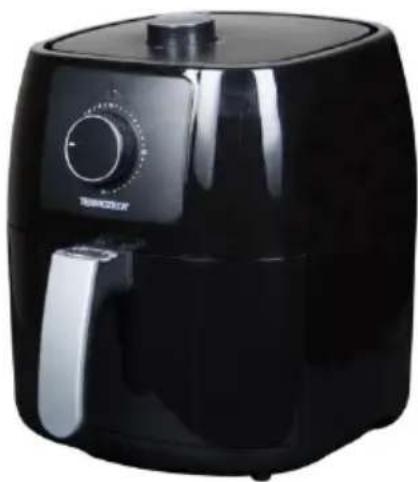

Black Termozeta air fryer with control knob and side handle (no visible text or symbols on body)

frittoSnella

friggitrice ad aria

Black electric air fryer with control knob and side handle (no visible text or symbols)

DATI TECNICI TECHNICAL DATA

Friggitrice ad aria

Type 415005 220-240 V\~, 50/60 Hz, 1400 W

Made in China

CE

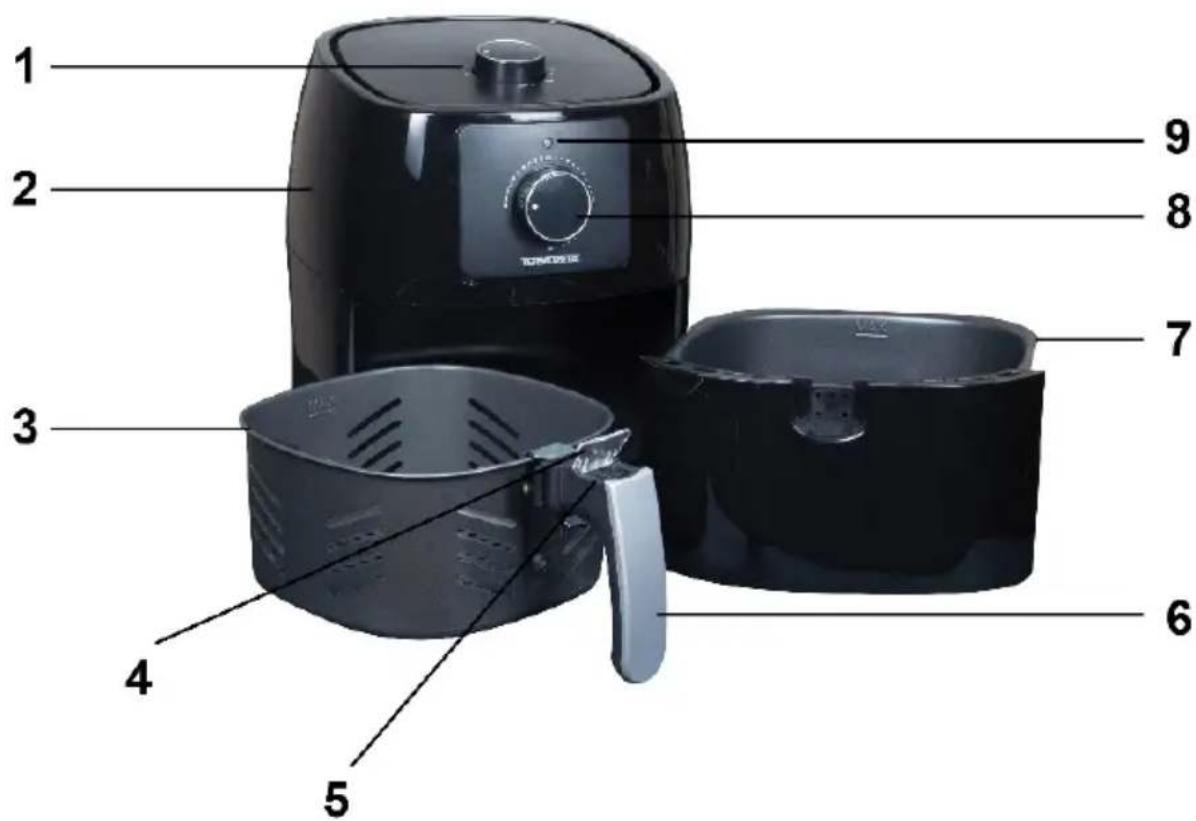

DESCRIZIONE

Close-up of a circular black knob with angular markings (0° to 200°) and a white dot, no readable text or symbols beyond directional labels.

MANOPOLA TIMER (8)

Close-up of a circular dial with numbered degrees (0–30) and a central indicator light, no readable text or symbols beyond the dial markings.

Termozeta is an international trademark. Copyright © 1995. All rights reserved.

Lange Distribution S.r.l. - Via Treviso, 35 - 20127 Milano – Italy

SAFETY PRESCRIPTIONS

This manual is an integral part of the appliance and must be carefully read before using it as it gives important indications with regard to safety in use and maintenance of your item. Keep it with care.

In case of any doubt, pls don't guess and contact our service centre calling toll-free number 800-200899.

• After removing the packing make sure that the appliance is intact. In case of doubt pls don't use it and contact our service centre calling toll-free number 800-200899.
- Do not leave pieces of packaging (plastic bags, polystyrene foam, nails etc.) within reach of children or persons with reduced mental capabilities, since these are potential sources of danger.
- The voltage of power mains shall match with the one as indicated in the rating label placed on product.
- Before connecting the plug to the socket outlet check that the working voltage of the appliance corresponds to the one in your house. If in doubt, contact a professionally qualified technician.
- Connect the product only to a socket provided of ground connection. The electrical safety of this appliance is ensured only if it is correctly connected to an effective earthing system in compliance with the existing electrical safety standards. It must be

operated with an additional earth-leakage circuit-breaker with a rated tripping current not exceeding 30mA. LANGE DISTRIBUTION cannot be held responsible for any damage caused by the lack of an earthing system.

• Wrong electrical connections could be very dangerous and may lead to irreversible damages and, always, void any guarantee.
• If the use of an extension cords is necessary, be sure that extension cord is certified, suitable for the product ratings and provided of ground wire connection; while in use, unwind the cord completely.
• The appliance must never be connected and put into operation with a timer or a separate remote start-up system.
• Never leave unattended the product while connected to power mains.

- Use and place the product on a flat, stable and heat resistant surface.

• Always unplug the product from the electrical outlet after use.

• Always unplug the product from the electrical outlet before cleaning.

- The appliance is intended for cooking food exclusively in a domestic environment.

- The appliance can be used by children aged from 8 and above and by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, only if they are directly supervised by an adult trained about the safe use of the appliance and aware of the hazards involved in the use of the product itself.

• Children shall not play with the appliance.

- Cleaning and maintenance shall never be made by children.

- Keep the products and its cord out of reach of children less than 8 years.

- Place the appliance in such a way that children cannot reach the hot parts.

- Do not use the appliance if it has fallen down or if it shows signs of damage, water leakage or defects that alter its operation.

- In case of failure and/or malfunctioning of the appliance, turn it off and do not tamper with it; do not disassemble the appliance due to any reason; for any repairs contact our service centre calling toll-free number 800-200899.

- In case of doubt and to avoid dangers, let the product to be inspected by an authorized service centre by calling toll-free number 800-200899.

- Don't use the product if power cord is damaged; the power cord should never be replaced by the user. In case of need, please contact an authorized service centre by calling toll-free number 800-200899.

- Never pull the power cord or the appliance itself in order to disconnect the plug from the mains socket.

- Never immerse the appliance in water or other liquids.

- Do not use the appliance when you are barefoot or having wet hands or feet.

- Do not leave the appliance exposed to atmospheric agents (sun, rain, etc.).

• Never place the appliance under running water.
• Never place the product in the dishwasher for cleaning.
• Keep the appliance away from gas or highly flammable substances.
• Do not place the appliance or power cord close to or on top of hot electric or gas cookers.
• This appliance complies with applicable European safety regulations in force.

Do not touch the container (7), the basket (3) and the metal parts of the appliance in the minutes following its switch-off. Wait for the hot parts to cool down to carry out any cleaning operation

• Caution: Do not move the air-fryer when it is in use.
• Before carrying, transporting or storing the oven, ensure that is has sufficiently cooled down.
• Place the product on a stable and heat resistant surface, away from easily inflammable materials or objects.
• Do not, under any circumstances, place the product into a wall unit or cabinet.
• Do not place objects on the top of the product while it is operating.

• If you decide to dispose of this appliance as waste, it is recommended to render it inoperative by cutting the power cord. It is also recommended to render harmless those parts of the appliance that could constitute a danger, especially for children who could use the appliance for their games.

• Do not obstruct the air vents.

• To avoid interruptions in the air flow, do not place anything on top of the appliance and check that there is always 10 cm of free space around the appliance.
• Do not fill the container (7) with oil. Danger of fire.
• During use, hot air and steam come out of the air intake. Keep your hands and face away from the air intake.
• When the container (7) is removed from the body of the appliance, hot air and vapours also escape. Keep your hands and face away from the container.
• If black smoke comes out of the air intake, turn off the appliance immediately. Remove the plug from the socket. Wait for the smoke to

stop coming out of the air intake. Remove the housing from the appliance body.

• Do not immerse the device in liquids.
• In case of commercial, or inadequate, or illegitimate, or mistaken, or unreasonable use, non-compliant with the prescriptions and instructions, LANGE DISTRIBUTION cannot be held responsible and all warranties are void.
• In case of mains failure, switch the appliance off and disconnect plug from socket.

PROTECT THE ENVIRONMENT!

This appliance contains several reusable or recyclable materials. At the end of its life cycle, make the appliance unusable by disconnecting first it from mains and then, cutting off the power cord. For the disposal of the appliance follow the regulations which are in force in your place of residence.

KEEP THIS INSTRUCTION MANUAL WITH CARE!

IMPORTANT!

All assembly, disassembly and cleaning operations must be carried out when the appliance is switched off, cooled and with the plug disconnected from the socket.

1 - BEFORE USE

• Remove packaging materials, labels, bags and anything else has employed in order to protect the appliance and place them in a safe place far from reach of children.

• Read this instruction manual completely because it contains important safety prescriptions and also the way to grant to your product a long and useful lifespan.

• Before using the appliance for the first time, wash the container (7) and the basket (3).

• Grasp the handle (6) and extract the container complete with basket from the appliance body (2).
• Lift the transparent slider (4).
• Press the basket release button (5) and at the same time remove the basket from the container by lifting it upwards.
• The container and the basket can be washed in the dishwasher. Alternatively, use dish soap and a soft, non-abrasive sponge.
• Before proceeding with the use of the fryer, carry out an operating cycle with no load for about 10 minutes, setting the maximum temperature with the thermostat knob (1). This operation will eliminate the new smell.
• During the operating cycle, make sure the room is well ventilated.

NOTE!

There may be some smoke when you use the appliance for the first time, this is normal and is due to residue from production protective substances on the heating elements: this will disappear when you use it again.

2 - CONTROL PANEL

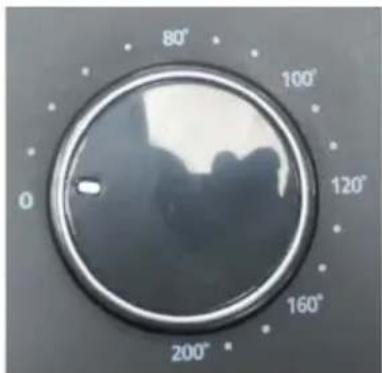

THERMOSTAT KNOB

- The knob (1) allows setting the ideal cooking temperature from 80^ to 200^ .

Close-up of a circular black knob with angular markings from 0° to 200°, showing no text or symbols beyond directional indicators.

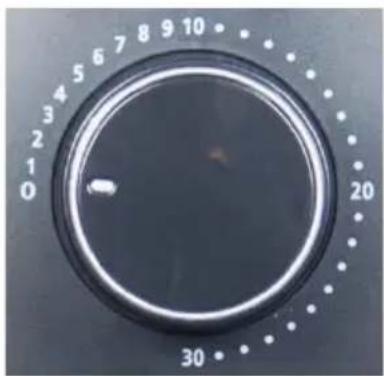

TIMER KNOB (8)

Automatic operation with preset time

- The timer allows the setting of an operating time from 1 to 30 minutes. At the end of the settled time, an acoustic signal will be heard and the air-fryer stops operating automatically.

- To interrupt the operation of the appliance before the end of the pre-selected time, turn the timer dial counterclockwise until it reaches the "0" position. (appliance off).

Close-up of a black circular dial with white measurement markings (no readable text or symbols)

• Place the device on a stable, flat, regular and heat-resistant surface.
• Connect the plug to an electrical socket.
• Grasp the handle (6) and remove the container complete with basket from the appliance body (2).
• Introduce the ingredients to be cooked into the basket (3) without exceeding the maximum level indicated inside it.
• Insert the container into the appliance body (2).

If the container has not been inserted correctly, the appliance will not start.

- Set the desired cooking temperature by turning the thermostat knob (1) located in the upper part of the appliance body. The temperature can be set between 80^ C and 200^ C .

- Set the cooking time by turning the knob (8) on the front of the fryer: it is possible to select a time from 1 minute to 30 minutes.

- During cooking, you may notice that the operation light (9) turns on and off periodically. This indicates the interventions of the thermostat which maintains the correct temperature in the cooking compartment.

- By removing the container (7) during the frying process, the appliance switches off automatically. When the container is reinserted, the program resumes.

- At the end of the set period, the device emits a "beep" and turns off.

- Check that the food is actually cooked, remove the complete container using the special handle (6) and place it on a heat-resistant surface.

- If the ingredients are not ready, simply reinsert the container into the appliance and turn the timer knob for a few minutes.

- Remove the basket (3) by pressing the appropriate button (5) and serve the food.

Remove the food only with rubber, plastic or wooden accessories to avoid damaging the non-stick layer of the basket (3).

Warning!

Danger of burns. Do not touch the container (7), the basket (3) and the metal parts of the appliance in the minutes following its shutdown. Wait for the hot parts to cool down.

TIPS:

• We recommend that you preheat the fryer for the execution of some recipes or reduce the cooking times: simply turn on the product for 3-5 minutes at the desired temperature before inserting the food to be cooked.
• To switch off the fryer prematurely, turn the timer knob (8) to 0.
• Periodically check the cooking, especially during frying, shaking the food to prevent it from sticking.
• To obtain crispier fried fresh potatoes, simply sprinkle them with a tablespoon of oil.
• Smaller ingredients need a slightly shorter cooking time than larger ingredients.
• A larger quantity of ingredients requires a slightly longer preparation time.
• Mixing the smaller ingredients halfway through cooking optimizes the final result and helps even cooking.
• Oven-baked snacks can be cooked in the hot air fryer.

4 – GUIDE TO COOKING TIMES

Food	Time	Temperature	Shake
French fries, thin - frozen	15 min	200°C	A couple of times
Home made fries	25 min	180°C	Every 10 min
Vegetables in batter - frozen	15 min	200°C
Crustaceans	20 min	160°C
Mixed fried - frozen	18 min	200°C	A couple of times
Squid rings - frozen	20 min	180°C	A couple of times
Breaded mozzarella	10 min	180°C	A couple of times
Ascolana olives	12 min	200°C	A couple of times
Potato croquettes - frozen	8 min	200°C	A couple of times
Hamburger	10-15 min	180°C
Chicken thighs	20-25 min	180°C
Meatballs	8 min	180°C

6 – CLEANING AND MAINTENANCE

ATTENTION!

Before carrying out any cleaning and/or maintenance operations, disconnect the plug from the power outlet and wait until the oven

has cooled off completely.

TIPS:

The appliance cleaning will be easier if it is carried out immediately after use. It is recommended to frequently clean the oven to prevent the formation of fumes and bad smells during cooking.

Cleaning the appliance

Clean the plastic parts with a damp non-abrasive cloth and dry them with a dry cloth.

Clean the inside of the appliance with a non-abrasive cloth soaked in hot water. Dry the surfaces.

Clean the heating elements with a dry cloth to remove any food residues.

Cleaning of components

The container (7) and the basket (3) can be washed in the dishwasher. Alternatively, use a common dish soap and a soft, non-abrasive sponge.

- Grasp the handle (6) and remove the container complete with basket from the appliance body.

- Press the release button (5) and at the same time remove the basket from the container by lifting it upwards.

To soften the food residues on the basket, you can fill the container (7) with hot water and add a few drops of detergent. Insert the basket (3) and leave for 10 minutes. Then wash and dry.

The container and the basket are made of non-stick material:

- do not use abrasive or metal sponges for washing as they would compromise the coating.

- after prolonged use, opacity and slight streaks may appear that do not compromise the cooking and taste of the food.

- in case of deep marks or scratches that cause the covering to come off, replace the basket (3).

• Never immerse the device in water or other liquids.
• Do not wash the appliance under a jet of water.
• Do not use chemicals or abrasives.
• Do not wash the inside of the fryer with flammable substances such as alcohol.
• Do not cook food soaked in flammable substances.

INFORMATION FOR USERS

In accordance with European Directive 2012/19/UE on electric and electronic equipment waste disposal.

• The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste.
• Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.
• The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.
• Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

Lange Distribution S.r.l. reserves the right to introduce technical and/or aesthetic changes to its products intended to improve performances.

Termozeta is an international trademark. Copyright © 1995. All rights reserved.

Lange Distribution S.r.l. - Via Treviso, 35 - 20127 Milano – Italy

TERMOZETA®

www.termozeta.com

Numero Verde

800 200 899
