Product Type	Security Camera
Brand	Mobotix
Model	Move VT1A-203-IR
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	5 MP (2592 x 1944)
Lens	Varifocal, 2.8 - 12 mm, F1.4
IR Range	Up to 30 meters
Power Supply	PoE (802.3af) or 12 VDC
Power Consumption	Max 12.95 W (PoE)
Dimensions (Diameter x Height)	150 mm x 120 mm
Weight	1.05 kg
Ingress Protection	IP66
Impact Protection	IK10
Operating Temperature	-30°C to 60°C
Storage Temperature	-40°C to 70°C
Video Compression	H.265, H.264, MJPEG
Audio	Built-in mic, audio line in/out
Alarm I/O	1 input, 1 output
Main Functions	Motion detection, tampering alarm, privacy masking, analytics
Maintenance & Cleaning	Clean housing with a soft dry cloth; do not use harsh chemicals
Safety	Use only certified power adapters; avoid exposure to extreme moisture
Spare Parts & Repairability	Replaceable filter, lens, and mainboard; contact Mobotix service
General Information	Warranty: 2 years; supports ONVIF, local recording (SD card slot)

Frequently Asked Questions - Move VT1A-203-IR Mobotix

How do I reset the Mobotix Move VT1A-203-IR to factory defaults?

Press and hold the reset button on the device for 10 seconds while power is on. The camera will reboot to factory settings. Alternatively, access the web interface and navigate to System > Maintenance > Factory Default.

What is the night vision range of this camera?

The IR range is up to 30 meters (approximately 98 feet) in complete darkness, thanks to the built-in infrared LEDs.

Can I use the camera outdoors?

Yes, the camera has an IP66 rating, making it weatherproof and suitable for outdoor use in rain, snow, or dust.

How do I mount the camera?

The camera comes with a mounting bracket and screws. Drill holes according to the template, secure the base, then attach the camera and adjust the viewing angle. Refer to the manual for detailed steps.

Does it support Power over Ethernet (PoE)?

Yes, the camera supports IEEE 802.3af PoE, allowing both data and power over a single Ethernet cable. You can also use a 12 VDC adapter if PoE is not available.

How do I access the camera remotely?

Connect the camera to your network, assign an IP address via DHCP or static IP, then enter the IP in a web browser. Default credentials are admin/admin (change immediately). You can also use Mobotix’s cloud service or mobile app.

What is the maximum resolution and frame rate?

The camera offers 5 megapixel resolution (2592x1944) at up to 30 frames per second (fps). Lower resolutions allow higher frame rates.

Can I record video locally?

Yes, the camera has a microSD card slot (up to 256 GB) for edge recording. You can also record to an NVR or NAS via ONVIF.

Is the camera vandal-resistant?

Yes, it has an IK10 impact rating, meaning it can withstand up to 20 joules of impact (equivalent to a 5 kg object dropped from 40 cm), making it suitable for high-risk areas.

How do I clean the camera lens?

Use a soft, dry microfiber cloth to gently wipe the lens. Avoid using any liquids or abrasive materials. For the housing, use a damp cloth with mild soap if needed.

USER MANUAL Move VT1A-203-IR Mobotix

This guide is only valid for installing and connecting the 2MP Varifocal IR Vandal Turret. For more information on the camera, please refer to the other documents (see Further Reading, p. 9).

Important Installation Notes

This camera must be installed by qualified personnel and the installation should conform to all local codes.
■ This product must not be used in locations exposed to the dangers of explosion.
■ Do not use this product in a dusty environment.
■ Protect this product from moisture or water entering the housing.
■ Install this product as outlined in this document. A faulty installation can damage the product!
- Do not replace batteries of the camera. If a battery is replaced by an incorrect type, the battery can explode.
This equipment is not suitable for use in locations where children are likely to be present.
■ External power supplies must comply with the Limited Power Source (LPS) requirements and share the same power specifications with the camera.
- When using a Class I adapter, the power cord shall be connected to a socket-outlet with proper ground connection.
■ To comply with the requirements of EN 50130-4 regarding the power supply of alarm systems for 24/7 operation, it is highly recommended to use an uninterruptible power supply (UPS) for backing up the power supply of this product.

NOTE! To ensure that the unit is not affected by vibration, twisting, etc. after adjusting the camera, properly tighten all mounting screws.

Package Contents

Check the package for the items listed below.

	2MP Varifocal IR Vandal Turret
	3 x Plastic anchors
[boe]	3 x self tapping screws
	1 x Cable entry cover
[boe]	1 x Water proof cover
	1 x Security Torx Wrench (T 10) * 1
	1 x Drilling template

Disassembling the Camera

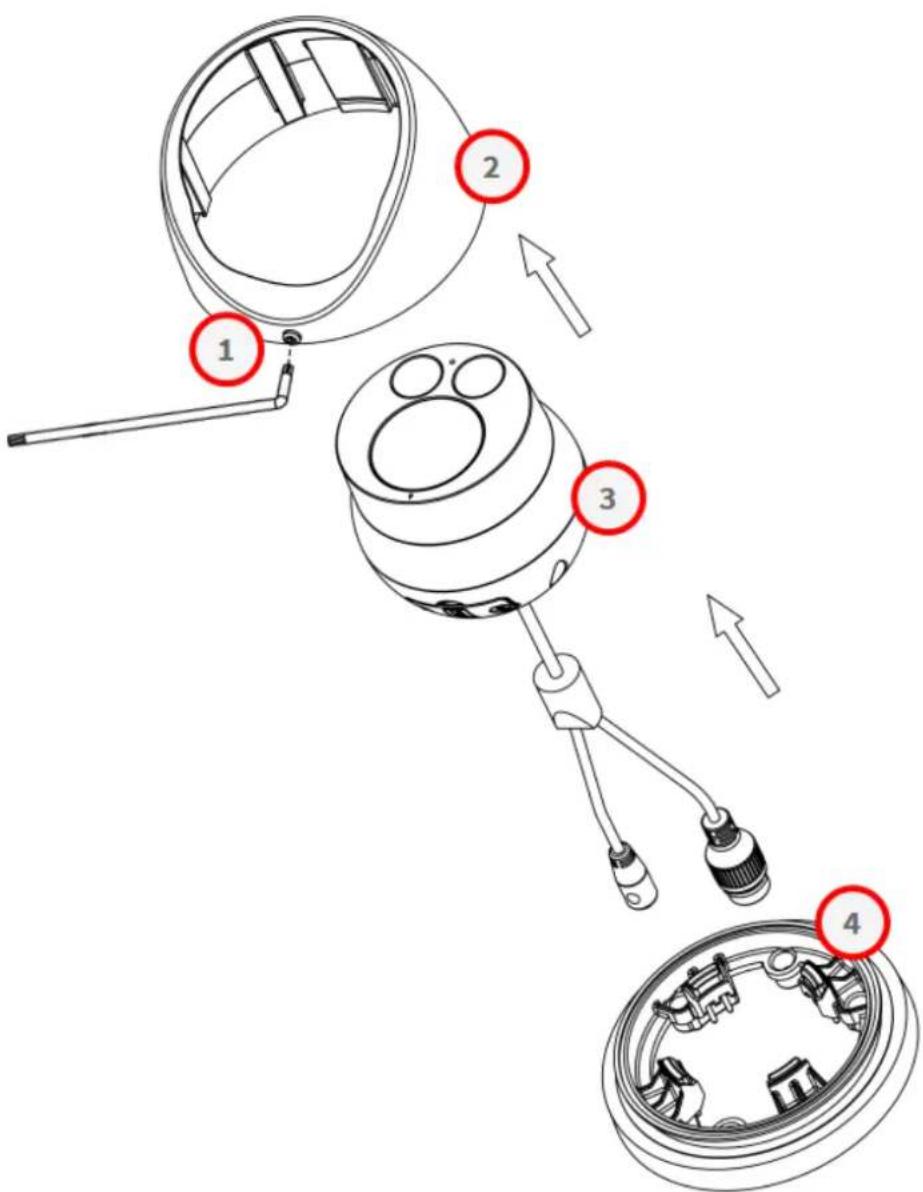

1. Loosen the screw ① on the top cover using the T10 Torx wrench.
2. Remove the top cover ② .
3. Carefully remove the camera lens module ③ from the bottom camera case ④.

Inserting the SD Card

CAUTION! Always power down the camera before performing the following steps!

1. Remove the SD card cover ① from the camera lens module by loosening the screws ① with the T10 Torx wrench.
2. Insert the SD card into the corresponding slot.
3. Reattach the SD card cover.

NOTE!

It is not recommended to record with the microSD card for 24/7 continuously, as it may not be able to support long term continuous data read/write. Contact the manufacturer of the microSD card for information regarding the reliability and the life expectancy.

Mounting the Camera

Technical line drawing of a mechanical device with a base and top component, showing internal components and directional arrows (no text or symbols)

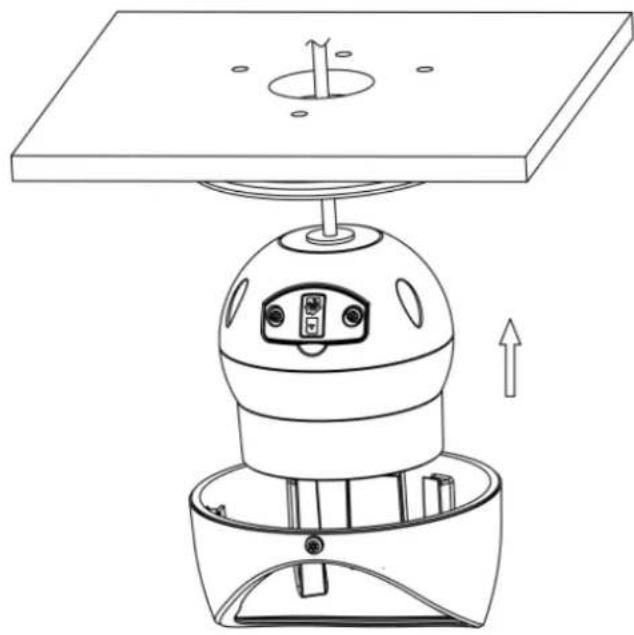

Mounting the camera routing the ethernet cable through the Surface

Technical line drawing of a mechanical bearing assembly with internal components and a circular component (no text or symbols)

Mounting the camera routing the ethernet cable on the surface

1. Attach the drilling template to the wall or ceiling.

NOTE! You can choose to drill two or three holes on the mounting template. The following instructions are based on three holes.

Technical line drawing of a mechanical assembly with a circular component and four labeled components (no text or symbols)

1. Drill the three holes according to the drilling template and insert the plastic dowels supplied.
2. If applicable, drill a hole for the cable gland.
3. Only when routing the ethernet cable through the surface attach the cable entry cover.
4. Use the self-tapping screws ① to attach the camera bottom case to the mounting surface ② prepared with the wall plugs.

1. Attach the waterproof cover ③ to the ethernet cable.

1. Connect the ethernet cable with the RJ-45 port of the camera and firmly close the waterproof cover.

NOTE!

■ The length of the Ethernet cable should not exceed 100 m/300 ft.
In some cases, an Ethernet crossover cable may be needed when connecting the camera directly to the PC.

1. Align the groove on the top cover ④ with the rim one the camera bottom case and attach the camera lens module and top cover to the camera bottom case.

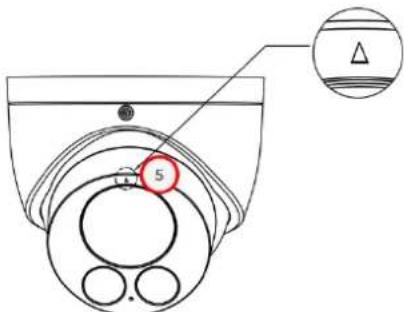

NOTE! Make sure the triangle arrow ⑤ is facing upwards

1. Adjust the camera lens module to the desired field of view.

Diagram of concentric circular layers with directional arrows indicating rotation (no text or symbols)

[0° to 360°]

Simple line drawing of a mechanical component with curved arrows indicating rotation (no text or symbols)

[0° to 75°]

Diagram of a surveillance camera with three lenses and directional arrows indicating rotation (no text or symbols)

[0° to 360°]

1. Close the housing screw ⑥ with the T10 Torx key to securely fasten the top cover to the lower camera housing.

Client System Requirements

System Hardware

CPU i5-2430M CPU@ 2.40GHZ

RAM 6 GB or above

Display NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500

Power Supply PoE (IEEE 802.3af Class 3)

Network 10/100BASE-T Ethernet (RJ-45 connector)

System Software

Operating System Microsoft Windows 10 or above, MacOS Sierra or above

Browser Mozilla Firefox, Google Chrome, Apple Safari, Microsoft Edge

Accessing the Camera

The IP address of the camera can be found on the label on the camera housing.

1. Access the IP address of the camera with a web browser.

2. If you are accessing the camera's web interface for the first time, you must change the administrator password for user "ADMIN".

This Camera is Not Secure

Please setup the password for this device.

NOTE!

The password must include at least

■ 8 characters including
■ 1 uppercase letter
■ 1 special character

Further information about using the camera can be found in the "User Manual."

Further Reading

Manuals and Quick Installation documents

Technical Specifications

MOBOTIX MOVE Installation Hints

MOBOTIX Community

MOBOTIX

BeyondHumanVision
