USER MANUAL VXW 250 BLAUPUNKT
VXW 250, VXW 300, VXW 380
Velocity PRO COMPONENTS BY ●B
CAR HIFI PRO COMPONENTS
BY ● BLAUPUNKT


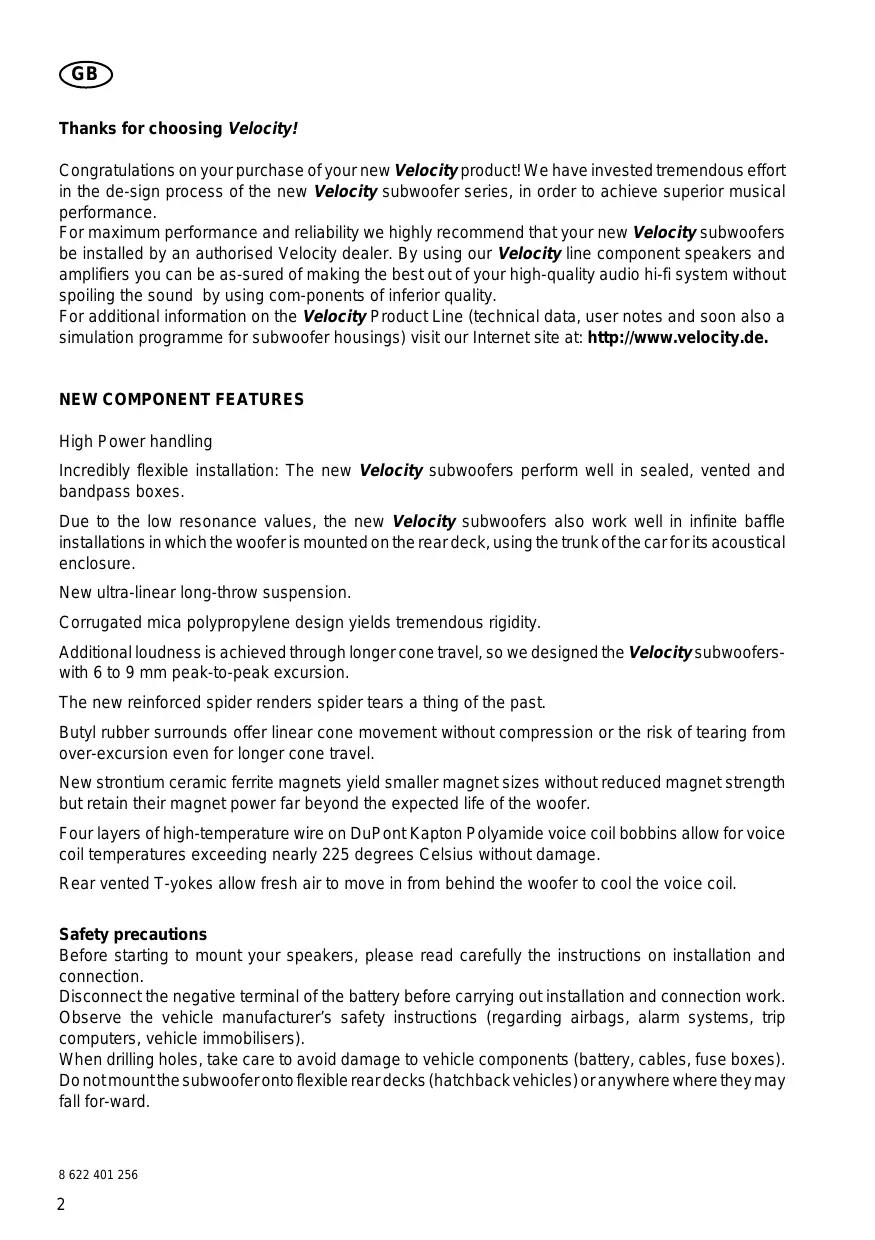

Congratulations on your purchase of your new Velocity product! We have invested tremendous effort in the de-sign process of the new Velocity subwoofer series, in order to achieve superior musical performance.
For maximum performance and reliability we highly recommend that your new Velocity subwoofers be installed by an authorised Velocity dealer. By using our Velocity line component speakers and amplifiers you can be as-sured of making the best out of your high-quality audio hi-fi system without spoiling the sound by using com-ponents of inferior quality.
For additional information on the Velocity Product Line (technical data, user notes and soon also a simulation programme for subwoofer housings) visit our Internet site at: http://www.velocity.de.

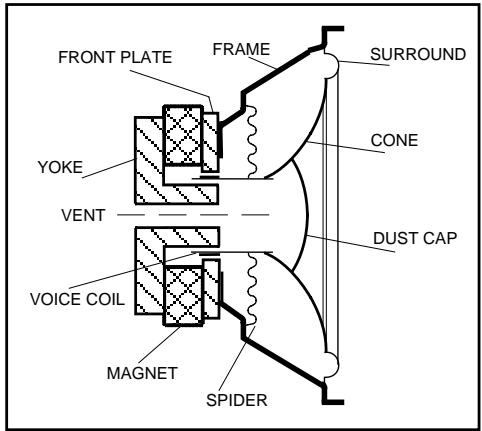

NEW COMPONENT FEATURES
High Power handling
Incredibly flexible installation: The new Velocity subwoofers perform well in sealed, vented and bandpass boxes.
Due to the low resonance values, the new Velocity subwoofers also work well in infinite baffle installations in which the woofer is mounted on the rear deck, using the trunk of the car for its acoustical enclosure.
New ultra-linear long-throw suspension.
Corrugated mica polypropylene design yields tremendous rigidity.
Additional loudness is achieved through longer cone travel, so we designed the Velocity subwoofers-with 6 to 9 mm peak-to-peak excursion.
The new reinforced spider renders spider tears a thing of the past.
Butyl rubber surrounds offer linear cone movement without compression or the risk of tearing from over-excursion even for longer cone travel.
New strontium ceramic ferrite magnets yield smaller magnet sizes without reduced magnet strength but retain their magnet power far beyond the expected life of the woofer.
Four layers of high-temperature wire on DuPont Kapton Polyamide voice coil bobbins allow for voice coil temperatures exceeding nearly 225 degrees Celsius without damage.
Rear vented T-yokes allow fresh air to move in from behind the woofer to cool the voice coil.
Safety precautions
Before starting to mount your speakers, please read carefully the instructions on installation and connection.
Disconnect the negative terminal of the battery before carrying out installation and connection work. Observe the vehicle manufacturer's safety instructions (regarding airbags, alarm systems, trip computers, vehicle immobilisers).
When drilling holes, take care to avoid damage to vehicle components (battery, cables, fuse boxes). Do not mount the subwoofer onto flexible rear decks (hatchback vehicles) or anywhere where they may fall forward.
DUAL VOICE COIL ADVANTAGES
The dual voice coil woofer is actually quite old in the home audio industry but still relatively new to the car audio world. The largest advantage of the DVC woofer is in the flexibility in installation. In order to raise the sound pressure level (loudness) in a car, you can either add more speakers or add more amplifier power to drive a single speaker. Many cars cannot fit two subwoofers and their necessary enclosure volumes but can easily fit large power amplifiers and a single woofer. Simply speaking, the DVC woofer allows you to make up for speaker deficiencies with additional amplifier power.
SUBWOOFER ENCLOSURE TYPES
Sound is created by the movement of the woofer cone back and forth. If a woofer cone moves forward creating a positive pressure wave, this same motion creates a negative pressure at the back of the woofer. If these two waves combine due to the lack of a wall separating the front of the speaker sound from the back, the output from the woofer is effectively cancelled thus substantially reducing the bass output of the speaker. This wall is absolutely necessary and is referred to as an acoustical „baffle“. It can be accomplished using a box of some kind or simply the rear package shelf of an automobile to isolate the front and back waves of the speaker.
THIELE-SMALL PARAMETERS
Every woofer has its own electromechanical characteristics which are called THIELE-SMALL parameters. The three most important parameters include RESONANT FREQUENCY („fs“- the frequency where the speaker moves with the least mechanical resistance), TOTAL Q („Qts“- the „magnification“ of the cone movement at its resonant frequency), and VOLUMETRIC COMPLIANCE („Vas“- the equivalent volume of air that the woofer cone can displace for a given power input). Using these parameters we can then calculate an optimum box volume for a particular woofer and reasonably predict its frequency response.
COMMON ENCLOSURE TYPES
In the car audio world there are five types of subwoofer enclosures commonly used: INFINITE BAFFLE, SEALED BOX (closed box), VENTED BOX (bass reflex), SINGLE-VENTED BANDPASS (often incorrectly referred to as „5th“ order), DUAL-VENTED BANDPASS (often incorrectly referred to as „7th“ order). No single design is superior because each has its own compromise in performance, power handling and design complexity. The bandpass name implies a „built-in“ acoustical response which has a natural highpass response (@ 30 Hz for example) but also a lowpass response suppressing high frequencies (e.g., >80 Hz).
INFINITE BAFFLE (fig.a) designs simply use the trunk of the car for its acoustical enclosure and the rear deck to isolate the front and rear sound paths. Advantages include simple installation and adequate performance for most systems. Disadvantages include poor power handling capacity and substandard transient response.
Increasing in popularity in recent years is the compound woofer design, more commonly known as the „Isobaric“ design. Isobaric actually means „constant pressure“ which is the case having two woofers moving an encapsulated pocket of air between them in the same direction.
This arrangement acts like a single speaker which effectively reduces the required box volumes for a subwoofer system by 50% which is substantial if you are space-limited. Unfortunately, the trade-off for space is the 3 dB loss in efficiency but this is usually recovered with increased amplifier power. Care must be taken to avoid air leaks between the two woofers and final speaker wiring and impedance loads must be carefully watched.
ISOBARIC CONFIGURATION (TANDEM)
SUBWOOFER ENCLOSURE CONSTRUCTION
Before starting final box assembly some basic construction issues should be mentioned:
- Infinite baffle construction in a car is done by simply cutting a piece of wood which will act as an acoustical divider isolating the front and rear sound of the woofer. This piece of wood is mounted inside the trunk of the car under the rear deck, or against the back of the rear seat, and should have some kind of caulking to seal off all residual air leaks.
- Box construction can take on nearly any shape since we are dealing with low frequencies. Odd shapes that are difficult to cut and glue should be avoided.
- Particle board, MDF, or high grade birch plywood are good materials to build boxes of thicknesses of 19 to 25 mm.
- All seams in the box should be glued, screwed and caulked to prevent wall separation over time due to vibration and environmental changes within the car.
- Cross bracing is important for large boxes to prevent wall vibration.
- Acoustical damping material (sheep wool or fibre-glass batting 5 to 10 cm thick), attached to 50% or more of the interior walls helps reduce box noise and also increases the box volume seen by the woofer by 10 - 20%. The application of self-adhesive damping mats to the inside walls also helps to eliminate wall resonances.
- The cables running from the amplifier to the subwoofer should be as short as possible with a cable cross section of at least 4 mm2.
- The final box should be rock solid and air tight but should also remain serviceable should a woofer be damaged for any reason.
- When possible, use 10 to 15 cm diameter port tubes to avoid wind noise from smaller diameter sizes. PVC plumbing pipe in various diameters is available at most hardware stores with „elbow“ pipes allowing you to bend the tubes inside the box.
- Try to always use active (electronic) crossovers, such as those built into our Velocity amps, for example.
Basic Math Calculations
To build a subwoofer box some very basic math calculations must be made accurately referencing the formulas below.
Volume and Area Calculations
Area:
Volume:
| Circle (port opening) | A = 0,79 x d x d | - |
| Rectangle | A = h x w | - |
| Triangle | A = 0,5 x h x w | - |
| Cylinder (port tube) | - | V = 0,79 x d x d x h |
| Rectangular box | - | V = h x w x d |
| Triangular box | - | V = 0,5 x h x w x d |
| Cone | - | V = 0,26 x d x d x h |
Speaker parameters and box calculations often need some kind of math calculations in order to make the numbers easy to work with (conversions between metric and Imperial/American units). Some common conversions are listed below:
Volume and Area Conversions
| To convert from: | multiply by: | to get: |
| Inches | 0.0254 | Meters |
| Meters | 39.37 | Inches |
| Square inches | 0.007 | Square feet |
| Square feet | 144 | Square inches |
| Cubic inches | 0.00058 | Cubic feet |
| Cubic feet | 1728 | Cubic inches |
| Liters | 0.035 | Cubic feet |
| Cubic feet | 28.3 | Liters |
AUFBAU VON SUBWOOFERGEHÄUSEN


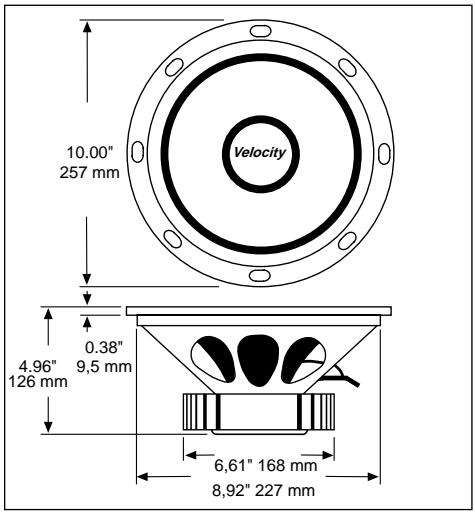

| 10" SUBWOOFER • TECHNICAL DATA | |
| Nominal diameter | 10.0 in (250 mm) |
| Magnet weight | 40 oz (1.2 kg) |
| Nominal impedance | 4 Ω (ea. coil) |
| DC resistance (Re) | 3.12 Ω (ea.) |
| Resonance frequency (fs) | 30 Hz |
| Total Q factor (Qts) | 0.42 |
| Mechanical Q (Qms) | 10,20 |
| Electrical Q (Qes) | 0.44 |
| Equivalent air volume (Vas) | 3,2 ft3 (90 ltr's) |
| Effective cone area (Sd) | 57 in2 (0.036 m2) |
| Compliance (Cms) | 0,49 mm/N |
| Moving mass (Mms) | 2.0 oz (58 g) |
| Voice coil diameter | 2.0" (50 mm) |
| Voice coil former material | Kapton polyimide |
| Linear excursion (Xmax) | ± 0.16 in (±4 mm) |
| Force factor (BI) | 6.3 Tm |
| Acoustical efficiency (No) | 0.54 % |
| Continuous power (Pe) | 180 W (350 peak) |
| Sensitivity (SPL) | 94 dB, 2.83v / 1m91 dB, 1 W/1 m |
VXW 250 Recommended box designs • Boxenempfehlung • Conception recommandée des enceintes
| SEALEDBOX | ||
| VT | f3 | SPL |
| Total box volume(l) | Freq.(Hz) | Mid-band effc'y (dB) |
| 15 | 60 | 91 |
| 30 | 57 | 91 |
| 45 | 54 | 91 |
| 60 | 51 | 91 |
| 75 | 50 | 91 |
| trunk | 60 | 91 |
line
| X | Y (Solid Line) | Y (Dotted Line) | |---|---|---| | 0 | 0 | 0 | | 1 | 0.5 | 0.3 | | 2 | 0.8 | 0.6 | | 3 | 1.0 | 0.9 | | 4 | 1.2 | 1.2 | | 5 | 1.3 | 1.4 | | 6 | 1.4 | 1.5 | | 7 | 1.5 | 1.6 | | 8 | 1.6 | 1.7 | | 9 | 1.7 | 1.8 | | 10 | 1.8 | 1.9 | | 11 | 1.9 | 2.0 | | 12 | 2.0 | 2.1 | | 13 | 2.1 | 2.2 | | 14 | 2.2 | 2.3 | | 15 | 2.3 | 2.4 | | 16 | 2.4 | 2.5 | | 17 | 2.5 | 2.6 | | 18 | 2.6 | 2.7 | | 19 | 2.7 | 2.8 | | 20 | 2.8 | 2.9 | | 21 | 2.9 | 3.0 | | 22 | 3.0 | 3.1 | | 23 | 3.1 | 3.2 | | 24 | 3.2 | 3.3 | | 25 | 3.3 | 3.4 | | 26 | 3.4 | 3.5 | | 27 | 3.5 | 3.6 | | 28 | 3.6 | 3.7 | | 29 | 3.7 | 3.8 | | 30 | 3.8 | 3.9 | | 31 | 3.9 | 4.0 | | 32 | 4.0 | 4.1 | | 33 | 4.1 | 4.2 | | 34 | 4.2 | 4.3 | | 35 | 4.3 | 4.4 | | 36 | 4.4 | 4.5 | | 37 | 4.5 | 4.6 | | 38 | 4.6 | 4.7 | | 39 | 4.7 | 4.8 | | 40 | 4.8 | 4.9 | | 41 | 4.9 | 5.0 | | 42 | 5.0 | 5.1 | | 43 | 5.1 | 5.2 | | 44 | 5.2 | 5.3 | | 45 | 5.3 | 5.4 | | 46 | 5.4 | 5.5 | | 47 | 5.5 | 5.6 | | 48 | 5.6 | 5.7 | | 49 | 5.7 | 5.8 | | 50 | 5.8 | 5.9 | | 51 | 5.9 | 6.0 | | 52 | 6.0 | 6.1 | | 53 | 6.1 | 6.2 | | 54 | 6.2 | 6.3 | | 55 | 6.3 | 6.4 | | 56 | 6.4 | 6.5 | | 57 | 6.5 | 6.6 | | 58 | 6.6 | 6.7 | | 59 | 6.7 | 6.8 | | 60 | 6.8 | 6.9 | | 61 | 6.9 | 7.0 | | 62 | 7.0 | 7.1 | | 63 | 7.1 | 7.2 | | 64 | 7.2 | 7.3 | | 65 | 7.3 | 7.4 | | 66 | 7.4 | 7.5 | | 67 | 7.5 | 7.6 | | 68 | 7.6 | 7.7 | | 69 | 7.7 | 7.8 | | 70 | 7.8 | 7.9 | | 71 | 7.9 | 8.0 | | 72 | 8.0 | - | | ... (repeated) for the remaining series are not explicitly labeled in the image; it is a schematic representation of the data being plotted on a Cartesian coordinate system.sealedbox - 30 | ... 75 |
| VENTEDBOX | |||||
| VT | f3 | fB | PL | PL | SPL |
| Total box volume | Freq. | Port tuning freq. | Port tube length for 70 mm i. D. (mm) | Port tube length for 100 mm i. D. (mm) | Mid-band effc'y (dB) |
| (I) | (Hz) | (Hz) | |||
| 25 | 56 | 45 | 26.8 | NR | 91 |
| 40 | 45 | 40 | 14.3 | 28.3 | 91 |
| 55 | 38 | 35 | 10.3 | 26.4 | 91 |
| 70 | 34 | 30 | 16 | 31 | 91 |
| 85 | 31 | 30 | 10.9 | 22.3 | 91 |
| 100 | 28 | 30 | 8.3 | 17.7 | 91 |
| SINGLE BANDPASS BOX VENTED | ||||||||
| V_T | f_3L | f_3H | f_B | V_F | V_R | P_L | P_L | SPL |
| Total box vol. (l) | Freq. (Hz) | Freq. (Hz) | Port tune freq. (Hz) | Vented front box volume (l) | Sealed rear box volume (l) | Port tube length for 70 mm i. D. (cm) | Port tube length for100 mm i. D. (cm) | Mid-band effc'y (dB) |
| 25 | 55 | 200 | 90 | 15 | 10 | 4.5 | 10.9 | 92 |
| 40 | 35 | 140 | 75 | 15 | 25 | 9.3 | 19.4 | 89 |
| 55 | 32 | 110 | 60 | 20 | 35 | 12 | 24.2 | 88 |
| 70 | 30 | 85 | 50 | 30 | 40 | 11.3 | 22.9 | 87 |
| 85 | NR | |||||||
| 100 | NR | |||||||
NR = NOT A RECOMMENDED APPLICATION
8 622 401 256

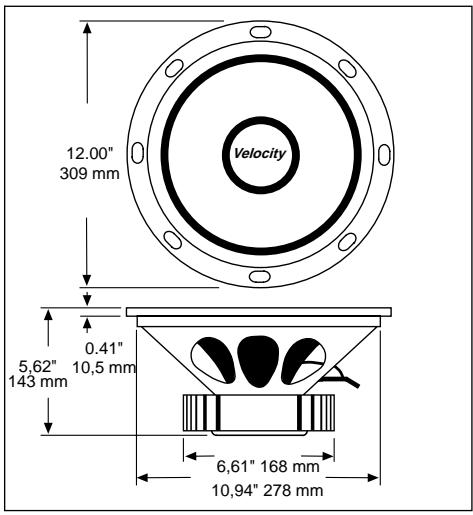

12" SUBWOOFER • TECHNICAL DATA
| Nominal diameter | 12.0 in (300 mm) |
| Magnet weight | 50 oz (1.4 kg) |
| Nominal impedance | 4 Ω (ea. coil) |
| DC resistance (Re) | 3.12 Ω (ea.) |
| Resonance frequency (fs) | 35 Hz |
| Total Q factor (Qts) | 0.42 |
| Mechanical Q (Qms) | 9,80 |
| Electrical Q (Qes) | 0.44 |
| Equivalent air volume (Vas) | 3,2 ft ^3 (91 ltr's) |
| Effective cone area (Sd) | 79 in ^2 (0.052 m ^2 ) |
| Compliance (Cms) | 0,23 mm/N |
| Moving mass (Mms) | 3,1 oz (88 g) |
| Voice coil diameter | 2.0" (50 mm) |
| Voice coil former material | Kapton polyimide |
| Linear excursion (Xmax) | ± 0.16 in (±4 mm) |
| Force factor (BI) | 8,4 Tm |
| Acoustical efficiency (No) | 0.86 % |
| Continuous power (Pe) | 200 W (400 peak) |
| Sensitivity (SPL) | 94dB,2.83v/1m91 dB, 1 W/1 m |
| SEALEDBOX | ||
| VT | f3 | SPL |
| Total box volume(l) | Freq.(Hz) | Mid-band effc'y (dB) |
| 15 | 60 | 91 |
| 30 | 57 | 91 |
| 45 | 54 | 91 |
| 60 | 51 | 91 |
| 75 | 50 | 91 |
| trunk | 60 | 91 |
line
| x | y (solid line) | y (dashed line) | |---|---|---| | 0 | 0 | 0 | | x | 2 | 1 | | x + 2 | 3 | 2 | | x + 4 | 4 | 3 | | x + 6 | 4 | 3 |sealedbox - 30 | ... 75 |
| VENTEDBOX | |||||
| VT | f3 | fB | PL | PL | SPL |
| Total box volume | Freq. | Port tuning freq. | Port tube length for 70 mm i. D. (mm) | Port tube length for 100 mm i. D. (mm) | Mid-band effc'y (dB) |
| (I) | (Hz) | (Hz) | |||
| 25 | 67 | 55 | 11,1 | 22,6 | 91 |
| 40 | 53 | 45 | 10,0 | 20,6 | 91 |
| 55 | 45 | 40 | 8,7 | 18,2 | 91 |
| 70 | 40 | 35 | 9,1 | 19,9 | 91 |
| 85 | 36 | 35 | 6,4 | 14,1 | 91 |
| 100 | 33 | 35 | 4,4 | 10,7 | 91 |
| SINGLE BANDPASS BOX VENTED | ||||||||
| V_T | f_3L | f_3H | f_B | V_F | V_R | P_L | P_L | SPL |
| Total box vol. (l) | Freq. (Hz) | Freq. (Hz) | Port tune freq. (Hz) | Vented front box volume (l) | Sealed rear box volume (l) | Port tube length for 70 mm i. D. (cm) | Port tube length for 100 mm i. D. (cm) | Mid-band effc'y (dB) |
| 25 | 60 | 160 | 100 | 15 | 10 | NR | 7,2 | 94 |
| 40 | 47 | 140 | 75 | 20 | 20 | 5,4 | 12,4 | 91 |
| 55 | 40 | 110 | 65 | 25 | 30 | 6,2 | 13,8 | 90 |
| 70 | 30 | 85 | 50 | 30 | 40 | 11.3 | 22.9 | 87 |
| 85 | 25 | 70 | 40 | 40 | 45 | 14,3 | 28,3 | 84 |
| 100 | ||||||||
ventedbox - 40 | ... 85 |
line
| x | y (solid) | y (dashed) | |---|---|---| | 0 | s | k | | 1 | s | k | | 2 | s | k | | 3 | s | k | | 4 | s | k | | 5 | s | k | | 6 | s | k | | 7 | s | k | | 8 | s | k | | 9 | s | k | | 10 | s | k | | 11 | s | k | | 12 | s | k | | 13 | s | k | | 14 | s | k | | 15 | s | k | | 16 | s | k | | 17 | s | k | | 18 | s | k | | 19 | s | k | | 20 | s | k | | 21 | s | k | | 22 | s | k | | 23 | s | k | | 24 | s | k | | 25 | s | k | | 26 | s | k | | 27 | s | k | | 28 | s | k | | 29 | s | k | | 30 | s | k | | 31 | s | k | | 32 | s | k | | 33 | s | k | | 34 | s | k | | 35 | s | k | | 36 | s | k | | 37 | s | k | | 38 | s | k | | 39 | s | k | | 40 | s | k | | 41 | s | k | | 42 | s | k | | 43 | s | k | | 44 | s | k | | 45 | s | k | | 46 | s | k | | 47 | s | k | | 48 | s | k | | 49 | s | k | | 50 | s | k | | 51 | s | k | | 52 | s | k | | 53 | s | k | | 54 | s | k | | 55 | s | k | | 56 | s | k | | 57 | s | k | | 58 | s | k | | 59 | s | k | | 60 | s | k | | 61 | s | k | | 62 | s | k | | 63 | s | k | | 64 | s | k | | 65 | s | k | | 66 | s | k | | 67 | s | k | | 68 | s | k | | 69 | s | k | | 70 | s | k | | 71 | s | k | | 72 | s | k | | 73 | s | k | | 74 | s | k | | 75 | s | k | | 76 | s | k | | 77 | s | k | | 78 | s | k | | 79 | s | k | | 80 | s | k | | 81 | s | k | | 82 | s | k | | 83 | s | k | | 84 | s | k | | 85 | s | k | | 86 | s | k | | 87 | s | k | | 88 | s | k | | 89 | s | k | | 90 | s | k | | 91 | s | k | | 92 | s | k | | 93 | s | k | | 94 | s | k | | 95 | s | k | | 96 | s | k | | 97 | s | k | | 98 | s | k | | 99 | s | k | | 100:00:00 s s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s k s nbandpassbox - 25 | ... 70 |
NR = NOT A RECOMMENDED APPLICATION
8 622 401 256

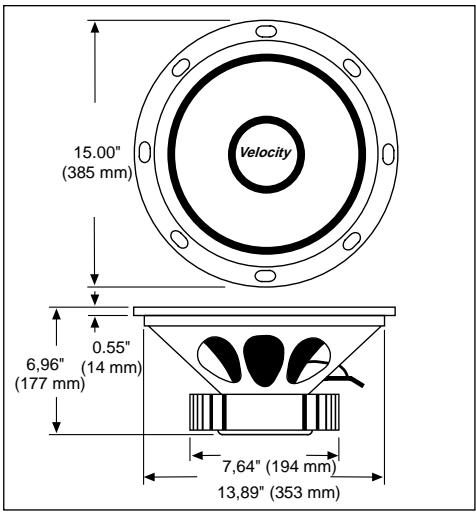

15" SUBWOOFER • TECHNICAL DATA
| Nominal diameter | 15.0 in (380 mm) |
| Magnet weight | 65 oz (1.8 kg) |
| Nominal impedance | 4 Ω (ea. coil) |
| DC resistance (Re) | 3.12 Ω (ea.) |
| Resonance frequency (fs) | 30 Hz |
| Total Q factor (Qts) | 0.49 |
| Mechanical Q (Qms) | 7,5 |
| Electrical Q (Qes) | 0.52 |
| Equivalent air volume (Vas) | 7,39 ft ^3 (210 ltr's) |
| Effective cone area (Sd) | 133 in ^2 (0.084 m ^2 ) |
| Compliance (Cms) | 0,21 mm/N |
| Moving mass (Mms) | 4,8 oz (136 g) |
| Voice coil diameter | 3" (75 mm) |
| Voice coil former material | Kapton poly mide |
| Linear excursion (Xmax) | ± 0.16 in (±4 mm) |
| Force factor (BI) | 8,9 Tm |
| Acoustical efficiency (No) | 1,1 % |
| Continuous power (Pe) | 220 W (440 peak) |
| Sensitivity (SPL) | 96dB, 2.83 v / 1m93 dB, 1 W / 1 m |
| SEALEDBOX | ||
| VT | f3 | SPL |
| Total box volume(l) | Freq.(Hz) | Mid-band effc'y (dB) |
| 40 | 57 | 93 |
| 80 | 46 | 93 |
| 120 | 44 | 93 |
| 160 | 42 | 93 |
| 200 | 40 | 93 |
| trunk | 42 | 93 |
line
| x | y (solid line) | y (dashed line) | | ---- | -------------- | --------------- | | 0 | 0 | 0 | | 5 | 4 | 4 | | 10 | 6 | 6 | | 20 | 8 | 8 | | 30 | 10 | 10 | | 40 | 10 | 10 | | 50 | 10 | 10 |sealedbox - 80 | ... 200 |
| VENTEDBOX | |||||
| VT | f3 | fB | PL | PL | SPL |
| Total box volume | Freq. | Port tuning freq. | Port tube length for 70 mm i. D. (mm) | Port tube length for 100 mm i. D. (mm) | Mid-band effc'y (dB) |
| (l) | (Hz) | (Hz) | |||
| 40 | 69 | 50 | 15,0 | NR | 93 |
| 80 | 49 | 40 | 9,9 | 28.6 | 93 |
| 120 | 40 | 35 | 7,5 | 23,3 | 93 |
| 160 | 34 | 30 | 7,8 | 24,0 | 93 |
| 200 | 31 | 30 | 4,6 | 16,7 | 93 |
| 240 | 28 | 30 | NR | 11,8 | 93 |
line
| x | y (solid line) | y (dashed line) | | ---- | -------------- | --------------- | | -1 | -1 | -2 | | 0 | 0 | 0 | | +1 | 1 | 1 | | z | 0 | 0 |ventedbox - 80 | ... 200 |
| SINGLE VENTED BANDPASS BOX | ||||||||
| V_T | f_3L | f_3H | f_B | V_F | V_R | P_L | P_L | SPL |
| Total box vol. (l) | Freq. (Hz) | Freq. (Hz) | Port tune freq. (Hz) | Vented front box volume (l) | Sealed rear box volume (l) | Port tube length for 70 mm i. D. (cm) | Port tube length for 100 mm i. D. (cm) | Mid-band effc'y (dB) |
| 40 | NR> | |||||||
| 80 | 52 | 140 | 800 | 50 | 30 | NR | 3,8 | 96 |
| 120 | 37 | 110 | 65 | 50 | 70 | NR | 12,3 | 92 |
| 160 | 25 | 100 | 50 | 50 | 110 | 10.3 | 29,6 | 88 |
| 200 | 15 | 90 | 40 | 50 | 150 | 20,9 | 53,4 | 84 |
| 240 | NR | |||||||
line
| x | y (solid) | y (dashed) | |---|---|---| | 0.0 | 0.0 | 0.0 | | 0.2 | 0.1 | 0.3 | | 0.4 | 0.3 | 0.6 | | 0.6 | 0.5 | 0.8 | | 0.8 | 0.7 | 0.9 | | 1.0 | 0.9 | 0.8 | | 1.2 | 0.7 | 0.6 | | 1.4 | 0.5 | 0.4 | | 1.6 | 0.3 | 0.2 | | 1.8 | 0.1 | 0.1 |bandpassbox - 80 | ... 200 |
NR = NOT A RECOMMENDED APPLICATION
