INN-875 - Toaster Innoliving - Free user manual and instructions

Product Type	Toaster
Brand	Innoliving
Model	INN-875
Color	Black/White (depending on variant)
Housing Material	Plastic with stainless steel accents
Dimensions (Approx.)	30 x 20 x 20 cm (L x W x H)
Weight (Approx.)	1.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	800 - 1000 W
Number of Slots	2
Browning Levels	5 to 7 selectable levels
Functions	Browning control, Cancel, Defrost, Reheat, Self-centering bread racks
Crumb Tray	Removable, located at bottom
Safety Features	Automatic shut-off, overheat protection, cool-touch housing, non-slip feet
Cord Length (Approx.)	1.0 m
Cleaning	Wipe exterior with damp cloth; empty and clean crumb tray regularly
Spare Parts Available	Crumb tray, heating elements (contact support)
Repairability Index	Moderate; accessible parts for basic repairs
Warranty	2 years manufacturer warranty (subject to conditions)

Frequently Asked Questions - INN-875 Innoliving

How do I clean my INN-875 toaster?

Always unplug the toaster first. Wipe the exterior with a damp cloth and mild detergent. Remove the crumb tray from the bottom, empty it, and wash it with soapy water. Dry thoroughly before reinserting. Do not immerse the toaster in water.

How do I use the defrost function?

Insert frozen bread, select the desired browning level, then press the Defrost button. The toaster will extend the toasting time to properly thaw and toast the bread.

Why is my toast unevenly browned?

Uneven browning can occur if the bread slices are different thicknesses or if the toaster is on an uneven surface. Ensure the bread is centered and use the self-centering racks. Also, clean the crumb tray regularly to prevent debris affecting heating.

What should I do if toast gets stuck?

First, unplug the toaster. Wait for it to cool down. Gently use a wooden or plastic utensil to lift the stuck toast. Never use metal objects as they can damage the heating elements or cause a short circuit.

Does the INN-875 have an automatic shut-off?

Yes, the toaster features automatic shut-off and overheat protection. It will turn off once the toasting cycle is complete or if it detects overheating.

How long is the power cord?

The power cord is approximately 1 meter long. Ensure the toaster is placed near an outlet to avoid stretching the cord.

Can I toast bagels in this toaster?

Yes, you can toast bagels. Use the Reheat or Defrost function if needed. For best results, cut the bagel in half and place the cut sides facing the heating elements.

How do I select the browning level?

Turn the browning control dial to your preferred setting, from 1 (lightest) to 7 (darkest). For medium toast, choose around 3-4. Adjust based on your preference.

Is the INN-875 covered by warranty?

Yes, the toaster comes with a 2-year manufacturer warranty covering defects in materials and workmanship. Keep your proof of purchase. Warranty does not cover normal wear or misuse.

How do I remove and clean the crumb tray?

The crumb tray is located at the bottom of the toaster. Slide it out gently. Empty crumbs into the bin. Wash the tray with warm soapy water, dry it completely, and slide it back in. Clean after every use to prevent buildup.

USER MANUAL INN-875 Innoliving

innoliving easy tech, easy life

TOSTAPANE CON PINZE TOASTER

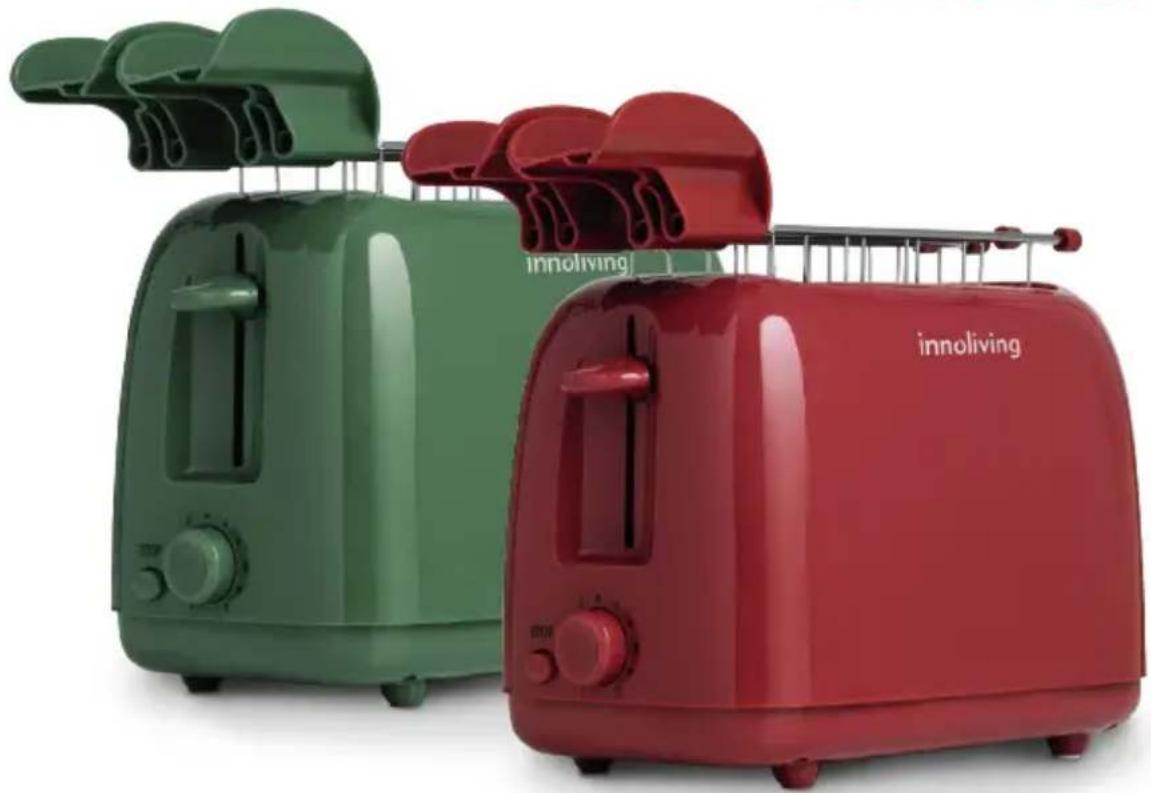

Two red and green instant cookers with cutters, one labeled 'innoliving' (no additional text or symbols visible)

INN-875G-R

MANUALE D'USO

USER MANUAL

Thank you for purchasing toaster 875G-R with pliers, an easy-to-use but reliable tool to toast more easily and facilitate the insertion and removal of toast. Before use, read all the instructions and warnings carefully and keep this user manual safe for future use.

IMPORTANT SAFETY NORMS AND WARNINGS

When using electrical appliances, certain safety precautions should always be followed carefully, including the following:

- Please read the instructions of use and safety norms before using the appliance and follow these at all times. Keep this manual with the appliance for future consultation for all the product life. Failure to comply with the use and maintenance instructions provided in this user manual could lead to an accident and will invalidate all and any rights to the manufacturer's warranty.

- This appliance must only be used for the purpose for which it was designed, that is as a TOASTER for household use and must not be used in areas for cooking reserved for personnel in shops, offices and other workplaces, on farms, by hotels, motels, bed and breakfasts and other professional environments and similar places. Any other use is considered improper and therefore dangerous.

- Keep all packing material (plastic bags, cardboard, polystyrene, etc..) out of reach

of the children, since they are potential sources of danger and must be disposed of as provided by law.

- After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorised service centre.

- Do not use the appliance if the cable or plug is damaged.

- Make sure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. The rating label is on the bottom of the product.

- Do not immerse the product in water or other liquids.

- During the first use, the toaster may emit a slight smoke that will disappear within 5-10 minutes. This is completely normal. Before using the toaster for the first time, it is advisable to put the appliance into operation for few minutes without inserting the bread inside.

- CAUTION: Temperature of accessible parts might be very high during operation. Do not touch hot surfaces, use handles or special oven gloves.

• Do not use the product outdoors.
• Use only pre-cut bread for toaster.
• The use of small bread slices (size smaller than 85x85mm) might increase the risk of burn.
• Do not put into the toaster oversize food, aluminum sheets or containers or metal tools. This may cause an electric shock.
• Bread can burn, so do not use the toaster near curtains, upholstery or other fabrics, which could easily catch fire.
• Do not place the product near electric or gas cooker or heated oven.
• Do not use in the presence of flammable or explosive gases.
• Do not remove food from the toaster when the side lever is lowered.
• Only use the accessories provided.
• Do not use the product if it has fallen down or if there are visible signs of damage.
• Do not pull the power cable to lift, carry or remove the plug from the socket.
  • Make sure that the cable does not have knots or bends.
• Check the condition of the electric cable, damaged or knotted cables increase the risk of electric shock.
• Do not use the plug or cord with wet or

damp hands or feet.

- If the power cord is damaged, it must be replaced by the manufacturer or by an authorized service center, in order to prevent any risk.

- In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorised technical assistance centre.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance operations must not be performed by children without supervision. Keep the product and its cable out of reach of children under 8 years old.

- This product is not a TOY. Children should be supervised to ensure that they do not play with the appliance.

- Do not turn the appliance over while it is in use or connected to the mains.

• This product has been conceived for

HOUSEHOLD use only, do not use for professional or industrial use.

• Never leave the product unattended when in use.
• Store the appliance in a dry place, free from dust, far from heating sources or direct sunlight.
• This product is not intended to be used with timer or remote controlling systems.
• The appliance must be connected to an outlet with a protective earthing. The plug must fit into the mains socket properly. Do not alter the plug. Do not use adaptors.

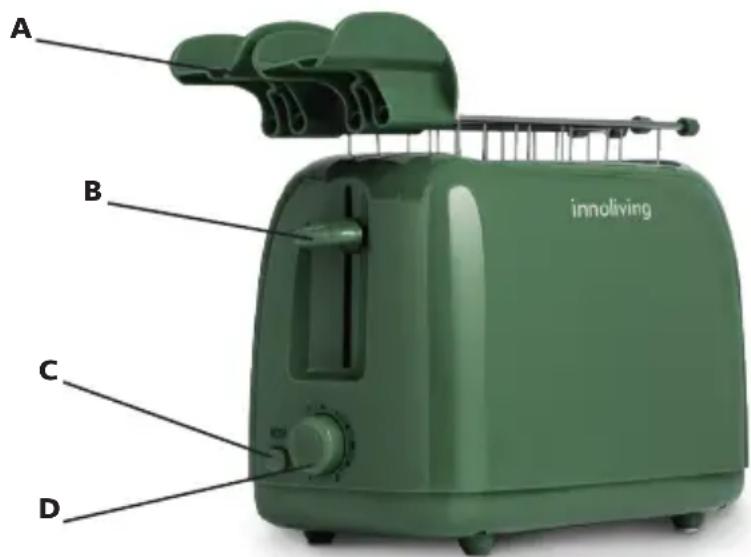

PRODUCT DESCRIPTION

A. Pliers
B. Start lever
C. Stop Button
D. Browning control

OPERATION

1. Place the toaster on a flat, dry and stable surface out of reach of heat sources.
2. Place the bread into the pliers and then put the pliers into the toaster.
3. Plug the toaster to the socket, making sure the voltage shown on the rating label corresponds to the local mains voltage.
4. Set the browning level using the knob (D).
5. Press the Lever down (B). The lever will remain down until the bread is toasted.
6. If you want to stop the toasting process, press the STOP button (C), that will automatically delete the previous settings. Remove the toast using the provided pliers.
7. If the bread sticks in the toaster, unplug it, wait for it to cool down, then remove the bread. NEVER USE METAL UTENSILS TO REMOVE THE BREAD.

CLENANING AND MAINTENANCE

• Unplug the appliance from the mains and wait until it has completely cooled down before proceeding with any cleaning or maintenance operation.
• Do not immerse the appliance in water or other liquids.
• Do not use coarse or abrasive sponges/cloths or steel wool to clean the toaster or pliers.
• Do not use spray or apply cleaner directly onto or into the toaster.
• Clean the outside of the toaster with a soft, damp cloth, and polished with a soft and dry cloth.
  • After each use, wash the pliers by hand, using a normal dishwashing detergent, being careful to dry them well before storing them. Do not use aggressive or abrasive detergents.
  • After cleaning, wait few minutes to let the outer walls to be completely dry before using the toaster.
• All repair activities or other maintenance activities must be performed by an authorized service center.

CRUMB TRAY

The toaster is equipped with a removable crumb tray so that you can remove the crumbs easily. Always make sure the toaster is unplugged and cooled before removing the crumb tray. Clean the crumb tray with a damp cloth and dry completely before placing it back into the toaster.

RATING LABEL:

Innoliving Spa

Via Merloni 2/B - 60131 Ancona - Italy

INN-875G TOASTER - TOSTAPANE

220-240V\~50/60Hz 650-750W

This product complies with all applicable European directives.

Read carefully the instruction manual

Food Contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

A. Hvataljke
B. Ručica za uključivanje
C. Gumb Stop
D. Regulator razine zapečenosti

OPIS PROIZVODA

1. Toster postavite na ravnu, suhu i čvrstu površinu daleko od izvora topline. 2. Kruh ili tost stavite u hvataljke, a zatim u toster.
2. Ukopčajte toster u utičnicu vodeći računa o tome da napon potreban za proizvod odgovara onom lokalne električne mreže.
3. Preko regulatora (D) postavite razinu zapečenosti.
4. Spustite ručicu (B). Ručica će ostati spuštena sve dok se ne dovrši tostiranje.
5. Da biste prekinuli tostiranje, pritisnite gumb STOP (C) kojim se poništavaju prethodne postavke. Uklonite iz uređaja tost ili kriške kruha pomoću isporučenih hvataliki.
6. Ako se tost zalijepio za stijenke tostera, iskopčajte toster iz struje i ostavite ga da se ohladi. NE UPOTREBLJAVAJTE METALAN PRIBOR ZA IZVLAČENJE TOSTA.

ČIŠĆENJE I ODRŽAVANJE

• Prije bilo koje operacije čišćenja i održavanja iskopčajte uređaj iz električne mreže i ostavite ga da se potpuno ohladi.
• Ne uraniaite toster u vodu ili druge tekućine.
• Za čišćenie tostera ili hvataliki ne upotrebliavaite abrazivne spužve ili tkanine.
• Ne upotrebliavaite spreieve i ne nanosite deterdžente izravno na stijienke tostera ili unutar niega.
• Vanjsku površinu tostera očistite mekanom krpom navlaženom vodom i pažljivo osušite.
• Nakon svake upotrebe ručno operite hvataljke pomoću običnog deterdženta za pranje posuđa i pažljivo ih osušite prije odlagania. Ne upotrebliavaite agresivne ili abrazivne deterdžente.
• Nakon čišćenja pričekajte nekoliko minuta prije upotrebe tostera kako bi se vanjske stijenke potpuno osušile.
  • Sve popravke ili druge zahvate održavanja mora obaviti ovlašteni servisni centar.

PLADANJ ZA MRVICE

Toster je opremljen uklonjivim pladnjem za sakupljanje mrvica kako bi se mrvice kruha mogle lako odstraniti. Prije uklanjanja pladnja za mrvice uvijek provjerite je li toser isključen i ohlađen. Prije vraćanja pladnja za mrvice u toster očistite ga vlažnom krpom i potpuno osušite.

ETIKETA S PODACIMA:

Innoliving Spa

Via Merloni 2/B - 60131 Ancona - Italy

INN-875G TOASTER - TOSTAPANE

220-240V\~50/60Hz 650-750W
