HS Freeze HI-48 - Flash ROLLEI - Free user manual and instructions

Product Type	Flash (Speedlite)
Brand	Rollei
Model	HS Freeze HI-48
Power	48 Ws
Guide Number	48 (at ISO 100, 200mm)
Modes	Manual (M), TTL
Sync Modes	Normal, HSS, Freeze, Front/Rear Curtain
Flash Duration (Freeze)	1/2,500 – 1/30,000 s (t=0.5)
Recycling Time	0.05 – 1.7 s (full power)
Channels | Groups	31 | Master mode: 6, Slave mode: 16
Burst Mode	Up to 20 fps
Color Temperature	Normal: 6300K ±150K; HSS: 5900K ±300K
Power Adjustment	9 steps (0.1 / 1.0 increments)
Battery	Lithium-ion 7.4V, 2000mAh (14.8Wh)
Battery Charging Time	Approx. 100 min
Flashes per Charge	Over 500 (full power)
Dimensions (with battery)	18 x 6.8 x 4.4 cm
Weight (with/without battery)	352 g / 277 g
Connections	USB-C (charging & firmware update)
Hot Shoe	Multi-compatible (Canon, Nikon, Sony, Fuji, Olympus, Panasonic)
Wireless Frequency	2.402 – 2.483 GHz, max 6 dBm
Overheating Protection	Yes (automatic return time extension)
Sleep Mode	After 10 min inactivity, auto-off after 60 min
Included Accessories	USB-C cable, diffuser, battery, charger, bag, cold shoe stand, user manual

Frequently Asked Questions - HS Freeze HI-48 ROLLEI

How do I turn on the Rollei HS Freeze HI-48 flash?

Press and hold the on/off switch until the display lights up. The 'Click' symbol will appear; tap the screen to access the menu.

What flash modes are available on this unit?

The flash supports Manual (M) and TTL modes. In master mode, you can also set groups to TTL, M, or off. Slave mode offers TTL, M, and TTL-ALL.

How do I change the camera brand setting?

Go to the settings menu by pressing the settings button, use arrow buttons to navigate to 'Camera', then swipe up/down to select your camera brand (Canon, Nikon, Sony, Fujifilm, Olympus, Lumix).

How long does the battery take to charge?

The lithium-ion battery charges in approximately 100 minutes using the supplied charger. All four LEDs glow green when fully charged.

Can I use the flash wirelessly?

Yes, it has built-in 2.4 GHz wireless. It can act as a master controlling up to 6 groups (A-F) on channels 1-31, or as a slave receiving signals from a compatible master.

What is the maximum burst rate?

The flash supports burst mode up to 20 frames per second at lower power levels. Higher power reduces the burst rate.

How do I activate Freeze mode?

In speedlite mode, swipe to the sync setting and select Freeze. This gives ultra-short flash durations (1/2,500 to 1/30,000 s) to freeze fast motion.

What should I do if the flash overheats?

The flash has automatic overheating protection that extends recycling time. If this happens, let it cool down by reducing flash frequency or turning it off for a few minutes.

How do I update the firmware?

Download the firmware file from Rollei's website to your computer. Connect the flash via USB-C and copy the file into the flash's drive (drag and drop).

Is the flash compatible with all cameras?

It comes in two versions: Universal (for Canon, Nikon, Fuji, Panasonic, Olympus, Sony via adapter) and Sony-specific. Check your camera's hot shoe compatibility.

USER MANUAL HS Freeze HI-48 ROLLEI

with multi-compatible hot shoe

HS Freeze HI-48

für / for Sony

Before the First Use 20

Intended Use 20

Explanation of Symbols 20

Warnings and Safety Instructions 21

Warnings for Rechargeable Batteries 24

What's in the Box 25

Overview. 26

Operation 27

Technical Data....34

Disposal 35

Conformity 35

Line drawing of a rectangular electronic device with a handle and side slots (no text or symbols)

Line drawing of a Rollei camera module with no visible text or symbols on the device body

Line drawing of a cable with connector (no text or symbols)

Line drawing of a 3D-printed electronic device casing with internal components and mounting holes (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a rounded rectangular object with a small protrusion on top (no text or symbols)

Übersicht

Einstellungen

Technical line drawings of a device housing with internal components and a highlighted component (no text or symbols)

Überhitzungsschutz

Before the First Use

Read the manual and the safety instructions carefully before using the device for the first time. Keep the manual together with the device for future use. If you pass on the device to a third party, this manual is part of the device and must be supplied with the device.

Intended Use

This unit is designed for use as photo and video lighting only. It must not be used for other purposes and in particular not for domestic room lighting.

Explanation of Symbols

The following symbols are used in this quick start guide, on the flash, the power supply unit or on the packaging.

Products marked with this symbol comply with all relevant community regulations of the European Economic Area.

Products marked with this symbol are operated with direct current.

Products marked with this symbol are operated with alternating current.

Products with this symbol have additional or reinforced insulation and comply with protection class II.

Danger from electric current!

Faulty electrical installations or excessive mains voltage can cause electric shock.

• Only connect the product if the mains voltage of the socket corresponds to the specifications on the type plate.
• Connect the product to an easily accessible power outlet so that you can quickly disconnect it from the mains in case of problems.
• Use only the supplied power cord.
• Do not use the product if it is visibly damaged or if the cable is defective.
• If the product or its accessories are damaged, they must be replaced or repaired by the manufacturer, its service department or a similarly qualified person to prevent hazards.
• The housing must not be opened and repairs must only be carried out by a qualified technician. To do this, contact a specialist workshop. Any liability and all warranty claims are excluded in the event of repairs by the user, improper connection or incorrect operation.
• Do not use the product with an external timer or a separate remote control system.
• If you do not use the product for a long period of time, always disconnect it from the power source.
• Protect the product from moisture. Do not touch the product with wet/damp hands or immerse it in water.
• This product is not waterproof! Do not use this product in the rain or in wet environments. Never touch the product during a thunderstorm.

Warnings and Safety Instructions

• Only use the product with the supplied rechargeable battery.
• Before disconnecting the power or battery, turn off the unit at the main switch.
• Do not store or use the flash in places where it is exposed to strong electromagnetic fields or dust. Keep the unit away from other sources of interference.
• Switch off the flash and disconnect it from the power supply (battery) when changing the flash tube.

Caution!

• Never use the mains cable as a carrying handle.
• Keep the product and accessories away from naked flames, hot surfaces and easily flammable materials.
• Lay the power cord in such a way that it does not present a tripping hazard.
• Do not bend the power cord or lay it over sharp edges.

Caution!

Danger for children and persons with reduced physical, sensory or mental abilities (e.g. partially disabled, elderly persons with reduced physical and mental abilities) or lack of experience and know-how (e.g. older children).

- This product may be used by persons with reduced physical, sensory or mental abilities or lack of experience and know-how, provided that they are supervised or have received instructions for the safe use of the product and understand the potential risks arising from its use. Children must not play with the product. The product must not be cleaned or maintained by children. Keep children under eight years of age away from the product and its accessories.

• Remove the protective cap before use.
• Do not insert any objects into the product.
• Do not leave the product unattended during operation.

Warnings and Safety Instructions

• The product is not a toy. Keep the product, accessories and packaging materials away from children and pets to prevent accidents and suffocation.
• Do not discharge the flash at a very close distance to objects, people or animals. Keep a minimum distance of approximately two metres. The flash releases intense heat and may cause serious injury or damage.
• For photographic lighting purposes only. Not suitable for permanent room lighting.
• Do not film car, bus, bicycle, motorbike or train drivers while driving this product. The driver may be dazzled and cause an accident. This also applies to unlisted persons or groups if possible glare could cause an accident.
• Do not shine directly into the eyes of people or animals as this may cause damage to the retina, visual disturbances and even blindness.
• Ensure adequate ventilation during operation. Never cover the ventilation slits of the unit.
• Do not use or store the unit in high temperatures or in closed rooms exposed to direct sunlight, and do not charge the battery while doing so. The product should not be used in ambient temperatures above 40°C.
• Note that the flash tube, modelling light and a connected reflector can become very hot during operation. Do not touch these parts during or immediately after operation. Allow the unit components to cool down before replacing the flash tube or reflector.
• Handle glass parts such as the flash tube with care so that the glass is not broken. Do not touch the flash tube with bare hands, use clean cotton gloves or a microfibre cloth. Small residues of skin grease can cause the flash tube to burst.
• Make sure that the flash tilt lever is firmly tightened before using the unit and connecting accessories to it.
• Mount the flash unit on a tripod with sufficient load-bearing capacity and set up the tripod so that it cannot tip over or slip.
• For storage or transport, disconnect the battery from the flash unit.
• Allow the flash to cool down before packing it for transport or storage.

Warnings for Rechargeable Batteries

• Do not dismantle, hit or puncture the battery, take care not to short-circuit the battery.
• Do not expose the battery to high temperatures.
• Do not continue to use the battery if it leaks or expands.
• Always charge through the system. If the battery is replaced with the wrong type, there is a risk of explosion.
• Keep the battery away from children and animals.
• Batteries can explode if exposed to an open fire. Never throw batteries into a fire.
  – Dispose of used batteries according to local regulations.
• Before disposing of the unit, remove the battery and dispose of it separately.
• Batteries must be fully charged before using the unit for the first time.
• Do not open or damage the battery, short-circuit it, bypass it or use it for any other purpose.
• Keep the battery away from children, naked flames and liquids and do not expose it to temperatures exceeding 50°C. In addition, follow the battery care instructions on page 26 of this manual.
• To charge the battery, disconnect it from the flash. Only use the charger supplied to charge the battery. To charge the battery, first connect the charger to the battery to be charged and then to the mains power supply.

What's in the Box

• HS Freeze HI-48
• USB-C cable*
• Diffuser

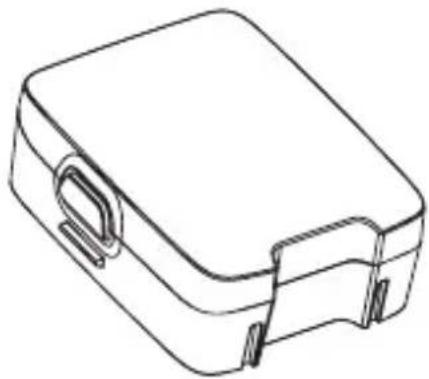

• Battery
• Battery charger

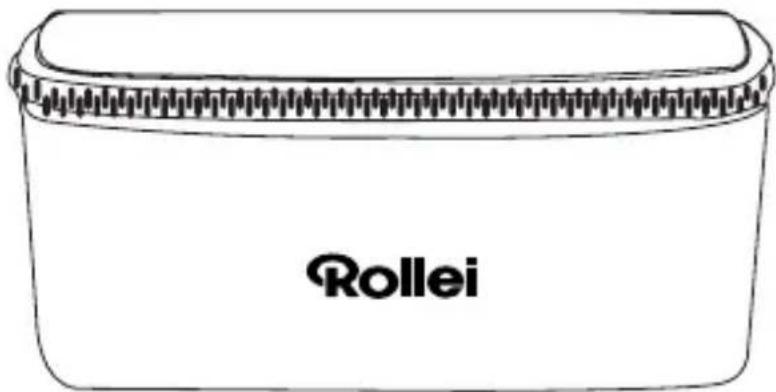

• Bag
• Cold shoe stand
• User manual

*Power adapter not included in the delivery.

Line drawing of a rectangular electronic device with a handle and side slots (no text or symbols)

Line drawing of a Rollei camera with adjustable lens and base mount (no text or symbols on body)

Line drawing of a cable with a connector (no text or symbols)

Line drawing of a 3D-printed electronic device casing with internal compartments and mounting ports (no text or symbols)

Pure diagram of a symmetrical mechanical or electrical component with four arms (no text or symbols)

Simple line drawing of a rounded rectangular object with a small protrusion on top (no text or symbols)

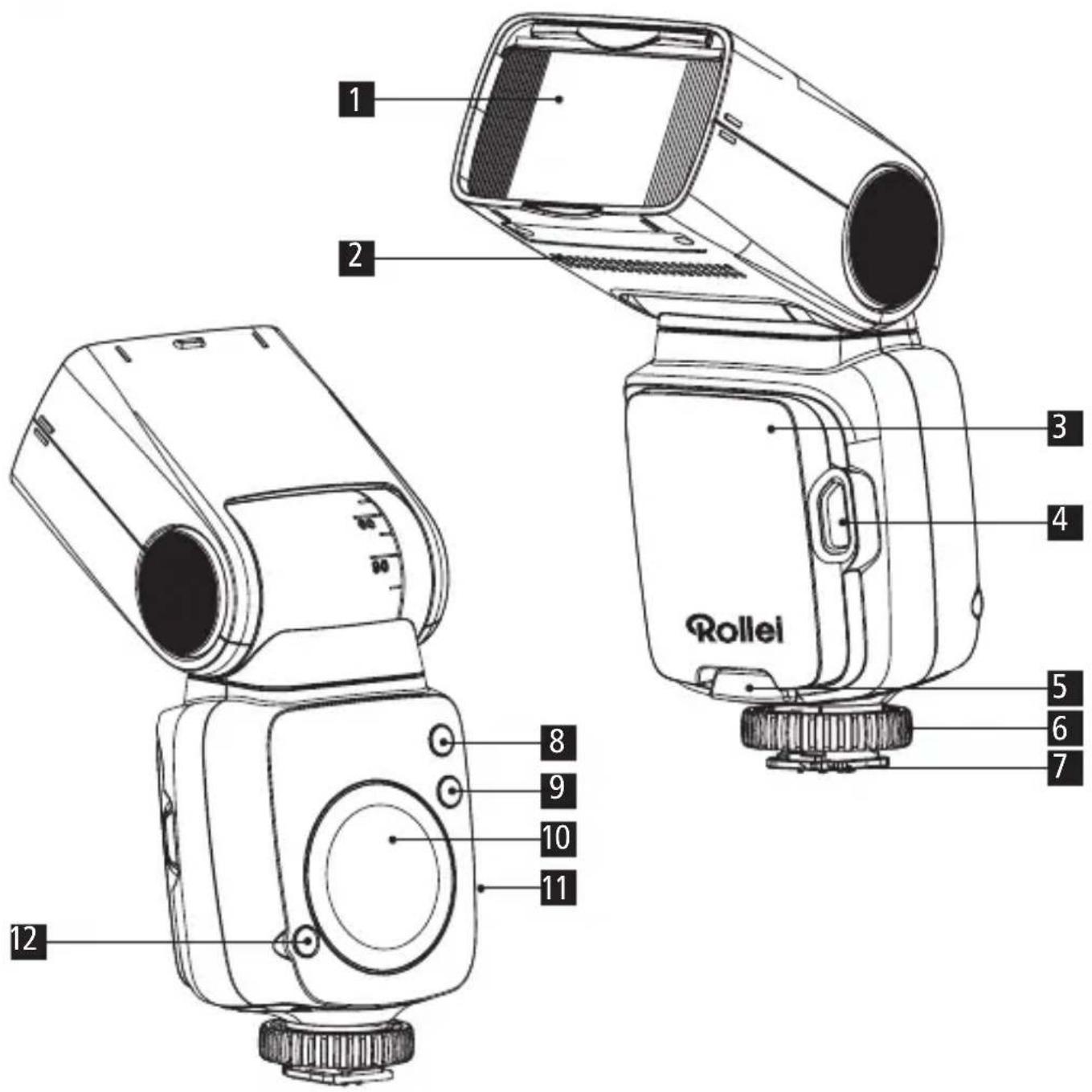

Overview

1 Fresnel lens
2 Ventilation holes
3 Lithium-ion battery
4 Battery release button
5 Autofocus assistant
6 Hot shoe release wheel
7 Hot shoe
8 Home button

9 On/off switch
10 Display
11 USB-C port
12 Test button

Switching on/off

• Press and hold the on/off switch to switch on the flash. As soon as the symbol with the signature „Click“ appears on the display, press the screen to access the menu.
• Click on the left or right arrow button to switch between master mode, slave mode and speedlite mode and make settings.

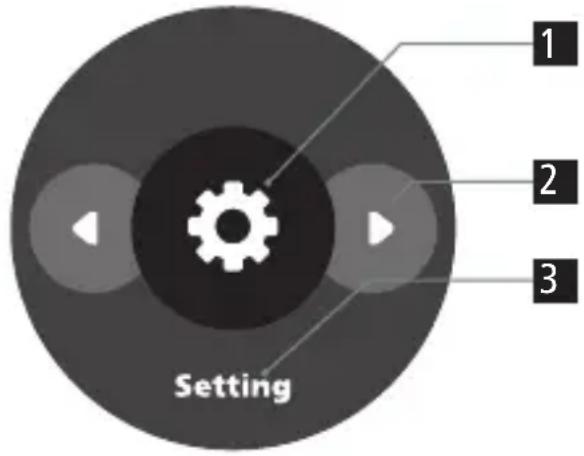

1 Settings button
2 Arrow button
3 Settings designation

Settings

• Click on the settings button to access the settings menu.
• Click on the arrow buttons to switch between the individual setting parameters (camera, backlight, sleep timer, sync mode, auto focus, freeze mode, language, key tone settings and reset). Swipe up and down on the setting parameter you want to adjust to make specific settings for the selection as indicated in the table on the next page.
• Press the Home button to return to the Home screen.

1 Camera button
2 Arrow button
3 Camera selection

Camera	CanonNikonFujifilmOlympusLumix	SYNC-X	OffOn	Languages	GermanEnglish
Camera	Sony	SYNC-X	OffOn	Languages	GermanEnglish
Backlight	MaxMedMin	AF Button tones	AutoOff		OffOn
Sleep timer(min.)	Off51530	FRE	OffOn	Reset	YesNo

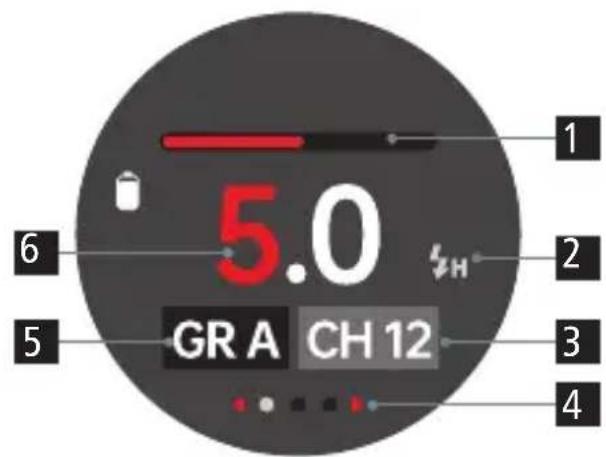

Master mode

1 Page scroll button
2 Screen lock symbol
3 Group/mode/energy indicator
4 Master flash symbol
5 Channel symbol
6 SYNC symbol
7 Settings fade-in button
8 Settings hide button
9 Settings parameters
10 Arrow button
11 Settings selection
12 Battery status display

Group parameter settings

(the host is set to group A by default)

• Click on the red marked position [a] and swipe your finger up and down on the display to change the group;
• Click on the position [b] to set the current group flash mode by tapping or swiping across the screen (M manual / TLL exposure compensation / SLP off);
• Click on the red marked position [c] to set the current flash value for the group. Click repeatedly to change the value in increments of 1, or swipe the display to change the value in increments of 0.1.
• Click on the page scroll button [1] to scroll through the groups, a total of six groups A – F are available.

Further settings in master mode

- Click the settings fade-in button [8] in master mode to open the setting options. Click the arrow buttons to switch the setting selection, swipe up and down or click the setting selection to make specific settings for the selection. The selections are listed in the table below.

Channel Flash switch		SYNC
CH	1-31	SYNC	HHSSFront curtainRear curtain	OnOff

Lock screen

- Long press the home button to lock the screen, long press the home button again to unlock the screen.

Slave mode

1 Flash power scale
2 SYNC symbol
3 Channel indicator
4 Setting selection button
5 Group indicator
6 Flash power indicator
7 Flash mode indicator
8 TTL flash output indicator
9 Wireless signal indicator

Flash power settings

Click on the flash power display [7], swipe up and down on the display or click repeatedly on the number to set the the flash output.

Parameter settings

Swipe left and right in the settings selection to switch between groups/channels and flash mode/wireless signal. Click repeatedly on the symbol of the desired item to set it (see table for details).

Group Channel		Flash mode	Wireless protocol applies to flashing devices
GR	CH	M	TTL-All HS Freeze HI-48
A-F	1 – 31	TTL	CH / GR V6II
			CH TRS-V, A9/A3

Operation

Speedlite mode

1 Flash output indicator
2 SYNC symbol
3 SYNC setting button
4 Setting selection button
5 Flash mode indicator
6 Flash output indicator
7 Flash mode indicator
8 TTL flash output indicator
9 Wireless signal indicator

Setting the flash output

Swipe up and down on the display or click repeatedly on a single digit to set the flash output.

Parameter settings

To switch between flash mode and synchronisation settings, swipe left and right. Then click repeatedly on the symbol of the element you want to set. The setting options can be found in the table.

Flash mode	Wireless synchronisation
M	SYNC	HSSFront curtainRear curtain
TTL

Operation

Firmware update

Download the firmware update to your computer, connect the cable to your computer and to the USB-C port of the flash. The firmware update can be updated by copying (dragging) it into the folder.

Battery charging instructions

Remove the lithium battery from the flash and insert it into the charger as shown in the illustration below. When all four power indicators light up permanently green, this means that the charging process of the lithium battery has been completed. Once charging is complete, you must disconnect the power supply and remove the lithium battery to prevent the battery from overcharging.

Technical line drawings of a device housing with internal components and a highlighted component (no text or symbols)

Overheating protection

If the flash frequency is too high, this can lead to overheating. This is why the flash has overheating protection and longer return times:

The innermost position of the motor:

• After 65 consecutive flashes at intervals of 1.7 seconds, the return time is extended to 10 seconds.
• After 55 consecutive flashes at intervals of 6 seconds, the return time is extended to 10 seconds.

The outermost position of the motor:

• After 30 consecutive flashes at intervals of 1.7 seconds, the return time is extended to 6 seconds.
• After 45 consecutive flashes every 6 seconds, the return time is extended to 10 seconds.

Sleep mode

- If no operation is performed, the device switches to sleep mode after 10 minutes and switches off automatically after 60 minutes. The flash wakes up from sleep mode by pressing any button or the camera shutter release.

HS Freeze HI-48
Power 48 Ws
Guide number 48
Compatible cameras HS Freeze HI-48 Universal: Canon, Nikon, Fuji, Panasonic, Olympus, Sony*HS Freeze HI-48 Sony: Only with Sony cameras
Modes Manual / TTL
Sync modes Normal / HSS / Freeze / front & rear curtain
Power adjustment 9 steps (0.1 / 1.0 steps)
Flash duration (t = 0.5 s) Freeze: 1/2,500 – 1/30,000 s
Recycling Time 0.05 – 1.7 s (full power)
Channels | Groups 31 | Master mode: 6, slave mode: 16
Burst mode Up to 20 frames per second
Colour temperature NOR: 6,300 K +/- 150 K | HSS: 5,900 K +/- 300 K
Receiver Built-in
Radio frequency band 2.402 – 2.483 GHz
Maximum transmit power	6 dBm
Battery operation	Lithium Battery: 7.4 V = 2,000 mAh, 14.8 Wh, Input: 5.0 V = 3.0 A max.
Battery capacity | Charging time	7.4 V, 2,000 mAh (lithium) | approx. 100 min
Trips in battery mode	>500 times (full power)
Connections	USB-C for charging and firmware updates
Dimensions 18 x 6.8 x 4.4 cm
Weight	352 g / 277 g (with / without battery)
What's in the box	HS Freeze HI-48, USB-C cable, diffuser, battery, battery charger, bag, cold shoe stand, user manual

We reserve the right to update functions or parameters without further notice. Misprints and errors excepted. Reproduction of these operating instructions – even in part – is not permitted. * Only via separately available adapter.

Dispose of the packaging according to its type. Use the local possibilities for collecting paper, cardboard and other materials (applicable in the European Union and other European countries with systems for the separate collection of recyclable materials).

Devices that are marked with this symbol must not be disposed of with household waste! You are legally obliged to dispose of old devices separately from to dispose of household waste. Information on collection points that accept old appliances free of charge can be obtained from your local authority or town council.

Batteries and rechargeable accumulators must not be disposed of in household waste! As a consumer you are legally obliged to dispose of all batteries and accumulators, whether they contain harmful substances* or not, to be disposed of in an environmentally sound manner. Accumulators and batteries are therefore marked with the symbol shown opposite. For more information, contact your dealer or contact return and collection points in your community.

*marked with: Cd = Cadmium, Hg = Mercury, Pb = Lead

Conformity

Herewith Rollei GmbH & Co. KG declares that the radio equipment type "Rollei HS Freeze HI-48" complies with Directive 2014/53/EU.

The complete text of the EU Declaration of Conformity can be downloaded at the following Internet address: https://www.rollei.com/egk/hsfreezehi-48

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt Germany

Rollei

Sony, Item No.: 28660
