Product Type	Built-in Ceramic Hob
Brand	Jocel
Model	JP3EV002181
Number of Cooking Zones	3 (Radiant)
Heating Technology	Resistance Wire (Radiant)
Product Dimensions (H x W x D)	51 x 590 x 520 mm
Built-in Dimensions (A x B)	560 x 480 mm
Supply Voltage	220-240 V ~ 50/60 Hz
Installed Electric Power	5200-6200 W
Control Type	Touch Controls
Timer	Yes (up to 99 minutes, minute minder or auto-off)
Key Lock	Yes (child safety lock)
Residual Heat Indicator	Yes (displays "H")

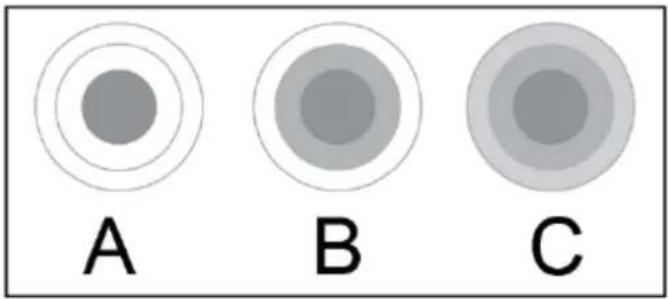

Treble Zone Function	Yes (on zone 3, selectable inner/middle/outer)
Over-Temperature Protection	Yes (automatic shut-off)
Automatic Shut-Off (per power level)	2 to 8 hours depending on power level
Cleaning	Glass surface, use ceramic hob cleaner, avoid abrasives

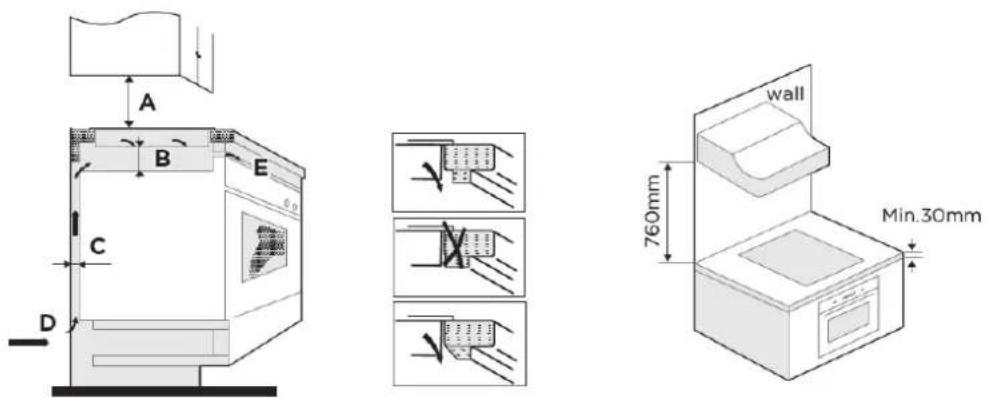

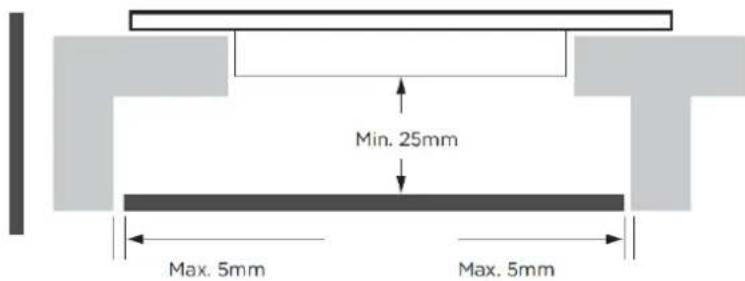

Installation	Built-in, requires 30 mm minimum worktop thickness, ventilation holes min 5 mm
Safety Compliance	CE, RoHS, WEEE
Warranty	General warranty per Jocel terms (parts replacement, excludes glass and lamps)

Frequently Asked Questions - JP3EV002181 Jocel

How do I install the Jocel JP3EV002181 ceramic hob?

Installation must be done by a qualified technician. The hob requires a cutout of 560x480 mm and a worktop thickness of at least 30 mm. Ensure proper ventilation with at least 25 mm clearance below and 5 mm air gap. Follow the installation section in the manual.

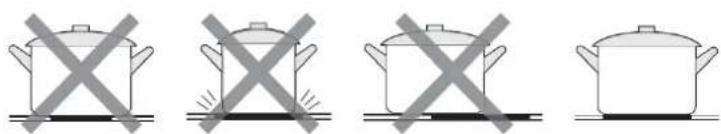

What type of cookware should I use?

Use flat-bottomed cookware that matches the cooking zone size. Avoid pans with jagged edges or curved bases. Always lift pans, do not slide them to prevent scratches. Check that the bottom is smooth and clean.

How do I use the timer?

Select a cooking zone, then touch the timer control. Use + or - to set time up to 99 minutes. The timer can act as a minute minder or auto-off for the zone. To cancel, touch - and + simultaneously.

Why is my hob not turning on?

Check the power supply and circuit breaker. Ensure the hob is connected properly. If the controls are locked, unlock by holding the lock key for a few seconds. If still off, contact a qualified technician.

How do I clean the ceramic glass?

Switch off the hob and let it cool. Use a ceramic hob cleaner and a soft cloth. For stubborn spills, use a razor scraper at a 30° angle. Avoid abrasive scourers. Wipe the touch controls dry before using.

What do the error codes E0, E1, E2 mean?

E0: zero error, reconnect display/power board. E1: open circuit temperature sensor. E2: short circuit temperature sensor. Consult the troubleshooting section of the manual or call service.

Can I use the hob with a pacemaker?

The hob complies with electromagnetic standards, but persons with pacemakers or other implants should consult their doctor or implant manufacturer before use.

How does the treble zone work?

The treble function is only for zone 3. Touch the treble control to switch between inner (A), inner+middle (B), and all three (C) sections. Adjust power level from 1 to 9 for the selected section.

What is the warranty coverage?

Warranty covers parts defective from faulty manufacture. Repairs or replacements are at Jocel's discretion. Glass and lamps are not covered. Valid only with proof of purchase.

How do I dispose of the hob at end of life?

Do not dispose with household waste. Take it to an official WEEE collection point for recycling. Contact local authorities or the retailer for collection points.

USER MANUAL JP3EV002181 Jocel

PLACA VITROCERAMICA PLACA VITROCERÂMICA VITROCERAMIC HOB

JP3EV002181

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL

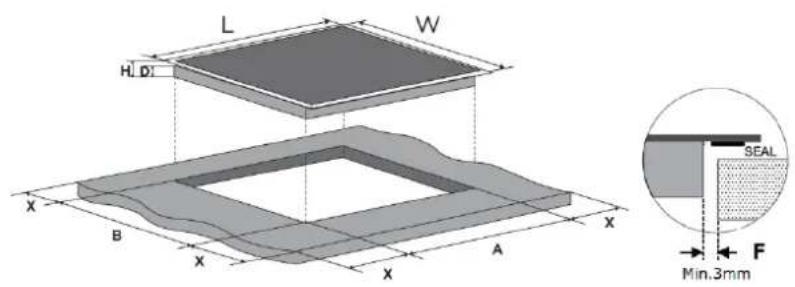

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)	F(mm)
590	520	51	47	560 ± 2	480 ± 2	50 min	3 min

Technical line drawing of a rectangular frame with four labeled components (A, B, C, D) and an inset close-up of a mechanical bracket (no text or symbols present)

Three identical cooking pots with crossed X marks, placed on a flat surface (no text or symbols)

Four identical cooking pots with crossed X marks, shown in side-by-side illustrations (no text or symbols)

CÓMO UTILIZARLO

Simple line drawing of a cooking pot on a stand (no text or symbols)

Simple line drawing of a hand holding a circular object (no text or symbols)

Line drawing of a hand pressing a circular button (no text or symbols)

Simple line drawing of a hand pressing a circular button (no text or symbols)

Simple line drawing of a hand pressing a circular button (no text or symbols)

$$ \textcircled {1} - - - + $$

NOTE:

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

CUMPLIMIENTO DE LA DIRECTIVA ROHS

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

CONDICIONES DE GARANTIA

Telef. 00 34 914 879 573

E-mail: [e-mail]

http://www.jocel.es

L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)	F (mm)
590	520	51	47	560 ± 2	480 ± 2	50 min	3 min

ESCOLHER AS PANELAS ADEQUADAS

Three identical cooking pots with crossed X marks, placed on a flat surface (no text or symbols)

Four identical illustrations of a cooking pot with crossed-out kitchen panes, no text or symbols present.

COMO COZINHAR

Simple line drawing of a cooking pot on a stand (no text or symbols)

Simple line drawing of a hand pressing a circular button (no text or symbols)

Simple line drawing of a hand pressing a circular button (no text or symbols)

Simple line drawing of a hand pressing a circular button (no text or symbols)

4. Bloquear as Teclas

Symbol of a trash bin crossed with no visible text or labels

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

CONDIÇÕES GERAIS DE GARANTIA

Thank you for choosing JOCEL! Before using your new JOCEL product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENT

SAFETY INSTRUCTIONS 56

SPECIFICATIONS 60

PRODUCT OVERVIEW 61

QUICK START GUIDE 62

PRODUCT INSTALLATION 64

OPERATION INSTRUCTIONS 67

CLEANING AND MAINTENANCE 76

TROUBLESHOOTING 77

DISPOSAL AND RECYCLING 79

WARRANT 80

DECLARATION OF CONFORMITY 81

SAFETY INSTRUCTIONS

INTENDED USE

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

EXPLANATION OF SYMBOLS

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe InstructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

SAFETY WARNINGS

Your safety is important to us. Please read this information before using your cooktop.

INSTALLATION

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

Important Safety Instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• A steam cleaner is not to be used.

• Do not use a steam cleaner to clean your cooktop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• The cooking process has to be supervised. A short-term cooking process has to be supervised continuously.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boil over causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetizable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).
• Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is
• in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;

• Farm houses;
• By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.

• WARNING: The appliance and its accessible parts become hot during use.

• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless continuously supervised.

Congratulations on the purchase of your new Ceramic Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

SPECIFICATIONS

Model JP3EV002181

Cooking Zones 3 Zones

Supply Voltage 220-240V\~50Hz or 60Hz

Installed Electric Power 5200-6200W

Product Size H×W×D(mm) 51X590X520

Building-in Dimensions A×B (mm) 560×480

Weight and Dimensions are approximate. Because we continually strive to improve our products, we may change specifications and designs without prior notice.

INFORMATION FOR DOMESTIC ELECTRIC HOBS

	Symbol	Value	Unit
Model identification	/	JP3EV002181
Type of hob	/	Built-in ceramic hob
Number of cooking zones and/or areas	/	3 zones
Heating technology(induction cooking zones and cooking areas, radiant cooking zones, solid plates)	/	Radiant cooking zones
For circular cooking zones or area:diameter of useful surface area per electric heated cooking zone	∅	Zone 1:20,0Zone 2:16,5Zone 3:30,0	cm
For non-circular cooking zones or areas:length and width of useful surface area per eletric heated cooking zone or area	LW	-	cm
Energy consumption per cooking zone or area calculated per kg	ECelectric cooking	Zone 1:176,0Zone 2:176,8Zone 3:188,0	Wh/Kg
Energy consumption for the hob calculated per kg	ECelectric hob	180.3	Wh/Kg

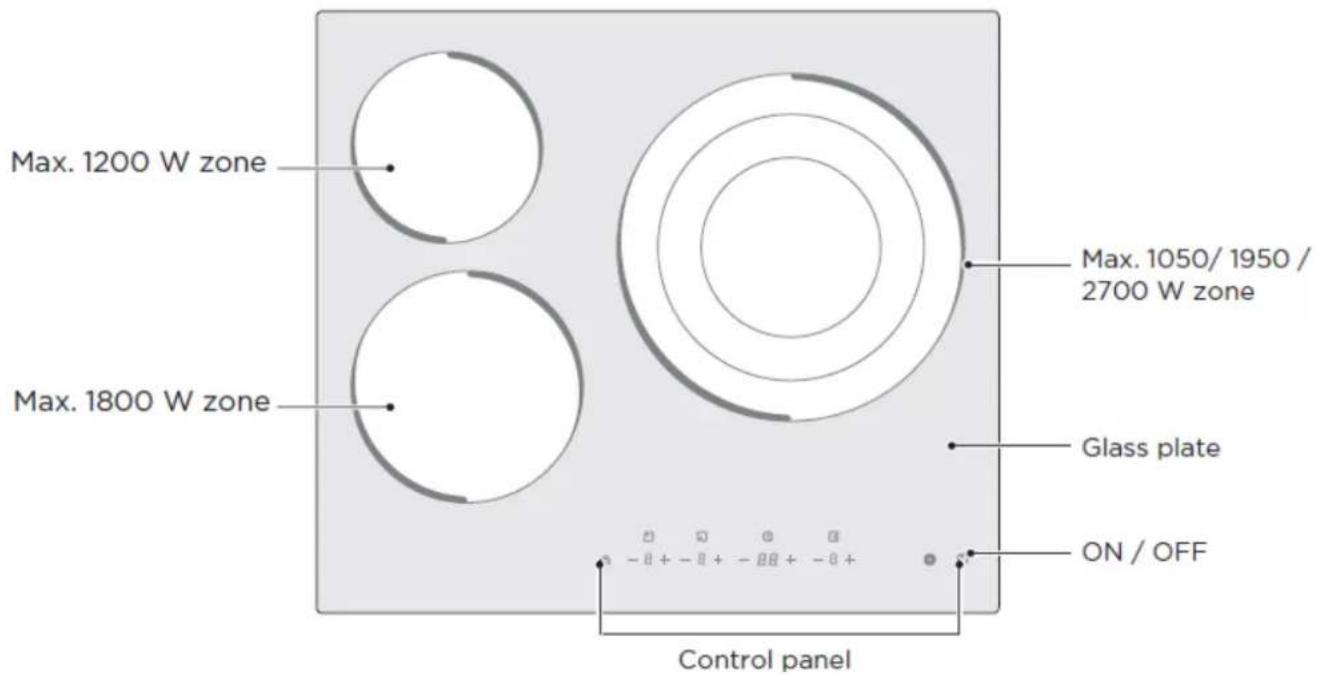

TOP VIEW

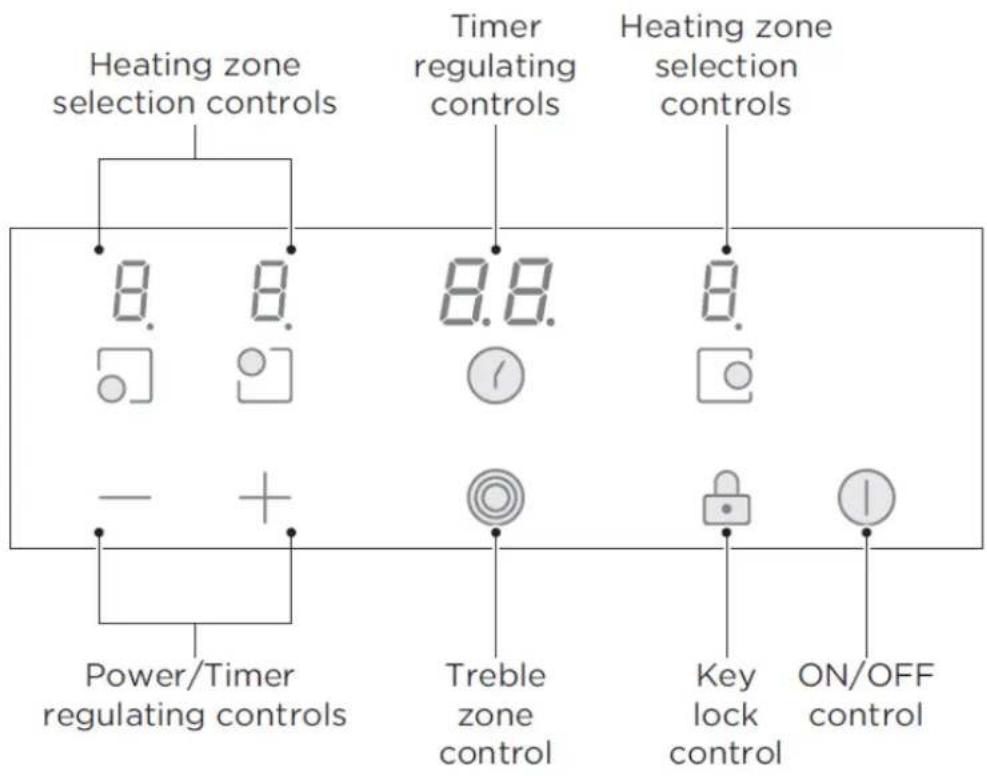

CONTROL PANEL

NOTE:

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

PRODUCT INFORMATION

The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families.

The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.

WORKING PRINCIPLE

This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the power regulation with the touch controls.

BEFORE USING YOUR NEW CERAMIC HOB

• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your ceramic hob.

QUICK START GUIDE

Take care when frying as the oil and fat heat up very quickly, particularly if you're using Power-Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

COOKING TIPS

• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, Cooking rice

- Simmering occurs below boiling point, at around 85^ C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavors develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.

- Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing Steak

To cook juicy flavorsome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For Stir-frying

1. Choose an ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic hob to find the settings that best suit you.

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3 - 4	·reheating·rapid simmering·cooking rice
5 - 6	·pancakes
7 - 8	·sautéing·cooking pasta
9	·stir-frying·searing·bringing soup to the boil·boiling water

PRODUCT INSTALLATION

Selection of Installation Equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. As shown below:

NOTE: The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3mm.

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)	F(mm)
590	520	51	47	560 ± 2	480 ± 2	50 min	3 min

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below.

NOTE: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

A(mm)	B(mm)	C(mm)	D	E
760	25 min	20 min	Air intake	Air exit 5mm

WARNING: Ensuring Adequate Ventilation

Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpected electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 25mm from the bottom of the hob. Follow the requirements below.

There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not blocked by the worktop when you put the hob into position.

• Be aware that the glue that join the plastic or wooden material to the furniture, has to resist to temperature not below 150^ C, to avoid the unstuck of the paneling.
• The rear wall, adjacent and surrounding surfaces must therefore be able to withstand an temperature of 90^ C.

BEFORE LOCATING THE FIXING BRACKETS

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.

Pure technical diagram of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols beyond labels.

Simple line drawing of a mechanical bracket with a bolt and mounting base, enclosed in a circle (no text or symbols)

A	B	C	D
screw	bracket	Screw hole	base

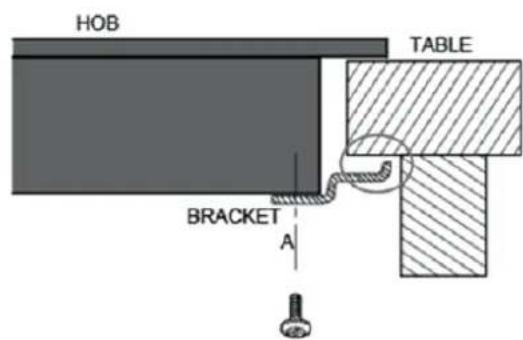

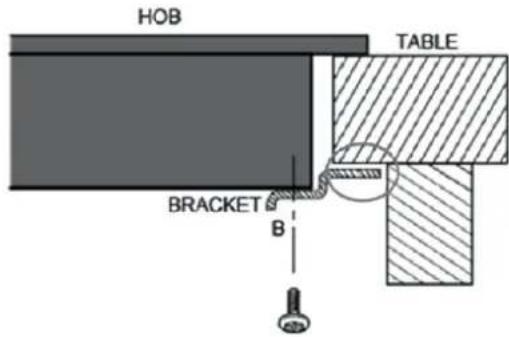

Adjust the bracket position to suit for different work surface's thickness.

Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture).

CAUTIONS

1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.

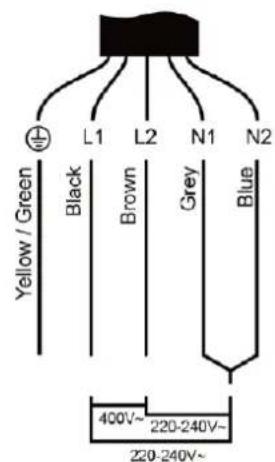

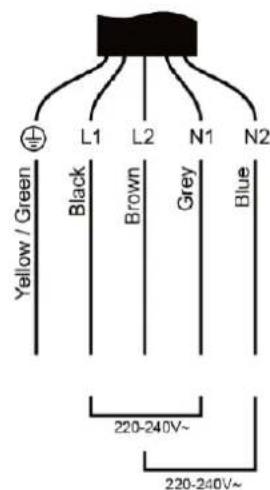

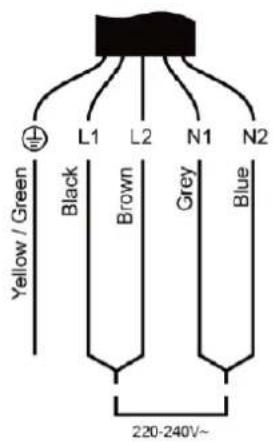

CONNECTING THE HOB TO THE MAINS POWER SUPPLY

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

• If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
• If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
• The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
  • The cable must not be bent or compressed.
• The cable must be checked regularly and only replaced by a properly qualified person.

The bottom surface and the power cord of the hob are not accessible after installation.

OPERATION INSTRUCTIONS

TOUCH CONTROLS

• The controls respond to touch, so you don't need to apply any pressure.
  • Use the ball of your finger, not its tip.
  • You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

CHOOSING THE RIGHT COOKWARE

- Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed x marks, no text or symbols present

- Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Four identical illustrations of a cooking pot with crossed X marks, shown from different angles (no text or symbols)

• Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

HOW TO USE

1. Start Cooking

After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the stat of standby mode.

1. Touch the ON/OFF ① control. all the indicators show “--”.

1. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

Line drawing of a cooking pot on a stand (no text or symbols)

1. Select a heat setting by touching the “-” or “+” control.

2. If you don't choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.

3. You can modify the heat setting at any time during cooking.
4. By holding down either of these buttons, the value will adjust up or down.

2. Finish Cooking

1. Turn the cooking zone off by scrolling down to "0" or touching "-" and "+" control together.

1. Turn the whole cooktop off by touching the ON/OFF control.

Beware of hot surfaces

“H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

3. Using the Treble Zone Function

• The function only work in 3# cooking zone

- The treble cooking zone has two cooking areas that you can use a central section and an outer section. You can use the central section (A) independently or both sections (B) or (C) at once.

Activate the Treble zone

1. Adjust the heating setting between power levels 1 and 9. (e.g. 6).

1. Central section of the treble cooking zone will switch on.

1. Touching the treble zone control ☐ once time, the section (B) works.

1. The cooking zone indicator show “=” and “6” alternately.

1. Touching the treble zone control ◎ second time, the section (C) works.

Simple line drawing of a hand pressing a circular button (no text or symbols)

1. The cooking zone indicator show “—” and “6” alternately.

Deactivate the Treble zone

1. If the 3# cooking zone works in section (B), touching the Ⓞ two times, it will return to section (A) and the treble zone is deactivated.

2. If the 3# cooking zone works in section (C), touching the Ⓞ one time, it will return to section (A) and the treble zone is deactivated.

Line drawing of a hand pressing a circular button (no text or symbols)

1. After the treble zone is deactivated, the cooking zone indicator show.

NOTE:

1. The double loop is available only in 3# cooking zone.
2. You can select the function from level 1 to level 9.
3. You can active the Dual or Treble zone only when the 3# cooking zone is selected.

4. Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the lock 🔒 control

The timer indicator will show "Lo"

To unlock the controls

Make sure the ceramic hob is turned on Touch and hold the lock control 🔒 for a while.

When the hob is in the lock mode, all the controls are disable except the ON/OFF, you can always turn the ceramic hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

5. Timer Control

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one or more cooking zones off after the set time is up. The timer of maximum is 99 minutes.

Timer overview

USING THE TIMER AS A MINUTE MINDER

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.
   NOTE: You can use the minute minder even if you're not selecting any cooking zone.

2. Touch the timer control, the timer indicator will flash; Set the time by touching the + or - control of the timer.

1. Touching the “-” and “+” together, the timer is cancelled, and the “--” will show in the minute display.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

1. Buzzer will beep for 30 seconds and the timer indicator shows “- -” when the setting time finished.

NOTE:

• Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute.
• Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes.
• If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

SETTING THE TIMER TO TURN ONE OR MORE COOKING ZONES OFF

Set one zone

1. Touch the - or + of the corresponding cooking zone you want to set the timer for.

1. Set the time by touching the - or + control of the timer.

1. Touching the and together, the timer is cancelled, and the “--” will show in the minute display.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

1. When cooking timer expires, the corresponding cooking zone will be switched o_ automatically; The display will show "H" which means hot;

NOTE:

1. The red dot next to power level indicator will illuminate indicating that zone is selected.

1. If you want to change the time after the timer is set, you have to start from step 1.

SETTING THE TIMER TO TURN MORE THAN ONE COOKING ZONES OFF

1. If more than one heating zones use this function, the timer indicator will show the lowest time. (e.g. zone 1# setting time of 5 minutes, zone 2# setting time of 15 minutes, the timer indicator shows "5".)

NOTE:

The red dot next to power level indicator will flash.

$$ \begin{array}{l} - 6 + \text {(set to 5 minutes)} \ - 5 + \quad (\text { set to 15 minutes }) \ - 0 5 + \textcircled {1} \ \end{array} $$

1. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

$$ \begin{array}{l} - H + \text { zone 1# } \ - 5 + \text { zone 2# } \ - 1 0 + \ \end{array} $$

1. When cooking timer expires, the corresponding cooking zone will be switch off automatically.

$$ - H + $$

NOTE:

1. The red dot next to power level indicator will illuminate indicating that zone is selected.

$$ - 5 + $$

1. If you want to change the time after the timer is set, you have to start from step 1.

6. Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically.

7. Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from it.

8. Default Working Times

Another safety feature of the hob is automatic shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hour)	8	8	8	4	4	4	2	2	2

CLEANING AND MAINTENANCE

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	·Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	·The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.

Problem	Possible causes	What to do
The cooktop cannot Be turned on.	No power.	Make sure the ceramic hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your ceramic cooktop' for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.

FAILURE DISPLAY, HINTS AND TIPS

The hob is equipped with a self-diagnostic function. With this test the technician is able to check the function of several components without disassembling or dismounting the hob from the working surface.

Failure code occur during customer using & Solution;

Failure code	Problem	Solution
No Auto-Recovery
E0	Zero error.	Reinsert the connection between the display board and the power board.Replace the power board.
E1	Ceramic plate temperature sensor failure--open circuit.	Check the connection or replace the ceramic plate temperature sensor.
E2	Ceramic plate temperature sensor failure--short circuit.
E7	Ceramic plate temperature sensor failure.
C1	High temperature of ceramic plate sensor.	Wait for the temperature of ceramic plate return to normal.Touch “ON/OFF” button to restart unit.
E3	Temperature sensor of the NTC failure--open circuit.	Replace the display board.
E4	Temperature sensor of the NTC failure--short circuit.
EL	Supply voltage is below the rated voltage.	Please inspect whether power supply is normal.Power on after the power supply is normal.
EH	Supply voltage is above the rated voltage.
EU	Communication error.	Reinsert the connection between the display board and the power board.Replace the power board or the display board.

IMPORTANT INSTRUCTIONS FOR ENVIRONMENT

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

COMPLIANCE WITH ROHS DIRECTIVE

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

PACKAGE INFORMATION

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol with four arrows forming a triangle (no text or labels)

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.
2. Exceeded the period for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.
3. With the modification or disappearance of the nameplate of the appliance.

NOTE: GLASSES AND LAMPS ARE NOT COVERED BY WARRANTY.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

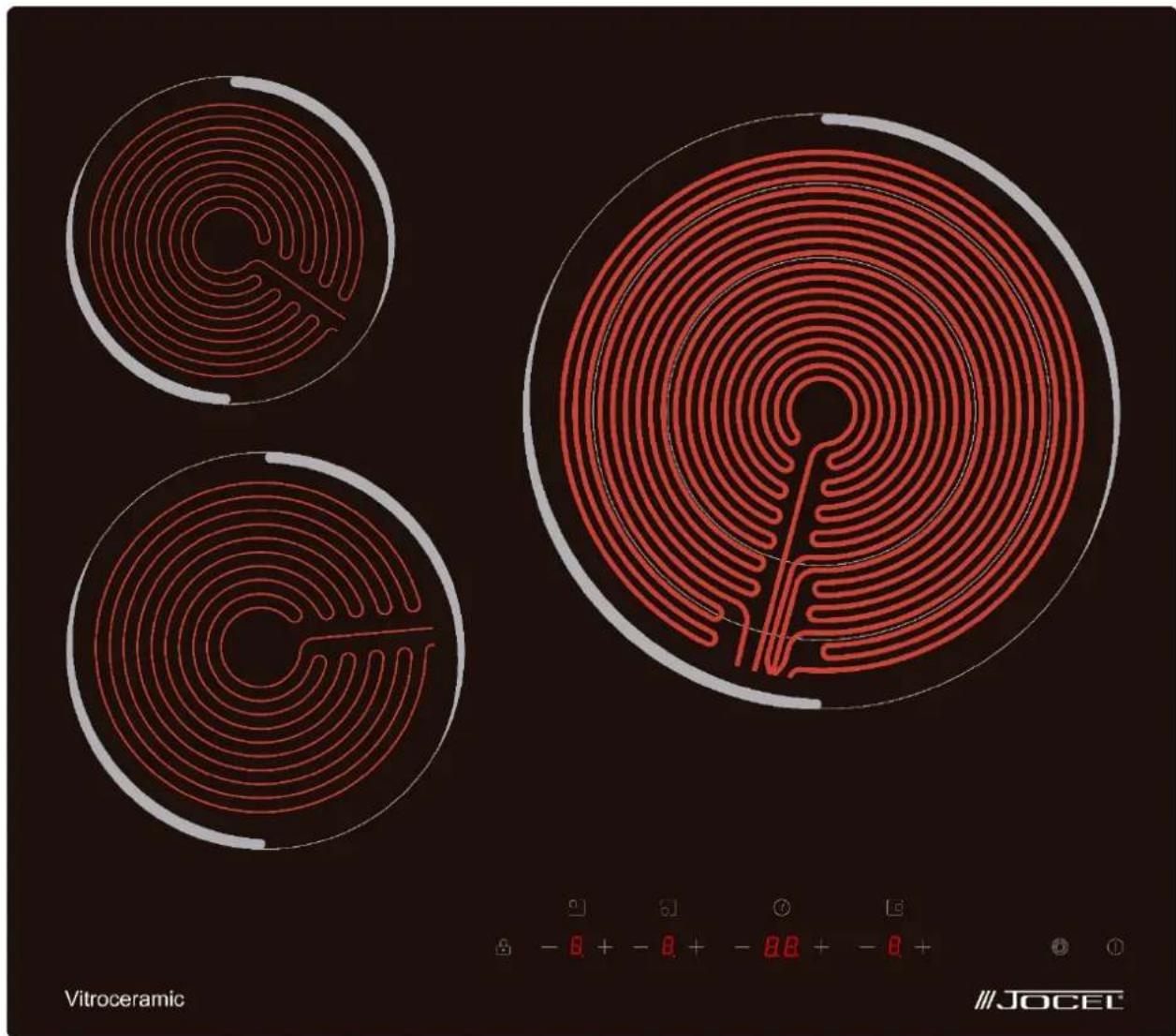

Product CERAMIC HOB

Brand JOCEL

Model JP3EV002181

Complies with the following European directives and standards implementation:

Low Voltage

2014/35/EU

EN 60335-2-6:2015+A1:2020

+A11:2020

EN 60335-1:2012+A11:2014

+A13:2017+A1:2019+A14:2019

+A2:2019+A15:2021

EN 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN EIC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019

+A2:2021

MADE P.R.C.
