Product Type	DVI to Mini DisplayPort Converter
Brand	Atlona
Model	AT-DP200
Dimensions (W x D x H)	114 mm x 65 mm x 26 mm
Weight	200 g
Power Supply	5V / 2.6A DC via USB cable (from source)
Power Consumption	6 W
Input Ports	DVI-D, USB (Type A)
Output Port	Mini DisplayPort
Supported Resolutions	VGA to UXGA, WUXGA (up to 1920x1200)
HDCP Support	Yes
EDID Management	Full EDID management with storage on converter
Signal Processing	Video pass-through, no scaling; re-clocking technology
Compatibility	All Mac and PC computers with DVI output; Apple LED Cinema Display
Reset Function	Reset button reloads EDID for optimal resolution
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	20% to 90% RH (non-condensing)
ESD Protection	+/- 10kV air-gap discharge, +/- 6kV contact discharge
Chassis Material	Plastic
Warranty	3 years limited warranty
Maintenance	Clean with a damp cloth; do not use cleaning fluids or aerosols
Safety Precautions	Keep away from moisture; do not open unit; use only included power supply
Repairability	No user-serviceable parts; contact authorized reseller for service
Package Contents	Converter, DVI cable, Power adaptor, Operational manual

Frequently Asked Questions - AT-DP200 Atlona

What is the Atlona AT-DP200?

The Atlona AT-DP200 is a DVI to Mini DisplayPort converter designed specifically to connect DVI sources to the Apple LED Cinema Display. It converts single-link DVI-D signals to Mini DisplayPort, enabling non-Mac devices to use Apple displays.

Does the AT-DP200 require external power?

No. The AT-DP200 is powered via a USB cable from the source device. It does not need an external power adapter, making it compact and easy to set up.

What resolutions does the AT-DP200 support?

It supports resolutions from VGA to UXGA and WUXGA (reduced blanking pixel rate at 154 MHz), with a maximum of 1920x1200.

Is the AT-DP200 compatible with HDCP?

Yes, the AT-DP200 is HDCP compliant, allowing playback of protected content on the Apple LED Cinema Display.

Can I use the AT-DP200 with any DVI output?

Yes, it works with any single-link DVI-D source from Mac or PC computers. It converts the signal to Mini DisplayPort for compatible displays.

How do I reset the AT-DP200 if the display is not working?

Press the Reset button on the top panel. This reloads the EDID and forces the best resolution, restoring proper image display.

What is the warranty period for the AT-DP200?

Atlona provides a 3-year limited warranty from the date of receipt, covering defects in materials and workmanship.

How should I clean the AT-DP200?

Use a damp cloth for cleaning. Do not use cleaning fluids or aerosols, as they may damage the unit or cause electrical hazards.

Can I use the AT-DP200 with a DisplayPort monitor other than Apple LED Cinema Display?

Yes, you can connect it to any display with a Mini DisplayPort input. For standard DisplayPort monitors, use a mini DP to DP converter (not included).

Does the AT-DP200 require any driver installation?

No. The AT-DP200 is a plug-and-play device. It passes video signals without scaling or driver requirements.

USER MANUAL AT-DP200 Atlona

DVI to Mini DisplayPort Converter AT-DP200

User Manual

TABLE OF CONTENTS

1. Introduction 2
2. Features 2
3. Package Contents 2
4. Applications 2
5. System Requirements 2
6. Specifications 3
7. Panel Descriptions 3

7.1. Top Panel 3
7.2. Left Panel 4
7.3. Right Panel 4

1. Pin Assignment 4

8.1. DVI-D connector 4
8.2. Mini DisplayPort Connector 5

1. Connection Diagram 5

2. Safety Information 6

3. Warranty 7
4. Atlona Product Registration 8

INTRODUCTION

Congratulations on your purchase of Atlona Technologies DVI to Mini DisplayPort Converter, the AT-DP200. This one of a kind device is specifically designed for any digital DVI source signal to display on the Apple LED Cinema Display®. With the DP200, the Apple LED Cinema Display can not only be used for Mac© notebooks and Mac® PCs, but also can be used for other PC device with a DVI output. This unique DVI to Mini DisplayPort Converter allows user to make the maximum use of the Apple LED Cinema Display©. Along with its small, compact frame, this device does not require any power adaptor. Self activated through the USB power cable from the desired source, set up is quick and easy. With the additional ability of passing along all EDID and HDCP information, the Mac tested and Mac approved DP200 is exactly what Mac users have been waiting for.

FEATURES

• Allow single link DVI-D signal to display on the Apple LED Cinema Display®
• Supports timing: VGA \~ UXGA, WUXGA (Reduced Blanking Pixel Rate at 154MHz)
• Compatible with All Mac and PC computers with DVI output
  • Supports High Resolutions up to 1920x1200
• HDCP Compatible
  • Video Pass-Though, no scaling (EDID and HDCP compliant)
• Easy to install and simple to operate
  • Power by USB cable

• Full EDID management allows storing EDID information on the converter to make sure there is always a connection in between the computer and display

- Re-Clocking technology will insure that signal stays the same quality as it was before entering the converter

PACKAGE CONTENT

• DVI to Mini DisplayPort Converter
• DVI cable
• Power Adaptor
• Operational Manual

APPLICATIONS

• Mac PC, notebook or Mini to display on Apple LED Cinema Display®
- Convert any digital DVI signal into Mini DisplayPort

SYSTEM REQUIREMENTS

Input DVI-D source equipment and output Apple LED Cinema Display® with mini DP cable.

SPECIFICATIONS

Input Ports DVI-D, USB (A type)
Output Ports Mini DisplayPort Color
Space RGB_24
ESD Protection Humand body model	+/- 10kV (air-gap discharge)+/- 6kV (contact discharge)
Input TMDS signal 1.2 Volts (peak-to-peak)
Power Supply 5V / 2.6A DC
Dimensions(mm) 114(W) x 65(D) x 26(H)
Weight(g) 200
Chassis Material Plastic
Silkscreen Color White
Power Consumption 6 W
Operating Temperature 0	°C~40°C / 32°F~104°F
Storage temperature -20	°C~60°C/ -4°F ~ 140°F
Relative Humidity 20~90% RH (no condensation)

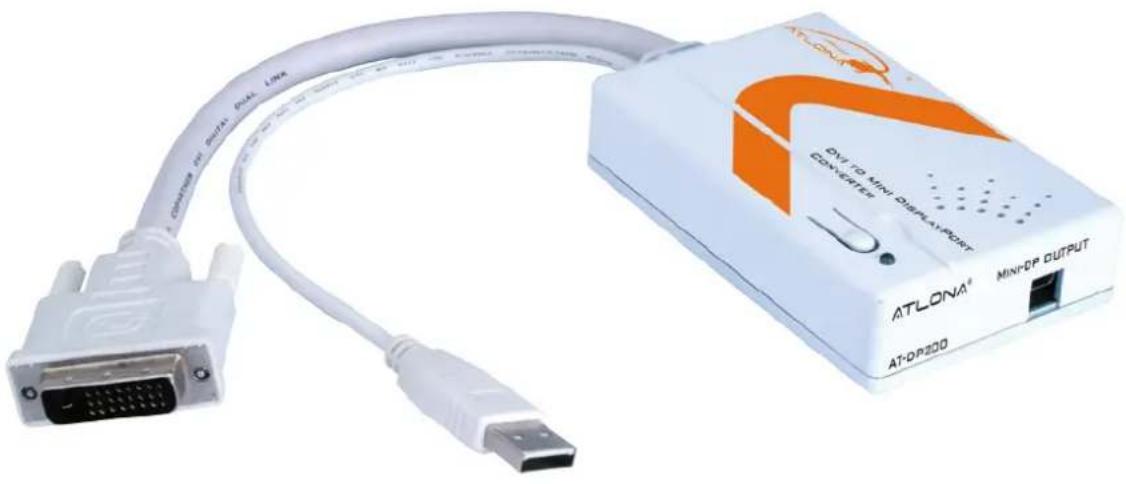

PANEL DESCRIPTIONS

1. Top Panel

1. Reset Button: Press this button only when display image has problem. The reset function will reload the EDID and display with the best resolution image.

2. Power LED: The Green LED will illuminate when the power is on.

3. Left Panel


1. Right Panel


1. DIV input cable: Connect the DVI cable to the source's DVI output for video signal.

2. USB cable: Connect the USB cable to the source's USB output for power supply.

3. MINI DP OUTPUT: Connect this slot with mini DP cable from the Apple LED Cinema Display® or to any display with DP input with a mini DP to DP converter connector.

PIN ASSIGNMENT

1. DVI-D connector


DVI-D Receptacle Connector

Digital-Only Connector Pin Assignments

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment
1 T.M.D.S Data2- 9 T.M.D.S Data1- 17 T.M.D.S Data0-
2 T.M.D.S Data2+ 10 T.M.D.S Data1+ 18 T.M.D.S Data0+
3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield
4 N/A 12 N/A 20 N/A
5 N/A 13 N/A 21 N/A
6 DDC Clock		14 +5V Power		22 T.M.D.S. Clock Shield
7	DDC Data	15	Ground (for +5)	23	T.M.D.S. Clock+
8 No Connect		16 Hot Plug Detect		24 T.M.D.S. Clock-

1. Mini DisplayPort Connector

Top Row Bottom Row
Pin Number Signal Type Pin Name Pin Number Signal Type Pin Name
1 GND GND 2 In Hot Plug Detect
3 Out ML Lane 0 (p) 4 CONFIG		CONFIG 1
5 Out ML Lane 0 (n) 6 CONFIG		CONFIG 2
7 GND GND 8 GND		GND
9	Out	ML Lane 1 (p)	10	Out	ML Lane 3 (p)
11	Out	ML Lane 1 (n)	12	Out	ML Lane 3 (n)
13	GND	GND	14	GND	GND
15	Out	ML Lane 2 (p)	16	I/O	AUX CH (p)
17	Out	ML Lane 2 (n)	18	I/O	AUX CH (n)
19	GND	GND	20	PWR Out	DP_PWR

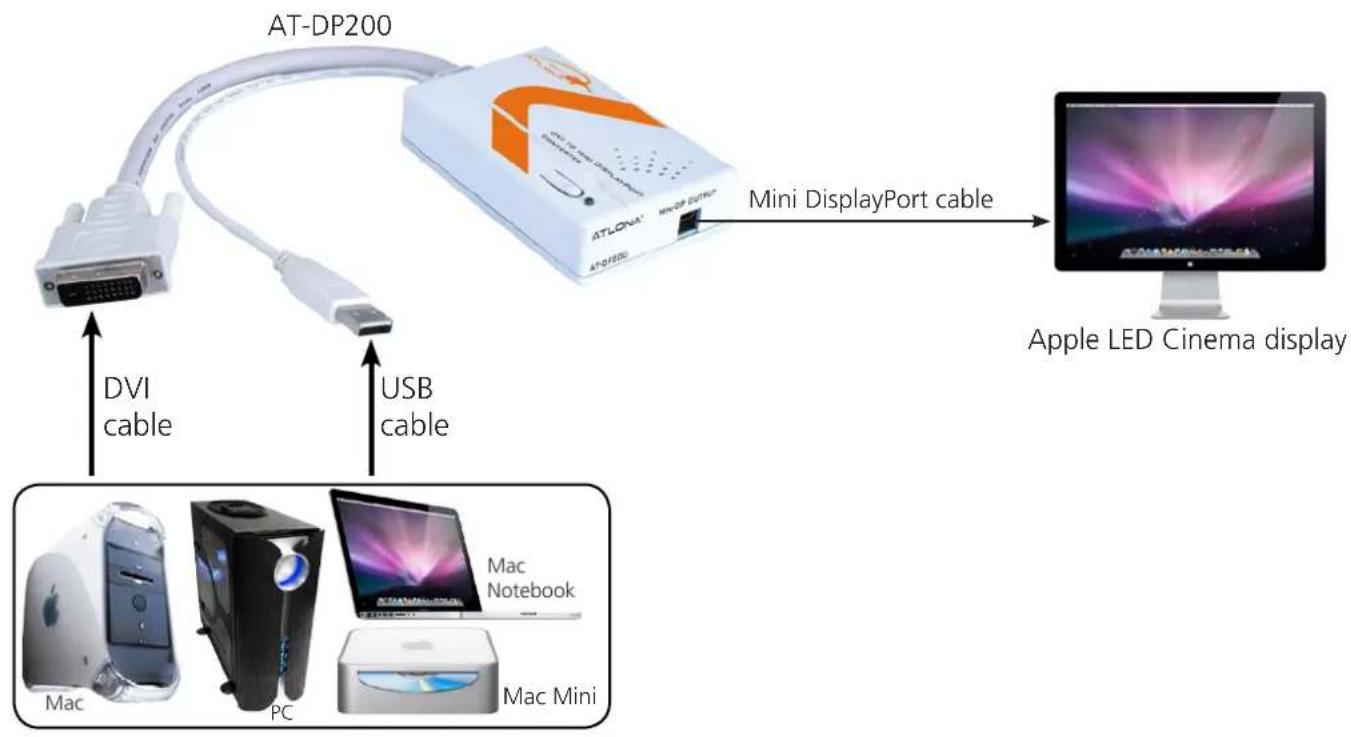

CONNECTION DIAGRAM

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture void the warranty and safety features. Do not modify the wall plug. Doing so will

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket. be easily accessible in the case it requires This equipment should be installed near the socket outlet and the device should disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.

Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DP200. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

WARRANTY

Limited Warranty

Atlona Technologies warrants that (a) its products (the AT-DP200) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.

Customer Remedies

Atlona Technologies' and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer's receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.

No other warranties

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.

No liability for damages

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss.

Atlona Technologies' and its suppliers' entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.

ATLONA PRODUCT REGISTRATION

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
