| Product Type | Stereo Effects Loop Pedal |
| Category | Guitar & Bass Effects |
| Dimensions (W x D x H) | 5.1" x 3.5" x 2.2" (130 mm x 89 mm x 56 mm) |
| Weight | 0.6 lbs (0.27 kg) |
| Power Requirements | 9V DC, center negative, 100 mA |
| Audio Connectors | 1/4" TRS stereo jacks (send/return), XLR balanced outputs |
| Bypass Type | True bypass with relay switching |
| Input Impedance | 1 MΩ |
| Output Impedance | 100 Ω |
| Frequency Response | 20 Hz - 20 kHz (±0.5 dB) |
| Signal-to-Noise Ratio | >95 dB |
| Chassis Material | Steel, powder coated |
| Effects Loop Features | Stereo send/return, level control, ground lift, phase reverse |
| Maintenance | Clean with a dry, lint-free cloth |
| Safety | Use only with specified power supply; avoid moisture |
| Spare Parts & Repairability | No user-serviceable parts; contact Radial for service |
| Additional Information | Designed for studio and stage use; compatible with line-level effects |
Frequently Asked Questions - EXTC-Stereo Radial Engineering
What is the EXTC-Stereo used for?
The EXTC-Stereo is a stereo effects loop pedal that allows you to integrate external effects processors (e.g., rack units, stompboxes) into your guitar or bass signal chain while maintaining true bypass and balanced outputs.
Does the EXTC-Stereo require phantom power?
No, the EXTC-Stereo is powered by a 9V DC center negative adapter (not included). It does not require phantom power.

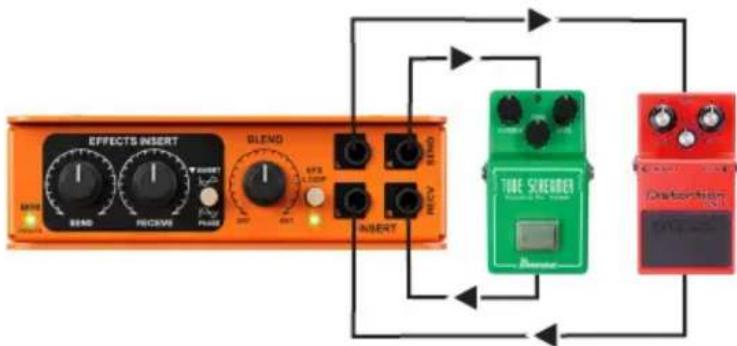

Can I use the EXTC-Stereo with mono effects?
Yes, the EXTC-Stereo can be used in mono by connecting only the left channel send/return. The right channel can be left unused.
What is the benefit of the ground lift switch?
The ground lift switch helps eliminate hum and buzz caused by ground loops between connected equipment.
Is the EXTC-Stereo true bypass?
Yes, it features true bypass with relay switching, ensuring your signal remains pure when the loop is off.
What power supply should I use?
Use a 9V DC adapter with center negative polarity and a current rating of at least 100 mA. Radial recommends their own JPS-2 power supply.

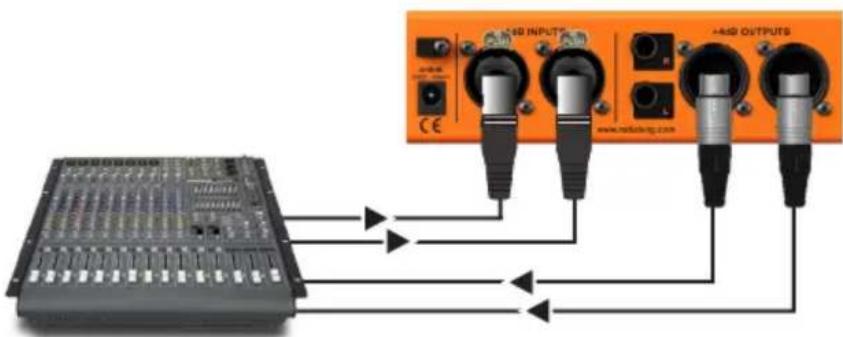

Can I connect the EXTC-Stereo directly to a mixing console?
Yes, the XLR outputs are balanced and can drive long cable runs to a mixing console or audio interface.
What is the max input level?
The EXTC-Stereo can handle +21 dBu input level, making it suitable for line-level signals.
Does the EXTC-Stereo have a phase reverse switch?
Yes, it includes a phase reverse switch on the output to correct polarity issues with certain effects or amplifiers.
How do I clean the EXTC-Stereo?
Clean the enclosure with a dry, lint-free cloth. Avoid using solvents or abrasive cleaners.
