Brand	Ernitec
Model	0070-24122-F
Product Type	22" Surveillance Monitor (24/7)
Display Size	22 inches
Recommended Resolution	1920 x 1080 (Full HD)
Input Connectors	HDMI, VGA, Audio
Power Supply	DC 12V (external adapter included)
Power Consumption	Approx. 20W (typical)
Controls	Power, Menu, Auto, Volume +/-
OSD Menu Languages	English (default)
Picture Modes	Standard, Vivid, Gentle, User
Adjustable Settings	Brightness, Contrast, Saturation, Sharpness, Gamma, Color Temp
VESA Mount Compatible	Yes (standard 100x100mm)
Weight (approx.)	3.5 kg (7.7 lbs)
Dimensions (W x H x D)	515 x 320 x 45 mm (without stand)
Safety Certifications	CE, FCC, RoHS
Cleaning Instructions	Use soft dry cloth; avoid abrasive cleaners
Warranty	Standard manufacturer warranty (check local regulations)

Frequently Asked Questions - 0070-24122-F Ernitec

What is the native resolution of the Ernitec 0070-24122-F monitor?

The monitor supports up to 1920x1080 at 60Hz (Full HD).

How do I switch between input sources?

Press the 'AUTO' button on the front panel to cycle through VGA, HDMI, and Auto Select modes.

Why is there no picture when I turn on the monitor?

Check that all cables are connected securely, the power cord is plugged in, and the monitor is powered on. Also verify that the correct input source is selected.

What should I do if I see horizontal or vertical bars on the screen?

This may be caused by local interference from nearby electrical appliances. Try moving the monitor away from such devices. In VGA mode, use the 'Auto Adjust' function in the Display menu.

Can the monitor be mounted on a wall?

Yes, it supports VESA 100x100mm mounting. Use a compatible wall mount bracket.

How do I clean the screen safely?

Turn off and unplug the monitor. Wipe the screen gently with a soft, damp, lint-free cloth. Allow it to dry before powering on. Do not use abrasive cleaners.

No sound from the speakers?

Check the volume level using the + button, ensure mute is off, and verify that the audio cables are properly connected. The monitor has a single audio input.

What does the 'Ultra Vivid' feature do?

Ultra Vivid enhances the color saturation and contrast for a more vibrant image, especially useful for surveillance footage.

How do I reset the monitor to factory settings?

Go to the 'Other' menu in OSD and select 'Reset'. Confirm to restore default settings.

Is the monitor suitable for 24/7 operation?

Yes, the Ernitec 0070-24122-F is designed for continuous 24/7 surveillance use.

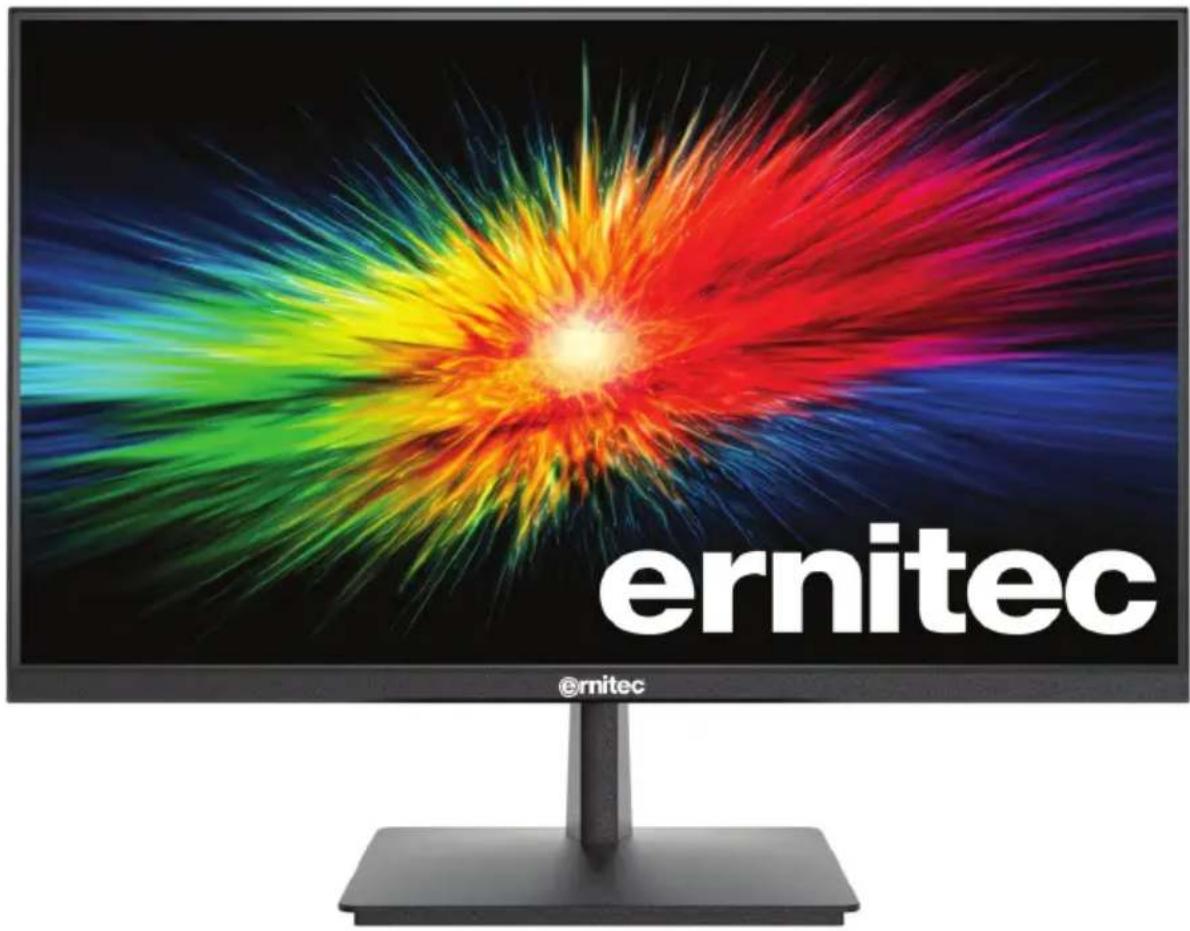

USER MANUAL 0070-24122-F Ernitec

22" Surveillance Monitor 24/7

User Manual

• Please read this manual carefully before operating your set.
• Retain it for future reference.
• Record model number and serial number of the set.
  • See the label attached on the back cover and quote this information to your dealer when you require service.

Table of contents ...... 1

Warning 2

Safety instructions .... 3

1. Introduction ...... 5

1.1 Controls 5

1.2 Accessories 5

1.3 Connection Options....6

2. Basic OSD setup ...... 7

2.1 Picture Settings Menu....7

2.2 Display Menu.... 8

2.3 Color Menu....8

2.4 Advance Menu....9

2.5 Input Menu....9

2.6 Audio Menu....9

2.7 Other Menu....10

2.8 Information Menu....10

3. Trouble shooting....11

4. Maintenance....12

WEEE/DEEE/RAEE info.... 13

Notes (Record your important notes here)....14

WARNING

RISK OF ELECTRIC SHOCK DONOT OPEN

CAUTION

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK). NO UESR SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions accompanying the appliance.

REGULATORY INFORMATION

This equipment generates, and can radiate electromagnetic emissions (energy). If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications however, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or experienced radio/monitor technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Ernitec Technical Support. Unauthorized modification could void the user's Warranty and in worst case be dangerous to persons, animals and property.

Safety instructions

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Apparatus shall not be exposed to dripping or splashing area. Objects filled with liquids such as vases shall not be placed on the apparatus.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
   3.Heed all warnings.
   4.Follow all instructions.

Cartoon illustration of a smiling computer monitor holding a document (no text or symbols present)

8.Do not install near any heat source

such as radiators,hea registers,stoves,or other apparatus (including amplifiers) that produce heat.

1. Do not use this apparatus near water.

Cartoon illustration of a computer monitor with a smiling face and a falling object nearby (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for

long period of time.

1. Clean only with a dry cloth.

1. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the apparatus.

1. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

1. Only use the attachments/accessories specified by the manufacturer.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Cartoon illustration of a smiling computer monitor and a delivery worker holding a box (no text or symbols)

1. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, be cautious when moving the cart\apparatus combination to avoid injury from tip-over.

1. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit for your outlet, consult an electrician for replacement of the obsolete outlet.

Note

-If the CCTV monitor feel cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with CCTV monitor.
- Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However there have no adverse effect on the monitor's performance.
-Avoid touching the LED screen or holding your finger(s) against it for long periods of time. In that case, it may produce some temporary distortion effect on the screen.

CAUTION connecting the Power Cord

Most appliances are suggested to be placed upon a dedicated circuit; that is a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

Do not overload wall outlets! Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and its if appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being wisted, kinked, pinched, closed in a door, or walded upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

On Disposal

-The fluorescent lamp used in this product contain a small amount of mercury.
-Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.

1. Introduction

1.1 Controls

-Simplified control panel
-Here show may be some what different from your monitor.

ITEM	BUTTON NAME	FUNCTION DESCRIPTION
1	AUTO	Press to select the input source and make menu selections.
2	-	Lower audio volume.
3	+	Increase audio volume.
4	MENU	Press to enter and exit the monitor's configuration menu.
5	POWER	Press to turn the monitor on and off.

1.2 Accessories

The following accessories are included with the monitor:

User's Manual

Pure electrical circuit lines without any symbols

Power Supply

1.3 Connection Options

ITEM	NAME	DESCRIPTION
1	DC 12V	POWER SUPPLY INPUT
2	HDMI	HDMI VIDEO INPUT
3	VGA	VGA VIDEO INPUT
4	AUDIO	AUDIO INPUT

2. Basic OSD setup

Button OSD Function:

● "Power": Turn on/off Device
● “Menu” : (1) Open Menu OSD (2) Come back last Menu
● "AUTO": select the input source
● “+”: (1) Confirm Menu Selection (2) Adjust Option “1-100” Selection
● “-”: (1) Adjust Menu Selection (2) Adjust Selection

2.1 OSD "Picture Setting" Menu

Note: Picture mode "Standard" "Vivid" "Gentel" Can't adjust "Brightness" "Contrast", only in Picture model "User"; "Saturation" "Sharpness" available to adjust once source input by HDMI YUV mode

2.2 OSD "Display" Menu

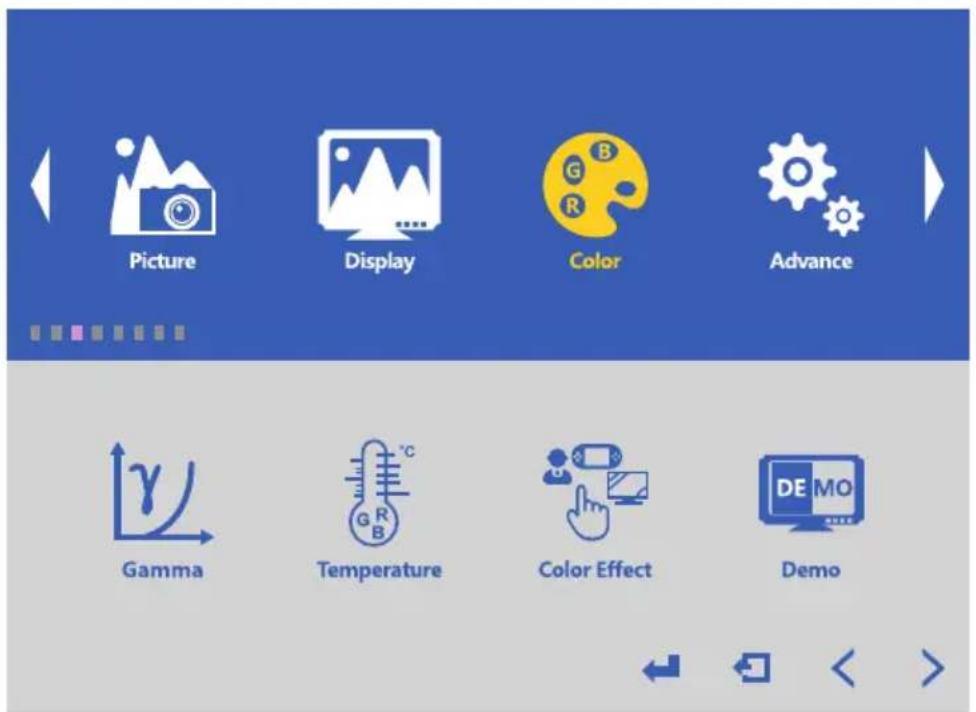

2.3 OSD "Color" Menu

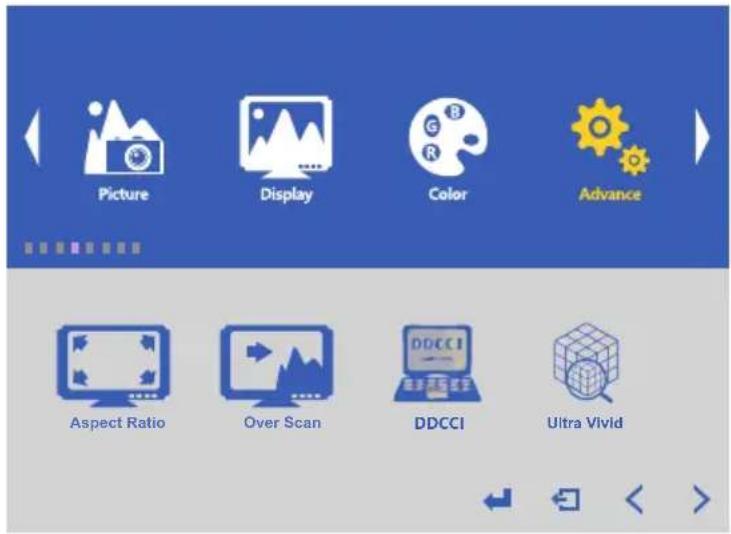

2.4 OSD "Advance" Menu

2.5 OSD "Input" Menu

2.6 OSD "Audio" Menu

2.7 OSD "Other" Menu

2.8 OSD "Other" Menu

3. Trouble shooting

If any problems or issues with the monitor please consult below possible solutions before contacting the Ernitec Technical Support.

PROBLEM	POSSIBLE SOLUTION
No sound; picture	-Check all cables are connected correctly.-Check that you have pressed the POWER button on the front of monitor set.-Check the picture contrast and broughtness settings.
Normal picture but no sound	-Check the volume.-Try another channel the problem may be with the broadcast.-Are the audio cables installed properly.
The remote control does not work	-Check go see if there any object between the product and remote control-Are batteries installed with correct poalrity(+to+,-to-).-Install new batteries.
Power is suddenly turned off	-Is the sleep timer set.-Check the power control settings.Power interrupted.-No broadcast on station tuned with auto activated.
Picture appears slowly after switching on	-This is normal,the image is muted during the product startup process.Please contact Ernitec Support, if the picture has not appeared after five minutes.
No or poor color or poor picture	-Adjust the color in menu option.-Keep a sufficient distance between the product and the VCR.-Try another channel,the problem may be with the broadcast.-Are the VIDEO cables installed properly?
Horizontal/vertical bars or picture shaking	-Check for local interference such as an electrical appliance or power tool.
No output from one of the speakers	-Adjust balance in menu option.

NOTE: Problem and possible solution (only applies to VGA mode)

PROBLEM	POSSIBLE SOLUTION
The signal is out of range	-Adjust resolution, horizontal frequency, or vertical frequency.-Check it whether the signal cable is connected or loose.-Check the input source.
Vertical bar or stripe on back ground&Horizontal Noise&Incorrect position	-Work the auto configure or adjust clock, phase, or H/V position.
Screen color is unstable or single color	-Check the signal cable.-Reinstall the PC video card.

4. Maintenance

Early malfunctions can be prevented by maintaining the monitor.

Careful and regular cleaning can extend the lifetime. Be sure to turn of the power and unplug the power cord before maintaining or cleaning the monitor

Cleaning the screen

Wipe the screen with a soft, damp, lint-free cloth. Allow the screen to dry before connecting the power cable and turning on the monitor.

Do not use abrasive cleaners.

Cleaning the cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth. Do not use abrasive cleaners.

Extended Storage

If you expect not to use your monitor for extended periods of time be sure to disconnect the monitor's power cable.

Important WEEE information

This symbol on the product and /or accompanying documents indicates that, under Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), product(s) used electrical and electronic equipment (WEEE) should not be mixed with general household waste.

For proper treatment, recovery, and recycling, please take this product to designated collection points where it will be accepted free of charge.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Please contact your local authority or for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

For professional users in the European Union If you wish to discard electrical and electronic equipment (WEEE), please contact your dealer or supplier for further information.
