Type	Power Amplifier
Model	XP 5000
Brand	Phonic
Dimensions (WxHxD)	482 x 150 x 400 mm (19" x 5.9" x 15.7")
Weight	30.2 kg (66.6 lbs)
Power Requirements	100-120V ~ 220-240V AC, 50/60 Hz (factory configured)
Output Power (Stereo)	1050W (8Ω), 1600W (4Ω), 2500W (2Ω) at 1% THD
Output Power (Bridge Mono)	3600W (8Ω), 5000W (4Ω) at 1% THD
Operating Modes	Stereo, Parallel, Bridge Mono
Input Connectors	XLR, 1/4" TRS, Barrier Strip
Output Connectors	Binding posts, Speakon (CH1 wired for bi-amp)
Frequency Response	20 Hz - 20 kHz (+0/-1 dB), 5 Hz - 50 kHz (+0/-3 dB)
Input Impedance	20 kΩ balanced, 10 kΩ unbalanced
Voltage Gain	41x (36 dB)
Damping Factor	>250 @ 8Ω
Distortion (SMPTE-IM)	<0.02%
Protection	Short circuit, open circuit, thermal, ultrasonic, RF, DC crowbar
Cooling	Two variable-speed fans, rear-to-front airflow
Indicators	Power (Amber), Parallel (Green), Bridge (Red), CLIP/LIM (Red), PROTECT (Yellow), Signal (-40, -20, -10 dB Green)
Controls (Front)	Power switch, detented gain controls (41 positions)
Controls (Rear)	DIP switches for HPF (30/50 Hz), clip limiter, mode selection; circuit breaker per channel; ground lift switch
Mounting	19" rack, 3U (5.25")
Accessories Included	Power cord, user manual

Frequently Asked Questions - XP 5000 PHONIC

What is the power output of the Phonic XP 5000 amplifier?

In stereo mode, the XP 5000 delivers 1050W per channel at 8 ohms, 1600W at 4 ohms, and 2500W at 2 ohms (1% THD). In bridge mono mode, it outputs 3600W at 8 ohms and 5000W at 4 ohms (1% THD).

How do I set the amplifier to stereo mode?

Set DIP switches 4, 5, 7, and 8 to the left (OFF) position. Ensure switches 6 and 9 are also left to disable parallel and bridge indicators. Connect speakers to the appropriate outputs.

What input connectors are available on the XP 5000?

The amplifier features balanced XLR, 1/4" TRS, and barrier strip input connectors for flexible connectivity.

How can I reduce clipping and protect my speakers?

Enable the built-in peak limiter by setting DIP switch 3 (channel 1) and DIP switch 10 (channel 2) to the right (ON) position. Also use the high-pass filter (30Hz or 50Hz) to remove subsonic frequencies.

What is the difference between stereo, parallel, and bridge modes?

Stereo: each channel operates independently. Parallel: the same input signal feeds both channels but outputs are separate (loads must be above 2Ω each). Bridge mono: combines both channels to drive a single load at twice the power (load must be above 4Ω).

How do I wire the Speakon connector for stereo or bridge mode?

For stereo, connect channel 1 to pins 1+ and 1-, channel 2 to pins 2+ and 2-. For bridge mono, connect the speaker across pin 1+ (BRG+) and pin 2+ (BRG-). Refer to the pinout diagram on the amplifier.

What are the voltage and power requirements?

The amplifier operates on 100-120V or 220-240V AC (factory configured), 50/60 Hz. For 120V models, a 20A circuit is recommended. Power consumption is typically 14.4A at 120V.

How do I clean the amplifier?

Disconnect the power cord before cleaning. Use a dry cloth only; do not use liquid or aerosol cleaners. Keep ventilation openings clear of dust.

What should I do if the PROTECT LED stays on?

Check for short circuits at the speaker terminals or excessively low load impedance. The amplifier will remain in protection until the fault is fixed. Improve ventilation if overheating.

Can the amplifier be mounted in a rack?

Yes, it fits a standard 19" rack and requires 3U (5.25") of vertical space. Use four rack screws and cup washers. Ensure proper airflow by not blocking front or rear vents.

USER MANUAL XP 5000 PHONIC

Phonic preserves the right to improve or alter any information within this document without prior notice

IMPORTANT SAFETY INSTRUCTIONS

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

Warning: the user shall not place this apparatus in the confined area during the operation so that the mains switch can be easily accessible.

1. Read these instructions before operating this apparatus.

2. Keep these instructions for future reference.

3. H eed all warnings to ensure safe operation.

4. Follow all instructions provided in this document.

5. Do not use this apparatus near water or in locations where condensation may occur.

6. Clean only with dry cloth. Do not use aerosol or liquid cleaners. Unplug this apparatus before cleaning.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lighting storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: To reduce the risk of fire electric shock, do not expose this apparatus to rain or moisture.

CAUTION: Use of controls or adjustments or performance of procedures other than thosepecified may result in hazardous radiation exposure.

INTRODUCTION

Thank you for choosing XP series power amplifier. The unit is designed to provide a good combination of power, audio clarity, reliability and durability. An efficient heat-dissipation system comprising a high-surface area heat sink coupled with two variable speed fans ensures quiet and reliable cooling. Good sound quality and sturdy construction make this unit ideal for a multitude of amplification tasks; from studio installations to mobile DJs, house of worship and touring bands. In order to get the best performance out of your XP series power amplifier, please read this user's manual carefully, and retain it for future reference.

FEATURES

• Advanced powerful performance- third generation circuitry design
  • High continuous current output from robust toroidel transformer
• Switchable input peak limiter and selectable high pass filter (30 Hz, 50 Hz) to reduce distortion and protect speakers
• Two front mounted detented gain controls
• Selectable stereo, parallel & bridge mono amp modes
  • Ground Lift-switch to help against humming
• Signal level at -40, -20, -10, protect and clip LED indicators to monitor performance
  • Bridge mono and parallel mode LEDs
• Fast Recovery design for lower distortion if clipping occurs
  • Active balanced inputs for low noise
• XLR/TRS connectors for maximum input flexibility
• Barrier strip input connectors for permanent installations
• Speakon and 5-way binding post speaker outputs
  • 2 ventilation variable speed fans
  • Very rugged housing
  • Fits a standard 19" rack

INSTALLATION

MOUNTING

The power amplifier can be installed in a standard 19-inch equipment rack. It requires 3 units (5.25 inches) of vertical rack space and secures to the rack cabinet with four rack mount screws and cup washers. In a rack, it is best to mount units one above the other, with at least a unit of space at least between two amplifiers. This provides efficient airflow and support.

COOLING

Two variable-speed fans would start running as soon as the power is being turned on. Before mounting your amplifier, you should familiarize yourself with its cooling requirements. The air flows from the front to the back, so it is important not to block the amplifier front air vents. If the amplifier is rack-mounted, leave some space in front of the rack to prevent heated air being drawn back into the front-to-back airflow. Airflow restrictions are the most common cause of inadequate cooling. They may result from improper mounting, bundles of power cords, clogged dust filters and closed rack doors. Mount the amplifier to allow sufficient airflow out the front outlets to ensure your amplifier work properly.

WIRING

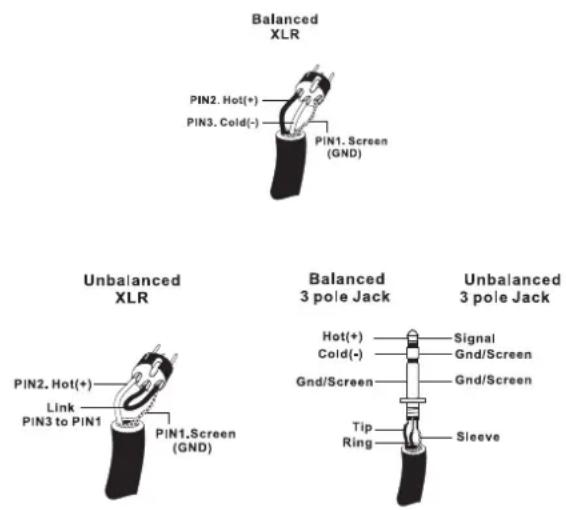

The balanced XLR and TRS input connectors will accept the line-level output of most devices for ultimate input convenience.

The amplifier built-in XLR and TRS connectors can be wired similarly for balanced or unbalanced, floating or ground-referenced sources. The output connector is a binding post with Speakon which provides an easy connection when using banana plugs, spade lugs or bare wires.

INPUT WIRING

OUTPUT WIRING

SPEAKON PIN OUT

PIN	CH	PIN	CH
1+	1	2+	2
1-	1	2-	2
1+	BRG+	2+	BRG-

FRONT PANEL DESCRIPTION

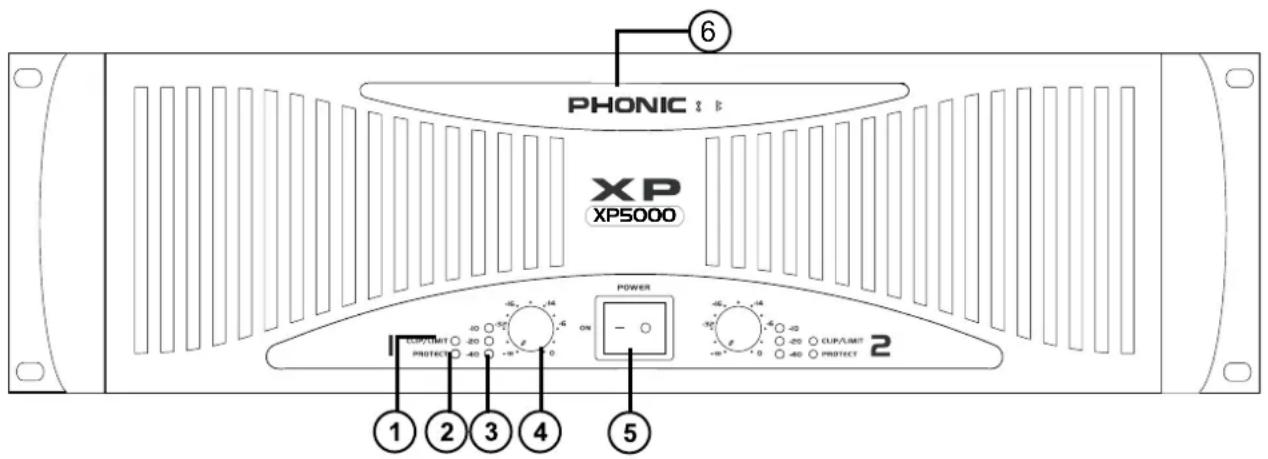

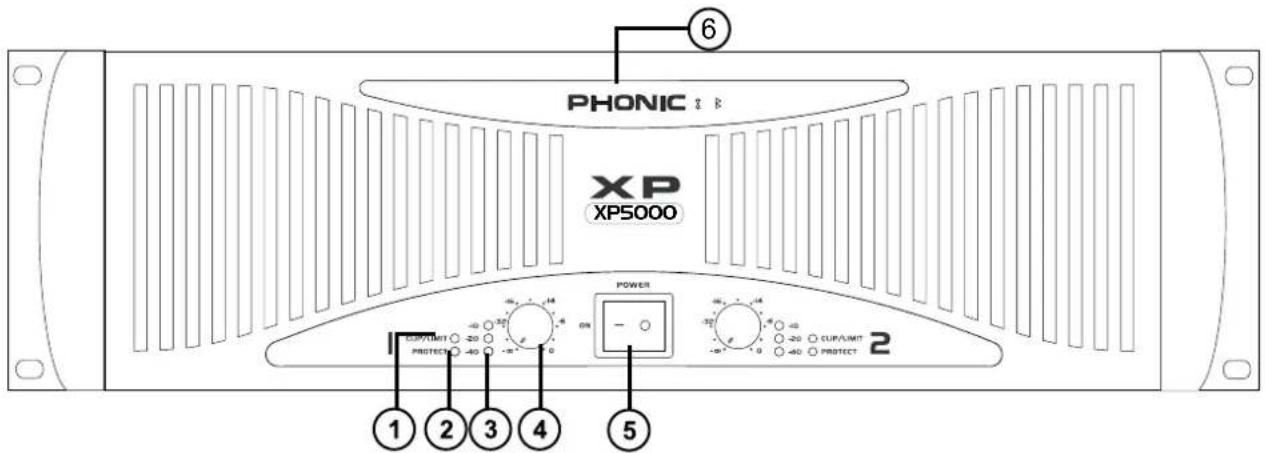

1. CLIP/LIM LED (RED)

When the audio signal drives the amplifier output circuit beyond its power capability, it will clip. The peak limiter detects this and quickly reduces the gain to minimize the amount of overdrive, so as to preserve as much of the program dynamics as possible.

2. PROTECT LED (YELLOW)

The power amplifier features several types of protection to prevent damage to the circuitry during turn-on or fault conditions.

The power-on protection relay prevents damaging thumps to the speakers as the power comes on. When the amplifier is switched on, the protect LED will light for a few seconds, and then go out, indicating that the relay has closed, connecting the speakers to the amplifier.

The protect LED will also come on if the speaker terminals are short circuited, or the impedance of the load between them is too low. Under these circumstances, the protect LED will stay on until the fault condition is rectified.

If the amplifier's large heat sinks go down for thermal reasons, leave the power connected to the amplifier, try to improve ventila-

tion, and reduce the gain. Without power, the fan cannot operate, and the amplifier will require longer to reach a low enough temperature to restart.

3. SIGNAL LED (GREEN)

Each channel of the power amplifier features a signal light to show that how much of an audio signal has been put in to the channel. The threshold for the indicator is -40dB, above that, noise will trigger the LED to light.

4. GAIN CONTROL

These two knobs are the level controls for each channel of the amplifier. The gain increases as the knob is turned clockwise. This unit features detented gain controls.

5. POWER SWITCH

Although the XP series amplifiers feature power-on muting, it is always a good practice to reduce both the gain controls before turning on the amplifier. The powering-up procedure for an audio system should start from instruments and then mixer, and you should verify that all system operations are normal before turning on the amplifier.

6. DISPLAY

When the amplifier is switched to the bridge mono mode, the bridge LED right next to the PHONIC logo will light up in red. When the amplifier is switched to the parallel mode, the parallel LED next to the bridge LED will light up in yellow.

REAR PANEL DESCRIPTION

7. FAN

These two variable speed fans automatically maintain safe internal temperature. Keep the front and rear vents clear to allow full airflow. Hot air will be drawn out the back of the amplifier, so it does not stay in the rack, and make sure plenty of cool air can enter the rack.

8. RESET BREAKER

With rated loads and output levels, the breaker should only shut down the amplifier in rare instances of catastrophic failure. The circuit breaker can also shut down the amplifier in cases where extremely low-impedance loads and high output levels result in a current draw that exceeds its rating. This feature is not included on the XP600.

9. POWER CORD

All units are shipped with an appropriate plug and cord for the required AC voltage. This product is equipped with a 3-wire grounding type plug. This is a safety feature and should not be defeated. Check the AC voltage before connecting the plug.

10. CHASSIS GROUNDING CONNECTING POINT

Please refer to your local safety code for proper grounding.

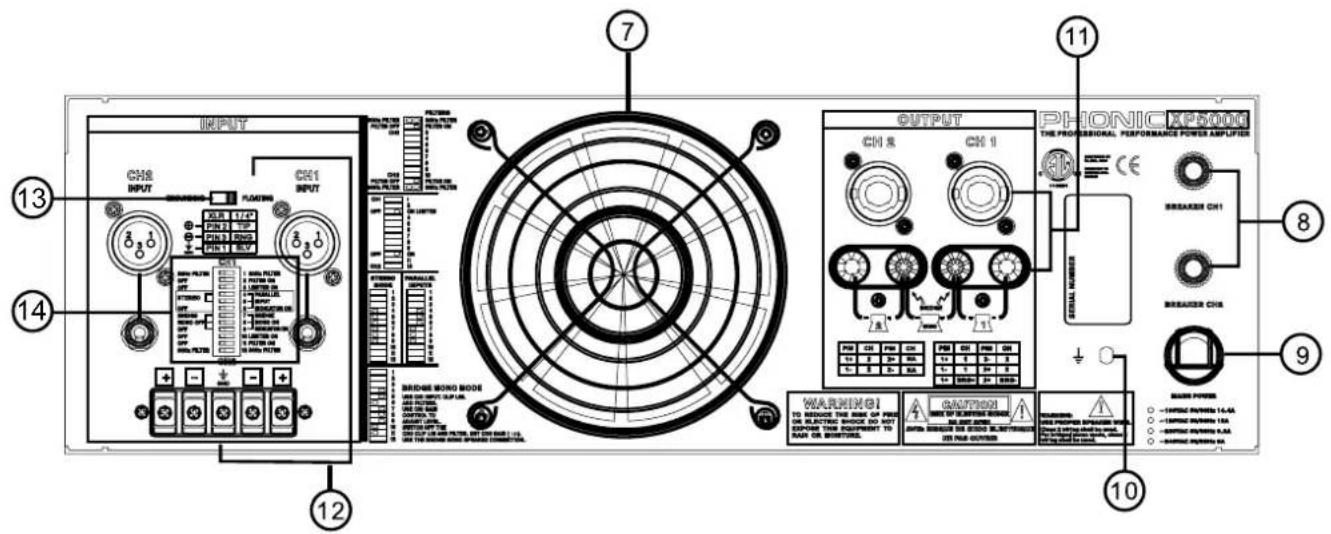

11. OUTPUT CONNECTORS

A pair of versatile binding posts and Speakon connectors are provided for output connection to each channel. Loudspeakers can be easily connected using banana plugs, spade lugs, bare wires or Speakon connector. Spade lugs and bare wires should both be screwed down tightly to avoid a short circuit. The Speakon connector for channel 1 includes channel 1, channel 2 and bridged mono pin connecting points. A pin out information could be foundbeside the Speakon connector.

12. INPUT CONNECTORS

The power amplifier of fers XLR and TRS input connectors for your connecting convenience. On the XP5000 and 5100, users will also find barrier strip inputs. Barrier strip inputs should be screwed down tight as to not let oxygen enter the connection. These are best used in long term or permanent installations.

13. GROUNDING - FLOATING SWITCH

This switch allows the circuit and chassis grounding to be separated in case of a grounding conflict. In normal use, the switch should be in the grounding on position. Lifting the grounding (to what is called the floating position) may resolve the ground conflict, but it means that circuit grounding depends on other connected equipment. Deficiencies in other components' grounding will affect the sound quality and cause a grounding loop hum. For the best combination of safety and performance, it is highly recommended to set the switch at the "grounding on" position.

14. MODE SWITCHES HPF

These switches (DIP switches 1 and 2 for channel 1, 11 and 12 for channel 2) can activate a 30 Hz or 50 Hz high pass filter, which will roll off signals below either 30 Hz or 50 Hz. This improves sub bass performance by limiting sub bass cone motion. It will make more power available for the speakers' rated frequency range.

LIMITER ON/OFF

These DIP switches (DIP switches 3 for channel 1 and number 10 for channel 2) allow you to activate the peak limiter circuit built into the power amplifier. This function will reduce distortion and protect speakers. To activate the built-in limiters, DIP switches 3 (channel 1 limiter) and 10 (channel 2 limiter) should be set to the right position.

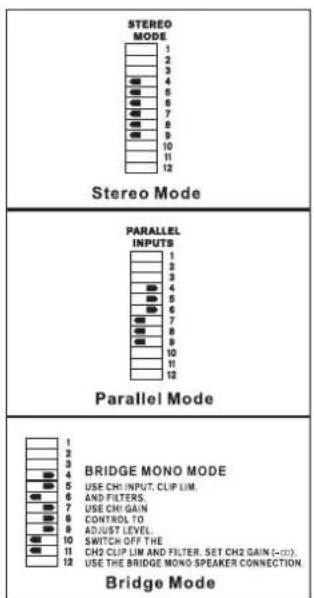

PARALLEL / STEREO / BRIDGE MONO

Turn the power off before changing the operation mode as to avoid damaging your XP mixer. The Number 4 and 5 DIP switches allow users to change between stereo and parallel input modes, whereas DIP switches 7 and 8 are used to activate bridge mono mode. DIP switches 6 and 9 are used to activate the Parallel and Bridge Mono indicators, respectively.

Stereo Mode: each channel of the amplifier runs independently with its own signal and speakers. To set the amplifier to stereo mode, set DIP switches 4, 5, 7 and 8 to the left position. Dip switches 6 and 9 should be set to the left hand position, as to ensure the parallel and bridge mono indicators are off. The loading of each speaker in stereo mode should be above 2 ohms.

Parallel Mode: this mode allows the input of channel 1 to feed channel 2 also, allowing the channel 1 and 2 outputs to drive their own speakers independently, however with the same source. To set to parallel mode, DIP switches 4 and 5 should be set to the right, however switches 7 and 8 should be positioned to the left. You can also activate the parallel indicator by setting DIP switch 6 to the right and DIP switch 9 to the left. The loading of each speaker in parallel mode should be above 2 ohms.

Bridge Mono: the signal of both inputs is combined, and fed through the bridge mono outputs at twice the power. The channel 2 gain control should be set to a minimum, and a rated load must be used for the higher output power. To set bridge mono mode, DIP switches 4, 5, 7, 8, and 9 should all be set to the right, and switches 6, 10 and 11 should be set to the left. You can also activate the Bridge Mono LED by setting DIP switch 9 to the right and DIP switch 6 to the left. The loading of the speaker in bridge mono mode should be above 4 ohms.

SPECIFICATIONS

XP5000
Stereo Mode (both channels driven) Continuous Average Output Power Per Channel
8 ohms FTC 20Hz-20kHz 0.1% THD 1050W
4 ohms FTC 20Hz-20kHz 0.1% THD 1600W
2 ohms FTC 20Hz-20kHz 0.1% THD 2000W
8 ohms EIA 1kHz 0.1% THD 1100W
4 ohms EIA 1kHz 0.1% THD 1800W
2 ohms EIA 1kHz 1% THD 2500W
Bridge Mono Mode Continuous Average Output Power
8 ohms FTC 20Hz-20kHz 0.1% THD 3200W
8 ohms EIA 1kHz 0.1% THD 3600W
4 ohms EIA 1kHz 1% THD 5000W
All Models
Distortion (SMPTE-IM) <0.02%
Distortion (Typical) 20Hz-20kHz: 10dB below rated power	<0.02%
Distortion (Typical) 1kHz and below: full ratez power	<0.02%
Frequency Response	20Hz-20kHz, 8 ohms, LF filter bypassed, +0/-1dB5Hz to 50kHz, 8ohms, LF filter bypassed, +0/-3 dB
Damping Factor >250 @ 8 ohms
Noise (unweighted) 100 dB below rated output (20 Hz to 20kHz, 8 ohms load)
Input sensitivity 1.42 Vrms for 1000 watts into 8 ohms
Control Font AC power switch, Ch1 & Ch2 gain control with 41 detents
Control Rear	12-pole DIP switch featuring high pass filter on/off, high pass filter 30/50Hz, Clip Limiter on/off control for each channel and switches for selecting Stereo, Parallel, or Bridge Mode.Push-button circuit breaker for each channel. Slide switch for Grounding / Floating aa
Voltage Gain 41x (36dB)
Input Impedance	20k ohms balanced, 10k ohms unbalanced
Indicators	Power-On: Amber Phonic logo; Parallel: Green backlight icon; Bridged: Red backlight icon; CLIP/LIM: Red LED;PROTECT: Yellow LED Green LED for -10dB, -20dB and -40dB Signal Lights
Connectors Input	XLR, 1/4"TRS jacks and barrier strip
Connectors Output	Binding posts and speakon outputs (Ch1 speakon wired for biamp)
Cooling	Continuous variable-speed fan, rear-to-front air flow
Amplifier Protection	Short circuit, open circuit, thermal, ultrasonic, and RF protection. Stable into mis-matched loads
Load Protection	on/off muting, DC fault output crowbar
Output Circuitry	Calss H Amplifier
Power Requirements (depends on region)	100-120VAC, 220-240VAC (+/- 10%), 50/60Hz (factory configured); 120V model requires 20 amp
Circuit Breakers	two (one for each channel): 100 and 120V models: 20 amp / 230 V models: 10 amp
Dimensions (WxHxD)	482 x 150 x 400mm (19" x 5.9" x 15.7")
Weight	30.2 kg (66.6 lbs)

SERVICE AND REPAIR

For replacement parts, service and repairs please contact the Phonic distributor in your country. Phonic does not release service manuals to consumers, and advice users to not attempt any self repairs, as doing so voids all warranties. You can locate a dealer near you at http://www.phonic.com/where/.

WARRANTY INFORMATION

Phonic stands behind every product we make with a no-hassles warranty. Warranty coverage may be extended, depending on your region. Phonic Corporation warrants this product for a minimum of one year from the original date of purchase against defects in material and workmanship under use as instructed by the user's manual. Phonic, at its option, shall repair or replace the defective unit covered by this warranty. Please retain the dated sales receipt as evidence of the date of purchase. You will need it for any warranty service. No returns or repairs will be accepted without a proper RMA number (return merchandise authorization). In order to keep this warranty in effect, the product must have been handled and used as prescribed in the instructions accompanying this warranty. Any tampering of the product or attempts of self repair voids all warranty. This warranty does not cover any damage due to accident, misuse, abuse, or negligence. This warranty is valid only if the product was purchased new from an authorized Phonic dealer/distributor. For complete warranty policy information, please visit http://www.phonic.com/warranty/.

CUSTOMER SERVICE AND TECHNICAL SUPPORT

We encourage you to visit our online help at http://www.phonic.com/support/. There you can find answers to frequently asked questions, tech tips, driver downloads, returns instruction and other helpful information. We make every effort to answer your questions within one business day.

[e-mail]

http://www.phonic.com

PHONIC

MANUAL DEL USUARIO

CONTENTS

INTRODUCCION 1

CARACTERISTICAS 1

INSTALACIÓN 1

CABLEADO DE SALIDA

PIN	CH	PIN	CH
1+	1	2+	2
1-	1	2-	2
1+	BRG+	2+	BRG-

CH2

PIN	CH	PIN	CH
1+	2	2+	NA
1-	2	2-	NA
