HSD6SG - Range hood HOOVER - Free user manual and instructions

Product Type	Range Hood (Cooker Hood)
Brand	Hoover
Model	HSD6SG
Width	60 cm (approx. 500 mm)
Installation Type	Wall Mounting or Cabinet Mounting
Ventilation Modes	Extraction (outdoor) or Recirculation (indoor) with optional carbon filter
Motor Speeds	3 speeds (Low, Mid, High) plus Off
Lighting	LED module, 1x2W, ILCOS DBS-2/65-H-120/33
Controls	Toggle switch for fan and light
Grease Filters	Metal mesh filters, washable by hand
Carbon Filter	Optional accessory for recirculation mode
Minimum Distance to Gas Hob	75 cm
Minimum Distance to Electric Hob	65 cm
Power Supply	AC 110-240V, 50/60Hz
Ducting	Horizontal or vertical outlet; no bends sharper than 90°
Noise Level	Not specified, typical for this class
Suction Power	Not specified, typical for 60 cm hood
Weight	Not specified
Energy Class	Not specified
Safety Features	Overheat protection, child safety (ages 8+), mandatory disconnect
Cleaning	Regular cleaning of stainless steel, control panel, and filters
Warranty	Standard manufacturer warranty (details not provided)

Frequently Asked Questions - HSD6SG HOOVER

What should I do if the light works but the motor does not?

Check if the fan switch is turned on. If it is on but still not working, the fan switch may be faulty. Contact the service center for assistance.

What are the minimum installation distances for this hood?

For gas hobs, the minimum distance is 75 cm; for electric hobs, it is 65 cm. These distances are measured from the hob surface to the lowest part of the hood.

How do I clean the grease mesh filters?

Remove the filters and soak them in warm water with a grease-loosening detergent for about 3 minutes. Gently brush with a soft brush, then let them dry naturally away from direct sunlight. Do not use abrasive detergents.

Can I use the hood in recirculation mode?

Yes, the hood can be used in recirculation mode with an optional activated carbon filter. The carbon filter traps odors and should be replaced every 3 to 6 months depending on usage.

How do I replace the LED light?

Disconnect the power. Remove the lighting panel by loosening the two ST4x8mm screws. Open the terminal box, disconnect the wire connector, and replace the lamp with a compatible LED module (max 1x2W, ILCOS DBS-2/65-H-120/33). Reassemble in reverse order.

Why is oil leaking from the hood?

Oil leakage can occur if the one-way valve or outlet is not tightly sealed. Remove the valve and seal with sealant. Also check the connection between chimney and cover for leaks.

What should I do if the hood is not sucking properly?

Ensure the distance between the hood and hob is correct (65-75 cm). Check that the ducting has no sharp bends and that the filters are clean. If the problem persists, contact service.

Is it safe to use a steam cleaner on the hood?

No, a steam cleaner should not be used. Use only mild detergents and soft cloths for cleaning. Harsh chemicals or abrasive products can damage the surface and void the warranty.

How do I dispose of the hood at the end of its life?

Do not dispose of it with household waste. Follow local regulations for WEEE (Waste Electrical and Electronic Equipment). Take it to a designated collection point or return it to the retailer when buying a new appliance.

What is the maximum negative pressure allowed when the hood operates with other appliances?

When the hood is used simultaneously with other fuel-burning appliances, the negative pressure in the room must not exceed 4 Pa (4 x 10⁻⁵ bar). Ensure adequate ventilation.

USER MANUAL HSD6SG HOOVER

Line drawing of a kitchen air conditioner unit with ventilation grilles and ventilation slots (no text or symbols)

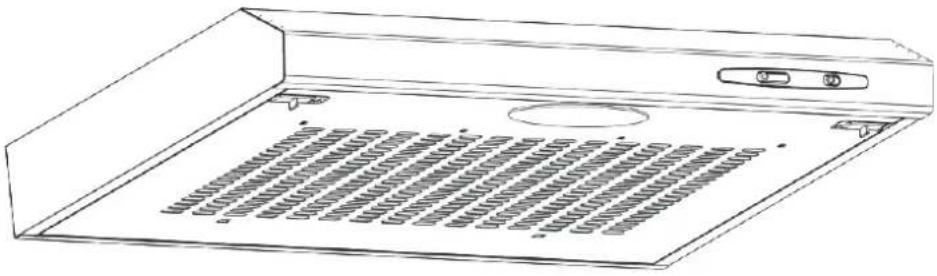

Cooker Hood Instruction Manual

Line drawing of a kitchen air conditioner cover with ventilation slots and ventilation unit (no text or symbols)

Content

1....Safety instructions
2....Installation
3....Start using your cooker hood
4....Troubleshooting
5....Maintenance and cleaning
6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
  ● Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

Illustration of a steaming lamp with flames and a cross mark, no text or symbols present

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Illustration of a laboratory setup with a lamp, beaker, and heating device (no text or symbols)

Always to do:

● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.

● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.

● All installation work must be carried out by a competent person or qualified electrician.

● Please dispose of the packing material carefully. Children are vulnerable to it.

● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.

- When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be: Gas cookers: 75 cm Electric cookers: 65 cm Coal or oil cookers: 75 cm

● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.

●Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
● There is a fire risk if cleaning is not carried out in accordance with the instructions
● Regulations concerning the discharge of air have to be fulfilled.
● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
● Cleaning and user maintenance shall not be made by children without supervision.
- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
● WARNING: Danger of fire: do not store items on the cooking surfaces.
●A steam cleaner is not to be used.
● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION

A. INSTALLATION (Wall Mounting)

(1) Decide the location of the holes for fixing the cooker hood.
(2) Mount the cooker hood on the wall by 4 screws (4x 30mm)

60cm cooker hood

Technical line drawing of a mechanical component with internal components and a close-up view showing rotation (no text or symbols)

B. INSTALLATION (Cabinet Mounting)

(1) Mount the cooker hood on the cabinet by 4 screws (4x35mm), 4 nuts and flat washers. Fix the hood on the cabinet by passing 4 screws and 4 flat washers from the top of cabinet to the cooker hood. Then inside the cooker hood, pass the flat washer and nut through the screw to hold the appliance on the cabinet.

60cm cookerhood

Noise: There are 2 methods for ventilation, including 'horizontal ventilation' and 'vertical ventilation'. Please pay attention to the ventilation method when installation.

Horizontal ventilation: See Pic 4A, please use the cover to seal the outlet on the top, then the air can be vented from back.

Vertical ventilation: See Pic 4B, please use the cover to seal the outlet on the back, then the air can be vented from top.

Technical line drawing of a rectangular electronic component with circular holes and mounting feet (no text or symbols)

Simple line drawing of a rectangular box with a circular hole and an arrow indicating direction (no text or symbols)

Pic 4

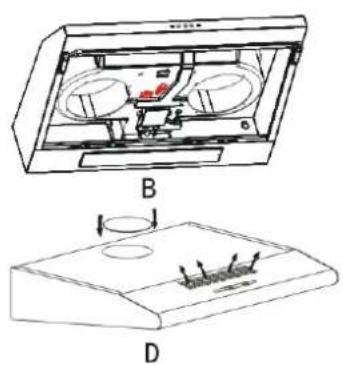

Air ventilation setting

Outdoor air ventilation: Turn the adjuster to outdoor position(pic.5A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet.

Indoor air ventilation: Turn the adjuster to indoor position (pic.5B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet.

Technical line drawing of a device with two circular components and labeled sections A and C (no text or symbols present)

Technical line drawing of a kitchen appliance with labeled components (B and D), showing internal compartments and mounting holes (no text or symbols beyond labels)

Pic 5

WARNING:

➢ For safety reason, please use only the same size of fixing or mounting screw which recommended in this instruction manual.➢ Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

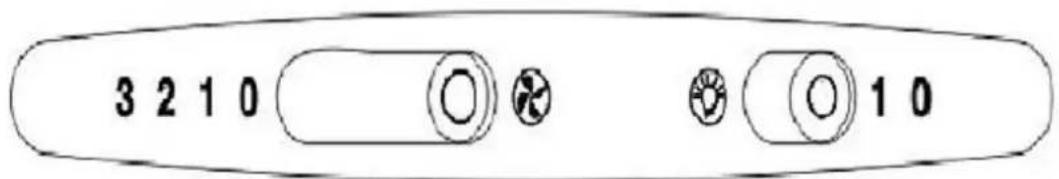

Toggle switch

There are 3 speeds for the motor and on off switch for the lamp.

Slide the switch for operation.

Motor Operation

0- off

1- Low Power Setting
2- Mid Power Setting
3- High Power Setting

Light Operation

0- Off
1- On

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Abstract line drawing of a stylized animal figure with a cat-like head, set against a circular background (no text or symbols)

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

• Removing the filters as the instruction in Pic.below.
• Please do not use abrasive detergent for it will damage the hood.

Diagram of a solar panel array with arrows indicating direction (no text or symbols)

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

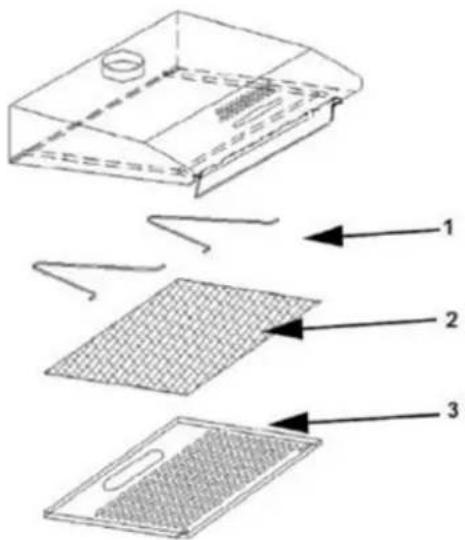

CARBON FILTER Optional accessory supplied only with some models

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

1. Remove the grease filter.
2. Place the carbon filter onto the grease filter.
3. Fix the properly-adjusted carbon filter with the small steel wire.
4. Reinstall the grease filter.
5. Use carbon filters for recirculation mode only.

1 Steel hanger

2 Carbon filter

3 Grease filter

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch of f t he electricity s upply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

Changing the light:

*Before changing the lights, make sure that the appliance is plugged off.
*Use the screw driver loosen the ST4*8MM self tapping screw (2pcs) from the lighting panel, take out the lighting fixture. Open the terminal box that connected with the wire, disconnect the wire connector and replace the lamp.

• ILCOS D code for this lamp is: DBS-2/65-H-120/33
• LED modules -rectangle lamp
• Max wattage: 1x2 W
  – Voltage range: AC 110-240V
• Dimensions:

Technical line drawing of a rectangular electronic component with mounting holes and side brackets (no text or symbols)

ENVIRONMENTAL PROTECTION:

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.
