Product Type	Car Audio Component Speaker System
Speaker Configuration	2-Way (Woofer + Tweeter + External Crossover)
Woofer Size	5.25 inches (130 mm)
Tweeter Size	1 inch (25.4 mm)
System Impedance	4 Ohms
Sensitivity	89 dB (2.83V/1m)
Frequency Response	80 Hz - 23 kHz (±3 dB)
Power Handling (RMS)	100 Watts
Power Handling (Peak)	400 Watts
Recommended Amplifier Power	50W RMS per channel minimum
Crossover Type	Passive, Linkwitz-Riley 4th order
Crossover Frequency	3.5 kHz
Crossover Slope	24 dB/octave
Woofer Mounting Depth	2.375 inches (61 mm)
Woofer Cut-Out Diameter	4.625 inches (118 mm)
Tweeter Mounting Depth	1 inch (25.4 mm)
Tweeter Cut-Out Diameter	1.75 inches (45 mm)
Total System Weight (approx.)	2.2 lb (1.0 kg)
Safety Warning	Listening at high volume can cause hearing loss. Use low volume while driving.
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquids or solvents.
Warranty	Register via included card; keep sales receipt for warranty service.

Frequently Asked Questions - Kappa Perfect 5.1 INFINITY

What amplifier power is recommended for the Kappa Perfect 5.1?

A two-channel amplifier with at least 50W RMS per channel is recommended for optimal performance.

Can I bi-amp the Kappa Perfect 5.1 with an electronic crossover?

No, bi-amping is not recommended. The passive crossover uses a Linkwitz-Riley 4th order alignment that cannot be replicated with electronic crossovers.

What are the best mounting locations for the speakers?

Kick-panel mounting provides the best staging and imaging. Alternative locations include doors and dash (refer to figures in the manual).

How do I mount the tweeter?

The tweeter can be surface-mounted or flush-mounted. See Figures 5 and 6 in the manual for details.

Can I mount the woofer in a factory speaker location?

Yes. The P5.1 woofer can be mounted in factory locations, but the grille and grille tray should be omitted.

How do I adjust the crossover?

The crossover has jumpers for adjustment (see Figure 11). Settings include flat, +5dB, and -4dB tweeter level.

What is the frequency response of the system?

The system response is 80 Hz - 23 kHz (±3 dB).

Is professional installation required?

While the manual provides general instructions, professional installation is recommended if you lack experience with mechanical and electrical procedures.

What safety precautions should I take?

Avoid listening at high volumes to prevent hearing loss and to remain aware of traffic sounds.

How do I clean the speakers?

Clean with a dry, soft cloth. Do not use water or cleaning agents.

USER MANUAL Kappa Perfect 5.1 INFINITY

Abstract geometric line drawing with concentric circles and radial lines, no text or symbols present

kappa series perfect5.1 perfect6.1 instructions

Infinity

IMPORTANT

Installation of automotive stereo components can require extensive experience performing a variety of mechanical and electrical procedures. Although these instructions explain how to install a Kappa Perfect component system in a general sense, they do not show the exact installation method for your particular car. If you feel you may not have the necessary tools or experience, ask your authorized Infinity car audio dealer about professional installation options.

WARNING

Playing loud music in your automobile can permanently damage your hearing as well as hinder your ability to hear traffic. We recommend listening at low volume while driving. Infinity accepts no liability for hearing loss, bodily injury or property damage resulting from use or misuse of this product.

A NOTE ABOUT SYSTEM PERFORMANCE

For the best performance possible, the Kappa Perfect components should be used with a two-channel amplifier with output power of at least 50W RMS per channel. The passive crossover contains impedance-compensating circuitry and has been computer-optimized for the flattest possible frequency response with the tweeter flush-mounted, on-axis with the listener. The combined responses of the speakers and passive crossover constitute a 4th-order Linquitz-Riley acoustic alignment and cannot be duplicated with any electronic crossover currently available for car audio use. Consequently, bi-amping a Perfect component system with an electronic crossover is not recommended.

SPEAKER PLACEMENT

Figures 1–4 show possible speaker placements in the order of most desirable to least desirable. Kick-panel mounting will provide the best staging and imaging in most vehicles.

Figure 1. Mounting the woofer and tweeter in the kick panels

Figure 2. Mounting the woofer in the door and the tweeter in the kick panel

Figure 3. Mounting the woofer and tweeter in the doors

Figure 4. Mounting the woofer in the door and the tweeter in the dash

TWEETER INSTALLATION

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

Figure 5. Surface-mounting the tweeter

Figure 6. Flush-mounting the tweeter

WOOFER INSTALLATION

Technical line drawing of a mechanical component with three circular parts and internal features (no text or symbols)

Mounting the P5.1 or P6.1 woofer where there is no factory speaker location. To mount the P5.1 in factory locations, omit the grille and grille tray.

Technical diagram of a mechanical bearing assembly (no text or labels)

Figure 8.
Mounting the P6.1 woofer in standard 5-1/4" holes (in many Japanese and American automobiles)

Technical illustration of a mechanical assembly with concentric circles and shafts, no text or symbols present

Figure 9.
Mounting the P6.1 woofer in 165mm holes (in many European and American automobiles)

ELECTRICAL CONNECTIONS AND CROSSOVER ADJUSTMENTS

Figure 10.
Connecting the speakers and the amplifier to the crossover

Line drawing of a rectangular electronic device with a circular logo and control buttons at the bottom (no text or symbols)

Figure 11.
Adjust the crossover using the jumpers provided

DECLARATION OF CONFORMITY

CE

We, Harman Consumer International

1. route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility, that the products

described in this owner's manual are in compliance

with technical standards:

EN 50081.1-1999

EN 50082-1:1997

Lutz Uphoff

Harman Consumer International

Chateau-du-Loir, France 4/01

SPECIFICATIONS

System P6.1 P5.1

Frequency Response: 75Hz - 23kHz, ±3dB 80Hz - 23kHz, ±3dB

Power Handling: 100W RMS, 400W Peak 100W RMS, 400W Peak

Nominal Impedance: 4 Ohms 4 Ohms

Sensitivity: 90dB 89dB

Crossover Frequency: 3.5kHz, 24dB/oct. 3.5kHz, 24dB/oct.

Linquitz-Riley Acoustic Linquitz-Riley Acoustic

Thiele and Small Parameters

	P6.1 Woofer P5.1 Woofer Tweeter
Revc:	3.45	3.38	3.31
Levc:	0.37	0.21	0.02
Sd:	0.0113	0.0100	0.0005
BL:	6.37	3.94	1.99
Vas:	11.43	9.29	0.0016
Cms:	630.36	654.21	44
Mms:	18.94	10.41	0.3064
Mmd:	18.25	9.84	0.3
Fs:	46.05	60.98	1370.65
Qms:	3.44	3.60	5.4
Qes:	0.465	0.87	2.19
Qts:	0.41	0.701	1.56
Top-Plate Thickness:	9/32" (7.115mm)	9/32" (7.115mm)	N/A
Voice-Coil Length:	9/16" (14mm)	9/16" (14mm)	N/A
Voice-Coil Diameter:	1-1/2" (38.1mm)	1-1/4" (31.75mm)	1" (25.4mm)
Xmax:	1/8" (3.44mm)	1/8" (3.44mm)	N/A
Mounting Depth:	2-3/4" (70mm)	2-3/8" (61mm)	1" (25.4mm)
Cut-Out Diameter:	5-1/16" (129mm)	4-5/8" (118mm)	1-3/4" (45mm)

SYSTEM RESPONSE CURVES

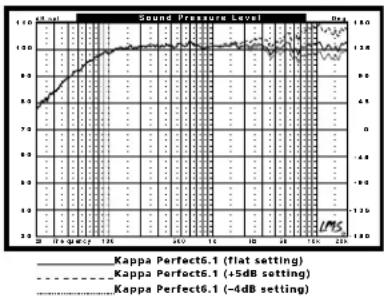

Perfect6.1 System Frequency Response

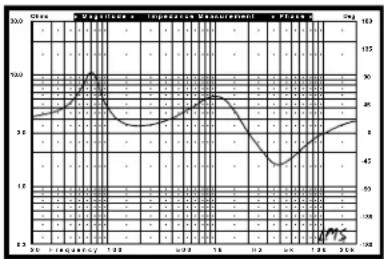

Perfect6.1 System Impedance

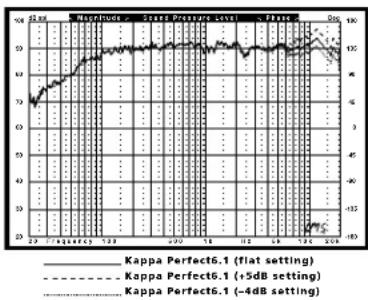

Perfect5.1 System Frequency Response

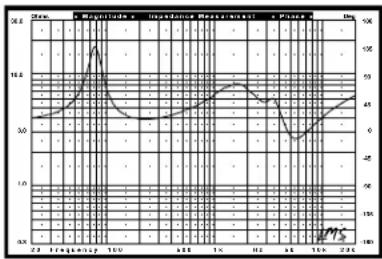

Perfect5.1 System Impedance
