Product Type	Component Tweeter
Brand	Infinity
Model	Kappa 10.1T
Impedance	4 ohms
Power Handling (RMS)	50 watts per channel (with crossover)
Frequency Response (±3dB)	8kHz – 22kHz
Sensitivity	89dB @ 2.83V, 1W
Crossover Frequency	8000Hz
Cut-out Diameter (Tweeter)	1-5/8" (42 mm)
Mounting Options	Surface-mount, flush-mount (I-Mount™)
Included Accessories	Crossover (in shrink tube), surface-mount plate
Cleaning	Grilles with slightly damp cloth; no solvents
Safety Warnings	Risk of hearing damage; professional installation recommended
Installation Notes	Disconnect battery; check clearances; wear eye protection
Compliance	CE (EN 50-001-1/2009, etc.)

Frequently Asked Questions - Kappa 10.1T INFINITY

What is the power handling of the Kappa 10.1T tweeter?

The Kappa 10.1T handles up to 50 watts per channel when used with the included crossover. Exceeding this or driving an amplifier into clipping can damage the speaker.

Do I need to use the supplied crossover?

Yes, you must use the crossover supplied with the tweeter. It is contained in the shrink tube attached to the speaker wire. Do not remove it, and ensure correct orientation.

Can I mount the tweeter in a door panel?

Yes, but check clearance with the window and mechanism throughout its travel. Also ensure the tweeter does not interfere with window crank or power window parts.

How do I flush-mount the tweeter using I-Mount?

Aim the tweeter at the listening position by adjusting its angle in the cup, tighten the small metal locking nut, then rotate the assembly and tighten the large plastic locking nut behind the panel.

What is the frequency response of the Kappa 10.1T?

The frequency response is 8kHz – 22kHz (±3dB). It is designed for high-frequency reproduction as a component tweeter.

How can I clean the grilles and tweeter?

Use a slightly damp cloth on the grilles. Do not use any cleaners or solvents on the grilles or the speaker drivers.

What is the sensitivity of this tweeter?

The sensitivity is 89dB measured at 2.83V and 1 watt, which allows reasonable volume with low amplifier power.

What should I do before installation?

Disconnect the negative battery terminal, turn off all audio systems, wear protective eyewear, and check for fuel lines, brake lines, and wiring behind mounting surfaces.

Can I use the tweeter without an external amplifier?

Yes, the tweeter can produce reasonable volume with head unit power, but adding an amplifier improves dynamic range and overcomes road noise.

What is the cut-out diameter for flush mounting?

The required cut-out diameter is 1-5/8 inches (42 mm). Use the provided template for precise cutting.

USER MANUAL Kappa 10.1T INFINITY

IMPORTANT: Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install a Kappa 10.1t in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the experience, do not attempt the installation yourself, but instead ask your Authorized Infinity Car Audio Dealer about professional installation options.

WARNING: Playing loud music in an automotive environment can permanently damage your hearing, as well as hinder your ability to hear traffic. The maximum volume levels achievable with Infinity speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. Infinity accepts no liability for hearing loss, bodily injury or property damage as a result of use or misuse of this product.

SPEAKER PLACEMENT

Kappa speakers are designed to be easily installed in stock speaker locations. While mounting your speakers in the original factory locations will, in most cases, provide excellent sonic results, the best sounding installations are a result of adherence to a few basic rules.

• For the most spacious stereo image, place the left and right speakers as far apart as possible.
• For enhanced center image, place the left and right speakers so they are equidistant from the listening position. If possible, try to place them as far forward as possible.
• For best treble response when tweeters are flush mounted in the I-Mount™, aim them at the listening position by adjusting the tweeter angle in the cup, tightening the small metal locking nut behind the assembly and rotating the entire assembly in its mounting location before tightening the large plastic locking nut behind the panel (see Fig 1, p.2).

INSTALLATION WARNINGS AND TIPS

• Always wear protective eyewear when using any tools.
• Turn off all audio systems and other electrical devices before you start. Disconnect the (−) negative lead from your vehicle's battery.
• Keep components in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
• Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
• At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.

CAUTION: In some cars, fuel tanks may be located directly beneath the rear deck. Check for adequate speaker basket clearance before considering this location!

• Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.
• For door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.
• If mounting components elsewhere, check for clearance around rear-deck torsion bars, glove box or other structural elements.
• Do not mount components where they will get wet.

TWEETER INSTALLATION

Diagram of a mechanical assembly with two components and screw fasteners, no text or symbols present

Figure 1. After installing the surface-mount plate, push the Kappa10.1t onto the mounting plate to snap it into place.

Figure 2. Use this template to flush-mount a Kappa10.1t tweeter.

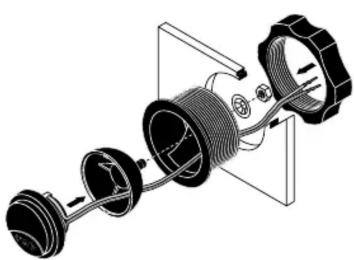

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Figure 3. After the Kappa10.1t tweeter is in its cup, hand tighten the nut to flush-mount the assembly on the panel.

NOTE: You must use the crossover supplied with the 10.1t tweeter. The crossover is contained in the shrink tube attached to the included speaker wire. If you must shorten the wire, do not remove the crossover, and be sure that its orientation is correct (indicated by position of connectors).

A NOTE ON POWER HANDLING

The Kappa 10.1t tweeters are designed to produce reasonable volume levels with little amplifier power. However, the addition of an amplifier to drive your speakers and a subwoofer will enhance the dynamic range of your system, and help overcome the ambient noise in a moving vehicle. Kappa speakers are designed to handle the power of a dedicated amplifier driven at or below its rated power. If an amplifier is driven far above its rated power, the output signal will "clip," and the additional power present in a clipped signal can damage any speaker. Distorted or "fuzzy" sound from your speakers is an indication that the amplifier has exceeded its rated power, and you should reduce the volume level.

GENERAL CARE

The loudspeaker grilles may be cleaned with a slightly damp cloth. Do not use any cleaners or solvents on the grilles or the speaker drivers.

SPECIFICATIONS

10.1t

Type: Component Tweeter

Speaker Impedance: 4 ohms

Power Handling: 50 watts per channel

with crossover

Frequency

Response (± 3dB): 8kHz \~ 22kHz

Sensitivity: 89Hz @ 2.83 V, 1 watt

Crossover Frequency: 8000Hz

Cut-out Diameter Tweeter: 1-5/8" (42 mm)

Infinity Systems, Inc. • 250 Crossways Park Drive,

Woodbury, NY 11797 USA • [phone] • FAX [phone]

DECLARATION OF CONFORMITY

CE

We, Infinity Systems A/S

Kongevejen 194B

DK-3460 Birkerød

DENMARK

declare in own responsibility, that the product described in this owner's manual is in compliance with technical standards: EN 50-001-1/2009

EN 50 081-1/1992 EN 50 082-1/3.1995

2017.02.2020

Steen Michaelsen

Infinity Systems A/S
