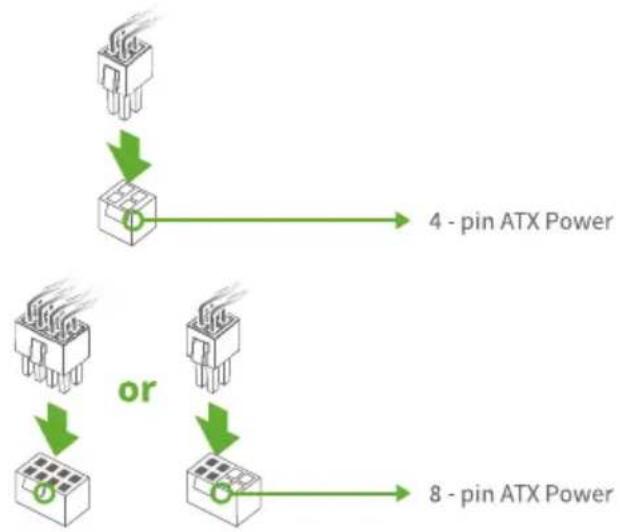

Power Connectors	24-pin ATX, 2 x 8-pin ATX 12V
Fan Headers	1 x CPU fan, 1 x CPU OPT (water cooling), 4 x system fan
RGB Headers	4 x Addressable RGB (5V), 1 x RGB (12V), 1 x I/O LED
BIOS Features	Dual BIOS (switchable), SMART BIOS Update button, BIO-Flasher, BIOS Update Utility
Operating System Support	Windows 10/11 (64-bit)
Software	VALKYRIE AURORA Utility (overclocking, fan control, RGB), Vivid LED DJ, BIOScreen, GT Touch, Auto Installer

Frequently Asked Questions - X870E VALKYRIE BIOSTAR

What CPU is compatible with the BIOSTAR X870E VALKYRIE?

The motherboard supports AMD Ryzen 9000, 8000, and 7000 series processors for Socket AM5. Check www.biostar.com.tw for the latest CPU support list.

How much memory can I install, and what type?

You can install up to 192 GB of DDR5 memory in 4 DIMM slots. Supports speeds up to 8000+ MHz (OC). Use non-ECC modules (8/16/24/32/48 GB per stick). For dual-channel, populate slots DDR5_A2 and DDR5_B2 first.

How do I update the BIOS?

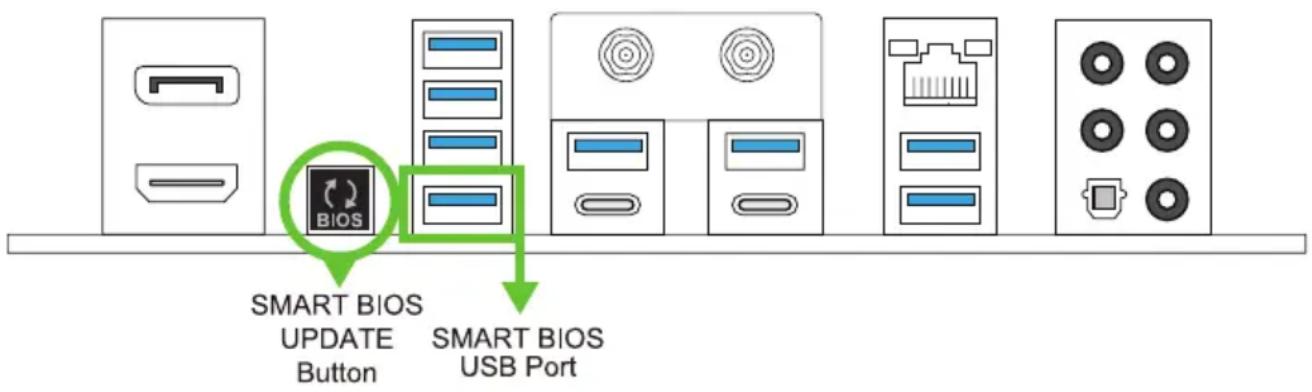

You can update via SMART BIOS Update (USB button on rear I/O), BIOSTAR BIO-Flasher (during POST), or BIOS Update Utility in Windows. Always back up your current BIOS and load optimized defaults after update.

How do I install an M.2 SSD?

First, remove the M.2 cooling heatsink if installed. Insert the M.2 SSD at a 30-degree angle into the slot, then press down and secure with the rotary latch. For PCIe 5.0 M.2 (M2M_CPU), use slot nearest CPU.

What RAID configurations are supported?

RAID 0, 1, and 10 are supported for SATA storage devices. M.2 NVMe drives do not support RAID via chipset. Use the UEFI BIOS or AMD RAID utility to configure arrays.

How do I use the USB4/Thunderbolt ports?

The two USB4 Type-C ports on the rear I/O support up to 40 Gbps and DisplayPort 1.2. They are fully compatible with Thunderbolt 4 devices. Ensure your CPU supports integrated graphics for video output.

How to control RGB lighting?

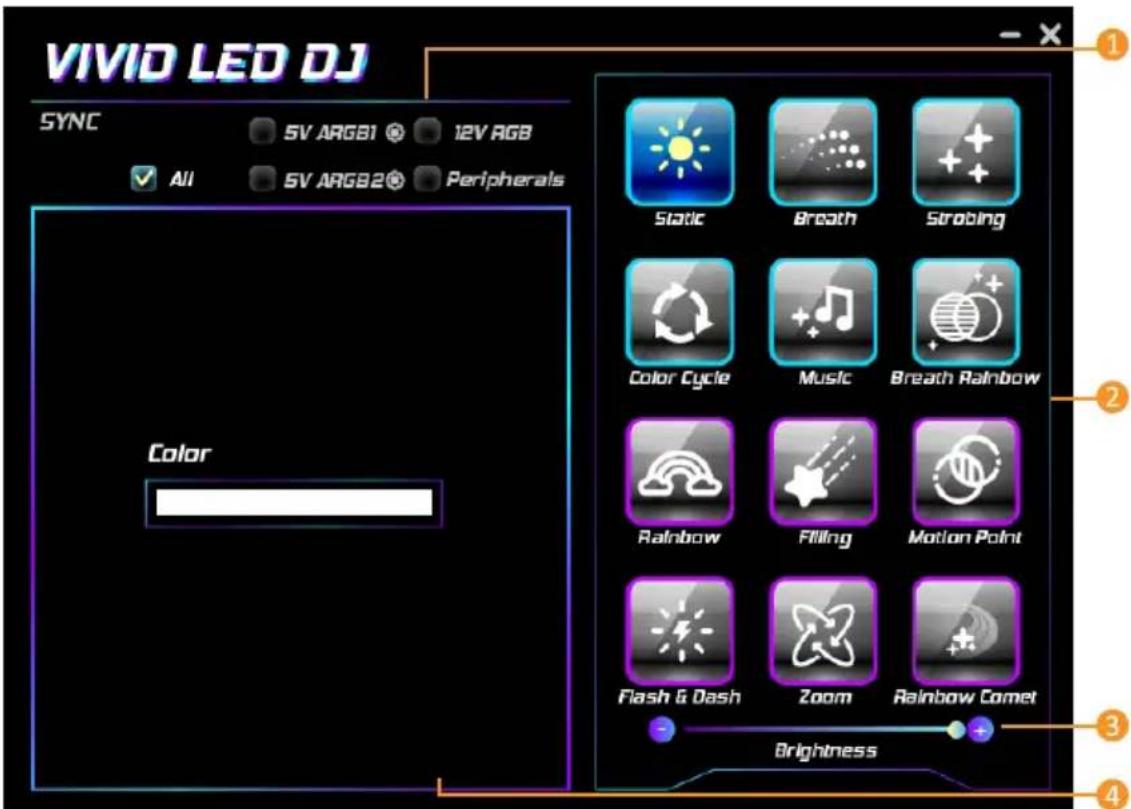

Use the Vivid LED DJ software or the VALKYRIE AURORA Utility. Connect your RGB devices to the 5V ARGB (WS2818B) or 12V RGB (5050) headers, then select effects like static, breathing, rainbow, or music sync.

What is the GT Touch utility for?

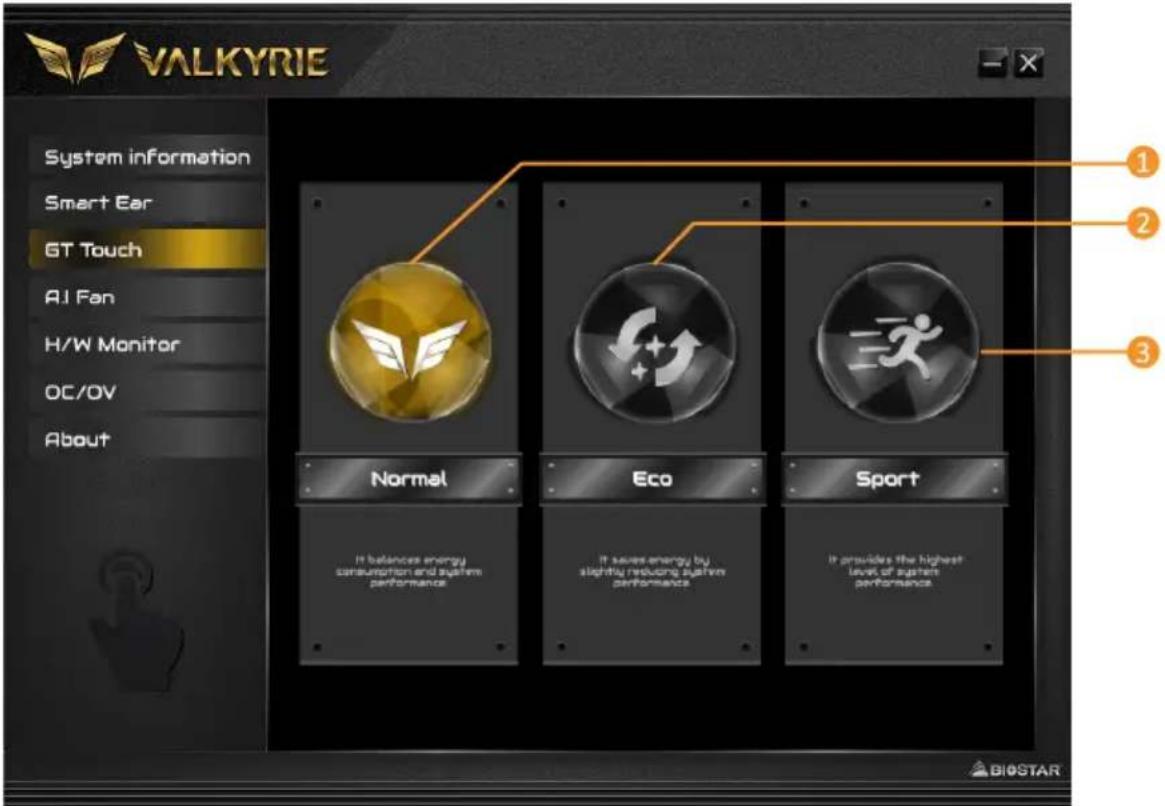

GT Touch allows you to switch between Normal, ECO, and Sport modes in Windows. Normal balances performance and power, ECO saves energy, and Sport maximizes performance.

Front panel audio not working?

Ensure the front audio cable is connected to the F_AUDIO header. If using an AC'97 chassis, disable 'Front Panel Jack Detection' in the audio driver. The rear audio jacks are automatically muted when headphones are plugged in front.

What should I do if the system won't boot after installing new hardware?

First, clear CMOS by pressing the CLR_CMOS button on the motherboard for 1-2 seconds. If using a new CPU, ensure you have performed 'AC power off + clear CMOS'. Also check all power connectors (24-pin and 2x8-pin CPU).

USER MANUAL X870E VALKYRIE BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Avoidance of electrostatic operation rules

Electrostatic discharge can seriously damage your device, Take special care when handling motherboards and other system devices, Avoid unnecessary contact with system parts on the motherboard, Keep working in an antistatic environment, Avoid electrostatic discharge that may damage the motherboard, When inserting or removing devices in your chassis. Make sure the power is off. The manufacturer is not responsible for any damage to the motherboard caused by failure to comply with this operating rule or failure to comply with safety regulations.

Warning

Motherboards are easily damaged by electrostatic discharge. Please follow the operating rules.

Table Of Contents

Chapter 1: Introduction......4

1.1 Before You Start 4
1.2 Specifications....5
1.3 Rear Panel Connectors....7
1.4 Motherboard Layout 8

Chapter 2: Hardware installation....9

2.1 Install Central Processing Unit (CPU) 9
2.2 Install a Heatsink.... 10
2.3 Connect Cooling Fans 12
2.4 Install System Memory 13
2.5 Expansion Slots 15
2.6 Jumper & Switch Setting 20
2.7 Headers & Connectors.... 21
2.8 Buttons, Indicators & LEDs.... 28

Chapter 3: UEFI BIOS & Software....29

3.1 UEFI BIOS Setup 29
3.2 BIOS Update.... 29
3.3 Motherboard SMART BIOS Update.... 29

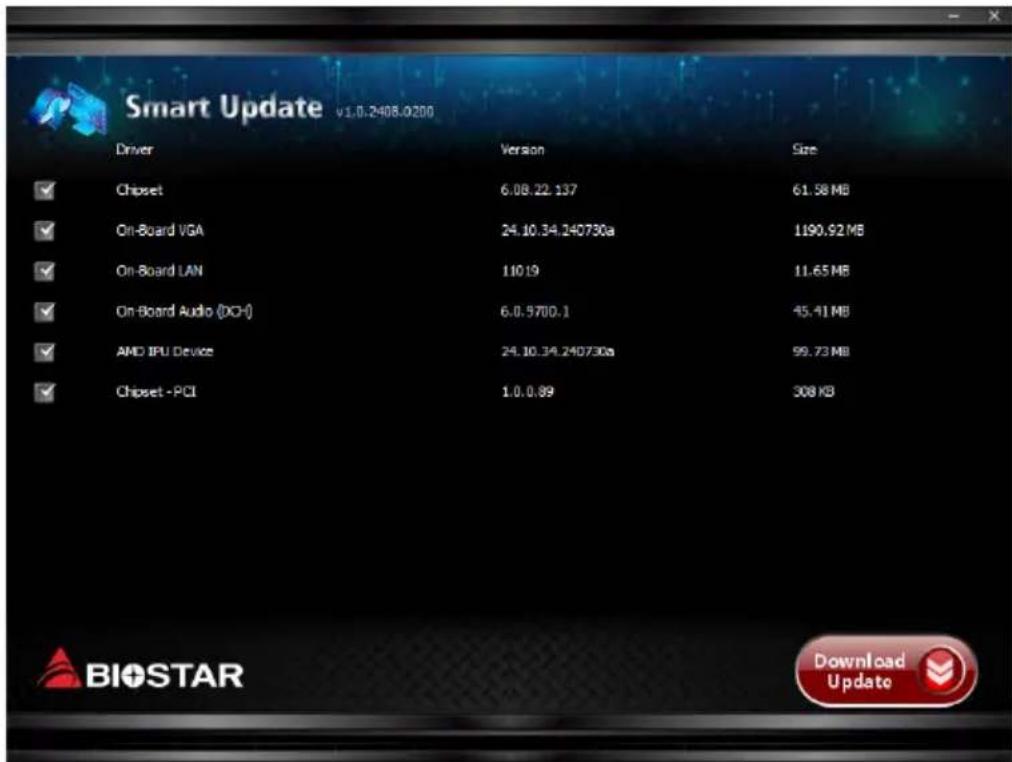

3.4 Software.... 34

Chapter 4: Useful help.... 46

4.1 Auto Installer 46
4.2 RAID Functions.... 49

APPENDIX: Specifications in Other Languages 51

Arabic....51
German....53
Spanish 55
Thai 57
Japan....59

Chapter 1: Introduction

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

• Prepare a dry and stable working environment with sufficient lighting.
• Always disconnect the computer from power outlet before operation.
- Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

- Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

- Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.

- Keep the computer from dangerous area, such as heat source, humid air and water.

- The operating temperatures of the computer should be 0 to 45 degrees Celsius.

- To avoid injury, be careful of: Sharp pins on headers and connectors Rough edges and sharp corners on the chassis Damage to wires that could cause a short circuit

1.2 Specifications

Specifications
CPU Support	Socket AM5 support AMD® RyzenTM 9000 / 8000 / 7000 series ProcessorsSupport for future AMD Ryzen processors with BIOS update* Please refer to www.biostar.com.tw for CPU support list.
Chipset AMD® X870E
Memory	AMD Ryzen 9000 / 8000 / 7000 Series Processors:Supports Dual Channel DDR5 - 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 56004 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB MemoryEach DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module* Please refer to www.biostar.com.tw for Memory support list.
Storage	— Total support 4 x M.2 Socket and 6 x SATA (6Gb/s) portsAMD Ryzen 9000 / 8000 / 7000 Series Processors1 x M.2 (Key M) Socket (M2M_CPU):Supports M.2 Type 2280 SSD moduleSupports PCIe 5.0 x4 (128Gb/s)/ 4.0 x4 (64Gb/s) - NVMe SSDAMD X870E Chipset1 x M.2 (Key M) Socket (M2M_SB_1):Support M.2 Type 2260/2280/22110 SSD moduleSupport PCIe 4.0 x 4 (64Gb/s) - NVMe SSD1 x M.2 (Key M2) Socket (M2M_SB_2):Support M.2 Type 2260/2280 SSD moduleSupport PCIe 4.0 x 4 (64Gb/s) - NVMe SSD1 x M.2 (Key M2) Socket (M2M_SB_3):Support M.2 Type 2280 SSD moduleSupport PCIe 4.0 x 4 (64Gb/s) - NVMe SSD6 x SATA III Connector (6Gb/s):Supports AHCI & RAID 0, 1, 10* When using module on M.2 Socket (M2M_SB_3), the PCI-E slot (PCIEX16_3) will be disabled.
RAID Supports RAID 0, 1, 10 for SATA storage devices
LAN	Realtek® RTL8125D10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	Realtek® ALC1220-VB27.1 Channels, High Definition Audio, Hi-Fi (Front)
USB	2 x USB 4.0/Thunderbolt Type-C Port with (DP)(2 on rear I/O)1 x USB 3.2 (Gen2x2) Type-C port(1 via internal headers)10 x USB 3.2 (Gen2) port(8 on rear I/O and 2 via internal header)4 x USB 2.0 port(4 via internal headers)
Expansion Slots	AMD Ryzen 9000/ 7000 Series Processors1 x PCIe 5.0 x16 Slot (x16 or x8/x8 mode)1 x PCIe 5.0 x16 Slot (x8 mode)* When you use both, PCIEX16_1 and PCIEX16_2 will run x8 mode.AMD Ryzen 8700G & 8600G (Phoenix1) Processors1 x PCIe 4.0 x16 Slot (x8 mode)1 x PCIe 4.0 x16 Slot (disable)* Only support PCIEX16_1 for x8 mode, PCIEX16_2 will be disable.AMD Ryzen 8500G & 8300G (Phoenix2) Processors1 x PCIe 4.0 x16 Slot (x4 mode)1 x PCIe 4.0 x16 Slot (disable)* Only support PCIEX16_1 for x4 mode, PCIEX16_2 will be disable.AMD X870E Chipset1 x PCIe 4.0 x16 Slot (x4 mode)
Rear I/Os	2 x WiFi Antenna Port1 x HDMI Port (HDMI2.1 FRL 2.1 FRL mode)1 x DP Port (DP1.4)2 x USB 4.0/Thunderbolt Type-C Port with (DP)8 x USB 3.2 (Gen2) Port1 x 2.5 Gigabit LAN port5 x Audio Jack1 x S/PDIF_Out1 x SMART BIOS UPDATE Button1 x SMART BIOS USB Port
Internal I/Os	6 x SATA III Connector (6Gb/s)1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module1 x USB 3.2 (Gen2x2) Type-C Port(each header supports 1 USB 3.2 (Gen2x2) Type-C port)1 x USB 3.2 (Gen2) Header(each header supports 2 USB 3.2 (Gen2) ports)2 x USB 2.0 Header(each header supports 2 USB 2.0 ports)2 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x CPU water cooling connector (CPU_OPT)4 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Internal Stereo Speaker Header1 x Clear CMOS Switch Button1 x Power Switch Button1 x Reset Switch Button1 x COM Port Header1 x TPM Header1 x Thunderbolt Header4 x LED Header (5V)1 x LED Header (12V)1 x IO LED Header* M.2 (E Key) Wi-Fi card is not provided
Form Factor ATX Form	Factor, 244 mm x 305 mm
OS Support	Windows 10(64bit) / Windows 11(64bit)Biostar reserves the right to add or remove support for any OS with or without notice.

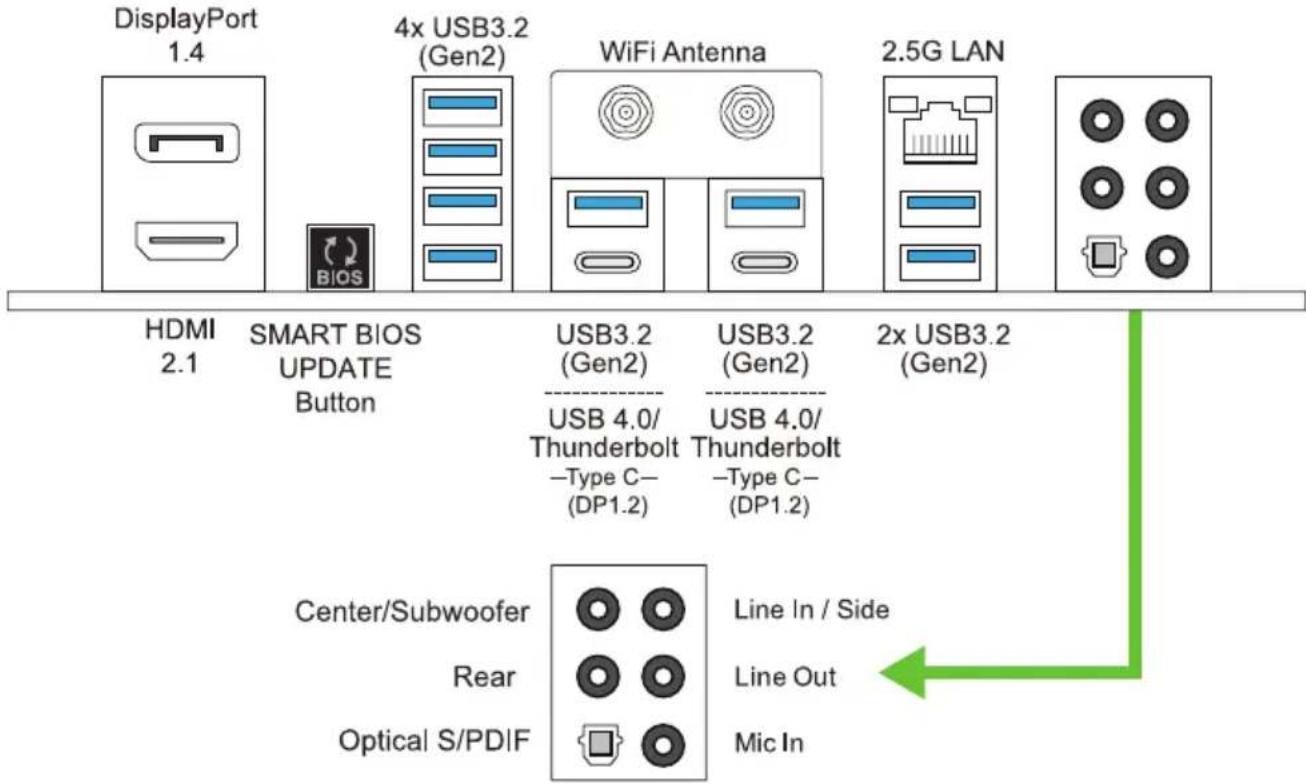

1.3 Rear Panel Connectors

Note

» Maximum resolution

HDMI: 7680x4320@60Hz, compliant with HDMI 2.1 FRL 2.1 FRL mode

DP: 7680x4320@60Hz, compliant with DP 1.4

» TYPE-C DP1.2: 4096x2304@60Hz, compliant with DP 1.2
» The mainboard supports 4 onboard display outputs at same time.
» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» The WiFi antenna port allows you to connect to the E Key module and use the WiFi & Bluetooth function.

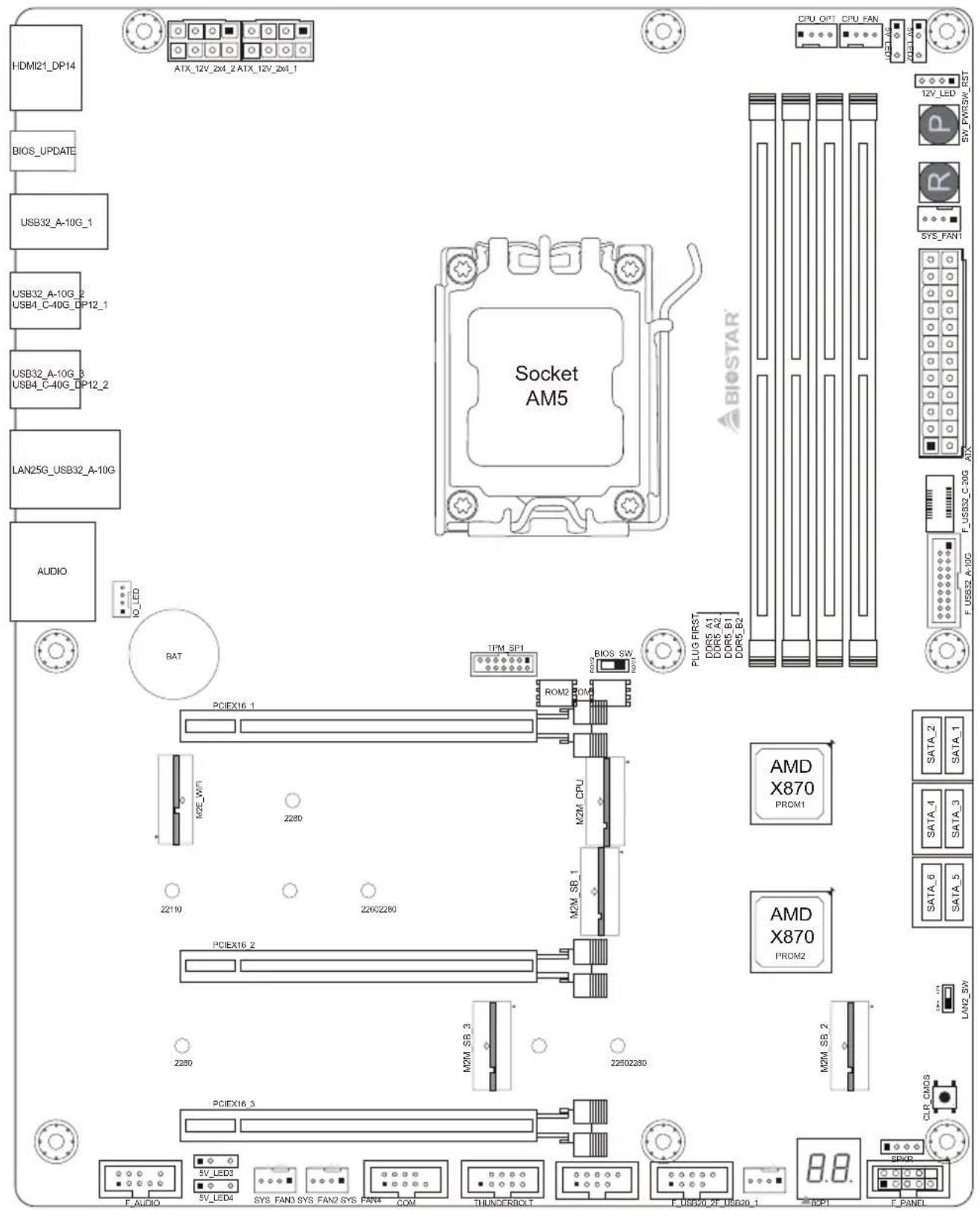

1.4 Motherboard Layout

Note

» ■ represents the 1st pin.

Chapter 2: Hardware installation

2.1 Install Central Processing Unit (CPU)

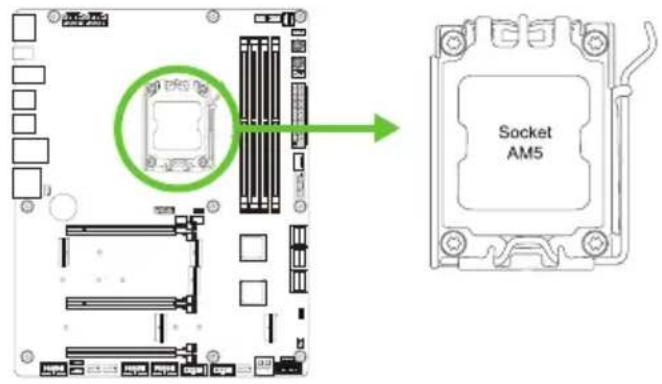

Step 1: Locate the CPU socket on the motherboard

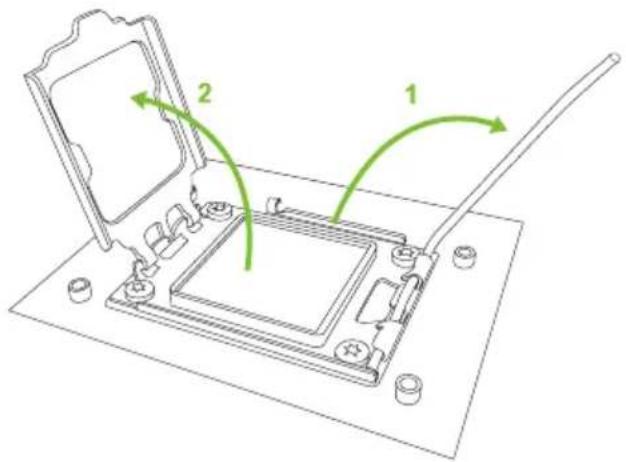

Step 2: Open Lever and then load plate using finger tab.

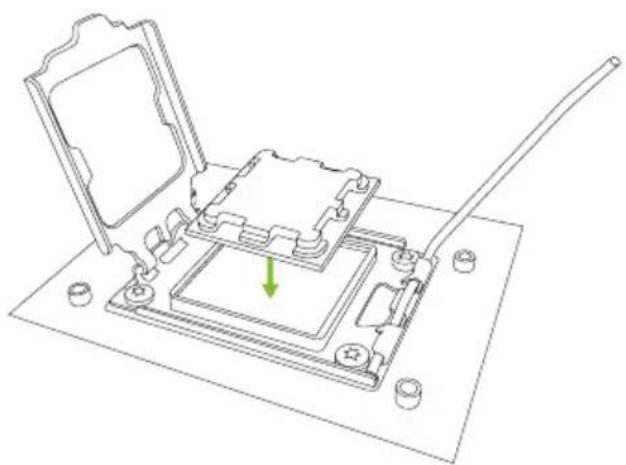

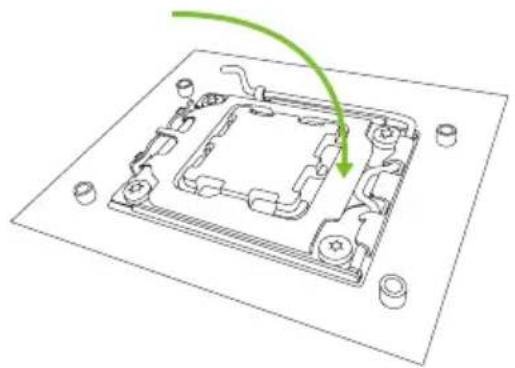

Step 3: Align and seat processor package on socket.

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

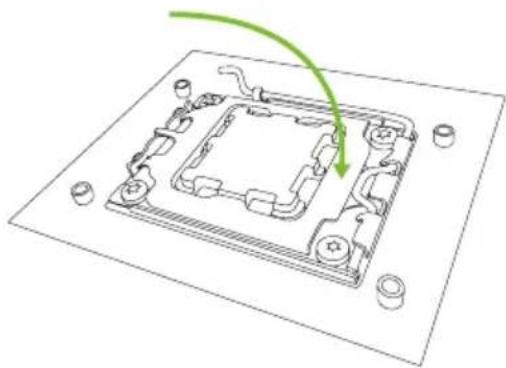

Step 4: Rotate lever and press lever finger, then locked the position.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Note

» Ensure that you install the correct CPU designed for AM5 socket.
» Every time you replace and install the CPU, you must do "AC power off + clear CMOS".

2.2 Install a Heatsink

Step 1: Place the heatsink and fan assembly onto the retention frame. Match the heatsink clip with the socket mounting-lug. Hook the spring clip to the mounting-lug.

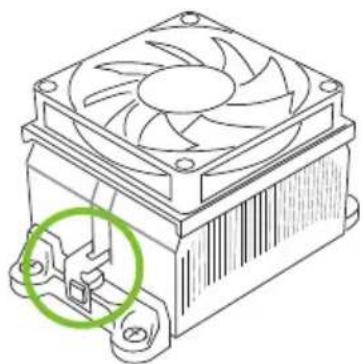

Technical line drawing of a CPU fan with a highlighted internal component (no text or symbols)

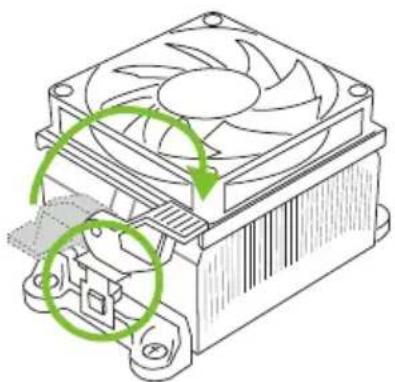

Step 2: On the other side, push the retention clip straight down to lock into the plastic lug on the retention frame, and then press down the locker until it stops.

Technical line drawing of a computer CPU fan with green arrows indicating rotation or move (no text or symbols)

Step 1: Remove the heatsink and fan assembly bracket on the motherboard and keep the cooler backplane under the motherboard.

Technical line drawing of a mechanical component with three views (top, front, side) and green circular markers on top and sides (no text or symbols)

Step 2: Place the heatsink and fan assembly on top of the installed CPU and make sure that the fan cable is closest to the CPU fan connector. Please refer diagram to the following screw into the screw hole in the order shown.

Note

» Do not forget to connect the CPU fan connector.
» For proper installation, please kindly refer to the installation manual of your CPU heatsink.

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

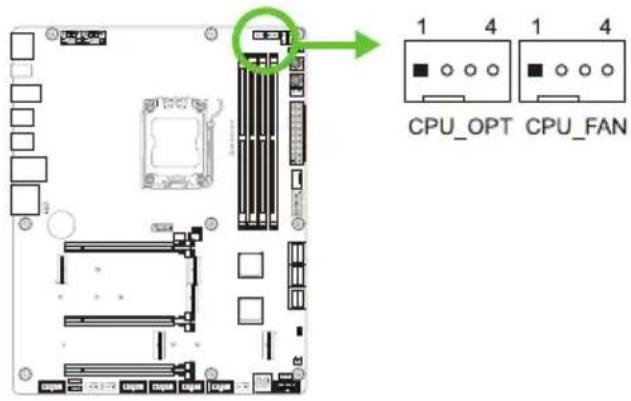

CPU_FAN/ CPU_OPT: CPU Fan Header

PWM Mode DC Mode
Pin	Assignment Pin Assignment
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4 Speed Control Signal 4 NC

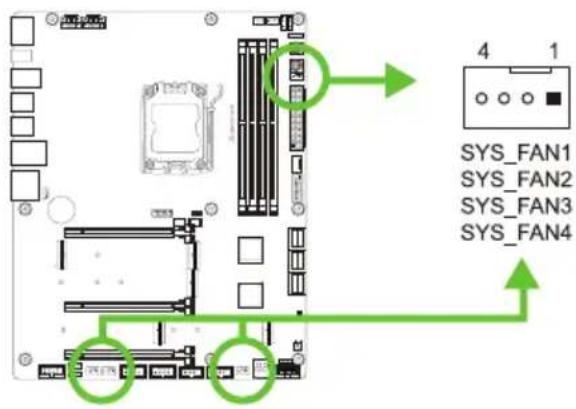

SYS_FAN1/ SYS_FAN2/ SYS_FAN3/ SYS_FAN4: System Fan Header

PWM Mode DC Mode
Pin Assignment Pin Assignment
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4 Speed Control Signal 4 NC

Note

» CPU_FAN, CPU_OPT, SYS_FAN1/2/3/4 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).

» CPU Fan Header (CPU_OPT): Support water cooling fan and CPU fan.

2.4 Install System Memory

DDR5 Modules

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

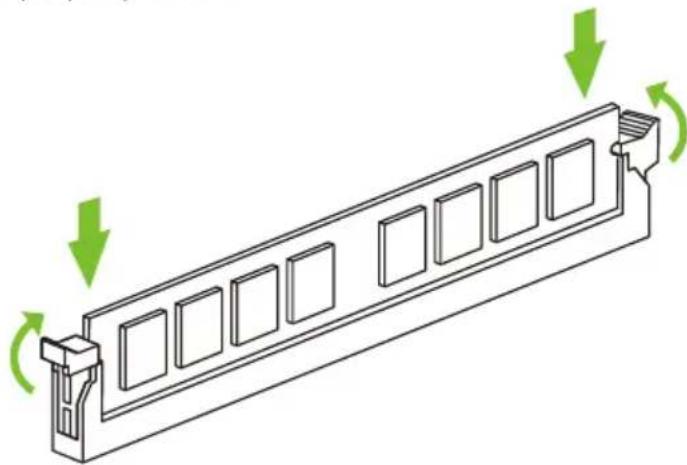

Technical line drawing of a computer RAM module with scroll and clamping mechanism (no text or symbols)

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with green directional arrows indicating motion or force (no text or symbols)

Note

» If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Location DDR5 Module Total Memory Size
DDR5_A1 8GB/16GB/24GB/32GB/48GB	Max is 192GB.
DDR5_A2 8GB/16GB/24GB/32GB/48GB
DDR5_B1 8GB/16GB/24GB/32GB/48GB
DDR5_B2 8GB/16GB/24GB/32GB/48GB

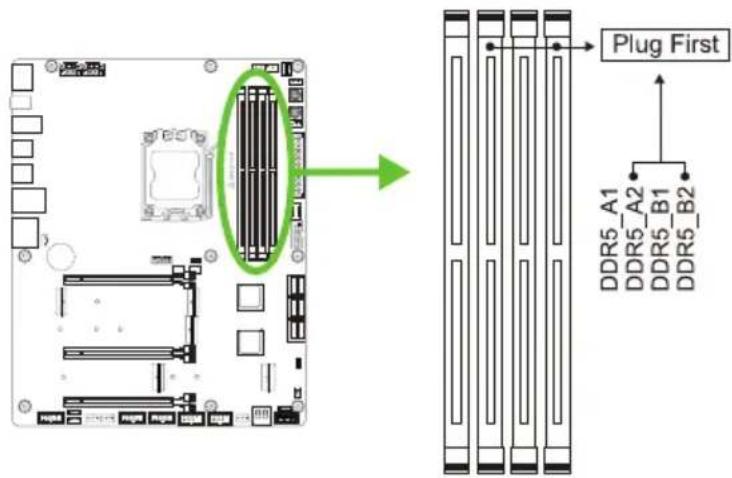

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O

(O means memory installed, X means memory not installed.)

Note

» When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.
» When installing a single memory, we recommend that you install it in the DDR5_B2.

2.5 Expansion Slots

PCIEX16\_1: PCI-Express Gen5 x16 Slots (x16 or x8 mode)

• PCI-Express 5.0 compliant.
- The maximum bandwidth of the PCIe slot is 128GB/s in total.

PCIEX16\_2: PCI-Express Gen5 x16 Slots (x8 mode)

• PCI-Express 5.0 compliant.
- The maximum bandwidth of the PCIe slot is 64GB/s in total.

Note

AMD Ryzen 9000/7000 Series Processors

1 x PCIe 5.0 x16 Slot (x16 or x8/x8 mode)
1 x PCIe 5.0 x16 Slot (x8 mode)
* When you use both, PCIEX16_1 and PCIEX16_2 will run x8 mode.

AMD Ryzen 8700G & 8600G (Phoenix1) Processors

1 x PCIe 4.0 x16 Slot (x8 mode)
1 x PCIe 4.0 x16 Slot (disable)
* Only support PCIEX16_1 for x8 mode, PCIEX16_2 will be disable.

AMD Ryzen 8500G & 8300G (Phoenix2) Processors

1 x PCIe 4.0 x16 Slot (x4 mode)
1 x PCIe 4.0 x16 Slot (disable)
* Only support PCIEX16_1 for x4 mode, PCIEX16_2 will be disable.

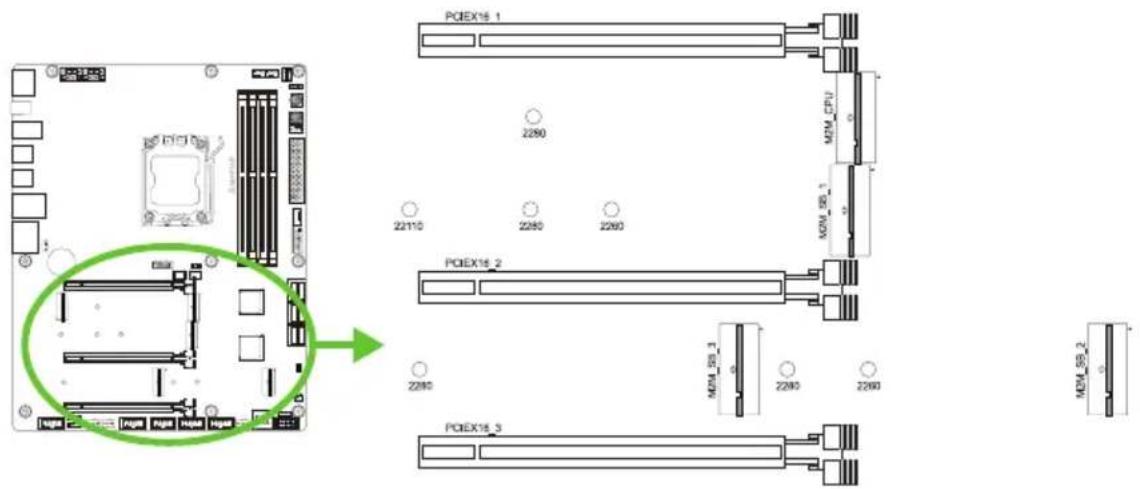

PCIEX16\_3 : PCI-Express Gen4 x16 Slots (x4 mode)

• PCI-Express 4.0 compliant.
- The maximum bandwidth of the PCIe slot is 64GB/s in total.

M2M\_CPU: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 5.0x 4 (128Gb/s) - NVMe SSD

M2M\_SB\_1: M.2 (M Key) Socket

• Supports M.2 Type 2260/2280/22110 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe SSD

M2M\_SB\_2: M.2 (M Key) Socket

• Supports M.2 Type 2260/2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe SSD

M2M \_SB\_3: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe SSD

Note

» When using module on M.2 Socket (M2M_SB_3), the PCI-E slot (PCIEX16_3) will be disabled.

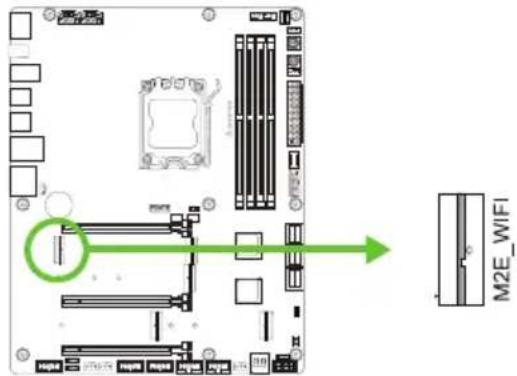

M2E-WIFI: M.2 (E Key) Socket (M.2 (E Key) Wi-Fi card is not provided)

• Support M.2 (E Key) socket module.

• Supports WiFi/ Bluetooth module.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card's instruction document before install the expansion card into the computer.
• Remove your computer's chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
• Secure the card's metal bracket to the chassis back panel with a screw. (This step is only for installing a VGA card.).
• Replace your computer's chassis cover.
  • Power on the computer, if necessary, change BIOS settings for the expansion card.
  • Install related driver for the expansion card.

Note

» Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise the screw may be damaged.

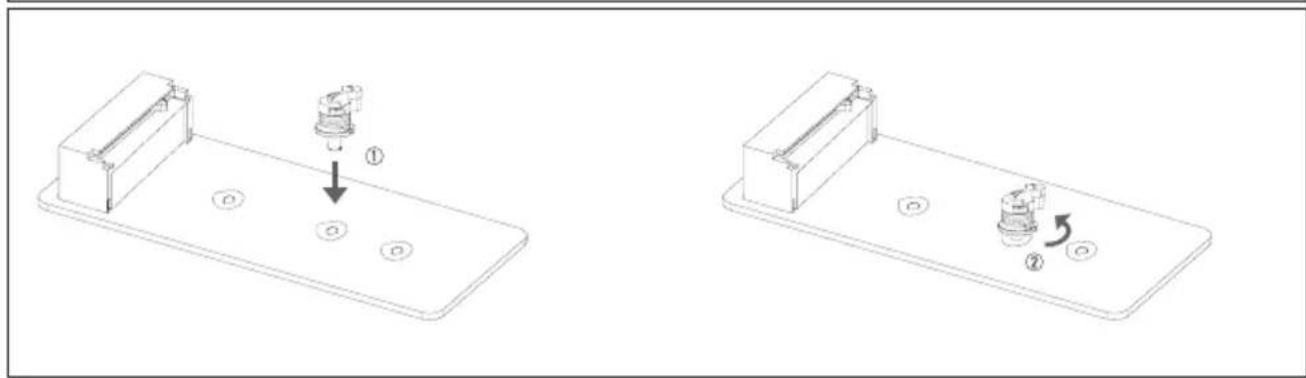

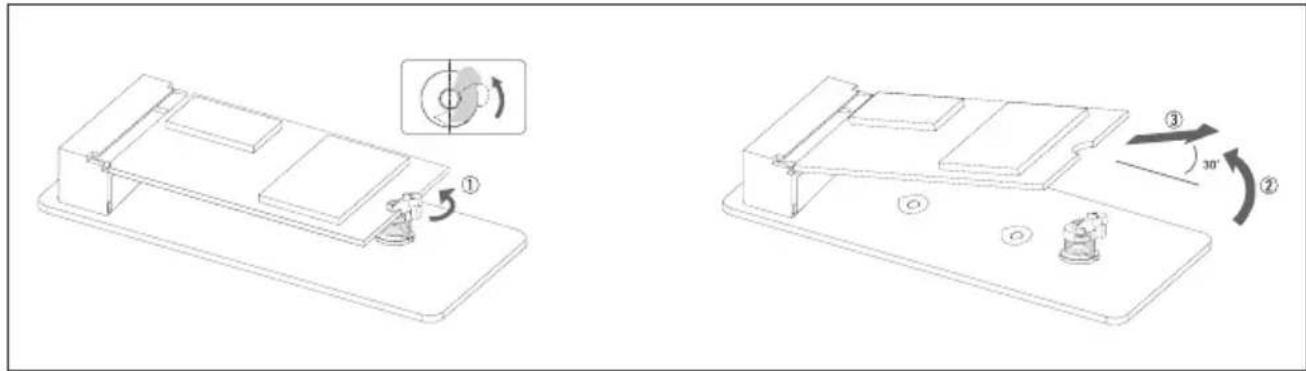

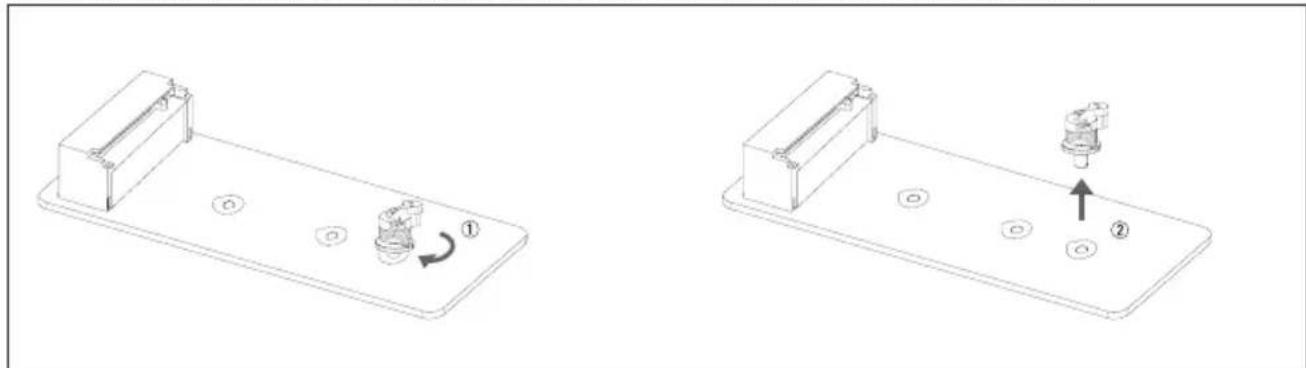

Installing M.2 Rotary Auto Anchor

Installing an M.2 SSD card

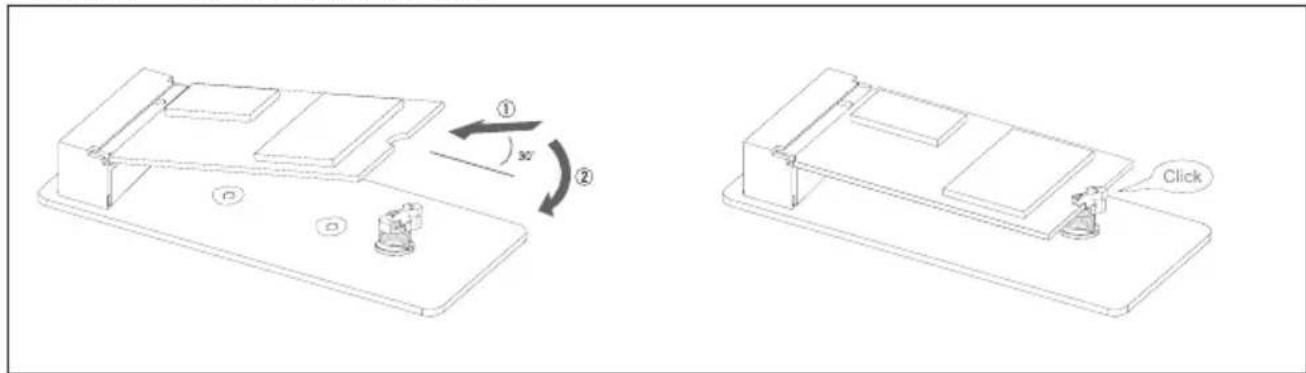

1. Insert the M.2 SSD into the M.2 slot at a 30-degree angle.
2. Lower the M.2 SSD into position.
3. Latch "Click" to secure M.2 SSD.

Remove the M.2 SSD card

1. Unlatch the M.2 latch.
2. Lift the M.2 SSD.
3. Move the M.2 SSD out of the M.2 slot at a 30-degree angle.

Technical line drawing of a mechanical assembly with numbered components and rotation indicators (no text or symbols)

"M.2 Rotary Auto Anchor" replacement hole position: removal and installation

Technical line drawing of two mechanical components with numbered parts and rotation indicators (no text or symbols)

Technical line drawing showing two mechanical assembly states with labeled components (no text or symbols)

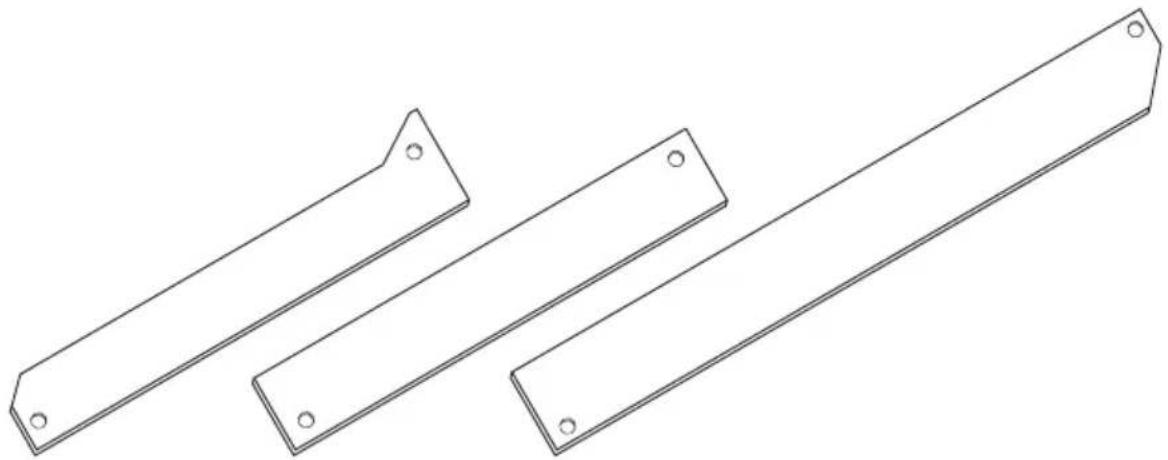

Install M.2 COOLING Heatsink

Steps of Removing the M.2 COOLING Heatsink:

Three identical 3D line drawings of rectangular metal brackets with mounting holes (no text or symbols)

3D diagram of a rectangular electronic component with mounting holes and green directional arrows indicating orientation (no text or symbols)

3D illustration of a mechanical component with a green arrow indicating downward motion (no text or symbols)

3D rendering of a rectangular electronic component with two mounting holes and two green arrows indicating direction (no text or symbols)

Step 1:

Before installing the M.2 SSD card, remove the two screws on the heat sink, and then remove the heat sink.

Step 2:

Insert M.2 SSD card onto the M.2 slot and screw it onto the motherboard.

Step 3:

After installing the M.2 SSD card, place the M.2 COOLING Heatsink over the M.2 slot and fasten the screws to fix the heatsink onto the motherboard.

Note

» Please follow the installation instructions of M.2 COOLING Heatsink and remove the M.2 COOLING Heatsink to install the M.2 SSD card onto your motherboard.

2.6 Jumper & Switch Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin 1-2 closed

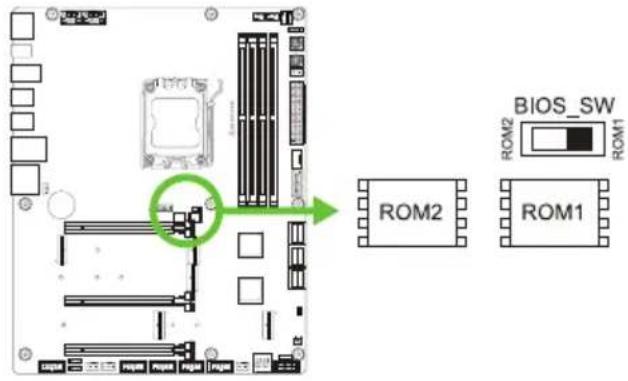

SW\_BIOS

The Dual BIOS Switch allows you to choose one of the BIOS ROMs (ROM1/ ROM2) for boot up.

Main BIOS (ROM1) Enabled

The LED indicator (ROM1_LED) will light and the Main BIOS is enabled.

Backup BIOS (ROM2) Enabled

The LED indicator (ROM2_LED) will light and the Backup BIOS is enabled.

Note

» Do not use this switch when your system is power-on.
» Before flashing BIOS ROMs, please make sure this switch is set to the BIOS ROM which you want to update.

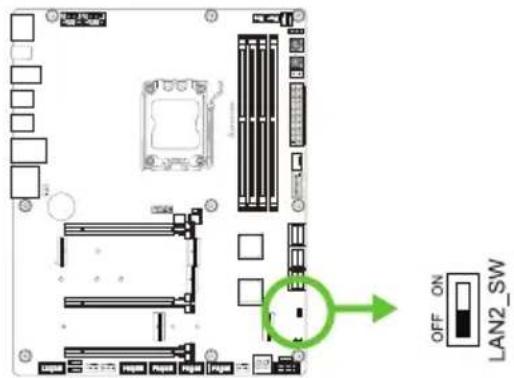

LN2\_SW

When the LN2 mode is ON, the CPU will run at its lowest frequency (e.g., 500MHz) to avoid unexpected system shutdown.

OFF

ON

Note

» If you want to work with the LN2 mode, please be note and try to adjust the LN2 switch from OFF to ON after go to Windows operating system.
» We are not responsible for the damages or risks caused by overclocking.

2.7 Headers & Connectors

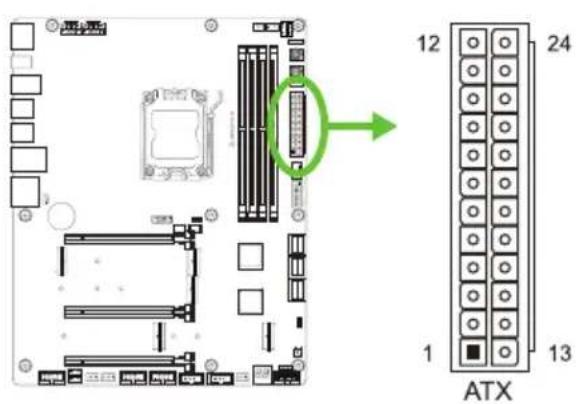

ATX: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

Pin	Assignment	Pin A	Assignment
13	+3.3V 1 +3.3V
14	-12V 2 +3.3V
15	Ground 3 Ground
16	PS_ON 4 +5V
17	Ground 5 Ground
18	Ground 6 +5V
19	Ground 7 Ground
20	NC 8 PW_OK
21	+5V 9 Standby Voltage+5V
22	+5V 10 +12V
23	+5V 11 +12V
24	Ground 12 +3.3V

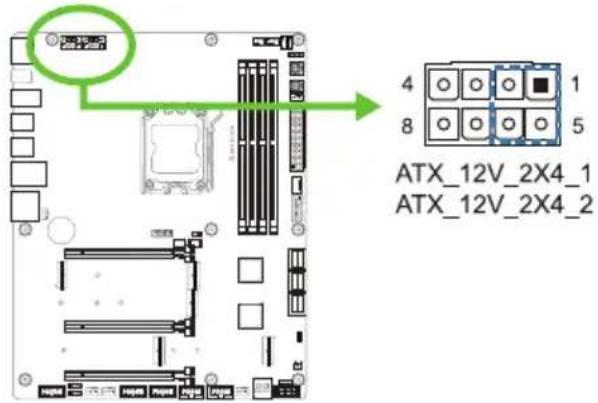

ATX\_12V\_2X4\_1/2: ATX Power Source Connector

The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please plug it into Pin 1-2-5-6 of ATXPWR2.

Pin Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground

Note

» Before you power on the system, please make sure that both ATX_12V_2X4_1/ATX_12V_2X4_2 connectors have been plugged-in.
» Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

ATX Power Connection

24-pin ATX Power: The main power supply connector is located along the edge of the board next to the DIMM slots. Firmly plug the power supply cable into the connector and make sure it is secure.

4 or 8-pin ATX Power: The 4 or 8-pin ATX 12V power connector is used to provide power to the CPU. Align the pins to the connector and press firmly until seated.


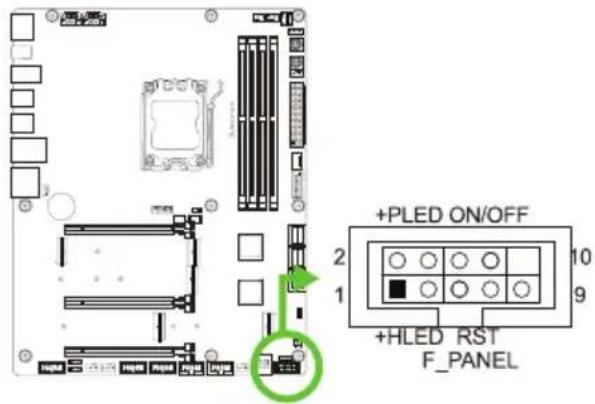

F\_PANEL: Front Panel Header

This 10-pin header includes Power-on, Reset, HDD LED, Power LED connection.

Pin	Assignment Function	Pin	Assignment Function
1 HDD LED(+)		HDD	2 Power LED (+)	PowerLED
3 HDD LED(-) 4 PowEDED (-)
5 Ground		ResetGround	6 Power Button	Power-OnButton
7 Reset Control 8 Ground
9 NC NC 10 Key Key

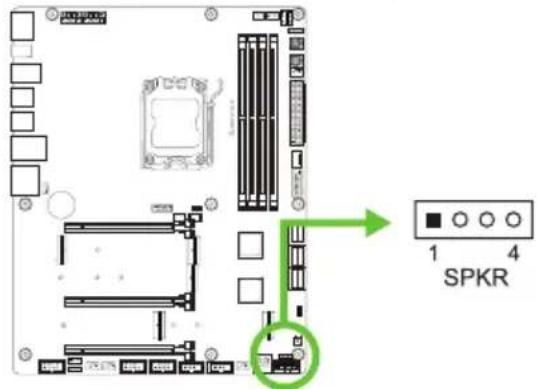

SPKR: Chassis Speaker Header

Please connect the chassis speaker to this header.

Pin	Assignment
1 +5V
2 N/A
3 N/A
4 Speaker

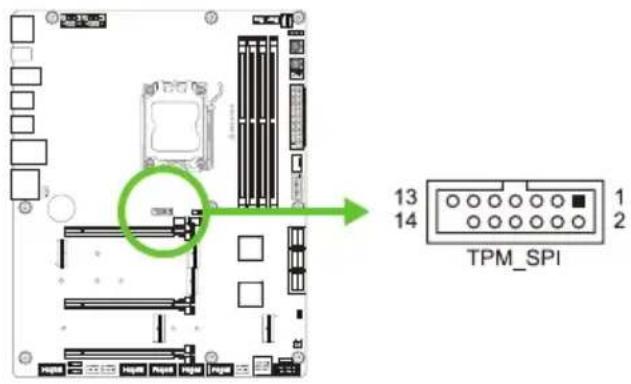

TPM\_SPI: Trusted Platform Module Header

This header allows you to store cryptographic keys that protect information.

Pin	Assignment	Pin	Assignment
1	+1.8V	2	SPI_PIRQ
3	TPM_RST#	4	TPM_CS
5	N/A	6	N/A
7	+1.8V	8	GND
9	N/A 10 SPI_CLK
11	SPI_MISO 12	SPI_MOSI
13	N/A 14 KEY

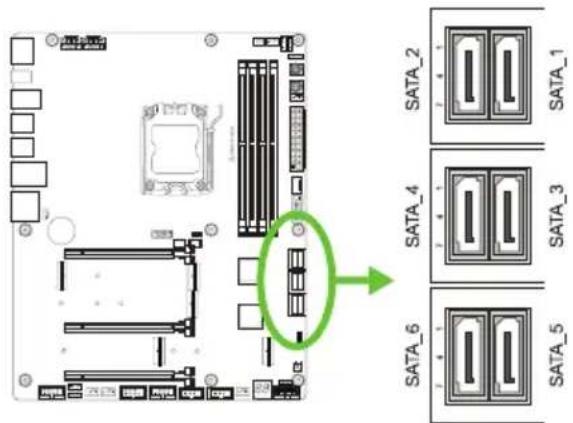

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4/ SATA\_5/ SATA\_6: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

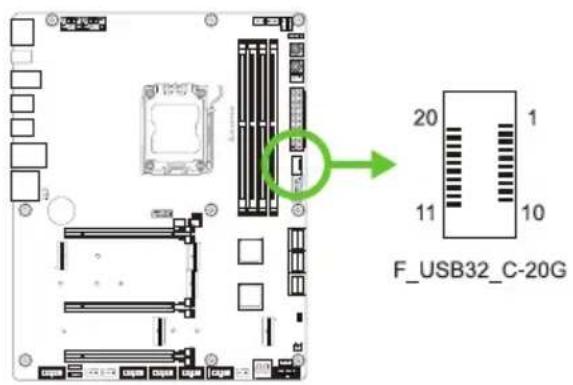

F\_USB32\_C-20G: Header for USB 3.2 (Gen2x2) Ports at Front Panel

This USB type-C header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment Pin		Assignment
1 VBUS 11 VBUS
2 SSTX1+ 12 SSTX2+
3 SSTX1- 13 SSTX2-
4 Ground 14 Ground
5 SSRX1+ 15 SSRX2+
6 SSRX1- 16		SSRX2-
7 VBUS 17 Ground
8 CC1 18		D-
9 SBU1 19		D+
10	SBU2	20 CC2

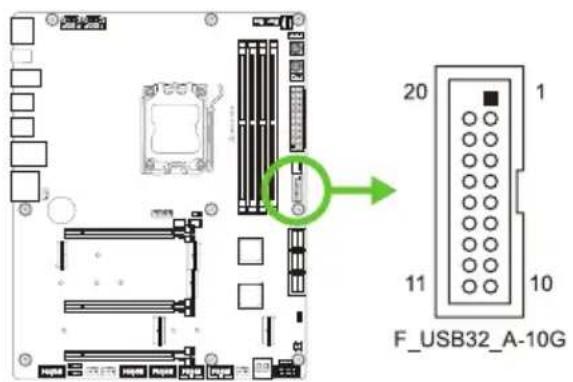

F\_USB32\_A-10G: Header for USB 3.2 (Gen2) Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin	Assignment Pin	Assignment
1 VBUS0 11 D2+
2 SSRX1-	12 D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2-
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2-
8 D1-	18 SSRX2-
9 D1+	19 VBUS1
10	ID	20 Key

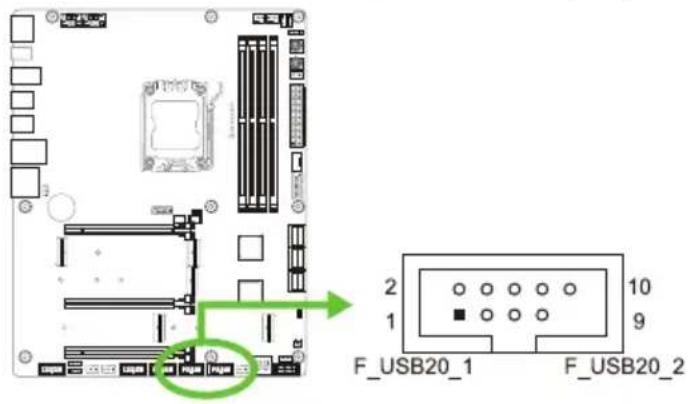

F\_USB20\_1/ F\_USB20\_2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

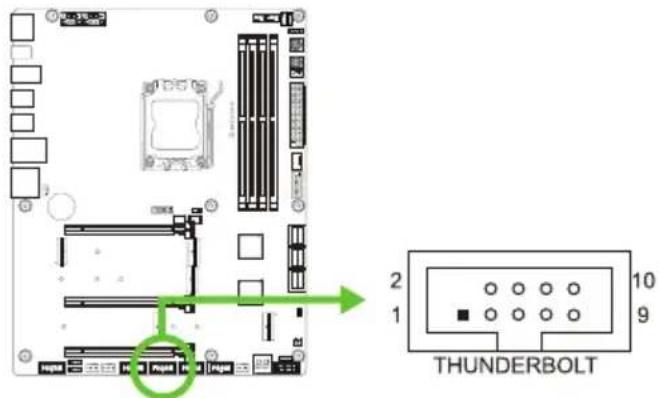

THUNDERBOLT: Thunderbolt Header

This header allows user to add additional Thunderbolt ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 Force Power

2 Key

3 CIO Plug Event

4 SMB_DATA_MAIN

5 SLP_S3_N

6 SMB_CLK_MAIN

7 SLP_S5_N

8 3V3_AIC_PD_INT#

9 GND

10 GND

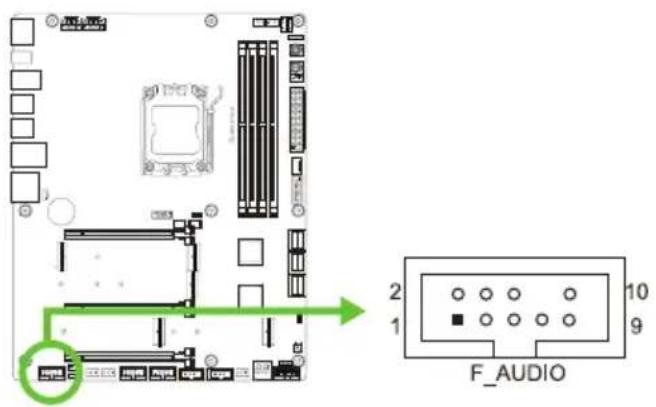

F\_AUDIO: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD.

HD Audio

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

Note

» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.

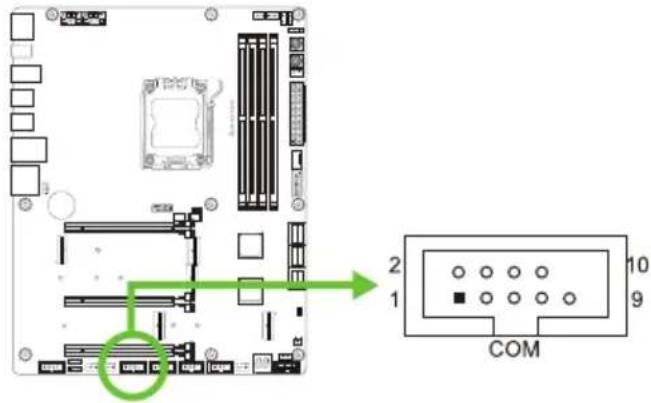

COM: Serial Port Connector

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

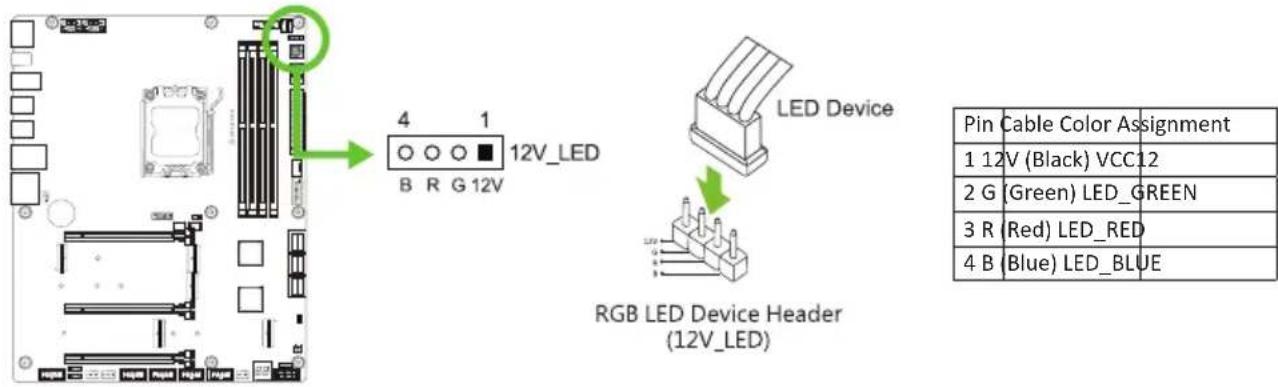

12V\_LED: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

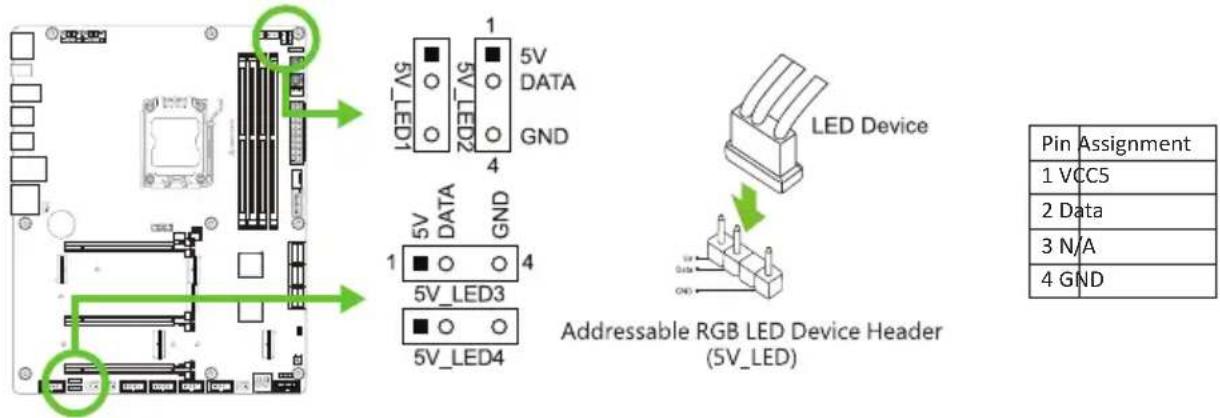

5V\_LED1/ 5V\_LED2/ 5V\_LED3/ 5V\_LED4: Addressable RGB LED Device (WS2818B) Header

This header providers 5V power and Data control pins for ARGB LED Device (WS2818B).

Note

» Ensure proper pin connecting to your LED device, wrong connection may damage your LED device or motherboard.
» The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rating of 3A (12V).
» The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips with the maximum power rating of 3A (5V).
» Please use the Vivid LED DJ software to control the LEDs. For detailed software setting information, refer to chapter 3.3.

2.8 Buttons, Indicators & LEDs

On-Board Buttons

Indicators

LEDs

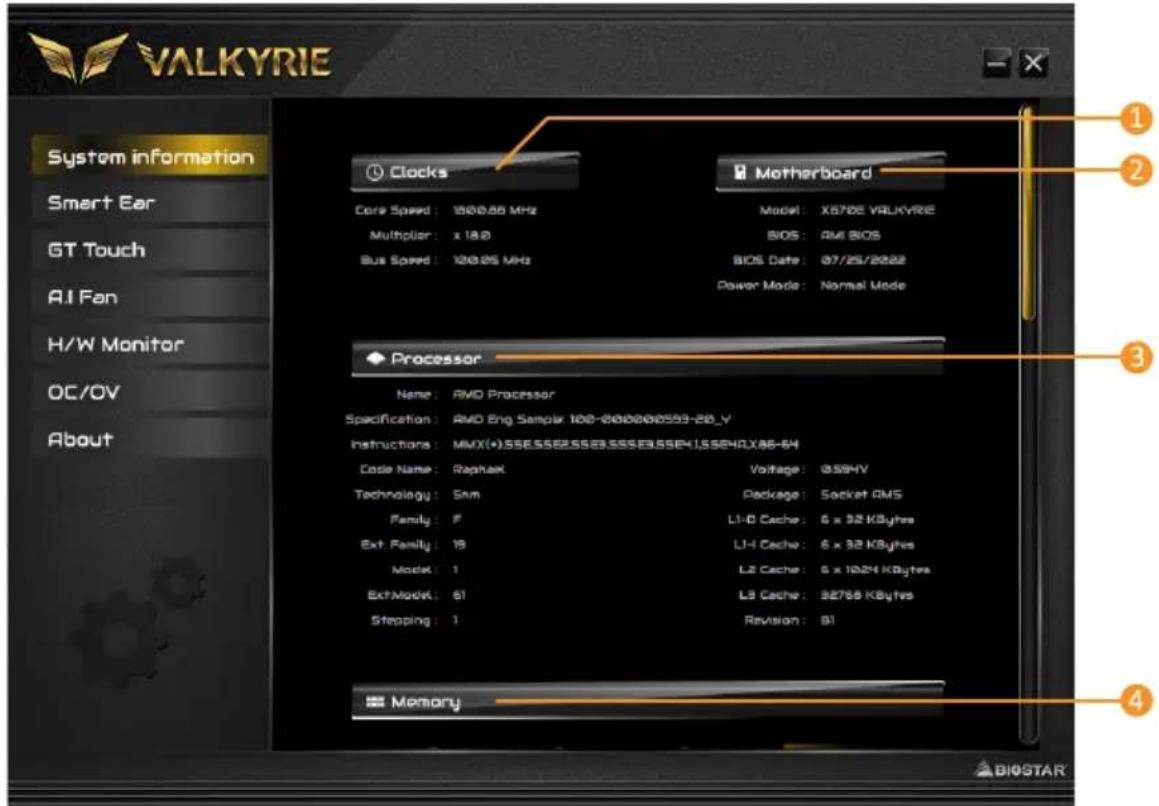

Below LEDs are controlled by VALKYRIE AURORA Utility program. Please refer to Chapter 3.3 for more detail software setting.


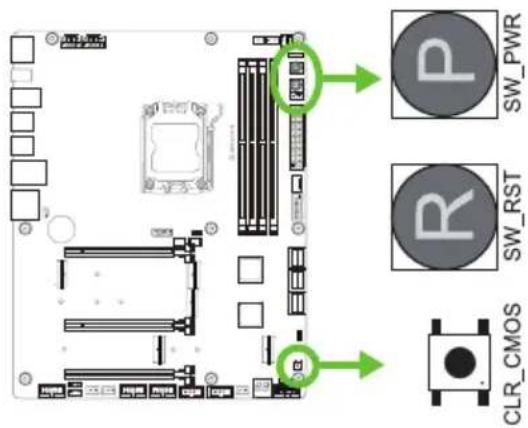

SW\_PWR:

Touch this button to turn-on/off the system.

SW\_RST:

Touch this button to reboot the system.

CLR\_CMOS:

Press the button 1\~2 Seconds to load the BIOS defaults.

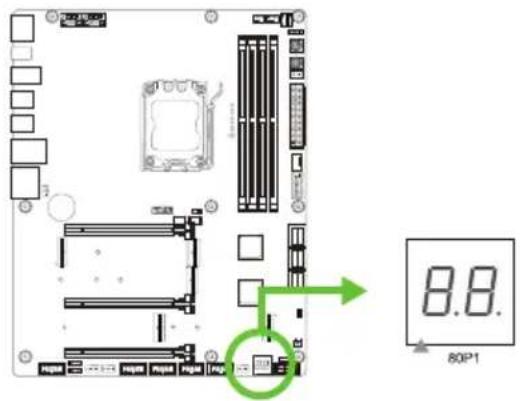

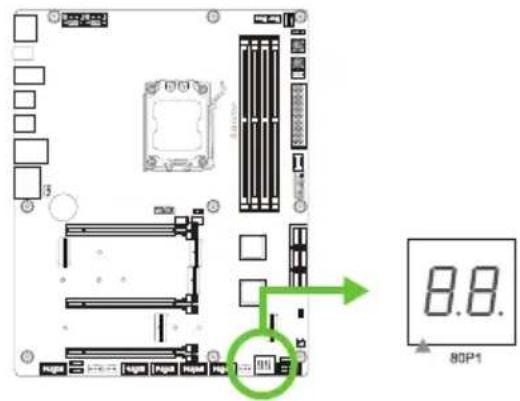

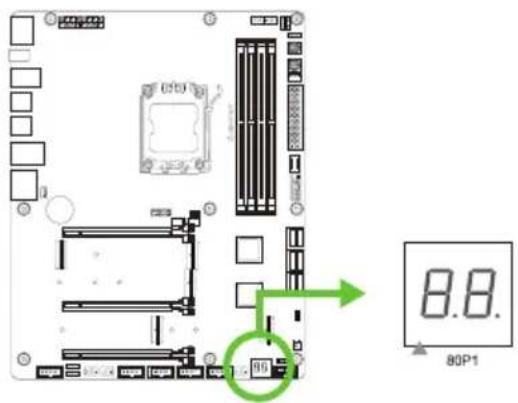

BIOS POST Code Indicator:

The indicator will show POST code while booting. Please refer to Chapter 4.3 for all the BIOS POST codes.

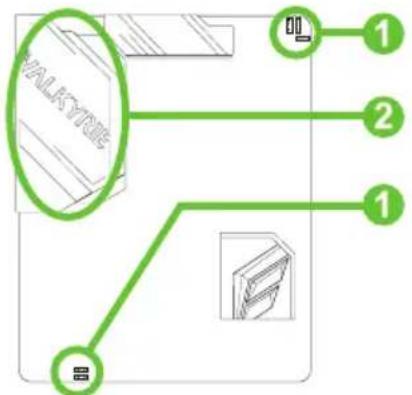

1. RGB LED Header (5V/ 12V)

2. ARMOR GEAR LED

Chapter 3: UEFI BIOS & Software

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual on our website.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIO-Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

3.3 Motherboard SMART BIOS Update

• Upload the newly update of BIOS into USB drive, change the file name to : CREATIVE. ROM (type each letter as exactly). For example: AX87AE827.BST to CREATIVE.ROM
• Connect the power into ATX 24PIN at motherboard, turn on AC power (only turn on Power supply unit, no need for power on)
• Insert USB Drive with the file name: CREATIVE.ROM into programmer(hardware)
• Press SMART BIOS Update button for 3\~5 seconds, LED will start flickering, when LED light is off, then the burning is completed.

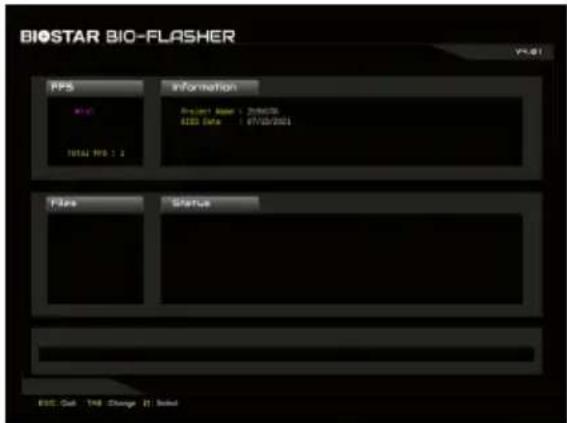

BIOSTAR BIO-Flasher

Note

» This utility only allows storage device with FAT32/16 format and single partition.
» Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.(Only supported FAT/FAT32 format)
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

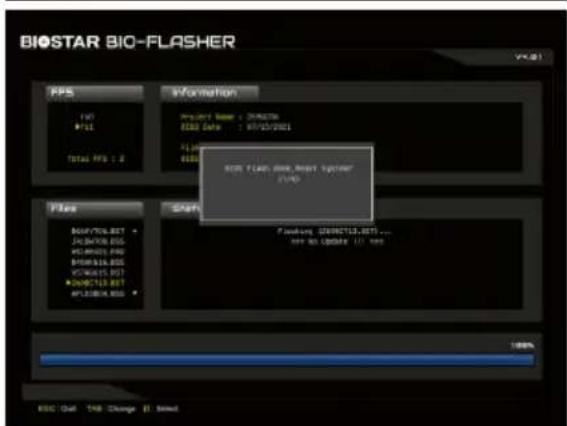

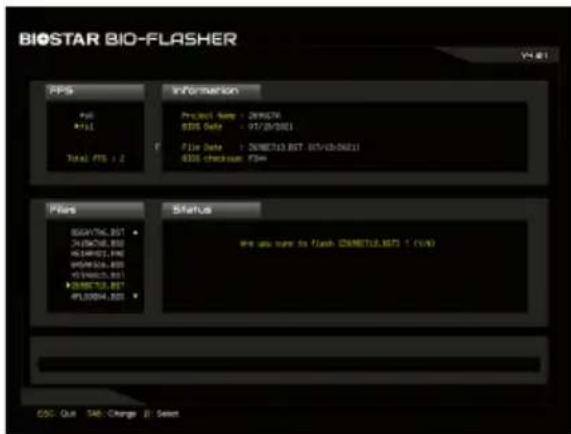

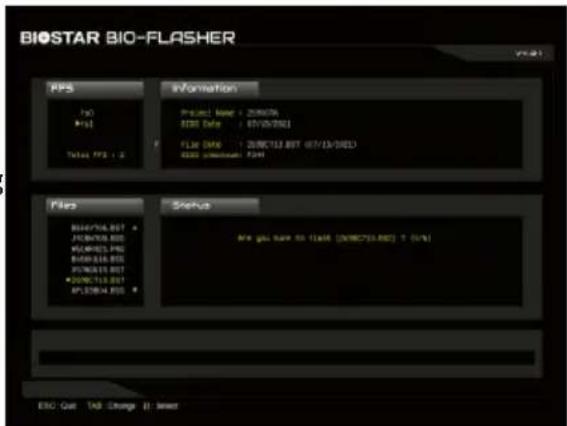

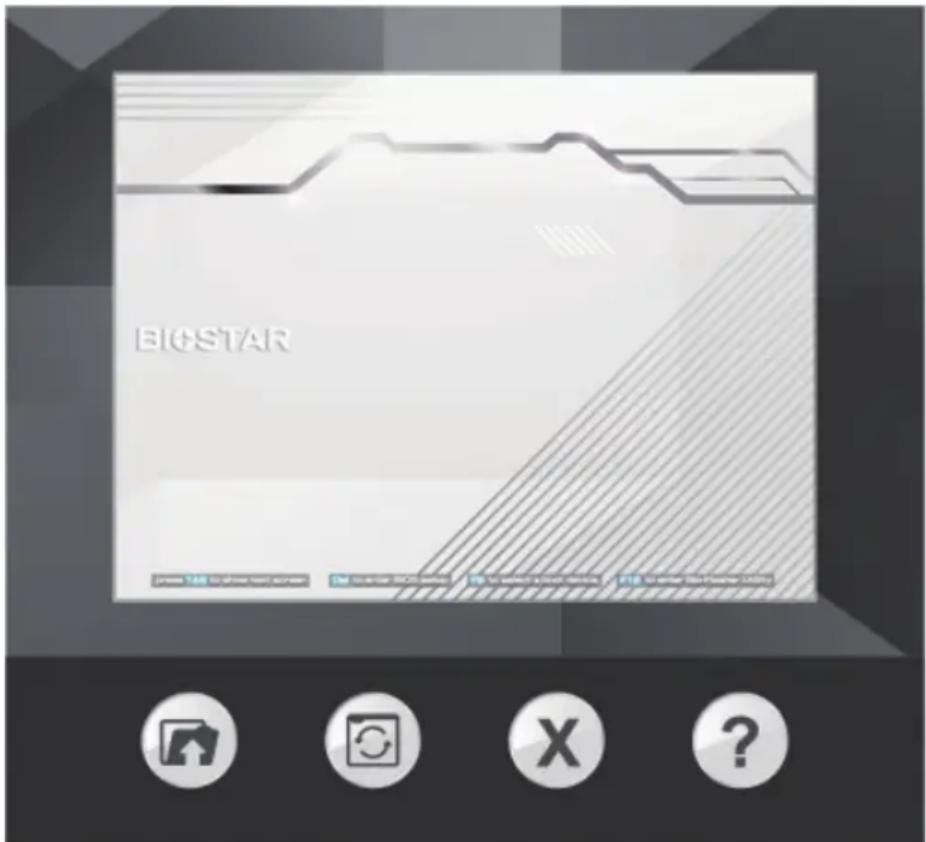

5. After entering the POST screen, the BIOS-FLASHER utility pops out. Choose to search for the BIOS file.

6. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click "Yes" to start updating BIOS.

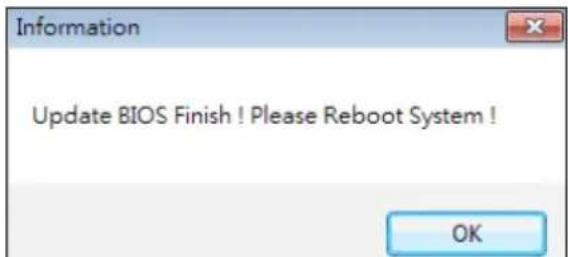

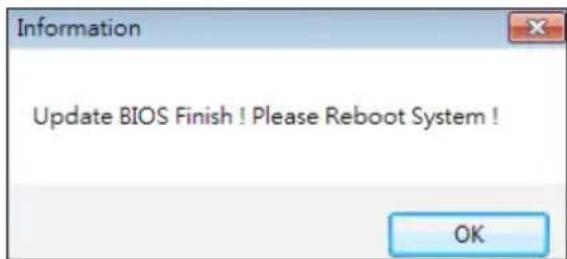

7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

3. Launch BIOS Update Utility and click the "Online Update" button on the main screen.

4. An open dialog will show up to request your agreement to start the BIOS update. Click "Yes" to start the online update procedure.

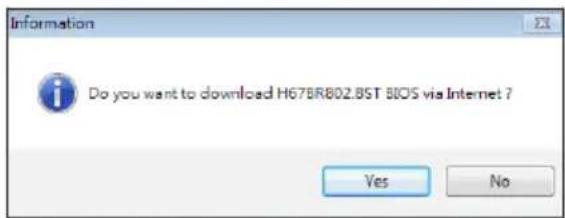

5. If there is a new BIOS version, the utility will ask you to download it. Click "Yes" to proceed.

6. After the download is completed, you will be asked to program (update) the BIOS or not. Click "Yes" to proceed.

7. After the updating process is finished, you will be asked you to reboot the system. Click "OK" to reboot.

8. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select and to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the "Update BIOS" button on the main screen.

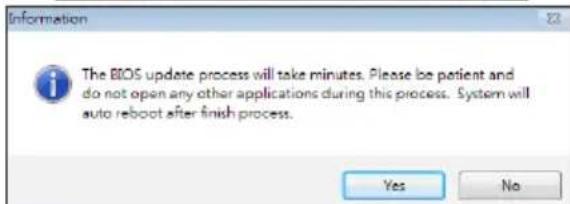

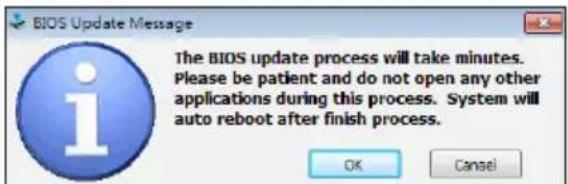

1. A warning message will show up to request your agreement to start the BIOS update. Click "OK" to start the update procedure.

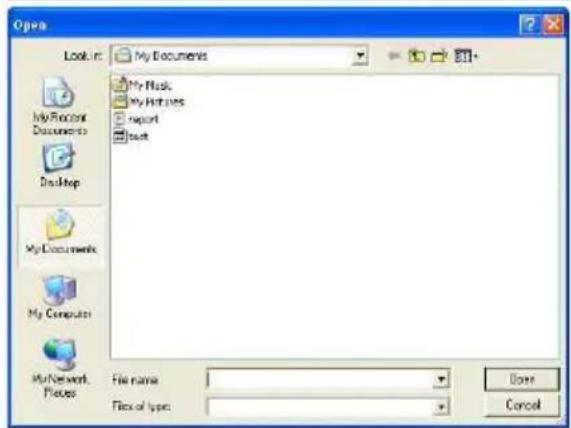

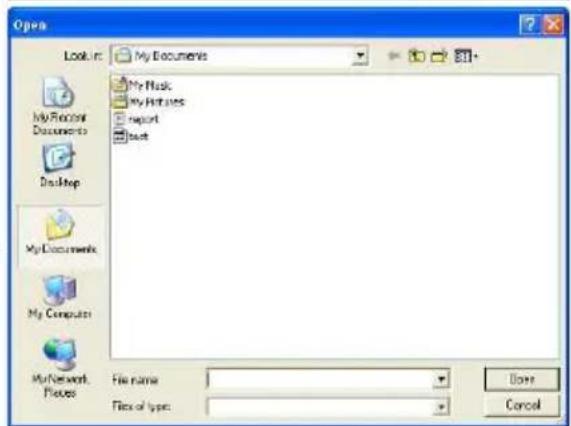

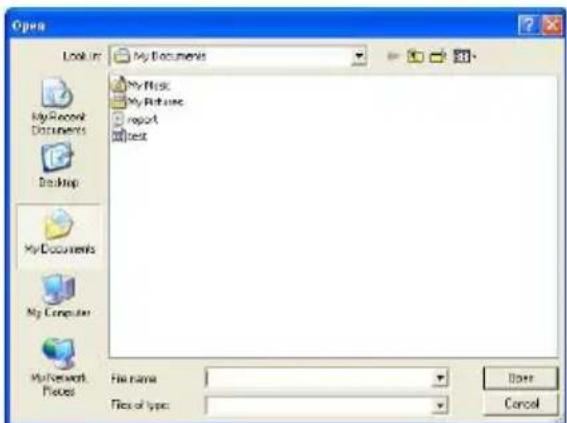

1. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on "Open". It will take several minutes, please be patient.

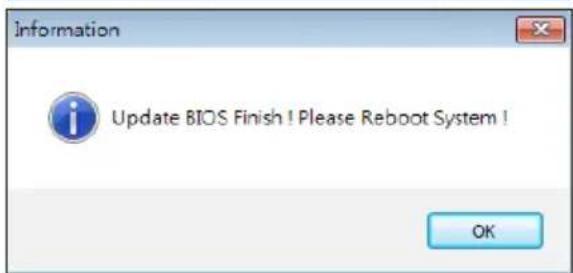

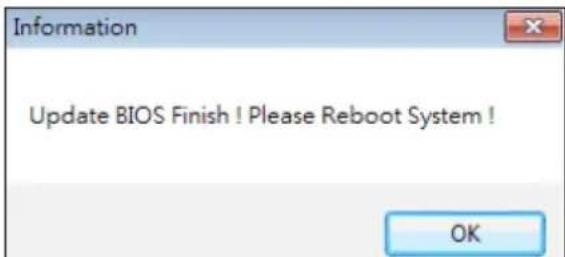

1. After the BIOS Update process is finished, click on "OK" to reboot the system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click "Save".

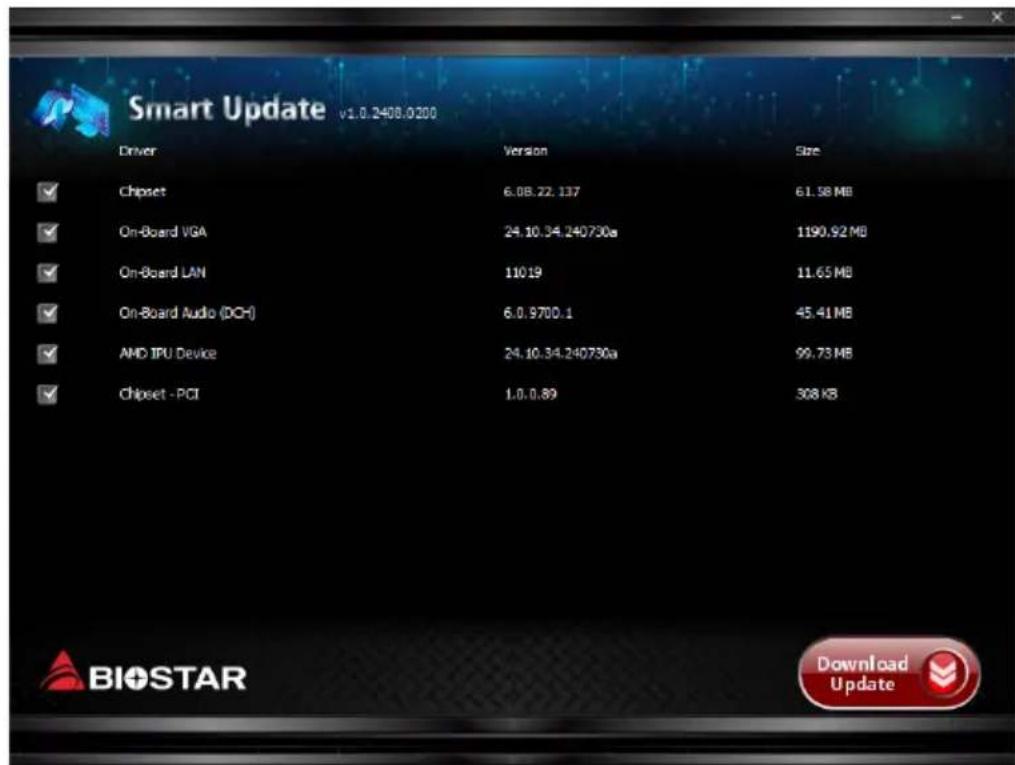

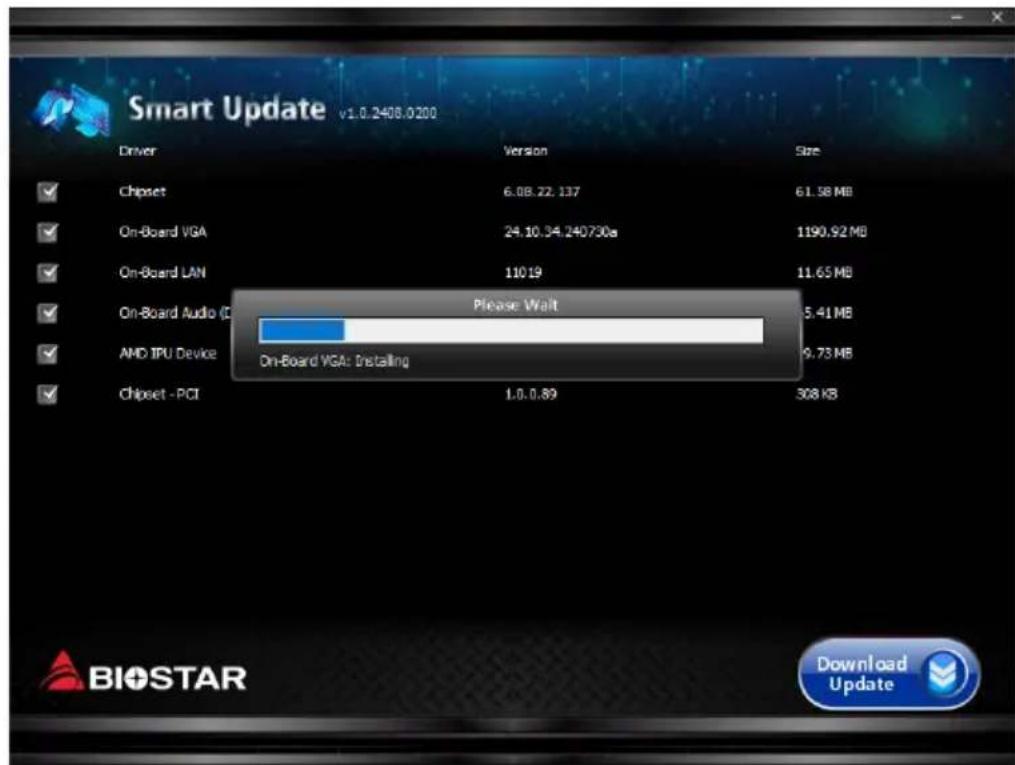

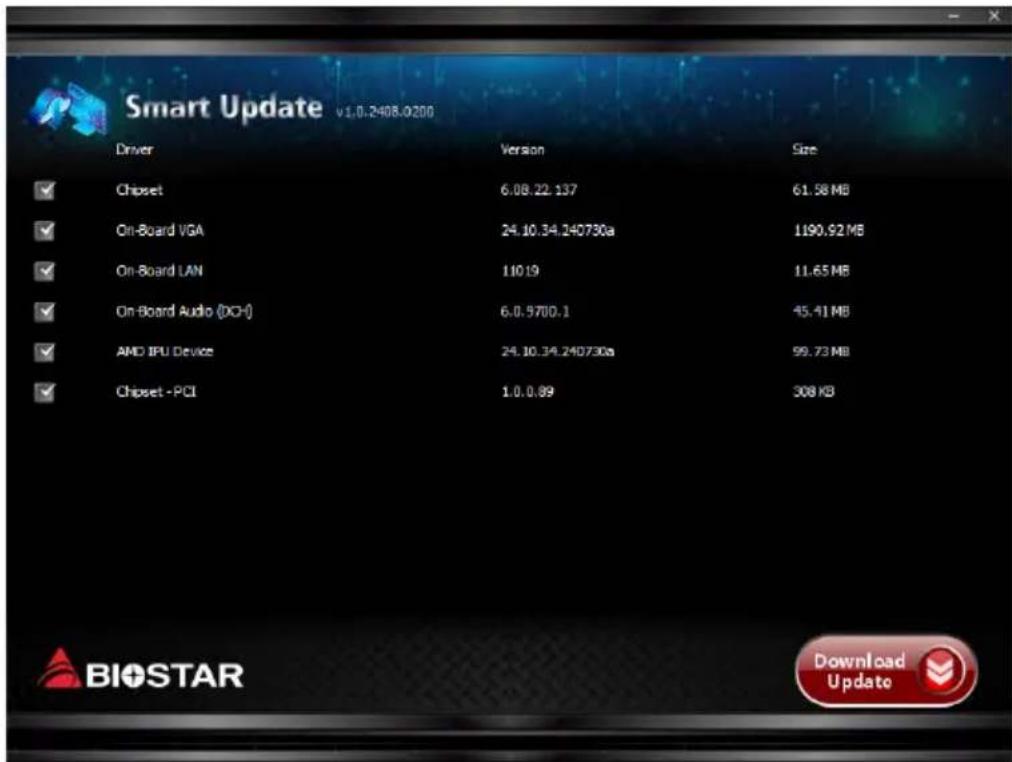

3.4 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note

» All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.
» The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

• Load Image: Choose the picture as the boot logo.
• Update Bios: Write the picture to BIOS Memory to complete the update.
• Close
• About

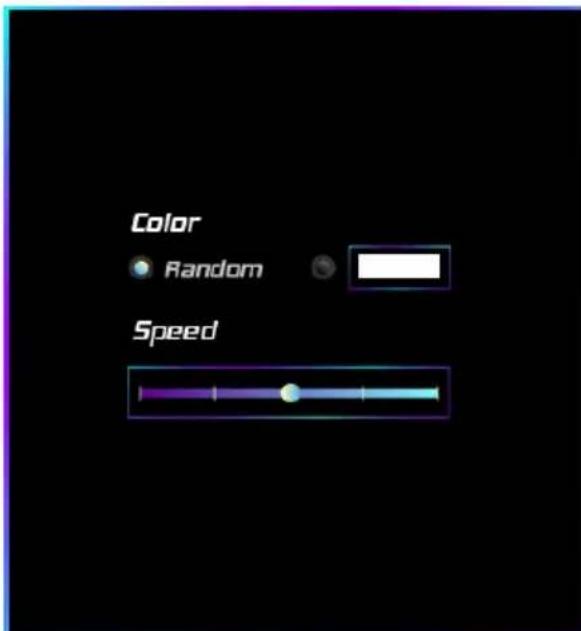

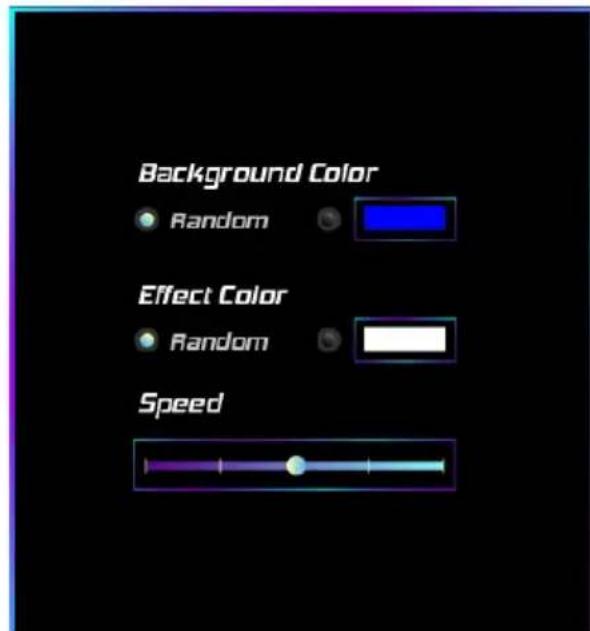

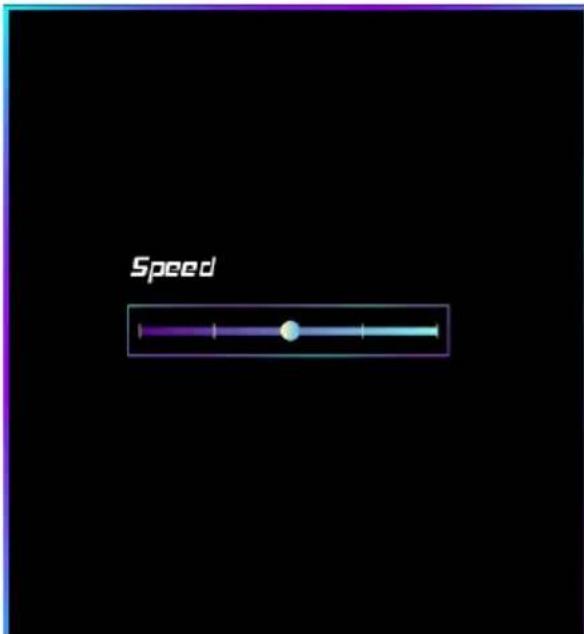

Vivid LED DJ

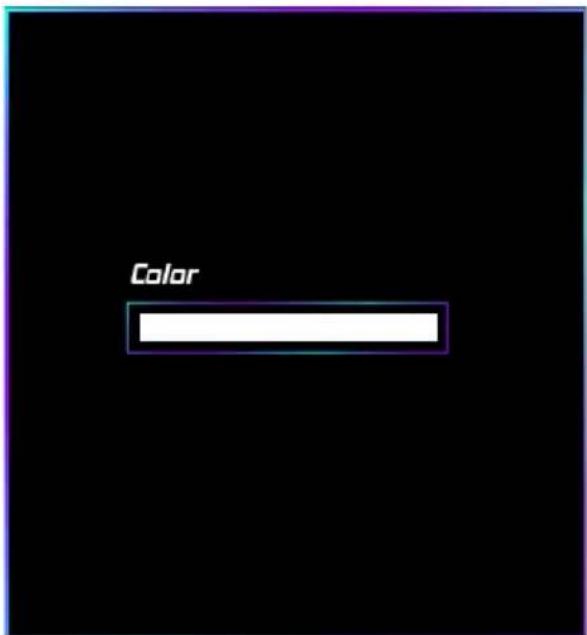

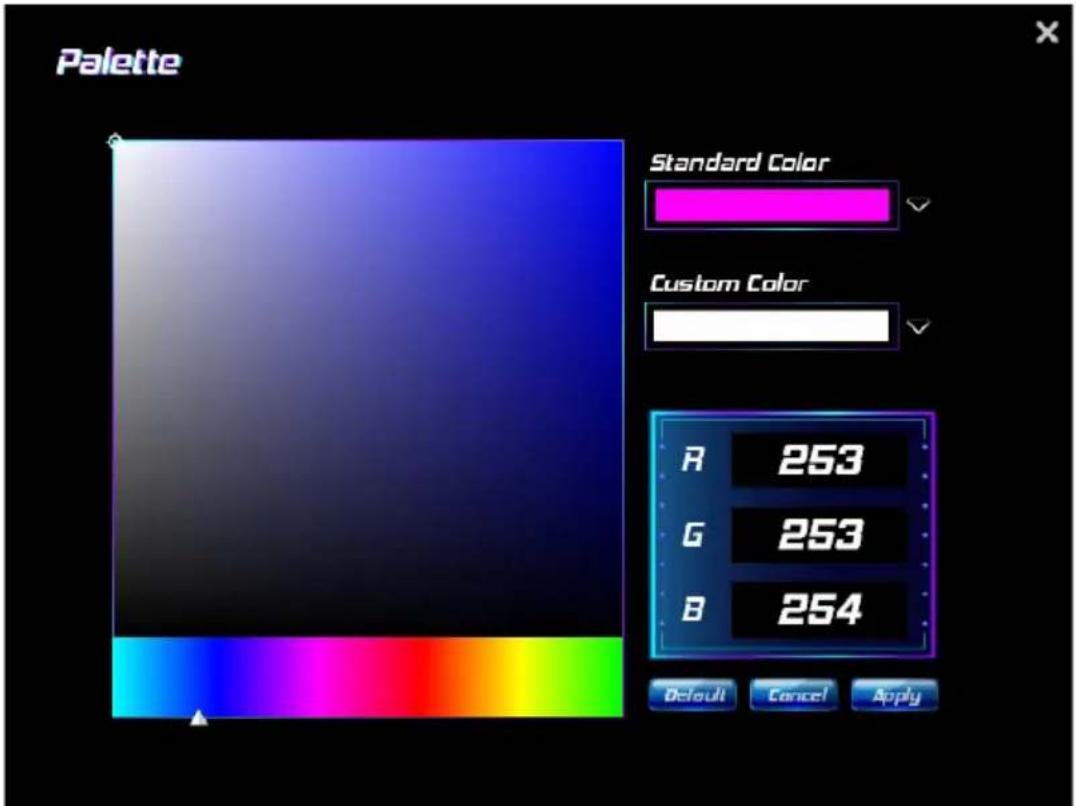

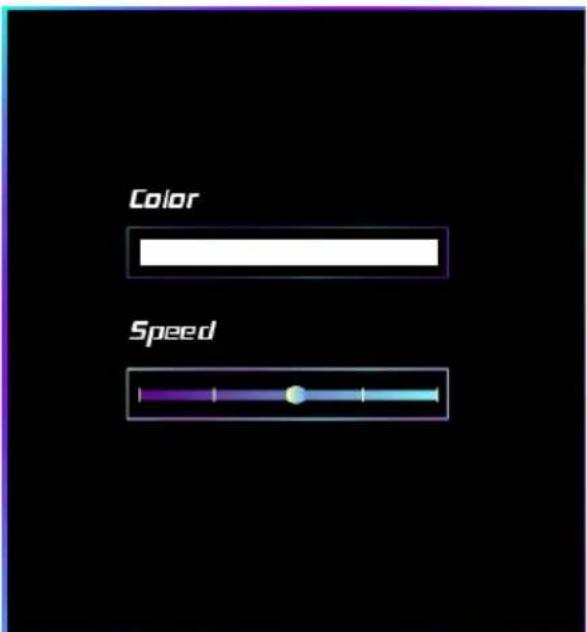

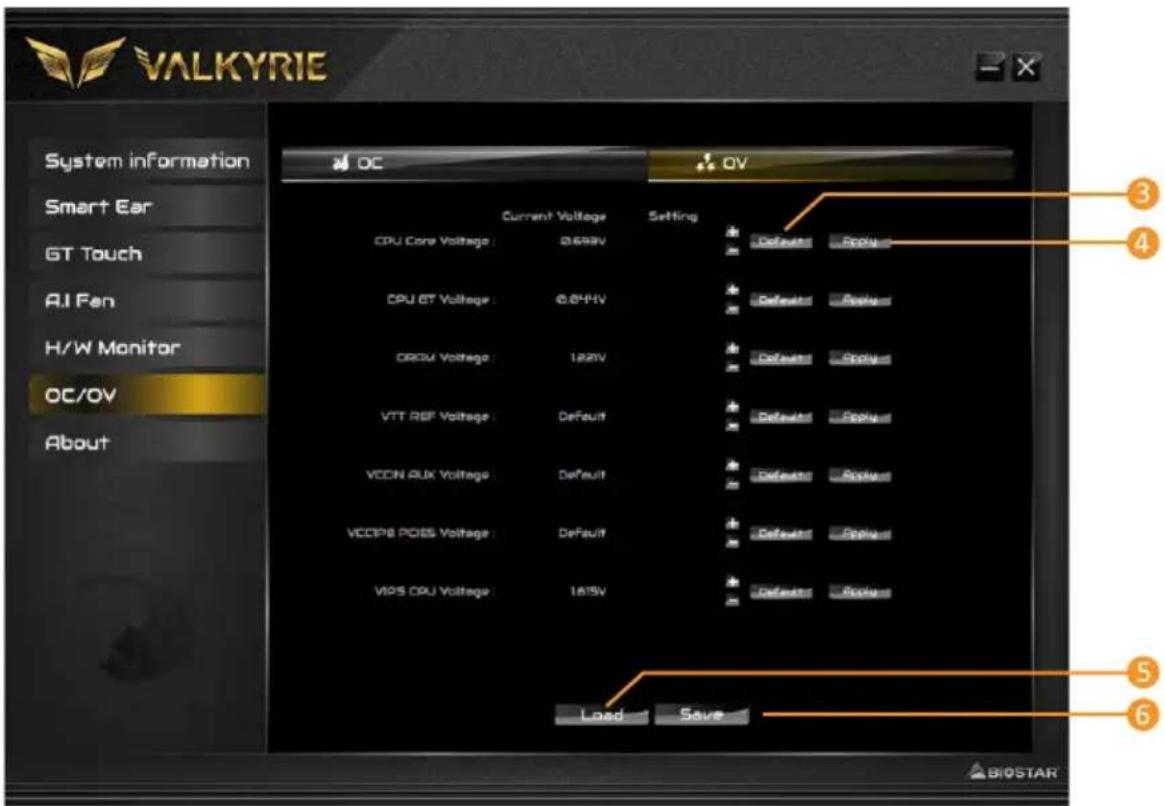

Vivid LED DJ can adjust your color scheme of ARMOR GEAR, RGB LED Device.

1. LED Type: Select the LED lighting blocks.

• All : All LED illuminations.
• 12V RGB : The 12V LED illumination. (12V_LED Device)
- 5V ARGB1 / 5V ARGB2 : The 5V LED illumination. (5V_LED Device)
• Peripherals : The RGB LED illumination.

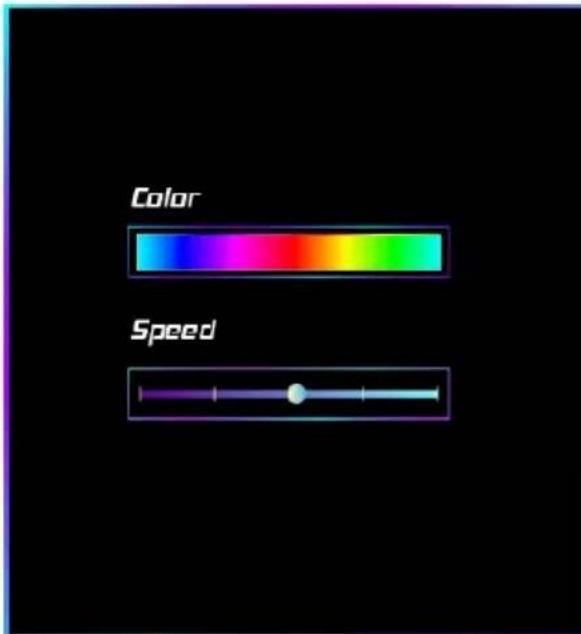

1. LED SPARKLE: Allows to you choose sparkle of the LEDs.

2. Static

3. Breath
4. Strobing
5. Color Cycle
6. Music
7. Breath Rainbow
8. Rainbow
9. Filling
10. Motion Point
11. Flash & Dash
12. Zoom

13. Rainbow Comet

14. Brightness: Allow to adjust brightness of the LEDs.

15. Color Palette: Allows to you choose specific color of the LEDs.

- Palette: Allows to you choose specific color of the LEDs.

• Color: Allows to you choose color.
• Speed: Allows to you adjust speed.

• Color: Allows to you choose color.
• Speed: Allows to you adjust speed.

• Color: Allows to you choose color.
• Speed: Allows to you adjust speed.
- Random: LEDs will Automatically change the Color Palette.

VALKYRIE AURORA Utility

VALKYRIE AURORA Utility is an easy-to-use program that integrates several BIOSTAR utilities and allows users to configure these utilities simultaneously and seamlessly.

Note

» Menu contents of VALKYRIE AURORA Utility will be different slightly, depending on different motherboard of users' computers.
» When the software is installed or removed, restart your computer.

System Information

This System Information tab provides you an overview of the basic system information.

1. Clocks: Shows core speed, multiplier and bus speed.
2. Motherboard: Shows motherboard information.
3. Processor: Shows CPU information.
4. Memory: Shows memory information.
   » Click on different memory slot buttons to get the memory information.

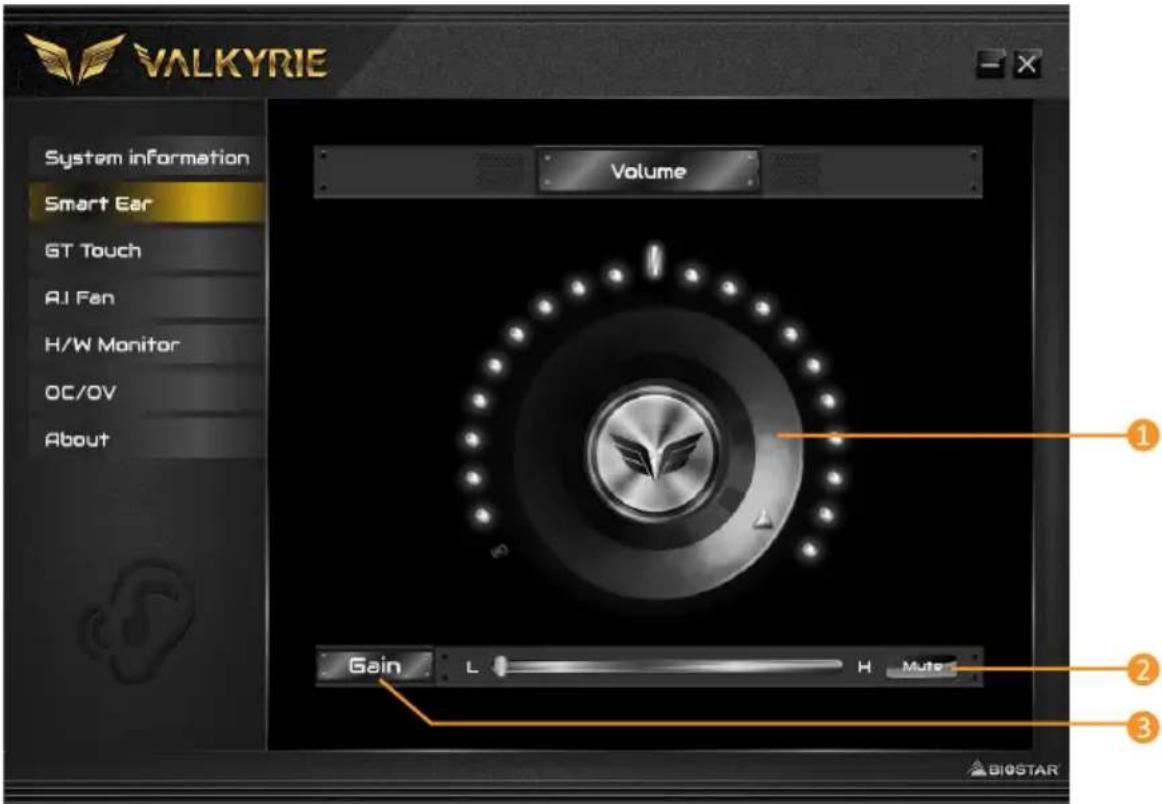

SmartEAR

Smart EAR allows you to control system volume and adjust impedance setting (Low/High Gain) to optimize your headphone performance. You can easily enjoy high-quality and awesome sound.

Requirements:

1. A chassis with front audio output jacks
2. An earphone or a headphone
3. Windows 11 (64bit)/ 10 (64bit) operation system

Installation Guide:

1. Make sure the front audio cable of the chassis connected to the front audio header of the motherboard properly.
2. Install the VALKYRIE AURORA Utility program from the driver DVD.
3. Connect the earphone or headphone to the front audio jack of the chassis or audio lineout port of rear I/Os.

» If you want to use an AC'97 front audio output cable, please disable the "Front Panel Jack Detection" setting. This setting can be found via O.S. Audio Utility.

1. Volume Control Knob: The volume can be finely adjusted by turning the knob either clockwise or anti-clockwise to increase or decrease system volume accordingly.
2. Mute: To disable system sound.
3. High/Low Gain Switch: Keep the gain switch to low for low impedance headphone and set to high for high impedance headphone.

GT Touch

GT Touch allows you to adjust Normal, ECO and Sport mode when running VALKYRIE AURORA Utility program in Windows environment.

1. Normal Mode: It balances energy consumption and system performance.
2. ECO Mode: It saves energy by slightly reducing system performance.
3. Sport Mode: It provides the highest level of system performance.

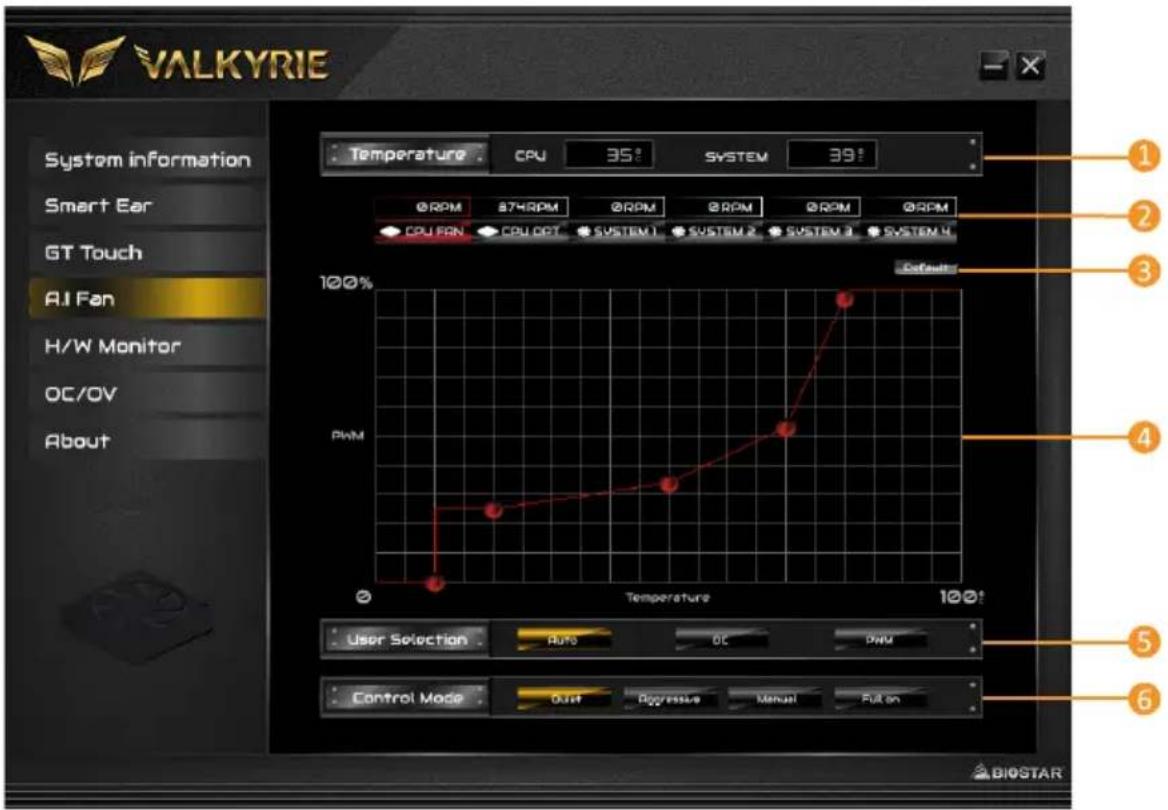

A.I Fan

A.I FAN utility smartly allows PC users to have more customizability of fan operating modes and automatically detects different temperatures to make fan operating at defined speed for optimal cooling performance.

1. Temperature: Shows the current CPU and system temperature.

2. CPU FAN/ CPU OPT RPM & SYSTEM1/2/3/4 RPM: Click button to set the status value of CPU and system fan.

» Display items, please focus on the actual motherboard.

1. Default: Restore defaults your changes value of a single item.

2. PWM/ Temperature Panel: According to the fan PWM value corresponding to CPU and system temperature to adjust the fan speed.

» Allows you to adjust according to your preferences.

1. User Selection: Sets the fan property controls the actual selection operation.

• Auto: Allows you to adjust the Automatic detection Mode.

• DC: Allows you to adjust the Direct Current (DC) Mode.

- PWM: Allows you to adjust the Pulse Width Modulation (PWM) Mode.

1. Control Mode: Allows you to control mode of the fans.

- Quiet: Enable Quiet mode.

- Aggressive: Enable Aggressive mode.

- Manual: Enable Manual mode.

• Full on: Enable Full On mode.

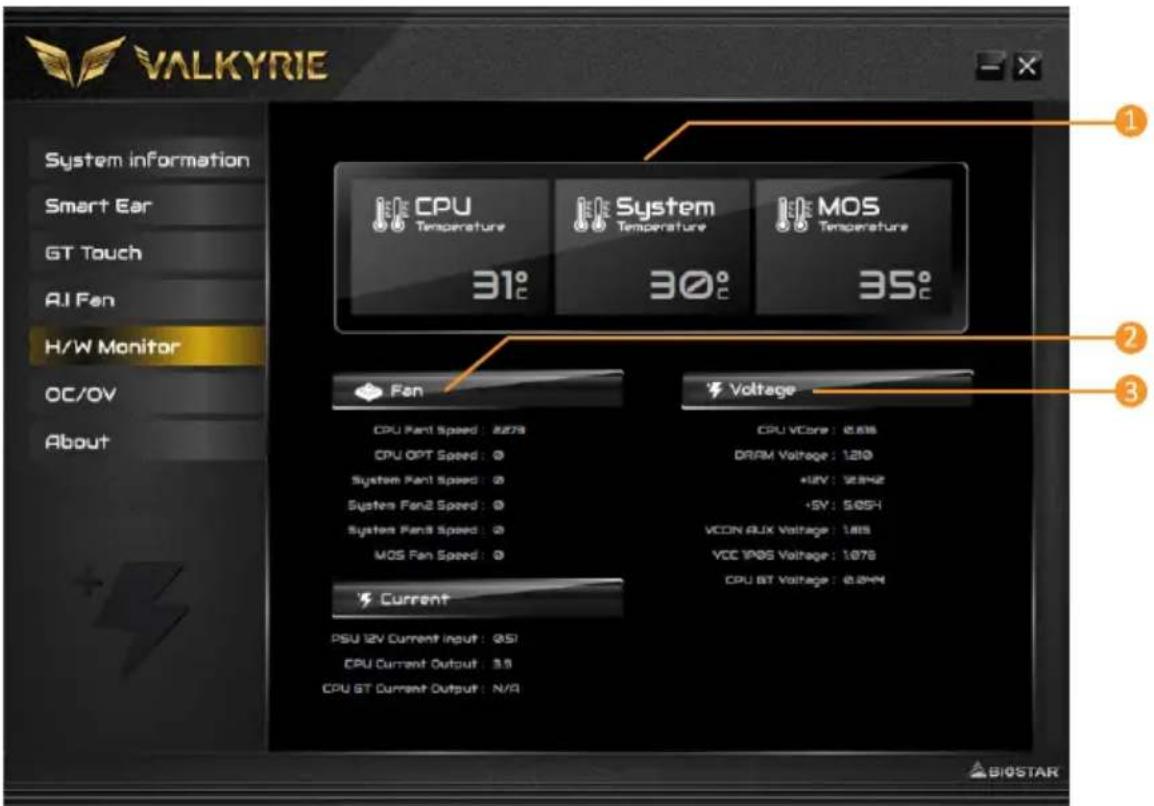

H/W Monitor

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature.

1. CPU Temperature/ System Temperature: Shows the current CPU and system temperature.
2. Fan: Shows the current fans' speed.
3. Voltage: Shows the current voltages of CPU and memory.

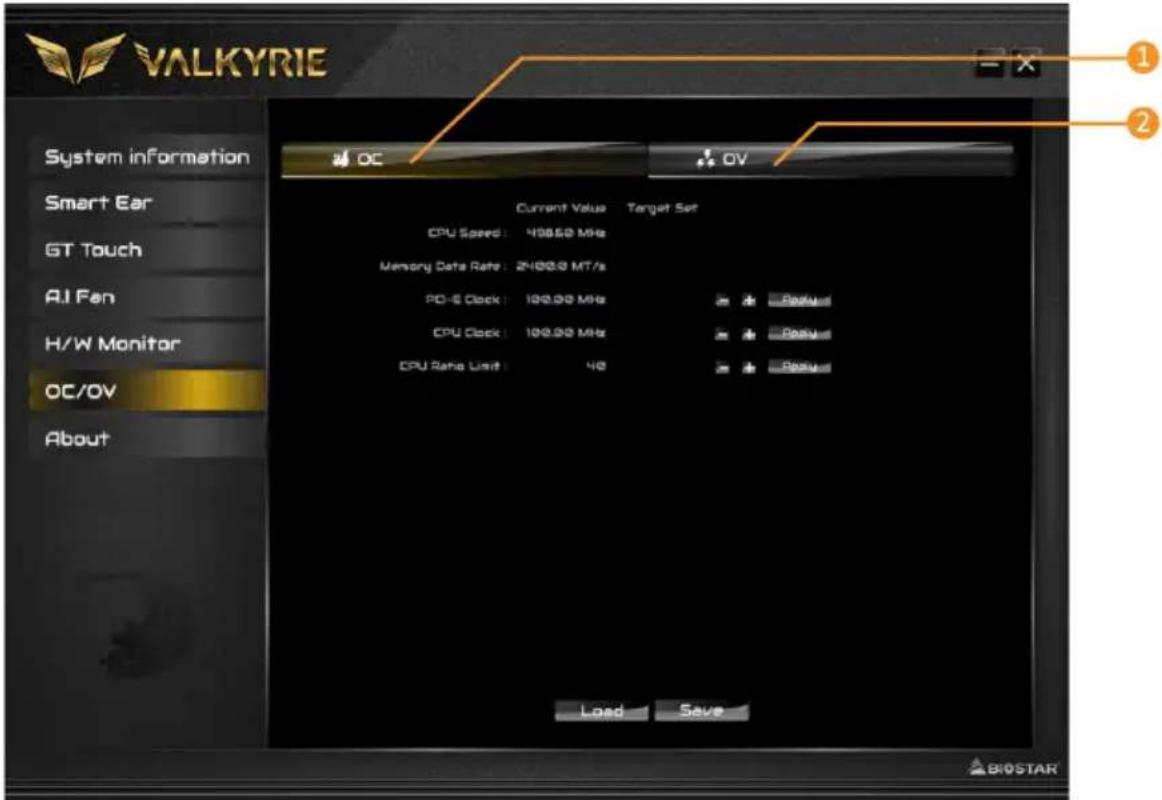

oc/ov

The OC/OV tab allows you to save or load the OC/OV setting profiles, change system frequency and voltage settings.

1. OC: Allows you to adjust overclocking profile values.
2. OV: Allows you to adjust voltage profile values.

1. Default: Restore defaults your changes.
2. Apply: Apply your changes.
3. Load: Load the profile values from the file.
4. Save: Store the profile values for future use.

Note

» Not all types of CPU perform above overclock setting ideally; the difference will be based on the selected CPU model.

Overclock is an optional process, but not a "must-do" process; it is not recommended for inexperienced users. Therefore, we will not be responsible for any hardware damage which may be caused by overclocking. We also would not guarantee any overclocking performance.

About

The About menu to display the VALKYRIE AURORA Utility version information.

Chapter 4: Useful help

4.1 Auto Installer

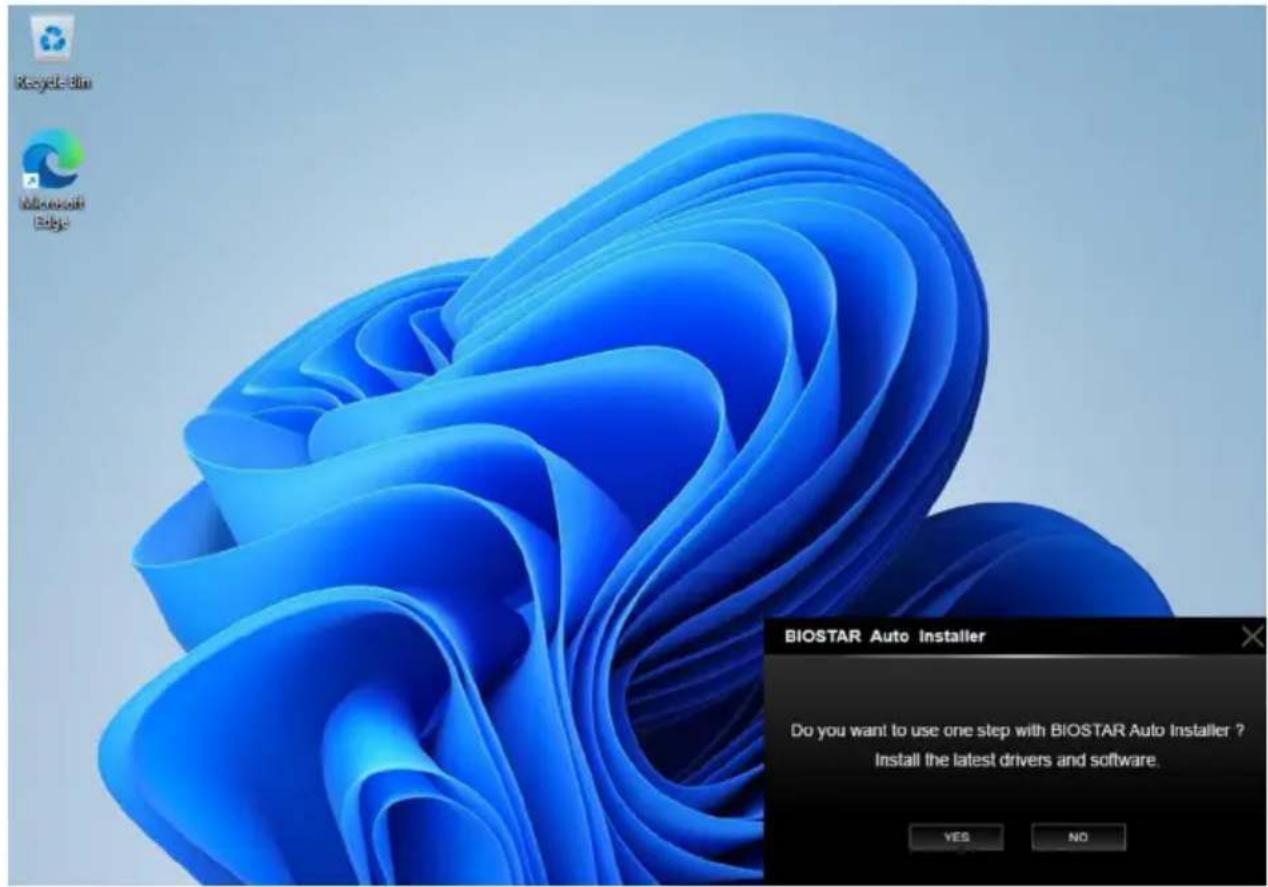

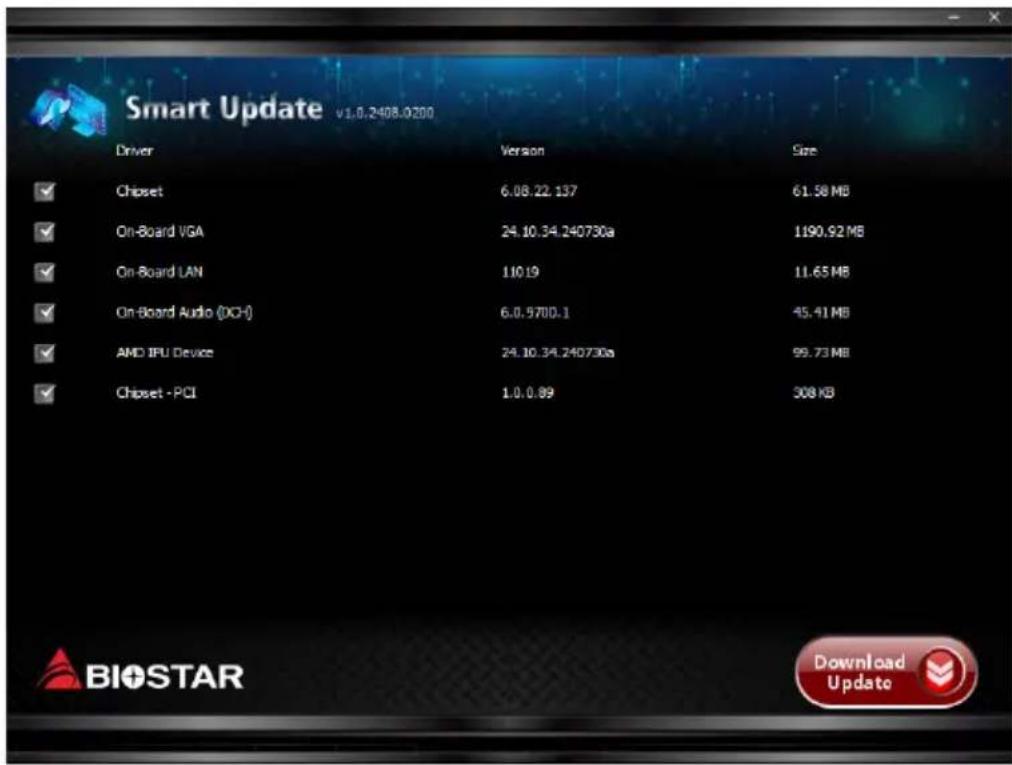

After connecting to the Internet and booting, BIOSTAR AUTO Installer will be displayed in the lower right corner. (Press "Yes")

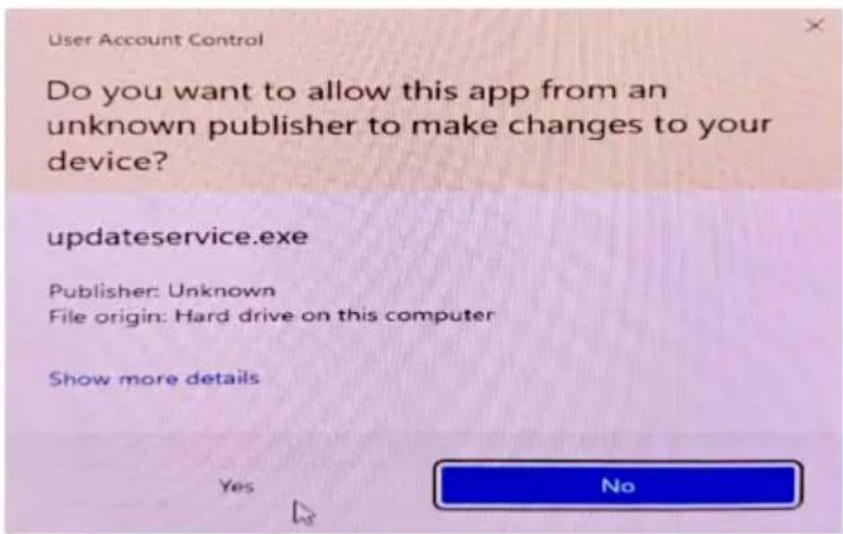

Press "Yes"

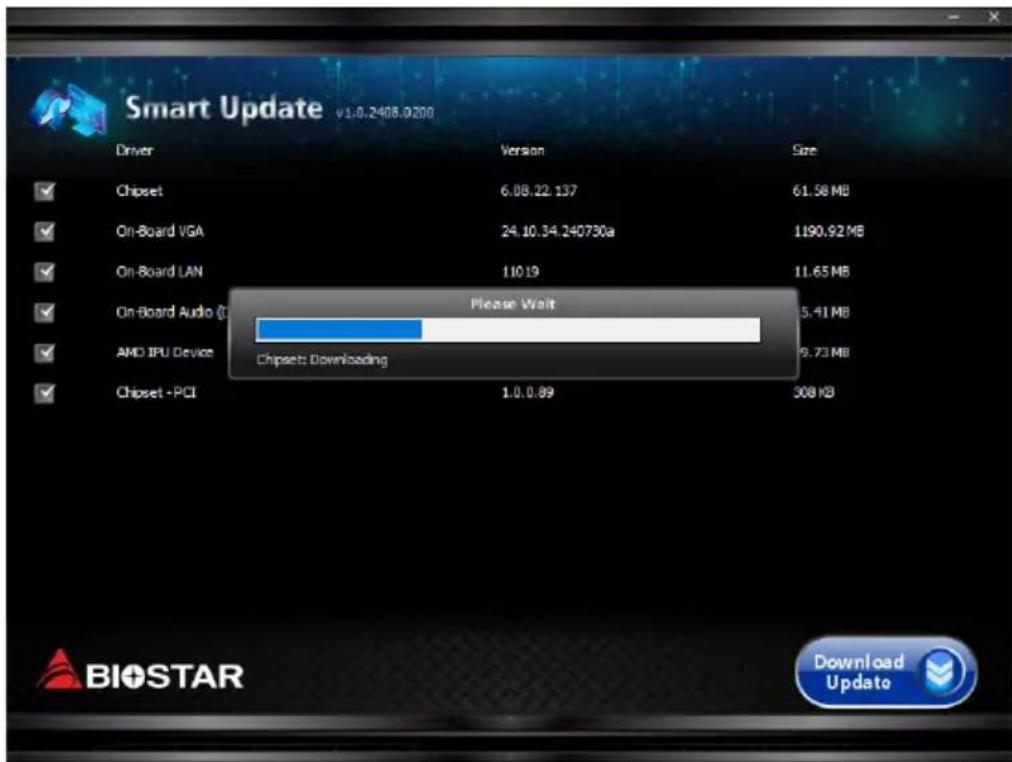

Press Lower right "Download Update"

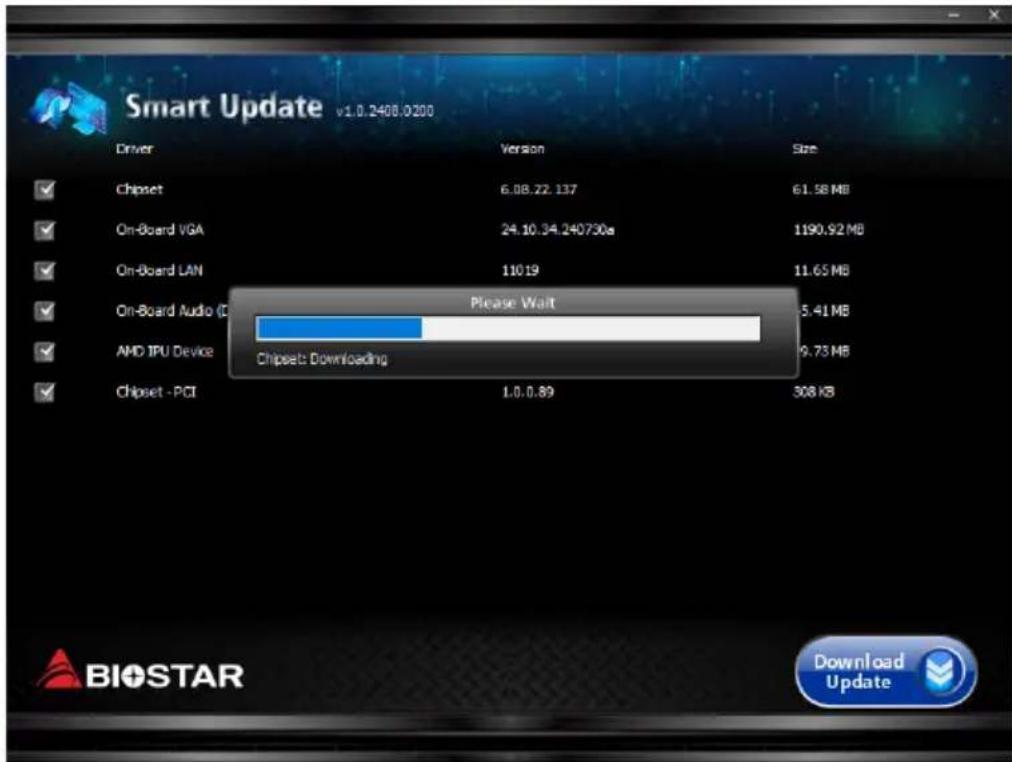

Wait download process is complete.

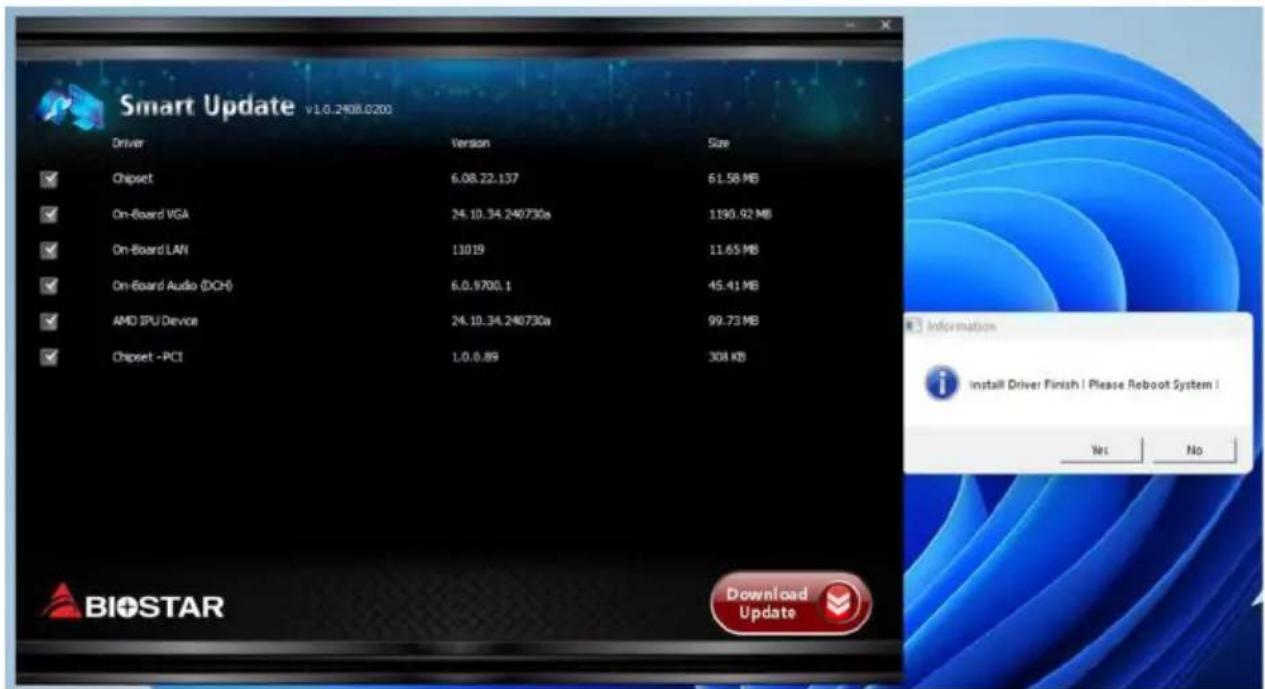

After the download and installation are complete, please restart your system.

4.2 RAID Functions

RAID Definitions

In a RAID 0 system data are split up in blocks that get written across all the drives in the array. By using multiple disks (at least 2) at the same time, this offers superior I/O performance. This performance can be enhanced further by using multiple controllers, ideally one controller per disk.

Features and Benefits

• Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
• Uses: Intended for non-critical data requiring high data throughput, or any environment that does not require fault tolerance.
• Benefits: provides increased data throughput, especially for large files. No capacity loss penalty for parity.
• Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data is lost.
• Fault Tolerance: No.
  • Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

Data are stored twice by writing them to both the data disk (or set of data disks) and a mirror disk (or set of disks). If a disk fails, the controller uses either the data drive or the mirror drive for data recovery and continues operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

• Drives: Minimum 2, and maximum is 2.
• Uses: RAID 1 is ideal for small databases or any other application that requires fault tolerance and minimal capacity.
• Benefits: Provides 100% data redundancy. Should one drive fail, the controller switches to the other drive.
• Drawbacks: Requires 2 drives for the storage space of one drive. Performance is impaired during drive rebuilds.
• Fault Tolerance: Yes.


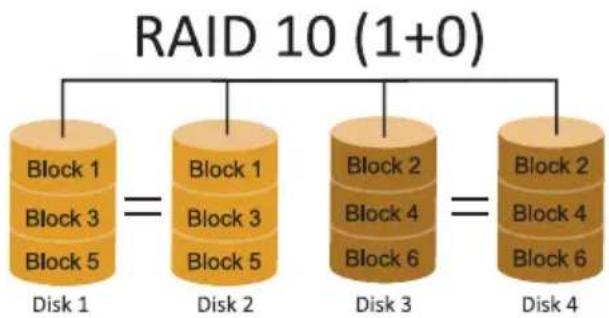

RAID 10 combines the advantages (and disadvantages) of RAID 0 and RAID 1 in one single system. It provides security by mirroring all data on a secondary set of disks (disk 3 and 4 in the drawing below) while using striping across each set of disks to speed up data transfers.

Features and Benefits

• Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
• Benefits: Optimizes for both fault tolerance and performance, allowing for automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.
• Drawbacks: Requires twice the available disk space for data redundancy, the same as RAID level 1.
• Fault Tolerance: Yes.

APPENDIX: Specifications in Other Languages

Arabic

		دیدح
AMD®	Ryzen TM 9000-A8800-7000م عَدْ AMD® Ryzenالجَلَامِمٌ٠١٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٥١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦٠١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٦٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥ٵ٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦١٣٥٤٩١٢٥٧٥٦٨١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٩١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٠٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٤٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٠٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٣٠٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٩٠٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٠٣٠٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦٢٥٥١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥٦١٢٥.
AMD Ryzen 9000 / 8000 / 7000 Series Processors(M2M_GR12) (MM.2 Type 2280-SSDNVMe SSD - PCIe 5.0x4 (128Gb/s) / 4.0x4 (64Gb/s)AMD X870E Chipset(M2M_SDA12) (MM.2 Type 2260/2280/2210-SSDNVMe SSD - PCIe 4.0x4 (64Gb/s)(M2M_SDA12) (MM.2 Type 2260/2280-SSDNVMe SSD - PCIe 4.0x4 (64Gb/s)(M2M_SDA12) (MM.2 Type 2260/2280-SSDNVMe SSD - PCIe 4.0x4 (64Gb/s)(M2M_SDA12) (MM.2 Type 2260/2280-SSDNVMe SSD - PCIe 4.x4 (64Gb/s)(M2M_SDA12) (MM.2 Type 2260/2280-SSDNVMe SSD - PCIe 4.x4 (64Gb/s)(M2M_SDA12) (MM.2 Type 2260/2280-SSDNVMe SSD - PCIe 4.x4 (64Gb/s)(M2M_SDA12)(M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12)	AMD Ryzen 9000 / 8000 / 7000 Series Processors(M2M_GR12) (MM.2 Type 2280-SSDNVMe SSD - PCIe 4.0x4 (64Gb/s)(M2M_SDA12) (MM.2 Type 2260/2280-SSDNVMe SSD - PCIe 4.x4 (64Gb/s)(M2M_SDA12) (MM.2 Type 2260/2280-SSDNVMe SSD - PCIe 5.0x4 (64Gb/s)(M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12)(M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (M2M_SDA12) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s) (36Gb/s)
Realtek® RTL8125D42500/1900/4500-3100	Realtek® RTL8125D42500/1900/4500-3100	الزياز
Realtek® ALC12B2-37:1	Realtek® ALC12B2-37:1	الزياز
USB 4.0/Thor2erbolt(24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB)	USB 4.0/Thor2erbolt(24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24 GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24GB) (24 GB) (24GB) (24GB)	الزياز

AMD Ryzen 9000 / 7000 Series Processors) PCIe 8.6 x16) PCIe 5.8 x16*PCIEX16_2PCIEX16
AMD Ryzen 8700G & 8600G (Phoenix1) Processors(x8) PCIe 4.0 x16(disable) PCIe 4.0 x16*PCI EX16X16_2AMD Ryzen 8500G & 8300G (Phoenix2) Processors(x4) PCIe 4.0 x16(disable) PCIe 4.0 x16*PCI EX16X16_2AMD X870E Chipset) PCIe 4.0 x16
(1 FRL 2.1 FRL HDMI2.×2 يا في پا و می دا و ه ذف نیکدیکتکم DP (DP4:4)*USB 3.2(Geh2)*نلا تب ا جیچ *د * 2.5 * 1 * م * 5 * س * ق * م *S/PDIF_Out * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1 * 1* USB 3.2(Geh2)*USB 3.2(Geh2)(Gen2)USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0	لا ا جارلا/الخاللا
(6GB/s) SATA III*1 - ق *M.2B@be#e20W-FiUSB3.2(Gen4.2x2)*(USB)3.2(Geh2x2).USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.	ة قا طلا ل صوم *د * 2 * قا طلا ل صوم *د * 4 * جلا ا عملا *د حو شو ره *د * 1 * د حو ه ايم دیر ب *د * 4 * م طلا قو ر *د * 1 * ل ألا قحوللا س *ر *د * 1 * ل نوصلا س *ر *د * 1 * ل خلCAD ويرويتىكويك *د * 1 * ل خلCAD ويرويتىكويك *د * 1 * ل خلCAD ويرويتىكويك *د * 1 * ل خلCAD ويرويتىكويك *د * 1 * ل خلCAD ويرويتىكويك *د * 1 * ل خلCAD ويرويتىكويك *د * 1 * ل خل CAD ويرويتىكويك *د * 1 * ل خل CAD ويرويتىكويك *د * 1 * ل خل CAD ويرويتىكويك *د * 1 * ل خل CAD ويرويتىكويك *د * 1 * ل خل CAD ويرويتىكويك *د * 1 * ل خل CAD ويرويتىكويك *d * 1 * ل خل CAD ويرويتىكويك *d * 1 * ل خل CAD ويرويتىكويك *d * 1 * ل خل CAD ويرويتىكويك *d * 1 * ل خل CAD ويرويتىكويك *d * 1 * ل خل CAD ويرويتىكويك *d * 1 * ل خل CAD و therويتىكويك *d * 1 * ل خل CAD و therويتىكويك *d * 1 * ل خل CAD و therويتىكويك *d * 1 * ل خل CAD و therويتىكويك *d * 1 * ل خل CAD و therويتىكويك *d * 1 * ل خل CAD و therويتىكويك *d *
(6GB/s) SATA III*1 - ق *M.2B@be#e20W-FiUSB3.2(Gen4.2x2)*(USB)3.2(Geh2x2).USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.	لا ا جارلا/الخاللا
(6GB/s) SATA III*1 - ق *M.2B@be#e20W-FiUSB3.2(Gen4.2x2)*(USB)3.2(Geh2x2).USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 1.2*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 1.2*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0	لا ا جارلا/الخاللا
(6GB/s) SATA III	الغلا
(6GB/s) SATA III*1 - ق *M.2B@be#e20W-FiUSB3.2(Gen4.2x2)*(USB)3.2(Geh2x2).USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0* USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.	الغلا
(6GB/s) SATA III*1 - ق *M.2B@be#e20W-FiUSB3.2(Gen4.2x2)*(USB)3.2(Geh2x2).USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2,0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB
(6GB/s) SATA III*1 - ق *M.2B@be#e20W-FiUSB3.2(Gen4.2x2)*(USB)3.2(Geh2x2).USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB1.2*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0	لا اجارلا/الخاللا
(6GB/s) SATA III*1 - ق *M.2B@be#e20W-FiUSB3.2(Gen4.2x2)*(USB)3.2(Geh2x2).USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0* USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0	لا اجارلا/الخاللا
(6GB/s) SATA III*1- ق *M.2B@be#e20W-FiUSB3.2(Gen4.2x2)*(USB)3.2(Geh2x2).USB 3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 1.2*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0	لا اجارلا/الخاللا
(6GB/s) SATA III*1- ق *M.2B@be#e20W-FiUSB3.2(Gen3.2(Geh2x2).(USB)3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.0*SB	لا اجارلا/الخاللا
(6GB/s) SATA III*1- ق *M.2B@be#e20W-FiUSB3.2(Gen3.2(Geh2x2).(USB)3.2(Geh2)(USB-3.2(Geh2).USB2.0*USB 2.0*USB 2.0*USB 2.0*USB 2.

German

Technical line drawing of a mechanical assembly with a green arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Примечание

Technical line drawing of a CPU fan with a highlighted internal component (no text or symbols)

Technical line drawing of a computer CPU fan with green circular arrows indicating rotation or adjustment (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

PWM Mode DC Mode
Pin Assignment Pin Assignment
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4Speed Control Signal 4NC

PWM Mode DC Mode
Pin Assignment Pin Assignment
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4Speed Control Signal 4NC

Примечание

Technical line drawing of a RAM module with directional arrows indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with green directional arrows indicating motion (no text or symbols)

Примечание

Technical line drawing of a mechanical assembly with labeled components and rotation arrows (no text or symbols)

Isometric line drawing of a mechanical component with a cursor and a 'Click' label (no other text or symbols)

Technical line drawing of a mechanical assembly with a gear and rotating component (no text or symbols)

Technical line drawing of a mechanical assembly with numbered components and angular annotations (no readable text or symbols)

Technical line drawing of a mechanical component with a rotating knob and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a labeled pin (no text or symbols present)

Technical line drawing of a mechanical assembly with a component and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with two circular ports and a rotating button (no text or symbols)

Three identical 3D mechanical bracket diagrams with mounting holes, shown in isometric view (no text or symbols)

OFF

ON

Note

Pin Assignment

1 +12V

2 +12V

3 +12V

4+12V

5 Ground

6 Ground

7Ground

8Ground

Примечание

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDDWEDED (-)	2 Power LED (+)	PowerLED
3 HDD LED(-) 4Pow
5 Ground	Reset	6 Power Button	Power-OnButton
7Reset Control 8G	Button
9NC NC 10 Key Key

Pin	Assignment
1	Ground
2	TX+
3	TX-
4	Ground
5	RX-
6	RX+
7	Ground

Pin Assignment

1 Force Power

2 Key

3 CIO Plug Event

4SMB_DATA_MAIN

5 SLP_S3_N

6 SMB_CLK_MAIN

7SLP_S5_N

83V3_AIC_PD_INT#

9GND

10 GND

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4Data terminal ready

5 Signal ground

6 Data set ready

7Request to send

8Clear to send

9Ring indicator

10 Key

Индикаторы

SW\_PWR(Питание):

VALKYRIE AURORA Utility

Нажмите «Yes»

단계3: Align and seat processor package on socket.

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

단계4: Rotate lever and press lever finger, then locked the position.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

주의

Technical line drawing of a computer cooling fan with a green circular annotation highlighting a component detail (no text or symbols present)

Technical line drawing of a computer cooling fan with green arrows indicating rotation or adjustment (no text or symbols)

<타입B>

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

주의

Technical line drawing of a computer RAM module with green directional arrows indicating rotation (no text or symbols)

Isometric line drawing of a mechanical component with green directional arrows indicating motion (no text or symbols)

주의

DIMM소켓 위치 DDR5 모듈 총 메모리 크기
DDR5_A1 8GB/16GB/24GB/32GB/48GB	최대 192GB.
DDR5_A2 8GB/16GB/24GB/32GB/48GB
DDR5_B1 8GB/16GB/24GB/32GB/48GB
DDR5_B2 8GB/16GB/24GB/32GB/48GB

듀얼 채널 메모리 설치

Technical line drawing of a mechanical assembly with labeled components and rotation arrows (no text or symbols)

Isometric line drawing of a mechanical component with a labeled 'Click' button (no other text or symbols)

M.2 SSD 카드 제거

Technical line drawing of a mechanical assembly with a gear and rotating component (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components and angular motion indicator (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and rotating component (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a labeled component (no text or symbols present)

Technical line drawing of a mechanical assembly with a component and circular base (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a rotating button (no text or symbols)

M.2COOLING 히트싱크

Three identical 3D rectangular metal bars with mounting holes, shown in isometric view (no text or symbols)

3D diagram of a rectangular plate with two small components and green arrows indicating upward motion (no text or symbols)

3D diagram of a rectangular electronic component with internal compartments and a green arrow indicating rotation (no text or symbols)

3D rendering of a rectangular electronic component with two mounting holes and two green arrows indicating direction (no text or symbols)

1단계:

Pin opened Pin closed Pin 1-2 closed

OFF

ON

주의

핀	배열
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7Ground

핀	배열
1 Force Power
2 Key
3 CIO Plug Event
4 SMB_DATA_MAIN
5 SLP_S3_N
6 SMB_CLK_MAIN
7SLP_S5_N
8 3V3_AIC_PD_INT#
9	접지
10 접지

HD Audio
핀	배열
1 Mlc Left in
2 Ground
3 Mlc Right in
4 GPIO
5 Right line in
6 Jack Sense
7Front Sense
8 Key
9 Left line in
10 Jack Sense

주의

5V\_LED1/ 5V\_LED2/ 5V\_LED3/ 5V\_LED4: Addressable RGB LED 장치 (WS2818B) 헤더

인디케이터

SW\_PWR (전원):

3.4 소프트웨어

소프트웨어의 설치

VALKYRIE AURORA Utility

"Yes" 를 누릅니다.

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

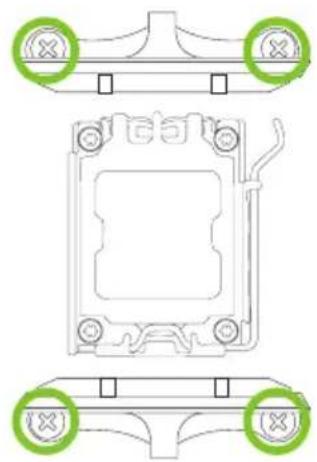

步驟4: 扭動拉桿並完全閉合鎖住。

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

注意

» 請安裝正確CPU在AM5插座。

Line drawing of a computer cooling fan with a highlighted internal component (no text or symbols)

Technical line drawing of a computer CPU fan with cooling mechanism highlighted (no text or symbols)

<類型B>

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

注意

Technical line drawing of a RAM module with green directional arrows indicating rotation or movement (no text or symbols)

Isometric line drawing of a rectangular electronic component with multiple slots and green directional arrows indicating motion (no text or symbols)

注意

雙通道狀態 DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O

Technical line drawing of a mechanical assembly with labeled components and rotation arrows (no text or symbols)

Isometric line drawing of a mechanical component with a labeled 'Click' button (no other text or symbols)

移除 M.2 SSD 卡

Technical line drawing of a mechanical assembly with a gear mechanism and a circular component inset (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components and angular motion indicator (no text or symbols)

“M.2 旋轉自動扣具” 更換孔位：移除、安裝

Technical line drawing of a mechanical assembly with mounting bracket and rotating component (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a labeled component (no text or symbols present)

Technical line drawing of a mechanical assembly with a component and circular base (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a rotating knob (no text or symbols)

安裝M.2 COOLING 散熱片

Three identical 3D mechanical bracket diagrams with mounting holes, shown in isometric view (no text or symbols)

OFF

ON

Note

針	定義
1 Force Power
2 Key
3 CIO Plug Event
4 SMB_DATA_MAIN
5 SLP_S3_N
6 SMB_CLK_MAIN
7SLP_S5_N
8 3V3_AIC_PD_INT#
9	接地
10 接地

F\_AUDIO: 前置面板音效接頭

指示器

LED燈

3.4 軟體

安裝軟體

VALKYRIE AURORA Utility

按 "Yes"

按右下角 “Download Update”

等待下載過程完成。

下載並安裝完成後，請重新啟動系統。

4.2 RAID 功能

RAID 定義
