9212SPC-010 - Tour Hazet - Free user manual and instructions

Product Type	Cordless Impact Wrench
Model	9212SPC-010
Battery Voltage	18 V
Battery Capacity	2.0 Ah
No-Load Speed	0 - 2700 rpm
Square Drive	1/2" (12.5 mm)
Max Tightening Torque	200 Nm
Max Loosening Torque	260 Nm
Recommended Torque	200 Nm
Screw Size	M16
Weight (incl. battery)	1.45 kg
Dimensions (L x W x H)	167 x 65 x 187 mm
Sound Pressure Level	100 dB(A)
Sound Power Level	111 dB(A)
Vibration Acceleration	14.91 m/s²
Charger Input	100-240 V~ 50/60 Hz
Charger Output	12-18 V - 4.0 A
Charging Time	35 min
Battery Type	Li-Ion
Operating Temperature (Discharging)	10°C to +40°C
Operating Temperature (Charging)	0°C to +40°C
Storage Temperature	-10°C to +40°C
Relative Humidity (Storage)	Max. 60%
LED Work Light	Yes, automatic
Forward/Reverse Switch	Yes
Battery Capacity Indicator	4-stage LED
Overheat Protection	Automatic shutdown at 70°C
Maintenance	Clean with solvent-free agent; check sockets regularly
Safety Equipment Required	Safety glasses, hearing protection, gloves, tight clothing
Spare Parts	Use original HAZET parts only
Disposal	Do not dispose with household waste; recycle at collection points

Frequently Asked Questions - 9212SPC-010 Hazet

How do I attach the battery to the impact wrench?

Insert the battery into the handle until it locks with a click. Ensure it is fully engaged to avoid falling off during use.

How do I check the battery charge level?

Press the control button to display the charge for 5 seconds. The 4-stage LED indicator shows remaining capacity: 1 LED = 0-25%, 2 LEDs = 26-50%, 3 LEDs = 51-75%, 4 LEDs = 76-100%.

How do I change the direction of rotation?

Stop the impact wrench completely, then slide the reversing switch (forward/reverse) to the desired position. Do not attempt to change direction while the tool is running.

What is the maximum tightening torque?

The max tightening torque in forward mode is 200 Nm. The max loosening torque in reverse mode is 260 Nm. Always check screw connections with a torque wrench.

How do I charge the battery?

Connect the charger to a 230 V outlet (100-240 V~). Insert the battery terminal-first into the charger. Charging takes about 35 minutes. All 3 LEDs light up when fully charged.

What should I do if the charger LEDs flash?

If all 3 LEDs flash simultaneously, the battery may be overheated. Remove it and let it cool for 15-30 minutes. If 2 LEDs flash, the battery might be defective; contact HAZET support.

How do I clean and maintain the impact wrench?

Disconnect the battery before cleaning. Use a soft cloth moistened with soapy water or a solvent-free cleaning agent. Do not use bleach, benzene, or thinners. Remove dust regularly.

Can I use any socket with this impact wrench?

Only use impact sockets (1/2" square drive) that are approved for the tool's speed. Do not use damaged or worn sockets. Inspect sockets regularly.

What safety gear should I wear?

Always wear safety glasses, hearing protection, tight-fitting clothing, and work gloves. Avoid loose clothing, jewellery, and long hair that could get caught.

How should I store the tool and battery?

Store in a dry, dust-free place away from children. Temperature range: -10°C to +40°C. Relative humidity max 60%. Remove the battery if storing for extended periods.

USER MANUAL 9212SPC-010 Hazet

Operating instructions Cordless Impact Wrench

9212SPC-1 9212SPC-010

C€

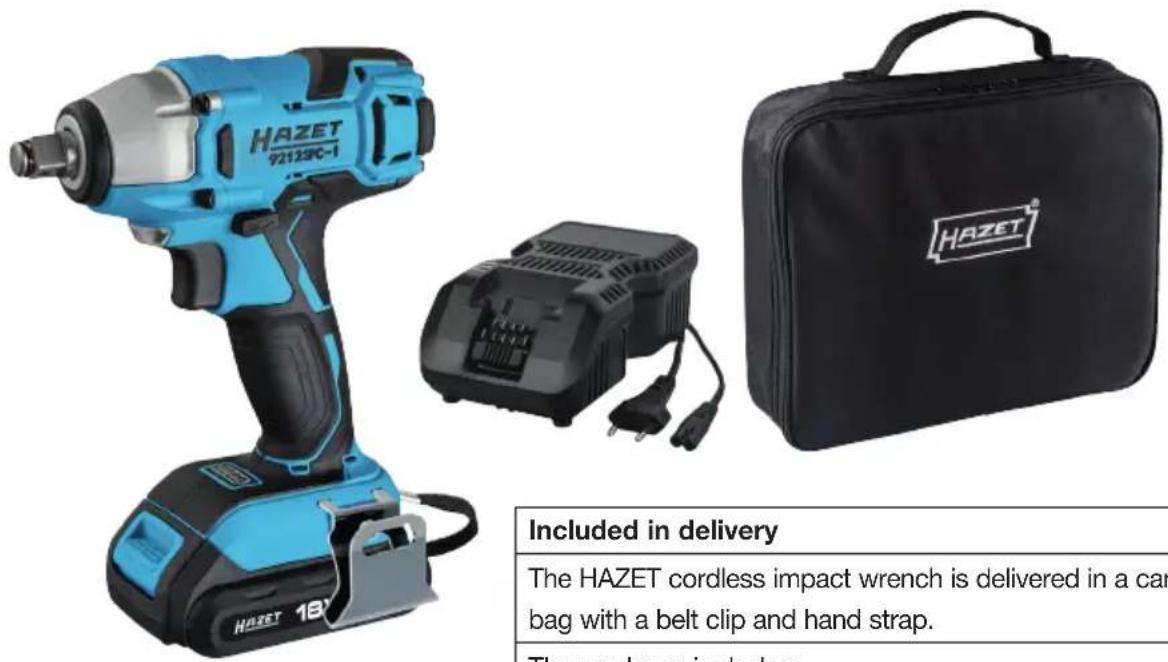

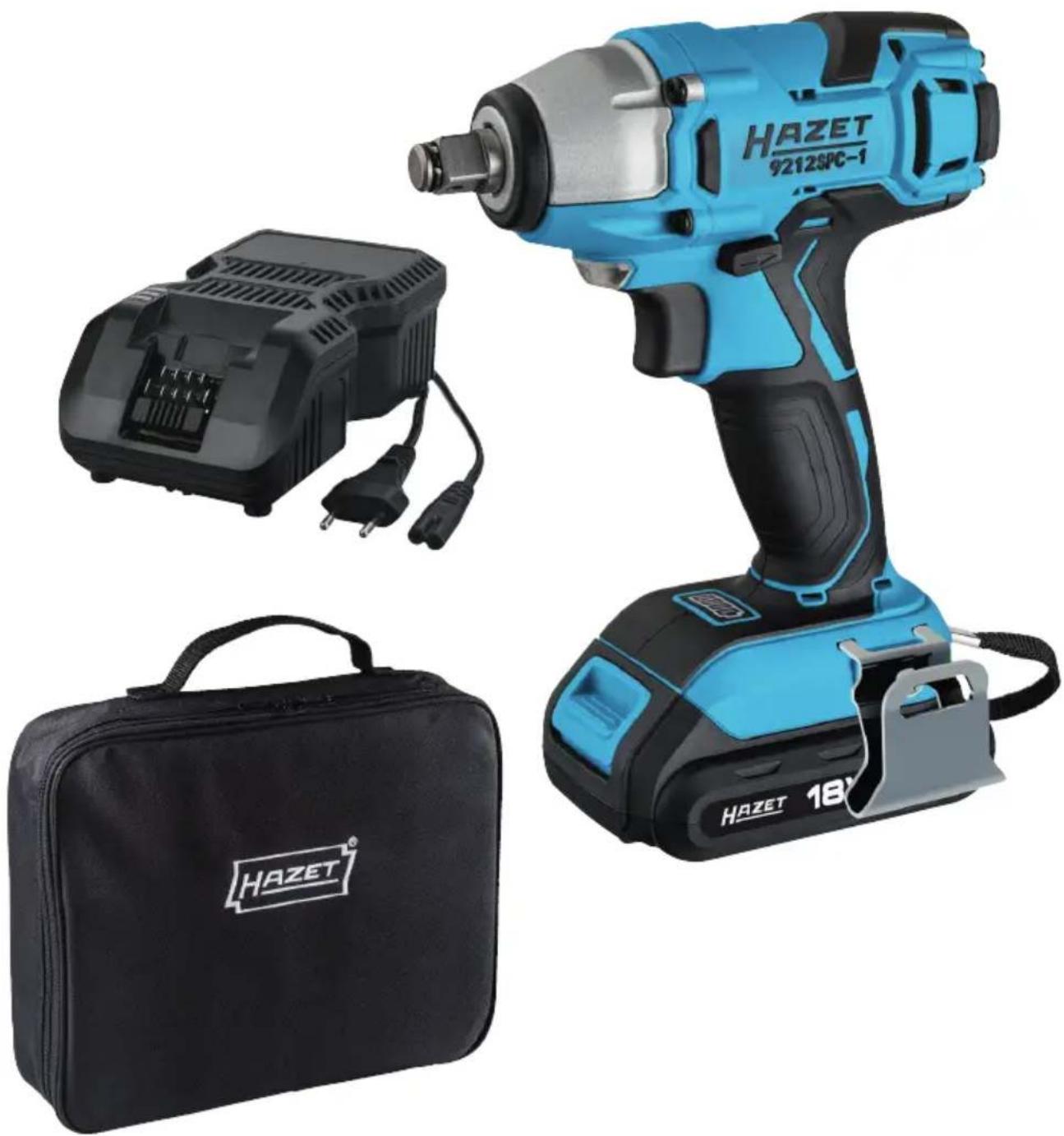

Product photo of a HAZET 9212SPC-1 electric drill kit with attached black housing and power cord (no visible text or symbols on main body)

1. For your information .....19
2. For your safety .....20
3. Design and Function .....25
4. Maintenance and care .....31
5. Notes......32

Illustration of hands using a handheld device to adjust a device (no text or symbols visible)

Technical line drawing of a handheld device with no visible text or symbols

Illustration of hands using a handheld device to adjust or install a component (no text or symbols visible)

Betrieb:

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Technical line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Always wear personal protective equipment!

1. General information

• Please make sure that the user of this tool carefully reads these operating instructions and fully understands all the information provided before using the tool for the first time.
• These operating instructions contain important advice that is necessary for the safe and trouble-free operation of your HAZET tool.
• Intended use of the HAZET tool requires adherence to all the safety instructions and other information in these operating instructions.
  • Therefore, always keep these operating instructions together with your HAZET tool.
• This tool has been designed exclusively for specific applications. HAZET expressly points out that this tool may not be modified and/or used in a manner that does not comply with its intended use.
• HAZET will not be liable for any injuries to persons or damage to property originating from any improper application, misuse of the tool or any disregard of the safety instructions.
• Furthermore, the general safety and accident prevention regulations in the application area of this tool must be observed and adhered to.

2. Explanation of symbols

ATTENTION: Pay strict attention to these symbols!

READ THE OPERATING INSTRUCTIONS!

The operator is obligated to comply with the operating instructions and to instruct all users of the HAZET tool in accordance with the operating instructions.

NOTE!

This symbol indicates advice that is helpful when using the tool.

WARNING!

This symbol indicates important specifications, dangerous conditions, safety risks and safety advice.

CAUTION!

This symbol indicates advice which, if disregarded, will result in damage, malfunction and/or functional failure of the tool.

QUALIFIED PERSONNEL!

This tool is only suitable for use by qualified personnel. Any handling by non-qualified people may lead to injuries to persons or damage to the tool or the workpiece.

Electric energy may cause serious injuries! Always wear personal protective equipment!

1. General aspects

• This device was developed and manufactured according to the technical norms and standards valid at the time and is considered to be operationally reliable. Nevertheless, the device can present a danger when it is not used as intended or in an inappropriate way by non-qualified personnel. Please make sure that any person using this device or carrying out any maintenance work carefully reads these operating instructions and fully understands all the provided information before using the device.
• Keep the operating instructions together with the tool set at all times.
• Modifications of any kind or any additions or modifications to the tool are prohibited.
• All safety, warning and operating information on the device must be kept legible. Immediately replace any damaged labels or stickers.
• All specified installation values or setting ranges must be observed.

2. Intended use

Operational reliability is only guaranteed if the device is used as intended in accordance with the information provided in the operating instructions. In addition to the safety advice provided in these operating instructions, the general safety regulations, accident prevention and environmental protection regulations valid for the application area of this tool must be observed and adhered to. The tools must always be used and maintained according to the local government, state or federal regulations.

• The HAZET cordless impact wrench is a handy, battery-operated tool for handiwork and DIY jobs. It is used to loosen and tighten screw connections and is equipped with an MD limit.
• The max. tightening torque is: in forward mode = 200 Nm
• The max. loosening torque is: in reverse mode = 260 Nm
  NOTE!

Every screw connection must be tightened/ checked with a suitable torque wrench.

• The tool must only be used if it is in good working condition.
• All safety equipment must always be within reach and should be checked regularly.
• Any incorrect use of the cordless impact wrench or use that does not comply with the safety instructions can result in serious injury or even death.
• Any deviation from the intended use and/or any misapplication of the tool is not permitted and will be considered as improper use.
• Any claims against the manufacturer and/or its authorised agents resulting from damage caused by improper use of the tool are excluded.
• Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the owner.

Check the full functionality of the HAZET impact wrench before each use. Do not use the impact wrench if its functionality is not guaranteed after the results of this test or if damage is discovered. There is a risk of serious injury, damage to property and health if its full functionality is not given and the impact wrench is nevertheless used. Electric energy may cause serious injuries to persons. The following safety instructions must be observed and adhered to in order to avoid electric shock, injuries or fire:

• The connecting cables and housing must not be damaged. Tools/chargers that have been dropped or damaged must be checked by qualified personnel before being used again.
• Never use tools with a defective on/off switch. Any tools that cannot be switched on or off with the On/Off switch are dangerous and must be repaired immediately.
• The cables must not touch hot or sharp parts or become damaged in any other way. The cables must be laid in such a way that they do not represent a tripping hazard.
• The charger and impact wrench must not be exposed to water or other liquids. Dangerous voltage discharges may occur.
• Keep any unused rechargeable batteries

Electric energy may cause serious injuries! Always wear personal protective equipment!

away from metallic objects such as paper clips, coins, keys, nails, screws, etc. These objects can establish a connection between the poles and cause a short-circuit, which can cause sparks, flames or fires.

- Never disassemble/open the charger and/or impact wrench yourself. Any improper assembly can impair its functionality and cause a fire, an electrical shock and/or injuries.

- All service or repair work must be carried out by qualified personnel only. Only use original spare parts in order to guarantee its long term operational safety.

- Safety devices and/or cover parts may not be removed.

- Never operate the tool when a protective cover is missing or when not all of the safety devices are fitted and in perfect working order.

- If an extension cord is necessary, it must be sufficiently dimensioned for the charger. Cables that are not designed for the necessary amperage may overheat.

- The battery may only be recharged with the expressly designated charger. A charger that is designed for a different type of rechargeable battery can cause a fire in this type of rechargeable battery.

- Only use the tool with the designated rechargeable battery. Using any other battery may cause a fire.

- The battery and the charger heat up slightly when recharging. This does not reduce their functionality. Appropriate caution is required for operation.

- Only use the cordless impact wrench at places that are determined and prescribed by applicable provisions for work areas and electrical systems.

- Any modifications to HAZET cordless impact wrenches are strictly forbidden for safety reasons. Any modifications to the device will immediately void the warranty and liability.

Wear working gloves and safety glasses.

Electric tools can raise chips, dust and other abraded particles at high speed, which may result in severe eye injuries.

Wear hearing protection.

Long exposure to the working noise of an impact wrench may result in permanent hearing loss.

Wear a face mask or breathing protection.

Material abrasive tools generate dust and other debris that can cause damage to your lungs and airways. Breathing in the steam of some materials like adhesives and tar that contain dangerous chemicals can, over a longer period of time, cause serious harm to the lungs and respiratory tracts..

Wear tight-fitting protective clothing.

Tools with rotating parts or tools that drive other tools, such as nut-drivers, etc., can get caught in your hair, clothes, jewellery, or other loose objects, which can lead to serious injury. Never wear loose clothing and/or clothing with bands or loops, etc. which may get caught in the moving parts of the tool. Take off any jewellery, watches, identification tags, bracelets, necklaces, etc. that could get caught in the tool during work. Never touch the moving parts of a tool. Tie or cover long hair.

Keep electric tools out of the hands of children.

Unattended tools could be used by unauthorised persons and could cause injury to them or to other persons.

- Only use proper sockets that are suitable for impact wrenches. Substandard, inappropriate or damaged attachments, such as sockets, etc., can become loose when actuated and hurled across the work area, which can lead to serious injuries.

- Only use impact sockets that are approved for the speed of the tool. Do not use impact sockets that have fallen down, become hit, damaged or altered during use.

- Only use impact sockets to actuate the machine when working with impact wrenches.

- Please observe the reaction torque. Pay attention to the reaction moment and to a possible breakage of the tool to be actuated.

Electric energy may cause serious injuries!

Always wear personal protective equipment!

In confined spaces, reaction torques may lead to severe injuries. Countermeasures must be taken against unexpected reaction torques.

• Do not use the device in an explosive atmosphere. Electric tools such as impact wrenches can cause sparks or ignite combustible materials. Never operate tools in proximity to combustible substances like petrol, naphtha, detergents, etc. Work in wellcleaned and well-ventilated areas only. Keep combustible materials out of the work area.
• Do not point the tool at another person. Keep children and other persons out of the work area when operating the tool.
• Do not let the tool with the attached socket idle. Impact sockets may come loose, break off and be hurled around and may cause severe injury to the user or to third parties in the work area.
• Before changing the accessories, adjusting and storage, remove the rechargeable battery from the tool or set the switch to OFF or in the locked position. These kinds of preventive safety measures may prevent accidental actuation.
• Only use parts, supports and accessories that are recommended by the manufacturer.
• Never carry the tool with your finger on the quick-release press-button.
• Avoid unintentional actuation.
• Keep the grip dry, clean and free from oil and grease.
• Make sure that the working area is clean, well ventilated and always well lit.
• Never use the tool whilst under the influence of alcohol or drugs.
  • Repairs must be performed by authorised personnel only.
• Do not clean plastic parts with solvents.
• Solvents such as petrol, benzene, carbon tetrachloride, and alcohol can deform or crack the plastic parts. Do not come in contact with the above-mentioned solvents.
• When working on elevated places, always make sure that no one is located below the work area before you commence work.

Electric energy may cause serious injuries! Always wear personal protective equipment!

Important safety instructions for the quick charger: This section contains important safety and operating ons for the quick charger:

- Before commissioning the charger, please read all instructions and markings on the:

1. charger
2. battery

- Operating temperature for Li-Ion batteries: 10 to +40°C for discharging 0 to +40°C for charging

- Operating temperature for charger: 0 to +40 °C

- To avoid electric shock, disconnect the charger from the socket before cleaning or beginning maintenance work. Removing the battery does not reduce the hazard.

- Any non-approved use of the charger may result in serious injury.

To avoid these hazards:

• Never disassemble the battery.
• Never throw the battery into a fire even if it is damaged or completely depleted. Explosion hazard!
• Never short circuit the battery.
• Never push objects into the ventilation holes of the charger, otherwise you risk electric shock or damage to the charger.
• Never recharge the battery outdoors.
• Never expose the battery to direct sunlight.
• Recharge only in well-ventilated areas with low humidity.
• Never recharge the battery when the temperature is below 0 °C (32 °F) or above 40 °C (104 °F).
• Never combine two chargers.
• Never plug objects into the battery holder.
• Never use an amplifier transformer when charging.
• Never use a motor generator or DC power to recharge.
• Never store the battery and charger where the temperature can reach 40 °C (104 °F).
• Always use the charger with 230 V standard electrical connections. Using the charger at higher voltages can overheat and damage the charger.
  • Always take at least 15 minutes of wait time

between multiple recharges to avoid overheating the charger.

- Always disconnect the charger from the power source when not in use.

Electric energy may cause serious injuries! Always wear personal protective equipment!

1. Technical data / tool components

Cordless impact wrench	HAZET 9212SPC-010
Battery power 18 V - 2,0 Ah
No-load speed 0 - 2700
Switch function Forward/reverse
Square drive	^125 12
Weight incl. battery 1,45 kg
Dimensions incl. battery	L=167 x B=65 x H=187 mm
Max. torque 200 Nm
Recommended torque 200	Nm
Max. loosening torque 260	Nm
Sound pressure level 100 Lp A [dB(A)]
Sound power level 111 Lp W [dB(A)]
Vibration acceleration	14,91 m/s ^2 K = 1,5 m/s ^2
Screw size M16
Amperage without load 5 A

Battery charger HAZET 9212-03
Input voltage	100 - 240 V~ 50/60 Hz110 W
Output voltage 12 - 18	V - 4,0 A
Safety approval	CB, ETL, GS, ICES,PSE
Battery type Li-Ion
Charging time 35 min

Accessories (optional)
HAZET Nr. Designation
9212-05	Replacement battery 5 Ah

Electric energy may cause serious injuries! Always wear personal protective equipment!

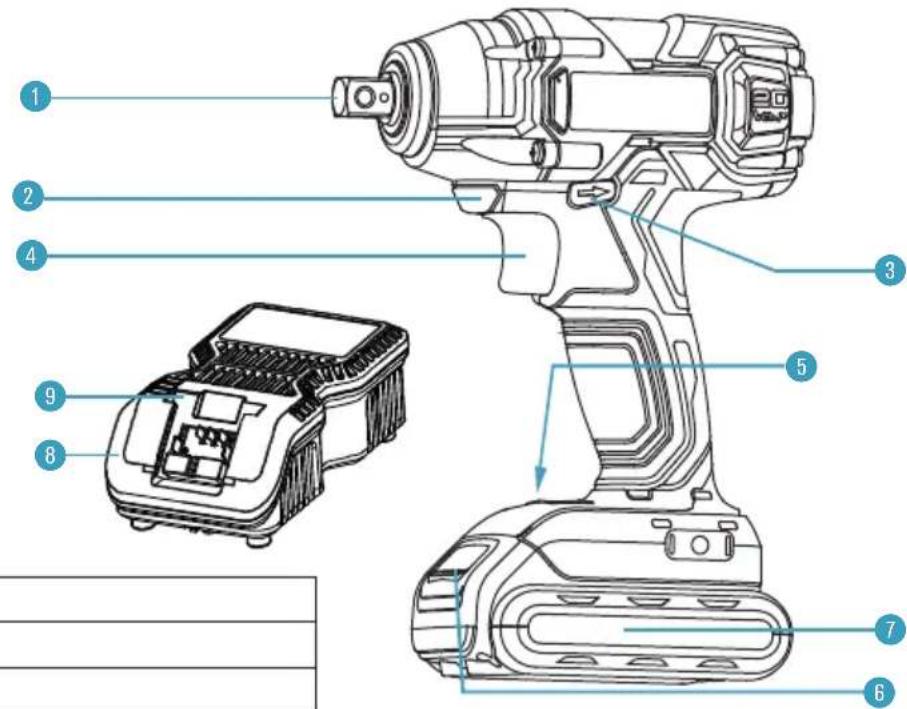

Pos.	Designation
1 Square
2 LED work light
3 Reversing switch (forward/reverse)
4 Control button
5 Battery capacity display
6 Battery safety lock
7 Battery
8 Battery charger
9 Charge indicator

Charge capacity indicator		Status
LED 1		0 - 25 %
LED 1, 2		26 - 50 %
LED 1, 2, 3		51 - 75 %
LED 1, 2, 3, 4		76 - 100 %

Attaching the Battery:

• Insert the battery until it locks with a click.
• If it is not engaged, the battery can fall off the tool, become destroyed and/or cause injury to you or bystanders.
• The battery is equipped with a charge indicator. The 4-stage LEDs (green) display the remaining capacity.
• Pressing the control button displays the battery's state of charge for 5 seconds.
• The battery has built-in overheating protection and protects the HAZET cordless impact wrench and the battery from overheating. When the max. temperature of 70°C is reached, the battery automatically shuts down and the HAZET cordless impact wrench can no longer be operated until the temperature has decreased to a safe level.

Disconnecting the battery:

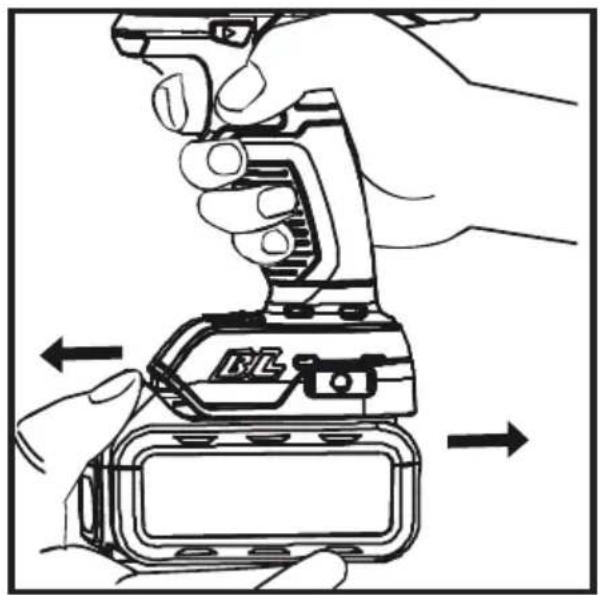

- Press the safety lock and pull the battery from the tool handle.

Illustration of hands using a handheld device to adjust a device (no text or symbols visible)

Electric energy may cause serious injuries!

Always wear personal protective equipment!

Before starting operation:

• Clean up the work area.
• Keep unauthorised persons out of the work area.
• Ensure adequate lighting and ventilation in the workplace.
  • Make sure that the battery is properly inserted and locked into place.

Adjusting the direction of rotation:

- The direction of rotation is set by the reversing switch.

The direction of rotation cannot be altered when the impact wrench is running. To change the direction of rotation, you must stop the impact wrench and then press the reversing switch to change the direction of rotation.

Setting the torque stages:

• The max. tightening torque is: in forward mode = 200 Nm
• The max. loosening torque is: in reverse mode = 260 Nm

Note:

After tightening the preset torque, the screw connections must be tightened/ checked with a suitable torque wrench. Tightening screws with the HAZET cordless impact wrench only is not permitted.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Operation:

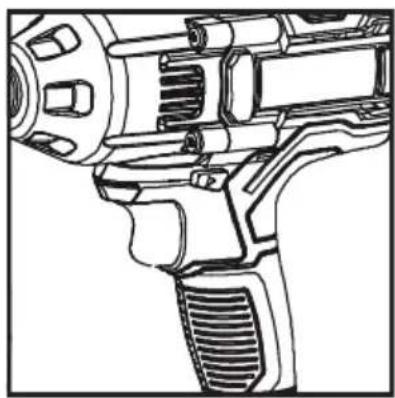

• Press and hold down the control button to operate the tool.
• Release the control button to stop the tool.
• The velocity/speed is controlled by the control button. Press the control button a little for low velocity/ speed and more for higher velocity/speed.

LED work light

The HAZET cordless impact wrench is equipped with an LED work light. This work light switches on automatically whenever the tool is activated and ensures optimum illumination of the work area, even in dark working conditions. The work light switches off automatically 15 seconds after the tool is deactivated.

Electric energy may cause serious injuries! Always wear personal protective equipment!

Note:

High operating noise level! Always wear hearing protection!

Tightening and loosening screws:

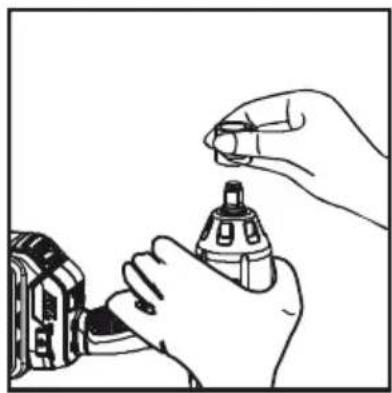

• A suitable socket based on the screw size must be selected and fitted for tightening and loosening a screw.
• Caution: the screw can be tightened too much and break if the screw is tightened for too long!
  • Always tighten the screw with the impact wrench at a right angle to the screw.
• A slanted impact wrench may damage the screw head and will not transmit the force to the screw.

Before charging:

• Check the power source voltage against the permissible voltage on the charger's name badge.
• Higher charging voltages than permitted represent a fire hazard to the charger.
• Check the cables for damage. Replace any damaged cables prior to use.

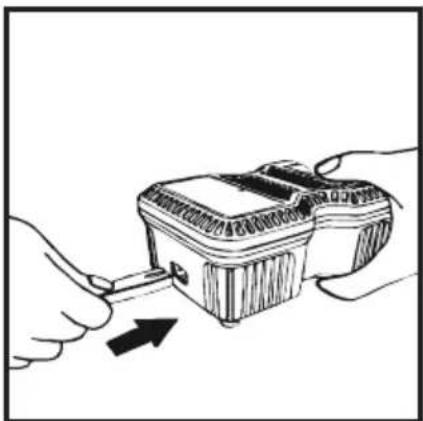

• Connect the charger to the power source. All 3 charging LEDs light up for 1 - 2 seconds.

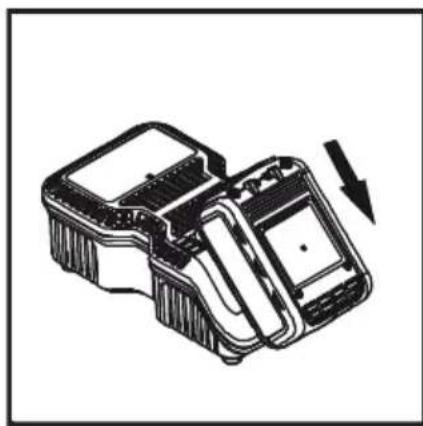

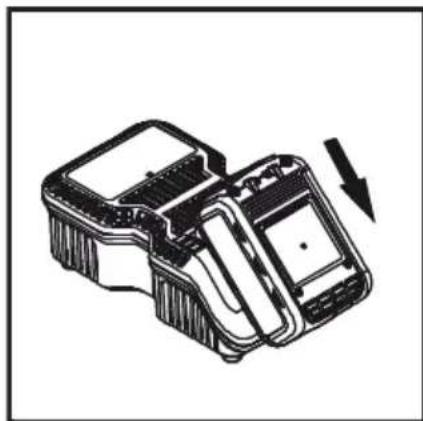

• Insert the battery into the charger headfirst with the terminal side. Make sure that the battery fits in the charger slide and that the contacts snap into position.
• If the charger detects an overheated battery, all 3 charging LEDs flash at the same time. Remove the battery and let the charger cool for about 15 - 30 minutes before you continue charging.

Illustration of hands using a tool to interact with a device (no text or symbols visible)

Technical line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

If the battery is improperly inserted into the charger, then the terminals of the charger can become bent or damaged.

The state of charge is displayed while charging:

• Less than 30 % charged: all 3 charging LEDs are flashing.
• Less than 60 % charged: one charging LED lights up, the other two are flashing.
• Over 60 % charged: 2 LEDs light up and one is flashing.
• 100 % charged: all 3 charging LEDs light up.

Charging may take about 35 minutes. Charging is completed when all 3 charging LEDs light up.

Always disconnect the charger from the power source in the event of malfunctions! Reinsert the battery if necessary.

Electric energy may cause serious injuries!

Always wear personal protective equipment!

Troubleshooting / Avoidance:

• Never pull the plug from the socket using the cable.
  • Always pull the plug to avoid damaging the cable.
• Firmly hold the charger with your hand and remove the battery from the charger.
• The battery and the charger heat up slightly when recharging. This does not reduce their functionality. Appropriate caution is required for operation.
  • After charging, take the required 15 minutes of wait time before charging again.
• If the charger detects an overheated battery, all 3 charging LEDs flash at the same time. Remove the battery and let the charger cool for about 15 - 30 minutes before you continue charging.
• If the charger detects a malfunctioning battery, 2 charging LEDs flash at the same time. Please remove the battery and allow it cool for about 15 - 30 minutes. Should both charging LEDs continue to flash afterwards, the battery may be defective. Please send us the battery immediately for analysis.
• If the charger has a defect, all 3 charging LEDs flash at the same time. Please remove the battery and disconnect the charger from the mains. After 2 minutes, insert the plug into the socket outlet again and insert the battery. Should all 3 charging LED's still be flashing, send the charger immediately to us for analysis.

④ Maintenance and care

4. Maintenance and care

Disconnect the battery from the tool before performing any maintenance or repair work. Check sockets regularly. Worn or damaged sockets can slip off the tool or reduce its performance and thus damage the motor.

Motor maintenance:

- The motor unit winding/coil is the most important part of the electric tool. Handle the tool with care to ensure that the winding/coil is not damaged or gets wet from water or oil.

Care:

- The HAZET cordless impact wrench should be regularly treated with a commercial solvent-free cleaning agent without grinding additives.

Checking for dust:

• Dust can be removed with a soft cloth or a cloth moistened with soapy water.
• Do not use bleach, chlorine-based cleaning agents, benzene or thinner since these can dama - ge the plastic.
• Wash and dry plastic parts with a soft cloth dampened with soapy water.

Electric energy may cause serious injuries! Always wear personal protective equipment!

⑤ Spare parts

• Only use the manufacturer's original spare parts.
• Unsuitable or defective spare parts may cause damage, malfunction or total failure of the device.
• The use of non-approved spare parts will void all warranty, service, compensation and liability claims against the manufacturer or his agents, distributors and sales representatives.

⑥ Storage

The device must be stored according to the following conditions:

• Keep the tool in a dry and dust-free place.
• Do not expose the tool to liquids and/or aggressive substances.
• Do not store the tool outdoors.
• Keep tool out of reach of children.
  • Storage temperature: -10 up to +40 °C.
  • Relative air humidity: max. 60 %.

⑦ Disposal

• Worn-out batteries (Li-Ion) and electric tools must not be disposed of in domestic waste, but at suitable collecting points.
• Electronic waste, electronic components, lubrication and other auxiliary materials must be treated as hazardous waste and may only be disposed of by authorised specialists!
• Reducing environmental pollution and preserving the environment are the main focus of our activities!

Electric energy may cause serious injuries! Always wear personal protective equipment!

Notizen / Notes

Always wear personal protective equipment!

Notizen / Notes

Always wear personal protective equipment!
