DPS-7330 - Iron VOX - Free user manual and instructions

Product Type	Steam Iron
Brand	VOX
Model	DPS-7330
Dimensions (approx.)	30 x 15 x 20 cm
Weight (approx.)	1.5 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	2400 W
Soleplate Material	Ceramic coated
Steam Output	Continuous steam up to 40 g/min
Steam Boost	Yes, up to 150 g/min
Water Tank Capacity	300 ml
Anti-Drip System	Yes
Self-Cleaning Function	Yes
Auto Shut-Off	Yes, after 8 minutes of inactivity
Vertical Steam	Yes
Care and Maintenance	Descaling recommended every 2-3 months
Safety Features	Automatic shut-off, heat-resistant handle
Spare Parts Available	Soleplate, water tank, steam button
Reparability	Modular design for easy repair

Frequently Asked Questions - DPS-7330 VOX

How do I descale my VOX DPS-7330 iron?

To descale, fill the water tank with a mixture of equal parts water and white vinegar, then turn on the iron and allow it to steam for 5 minutes. Empty the tank and rinse with clean water. Repeat if necessary. Descaling prevents limescale buildup.

What does the auto shut-off feature do?

The auto shut-off turns off the iron after 8 minutes of inactivity when upright, and after 30 seconds when laid flat or tilted. This safety feature prevents accidents.

Can I use tap water in the iron?

It is recommended to use distilled or demineralized water to reduce limescale buildup. Tap water can be used if it is soft, but hard water may require more frequent descaling.

How do I use the steam boost function?

Press the steam boost button (usually located on the handle) to release a powerful burst of steam for removing stubborn wrinkles. It can be used in vertical or horizontal position.

What type of soleplate does the DPS-7330 have?

The iron features a ceramic coated soleplate, which glides smoothly over fabrics and resists scratches.

How do I clean the soleplate?

Allow the soleplate to cool, then wipe with a damp cloth. For sticky residue, use a paste of baking soda and water. Avoid abrasive cleaners. The self-cleaning function also helps.

What is the warranty period for this iron?

The standard warranty for VOX irons is typically 2 years from the date of purchase. Check your local warranty card or contact VOX support for details.

Can I use the iron vertically?

Yes, the vertical steam function allows you to steam hanging garments, curtains, or upholstery without a board.

What should I do if the iron is not heating up?

Check that the power cord is securely plugged in and the temperature dial is set correctly. If the auto shut-off has activated, shake the iron gently to reset. If still not working, consult a technician.

Where can I find spare parts for the DPS-7330?

Spare parts such as the soleplate, water tank, or steam button can be ordered from VOX authorized service centers or online retailers. Check the manual for part numbers.

USER MANUAL DPS-7330 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DPS-7220

DPS-7330

OPERATING INSTRUCTIONS STEAM STATION MANUALE DELL'UTENTE STAZIONE A VAPORE BEDIENUNGSANLEITUNG DAMPFBÜGELSTATION ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ ПАРОГЕНЕРАТОР UPUTSTVO ZA UPOTREBU PARNA STANICA MANUAL DE USUARIO ESTACIÓN DE VAPOR MANUAL DO USUÁRIO ESTAÇÃO DE VAPOR ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ ΣΤΑΘΜΟΣ ΑΤΜΟΥ NAVODILA ZA UPORABO PARNA POSTAJA UPUTE ZA UPORABU PARNA POSTAJA UPUTSTVO ZA UPOTREBU PARNA STANICA УПАТСТВА ЗА РАКУВАНЬЕ ПАРНА СТАНИЦА MANUALI I PERDORUESIT НЕКUR ME AVULL

GBR

ITA

DEU

RUS

SRB

ESP

PRT

GRC

SVN

HRV

BIH

MNE

MKD

ALB

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

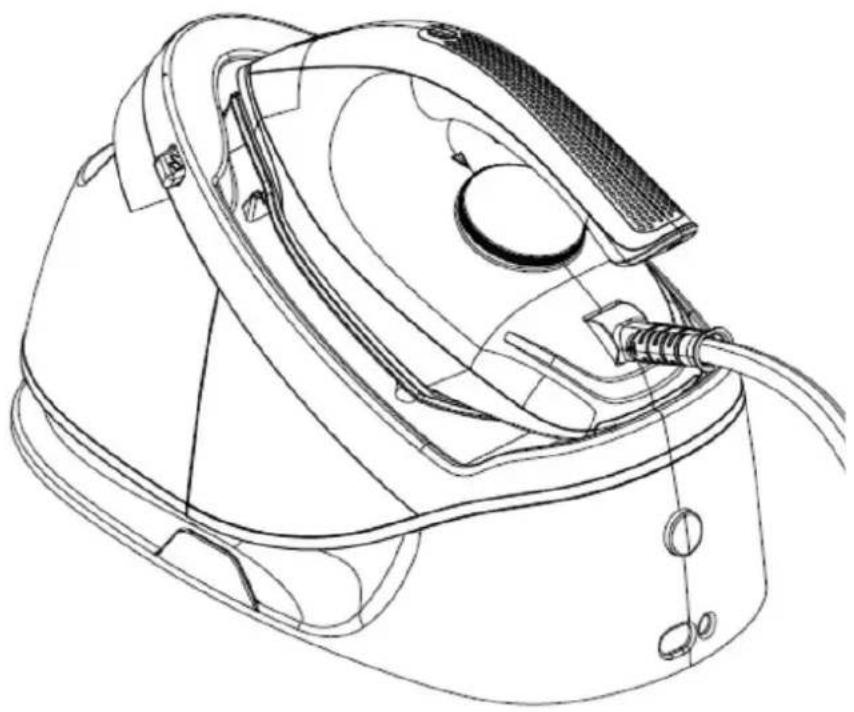

Line drawing of a steam iron with attached circuit board and cable (no text or symbols)

We congratulate you on choosing this powerful and handy product. It allows an easy and professional ironing at home. Using the homogeneous steam at the right temperature, you can iron more quickly sheets, towels, jeans etc. The holes in the point of the iron release a jet of steam which stretches softly even the hardest creases. Please read this instruction manual carefully and keep it for future references.

WARNINGS AND SAFETY PRECAUTIONS

• Improper operation and misuse can cause damage to the device and users.
• The device must be operated only for the use it is designed for. We are not responsible for any damage caused by misuse or improper handling.
• Do not operate this device close to water taps, bathtubs, washbasins, showers or other containers full of water.

Don't put the device or its plug in water or any other liquids.

If the iron accidentally falls in water, immediately unplug it and make sure it is checked by an authorized service center. Do not dip your hands in water to recover the device. Not following these rules could cause an electric shock.

- Do not operate the device with wet hands or when the floor is damp or the device itself is damp.

Do not touch the plug with wet or damp hands.

- Do not operate the device if it falls down or it is damaged in other ways or if the cable or the plug are damaged. If damaged, take the device to an authorized service center to be checked and repaired if necessary.

- Never attempt to repair it yourself as to avoid any risk related to electricity. Do not let the cable lean on sharp edges and keep it away from heating sources and bare flames.

- When you remove the plug out of the wall outlet, do not pull the cable.

- Make sure that the voltage of the place where the iron is to be used matches the voltage indicated on the product label.

• This device is not intended for professional use.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid any hazard.

- Never leave the device unattended while using it.

- The plug must be removed from the socket-outlet before the water reservoir is filled with water.

- Children do not recognize the dangers related to an improper use of electrical devices; for this reason, do not let them use the electrical appliance without supervision.

- Always remove the plug out of the wall outlet if you are not using the device and before cleaning it.

CAUTION: The voltage indicated exists as long as the device remains connected to the wall outlet.

Turn off the device before unplugging it.

Do not hold the device by the cable. Do not use extension (cable).

- Do not operate this device in a corrosive and explosive atmosphere as to avoid short-circuit and explosions.

- Using non-original accessories may prejudice the functionality of the device and cause the loss of the guarantee.

- The appliance must not be left unattended while it is connected to the supply mains.

• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• The iron is not to be used if it has been dropped, if there are any visible signs of damage or if it is leaking.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Keep the iron and its cord out of reach of children younger than 8 years of age when it is energized or cooling down.

IMPORTANT

-While operating, the iron and the boiler reach very high temperatures, be very careful, burns danger. Do not touch the metal parts of the iron when it is hot.

-Before replacing or cleaning, unplug the device from the power supply outlet and wait until it completely cools down.

-Do not use the device outdoors.

-Do not use the device close to curtains, furniture or other inflammable objects.

-Caution: the steam is very hot, burns danger. Never direct the steam jet towards persons, animals or objects that could be damaged or burned.

-Use only tap water or demineralized water to fill the tank. Other liquids could damage components and gaskets causing the loss of the guarantee of the product.

-Do not put other liquids, other materials or additives in the tank.

-Always place the iron on a stable, flat and heat-resistant surface.

-Do not load weights on the monotube nor try to squash it.

-Do not wind the cable around the device.

-Check carefully that the label of the fabric to iron matches the setting and the temperature of the iron.

-Always place the iron on its seat on the station, do not let the iron remain on fabrics or elsewhere.

INSTALLATION

Take the device out of the box and remove the packing. In order to ensure sufficient ventilation the distance between the iron and the wall or other objects should be at least of 15cm on the back and of 15cm on the side.

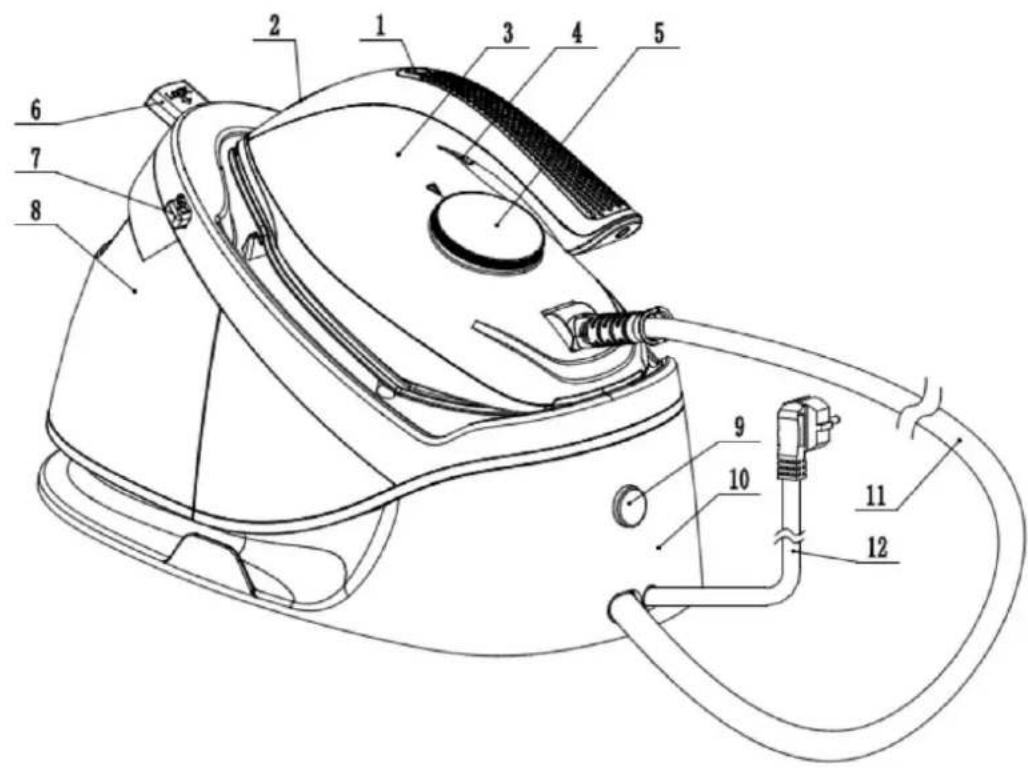

PARTS OF THE DEVICE

1 Clean Indicator Light / Clean button

2 Ready light

3 Iron

4 Steam trigger

5 Temperature Control Dial

6 Lock

7 Unlock

8 Water Tank

9 Power switch

10 station

11steam cord

12 Power Cord

a) Place the device on a stable and heat-resistant surface.
b) Twist off the tank.
c) Supply tap water or demineralized water. The water tank capacity is 1.7 liters.
d) Adjust the temperature dial in terms of choosing the kind of fabrics that you want to iron.

Note: If you want to use the steam ironing, we suggest you to adjust the temperature dial on MAX.

e) Insert the plug in the wall outlet and turn on switch.

Note: During the whole operating time, the iron operating light indicator will go on and off in erratic intervals, this is normal.

f) To make the steam jet come out, press the steam trigger.

If the steam stops coming out, this is probably because there is no more water in the tank. In order to continue ironing, follow the instructions of the paragraph "SUPPLYING WATER WHILE OPERATING".

g) Cleaning mode (a large amount of sewage will be discharged from the steam hole of the soleplate during cleaning, please make relevant preparations in advance). The machine has intelligent reminder cleaning mode and active cleaning mode respectively. Smart reminder cleaning mode refers to the user after continuous use steam ironing accumulative total of 25 hours, cleaning light normally on remind users need to clean the machine, the first long pushes a cleaning button for 3 seconds until the flashing, at this time to press the trigger, the machine into cleaning mode and start from the soleplate hole steam discharge sewage; Active cleaning mode refers to that when the power switch is on, long press the cleaning button for 3 seconds until the cleaning light flashes, and then adjust the thermostat knob on the iron to the cleaning gear). At this time, press the trigger, the machine enters the cleaning mode and begins to discharge sewage from the soleplate steam hole. The cleaning time will last for 1 minute, and the cleaning mode will end when the cleaning light is off. If you need to exit the cleaning mode, please press the cleaning button for 3 seconds until the light is off.

Steaming Fabrics

Follow the "INSTRUCTIONS" from (a) to (f)

Place the iron vertically at a minimum distance of 20-30cm from curtains or fabrics, and press the steam button, then steam the fabrics describing round figures.

Note: be very careful about the compatibility of the cloth label with this kind of treatment.

Dry Ironing (without steam)

a) Place the device on a stable and heat-resistant surface.
b) Turn on the iron, pressing the iron turning on/off button which will light on, the iron operating light indicator will also light on.
c) Adjust the temperature dial in terms of the kind of fabrics that you want to iron.
d) When the iron operating light indicator goes out, the iron will be ready for use.

Auto-off function

The iron has an auto-off safety function that will operate when your appliance has not been used for 5 minutes. The unit will enter a sleep mode and all the lights will turn off. To restart simply pull the steam trigger 4. The unit will restart and may need a short time to reheat to the desired temperature, which will be indicated by the pulsing temperature indicator light 2.

CLEANING AND MAINTENANCE

After unplugging the device from the wall outlet, leave it completely cool down and then clean it with a damp cloth. Do not use any detergents, but only a soft cloth dampened with lukewarm water. Place the iron vertically in dry and clean place.

Note: Possible servicing operations for damage or fault caused by the formation of scale are not covered by the guarantee.

SERVICING

ATTENTION: This device must be repaired only by qualified technicians authorized by specific centers.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

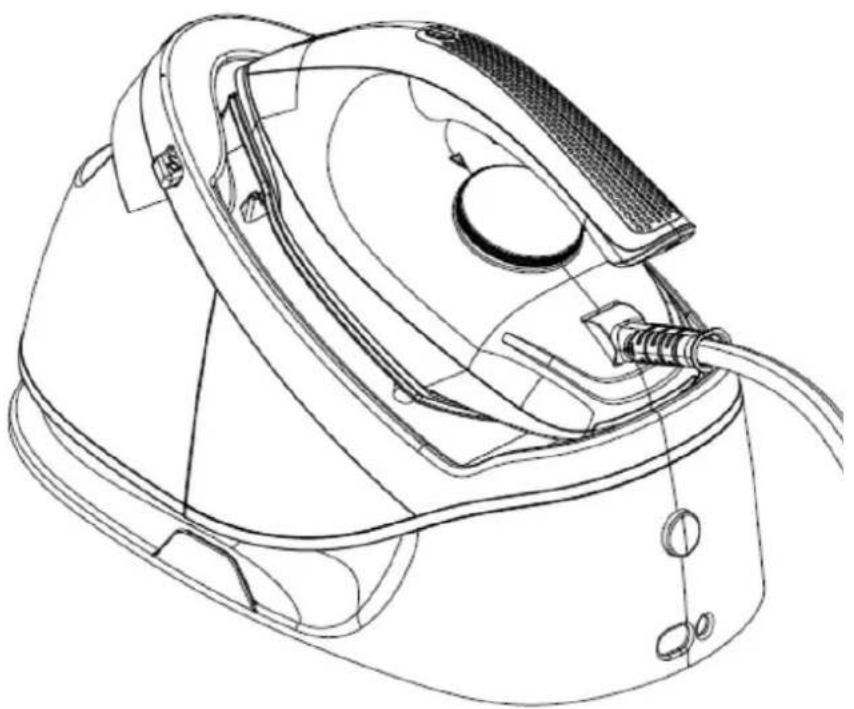

Line drawing of a steam iron with attached circuit board and cable (no text or symbols)

MANUALE DELL'UTENTE

DPS-7220

DPS-7330

STAZIONE A VAPORE

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

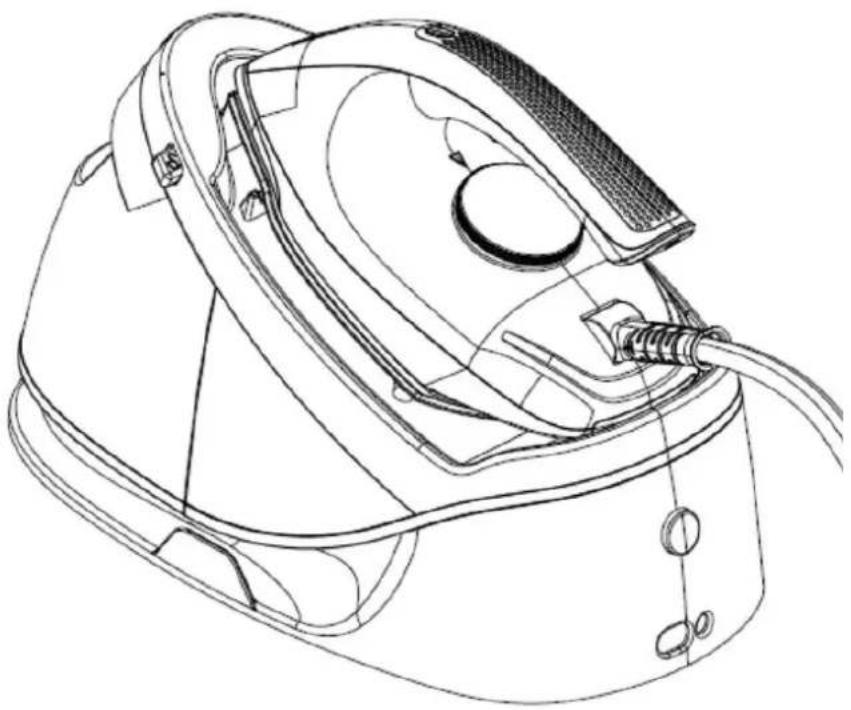

Line drawing of a steam iron with attached circuit board and cable (no text or symbols)

BEDIENUNGSANLEITUNG

DPS-7220

DPS-7330

DEU

DAMPFBÜGELSTATION

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a steam iron with attached circuit board and cable (no text or symbols)

RUS

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

Line drawing of a steam iron with attached circuit board and cord (no text or symbols)

KORISNIČKO UPUTSTVO

DPS-7220

DPS-7330

PARNA STANICA

Čestitamo vam na izboru ovog moćnog i praktičnog proizvoda. On vam omogućava lako i profesionalno peglanje kod kuće. Korišćenjem homogene pare na odgovarajućoj temperaturi možete brže peglati posteljinu, peškire, farmerke itd. Otvori u pegli oslobađaju mlaz pare koja nežno rasteže čak i najizgužvanije nabore.

UPOZORENJA I BEZBEDNOSNE MERE

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a steam iron with attached circuit board and cable (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a steam iron with attached tubing and control panel (no text or symbols)

MANUAL DE INSTRUÇÕES

DPS-7220

DPS-7330

PRT

ESTAÇÃO DE VAPOR

Siga as "INSTRUÇÕES" de a) a f).

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a steam iron with attached tubing and mounting feet (no text or symbols)

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

DPS-7220

DPS-7330

GRC

ΣΤΑΘΜΟΣ ΑΤΜΟΥ

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a steam iron with attached circuit board and cable (no text or symbols)

NAVODILA ZA UPORABO

DPS-7220

DPS-7330

SVN

PARNA POSTAJA

a) Postavite aparat na stabilno in na toploto odporno podlago.

b) Odstranite pokrov posode za vodo.

c) Vlijte navadno vodo iz pipe ali destilirano vodo.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

Line drawing of a steam iron with attached circuit board and cable (no text or symbols)

KORISNIČKE UPUTE

DPS-7220

DPS-7330

PARNA POSTAJA

Čestitamo vam na izboru ovog moćnog i praktičnog proizvoda. On vam omogućava lako i profesionalno glačanje kod kuće. Korištenjem homogene pare na odgovarajućoj temperaturi možete brže glačati posteljinu, ručnike, farmerke itd. Otvori u glačalu oslobađaju mlaz pare koja nježno rasteže čak i najizgužvanije nabore. Molimo pažljivo pročitajte ove upute za uporabu i čuvajte ih u slučajupotrebe.

UPOZORENJA I SIGURNOSNE MJERE

• Nepravilan rad i rukovanje aparatom može uzrokovati kvar u radu uređaja i dovjesti do ozljede korisnika.
• Uređaj treba koristiti samo za predviđenu namjenu. Proizvođač ne snosi odgovornost za bilo kakvu štetu nastalu uslijed nepravilnog rada i rukovanja uređajem.
  Nemojte rukovati ovim uređajem u blizini pipa za vodu, kada, umivaonika, tuš kabina ili drugih posuda u kojima ima vode.

Nemojte spuštati uređaj ili njegov utikač u vodu ili bilo koje druge tekućine. Ukoliko uređaj slučajno upadne u vodu, odmah ga isključite iz zidne utičnice i odnesite na provjeru u ovlašteni servisni centar. Nikada ne uranjajte ruke u vodu da biste pokrili uređaj. Nepoštivanje ovih pravila može uzročiti strujni udar.

a) Postavite uređaj na čvrstu površinu koja je otporna na toplinu.
b) Izvucite spremnik
c) Sipajte vodu iz pipe ili destiliranu vodu. Kapaciteta spremnika je 1.7l.
d) Prilagodite temperaturu ovisno od tkanine koju želite glačati.

Napomena: Ukoliko želite da glačate na paru, preporučujemo da podesite regulator na MAX.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

Line drawing of a steam iron with attached circuit board and handle (no text or symbols)

KORISNIČKO UPUTSTVO

DPS-7220

DPS-7330

PARNA STANICA

Čestitamo vam na izboru ovog moćnog i praktičnog proizvoda. On vam omogućava lako i profesionalno peglanje kod kuće. Korišćenjem homogene pare na odgovarajućoj temperaturi možete brže peglati posteljinu, peškire, farmerke itd. Otvori u pegli oslobađaju mlaz pare koja nježno rasteže čak i najizgužvanije

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a steam iron with attached tubing and control panel (no text or symbols)

КОРИСНИЧКО УПАТСТВО

DPS-7220

DPS-7330

MKD

ПАРНА СТАНИЦА

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a steam iron with attached circuit board and cable (no text or symbols)

UDHËZIM PËR PËRDORIM

DPS-7220

DPS-7330

ALB

HEKUR ME AVULL
