Product Type	Refrigerator
Brand	Koenic
Model	KBK 444 E
Dimensions (H x W x D)	Approx. 85 x 50 x 55 cm
Weight	Approx. 30 kg
Energy Class	E (EU 2019)
Voltage / Frequency	220-240 V / 50 Hz
Climate Class	N-ST (16°C – 38°C)
Noise Level	Approx. 40 dB
Total Gross Capacity	Approx. 130 L
Fridge Capacity	Approx. 110 L
Freezer Capacity	Approx. 20 L
Cooling System	Static (fan-assisted on some models)
Defrost Type	Manual (freezer) / Auto (fridge)
Temperature Control	Mechanical dial (1-7)
Reversible Door	Yes
Shelf Material	Glass (toughened)
Interior Light	Incandescent bulb
Storage Features	Crisper drawer, door bins, egg tray
User Manual	Available for download at notice-facile.com
Maintenance	Clean with mild detergent, annually
Safety Features	Stable door hinge, non-toxic materials

Frequently Asked Questions - KBK 444 E Koenic

How do I set the temperature on my Koenic KBK 444 E fridge?

The temperature is controlled by a dial inside the fridge, usually numbered from 1 (warmest) to 7 (coldest). Turn the dial to the desired setting. For normal operation, a middle setting (3-4) is recommended. Wait 24 hours for the temperature to stabilize.

How do I defrost the freezer compartment?

The freezer compartment requires manual defrosting when ice build-up exceeds 5 mm. Remove all food, unplug the fridge, and leave the door open. Place towels to absorb meltwater. Do not use sharp tools to scrape ice. Once defrosted, clean and dry the interior before restarting.

What should I do if the fridge is not cooling?

Check that the fridge is plugged in and the thermostat is not set to 0 (off). Ensure the door is sealing properly and not blocked by food. Clean the condenser coils (if accessible) at the back. If the problem persists, contact a technician. Overloading or placing hot food inside can also affect cooling.

How do I clean my Koenic KBK 444 E refrigerator?

Unplug the fridge before cleaning. Remove all shelves and accessories. Wash them in warm water with mild detergent, then dry. Wipe the interior with a soft cloth and a solution of water and baking soda (1 tablespoon per liter) to eliminate odors. Do not use abrasive cleaners. Clean the door seals with a damp cloth.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. Typically, you need to remove the hinge covers, unscrew the hinges, and reattach them on the opposite side. Ensure you have the necessary tools (screwdriver, wrench). Some models may include a reversing kit.

Why is there water pooling inside the fridge?

Water pooling is often due to a blocked defrost drain. Check for food debris or ice blocking the drain hole at the back of the fridge (usually under the crisper). Clear with a pipe cleaner or warm water. Also ensure the fridge is level so water flows to the drain properly.

What is the energy consumption of the KBK 444 E?

The Koenic KBK 444 E has an energy class of E (EU 2019 standard). Annual energy consumption is approximately 200-250 kWh, depending on usage and ambient temperature. For better efficiency, keep the fridge away from heat sources and allow air circulation around the back.

How do I replace the interior light bulb?

Unplug the fridge. Locate the light cover (usually near the thermostat). Gently push or unsnap the cover to access the bulb. The bulb is typically an incandescent type (15W or 25W, E14 base). Replace with the same type and power. Reattach the cover and plug the fridge back in.

What should I do if the fridge smells bad?

Remove all expired food and clean the interior with a solution of water and baking soda or vinegar (1:4 ratio). Wipe down shelves and drawers. Place an open box of baking soda inside to absorb odors. Check for spills in the door bins and crisper. Unplugged odor sources like uncovered onions or cheese.

Is the Koenic KBK 444 E suitable for garage use?

The fridge is rated for climate class N-ST, meaning it operates best in ambient temperatures between 16°C and 38°C. In a garage where temperatures can drop below 10°C or rise above 40°C, performance may be affected. In cold conditions, the fridge may not maintain proper temperature; in very hot conditions, the compressor may run continuously. Use in a climate-controlled space for best results.

USER MANUAL KBK 444 E Koenic

Built-in Fridge Static Freezer

XOK 444

Eckn. g:1618

到 1241787.01

图 1.1.2.1

F

图F-1a1-01

Plain white surface with no visible text, symbols, or markings

Deutsch 4-10 English 15-20 Spanish 67-77 Italian 38-48 Port, Paris 19-23

EN Caution: Risk of fire! Flammable materials. WARNING! During using, service and disposal of the appliance, pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor). It's the risk of fire warning symbol.

There are flammable materials in the refrigerant pipes and the compressor. Keep sources of fire and open flames away during using, service and disposal.

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they are being supervised or have received instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by an authorized service agent in order to avoid hazards.
• The product is designed for the storage of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Warning! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Safety Instructions

• Warning! Do not damage the refrigerant circuit.
• Warning! Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
• The light source (LED) is only to be replaced by a recognized electrician/qualified person.*
• Follow the instructions in the chapter Cleaning and care.
• Warning! The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.
• To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean surfaces, that come into contact with food, as well as the accessible drainage systems on a regular basis.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drips onto other food.

English

Safety Instructions

-Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three-star compartments are not suitable for the freezing of fresh food.

-If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold from developing within the appliance.

* Note to service technician/qualified persons: Dismantling instruction can be obtained from the free website www.koenic-online.com.

Safety Instructions

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.
3. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorized service agent.
4. The mains voltage must match the information on the rating label of the product.
5. Only unplugging from the power socket can separate the product completely from the mains.
6. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
7. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
8. Only unplug from the power socket by the plug itself. Do not pull on the cord.
9. Unplug the product ...
10. when the product is not being used,
11. in case of malfunctions,
12. before attaching / detaching accessories and
13. before cleaning the product.
14. Use this product in dry indoor areas only and never outdoors.
15. This product is not intended for commercial use. It is designed for household use only.
16. Make sure that electrical components, live parts and the power cord do not become wet.
17. Use accessories supplied with the device or recommended by the manufacturer only!

18. Do not cover the product while in use. Fire hazard!

19. Warning! When positioning the appliance, ensure the supply cord is not trapped or damaged.

20. Warning! Do not locate portable socket-outlets or portable power suppliers at the rear of the appliance.

Caution: Risk of fire!

Flammable materials.

Warning! During using, service and disposal of the appliance, please pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor).

1. It's the risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Keep sources of fire and open flames away during using, service and disposal.

2. Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or if it's suspected to be defect.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries. This refrigerant appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C. This product is intended to be used as a built-in appliance.

The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions.

Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Delivery contents

1 x Fridge and freezer combination

1 x Egg holder for 6 eggs

1 x Ice cube tray

1 x User manual

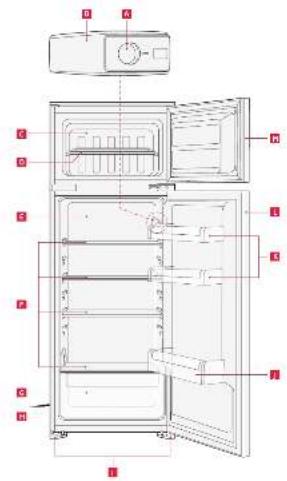

Controls and components

A Temperature control
B Light
c Freezer
D Freezer shelf
E Refrigerator interior
F Glass shelf (4x)
G Vegetable compartment (fresh food compartment)
H Power cord with plug (not shown)
Support feet, front
J Bottle shelf
K Door shelf (2x)
L Refrigerator door
M Freezer door

Accessories

1 x Egg holder for 6 eggs (not shown)
1 x ice cube tray (not shown)
1 x Set for installing the appliance (not shown)

Installation

Before installation, check that the door hinges are on the correct side. Change the position of the door hinges if necessary.

Fig. 1 The refrigerator is equipped with four glass shelves which, if desired, can be removed by pulling them forward. The upper three glass shelves can be used at different heights.

Warning

If the refrigerator has been stored, transported or tipped sideways during transport or installation, it must be in an upright for 12 hours before being connected to the mains.

Operation

Fig. 2 Plug the power plug into an appropriate mains socket outlet.

Note: Allow the product to precool for about 2-3 hours before storing food in it.

Setting the refrigerator temperature and cooling modes

Fig. 3 Set the temperature with the temperature control.

Levels 1-7 do not correspond to any particular temperature. In position 0 the appliance is switched off. The lower the setting, the higher the inner temperature. Note, that the energy consumption increases, the lower the set temperature is.

Note:

• To check the temperature, insert a commercially available thermometer into the device.
• The temperature in the unit depends on the ambient temperature and the setting of the temperature controller.
• Make sure the door of the product is properly closed and not blocked by food.

English

Adjust the sides of the doors

Note:

• If necessary, or if the premises require it, the mounting of the doors can be changed. To do this, follow the instructions below in the given order.
• The following tools are required: Hex-wrench 13 mm, wrench 8 mm, phillips screwdriver. Due to the uniqueness of the appropriate tools, they are not mentioned separately in the following instructions.
• For safety, remove the door trays to prevent them from being damaged.

Upper door

1 Unscrew the upper hinge plate. When unscrewing, be sure to hold the door firmly, otherwise it will be damaged.
2 Pull out the door and place it on a soft and clean surface.

Lower door

① Hold the door and remove the two screws on the middle hinge and the bracket.
② Pull the door upwards and place it on a soft and clean surface.
③ Remove the bracket on the left side, turn it and screw it back on the right side.

Refrigerator bottom hinge

- Remove the hinge pin and fix it to the left side. Make sure not to change the positions of the washers.

Gaskets

- Detach the fridge and the freezer door gaskets and then attach them after rotating upside down.

Mounting the doors

Caution

After you have placed the refrigerator upright on its feet, wait for 2 hours before you connect it to the mains to permit the cooling system to regain full capacity.

1 Place the lower door on the lower hinge pin. Flip the middle hinge and bracket over and screw the hinge with bracket to the other side. Check for correct function and fitting.
② Loosen and take out the hinge pin from the upper hinge plate. Then turn the hinge plate over and screw hinge pin.
3 Place the hole on the left side of the upper door onto the middle hinge pin and hold the door firmly.
4 Insert the bolt of the upper hinge plate into the designated left hole on the top of the upper door. Screw the upper hinge plate to the refrigerator. Check the correct function and the correct fit.

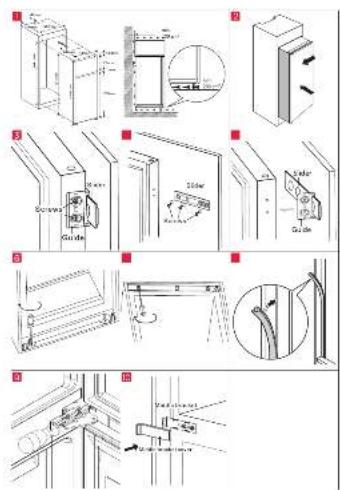

Built In

① Ensure the size of cabinet and clearances for ventilation and air circulation are enough.
② Slowly and carefully push the appliance into the cabinet. Ensure the opening side is as close to the cabinet wall as possible.
3 Screw a guide to the holes in the side of the fridge door using short screws. Insert the slider into the guide, then fully open and close the fridge door and cabinet door to check whether the cabinet door can close totally and smoothly.
4 Open the fridge door and cabinet door together and mark the position of the slider when the slider can function well at all angles while opening and closing the door. Take the slider out of the guide and fix it to the cabinet door using two short screws. Then fix the slider cover onto the slider. Unscrew the guide from the refrigerator door. Repeat step 2 to 4 to fix the other three sliders and covers.

5 Fit the four guides with sliders and fix them using short screws. Then fix the guide covers to the guides.
6 Double check whether the door can close and open smoothly and the appliance is sealed well. If not, slightly adjust the unit. Now fix the bottom bracket to the wooden cabinet using 2 long screws.
⑦ Fix the top bracket to the wooden cabinet using short screws.
8 Attached the rubber seal to the gap between fridge and wooden cabinet at the door open side.
9 Screw two middle brackets to the wooden cabinet using short screws.
10 Now fix the middle bracket covers to the brackets at two sides.

Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
• Ensure unobstructed air flow around the refrigerator and freezer.
• If a layer of ice has built, defrost the unit. A thick layer of ice affects the transmission of the cold, thus the energy consumption will be increased.
• When opening the door and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.
• Select the temperature regulator setting according to the filling amount of the product.
• Use drawers, baskets, or shelves to store the food. If the energy of the product is used efficiently, the energy consumption can be minimized.
• It's advised not to remove the provided accessories, such as drawers, shelves balconies, as this might increase the energy consumption.

Cleaning and care

Warning

• Unplug the product before cleaning.
- When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
- Never use oil or grease on the door seal. This will make it porous over time.
- Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.
- Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
• Make sure that no water enters the product interior (for example, through the temperature control).
- Wipe the door seal with clean water only, and dry it thoroughly afterwards.
- Removable parts, e.g. glass shelves, can be taken out for cleaning.

Decommissioning

If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Empty the product.
• Unplug the product.
• Clean the interior of the freezer compartment and let it dry.
• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.).
• Leave the door open to avoid the formation of unpleasant odors and mold.

English

Technical data

Rated current : 0.75 A

Energy Consumption

kWh/24h : 0.479 kWh

kWh/year : 175 kWh

Net capacity of refrigerator : 169 L

Net capacity of freezer : 36 L

Freezing capacity : 2.4 kg/24 h

Ambient temperature : 16°C - 38°C

Measurement: 540 x 540 x 1450 mm

Depth with door open : 1080 mm

Refrigerant : R600a, 49g

Light type : LED

Based on EN 62552: 2020

This product is intended to be used in climate classes from N to ST.

Climate class	Ambient temperature
N +16 to	+32 °C
ST +16 to	+38 °C

Use the link https://eprel.ec.europa.eu/ to access the European product database (EPREL), in which more information about the product is saved. Type in the model identifier, the EPREL registration number 1588978 or simply scan the QR-code on the energy label to access the model information.

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem	Possible causes Solution
Product does not work.	Interrupted power supply.	Check the power supply.
Temperature in the compartments is not low enough.	The door is not closed firmly or it is opened to often.	Re-arrange the food so that the door can be closed firmly.
	The ambient temperature is lower than 16°C or higher than 38°C.	The product is intended to be operated in an ambient temperature of 16°C to 38°C.
Water gathers in the lower part of the compartment.	The food comes in contact with the rear wall of the compartment.	Move away the food or container from the rear wall.
The interior lamp doesn’t shine.	Light source (LED) of the lamp is defect.	Contact service center.

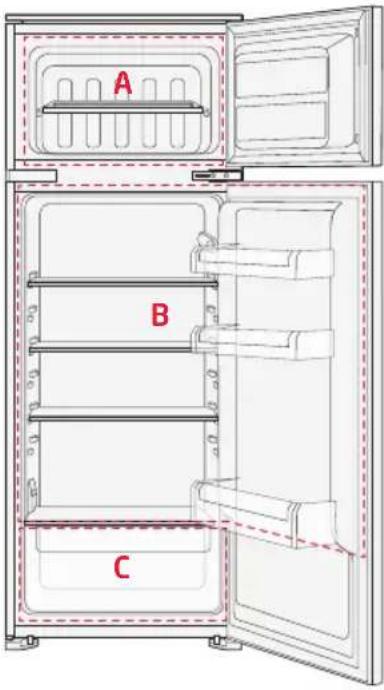

Storage of food and beverages

	Area	Recommended food and temperature setting
	A Freezer (-18°C)Foods for long-term storageStorage of frozen food and ice creamStorage for raw meat, poultry, fishStorage for frozen vegetables, chips
	B Fridge compartment (4°C)Storage of food for daily consumption, delicacies, yogurt, sauces, pickled vegetables, dessertsStorage of meat, fish, sausages, fresh filled pasta, cooked foods, leftovers
	C Fruit and vegetable compartment (8°C)

Note:

In summer : Fridge compartment should be set on 2\~4.

Normally : Fridge compartment should be set on 4.

In winter : Fridge compartment should be set on 4\~6

How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

Fridge compartment

• Use containers made from recycled plastic, metal, aluminium and glass as well as plastic wrap to pack food.
• Liquids, as well as foods that lead to odor formation or can easily spoil or that can transfer taste, should be covered.

• If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.

• Foods that give off a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one another or packaged in order not to shorten the storage time; for example, do not keep tomatoes with kiwi or cabbage together.

• Use the bottle holder to prevent bottles from tipping over.
• Do not store food too close to one another to allow sufficient air circulation.
• The recommended temperature setting for the fridge compartment is 4°C. If set, foodstuffs can be usually stored for a few days.

English

Recommendations when refrigerating food

• Store fresh and undamaged food. The quality and freshness will then be retained for longer.
• In the case of convenience products and bottled goods, do not exceed the sell-by date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavors from being transferred between foods and the plastic parts from becoming discoloured.
• Leave warm food and beverages to cool down before placing them in the refrigerator compartment.

Freezer

• Ideal for storing frozen food, preparing ice cubes and freezing fresh food.
• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).
• The recommended temperature for the freezer compartment is -18°C.
• The storage period specified on the packaging is decisive for commercially available frozen products.

Recommendations when freezing food

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.
• Distribute food in the compartments or frozen food containers.
• Do not bring food which is to be frozen into contact with frozen food. If required, re-stack frozen food in the frozen food containers.
• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop.

Note: Storage of foods at the wrong temperature may lead to an increase of food waste.

Storage times and temperature

Note: Overlong storage or storage at inappropriate freezing temperature may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months.
  • Fish, shrimp, lamb, meat: 4-8 months.
• Vegetables, fruits, poultry, beef: 6-12 months.
