Product Type	Down-draft extractor fan (range hood)
Model	DRAFT870
Brand	KKT Kolbe

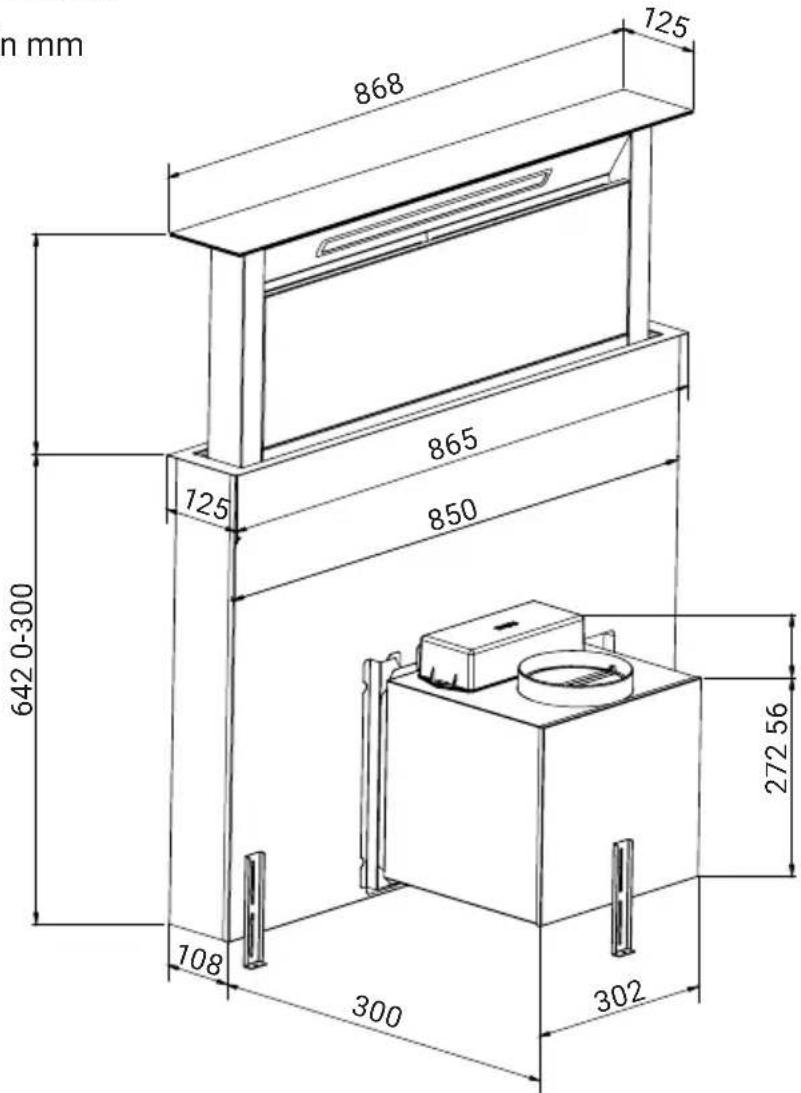

Dimensions (W × D × H)	868 × 416 × 646 mm
Weight	27 kg
Power Supply	220 - 240 V, 50 Hz
Power Consumption	73 W
Power Levels	9
Lighting	LED, 1 × 3 W
Energy Efficiency Class	A+
Maximum Airflow	535 m³/h
Maximum Sound Level	68 dB
Exhaust Outlet Diameter	150 mm
Number of Grease Filters	2 (metal, dishwasher-safe)
Activated Carbon Filter Type	K117
Control Type	TouchSelect sensor keys + remote control
Functions	Delay/Auto-off, LED display, extractable design
Operating Modes	Exhaust air and recirculation (convertible)
Cable Length	1.3 m
Standby Power Consumption	0.49 W

Frequently Asked Questions - DRAFT870 KKT Kolbe

What is the intended use of the DRAFT870 range hood?

The DRAFT870 is designed for private domestic use to extract cooking vapours. It can be used in exhaust air or recirculation mode. It is not suitable for commercial use, grills, or solid fuel fires.

How do I install the DRAFT870 range hood?

Installation should be done by a qualified professional. The hood is built into a worktop cut-out (W 855 × D 114 mm) behind the hob. Follow the detailed installation instructions in the manual, including connecting the exhaust duct and power supply. Ensure sufficient fresh air supply for exhaust air mode.

How do I clean the metal grease filters?

Remove the glass plate to access the filters. Clean manually with hot water and detergent or in a dishwasher at 55-65°C. Clean every 2-3 weeks depending on use. Ensure filters are dry before reinserting.

How often should I replace the activated carbon filter?

The activated carbon filter (type K117) is not washable and should be replaced every 3-12 months, depending on usage frequency. It is only required for recirculation mode.

What should I do if the touch control is unresponsive?

Ensure the control panel is clean and dry. Even a thin film of moisture can cause issues. Also, use the ball of your finger, not the tip, and avoid touching multiple keys at once.

How do I replace the LED lighting?

Only a qualified person should replace the LED strip (type L21, 33×420 mm, 3 W, 12 V). Disconnect power, extend the hood, remove the grease filters and screws, pull out the light, unplug, and replace. Follow the manual carefully.

The hood is not extracting properly. What could be the cause?

Possible causes: clogged filters, blocked airways, insufficient air supply (exhaust mode), or incorrect installation. Clean filters, check ductwork, ensure doors/windows are open for air supply, and verify the distance from hob.

Can I use the hood without a grease filter?

No. Never operate the hood without the metal grease filter, as grease deposits can cause fire hazards and impair function. The carbon filter is optional for recirculation mode but the grease filter is mandatory.

What is the correct way to use the delay/auto-off function?

During operation, briefly touch the delay key to activate a 1-minute auto-off countdown. In standby, press and hold the delay key for 3 seconds to set a custom time (1-9 minutes). The fan and light will turn off automatically.

The hood makes unusual noise or vibrates. What should I check?

Check for loose parts, ensure the hood is securely mounted, and inspect the fan and duct for blockages. If the noise persists, contact KKT Kolbe customer service.

USER MANUAL DRAFT870 KKT Kolbe

User's manual → English language

Modell: DRAFT870

Modern metal architectural structure with a black panel and support frame, no visible text or symbols

Version: 1.0 / 240517

KKT Kolbe Customer Service 56

Simple line drawing of a hand pressing down on a panel with an arrow (no text or symbols)

2-3 W.

ACHTUNG!

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

2

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

3

Technical diagram of a mechanical or electrical component with mounting holes and a central panel (no text or symbols)

Technical line drawing of a mechanical or electrical cabinet assembly with no visible text or symbols

Technical line drawing of a mechanical lifting device with no visible text or symbols

7. Problemlösung

WARNUNG!

Isometric line drawing of a device with a door and window, shown with arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

KKT Kolbe Customer Service

KKT KOLBE Kundenservice

Tel. [phone]

Mail: [e-mail]

www: www.kolbe.de

for your down-draft extractor fan

Model: DRAFT870

Exterior view of a modern office building (no signage)

Version: 1.0 / 240517

Thank you for your confidence and congratulations on the purchase of your new down-draft extractor fan!

Read this manual carefully and thoroughly before unpacking the appliance.

It contains important information about safe installation, maintenance and use, as well as important warnings about the use of your appliance.

Mark the passages that are important to you, keep the manual so that you can refer to it at any time and also pass it on to other users, as well as the installer of the appli- ance.

In view of the continuous development, we reserve the right to make any necessary modifications to the appliance and / or the manual in order to better meet the requirements of user-friendliness, user protection and current technical standards.

You can find the latest version of your user manual as well as further data, documents and information on the corresponding product page or in the "Questions & Answers" section of our online shop at www.kolbe.de.

You have chosen a good appliance that will serve you for many years with proper operation and care.

Should you have any complaints despite our thorough quality control, please contact our in-house customer service.

They will be happy to help you.

To ensure a smooth process in the event of any queries, we recommend that you note the respective 20-digit serial number of your appliance in the corresponding field below.

This can be found on the rating label of your appliance or on its packaging.

Your KKT KOLBE - Team

Serial number of my appliance:

KKT KOLBE

User's manual

Down-draft extractor fan, model: DRAFT870 Version 1.0

© KKT KOLBE Küchentechnik GmbH & Co. KG KKT KOLBE is a registered trademark.

Table of contents

Important Safety Instructions 4

Further Notes and Icons 14

1. Product Overview ...... 18

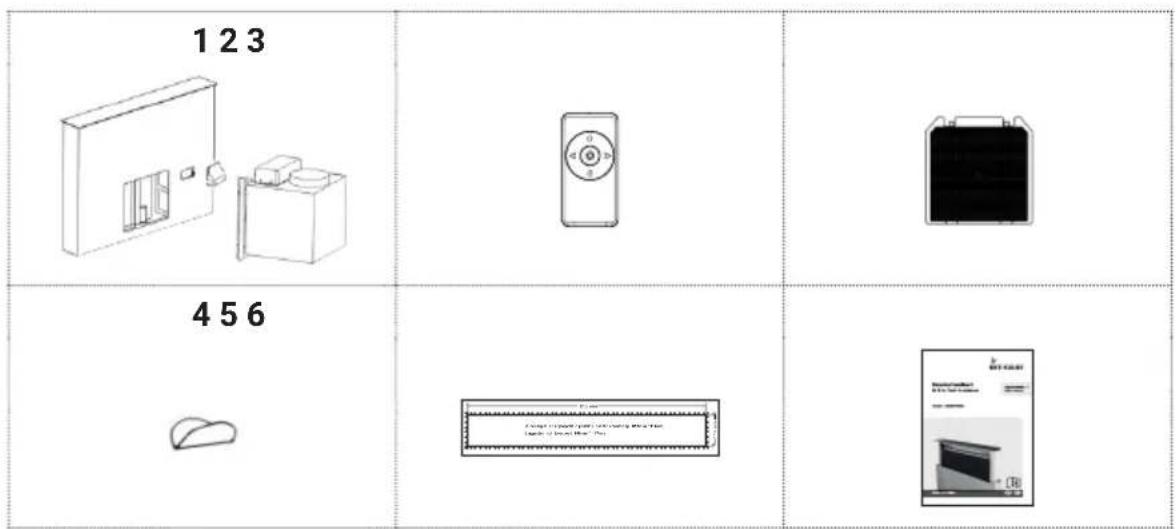

1.1 Packing list

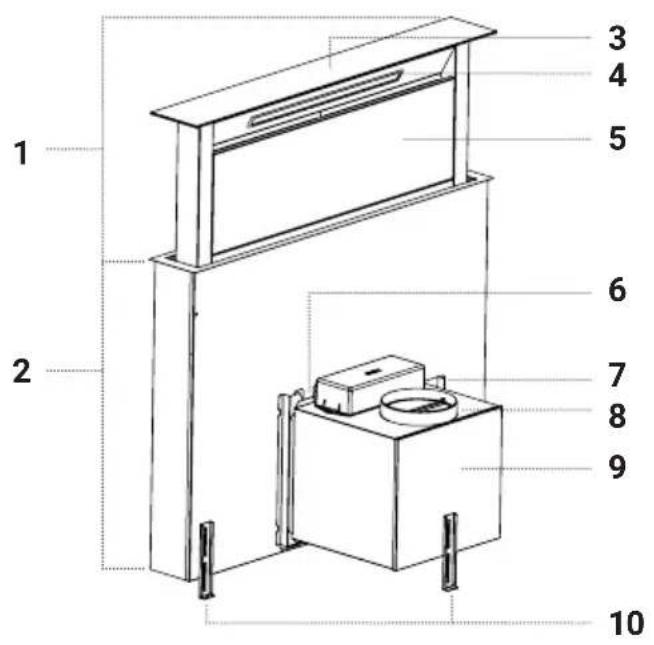

1.2 Construction and properties of the appliance

2. Operating Principle and Use of the Appliance 21

2.1 Intended use and functional principle

2.2 Operating modes

3. Notes Before Use 24

3.1 Unpacking and preparing the appliance

3.2 Commissioning the appliance

4. Operation, Setting and Use 25

4.1 Notes on using the touch control

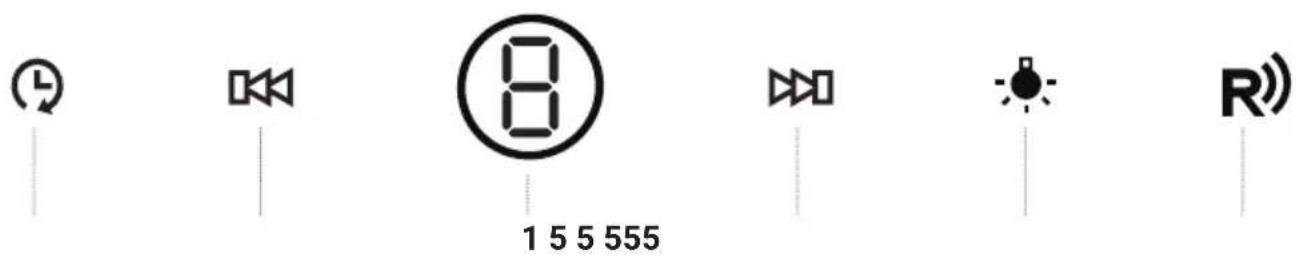

4.2 Control panel and display

4.3 Key operation and setting

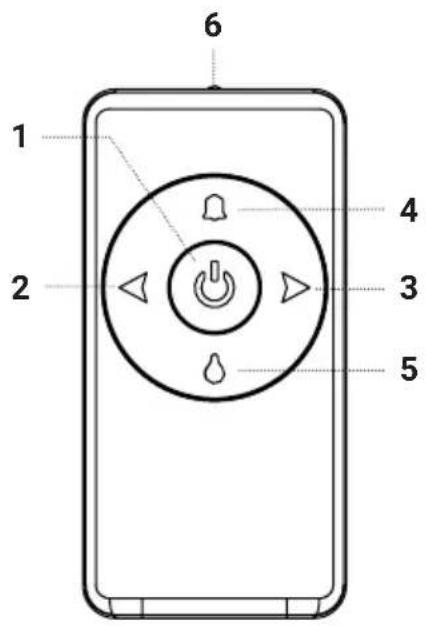

4.4 Remote control

5. Recommendations for Use, Guidelines and Tips 30

5.1 Efficient use of the extractor fan

6. Cleaning and Maintenance 32

6.1 Cleaning the appliance components

6.2 Removing and cleaning the metal grease filter

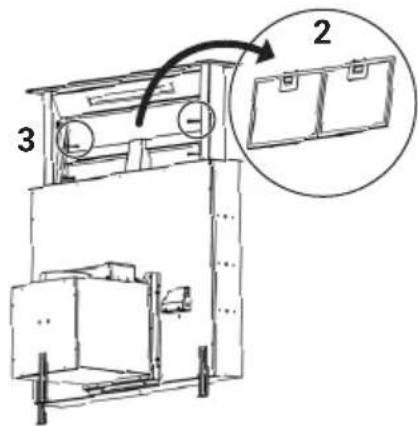

6.3 Replacing or fitting/removing the activated carbon filter

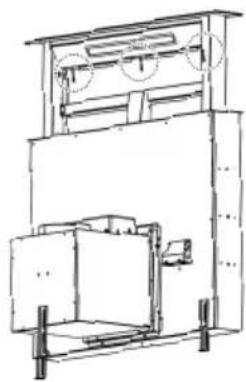

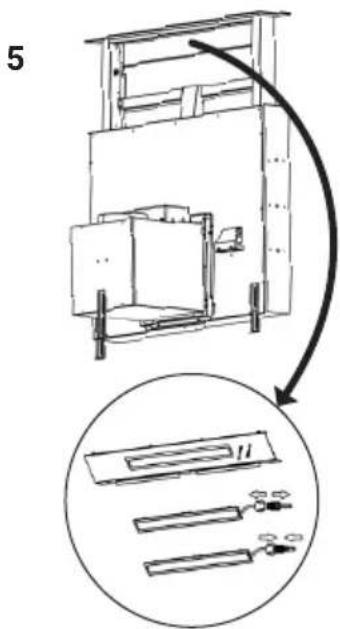

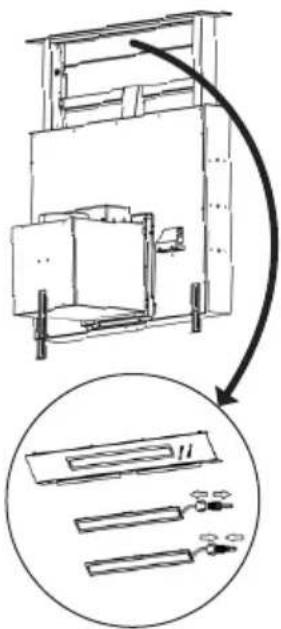

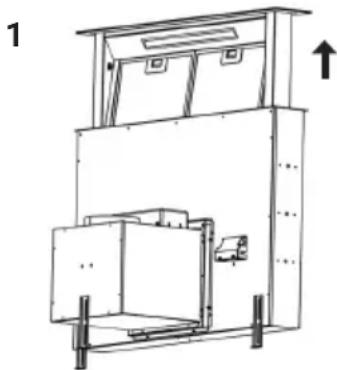

6.4 Replacing the LED lighting

7. Troubleshooting 40

8. Installation of the cooker hood 43

8.1 Important notes and installation requirements

8.2 Choice of the furniture for building in and the hob

8.3 Installation preparation and instructions

8.4 Building in the appliance

8.5 Connection to the power supply

9. Technical Data 54

KKT Kolbe Customer Service 56

Important Safety Instructions

This manual is the basis for the safe use of your appliance.

Read and follow the instructions carefully before installing and operating the energy storage system!

The manufacturer is not responsible for any damage or problems caused by failure to follow the instructions, incorrect installation or improper handling.

Intended use

WARNING!

Dangers to life and limb and risks of damage!

This appliance may present a potential hazard to persons and the environment due to lack of prerequisites or knowledge for its handling!

To avoid this, observe the following instructions.

• Keep children under 8 years and pets at a safe distance from the appliance!
• Children aged from 8 years and above or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge must not use, clean or generally maintain this appliance unless they are supervised or have been given instruction concerning use of the appliance in a safe way by a person responsible for their safety and understand the hazards involved!
• Do not allow children to play with the appliance, its components or near the appliance.
• The appliance is designed for private use in a domestic environment and is intended for extracting cooking vapours produced during food preparation. Use it only for its intended purpose.

• The appliance is designed for installation in a wall cabinet and for use in combination with a standard household hob. It is not suitable for grills, solid fuel fires or for commercial use.

• The appliance is intended for use up to a maximum altitude of 2000 metres above sea level.

• The appliance is not intended for operation via an external timer.
• Unused electrical equipment is a safety hazard. Do not leave the appliance switched on unused and disconnect it from the power supply if you are not going to use it for a long period of time!

General warnings

WARNING! Danger to life and injury!

• This appliance should be installed and commissioned by a suitably qualified professional in compliance with the applicable regulations and standards, as well as the relevant instructions in this manual! To do this, the appliance must be disconnected from the power supply!
• Keep all packaging materials, assembly accessories and small parts out of reach of children and pets! These can be very dangerous if, for example, they are pulled over the head or swallowed!

- Using defective or damaged equipment can be very dangerous! Before use, make sure that the product and its components are in complete and perfect condition!

In the event of malfunction or damage, do not use the appliance, immediately disconnect it from the power supply and contact customer service or appropriately qualified personnel!

- There is a risk of electric shock, fire and injury if the appliance is repaired, modified or serviced by unqualified persons!

These may only be carried out by a suitably qualified specialist in compliance with all applicable safety regulations, including the instructions in this manual and the appliance must be disconnected from the power supply for this purpose!

Never attempt to make changes to appliance components, cables or plugs by yourself and do not disassemble any parts of the appliance if this is not expressly instructed in this manual!

Only open the housing if this is described in the context of assembly and cleaning!

- If the extractor fan and room air-dependent fireplaces or appliances are operated simultaneously with exhaust air, insufficient supply air can cause a negative pressure, drawing smoke and toxic combustion gases from chimneys or exhaust air shafts back into the living rooms!

In this case there is a danger to life!

Always ensure that there is a sufficient supply of fresh air when the cooker bonnet is in exhaust air mode! Follow the notes and instructions in the installation chapter!

- Edges and components can be sharp-edged and cause injuries! Exercise appropriate caution during any handling and protect yourself if necessary, e.g. with work gloves!

- Incorrect installation can cause damage or malfunctions!

Follow all the instructions in the installation chapter carefully and make sure the mounting is solid and secure!

- Note that the appliance can become hot due to the heat generated during cooking! Be careful and do not touch the housing and the grease filter(s) until they have cooled down!

• The light from LED lamps is very intense and can damage the eyes!
  Avoid looking directly into the switched-on lamps, especially for babies!
• There is a risk of entrapment when the appliance is extending and retracting!
  Keep body parts and objects at an appropriate distance during this process!
• Do not place any objects on the appliance!
  These can fall down and cause injuries or damage!

WARNING!

Risk of electric shock / Dangers from electricity!

• To avoid electric shock and damage, disconnect the appliance from the power supply during installation, maintenance, cleaning or other work on it!
• Before use, check whether the technical data on the appliance's rating plate (especially voltage in V and frequency in Hz) are compatible with the local conditions!
  If this is not the case, return the appliance to the point of sale! If anything is unclear, contact your electricity supplier!
• The appliance is fitted with a grounding plug and must be connected to a grounded outlet installed in accordance with all applicable regulations! If you are unsure, consult a qualified electrician!

- Modifications to the power supply system may only be carried out by a certified electrician!

There is a risk of life-threatening electric shock for unqualified persons!

- Do not use multiple sockets or extension cables to connect the appliance!

These do not provide the necessary safety!

- To avoid damage to the power cable and associated hazards, make sure that it is not bent or crushed and cannot come into contact with hot surfaces, sharp edges or similar!

Do not pull the plug out of the socket by the cable, but grasp it directly!

• Always keep the cable dry!

- Contact of liquids or moisture with live parts may cause a short circuit or electric shock!

Do not use pressure washers or steam cleaners to clean the appliance!

- To avoid possible electric shock due to creeping current, do not operate the appliance with wet or damp hands and wear footwear during operation!

WARNING!

Fire hazard!

- If an exhaust air hose is connected, it must be made of heat- and fire-resistant material and, if necessary, be routed outside in a separate exhaust air shaft leading outside or connected to it!

It must not be routed through any other shafts or chimneys in order to avoid fire hazards!

- Deposits of oil or grease, especially in the filter and inside the appliance, can quickly ignite when heated!

Clean the appliance and filter regularly and never operate the appliance without a grease filter!

- Do not use an open fire near the extractor fan (e.g. for flambéing)!

Open flames and the resulting heat can set the appliance on fire!

Do not use gas hobs near the appliance without cookware of the same size and regulate the flame so that it does not exceed the base of the cookware!

Do not operate high-power or wok burners with more than 5 kW or two gas hobs at the same time with the highest flame for longer than 15 minutes!

• Flying sparks near the bonnet can cause a fire! The appliance may only be installed near a fireplace for solid fuels (e.g. wood or coal) if there is a closed, non-removable cover on the fireplace!
• In particular when frying or heating oils and fats, never leave your cooking food unattended because of the risk of fire! Note that the risk of spontaneous combustion increases if oil or fat is used repeatedly!
• In case of fire, cut off the gas and electricity supply and carefully smother the flames with a fire blanket or similar!
  Never extinguish burning oil or grease with water! After extinguishing, have the appliance checked by a suitably qualified professional!
• Deposits of oil or grease in the filter and inside the appliance, can ignite when heated!
  Clean the appliance and filter regularly as described in the relevant section and never operate the extractor fan without a grease filter!

WARNING!

Causes for damage and functional impairments with possible consequential dangers to life and limb!

• During installation, strictly observe the safety distances and other instructions given in this manual to avoid damage, e.g. due to heat exposure.
  • Always keep the appliance in a clean condition, clean the metal filter and, if applicable, change the carbon filter at the recommended intervals to avoid functional impairments, damage and hazards due to deposits of grease and dirt!
  Observe the notes and instructions in the corresponding section of this manual for this!
• To avoid damaging the surfaces, do not use aggressive or abrasive cleaning agents or utensils and follow the instructions in the relevant chapter for cleaning and maintenance!
• During cooking, moisture is produced, which can cause long-term damage to surfaces! To avoid this, always switch the appliance on when cooking!

Further Notes and Icons

In this manual

Symbols for hazards and information

Warning of danger to persons and of damage

Read the safety instructions marked with this symbol particularly carefully and act in accordance with the instructions in order to avoid danger!

Also pass on these instructions to other users and the installer!

Danger grading by combined signal words:

WARNING!

Indication of a hazardous situation which, if not avoided, may result in death or serious injury

CAUTION!

Indication of a hazardous situation which, if not avoided, may result in minor or moderate injury

ATTENTION!

Indication of a situation which, if not avoided, may result in damage to the product or on objects in its surroundings

Information and tips

Following the instructions marked with this symbol will provide you with useful information, make the respective procedure easier and may save you some problems.

Note on illustrations

The figures in this manual are for illustrative purposes and may occasionally differ slightly from the appearance.

Appliance, components and accessories

Symbols on appliance parts, accessories, etc.

The following symbols attached to the appliance, its components and accessories (if applicable) indicate important information for the safe operation of the appliance. Do not remove or damage them, always ensure good visibility and replace damaged symbols!

General danger warning!

There is a potential hazard! Behave with appropriate caution.

Warning of electrical voltage!

Some components of the product are live during and also after operation! Take care not to come into contact with them and take appropriate protective measures if necessary.

Warning of flammable substances!

Contained or emerging substances, liquids or gases easily self-ignite! Avoid contact with ignition sources or sources of danger, e.g. also water or air!

Warning of hot surface!

The product may become hot during operation and cause injury and damage. Do not touch it until it has cooled down and keep the clearances around the appliance recommended in this manual.

Follow these instructions for use

Read this manual carefully, before using the product and pass on the relevant information to other users and the installer.

EU conformity

The product complies with the applicable EU requirements regarding safety, environmental protection and health protection.

Disposal and environmental protection

Note icons for disposal

No disposal in household waste (WEEE marking)

Do not dispose of the product as unsorted waste! Take it to a collection point for the recycling of electrical and electronic equipment for reuse and recovery. To do this, have a qualified electrician remove the cable.

Recyclable material (Möbius strip)

Separate the relevant components of the product by type from the residual waste and dispose of them in accordance with local regulations.

Recyclable material (Triman symbol)

Separate the product from residual waste for disposal according to the accompanying sorting instructions.

General notes on disposal

• Improper disposal may endanger the environment and human health! By ensuring that the product and its packaging are disposed of properly, you will help to avoid possible hazards. This also applies to the disposal of old appliances, if applicable.

- The packaging materials used have been carefully selected and should be recycled to reduce raw material consumption and waste. Separate their components by type and dispose of them accordingly.

- For information on current disposal methods and recycling, contact your local authorities, your waste disposal company or the vendor.

Note on environmental protection by saving energy

- Follow the recommendations for use in this manual to save energy by using the appliance efficiently and thus help to protect the environment!

Notes on transporting the appliance

If you need to transport the appliance after unpacking / at a later time, observe the following instructions to avoid damage:

- Keep the original packaging of the product and always transport the appliance packed in it in the same way as when it was delivered. Observe the markings on it.

If the original packaging is not present:

• Secure all loose / detachable parts so that they cannot touch each other.
• Avoid any impact on the product and its components and take appropriate protective measures if necessary.
• Ensure a horizontal position during transport and when putting down.

Storage instructions

If you need to store the product for a certain period of time, observe the following instructions to avoid damage:

• Pack the appliance together with desiccant bags if possible in the original carton or similar packaging and seal it with adhesive tape.
• Choose a dry and clean storage place.
• Make sure to keep it in an horizontal position.
• Do not load the packaging.
• Only store the appliance for as long as absolutely necessary.
• Do not store the product near chemically aggressive or corrosive substances to avoid possible corrosion.
• Check the appliance regularly for visible damage during the storage period and replace the packaging if necessary.

1. Product Overview

1.1 Packing list

Open the packaging and take out the contents as described under "Unpacking and preparing the appliance", and check the contents according to the following list:

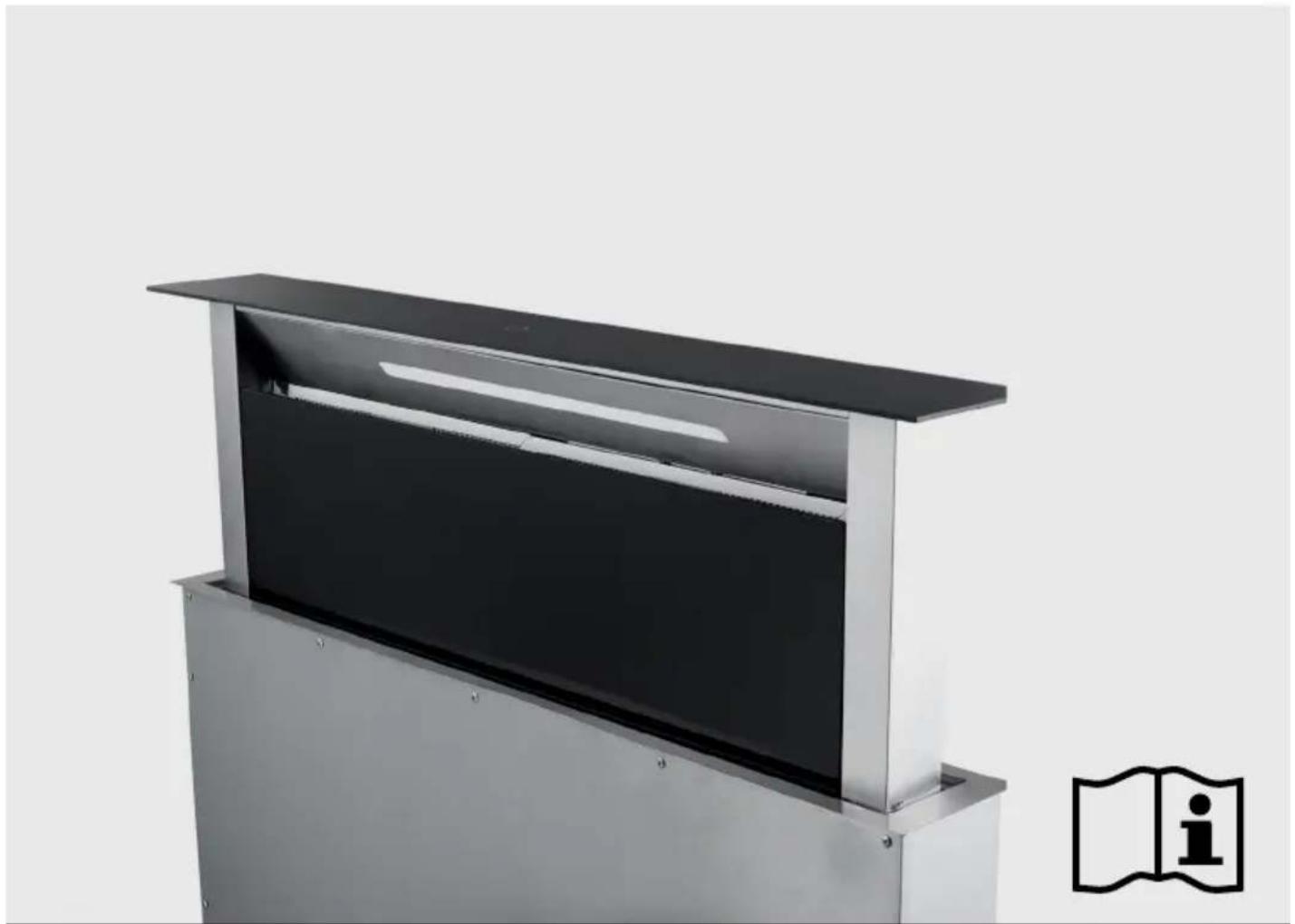

1 1× Down-draft extractor fan, model DRAFT870 (2-part, down-draft hood and motor unit) including metal grease filter (2-part), lighting, connection cable with plug and pre-installed levelling feet

2 1× Remote control
3 1× Activated carbon filter, type K117
4 1× Non-return valve, 2-part
5 1× Installation template
6 1× User's manual

1.2 Construction and properties of the appliance

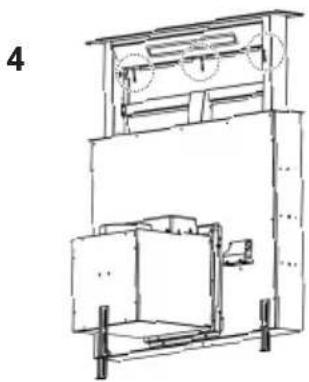

Appliance components

1 Retractable extractor fan
2 Substructure
3 Sensor key control panel and digital display
4 LED-Lighting
5 Edge extraction plate / Access to the metal grease filter (2-part)
6 Activated carbon filter, if applicable
7 Cable box
8 Exhaust nozzle with non-return valve (2-part)
9 Motor unit
10 Support feet (3×)

Features and further properties

• 9 power levels
• TouchSelect sensor keys
• LED digital display
• LED lighting
• Dishwasher-safe metal grease filter
• Edge extraction for particularly efficient extraction performance

Selectable functions

(for operation, see relevant chapter)

- Delay function / Auto-Off: (Automatic switch-off after a pre-set time)

Dimensions

Width: 86.8 cm

Height: 41.6 cm

Depth: 64.6 cm

2. Operating Principle and Use of the Appliance

2.1 Intended use and functional principle

The retractable table-top extractor fan draws off fumes and odours produced during cooking and creates fresh room air.

The appliance can be used in both exhaust air and recirculation mode.

The air is sucked in by a radial fan, blown through the exhaust outlet of the bonnet body and, depending on the operating mode used and the corresponding installation, passed on (see the following sections and "Installation...").

Particles of grease and dirt, fumes and, to a certain extent, moisture are absorbed by the metal grease filter; however, additional ventilation may be necessary, especially in recirculation mode.

CAUTION!

Health risks and risk of damage!

Moisture remaining in living spaces can lead to harmful mould growth and damage to surfaces! Do not rely entirely on the extractor fan's suction power to ensure sufficient air exchange during and after cooking!

For odour control in recirculation mode, the supplied activated carbon filter is additionally installed (see relevant sections under "Installation..." and "Cleaning...").

2.2 Operating modes

Exhaust air mode

In the version with exhaust air to the outside, the air drawn in is freed from grease and fumes by the metal grease filter and led outdoors through an exhaust air duct.

A backflow or inflow of outside air is prevented by a non-return valve.

For exhaust air operation, the preconditions mentioned in the installation chapter must be fulfilled and the corresponding instructions must be followed exactly!

If implementation is not possible as described, use the extractor fan only in recirculation mode!

WARNING! Danger to life!

If the extractor fan and room air-dependent fireplaces or appliances are operated at the same time, insufficient supply air can cause a negative pressure, which draws smoke and toxic combustion gases back into the living spaces!

In this case there is a danger to life!

Inadequate installation can additionally result in fire and health risks as well as operational malfunctions!

For exhaust air operation, observe and follow the corresponding notes and instructions in the installation chapter exactly!

Recirculation mode

In the recirculation version, the air drawn in is cleaned of grease and fumes by the metal grease filter and returned to the room.

The connection to an exhaust air duct is not required during installation.

To remove odours from the pre-filtered air, an activated carbon filter should be installed (not included in the delivery; see relevant section of the installation instructions).

Operation with active carbon filter

A carbon filter removes odour particles produced during cooking from the air already pre-filtered by the grease filter.

For optimum odour absorption, follow the recommendations for use of the extractor fan.

Note that the air flow rate may be reduced and the noise level increased when operating with an additional carbon filter.

If the extractor fan is used in recirculation mode, the amount of room air remains unchanged and there is no negative pressure in the room.

Simultaneous operation of a room-air dependent fireplace or appliances is harmless.

3. Notes Before Use

3.1 Unpacking and preparing the appliance

Smell perception during unpacking

A slight odour may be noticeable when unpacking the appliance.

This is normal and harmless and will soon disappear.

- When unpacking the appliance, make sure that it has not been damaged during transport.

WARNING!

Risk of injury and electric shock!

If you notice any damage to the appliance, its cable or other components, do not connect it and do not put it into operation!

This can be very dangerous!

Contact the customer service.

- We recommend writing down the 20-digit serial number on the inner cover of this manual for possible queries.

- If the appliance has been properly installed (see relevant sections), before using it, ensure that all packaging materials, stickers, protective films and transport protection materials have been removed from the product and properly disposed of and that any remaining small parts such as assembly materials are safely maintained.

WARNING!

Danger of suffocation!

Small parts, foils etc. can be very dangerous if they are swallowed or pulled over the head, for example!

Always keep them out of reach of children and pets.

- Before operating the extractor fan, clean it as described in the relevant chapter.

- Make sure that the cooking surface is completely clean and that no residues of transport materials or similar stick to it. For commissioning, observe the corresponding section!

3.2 Commissioning the appliance

• Only operate the appliance if it is in perfect condition and has been properly installed, ideally by a suitably qualified specialist!
• Make sure that the appliance and its surroundings are completely clean so that no dirt such as dust, residues from installation or residues of transport protection agents can be sucked in!
• Make sure that the metal grease filter and in the case of recirculation operation, also the activated carbon filter is / are properly inserted (For insertion procedure, see corresponding section/s under "Cleaning...")!
• To operate the appliance, proceed as described in "Operation, setting and use".

4. Operation, Setting and Use

4.1 Notes on using the touch control

The control panels of the appliance consists of sensor keys that react to touch.

To use these, observe the following instructions:

• Do not exert much pressure on the controls. It is sufficient to touch them.
• Only touch one sensor key at a time.

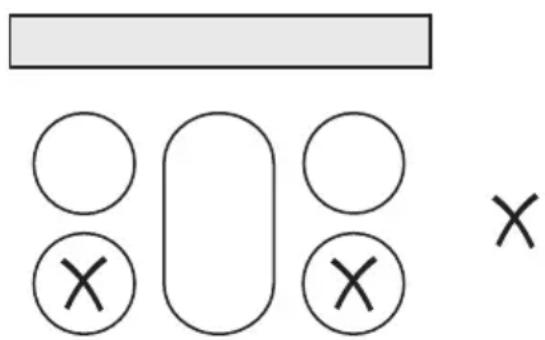

• Use the ball of the finger, not the tip (see illustration) and operate the sensor keys as described in the following sections.
• Make sure that the control panel is always clean and dry. Even a thin film of moisture can make the sensor keys difficult or impossible to operate.
• Avoid swiping across the control panel during operation to prevent unintentional changes to the settings.

4.2 Control panel and display

The following overview is a brief description of the display and key functions.

For detailed operating instructions, see the following sections.

1	○	On / Off / Display frame	Switching the appliance on / off / Digital display
	8	Digital display	Display of the currently selected power level / delay time if applicable (countdown to auto-off)
2	∞	Upward control	Increasing the power level / the time setting
3	∞	Downward control	Decreasing the power level / the time setting
4	∅	Delay function / Auto-Off	Setting the delay function by touching briefly during operation or by touching for 3 seconds in standby mode
5	Light		Switching on / off the lighting
6	R)	Remote control	Marking of the position for receiving the remote control signal

4.3 Key operation and setting

Switching the appliance on and off

• When the appliance is switched off, only the round display frame or the on/off key is visible.
  Touch it to switch the appliance on.
  When the power indicator appears in the centre of the circle, the appliance is ready for operation (standby state).
  • To switch off the appliance in operating status and stop all running functions, also use the on/off key

Adjusting the lighting

- To switch the lighting on or off, use the 🔊ey when the appliance switched on.

Note on display illumination

If no key is touched for 2 minutes in operating mode, the display light is automatically switched off.

To switch it on again, touch any key.

Adjusting the power levels

• When the appliance is switched on, touch the key to start fan operation at the first power level.
• To increase the power, touch the ▶key again repeatedly until the desired power level (up to max. 9) is set.
  • To reduce the power, use the key in the same way.
• The selected power level is shown on the display.

Delay function / Auto-off

- To activate the 1-minute delay function, touch the key briefly during operation.

- When the display starts to flash accordingly, the switch-off countdown starts and after 1 minute the fan operation and the lighting are switched off automatically.

- To deactivate the 1-minute automatic switch-off countdown, use the key again.

- To activate the delay function with time setting option, touch the key for 3 seconds in standby state.

- When the display switches to the time setting and starts flashing, you can use the □and □keys to set a time period from 1 to 9 minutes until automatic switch-off.

• After 10 seconds without further key operation the time setting is saved.

- The countdown to automatic switch-off begins as soon as the extractor is in operation.

- To change the time setting or deactivate the delay function, use the ⏻key again.

4.4 Remote control

Operation keys and components of the remote control

1 On Off			Switching the appli-ance on / off
2	◀	Upward control	Increasing the power level / the time setting
3	▷	Downward control	Decreasing the power level / the time setting
4	💡	Delay function / Auto-Off	Setting the delay function
5 Light			Switching on / off the lighting

6 Signal transmitter

Using the remote control

The operating buttons on the remote control each have the same function as the corresponding keys on the control panel on the appliance.

Point the signal transmitter of the remote control (6) at the R symbol on the control panel of the appliance and proceed as described above for the appliance keys.

5. Recommendations for Use, Guidelines and Tips

WARNING!

Danger to life!

Simultaneous exhaust air operation of the extractor fan and room air-dependent fireplaces or appliances can result in life-threatening hazards!

Always follow the corresponding notes and instructions under "Operating modes" and "Installation"!

WARNING!

Fire hazard!

Open flames and intense heat can set the appliance or grease accumulations in filters on fire!

Do not use an open fire near the extractor fan (e.g. for flambéing), do not use gas hobs without suitably sized cookware and regulate the flames so that they do not reach above the base of the cookware!

Clean the appliance regularly as described to avoid hazards caused by fat deposits!

Especially oils, fats, alcohol or food containing them heat up quickly and can easily self-ignite at very high temperatures!

Food can burn, cause harmful smoke or catch fire!

Do not leave it unattended!

In the event of a fire, switch off the power supply by tripping the fuse and carefully smother the flames with a fire blanket or similar!

Never extinguish burning oil or grease with water!

CAUTION!

Risk of burns!

The appliance or certain components may be hot during operation and for some time afterwards!

Be careful when using the appliance!

5.1 Efficient use of the extractor fan

Your appliance complies with the latest standards and its energy consumption has already been optimised to a large extent technically.

However, please also observe the following instructions, in order to optimise the effective performance of the extractor fan and keep its energy consumption as low as possible:

• For efficient and trouble-free operation, always ensure sufficient supply air and avoid draughts.
  Note: Supply air from above and opposite the cooking area generally increases efficiency.
• Switch on the appliance early to create a stable air circulation and to avoid the distribution of cooking vapours in the room even before switching on.
• Also ensure stable air circulation during operation.
  For example, avoid turbulence of cooking vapours due to air blasts, draughts or similar.
• Always adjust the power level to the amount of cooking vapours produced so that they can be completely removed.
• However, for recirculation operation, note that a slow air flow better ensures the time needed for odour absorption.
• If possible, use a lid for your cookware to keep cooking fumes low and thus avoid increased power demand and condensation.
• Leave the extractor fan running on a low power setting after cooking, until the room air has been cleared of any remaining steams and odours.
• As soon as the extractor fan is no longer needed, switch it off.
• Switch off the lighting when it is not needed.
• Clean or change the filters at the recommended intervals to avoid build-up of impurities, increased energy consumption and functional impairment.

6. Cleaning and Maintenance

WARNING! Fire hazard!

If the cleaning instructions are not followed, there is a risk of grease deposits that can ignite when exposed to heat! Clean the appliance regularly, especially the grease filter, and ensure that it is always in place during operation to avoid grease deposits inside the appliance! If you are using a carbon filter, replace it at the recommended intervals!

WARNING! Risk of electric shock!

Before cleaning and maintenance work, disconnect the cooker hood from the power supply by pulling out the mains plug of the appliance or switching off or unscrewing the fuse of the domestic installation!

Contact of moisture with live components can cause an electric shock and/or short circuit! Do not use excessive amounts of liquid for cleaning and do not use high-pressure or steam jet cleaners!

CAUTION! Risk of burns!

The appliance can become hot during operation! Allow all components to cool down before you start cleaning!

The lighting may be hot after operation! Before replacing the LED strip, allow it to cool down!

CAUTION! Risk of injury!

Internal components can be sharp-edged! Protect yourself accordingly against injuries, e.g. when changing the filter!

ATTENTION! Risk of damage!

Do not use any aggressive or acidic or alcoholic cleaning agents, scouring agents or abrasive, sharp or pointed utensils for cleaning!

These can damage or discolour the appliance's surfaces and the control panel!

Before use, check the manufacturer's instructions of your cleaning agents and utensils for appropriate suitability!

Cleaning residues can damage the appliance's surfaces!

Always remove them immediately and completely!

ATTENTION! Possible functional impairment!

Filters clogged with grease and/or dirt particles can severely impair the function of the extractor fan and spread unpleasant odours.

Clean the metal grease filter and, for recirculation mode, change the activated carbon filter at the recommended intervals!

6.1 Cleaning the appliance components

To ensure that the appliance retains its appearance

and remains fully functional, take good care of it!

Always keep all parts of the appliance clean and remove any soiling imme-

diately, as described in the following sections

and in compliance with all previous instructions!

We recommend regular basic cleaning at least every 2 months.

General instructions for cleaning the appliance surfaces

• Use a soft cloth moistened with lukewarm water and a mild household cleaner or mild soapy water for cleaning.
• Clean all surfaces until all dirt has been completely removed.
• Then dry the appliance thoroughly with a soft cloth.

Glass surfaces

• Also clean these as described above or
• use a commercially available glass cleaner according to the manufacturer's instructions.
• Do not use a glass scraper! This can damage the glass!
• Dry the appliance thoroughly with a soft cloth after cleaning.

Stainless steel / metal surfaces

• Also clean these as described above or
• use a commercially available non-abrasive stainless steel cleaning agent, if applicable in the grinding direction. Make sure that the stainless steel cleaner does not come into contact with painted surfaces or operating elements!
• Then dry the appliance thoroughly
• For care, you can apply a thin layer of stainless steel care product from a specialist retailer using a soft cloth.

Note on functional impairments due to soiling or moisture on the control panel

Even a small film of moisture on the control panel, which may be barely visible, can lead to the sensor keys no longer being operable or only being operable to a limited extent.

Make sure that the area around the controls and your hands are completely clean and dry before using the appliance again.

6.2 Removing and cleaning the metal grease filter

Removing the metal grease filter

• Remove the glass plate (edge extraction plate) to access the filter.
• Pull back the pusher of the filter so that the lock releases.
• Tilt the filter slightly out of the holder opening and remove it from the appliance.

Simple line drawing of a hand holding a small object with an arrow, no text or symbols present

Cleaning the metal grease filter

Clean the metal grease filter every 2-3 weeks, depending on the frequency of use of the extractor fan, as described in the following sections, repeating the process if necessary.

2-3 w.

ATTENTION! Risk of damage!

To avoid damaging the filter, do not use any sharp or pointed cleaning utensils or aggressive or acidic cleaning agents! Avoid alkaline cleaning agents (pH value above 7)!

Make sure you use a sufficient but appropriate amount of cleaning agent so that the grease can dissolve! If the amount of cleaning agent is not sufficient, the grease will saponify, which means that the filter can only be degreased with aggressive special cleaning agents or must be replaced!

Metal discolouration due to cleaning

Frequent cleaning, especially in the dishwasher, or the use of aggressive cleaning agents can cause changes in the colour of the metal surface. These have no influence on the function of the metal components and are not grounds for complaint.

Manual cleaning

• Soak the metal filter in hot water with detergent for approx. 1 hour.
• Then clean it with a soft brush. Be careful not to damage the metal mesh of the filter.
• Rinse it well with hot water afterwards.
• Let the filter dry well after cleaning.

Cleaning in the dishwasher

• Soak heavily soiled metal filters well in hot rinse water also before cleaning in the dishwasher.
• Rinse the metal filter separately from the dishes to avoid possible grease deposits on the dishes and accumulation of food residues in the mesh of the filter.
• Place the filter vertically and loosely in the dishwasher without it being clamped, preferably with the filter side facing downwards.
• Select a temperature setting of 55 - 65 °C.
• Make sure that the filter is dry before you put it back in.

Inserting the metal filter

• After cleaning, allow the filter to dry thoroughly before carefully reinserting it into the appliance.
- Re-insert the metal grease filter(s) into the appliance in the reverse order to that in which it was removed.
- Make sure that the lock is engaged and the filter is correctly positioned so that it cannot come loose!
- Refit the glass plate (edge extraction plate).

Simple line drawing of a hand pressing a button on a surface, no text or symbols present

6.3 Replacing or fitting/removing the activated carbon filter

Replacing the 2-part activated carbon filter for recirculation mode

Activated carbon filters cannot be washed or regenerated and must be replaced every 3-12 months, depending on the frequency of use of your extractor fan.

To use your extractor fan in recirculation mode, make sure that the activated carbon filter supplied is inserted and replace it only with one of the same type (K117) as follows:

- Remove the two screws that fix the cover plate of the carbon filter (1).

- Remove the cover plate and put it aside together with the removed screws (2).

- Pull the carbon filter upwards out of the holder (3).

- Insert a new carbon filter of the same type into the appliance by reversing the procedure described above.

- Ensure that all parts are correctly and stably reattached.

- Dispose of the used carbon filter properly.

3-12 m.

1

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

2

Pure mechanical diagram showing a rectangular component with two upward arrows and a small inset box, no text or symbols present.

3

Diagram of a mechanical or electrical component with a central black panel and directional arrow (no text or symbols)

6.4 Replacing the LED lighting

WARNING! Risk of electric shock!

To avoid the associated dangers, all work involving the LED lighting may only be carried out by a suitably qualified person!

During the replacement of the LED strip, the appliance must be disconnected from the power supply!

CAUTION! Risk of injury!

The light of LED lighting is very bright and can damage your eyes! Avoid looking directly into the light when it is switched on! Pay also attention to children in this regard, especially babies!

Proceed as follows to replace the lighting:

- Obtain a new LED strip of the same type as that already installed in your model.

Properties of the LED strip

• Type: L21, 33 × 420 mm
• Wattage: 3 W

• Voltage: 12 V

• Make sure that all components of the appliance have cooled down before you start replacing the lamps!

• Switch on the appliance to extend the extractor fan from the worktop (1).
• Then disconnect the power supply, to avoid danger!

Technical line drawing of a mechanical lifting device with no visible text or symbols

• Remove the two-part metal grease filter (see "Removing the metal grease filter") (2).
• Unscrew the 4 screws from the inside walls of the draw-out unit (3).

- Remove the 3 screws from the light panel (4).

• Pull out the light and unplug the cable (5).

- Replace the LED strip, by proceeding in reverse order, as described above.

- Reconnect the power supply.

4

Technical line drawing of a mechanical lifting or lifting device (no text or symbols)

5

7. Troubleshooting

WARNING!

Risk of electric shock, injury and damage!

Do not use the appliance in case of damage or defect!

This can be dangerous!

Disconnect it from the power supply immediately.

Repairs and modifications are very dangerous

for unqualified persons and can cause damage!

Never carry out repairs or modifications to the appliance your-

self and do not disassemble it!

The following table may help you to find your own solutions to possible problems with the appliance.

If the suggested solutions mentioned above do not solve a problem,

contact the customer service or a suitably qualified specialist!

Problem Possible cause Possible solution

The appliance cannot be switched on.	No power supply Make sure that the appliance is fully and properly connected to an intact power supply (see corresponding section).
The touch control is difficult to operate.	Moisture film or soiling on the control panel	Make sure that the control panel is completely clean and dry.Note that a thin film of moisture may not be visible.
	The keys are not operated correctly.	Follow the instructions under "... using the touch control".

Problem Possible cause Possible solution

The lighting does not work.	The LED strip must be replaced.	Replace the LED strip with new a one as described in the corresponding section.
	Incorrect installation of the lighting	Check the installation of the lighting and correct it if necessary. If you are unsure, contact a qualified person.
Insufficient extraction performance	Too great distance between the appliance and the cooktop	Install the appliance at a smaller distance from the hob.Follow the installation instructions!
	Draughts Close doors and windows.
	Negative pressure in the room due to insufficient air supply	Always ensure a sufficient supply of fresh air in compliance with the relevant the relevant sections!
	Clogged / soiled filters	Clean the metal grease filter(s) or replace the activated carbon filter as described in the relevant section.
	Too small air duct cross-section	Observe the notes and instructions regarding the air ducting!
	Blocked airways Check the air duct for blockages (e.g. fly screen, blocked flap of the non-return valve, immovable louvres on the outer cover plate, etc.) and remove any foreign objects.
Droplet formation Design-related condensation		If possible, use the front cooking zones of your hob for cooking with a lid and only the rear zones without a lid.
		Clogged / soiled filters
		Unfavourable exhaust air duct

Problem Possible cause Possible solution

Increased noise development during operation	Insufficient fixing of the appliance or its components	Check the appliance for loose parts.
	Fan speed increase due to insufficient air supply	Check the fan and air duct for blockages (e.g. blocking cable or similar) and follow the instructions for the exhaust air ducting.
The appliance vibrates during operation.	Insufficient fixing Check that the appliance is installed correctly and stably.If necessary, tighten any loose screws or fix any loose mounting parts.
Abnormal noise / odour	Technical defect Contact customer serviceor an appropriately qualified specialist.
The lighting works, but fan operation does not start.

8. Installation of the cooker hood

8.1 Important notes and installation requirements

WARNING!

Risk of electric shock, injury and risk of damage!!

Incorrect installation may result in hazards and the appliance may be unstable and fall down, which can cause damage!

Follow all instructions in this manual carefully and ensure that the appliance is mounted securely and safely!

We recommend that the appliance is installed by suitably qualified personnel!

CAUTION!

Risk of injury!

Some parts of the unit can be sharp-edged! Protect yourself accordingly when handling the appliance, e.g. with work gloves!

- For installation, all applicable regulations, including the instructions, dimensions and spacing regulations in this manual, in particular in this chapter, must be observed and complied with!

Requirements according to the operating modes

The installation requirements with regard to the structural conditions depend on the desired operating mode.

The appliance can be used in one of the following operating modes:

• Recirculation mode with return of the exhaust air into the room through the exhaust air openings in the shaft (1)
• Exhaust air operation with air ducting to the outside through an air duct or a permanently installed exhaust air pipe (2)

Please also refer to the corresponding sections under "Functionality ..."!

Notes for recirculation mode

If you use the appliance as a recirculation hood, no special structural measures or requirements are necessary.

However, please note the following:

- Before commissioning, ensure that the activated carbon filter supplied is installed as described in the relevant section under "Cleaning ...".

Note: Be aware that the carbon filter serves to bind odours and supplements the metal grease filter, but does not replace it! Never use the appliance without the metal grease filter in place to avoid the risk of fire, damage and malfunctions as a result of grease deposits!

- The exhaust air must be channelled from the air outlet back into the room and be able to flow freely. For this purpose, make sure that the furniture in which the appliance is to be installed has appropriate openings, or prepare an opening with a diameter of 150 mm in the built-in furniture, which you connect with an exhaust hose of the same diameter (not included in delivery).

Simple line drawing of a house with a circular arrow and battery symbol below (no text or labels)

Requirements for exhaust air operation

WARNING! Danger to life!

If the extractor fan and room air-dependent fireplaces or appliances are operated at the same time, insufficient supply air may cause a negative pressure, drawing smoke and toxic combustion gases back into the living spaces!

In this case there is a danger to life!

Ensure sufficient fresh air supply, as described below!

If you use the appliance in exhaust air mode, make sure that the following requirements are met!

If this is not the case, use the extractor fan in recirculation mode!

- For exhaust air operation, it must be ensured that sufficient fresh air flows into the room at all times while the extractor fan is in operation so that no negative pressure of more than 4 Pa (4 x 10-5 bar) can occur! This can be achieved e.g. by non-closable openings in doors, windows, in connection with a supply air / exhaust air wall box or by other technical measures.

A supply/exhaust air wall box alone does not guarantee compliance with the limit value!

Ask your chimney sweep to advise you on the ventilation system for the house and the appropriate ventilation measures!

The regulations issued by the local authorities must be strictly observed!

- For the exhaust air ducting, there must be an exhaust air shaft in your house intended exclusively for the extractor fan, a permanently installed exhaust air pipe or an exhaust air wall box with an outlet to the outside (for further information on the exhaust air ducting, see the following section).

- The extracted air must not be routed through any ducts through which vapours produced by the combustion of gas or other fuels are discharged! If the exhaust air is to be led into a flue or exhaust chimney that is not in use, the consent of the responsible master chimney sweep must be obtained.

- To direct the exhaust air flow of the appliance into the exhaust air duct selected for this purpose, the air outlet of the hood body must be connected with the opening of your exhaust air duct. To do this, procure an exhaust air hose with a diameter of 150 mm made of heat-resistant material and attach it to the air outlet of the hood body as described in the relevant section under "Mounting...".

Filter use in exhaust air mode:

A carbon filter is only useful if the hood is used in re circulation mode. It is therefore not required for exhaust air operation.

However, never use the appliance without the metal grease filter in place to avoid the risk of fire, damage and malfunctions due to grease deposits!

Information on non-return valves:

Installing non-return valves in the exhaust air system prevents incorrect air flow, i.e. an unfavourable exchange of air between the room air and the returning outside air. This also prevents malfunctions of the extractor fan, such as reduced suction power.

If no such device is integrated in the exhaust air system of your kitchen, fit the two-part non-return valve supplied in the exhaust air outlet of the hood body, as described under "Mounting...".

Note: In apartment buildings with a shared air shaft, a non-return valve is required for each kitchen.

Notes on the exhaust air ducting to the air outlet

ATTENTION!

Risk of malfunction!

An inadequately constructed, unfavourably routed or shaped exhaust air line can significantly impair the function of the appliance! Follow the instructions in this section carefully, to avoid problems such as reduced extraction performance, noise development or increased running noise, grease deposits or condensate formation!

Make sure that the following conditions for proper exhaust air ducting up to the air outlet can be guaranteed:

• The entire exhaust air pipe must be made of non-combustible material and must not be routed through a duct together with gas or hot air pipes or similar.

• The exhaust air duct should have the following properties:

• As short and straight route as possible with few bends and large radii (max. bend 120°)

• Inner diameter or inner cross-section min. 150 mm (if applicable incl. wall box)
• Round or rounded cross-section (e.g. round ducts or flat ducts with rounded corners)
• Smooth surfaces on the inside
• Even course without constrictions or blockages (e.g. fly screens, rigid blades at the air outlet)

- If the exhaust air duct is laid horizontally, a minimum gradient of 1 cm per meter or an angle of inclination of 2^ must be maintained in order to avoid the return of condensation water (see illustration).

• If the exhaust air duct is routed through unheated or cool rooms (e.g. attics), it must be insulated to prevent additional condensation.
• An additional condensation water barrier may be necessary (available in leading DIY stores).
• For the roof version, a double-walled roof hood with condensate drainage to the outside should be used.
• All connections must be sealed.
• Ensure that the non-return valve can open and close freely after the exhaust air duct has been installed.

Installation location and environment

This appliance is designed for private use in a domestic environment and can be installed in a kitchen in connection with a standard household hob, for example.

The following restrictions must be observed:

• The appliance is not suitable for use in connection with barbecues or open fireplaces for solid fuels.
• The appliance is not intended for commercial use.
• Observe the manufacturer's instructions for cooking appliances that are to be used in combination with the extractor fan, in particular whether they are suitable for use with a down-draft extractor fan.
• Your model is intended for installation in a kitchen worktop or similar. Please refer to the following section!

8.2 Choice of the furniture for building in and the hob

Your extractor model is intended for installation in the worktop of a kitchen unit or in a comparable furniture behind a suitable hob (see below).

Please observe the following instructions for this:

• For optimum extraction performance, make sure that the appliance can be installed in a position centred behind the hob.
• Check the dimensions of the furniture and the hob, taking into account the dimensions given in this manual, to ensure that the appliance can be installed properly.
• Ensure that the appliance is easily accessible during and after installation, e.g. for cleaning and maintenance.

Recommendations for choosing your hob

To ensure optimum functionality of the down-draft extractor we recommend that you only combine this model with a hob that fulfils the following requirements:

• The hob should be max. 92 cm wide.
- The cooking zones should be next to each other and not behind each other, as shown in the following illustration (top view):

Examples of suitable hobs from KKT Kolbe:

• IH89005FZ
• IND9052FZ

Examples of hobs from KKT Kolbe, which are not suitable for combination with this extractor model:

• KK9005RL
• KK7705ED

Appliance dimensions

Specifications in mm

Fitting dimensions

Specifications in mm

8.3 Installation preparation and instructions

CAUTION!

Risk of injury!

Some components of the unit can be sharp-edged!

Protect yourself from injury during installation, e.g. by wearing work gloves!

The appliance is heavy!

Do not move and mount the appliance alone, but with at least one other person and use suitable aids!

Notes before installation

• Also follow the instructions given in the chapter "Notes before use" before installing the extractor fan!
• Clean the appliance and the area around the installation position thoroughly before and after installation so that no dust, residues of transport protection materials or installation residues can be sucked in during commissioning!

• Have the following ready for the fitting of the appliance:

• Extractor fan

• Supplied accessories including this manual
  • Procured accessories (for example exhaust hose)
• Measuring tool
• Screwdriver or powered screwdriver
• Jigsaw or similar

8.4 Building in the appliance

• Provide the worktop with the appropriate cut-out in the centre behind the hob (W 855 × D 114 mm). You can use the installation sketch supplied as a template for this (1). However, before sawing out, check that the dimensions given match the dimensions on the product to avoid offcuts in the worktop!
• Unscrew the two levelling feet and the cable box from the appliance (2) and put them aside with the corresponding screws (levelling feet: 4 screws M4×12 / cable box: 6 screws St3×12).
• Insert the extendable part of the appliance into the prepared cut-out (3).
• Screw the levelling feet back on in the appropriate position according to the floor height (4).
• Remove the screws around the opening on the front and use them to attach the motor unit to the opening, connect the cables accordingly and then screw the cable box back on (5).
• Then attach the levelling foot of the motor unit in the appropriate position according to the floor height (6).

1

Isometric line drawing of a device with a door and window, showing downward force arrows (no text or symbols)

Line drawing of a kitchen or storage unit with a sloped roof and cabinet, showing directional arrows indicating movement (no text or symbols)

8.5 Connection to the power supply

The appliance cable is fitted with a standard plug. To connect it to a socket, follow the instructions below:

• Do not connect the appliance to the mains until it has been properly installed!
• Before connecting the appliance, make sure that the local mains voltage (V) and frequency (Hz) match the specifications on the rating plate!
• If the plug is no longer accessible after installation, ensure that an easily accessible all-pole circuit breaker (fuse) with a contact gap of at least 3 mm is integrated into the appliance's circuit, which complies with the applicable regulations and ensures complete disconnection of the appliance from the power supply in an emergency!
• Connect the plug of the mains cable directly to a properly earthed socket outlet near the appliance!
• Do not use multiple sockets or extension cables to connect the appliance to the mains! These do not guarantee the necessary safety!

• Make sure that the cable cannot be kinked or twisted during and after installation and that its temperature never exceeds 75°C.

• Technical Data

Model designations DRAFT870
Type Down-draft extractor fan
Venting type Convertible
Number of power levels 9
Lighting type LED
Lighting energy consumption 1 x 3 W
Number of grease filters 2
Activated carbon filter type K117
Energy efficiency class A+
Lighting energy efficiency class A
Fluid dynamic efficiency class A
Grease filter efficiency class F
Maximum sound power level	68 dB
Air flow volume in most energy efficient mode	255 m3/h
Air flow volume at maximum power	535 m3/h
Average lighting intensity onto cooking surface	87 lx
Power	73 W
Measured power consumption in standby mode	-
Measured power consumption in off mode	0.49 W
Electrical power in most energy efficient mode	41.8 W
Voltage / Frequency	220 - 240 V / 50 Hz
Dimensions (W × D × H)	868 × 416 × 646 mm
Exhaust outlet diameter	150 mm
Cable length 1.3 m
Weight	27 kg

Note on product conformity

Model designations:

DRAFT870

Down-draft extractor fan

Manufacturer / Distributor:

For the above-mentioned products, the corresponding EC Declarations of Conformity are available.

Some of the relevant documents can be viewed and downloaded from our website under the corresponding product page. You are welcome to obtain the complete documents upon written request via the above contact address.

Jan Kolbe

Head of Product Management

KKT Kolbe Customer Service

We are happy to help if you have technical questions or problems with appliance, or if something should break down.

You can contact our customer service at:

KKT KOLBE customer service

Tel. [phone]

Mail: [e-mail]

www: www.kolbe.de

→ Further data and documents can be found on our website under "Questions & Answers".

Please have the following information ready:

- Customer number

• Date of the invoice or delivery note

• Appliance type (Model number)

- Serial number

Note:

You will find the 20-digit serial number on the rating label of your appliance or on the outside of the packaging box. If noted, you will also find it on the inner cover of this manual.

Thanks for reading. We wish you lots of fun with your appliance.
