Product Type	Smartphone
Brand	Krüger&Matz
Model	Live 10S
Display	6.5-inch HD+ IPS LCD, 720 x 1600 pixels
Processor	Octa-core 1.6 GHz
RAM	3 GB
Internal Storage	32 GB, expandable via microSD up to 128 GB
Rear Camera	13 MP with LED flash
Front Camera	5 MP
Battery	4000 mAh, removable Li-Ion
Operating System	Android 11 (Go Edition)
Connectivity	4G LTE, Wi-Fi 802.11 b/g/n, Bluetooth 4.2, GPS
SIM	Dual SIM (Nano-SIM, dual standby)
Sensors	Accelerometer, Proximity, Light sensor
Ports	Micro USB 2.0, 3.5 mm headphone jack
Weight	Approx. 185 g
Dimensions	165 x 76 x 8.6 mm
Power Source	Built-in rechargeable Li-Ion battery
Maintenance	Clean with a soft, dry cloth. Avoid moisture.
Safety	Do not expose to extreme heat or water. Use only approved chargers.
Spare Parts	Battery, charging cable, screen protector (available from service centers)
Reparability	Removable battery; other repairs should be done by authorized service.
General Info	User manual in multiple languages (PDF download available)

Frequently Asked Questions - Live 10S Krüger&Matz

How do I insert the SIM card?

Turn off the phone. Remove the back cover and battery (if removable). Insert the Nano-SIM card into the SIM slot with the gold contacts facing down. Replace the battery and cover, then power on the phone.

How to charge the battery?

Connect the included Micro USB cable to the phone and a USB power adapter. Plug the adapter into a wall outlet. The battery icon indicates charging. Use only the original charger or a compatible one with 5V/1A output.

How to perform a factory reset?

Go to Settings > System > Reset options. Select Erase all data (factory reset). Confirm by tapping Reset phone. This will delete all personal data and restore the phone to default settings.

How to update the software?

Ensure your phone is connected to Wi-Fi. Go to Settings > System > Advanced > System Update. Tap Check for updates. If an update is available, follow the on-screen instructions to download and install.

How to take a screenshot?

Press and hold the Power button and the Volume Down button simultaneously. The screen will flash, and the screenshot will be saved in the Gallery app or Screenshots folder.

The phone does not turn on, what to do?

First, charge the phone for at least 15 minutes using the original charger. If still off, try a forced restart by holding the Power button for 10 seconds. If the phone still does not respond, contact Krüger&Matz support.

How to clean the screen?

Turn off the phone and unplug it. Use a soft, lint-free cloth slightly dampened with water or a screen cleaner. Wipe gently in circular motions. Avoid using harsh chemicals or abrasive materials.

How to expand storage?

Insert a microSD card (up to 128 GB) into the dedicated slot, usually located under the back cover next to the SIM slot. The card can be used for storing photos, videos, and files. Go to Settings > Storage to manage it.

Which languages are supported?

The device supports multiple languages including English, Spanish, French, German, Italian, Polish, Romanian, and more. You can change the language in Settings > System > Languages & input > Languages.

How to contact support?

Visit the Krüger&Matz official website and navigate to the Support section. You can find contact forms, email addresses, or phone numbers for your region. Have your model number (Live 10S) and purchase details ready.

USER MANUAL Live 10S Krüger&Matz

	DE EN PL RO
1	Empfänger	Receiver	Słuchawka Receptor
2	Frontkamera	Front camera	Przednia kamera	Camera foto frontala
3	Annäher-ungssensor / Lichtsensor	Proximity sensor / Light sensor	Czujnik zbliżeniowy / światła	Senzor de proximitate / de lumina
4	Mikrofone	Microphone	Mikrofon Microfon
5	Kopfhöreraus-gang	Headphone jack	Wyjście słuchawkowe	lesire casti
6	USB type C Steckplatz (Aufladen)	USB type-C port (charging)	Port USB typu C (tadowanie)	Port USB type C (încărcare)
7	Lautsprecher	Speaker	Głośnik Difuzor
8	Taste Lautstärkeregler	Volume control button	Przycisk regulacji głośności	Buton volum
9	Netztaste	Power button	Przycisk zasilania	Buton pornire
10	Fingerabdruck-leser	Fingerprint scanner	Czytnik linii papilarnych	Cititor de amprenta digitala
11	Blitzlicht	Flash	Flesz Blit
12	Rückseitige Kamera (48 Mpx)	Rear camera (48 Mpx)	Tylna kamera (48 Mpx)	Camera foto spate (48 Mpx)
13	Rückseitige Kamera (5 Mpx)	Rear camera (5 Mpx)	Tylna kamera (5 Mpx)	Camera foto spate (5 Mpx)
14	Rückseitige Kamera (2 Mpx)	Rear camera (2 Mpx)	Tylna kamera (2 Mpx)	Camera foto spate (2 Mpx)
15	SIM/SD Kartensteckplatz	SIM/SD card tray	Tacka na kartę SIM/SD	Suport pentru card SIM / SD

SAFETY ALERT AND CAUTIONS

Road safety comes first: Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while driving. In some countries, dialing or receiving calls while driving is illegal!

Switch off in aircraft: Wireless devices can cause interference in aircraft. Please make sure that your mobile phone is powered off (or switched to flight mode) during flight.

Switch off before entering risky areas: Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn off your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank, chemical plant or a place where a blasting process is under way.

Observe all special regulations: Follow any special regulations in force in any area such as hospitals and always switch off your phone whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices, as it may cause interference to such apparatuses.

Interference: The conversation quality of any mobile phone may be affected by radio interference. An antenna is built inside the mobile phone. Do not touch the antenna area during a conversation, as the conversation quality will deteriorate.

Qualified service: Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone on your own may bring great danger and violates the warranty rules.

Accessories and batteries: Use only approved accessories and batteries.

Use sensibly: Use only in a normal and proper manner, and only as indicated in this instruction manual.

Emergency calls: Ensure the phone is switched on and in service, enter the emergency number, e.g. 112,

then press the Dial key. Give your location and state your situation briefly. Do not end the call until told to do so.

Note: Similarly to other mobile phones, this device may not support every function described in this manual due to network settings or radio broadcast operator. Some networks may not support 112 emergency calls too. Therefore, you should not rely only on mobile phones in critical situations. In case of any doubts, it is advised to contact local operator.

- Always disconnect the product from the power mains before cleaning. Clean the unit's exterior periodically with a soft, slightly damp cloth. Do not use any chemical agents to clean this device.

- Avoid using/storing it in the strong magnetic environment.

- Protect this device from humidity, water and other liquids.

- Do not disconnect the device suddenly when formatting or uploading/downloading - it can lead to program errors.

- Do not handle the device with wet hands.

- Do not use this device if it has been damaged.

- Keep the volume at a reasonable level throughout entire time of using the speaker. To prevent damage to your hearing, do not raise the volume too high.

- Producer does not claim liability for any data loss, damage caused by inappropriate use and handling or any mechanical damage.

- Producer does not claim liability to any damages caused by inappropriate upgrade performed by the user.

- Please read this operation instruction carefully before use, and keep it for future reference.

- Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.

- This product is not a toy; keep it beyond children's reach.

E Z

GETTING STARTED

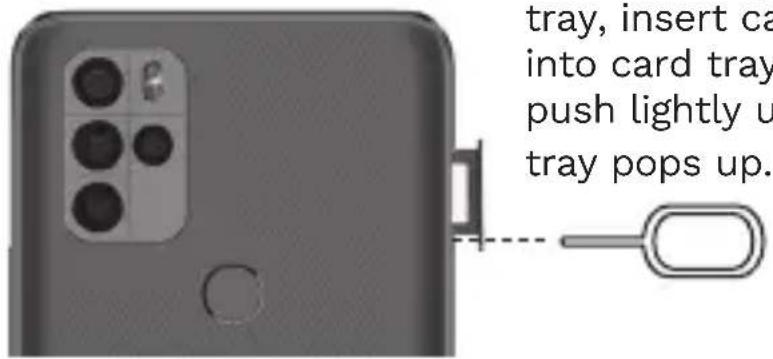

STEP 1: To eject the card tray, insert card tray pin into card tray hole and push lightly until the card tray pops up.

STEP 2: Retrieve the card tray and insert the nano SIM card, nano SIM card and microSD card as indicated.

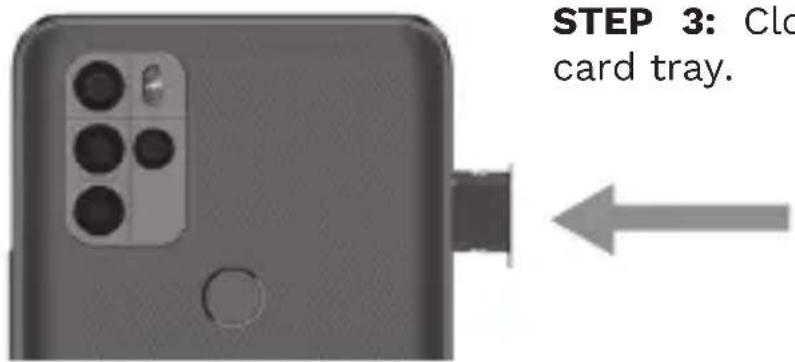

STEP 3: Close the card tray.

Z

CLEANING AND MAINTENANCE

• Please don't leave the phone, the battery, and the charger in the bathroom and other high humidity places, and prevent them from rain.
• Please clean the phone, the battery, and the charger using soft and dry cloth.
• Please don't wipe the phone using alcohol, thinner, or benzene and other chemical agents.

SIM CARD/MEMORY CARD INSTALLATION

• Power off the mobile phone and disconnect it from charger before unmounting SIM cards.
- Before removing memory card, make sure it has been disconnected first!
- Exercise caution when operating SIM card/memory card, as friction or bending may damage the card.
- Keep the mobile phone and its fittings such as the SIM cards/memory cards beyond children's reach.
- If the memory card cannot be read, please check whether it is has been inserted correctly.
- Producer does not guarantee compatibility with every memory card.
- Please note: Dual SIM in standby will shorten the standby time compared to single SIM.
- Make sure the battery is fully charged if it has been out of use for a long period.

NOTE: The battery is not detachable. Do not attempt to disassemble the battery.

E Z

CHARGING

Charge the smartphone using the provided USB cable. Connect the cable to USB type-C port on the device. Other end of the cable plug into provided charger or compatible USB port.

- Make sure the phone is fully charged before turning it on for the first time.

- Use only original charging devices approved by the producer. Using other accessories may damage the device!

Overheating

While charging, the temperature of the device and the charger may get increased. This does not affect the device's lifespan or performance and is in the device's normal range of operation.

However, if there is an excessive increase in temperature or overheating, depending on the factor that caused it: device's performance may be significantly reduced, charging process may be stopped, the device may turn off or display notification about switching off for cooling. Function available only in selected models. Important: if the device displays notification about overheat, turn it off and do not turn it back on until completely cooled down!

In case of overheat during charging:

1. Disconnect the charger from the device.
2. Close any running apps.
3. Wait for the device to cool down, and then begin charging the device again.

If the part of the device where the USB port is placed overheats, check for damage to the connected USB cable. Replace the damaged USB cable with a new authorized cable.

The device may also overheat during operation when using several battery consuming applications or functions. In case of overheat during usage:

1. Close any running apps.
2. Disconnect any connectivity (Bluetooth, Wi-Fi, data transfer etc.).
3. Lower the screen brightness settings.
4. Wait for the device to cool down before attempting to use it again.

Z

Safety precautions concerning operation environment

In order to maintain battery's longevity, and to avoid overheat, follow basic precautions including provisions listed below:

1. Do not use / store the device in very hot or cold environments nor expose to direct sunlight (e.g. on a car's dashboard when using as a navigation).
2. Do not place the device on surfaces that may cause overheat e.g. electric heating mat.
3. Do not place near sources of heat e.g. radiators, microwave ovens, hot kitchen appliances nor high pressure containers.
4. DO NOT use damaged charger or battery!
5. Use only authorized chargers, batteries and cables! Using unauthorized accessories may damage the device or battery. Connecting charger with inadequate parameters may result with damage to the device and poses risk to the user.

TURN ON

Turn on: Press and hold the power button until the screen goes on.

Turn off: Press and hold the power button for about 2 seconds, then choose appropriate (Power off).

LANGUAGE

Once the phone is ON you can personalize it to your needs. To change language go to Main Menu, open Settings, go to Language and input tab, enter Language and select appropriate.

E Z

FUNCTION KEYS

Power button: Press and hold Power key to open the power key menu, where you can turn off the phone (Power off) or Restart.

Volume button: Press the volume keys to change the ring volume (on the home screen) or the earpiece volume (during a call).

Overview button: Press the button to display recently used apps menu.

Home button: Press Home to return to the home screen. Press and hold the button to open Google Assistant function.

Back button: Goes back to previous screen or closes keyboard (if open).

LEARN MORE

For more information on this device visit: www.krugermatz.com. | Read owner's manual carefully before using your smartphone. | Visit www.krugermatz.com website for more products and accessories. | In case of any doubts or questions reach out to our Frequently Asked Questions section.

Please note: illustrations and descriptions concerning operating system are for reference only, and may vary from actual software on your device!

Z

IMPORTANT: The producer allows the possibility for minor variations in display brightness and color between individual devices. There may be visible light or dark spots on the display. Up to 5 defective pixels are acceptable to be present on the display of the device. Above mentioned cases concerning device's display are not covered under warranty nor statutory warranty rights.

Google and Android are trademark of Google LLC.

Lechpol Electronics Sp. z o.o. Sp.k. hereby declares that smartphone KM0499 is consistent with directive 2014/53/UE. Full text of the EU Declaration of Conformity is available at following Internet address: www.lechpol.pl.

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.
