Product Type	Interactive Whiteboard / Touch Display
Model Number	SBID-MX255-V2-PW
Display Size	55" (140 cm) diagonal
Resolution	4K UHD (3840 x 2160)
Touch Technology	Infrared touch with Object Awareness and Simultaneous Tool Differentiation
Touchpoints	Up to 20 simultaneous interaction points
Pens Included	2 pens (for writing/drawing)
Erase Gestures	Palm and fist erase
Built-in Speakers	2 x 15W integrated speakers
Network Connectivity	Wi-Fi 2.4/5 GHz, 2 x RJ45 LAN jacks
Video Inputs	3 x HDMI, 1 x VGA
USB Ports	USB 3.0 Type-A (2), USB 2.0 Type-A (1), USB Type-B (touch), USB Type-C (on OPS)
OPS Slot	Yes (60W max, for SMART OPS PC module)
Front Control Panel	Home, Input Select, Screen Shade, Freeze, Volume +/-, Power
Remote Control	Infrared remote with dedicated buttons for Home, Input, Settings, Freeze, Screen Shade, Volume, Mute, Share Screen
iQ Experience	Built-in apps: Whiteboard, Browser, Screen Share, Input, Files Library, Apps Library
Software Included	SMART Learning Suite (education), SMART Meeting Pro (enterprise), SMART Ink, SMART Product Drivers
ENERGY STAR Certified	Yes
Compliance	FCC Part 15, ISED, EU Declaration of Conformity
Power Supply	AC power (internal)
Accessories	SBA-100 projection audio system, stands, USB extenders, OPS PC module

Frequently Asked Questions - SBID-MX255-V2-PW SMART Technologies

How do I wake up the display from sleep?

Press the Power button on the front control panel or the remote control. The display will wake from standby. Note that touch may not be available immediately; wait a few seconds.

How many touch points does the display support?

The display supports up to 20 simultaneous touch points, allowing multiple users to interact with the screen at the same time.

How can I connect my laptop to the display?

Connect your laptop to one of the HDMI inputs on the side or front connector panel. For touch functionality, also connect a USB cable from the laptop to a USB Type-B port on the display. Then press the Input button and select the corresponding input source.

How do I freeze the screen?

Press the Freeze button on the front control panel or remote control. The screen image will freeze, but applications continue running. Press the Freeze button again to unfreeze.

How do I erase digital ink from the screen?

Use your palm or fist to erase digital ink. The display's Object Awareness automatically recognizes the erasing gesture. You can also use the eraser tool within apps.

How do I adjust the volume?

Use the Volume + and Volume - buttons on the front control panel or remote control. You can also press the Mute button on the remote to silence audio.

How should I clean the display?

Use a soft, dry cloth to clean the screen. Do not use abrasive cleaners or liquids. Refer to the installation and maintenance guide for detailed cleaning instructions.

Can I install an OPS PC module?

Yes, the display has an OPS slot (60W max) for installing a SMART OPS PC module. Turn off the display and disconnect power before installation. See the OPS module installation guide.

How do I update the display firmware?

Firmware updates are delivered automatically via network when the display is connected to the internet. You can also manually check for updates in the display's settings menu.

What should I do if there is no sound?

Check that the volume is not muted and is turned up. Ensure audio cables are securely connected. If using external speakers, verify they are powered on. If the issue persists, restart the display and connected computer.

USER MANUAL SBID-MX255-V2-PW SMART Technologies

Line drawing of a flat-screen monitor with control buttons at the bottom (no text or symbols)

SMART Board MX (V2) series interactive displays

USER GUIDE

SBID-MX255-V2 | SBID-MX265-V2 | SBID-MX275-V2 | SBID-MX286-V2 | SBID-MX255-V2-PW | SBID MX265-V2-PW | SBID-MX275-V2-PW | SBID-MX286-V2-PW

Learn more

This guide and other resources for SMART Board MX (V2) and MX (V2) Pro series interactive displays are available in the Support section of the SMART website (smarttech.com/support). Scan this QR code to view these resources on your mobile device.

Trademark notice

SMART Board, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All third-party product and company names may be trademarks of their respective owners.

Copyright notice

© 2021 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

This product and/or use thereof is covered by one or more of the following U.S. patents:

www.smarttech.com/patents

January 20, 2021

Important information

NOTE

Refer to the SMART Board MX (V2) and MX (V2) Pro interactive displays installation and maintenance guide (smarttech.com/kb/171555) for important information about installing and maintaining the display.

WARNING

• Do not open or disassemble the display. You risk electrical shock from the high voltage inside the Opening the casing also voids the warranty.
• Do not stand (or allow children to stand) on a touch the surface of the display.
  • To reduce the risk of fire or electric shock, do the display to rain or moisture.
• Do not insert objects inside the cabinet ventilation because they could touch dangerous voltage point cause electric shock, fire or product damage which not be covered by the warranty.
• Do not place heavy objects on the power cable. to the cable could cause shock, fire or product which may not be covered by the warranty.
• If the glass is broken, do not touch the liquid prevent injury, handle glass fragments with care disposing of them.

• Disconnect all of the display's power cables from outlet and seek assistance from qualified service personnel if any of the following occur:

• The power cable or plug is damaged

• Liquid is spilled into the display
• Objects fall into the display
• The display is dropped
  Structural damage, such as cracking, occurs
  The display behaves unexpectedly when you follow operating instructions

- Before inserting or removing an OPS from the display, turn off the display using the switch at the back of the display. See Open Pluggable Slot computer (OPS) disclaimer for more information.

ENERGY STAR®

ENERGY STAR is the government-backed symbol for energy efficiency, providing simple, credible, and unbiased information that consumers and businesses rely on to make well-informed decisions. ENERGY STAR-certified products are the simple choice for energy efficiency, making

easy for consumers and businesses to make purchases that save them money and protect the environment. The U.S. EPA ensures that each product that earns the label is independently certified to deliver the quality, performance, and savings that users have come to expect.

Chair to As shipped, your display delivers ENERGY STAR performance and savings. However, changing some settings may increase energy consumption beyond the limits required for ENERGY STAR certification. For example, increased brightness and colour will increase power consumption.

Please consider the environment when you choose non-ENERGY STARTY settings.

Damage Federal Communication Commission damage interference statement

crystal. To

when Suppliers Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Responsible Party - U.S. Contact Information

SMART Technologies Inc.

2401 4th Ave., 3rd Floor

Seattle, WA 98121

[e-mail]

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

NOTE

Innovation, Science and Economic

Development Canada statement

This equipment has been tested and found to comply with the development Canada statement limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment follows two conditions:

generates, uses, and can radiate radio frequency energy and This device may not cause harmful interference, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio ____ this device must accept any interference received, including interference that may cause undesired operation.

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case

user will be required to correct the interference at expense.

This is a requirement complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the antenna of this device and all nearby persons. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

CAUTION

Any changes or modifications not expressly approved by party responsible for compliance could void the user's to operate this equipment.

Restriction

Operations in the 5.15-5.25GHz band are restricted to usage only.

IEEE 802.11b or 802.11g operation of this product in firmware limited to channels 1 through 13.

i. the device for operation in the band 5150-5250 only for indoor use to reduce the potential for interference to co-channel mobile satellite systems;
ii. the maximum antenna gain permitted for devices bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and
iii. the maximum antenna gain permitted for devices band 5725-5825 MHz shall comply with the e.i.r. specified for point-to-point and non point-to-point operation as appropriate.
iv. Users should also be advised that high-power ra allocated as primary users (i.e., priority users) of bands 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or dam LE-LAN devices.

ADVERTISSEMENT

Radiation exposure statement

This equipment complies with FCC radiation exposure forth for an uncontrolled environment. This equipment installed and operated with minimum distance of 20 the antenna of this device and all nearby persons, must not be co-located or operated in conjunction with antenna or transmitter.

EU declaration of conformity

Hereby SMART Technologies ULC declares that the radio equipment type Interactive displays model SBID-MX255-V2, SBID-MX265-V2, SBID-MX275-V2, SBID-MX286-V2 are in compliance with Directive 2014/53/EU.

WARNING

Operation of this equipment in a residential environment this equipment may could cause radio interference.

The full text of the EU declaration of conformity is available at the following internet address: smarttech.com/compliance

The frequency band and the maximum transmitted power in EU are listed below:

Transmitting Band (MHz)

Maximum Transmit Power EIRP (dBm)

2402-2483.5 19

5150-5350 23

5470-5725 23

Restrictions in

AT/BE/BG/CZ/DK/EE/FR/DE/IS/IE/IT/EL/ES/CY/LV/LI/LT/LU/HU/MT NL/NO/PL/PT/RO/SI/SK/TR/FI/SE/CH/UK/HR—5150MHz- 5350MHZ is for indoor use only

CAUTION: EXPOSURE TO RADIO FREQUENCY

RADIATION

This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

Contents

Important information 3....

Chapter 1: Welcome...viii....

About this guide viii
About the display ix....
Identifying your specific model_xii
Accessories .xiji
More information_xiv

Chapter 2: Using basic features xv

Waking up the display and putting it back...to...sleep...xv....

Using the Home button_xvi

Using the front control .panel.... xvi

Using the remote control.... xvii

Using touch.... xix

Writing, drawing, and erasing....xxi

Adjusting the volume.... xxiii

Freezing or hiding the screen xxiii

Chapter 3: Using the iQ apps xxv

Using the Apps Library...xxv....

Using the Files Library.... xxvi

Using kapp Whiteboard.... xxvi

Using SMART Notebook Player xxvi

Using Browser.... xxvii

Using Screen Share xxvii

Using Input xxvii

Using screenshots xxvii

Installing third-party apps.... xxviii

Cleaning up the display xxix

Chapter 4: Connecting computers and other devices xxx

Installing and using SMART software.... xxx

Connecting room computers and guest laptops xxxii

Connecting a SMART OPS PC module.... xxxv

Contents

Connecting USB drives, peripherals, and other devices xxxvi

Chapter 5: Troubleshooting...xxxviii.

The display isn't turning...on...xxxviii....

The screen is blank or there's a problem with the image on the screen xxxix

There's no sound or there's a problem with...the...sound...xl.....

Touch isn't working as expected_xli

The pens and erasers aren't working as .expected..xlii....

iQ apps aren't working as expected xlii

SMART software on connected computers isn't working as...expected...xlii.....

The SMART PCM8 OPS PC isn't working as...expected.xliii

Contacting your reseller for additional support.... xliv

Chapter 1

About this guide...viii....
About the display ix
Touch .ix
Writing, drawing, and erasing ix
iQ experience_x
Display x
Audio .x....
Network connectivity_x
Room computers and guest laptops.... xi
Accessory slot xi
Front control panel.... xi
Front connector panel xi
Ambient light sensor.... xi
Power status light xii
Remote control and IR sensor ..... xii
Identifying your specific model.... xii
Accessories ......xiii
SMART OPS PC module xiii
SBA-100 projection audio system.... xiii
Stands xiv
USB extenders ....xiv
More information....xiv

This chapter introduces the SMART Board ^® MX (V2) and MX (V2) Pro series interactive displays.

About this guide

This guide explains how to use a SMART Board MX (V2) or MX (V2) Pro series interactive display.

This guide is intended for individuals who use displays in their organizations. Other documentation and resources are available for those who install and maintain displays (see More information on page xiv).

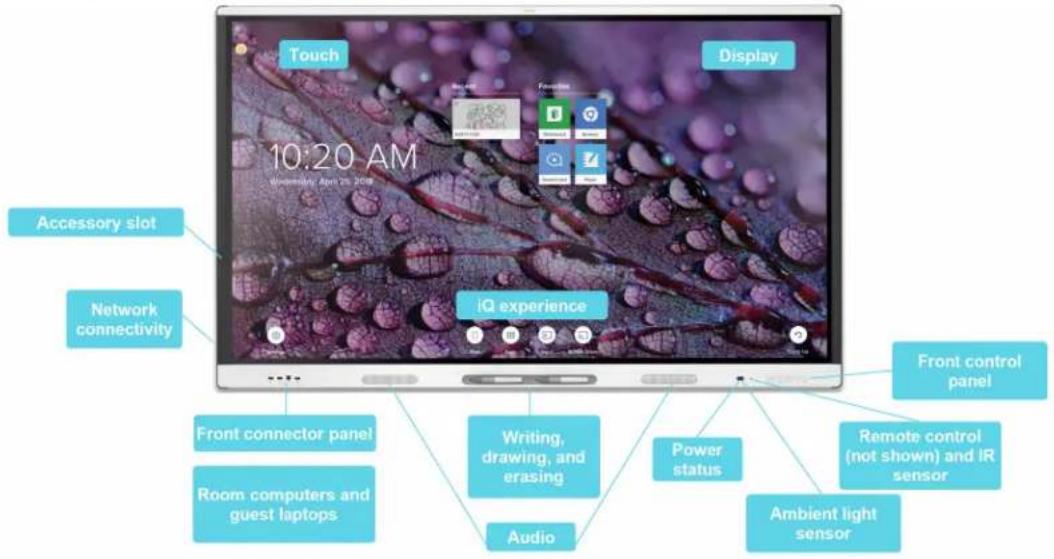

About the display

The SMART Board MX (V2) or MX (V2) Pro interactive display with iQ is the hub of your classr The display includes an extensive set of features and components:

Touch

You can do everything on the display that you can do at your computer—open and close applica meet with others, create new documents or edit existing ones, visit websites, play and manipulate and so on—by touching the display's surface.

You can use an array of gestures within applications, including panning, scaling, rotating, and zoomi and out.

For more information, see Using touch on page xix.

Writing, drawing, and erasing

The display comes with two pens, which you can use to write or draw on the screen.

Use your fist or palm to erase digital ink on the screen.

With Object Awareness™, the display responds automatically to the tool or object you're using, whether a pen, finger, or palm. The display's Simultaneous Tool Differentiation technologies allow two people write independently and simultaneously.

For more information, see Writing, drawing, and erasing on page xxi.

iQ experience

The display's iQ experience provides one-touch access to collaborative tools, including a whiteboard, wireless screen sharing, and a web browser. With minimal network integration, there's no need for cables, or manual software and firmware updates.

Tap the Home button on the display's front control panel or the remote control to open the Home

screen. From the Home screen, you can open the iQ apps, switch inputs, and adjust settings.

For more information about the Home screen, see Using the Home button on page xvi.

For more information about the iQ apps, see Chapter 3: Using the iQ apps on page xxv.

Display

The 4K ultra-high-definition LCD display provides optimal image clarity and wide viewing angles.

The size of the display varies by model:

Models Size (diagonal)

SBID-MX255-V2	/	SBID-MX255-V2-PW	55"
SBID-MX265-V2	/	SBID-MX265-V2-PW	65"
SBID-MX275-V2	/	SBID-MX275-V2-PW	75"
SBID-MX286-V2	/	SBID-MX286-V2-PW	86"

Audio

The display includes two 15 W integrated speakers, which are designed to provide sound at the room.

Network connectivity

The display requires a network connection for downloading software and firmware updates, and a n of the iQ apps require a network connection as well.

You can connect to a network using Wi-Fior the RJ45 LAN jack on the display:

• Wi-Fi supports both 2.4 and 5 GHz bands.
- The two RJ45 jacks allow you to connect the display and an external device, such as a computer, to a Ethernet network.

Room computers and guest laptops

You can connect room computers and guest laptops and use the display to view and interact with

The display comes with SMART software that you can install on connected computers to take full advantage of the display's features while using the connected computers.

For more information, see Chapter 4: Connecting computers and other devices on page xxx.

Accessory slot

You can install an OPS-compatible device, such as a SMART OPS PC module, in the accessory sl PCM8 series of SMART OPS PC modules provides a complete Windows 10 Pro installation.

For more information on the SMART PCM8 series OPS PC, see SMART OPS PC module on page xiii.

CAUTION

The accessory slot's maximum available power is 60 W. The slot is not a limited power source. the risk of fire, make sure that accessories connecting to the slot satisfy the fire enclosure required of IEC 60950-1 and/or IEC 62368-1.

Front control panel

The front control panel contains buttons for turning the display on and off, controlling the volume, and unfreezing the screen, and showing and hiding a screen shade.

For more information about the front control panel, see Using the front control panel on page xvi.

Front connector panel

The front connector panel includes connectors for USB peripherals and a computer or other input

For more information about the convenience panel, see Connecting room computers and guest laptops on page xxxii.

Ambient light sensor

The ambient light sensor is located in the bottom-right corner of the display's frame.

The ambient light sensor detects the brightness of the room and adjusts the screen's brightness accordingly.

Power status light

The power status is located in the bottom-right corner of the display's frame.

The power status light indicates the display's status.

Power status light Display status

Red Standby mode

Green Normal operating mode

Remote control and IR sensor

You can use the remote control to turn the display on and off, adjust display settings, and so

The IR sensor for the remote control is located in the bottom-right corner of the display's frame.

For more information about the remote control, see Using the remote control on page xvii.

Identifying your specific model

SMART offers several models of the SMART Board MX (V2) and MX (V2) Pro series interactive disp For help identifying your model, see the label on the left side of the

display.

Model	Screen	size	(approximate)
SBID-MX255-V2		55"	(140 cm)
SBID-MX265-V2		65"	(165 cm)
SBID-MX275-V2		75"	(190 cm)
SBID-MX286-V2				86"	(218 cm)
SBID-MX255-V2-PW				55"	(140 cm)

Model Screen size (approximate)

SBID-MX265-V2-PW 65" (165 cm)

SBID-MX275-V2-PW 75" (190 cm)

SBID-MX286-V2-PW 86" (218 cm)

Accessories

Accessories for the display include:

• SMART OPS PC module
• SBA-100 projection audio system
- Stands
- USB extenders

NOTE

For more information about these and other accessories, see smarttech.com/accessories.

SMART OPS PC module

SMART Open Pluggable Specification (OPS) PC modules provide a hassle-free

Windows® 10 Pro installation based on eighth generation Intel® Core™

processors and are designed specifically to work with a SMART display.

Available in two standard configurations, all OPS PC modules in the PCM8

series are WHQL certified and fully licensed with Windows 10 Pro. Install the

OPS PC module in a display's OPS slot to provide a complete 4K UHD Windows

10 installation at your fingertips, without the need for an external PC or additional cables.

Install familiar Windows applications, such as SMART Notebook®, SMART TeamWorks™, and

SMART Meeting Pro® software, and access the internet directly through your display's network connection Upgrades and service for the OPS PC module are easy to perform without removing the display mounting.

SBA-100 projection audio system

For education models only

The SBA-100 projection audio system consists of two 14 W speakers designed for wall-mounted displays. You can control volume using the display's front control panel or the volume controls on a connected computer.

Stands

If you want to move the display from place to place, you can install it on a SMART mobile station installing the display on a wall that cannot support the display's full weight, you can install the cSMART floor stand.

USB extenders

As noted in the display's specifications, there is a maximum length for USB cable connections between display and computer.

When using USB 2.0, the cable should be no longer than 16' (5 m).

When using USB 3.0, the cable should be no longer than 9' (3 m).

Use one of the following USB extenders if you need a longer USB connection:

Extender Specifications

USB-XT smarttech.com/kb/119318

CAT5-XT-1100 smarttech.com/kb/170202

NOTES

• To extend touch using the SMART CAT 5 USB extender (CAT5-XT-1100) use a touch USB connector associated with an HDMI 1, HDMI 2, or VGA input. The extender will not function correctly if extend touch associated with the HDMI 3 input on the front of the display.
• For more information about extending USB connections, see USB cable extenders.

More information

In addition to this guide, SMART provides other documents for the display in the Support section SMART website (smarttech.com/support). Scan the QR code on the cover of this guide to view links to SMART Board MX (V2) and MX (V2) Pro series interactive display documents and other support resc

Chapter 2

Waking up the display and putting it back...to...sleep...xv.....

Using the Home button_xvj

Using the front control .panel..xvi....

Using the remote control xvii

Using touch_xix

Writing, drawing, and erasing_xxi

Writing and drawing in digital ink.... xxi

Using the SMART Ink dynamic (floating).toolbar.... xxii

Changing a pen's default color, thickness, and other properties .... xxii

Erasing digital ink xxii

Adjusting the volume.... xxiii

Freezing or hiding the screen.... xxiii

Freezing the screen.... xxiii

Showing and hiding the screen shade xxiv

This chapter explains how to wake the display when it's asleep, how to view connected computers' input and how to interact with the display.

Waking up the display and putting it back to sleep

To wake the display, press the Power button ⏻ on the front control panel or remote control.

To return the display to a partial sleeping state, press the Power button ⏻ on the front control panel or remote control.

NOTE

Touch is not available right after waking up the display or turning it on. Wait a few seconds and then the display will respond to touch.

For information about turning the display off, see SMART Board MX-V2 series interactive displays installation and maintenance guide (smarttech.com/kb/171555).

Using the Home button

You can use the Home screen to open and use iQ apps, view the input of connected computer. You can also change the background and personalize other features of the Home screen. To learn about the Home screen, see Understanding the Home screen.

The Input screen shows thumbnails of connected computers and allows you to switch among inputs

You can return to the Home screen or the Input screen at any time by following the instructions

To show the Home screen or the Input screen

Tap the Home button on the front control panel.

OR

Press the Home button on the remote control.

Using the front control panel

The front control panel contains buttons for returning to the iQ Home screen, switching the input showing and hiding a screen shade, controlling the volume, freezing and unfreezing the screen, and the display on and off.

No. Name Procedure

1	Home	Press to return to the iQ Home screen (see Using the Home button above).
2	Input select	Press to switch input source (see Viewing a connected computer's input on page xxxiii).
3	Screen shade Press to hide screen contents behind a screen shade (see Freezing or hiding the screen on page xxiii).
4 Freeze		Press to freeze and unfreeze the screen (see Freezing the screen on page xxiii).

No. Name Procedure

5	Volume decrease	Press to turn down the volume (see Adjusting the volume on page xxiii).
6	Volume increase	Press to turn up the volume (see Adjusting the volume on page xxiii).
7 Power		Press to wake the display (see Waking up the display and putting it back to sleep on page xv).Press again to enter Sleep mode (see Waking up the display and putting it back to sleep on page xv).

Using the remote control

The display comes with one of two infrared remote control models. These models are similar, except has a button screen sharing button.

Use the infrared remote control to turn the display on or off, change the input source, change the access the display's iQ apps, and more. You can also use the remote control to open the on-sc and change the display's settings.

IMPORTANT

• Do not subject the remote control to strong shock.
• Keep the remote control away from liquids. If it gets wet, wipe it dry immediately.
• Do not expose the remote control to heat or steam.
• Do not open any part of the remote control other than the battery compartment.

The image and table below list the remote control's functions.

No. Name Procedure

1	Power	Press to enter or exit Standby mode (see Waking up the display a putting it back to sleep on page xv).NOTETouch is not available right after waking up the display or turning on. Wait a few seconds and then the display will respond to toucPress and hold for four seconds to turn off the display.
2	Home	Open the iQ Home screen (see Using the Home button on page xvi
3	Up and down buttons	Select a menu option in the settings.
4	OK Select menu option in the settings.
5	Left and right buttons	Change the value of the selected setting.
6	Back Go one step back in the navigation history.
7	Input	Switch input sources (see Viewing a connected computer's input on page xxxiii).
8	Settings Open display settings.
9	Screen shade	Hide screen contents behind a screen shade (see Showing and hiding the screen shade on page xxiv).
10	Freeze frame	Freeze and unfreeze the screen (see page xxiii).
11	Volume increase	Increase the volume (see Adjusting the volume on page xxiii).
12	Volume decrease	Decrease the volume (see Adjusting the volume on page xxiii).
13	Volume mute	Mute the volume (see Adjusting the volume on page xxiii).
14	Share screen	Open the Screen Share app (see Sharing your device's screen to the display).NOTEThis button is not available on all remote control models.

Using touch

You can do everything on the display that you can do at your computer—open and close applica meet with others, create new documents or edit existing ones, visit websites, play and manipulate and so on—by touching the display's surface.

You can use a variety of gestures within applications, including panning, scaling, rotating, and zoomi and out.

The display's support for up to 20 simultaneous interaction points enables you and other users to with objects on the screen at the same time.

NOTE

Not all gestures work in all applications. Refer to an application's documentation to learn which get it supports.

Pan (one finger) Pan (two fingers) / scroll

Illustration of a hand pointing at a four-petal flower with blue petals (no text or symbols)

Illustration of a hand interacting with a central circular button (no text or symbols)

Pinch to zoom in / scale (enlarge) Pinch to zoom out / scale (reduce)

Illustration of two hands pointing at a screen with three green circles and blue triangular highlights (no text or symbols)

Illustration of two hands pointing at a screen with green circular markers (no text or symbols)

Rotate Flick

Illustration of two hands interacting with a curved interface element, no text or symbols present

Simple line drawing of a hand holding a circular object with motion arrows (no text or symbols)

Erase with palm Erase with fist

Simple line drawing of a hand with a blue highlight on the palm (no text or symbols)

Illustration of a hand holding a blue ribbon or stylus, no text or symbols present

Writing, drawing, and erasing

The display includes two pens, which you can use to write or draw in digital ink. You can eras using gestures or the eraser tool in the apps.

Writing and drawing in digital ink

To write or draw in digital ink

1. Pick up one of the display's pens.
2. Use the pen to write or draw in digital ink.

Using the SMART Ink® dynamic (floating) toolbar

When you start drawing on the screen while viewing a connected computer's input, the SMART Ink® dynamic (floating) toolbar for SMART Ink appears on the screen. You can use this toolbar to temporarily change the pen's color, thickness, or other properties, you can also access SMART Ink's tools, such as screen capture, spotlight, screen shade, and so on.

To learn more about SMART Ink and its toolbar, visit the SMART Ink support page. Here are a few quick links to get you started:

• Turning SMART Ink on or off
• Opening the dynamic (floating) toolbar
• Closing (hiding) the toolbar
  • Using SMART Ink presentation tools

Changing a pen's default color, thickness, and other properties

You can change a pen's color, thickness, and other properties temporarily using the SMART Ink dyn (floating) toolbar when you're viewing a connected computer's input.

To change the pen's default color, thickness, and other properties, see Changing pen, eraser, and button settings.

Erasing digital ink

You can erase digital ink from the screen using your palm or fist:

To erase digital ink

Move your fist or palm over the digital ink you want to erase.

Adjusting the volume

Use the buttons on the front control panel or the remote control to increase, decrease, or mute display's volume.

NOTE

See There's no sound or there's a problem with the sound on page xl if you encounter issues with the display's sound.

To turn the volume up or down

Press the Volume Up or Volume Down button on the front control panel or the remote control.

NOTES

• Press and hold the Volume Down button to rapidly decrease the volume.
• When you press the Volume Up or Volume Down button on the front control panel or the remote control, you can use the on-screen slider to adjust the volume.

To mute the volume

Press the remote control's mute button.

Freezing or hiding the screen

You can temporarily freeze or hide the contents on the screen using the display's freeze and scr features.

Freezing the screen

You can temporarily freeze the screen by pressing the Freeze|| button on the front control panel or

remote control. This is particularly useful when you want to pause a video, an animation, or other images.

NOTE

Freezing the screen does not pause applications that are running on the connected computer. It is freezes the display of those applications.

TIP

You can write or draw over the screen while it is frozen (see Writing, drawing, and erasing on page xxi). If

the iQ experience is enabled, you can then save the screenshot of your writing or drawing to t

Library (see Using the iQ experience Files Library).

To unfreeze the screen, press the Freeze button again.

Showing and hiding the screen shade

You can temporarily hide the contents of the screen behind a virtual screen shade by pressing the Screen

Shade button on the front control panel or remote control.

To remove the screen shade and reveal the screen contents, press the Screen Shade button again.

Chapter 3

The display comes with the following iQ apps:

• SMART Notebook Player
- Browser
- Input
- Screen Share
- kapp Whiteboard

You can use these apps along with the Files Library and Apps Library to deliver lessons in a c coordinate meetings and other collaborative activities.

NOTE

Some apps, such as Screen Share, require a properly configured network connection. If you're experiencing issues with these apps, contact your IT administrator to make sure the network and have been properly configured.

Using the Apps Library

The Apps Library contains the Browser, SMART Notebook Player, and kapp Whiteboard apps. You can add apps from the web and SMART's app store or install third-party apps.

NOTE

SMART Notebook Player is available on education models only.

To open the Apps Library

From the Home screen, tap Apps Library.

To learn how to use the other features of Apps Library, see Adding and managing apps in the experience.

Using the Files Library

The Files Library contains kapp Whiteboard sessions, whiteboards, SMART Notebook files that have been shared with the display, PDFs, and screenshots. If a USB drive is connected to the display, the USB drive are also available in the Files Library. Although these files can be viewed on the display, not saved on the display.

NOTE

SMART Notebook Player is available on education models only.

To open Files Library

From the Home screen, tap

Files Library.

To learn how to use the other features of Files Library, see Using the iQ experience Files Library.

Using kapp Whiteboard

For Pro models only

Use the kapp Whiteboard to write and erase notes on the display just as you do on a tradition board. You can also save your notes for later and share them using the SMART kapp® app. The Whiteboard app is the default whiteboard for enterprise models.

To learn how to write, draw, and erase in kapp Whiteboard, see Writing, drawing, and erasing on page xxi.

To learn how to use the other features of kapp Whiteboard, see Using the kapp Whiteboard.

Using SMART Notebook Player

For education models only

Use SMART Notebook Player to open, view, and interact with SMART Notebook software files. Notebook Player makes it easy to present SMART Notebook files and play SMART lab™ activities on the displ SMART Notebook Player is also the default whiteboard for education models.

You can install the Notebook Player app on your iOS and Android devices to view and control. Notebook files from the device.

To learn more about SMART Notebook Player, see Using the Player app to deliver lessons.

Using Browser

You can use Browser to view web sites on the display.

To learn more about Browser, see Browsing the internet on your display.

Using Screen Share

You can share the screens from computers and mobile devices on the display wirelessly using Scr Share.

Screen Share supports:

• Chromebook™ laptops, using the Chrome™ browser
• Windows computers, using MiracasChrome browser, or AirParrot
  • Mac computers and iOS devices, using AirPlay
• Android™ devices, using Cast Screen

You can also download the SMART Screen Share app for Chromebooks, Windows computers, Mac computers, iOS devices, and Android devices.

To learn how to use the other features of Screen Share, see Sharing your device's screen to the display.

Using Input

You can use the connectors the display to connect a room computer, guest laptops, and other in sources.

To learn how to connect computers to the display and view their video output, see Viewing a connected computer's screen.

Using screenshots

When using the Browser or Screen Share apps, you can write or draw on a screenshot and save Files Library.

To learn more about screenshots, see Writing and drawing over content and saving as screenshots in the iQ experience.

Installing third-party apps

You can install third-party apps from the Google Play Store using SMART Remote Management.

To learn more about installing third-party apps, see Adding and managing apps in the iQ experience.

Cleaning up the display

After you've finished using the display, tap Clean Up on the Home screen to clean up the display for the next user.

• For education models:

• Saves the whiteboard to the Files Library
• Saves the SMART Notebook file to the Files Library

• Erases the whiteboard

• For enterprise models, saves the kapp Whiteboard to the Files Library (if saving to the Library is enabled in Settings)

• Resets Browser (clears the browser history, cache, cookies and closes all open tabs, and opens a new tab)
• Removes all tiles under Recent
• Closes all applications, including third-party apps.

To learn more, see About the iQ experience and navigating the Home screen.

devices

Installing and using SMART software...xxx....
Downloading and installing SMART software xxxi....
Using SMART software...xxxii....
Connecting room computers and guest laptops xxxii....
Viewing a connected computer's .input....	xxxiii
Setting a connected computer's resolution and refresh rate....	xxxiii
Connecting USB drives, peripherals, and other .devices....	xxxiv
Troubleshooting connected computers....	xxxv
Connecting a SMART OPS PC module....	xxxv
Viewing the OPS PC module .input....	xxxv
Connecting external displays....	xxxv
Connecting USB drives, peripherals, and other .devices....	xxxvi

WARNING

Ensure that any cables that cross the floor to the display are properly bundled and marked to a hazard.

Installing and using SMART software

The display comes with the following software, which you can install on connected computers:

Software	Description	Notes
SMART Learning Suite	A suite of desktop and online software education models only. combines lesson delivery, activities, SMART Notebook basic assessments, and collaborative workspaces version also available. Includes SMART Notebook software and SMART Learning Suite Online.
SMART Meeting Pro	Software that enables you to capture Prode models only. a virtually unlimited interactive workspace.

Software Description Notes

SMART Product Drivers Software that enables the computer to indicate with input from the display.	SMART Learning Suite
SMART Ink Software that enables you to write and draw in included with digital ink over applications, files, folders, SMART Learning Suite websites, and any other open window.

TIP

You can purchase additional licenses or subscriptions to SMART software to install on other compu

The following software is also available but sold separately:

Software Description Licensing details

SMART TeamWorks room edition	Software that simplifies meetings and 1-year subscription facilitates deeper, more natural interaction with on-site and remote participants.
SMART Remote Management	Cloud-based mobile device management 3-year subscription software for remotely maintaining, supporting, controlling, and securing the display and your other devices

Contact your authorized SMART reseller (smarttech.com/where) for information about purchasing SMART software.

Downloading and installing SMART software

You can download SMART software from smarttech.com/downloads and install it following the instructions in Installing and maintaining SMART Notebook, Downloading and installing SMART TeamWorks, or Installing and maintaining SMART Meeting Pro.

Using SMART software

For information about using SMART software, see the following pages in the Support section of the website:

• SMART Notebook
• SMART Learning Suite Online
• SMART Learning Suite
• SMART TeamWorks
• SMART Meeting Pro
• SMART Product Drivers
- SMART Ink
• SMART Remote Management

Connecting room computers and guest laptops

You can connect room computers and guest laptops to the display and view and interact with the Side and bottom connector panel Front connector panel

NOTES

• Install SMART software on any computers you connect to the display (see Installing and using SMART software on page xxx).
• Your organization's installers might have connected cables to the display and run the cables behind a wall or under the floor to a desk or table where you can place your computer.

Viewing a connected computer's input

To view a connected computer's input

1. Connect the computer to the display.

2. Press the Input button on the front control panel or the remote control.

The display shows thumbnails of the devices that are connected to the display's inputs:

NOTE

A thumbnail with Touch enabled 📄 indicates a USB cable is connected between the display and device and touch is available.

• A gray thumbnail indicates no device is connected to an input.
• A black thumbnail indicates a device is connected to an input but is in Standby mode.

• A thumbnail showing a preview screen indicates an active device is connected to an input.

• Tap the computer's thumbnail.

Setting a connected computer's resolution and refresh rate

The following table presents the recommend resolutions and refresh rates for the display's HDMI 1, H and HDMI 3 input sources:

Resolution	Input	source	aspect	ratio	Mode	Refresh rate
3840 × 2160		16:9				UHD / 2160p	59.94 Hz / 60 Hz50 Hz29.97 Hz / 30 Hz25 Hz23.98 Hz / 24 Hz

Resolution	Input	source	aspect	ratio	Mode	Refresh	rate
1920	× 1080	16:9	FHD	/ 1080p	59.94 Hz	/ 60 Hz		50 Hz
								29.97 Hz / 30 Hz
								25 Hz
								23.98 Hz / 24 Hz
1360	× 768	16:9	HD	60.015 Hz
1366	× 768	16:9	HD	60.015 Hz
1280	× 720	16:9	HD / 720p			59.94 Hz / 60 Hz
								50 Hz
								29.97 Hz / 30 Hz
								25 Hz
								23.98 Hz / 24 Hz
720	× 480		16:9	480p (DVD Player)		60 Hz

The following table presents the recommend resolutions and refresh rates for the display's VGA input source:

Resolution		Input source aspect ratio	Mode	Refresh rate
1920 × 1080		16:9	[N/A]	60.000 Hz
1600 × 1200		4:3	[N/A]	60.000 Hz
1360 × 768		16:9	[N/A]	60.015 Hz
1280 × 1024		5:4	SXGA 60	60.020 Hz
1024 × 768		4:3	XGA 60	60.004 Hz
			XGA 70	70.069 Hz
			XGA 75	75.029 Hz
800 × 600		4:3	SVGA 60	60.317 Hz
			SVGA 72	72.188 Hz
			SVGA 75	75.000 Hz
640 × 480		4:3	VGA 60	59.940 Hz

If possible, set any connected computers to these resolutions and refresh rates. See the connected computers' operating system documentation for instructions.

Connecting USB drives, peripherals, and other devices

You can use USB drives, peripherals, and other devices with a computer connected to the display USB receptacles on the display.

For more information, see Connecting USB drives, peripherals, and other devices on the next page.

Troubleshooting connected computers

For troubleshooting information for connected computers, see Chapter 5: Troubleshooting on page xxxviii.

Connecting a SMART OPS PC module

If your organization has purchased a SMART OPS PC module, you or your organization's installers can install the OPS PC module in the display's accessory slot following the OPS PC module's installation instructions (smarttech.com/kb/171544). You can then view the OPS PC module's input on the display.

For more information about the PCM8 series of SMART OPS PC SMART OPS PC module on page xiii.

CAUTION

Do not install the OPS PC module or remove it from the accessory slot while the display is tu Ensure the power switch on the back of the display beside the AC power inlet is in the OFF

TIP

You can install the SMART software that is included with the display on the OPS PC. For more on installing software, see Installing and using SMART software on page xxx.

Viewing the OPS PC module input

To view the OPS PC module input

1. Press the Input button on the front control panel or the remote control.
   The input selection menu appears.
2. Tap the OPS PC module input.

Connecting external displays

You can connect an external display to duplicate or extend the OPS PC module's desktop.

For more information, see the SMART Board MX (V2) and MX (V2) Pro series interactive displays installation and maintenance guide (smarttech.com/kb/171555).

Connecting USB drives, peripherals, and other devices

The display includes the following USB Type A receptacles. You can connect USB drives, peripheral as keyboards), and other devices to these connectors and use the devices with the iQ experience, connected computers, and devices installed in the accessory slot (such as the SMART PCM8 series PC).

The following table shows which USB 3.0 Type-A receptacles you can use with each input source supported USB speed:

Input source	USB 3.0 Type-A receptacle on the connector panel		USB 2.0 Type-A receptacle on the connector panel
iQ	√ (SuperSpeed)	(Hi-Speed)	√
HDMI 1	√ (SuperSpeed)	(Hi-Speed)	√
HDMI 2	√ (SuperSpeed)	(Hi-Speed)	√
HDMI 3	√ (SuperSpeed)	(Hi-Speed)	√
VGA	√ (SuperSpeed)	(Hi-Speed)	√
Accessory slot	√ (SuperSpeed)	(Hi-Speed)	√
OPS PC	√ (SuperSpeed)	(Hi-Speed)	√

NOTE

If a SMART OPS PC module is installed in the accessory slot, you can connect USB drives, peripherals, and other devices to the USB 2.0 Type-A, USB 3.0 Type-B, and USB Type-C receptacles on the OPS PC module to access those devices from the OPS PC module input.

Chapter 5

The display isn't turning ..on...xxxviii

The screen is blank or there's a problem with the image...on...the...screen...xxxix...

There's no sound or there's a problem with...the...sound...xl....

Touch isn't working as expected..xli.

The pens and erasers aren't working as .expected.... xlii

iQ apps aren't working as expected.... xlii

SMART software on connected computers isn't working as...expected....xliii

The SMART PCM8 OPS PC isn't working as...expected....xliii

Contacting your reseller for additional support.... xliv

This section explains how to resolve a variety of common issues with the display and SMART PCM:PC (if installed). If your specific symptoms aren't covered below or the solutions to the symptoms work, refer to the SMART knowledge base for additional troubleshooting information

community.smarttech.com/s/topic/0TO0P000000Xt5yWAC/mx-series

The display isn't turning on

Symptom	Troubleshooting steps
The power light isn't lit.	Make sure the power cable is securely fastened to the power outlet and the display.
	NOTEIf the power cable is connected to a power bar, make sure the power bar is securely fastened to the power outlet and turned on.
	Make sure the switch beside the AC power inlet is in the ON (I) position.Make sure the power outlet is working by testing it with a different device.Make sure the power cable is working by testing it with a different device.
The power light is lit, but the screen is blank.	Press the Power button on the front of the display or on the remote control.If the power status light is green, pressHomebuttonon the front control panel or remote control, or switch to a different input source.Restart the display.Determine if the problem is with the video.

The screen is blank or there's a problem with t image on the screen

NOTE

If the issue occurs on the Home screen, the issue may be with the display. See Contacting your reseller

for additional support on page xliv.

If the issue doesn't occur on the Home screen, examine the connected computers or devices.

Symptom Troubleshooting steps

The screen is blank.

• Make sure the screen is working by pressing the Home button on the front control panel or the remote control to open the Home screen.
• Make sure any connected computers are on and not in Sleep mode.
• Restart the display and any connected computers.
• Replace the video cables connecting any computers to the display to determine if the issue is with the cables.

A computer is connected to the display, but only a connection message appears on the screen.

• Make sure the computer is connected to the currently selected input.
• If the currently selected input is a computer, make sure the computer is not in Sleep mode.

The image on the screen is distorted. OR

- Press the Home button on the front control panel or the remote control to open the Home screen. If it appears correctly, the issue is with the video input.

There are lines, snow or, other noise on the screen.

• Switch to a different input and then back to the first input.

OR

- Make sure any connected computers are on and not in Sleep mode.

The image if flickering or flashing. OR

- Restart the display and any connected computers.

The image is dim.

- Set any connected computers' resolution and refresh rate to values that the display supports.

See Setting a connected computer's resolution and refresh rate on page xxxiii.

- Replace the video cables that connect any computers to the display to determine if the issue is with the cables.

There are bright spots on the screen.

- Press the Home button on the front control panel or the remote control to open the Home screen. If it appears correctly, the issue is with the video input.

- Take a photograph of the screen and send it to SMART support. If SMART support determines that the issue is with the screen and the display is under warranty, you may be eligible for a replacement.

Colors don't appear correctly.

• Be aware that if two or more displays are mounted side-by-side, there could be minor differences in colors across the displays. This issue is not unique to SMART products.
• If the screen is completely lacking one color on the screen or the color problems on the Home screen, see Contacting your reseller for additional support on page xiv.
• If you're using a VGA video input, use a different cable or connect a different source to see if the issue is with the cable or input source.

Symptom Troubleshooting steps

The image is cut off or shifted to left or right.	Adjust any connected computers’ video settings, particularly zoom, crop, and underscan.See the computer’s operating system documentation.If any connected computers’ desktops are entirely black, change them to dark gray or different color.If any connected computers’ desktops are extended across multiple screens, duplicate the desktops across the screens or set the display as the only screen.
The image doesn’t fill the entire screen.	Adjust any connected computers’ video settings, particularly overscan.See the computer’s operating system documentation.Make sure the connected computer’s video connector is configured to output a supported video signal. SeeNo video display output from a laptop.
A persistent image appears on the display.	See Image persistence or burn in on LCD displays.

There's no sound or there's a problem with the

Symptom Troubleshooting steps

There's no sound.ORThere is sound, but the volume is low.ORThe sound is distorted or muffled.

If you're using an external audio system, make sure it is turned on.Make sure the cables connecting the display to the computer are securely fastened.NOTESThe display's stereo 3.5 mm in connector works with the VGA input only.Connecting an audio cable to the display's stereo 3.5 mm out connector disables the internal speakers.If you're using the display's S/PDIF out connector to connect a sound bar or receiver for external speakers, see the SMART Board MX (V2) and MX (V2) Pro series interactive displays installation and maintenance guide (smarttech.com/kb/171555).If you're using the display's stereo 3.5 mm out connector, adjust the volume on the display and the connected computer and make sure neither are muted.If you're using the display's S/PDIF out connector, adjust the volume on the external audio system and make sure the audio system isn't muted.Adjust the display's audio settings.If you're using the integrated speakers, set the volume for the computer and any running applications to 80%, and then adjust the display's volume.ORIf you're using an external audio system, set the volume for the computer, any running applications and the display to 80%, and then adjust the external audio system's volume.

There is a whine or buzzing sound Be aware that these sounds are normal. All displays emit some electrical noise. Such coming from the back of the displaysounds may be more noticeable with some displays than with others. However, if you hear noise from the front of the display, further investigation is required.

- Connect all devices to the same power outlet or power bar.

Touch isn't working as expected

Symptom Troubleshooting steps

The display doesn't respond to touch.

• Touch is not available right after waking up the display or turning it on. Wait a few seconds and then the display will respond to touch.
• Make sure SMART Product Drivers 12.14 or later are installed and running on any connected computers.
• Make sure the USB cable between the display and the computer doesn't exceed the supported maximum cable length. See Connecting room computers and guest laptops on page xxxii.
• Make sure any connected computers have detected the display's USB connection and SMART Product Drivers 12.14 or later is installed.
• On Windows computers, open Device Manager and make sure there is no red X or yellow explanation mark (!) over the display's icon.
• On Mac computers, open System Information and make sure there are no error messages in the display's row.
• For Mac computers with macOS Mojave, see How to resolve issues with installing and using SMART Learning Suite software on macOS Mojave.
  • Make sure jewelry or clothing doesn't touch the board when erasing the ink.
• When erasing, make sure the palm or fist is flat on the screen.
• Touch is not available right after waking up the display or turning it on. Wait a few seconds and then the display will respond to touch.
  • Make sure jewelry or clothing doesn't touch the board when erasing the ink.
• When erasing, make sure the palm or fist is flat on the screen.
• Touch is not available right after waking up the display or turning it on. Wait a few seconds and then the display will respond to touch.

The display responds to touch intermittently.

OR

When you touch the screen, the pointer doesn't appear in the co place.

ectRestart the display.

• Confirm with the installers that the computer is connected to the display with only a single cable.
• Make sure SMART Product Drivers and SMART Ink are installed and running on any connected computers. Orient the display. See Orienting your SMART interactive product using SMART Product Drivers 12.
• Remove infrared sources, such as incandescent or arc lights, desk lamps, and infrared audio devices, or move the display to another location in the room.
• Remove any USB extenders to help isolate the USB cable.
• Update the firmware.

The pens and erasers aren't working as expected

Symptom Troubleshooting steps

The display doesn't respond to touch. Touch is not available right after waking up the display or turning it on. Wait a few or writing with a pen. seconds and then the display will respond to touch.

• Make sure any connected computers have detected the display's USB connection and SMART Product Drivers 12.14 or later is installed.
• On Windows computers, open Device Manager and make sure there is no red X or yellow explanation mark (!) over the display's icon.
• On Mac computers, open System Information and make sure there are no error messages in the display's row.
• Reinstall or update SMART Product Drivers and SMART Ink on any connected computers.
  • Make sure SMART Product Drivers is version 12.14 or later.

The display responds to touch but • reinstall or update SMART Product Drivers and SMART Ink on any connected to writing with a pen. computers.

When you write on the screen, the Make sure you are using a SMART Board MX (V2) interactive display pen.

appears in the wrong place. • Restart the display.

OR

Writing is intermittent.

OR

Ink disappears as you write.

• Restart the display.
• Confirm with the installers that the computer is connected to the display with only a single cable.
• Make sure SMART Product Drivers and SMART Ink are installed and running on any connected computers.
• Make sure the pen nib is not worn. Replacement pens are available from the Store SMART Parts (see smarttech.com/Support/PartsStore).
• Make sure SMART Product Drivers and SMART Ink are installed and running on any connected computers. Orient the display. See Orienting your SMART interactive product using SMART Product Drivers 12.
• Remove infrared sources, such as incandescent or arc lights, desk lamps, and infrared audio devices, or move the display to another location in the room.
• Update the firmware.

You can't write or draw in MicrosoftMake sure Microsoft Office 2013 or later is installed.

Office.

• Reinstall or update SMART Product Drivers and SMART Ink.

iQ apps aren't working as expected

Symptom Troubleshooting steps

iQ apps aren't working as expected.

See Troubleshooting the iQ experience.

SMART software on connected computers isn't working as expected

Symptom Troubleshooting steps

SMART Notebook software isn’t working as expected.	See Troubleshooting SMART Notebook.
SMART Learning Suite Online isn’t working as expected.	See Troubleshooting common issues in SMART Learning Suite Online.
SMART TeamWorks software isn’t working as expected.	See Troubleshooting SMART TeamWorks.
SMART Meeting Pro software isn’t working as expected.	See Basic troubleshooting for SMART Meeting Pro.
SMART Ink isn’t working as expected. See Troubleshooting SMART Ink.
SMART Product Drivers isn’t working as expected.	See Troubleshooting SMART Product Drivers.

The SMART PCM8 OPS PC isn't working as expected

Symptom Troubleshooting steps

The on-screen keyboard isn't visible. • Enable the on-screen keyboard:
	a. Select Start > Settings.The Settings window appears.b. TapEase of Access, and then tap Keyboard.c. Enable Use the On-Screen Keyboard.For more information, see Use the On-Screen Keyboard (OSK) to type.
	• Enable tablet mode:Tap the notification icon in the bottom-right corner of the screen and then selectTablet mode.For more information, seeTurn tablet mode on or off.
Windows 10 or the OPS PC module is unresponsive.	• Restart the OPS PC module:a. Press and hold the power button on the OPS PC module.b. Wait two minutes.c. Press the power button to turn on the OPS PC module.• If restarting the OPS PC module doesn't resolve the issue, contact SMART support.
There is an issue with Bluetooth.	See Fix Bluetooth problems in Windows 10: FAQ.
There is an issue with the network connection.	See Fix network connection issues in Windows.

Contacting your reseller for additional support

If an issue you're experiencing with the display persists or isn't covered in this chapter or the kri base, contact your authorized SMART reseller (smarttech.com/where) for support.

Your reseller might ask you for the display's serial number. The serial number is on a label located on the left side of the display (pictured).

TIPS

• Scan the QR code on the label to view the SMART Board MX (V2) or MX (V2) Pro series interactive display support pages on the SMART website.
• You can also find the serial number in the iQ settings. Refer to the SMART Board MX (V2) (V2) Pro series interactive displays installation and maintenance guide (smarttech.com/kb/171555) for more information.

SMART TECHNOLOGIES

smarttech.com/support

smarttech.com/contactsupport

smarttech.com/kb/171554
