Product Type	Upright Vacuum Cleaner
Brand	ECG
Model	VP S1050 Charles
Rated Voltage	220–240 V~ 50/60 Hz
Nominal Input Power	700 W
Suction Power	160 W
Dust Bag Capacity	1.5 L
Operating Radius	7.5 m
Noise Level	< 75 dB
Telescopic Tube	Metal telescopic tube
Wheels	Rubber coated for easy transport
Cord Rewind	Automatic rewind
Filters	Motor filter, HEPA H11, cloth bag
Accessories Included	Floor nozzle with extendable brush, tapered nozzle
Bag Replacement	Use SWIRL Y 98 MicroPor PLUS bags
Safety Features	Thermal protection, cord damage warning
Maintenance	Clean motor filter twice a year; clean output filter regularly

Frequently Asked Questions - VP S1050 Charles ECG

What type of dust bag does the VP S1050 Charles use?

The vacuum cleaner uses SWIRL Y 98 MicroPor PLUS dust bags. Always replace with this type for proper performance.

How do I change the dust bag?

Press the front cover lock to open the front cover. Remove the holder with the full bag, insert a new bag into the holder, and return it.

How often should I clean the filters?

Clean the motor filter twice a year with warm water and dry thoroughly. Clean the output filter regularly by shaking off dust.

What should I do if the suction power is reduced?

Check if the dust bag is full, the hose or tube is clogged, or the filters are dirty. Replace the bag, remove blockages, or clean/replace filters.

Can I vacuum liquids with this vacuum cleaner?

No, never vacuum wet surfaces, water, or any liquids. This can cause electric shock and damage the appliance.

How do I rewind the power cord?

Press the cable rewind button located on the vacuum cleaner. Hold the plug while rewinding to avoid whipping.

What accessories are included?

The package includes a floor nozzle with extendable brush and a combined tapered nozzle for crevices and upholstery.

Is the vacuum cleaner safe for children to use?

Children aged 8+ can use it under supervision. Cleaning and maintenance must be done by adults or supervised children over 8. Keep away from children under 8.

What should I avoid vacuuming?

Avoid sharp objects (glass, nails), hot or smoldering items (cigarettes, embers), flammable liquids, and wet surfaces.

Where can I get the user manual?

The manual is available for free download in PDF format from notice-facile.com or the manufacturer's website.

USER MANUAL VP S1050 Charles ECG

Exterior view of a black and white CCO vacuum cleaner with coiled hose (no text or symbols visible)

VP S 1050 Charles

VACUUM CLEANER

INSTRUCTION MANUAL

BODENSTAUBSAUGER

BEDIENUNGSANLEITUNG

PODLAHOVÝ VYSAVAČ

NÁVOD K OBSLUZE

PÕRANDATOLMUIMEJA

KASUTUSJUHEND

USISAVAČ

UPUTE ZA UPORABU

GRĪDAS PUTEKLSŪCĒJS

ROKASGRÂMATA

GRINDU DULKIŲ SIURBLYS

INSTRUKCIJU VADOVAS

PADLÓPORSZÍVÓ

HASZNÁLATI ÚTMUTATÓ

ODKURZACZ PODŁOGOWY

INSTRUKCJA OBSŁUGI

ASPIRATOR DE PODEA

INSTRUCTIUNI DE UTILIZARE

PODLAHOVÝ VYSÁVAČ

NÁVOD NA OBSLUHU

TALNI SESALNIK

NAVODILA

USISIVAČ

UPUTSTVO ZA UPOTREBU

ΗΛΕΚΤΡΙΚΗ ΣΚΟΥΠΑ

ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ

ПИЛОСОС

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without inserted dust bag, motor filter and exhaust filter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to any maintenance. When unplugging the appliance, hold the power cord by the plug. Do not pull the cable.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.
9. Use only attachments and accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service centre.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not touch the power cord or the vacuum cleaner with wet hands.
13. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any debris, which can reduce the suction power of the vacuum cleaner.
14. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.
15. Do not use the vacuum cleaner on the following objects, which could result in damaging the device or injury:
16. sharp objects like glass, screws, coins, nails, etc.
17. hot or smouldering objects like embers, cigarettes or flammable and volatile liquids
18. wet surfaces, water and other liquids.
19. Use extra care when cleaning stairs.
20. Use the vacuum cleaner only in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
21. This appliance is intended for use by children 8 years of age and older and persons with reduced physical or mental abilities or lack of experience and knowledge, provided they are under supervision or given instructions concerning use of the appliance in a safe manner and understand the potential hazards. Children shall not play with the appliance. Cleaning and maintenance by the user must not be done by

children unless they are older than 8 years old and under supervision. Children under the age of 8 must keep away from the appliance and the power supply.

DESCRIPTION OF THE VACUUM CLEANER

List of parts

1. Front cover
2. Front cover lock
3. Opening for inserting the hose
4. Hose
5. Wheels

6. Handle for moving

7. ON/OFF button

8. Cable rewind button
9. Parking position
10. Brush nozzle
11. Combined tapered nozzle
12. Outlet filter cover

USING THE VACUUM CLEANER

The vacuum cleaner must be switched off and disconnected from power before you start to assemble it!

1. Insert the end of the hose into the hole in the front of the vacuum cleaner and push until you hear a click.
2. Connect the other end of the hose with curved ending to the tube.

3. Attach the accessories you wish to use (floor brush, tapered nozzle) to the tube. Switch the floor nozzle for carpets or hard floors according to the type of floor. The combined nozzle is designed for cleaning narrow spaces and difficult to reach areas in the corners or between the furniture.

4. Starting the vacuum cleaner: plug the power cable in the electrical outlet whose parameters correspond to the data in the type tag of the vacuum cleaner and press the power button to start the vacuum cleaner.

5. Pulling and rewinding the cord: Grasp the plug and pull out the power cord. Press the retractor button, the power cord rewinds back in the vacuum cleaner.

Note: Never pull out the power cord beyond the red mark located on the cord. The yellow mark shows the optimum length of the power cord.

Note: When carrying the appliance from one room to another unplug the power cord and carry it by the handle. Never move the vacuum cleaner by pulling the power cord.

After use

Switch off the vacuum cleaner and unplug it from the electrical outlet. Press the retractor button, the power cord rewinds back in the vacuum cleaner. Before attaching any accessories or before cleaning the appliance, always switch off the vacuum cleaner and unplug the power cord from the outlet. The vacuum cleaner hose can be disconnected by pressing the side clips located at the end of the hose and then pulling it out.

Issues

Do not use an appliance showing any signs of damage. A damaged power cord has to be replaced in an authorized service centre. Only this way can you prevent safety risks.

See the troubleshooting guide if your vacuum cleaner does not operate correctly. Refer to an authorized service centre if you are not able to resolve an issue yourself.

CLEANING AND MAINTENANCE

Warning:

Always unplug the power cord from the outlet before any maintenance and cleaning.

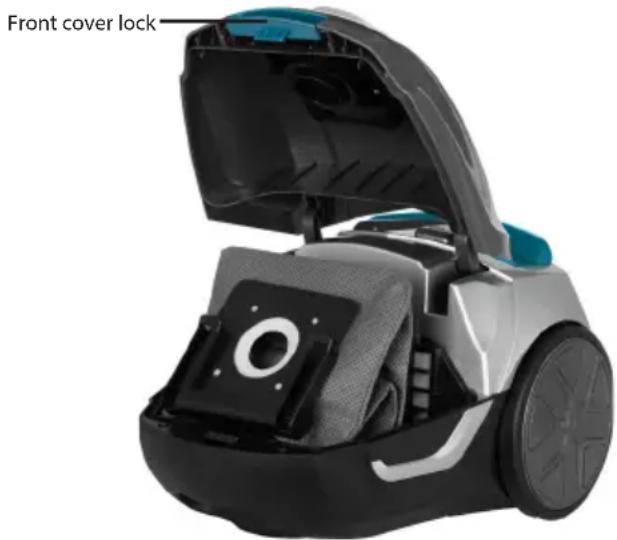

1. Changing the dust bag:

2. Press the lock on the front to open the front cover.

3. Remove the holder with the full dust bag.

4. Place the new bag in the holder and return the holder.

5. Clean the motor filter twice a year: Open the front cover, take out the dust bag, remove the filter, wash it in warm water and dry it thoroughly prior to next use. If the filter is damaged replace it with a new one.

6. Clean the output filter regularly: Open and remove the cover grill of the output filter. Shake to remove the accumulated dust. If the filter is damaged replace it with a new one.
7. Cleaning of the appliance surface: To clean use a soft cloth slightly moistened with a few drops of mild detergent. Never use a solvent or any abrasive

scouring cleaners. Never immerse vacuum cleaner in water or any other liquid and do not clean it under running water.

Warning:

Replacement dust bags for vacuum cleaner VP S 1050 Charles can be found under the designation SWIRL Y 98 MicroPor PLUS.

TROUBLESHOOTING

Before contacting the service, check the following list of common problems and possible remedies.

Problem Possible cause Solution
The motor will not start.	The vacuum cleaner is not powered..	Check the power cord and the electrical outlet. If the device still does not work, contact an authorized service centre.
The suction power is reduced.	Full dust bag, clogged hose or tube or dirty filters.	Replace the dust bag, remove foreign objects from the hose or tube, replace the filters.

TECHNICAL DATA

Suction power 160 W

Telestopic metal tube

Rubber coated wheels for easy transport

Automatic rewind

Volume of the dust bag - 1.5 l

Operating radius 7.5 m

Filters: motor filter, HEPA filter H11, cloth bag

Accessories:

• metal telescopic tube
  • floor nozzle with extendable brush
• tapered nozzle

Nominal voltage: 220–240 V\~ 50/60 Hz

Nominal input power: 700 W

Noise level: < 75 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated cardboard - hand in for paper garbage collection. Wrapping foil, PE bags, plastic parts – to plastics collection containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating instructions are available on the website.

Changes of text and technical parameters reserved.
