Product Type	LED TV
Model	LED2223
Brand	Reflexion
Screen Size	22 inches (55 cm)
Resolution	1920 x 1080 (Full HD)
Display Technology	LCD / TFT with LED Backlight
Energy Efficiency Class	F
Power Consumption (On)	18 W
Standby Power Consumption	< 0.5 W
Aspect Ratio	16:9
Contrast Ratio	3000:1
Brightness	200 cd/m²
Response Time	8 ms
Viewing Angle	178° horizontal / 178° vertical
TV Standards	DVB-T/T2HD, DVB-S/S2, DVB-C, Analog
CI+ Slot	Yes (Common Interface)
HDMI Input	1 (with ARC)
USB Port	1 (5V / 500mA)
Other Inputs	VGA, SCART, Component (Mini YPbPr), Composite (Mini AV), PC Audio
Outputs	Digital audio (COAX), Headphone (3.5mm)
Audio Power	2 x 3W
Power Supply	DC 12V / 3A (adapter included)
Dimensions (with stand)	510 x 146 x 359 mm (W x D x H)
Dimensions (without stand)	510 x 49 x 314 mm (W x D x H)
Weight (with stand)	3.65 kg
Weight (without stand)	2.50 kg
VESA Mount	100 x 100 mm
Cleaning Instructions	Use only a dry cloth for cleaning
Safety	Do not expose to water; ensure ventilation; disconnect during storms

Frequently Asked Questions - LED2223 Reflexion

How do I perform the first-time installation?

Press the POWER key to turn on the TV. Use the navigation buttons to select Menu Language and Country. Confirm with OK. Then choose your reception type (DVB-C, DVB-T, or DVB-S) and follow the on-screen instructions to search for channels.

How can I connect external devices?

The TV provides multiple inputs: HDMI (with ARC), VGA, SCART, Component (Mini YPbPr), Composite (Mini AV), and a USB port. Use the INPUT button to select the corresponding source.

How do I use the CI+ slot for pay-TV?

Insert a Conditional Access Module (CAM) and smart card into the CI+ slot while the TV is off. Turn on the TV, select DTV source, and wait for the message 'CI module inserted'. Then choose the encrypted channel. Detailed settings can be accessed via the CI Information menu.

Can I play multimedia files from a USB drive?

Yes. Insert a USB drive (FAT or NTFS, up to 1TB) into the USB port. Press INPUT and select Media. Then choose Photo, Music, Movie, or Text. Supported formats include JPEG, MP3, AVI, MP4, and more (see manual for full list).

How do I set up the remote control?

Insert the two supplied AAA batteries into the remote. Point it at the TV's front panel. The remote uses infrared. If it doesn't work, check the batteries and ensure no obstacles block the signal.

What should I do if the TV does not find any channels?

Ensure the correct antenna or cable is connected. During first installation, choose the correct reception type (DVB-T for antenna, DVB-C for cable, DVB-S for satellite). For satellite, select Astra 19.2°E or your satellite. Try a full scan instead of network scan. For DVB-C, set LCN to Off.

How can I lock channels or set parental controls?

Go to the LOCK menu. Set System Lock to On. The default password is 0000. You can then lock individual channels via Channel Lock or set an age rating under Parental Guidance.

Does the TV support HDMI CEC?

Yes. In the SETUP menu, under HDMI CEC, you can enable CEC Control, ARC, and Device Auto Power Off. This allows the TV to control connected HDMI devices and vice versa.

How do I clean the TV?

Use a soft, dry cloth to clean the screen and casing. Do not use water or cleaning solvents. Ensure the TV is unplugged before cleaning.

What is the warranty period?

Reflexion offers a 36-month warranty for TV and SAT devices from the date of purchase. The warranty covers material and production defects. Proof of purchase is required. Damage from improper use or external influences is excluded.

USER MANUAL LED2223 Reflexion

Bedienungsanleitung

22" (55cm)

Line drawing of a flat-screen computer monitor with a stand at the bottom (no text or symbols)

MEDIA MODUS (USB)......27

English	German
CI+ Slot	CI+ Steckplatz
CAM	CAM
Smart Card	Smart Card

Automatische Suche

und

Uhr

Foto / Musik / Film Text Wiedergabe

User manual

22" (55cm)

TFT-LED-TV with DVB-T/T2HD, DVB-S/S2, DVB-C, Cl+ Slot

Model No.: LED2223

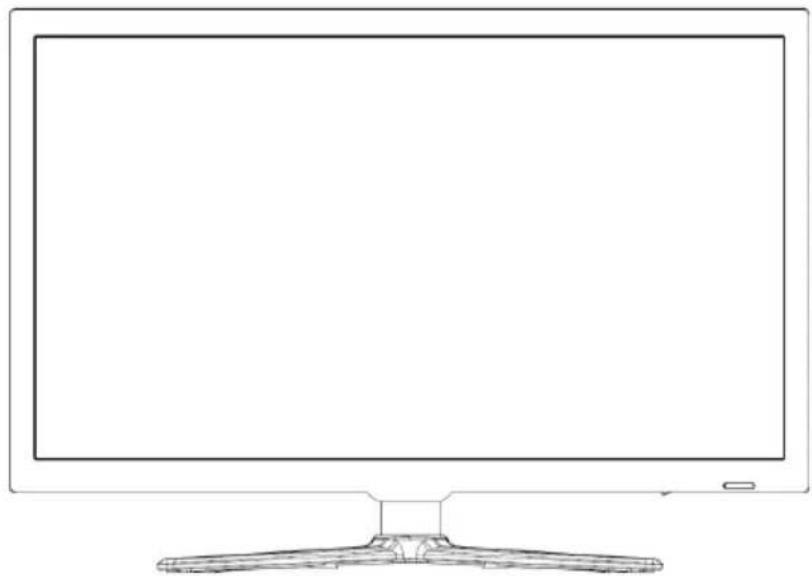

Line drawing of a flat-screen computer monitor with a stand at the base (no text or symbols)

Read the entire instructions for the TV carefully before operating the unit. Keep this manual for future reference.

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS - PLEASE READ CAREFULLY BEFORE USE.

Follow the safety instructions on the back of the TV.

Warning to Prevent Electric Shock. Do not remove any covers. No user-serviceable parts in the device. Have the device serviced by qualified personnel.

This symbol indicates important operating / maintenance instructions of this device in the operating instructions.

This symbol indicates the risk of electrical shock due to life-threatening voltage in this device.

Follow these instructions:

• Do not use this TV near water.
• Use only a dry cloth for cleaning.
• Do not cover any of the ventilation holes.

- Set up the unit according to the supplied Quick Start Guide and this manual.

- Be careful not to pinch or run the power cord, especially when plugged into the power outlet and DC input.

- Avoid routing the power cord over sharp edges.

- Disconnect the TV from the mains during thunderstorms or prolonged periods of non-use.

Be careful not to expose the unit to rain or moisture to reduce the risk of fire or electrical shock. The TV should be kept away from spray and dripping water and no objects filled with liquids should be placed on the TV.

NOTE:

- Do not place any open heat sources (stoves, candles, etc.) near or on the TV.

IMPORTANT SAFETY INSTRUCTIONS

This device complies with all current safety regulations. The following safety tips are intended to protect the user from reckless use and the resulting dangers.

• Although this instrument has been manufactured with the utmost care and subjected to a rigorous final inspection before it leaves the factory, there is the possibility, as with any other electrical device, that problems may arise. Immediately disconnect the device from the mains in case of smoke, excessive heat or any other unnatural appearance.
• Ensure adequate ventilation of the device! Never place the device near or under a curtain!
• The mains plug or device plug is used to disconnect the device from the mains and should be easily accessible at any time.
• The device may only be connected to a power supply that corresponds to the power supply indicated on the rating plate located on the back of the device. Never connect the device to any other type of power supply.
• The power outlet should be near the device and easy to reach.

SAFETY INFORMATION

- Do not attach too many other devices to avoid overloading the AC outlet to which the TV is connected.

- Keep rodents away from the device. Rodents love to nibble on the power cord.

- Unplug the power cord from the power outlet. Never pull on the power cord itself, it could be damaged and cause a short circuit.

- Position the device so that nobody can trip over the power cord.

- Never place heavy objects on the power cord as this could damage it.

- To prevent injury, be careful not to reach or pull out the power cord from a small child.

- Do not place the device near sources of heat. The case and power cord could be damaged by the heat.

- The screen is made of plastic, which may flake off if damaged.

- To avoid falling, place the unit only on a firm and level surface.

- To protect the unit from lightning, disconnect it from the mains and disconnect the antenna. Warning: Do not touch the TV1 / TV2 antenna plug.

- For safety reasons disconnect the device from the mains if you leave your flat for a longer period of time.

- When switched on, the device heats up. To avoid overheating, never place covers or blankets on the device. Never cover the ventilation holes. Never place the device near sources of heat.

- Avoid direct sunlight on the device. Keep a 5 cm (2") clearance to the environment when setting it up on a shelf.

- Keep water or moisture away from the unit. Do not use the device in a wet or damp environment such as a bathroom, a steam room or near a swimming pool.

- Do not use the device if moisture condensation may occur.

- Any repairs may only be carried out by qualified personnel.

- Never open the device. Repairs not carried out by qualified personnel may be the cause of a fire.

- Liquids that have entered the device can be a cause of serious damage. Turn the unit OFF and disconnect it from the mains. Contact your dealer or customer service.

- Never remove the safety covers. There are neither usable nor maintainable components inside the device. You would lose your warranty claim. The device may only be serviced by manufacturer.

- Never hit or shake the screen as this could damage the internal circuitry. Gently handle the remote control and do not drop it.

- Never place hot objects or directly flames in the immediate vicinity of the TV.

Headphone Warning

Set the volume of the unit to minimum before using headphones. If the volume is set too high, it can impair / damage your hearing over a long period of time. Therefore, to protect your hearing, use a comfortable room volume.

Installation location

Place the TV in a location without direct sunlight or strong light sources. Soft, indirect light is recommended for comfortable viewing. Use curtains or blinds/shades to prevent sunlight shining directly on the screen. Place the television on a firm and level surface. This is to prevent the television from falling down. Place the TV in such a way that objects cannot get into the set.

WHATS IN THE BOX?

Device	User manual
Power adapter (12V / 3A)	2x Batteries (AAA)
Remote control	Stand foot incl. screws
DVB-T antenna (passive)	12V Car adapter

DESCRIPTION OF THE KEYS ON THE DEVICE

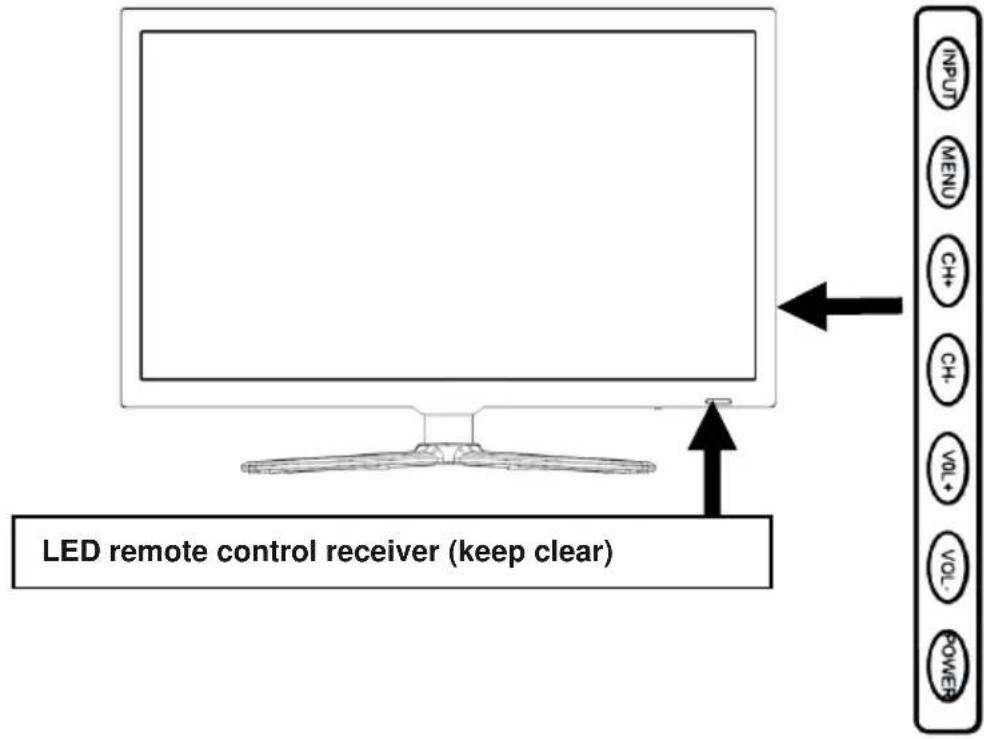

Front view

Description of the buttons and their function on the TV

INPUT	Source selection
MENU	Device menu (open / close)
CH+	Next channel
CH-	Previous channel
VOL+	Volume up
VOL-	Volume down
POWER	On / Off (Standby)

CONNECTIONS

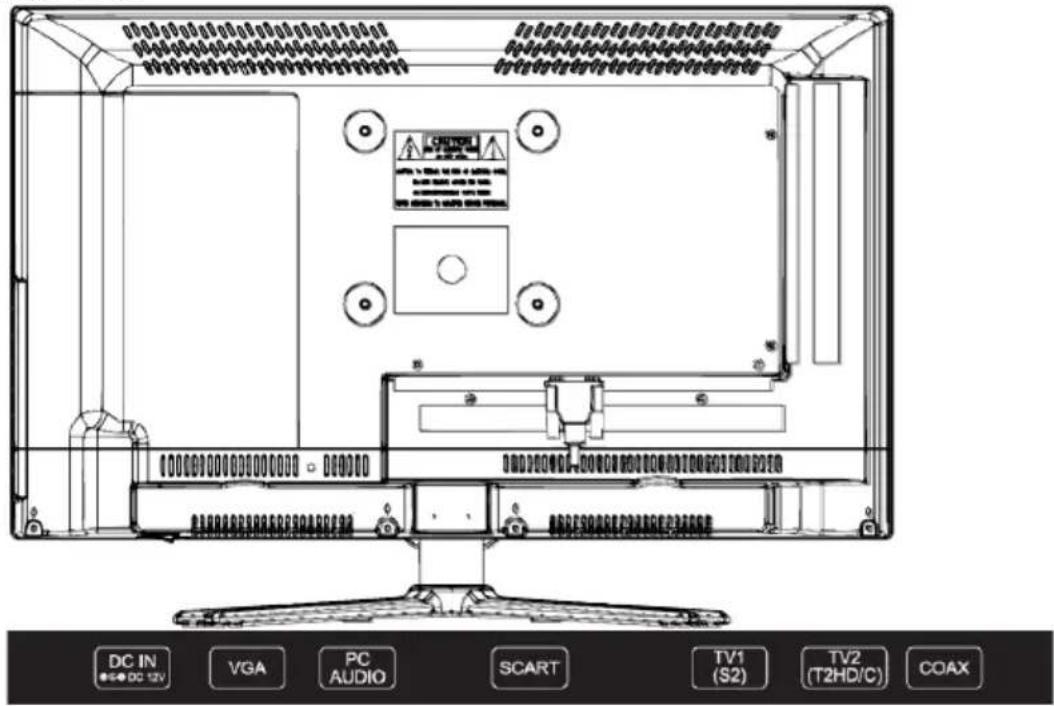

Rear view

DC IN	DC input for the power supply (12V / 3A).
VGA	Connect your PC here. Video transmission.
PC Audio	Connect you PC here. For the audio transmission. Only in combination with VGA.
SCART	Connect your scart device here.
TV1 (S2)	Connect your scart device here.
TV2 (T2HD/C)	Connect your cable system or DVB-T antenna here.
COAX	Connect your external audio device here. Digital audio output.
HDMI (ARC)	Connect your external HMDI device here.
USB	Connect your USB device for media playback here.
Common Interface	Insert your CI module here to decrypt chargeable channels.
Headphone jack	3.5mm headphone output.
Mini AV	Only in combination with mini AV.
Mini YPbPr	Connect your external AV device here.

Note:

- The maximum installation height of the device of 2m must not be exceeded. The device need to be mounted on rigid surfaces such as cement or concrete.

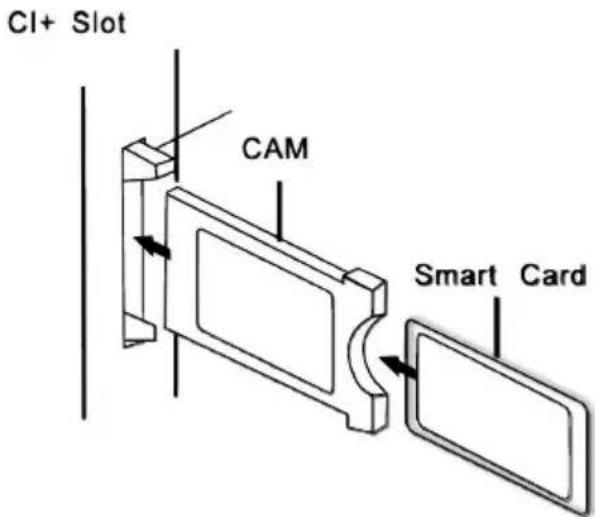

COMMON INTERFACE / CI - SLOT

This TV is equipped with a CI + slot and supports the following digital standards: DVB-T / T2HD, DVB-S / S2 and DVB-C

Common interface / SLOT

The CI slot (CI +) is designed to accept conditional access modules (CAM) and smart cards to access pay-tv and other services. Contact your pay-tv service provider for more information about modules and subscriptions.

Note:

- Conditional access modules and smart cards are sold separately.

Warning!

- Turn off your TV before inserting modules into the CI slot. Then insert the smart card into the module.

1. Turn on the TV and make sure source DTV is selected.

2. When the CAM is detected, the following text is displayed on the screen: "CI module inserted". Wait a few seconds for the card to activate.

3. Now select the desired pay-tv program.

4. Detailed information about the used smart card is displayed.

5. Press the [OK] key to enter the CI menu. See the module manual for details about the settings.

6. When the module is removed, the following text appears on the screen: "CI module removed".

English	German
CI+ Slot	CI+ Steckplatz
CAM	CAM
Smart Card	Smart Card

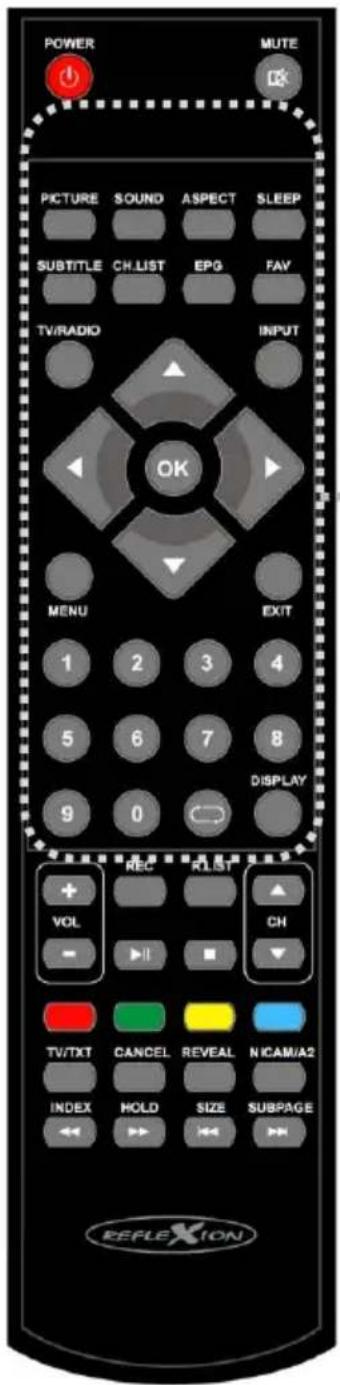

REMOTE CONTROL

The remote uses infrared (IR). Hold the remote control in the direction of the front of the LED TV. If the remote control is out of range or angle, the remote control may not operate properly.

1. POWER: On / Off (Standby)

2. MUTE: Mute On / Off

3. PICTURE: Change picture mode

4. SOUND: Change Sound Mode

5. ASPECT: Set aspect ratio

6. SLEEP: Switch SLEEP mode on / off

7. SUBTITLE: Switch on subtitles and select

8. CH.LIST: Open / close programme list

9. EPG: Programme and Programme overview

10. FAV: Open / close favourites list

11. TV/RADIO: Switch between TV and radio programmes

12. INPUT: Select input source

13. ▲◀▶▼: Navigation buttons for Menu operation

14. OK: Confirm menu item

15. MENU: Open main menu

16. EXIT: Close menu overlays

17. 0-9: Programme selection buttons

18. : Last channel

19. DISPLAY: Show information

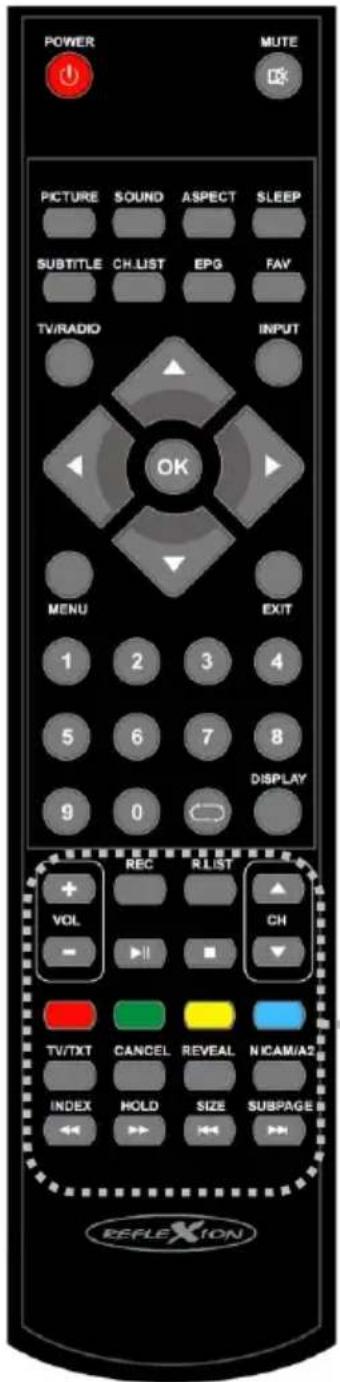

REMOTE CONTROL

1. VOL +: Louder

2. VOL -: Quieter

3. REC: Start USB recording

4. R.LIST: Open recording list

5. CH ▲: Next channel

6. CH ▼: Previous channel

7. ▶ / II: Play / Pause

8. ■ / Stopp: Stop playback

9. Farb-Tasten: Quick selection keys for Menu settings

10. TV/TXT: Open / close teletext

11. CANCEL: Hide display (teletext)

12. REVEAL: Show hidden texts (Teletext)

13. NICAM/A2: Open audio languages menu / close

14. INDEX: Home (Teletext)

15. ←: Fast rewind

16. HOLD: Do not turn the page (teletext)

17. ▶: Fast forward

18. SIZE: Enlarge display (teletext)

19. : Previous chapter / title

20. SUBPAGE: Submenu selection (teletext)

21. ▶: Next chapter / title

SELECTION OF THE SIGNAL SOURCE

1. Press the [INPUT] button to open the "Input Source" menu.
2. Use the [▲ / ▼] buttons to navigate in the menu.
3. Confirm the selection with the [OK] key.
4. Press the [EXIT] button to close the menu.
5. The following "input sources" are available.
6. Satellite / DTV (DVB-C/T) / ATV / AV / PC / SCART / KOMPONENTEN / HDMI / MEDIA

NAVIGATION IN THE MENU

To navigate in the menu, press the following buttons.

• MENU: Open menu / Previous menu:
  • ▲ / ▼ / ◀ / ▶: Up / Down / Left / Right:
• OK: Menu item Confirm:
• EXIT: Close the menu:

TURN TV ON / OFF

1. Connect the supplied power adapter to your power outlet and to the [DC] input on the back of the device.
2. To turn on the unit, press the [POWER] key.
3. To turn off the power (standby), press the [POWER] key again.

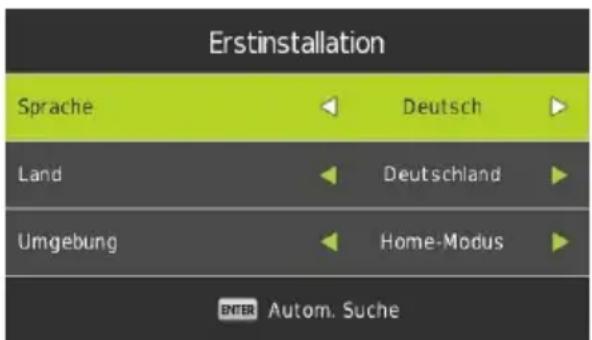

FIRST INSTALLATION

First installation:

1. Press the [POWER] key to turn on the unit.
2. Use the [▲▼◀▶] buttons to select "Menu Language" and "Country".
3. Press the [OK] button to confirm the selection and move to the next menu item "Station search".

1. Use the [▲ ▼ ◀▶] buttons to select the TV reception setting.

2. The following settings are available for TV reception.

Note:

- Receive satellite / cable or terrestrial from an external device. Press the [EXIT] button to skip the menu.

• Now select the appropriate "input source".

- Receive satellite / cable or terrestrial from an external device. Press the [EXIT] button to skip the menu. - Now select the appropriate "input source".

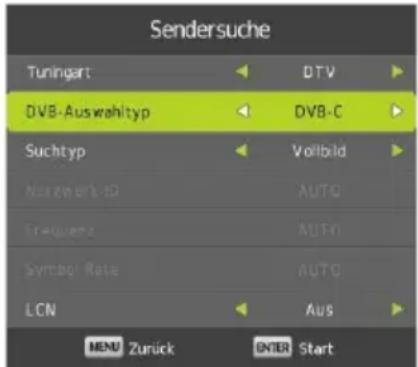

FIRST INSTALLATION DVB-C

Cable reception (DVB-C)

1. For cable reception, set the menu item "Reception source" to "DVB-C".
2. Normally, nothing has to be set in the menu.
3. Setting "Network ID", "Frequency" and "Symbol Rate" is recommended only for experienced users.
4. If you have selected all the settings, press the [OK] key to start the automatic search.
5. When the scan is complete, the TV starts playing with the first station.

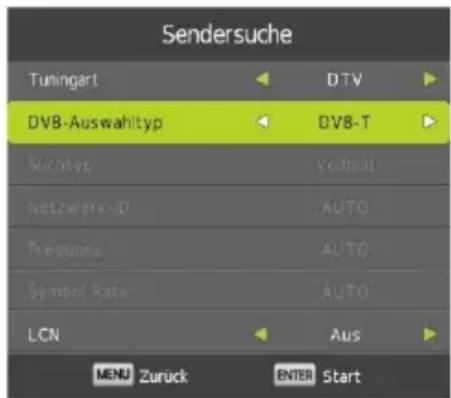

Tune Type	Set the site.
DVB Selection type	DVB-T / DVB-C / Satellite
Scan type	Network search / Full
Network ID	Auto / Manual (Only if "Scan type" is set to "Network search")
Frequency	Auto / Manual (Only if "Scan type" is set to "Network search")
Symbol Rate	Auto / Manual (Only if "Scan type" is set to "Network search")
LCN	On / Off (It is recommended to set the setting to "Off").

FIRST INSTALLATION DVB-T

Terrestrial reception (DVB-T / indoor antenna)

1. For terrestrial reception, set the menu item "Reception source" to "DVB-T".
2. Normally, nothing has to be set in the menu.
3. The menu items "Search Mode", "Network ID", "Frequency" and "Symbol Rate" are fixed and can not be adjusted.
4. If you have selected all the settings, press the [OK] key to start the automatic search.
5. When the scan is complete, the TV starts playing with the first station.

Note:

- It is recommended to set the "LCN" setting to "Off".

Tune Type	ATV (Analog) / DTV (Digital) / ATV + DTV
DVB Selection type	DVB-T / DVB-C / Satellite
Scan type	Can not be adjusted
Network ID	Can not be adjusted
Frequency	Can not be adjusted
Symbol Rate	Can not be adjusted
LCN	On / Off (It is recommended to set the setting to "Off").

FIRST INSTALLATION DVB-S

Satellite reception (DVB-S)

1. For satellite reception, set the menu item "Digital Type" to "Satellite".
2. Normally, nothing has to be set in the menu.
3. Confirm the entry with the [OK] key.
4. Now a query appears asking if the "Standard sender list" should be loaded?

• Yes: The "default channel list" (Astra 19.2° E) is loaded.
• No: The "Automatic channel search" is started.
5. When the "Auto Search" is completed or the "Standard Station List" is loaded, the TV starts playing with the first station.

DVB-S menu points:

Tune Type	Can not be adjusted
DVB Select type	Satellite / DVB-T / DVB-C
Satellite	Select the desired satellite. Astra 19.2° E is the default setting.
Scan Mode	Default / Blind Scan / Network
Channel Type	All Channels / FTA Channels
Service Type	All / DTV / Radio

1. Press the [MENU] key to enter the main menu.
2. Use the [▲ ▼ ◀▶] buttons to navigate in the menu.
3. Confirm the entry with the [OK] key.
4. Press the [MENU] key to return to the previous menu item.
5. Use the [EXIT] key to close the menu.
6. The following menu items are available in the "main menu":
   • CHANNEL / PICTURE / SOUND / TIME / LOCK / SETUP

CHANNEL MENU SATELLITE

1. Several channel-related menu items are available in the channel menu.
2. The available menu items depend on whether "Satellite" or "DTV" has been selected as "Signal source".
3. The following menu items are available for the "Satellite" area.
4. Auto Tuning / Programme Edit / Signal Information / CI Information / Dish Setup

Auto Tuning:

Country	Select the language
Satelitte	Select the satellite
Scan Mode	Default / Blind Scan / Network Scan
Channel Type	All Channels / FTA Channels
Service Type	All / DTA / Radio

CHANNEL MENU SATELLITE

Dish Setup:

1. The satellite configuration is divided into two sections. On the left is the satellite / transponder list.
2. On the right side you will find the LNB settings.

Transponder list / Satellite list

Transponder listSatellite list:	Press the [EPG] key to toggle between the transponder or satellite list.
Select	Press the [OK] key to confirm the selection.
Edit	Press the [Green] key one timeTo edit satellites or transponders.
Add	Press the [Yellow] button to add a new transponder or satellite.
Delete	Press the [Red] button to delete a satellite or transponder.
Scan	Press the [Blue] key to start the search on a transponder or satellite marked with the [OK] key.
Exit	Press the [Blue] key to start the search on a transponder or satellite marked with the [OK] key.

Edit / Add:

1. Select a "transponder / satellite" to be processed.
2. Press the [Green / Yellow] button.
3. The following settings can be adjusted.

• Satellite: Satellite name / Longitude direction / Longitude angle / Band
• Transponder: Frequency / SR (ks/s) Symbol rate / Polarity

LNB settings

1. Press the [▶] key to get from the "Transponder list" to the "LNB settings".
2. The following settings are available.

Note:

- The LNB settings are only recommended for experienced users.

LNB Type	05150/05750, 09750/10600, 09750/10700, 10000/10450, 05150, 05750, 09750, 10200, 10600, 10750, 11250, 11300, 11475, User Single, User Dual, Unicable
LNB Power	13/18V, 13V, 18V, Off
22KHz	Auto, Off, On
Toneburst:	None, BurstA, BurstB
DiSEqC1.0	None, LNB1, LNB2, LNB3, LNB4
DiSEqC1.1	None, LNB1 ~ LNB16
Motor	None, DiSEqC1.2, DiSEqC1.3

CHANNEL MENU SATELLITE

Satellite unicable setting

1. Press the [Menu] key.
2. Use the buttons [▲ ▼ ◀▶] to navigate to the menu item "Sat configuration".
3. Confirm the entry with the [OK] key.
4. Press the [▶] button and select the [LNB Type] item.
5. Press the [OK] key and navigate to "Unicable".
6. Press the [OK] key to confirm the selection.
7. The following setting options are available.

LNB low	Enter the lowest LNB frequency. The setting can be found on your LNB
LNB high	Enter the top LNB frequency. The setting can be found on your LNB.
Channel ID	Enter the channel ID. The setting can be found on your multi-switch or LNB.
Frequency	Enter the Unicable frequency. The frequency can be found on your multiswitch or LNB.

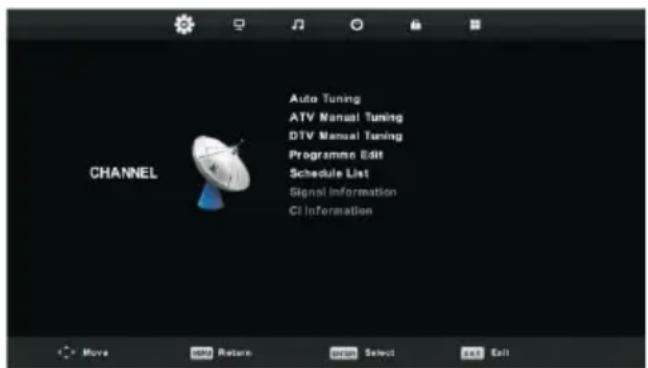

CHANNEL MENU DTV (DVB-C/T)

1. Several channel-related menu items are available in the channel menu.
2. The available menu items depend on whether "Satellite" or "DTV" has been selected as "Signal source".
3. The following menu items are available for the "DTV" area.
4. Auto Tuning / ATV Manual Tuning / DTV Manual Tuning / Programme Edit / Signal Information / CI Information / 5V antenna power

Auto Search

For the menu item "Auto. Search" the following settings are available.

Country	Can not be adjusted
Tune Type	ATV + DTV / DTV / ATV
DVB Select Type	DVB-C / DVB-T
Scan Type	Network Scan / Full (only for DVB-C)
Network ID	Only for DVB-C when the menu point „Scan Type“ „Network scan“ is selected.
Frequency	Only for DVB-C when the menu point „Scan Type“ „Network scan“ is selected.
Symbol Rate	Only for DVB-C when the menu point „Scan Type“ „Network scan“ is selected.
LCN	On / Off (It is recommended to set the setting to "Off")

CHANNEL MENU DTV (DVB-C/T)

ATV Manual Tuning

For the menu item the following settings are available.

Current Channel	Select the program number (1-99) for the manual search.
Colour System	Set the colour system for the search.PAL / SECAM / AUTO
Sound System	Set the sound system for the search.BG / I / DK / L
Fine Tune	Manual fine tuning
Search	Press the [◀ / ▶] button to start the manual search.

CADTV Manual Tuning

The following menu items are available for the "DTV Manual Search".

• DVB-C: Frequency / Symbol (ks/s) / QAM Type
• DVB-T: Frequency / Channel

5V antenna power

In this menu set the 5V voltage for active antennas "On" or "Off".

• On: A 5V voltage is output for active DVB-T antennas at the "TV2" connection.
• Off: The 5V voltage is off.

SIGNAL INFORMATION

This menu displays signal reception information for the selected reception type (Satellite, DVB-C, DVB-T).

• Satellite: Satellite name / Transponder / Modulation / Signal quality / Signal
  • DVB-C: Frequency / Network / Modulation / Quality / Signal
  • DVB-T: Channel / Network / Modulation / Quality / Signal

CI INFORMATION

Information about the inserted CI module and the corresponding card is displayed in this menu.

Note:

- For more information about the module or card, contact the vendor of the module and card.

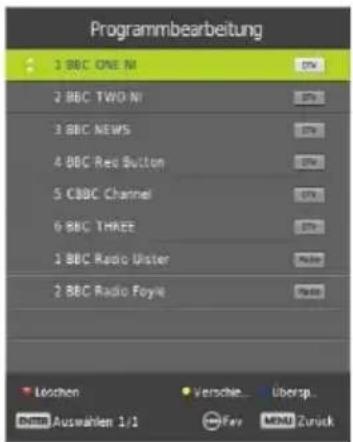

PROGRAM EDIT

In this menu, you can edit the (Satellite / DVB-C / DVB-T) program list and adjust it to the desired station order.

1. Press the [MENU] key to open the "Main Menu".
2. Navigate to the menu item "Channel" and press the [OK] key.
3. Navigate to the menu item "Program editing" and press the [OK] key.
4. The following setting options are available.

Move (Yellow):

1. Select a station to be moved.
2. Press the [Yellow] button to select the station.
3. Navigate to the desired program slot.
4. Press the [OK] key to confirm the entry.

5. The transmitter has been moved.

6. Repeat steps "1-4" until the desired program order is reached.

Skip (Blue):

1. Select a channel to be skipped.
2. Press the [Blue] button to mark the station with a skip icon.
3. If the station is marked with the symbol, the station is skipped when switching over.
4. Repeat steps 1-2 until all channels to be skipped are highlighted.
5. To stop skipping a station, select a highlighted station and press the [Blue] button. The station is no longer marked.

Delete (Red):

1. Select a station to be deleted.
2. Press the [Red] button to delete the selected station.
3. Repeat steps 1-2 until all desired stations have been deleted.

Favourites (FAV):

1. Select a station to be saved as a favourite.
2. Press the [FAV] key to mark the transmitter with a heart symbol.
3. Repeat steps 1-2 until all desired stations are marked as favourites.

Open favourite list (FAV):

1. In TV mode, press the [FAV] key to open the Favourites list.

2. Select the desired station with the [▲▼] button and confirm the entry with the [OK] button to switch to the station.

3. To close the list, press the [EXIT] key.

Note:

- The list can not be sorted separately and receives the sort from the overall list.

PICTURE MENU

In this menu, you can make various picture settings.

1. Press the [MENU] key to open the "Main Menu".

2. Navigate to the menu item "Picture" and press the [OK] key.

3. The following setting options are available.

• Picture Mode / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temp / MPEG Noise Reduction

Picture Mode:

1. Select one of the fixed picture settings.

2. To set the "Contrast / Brightness / Colour / Hue / Sharpness" values manually, select the "Picture Adjustment" "Personal".

3. The following settings are available.

• Dynamic / Standard / Personal

Note:

- The set picture modes can be changed in TV mode at any time by pressing the [PICTURE] button.

Contrast / Brightness / Tint / Sharpness:

• The values are fixed.
- Can be adjusted only when "Picture Mode" is set to "Personal".

Colour:

• The "hue" is fixed.
• The "Tint" can be set only when the "Picture Mode" is set to "Personal" and when the unit is connected to a PC via the "VGA" terminal.

Colour Temp:

1. Set the "Colour Temperature" for the image.
2. The following settings are available.

• Cold / Normal / Warm

MPEG Noise Reduction:

1. Set the amount of "Noise Reduction" for the image.
2. The following settings are available.

- Off / Low / Medium / High / Default

SOUND MENU

In this menu, you can make various sound settings.

1. Press the [MENU] key to open the "Main Menu".
2. Navigate to the menu item "Sound" and press the [OK] key.
3. The following settings are available.

• Sound Mode / Treble / Bass / Balance / Auto Volume Level / SPDIF Mode / AD Switch

Sound Mode

1. Select one of the fixed sound settings.
2. To adjust the Treble / Bass values manually, select the "Sound Mode" "Personal".
3. The following settings are available.

Treble / Bass

• The values are fixed.
• Can be adjusted only when "Sound Mode" is set to "Personal".

Balance

In this menu, adjust the speaker balance.

Example:

• If the option is set to "-50", only the left speaker is active.
• If the option is set to "50", only the right speaker is active.

Auto Volume Level

The menu item adjusts the volume differences between loud and quiet scenes.

Example:

- The volume difference between TV broadcasts and commercial breaks is adjusted.

SPDIF Mode

In this menu you set the format for the digital audio output "COAX".

The following setting options are available.

- Off / PCM / Auto

AD Switch

Set the menu item to "On" / "Off" to automatically enable or disable the audio recording of TV programs for the visually impaired.

• AD Switch: On / Off
  • AD Volume: Adjust the level for the audio recording.

Note:

- The audio description can only be played if it is transmitted by the TV station.

TIME MENU

In this menu, you can make various time-related settings.

1. Press the [MENU] key to open the "Main Menu".

2. Navigate to the menu item "Time" and press the [OK] key.

3. The following settings are available.

- Clock / Time Zone / Sleep Time / Auto Standby / OSD Time

Clock

The time is set automatically based on the transmitted data from satellite reception, terrestrial reception or cable reception. The setting can not be set manually.

Time Zone

Set the time zone based on the site. There are various options available.

Sleep Time

Set the "Sleeptimer" so that the device is automatically switched off after the set time has elapsed. The following settings are available.

The device automatically switches off after the time has elapsed, when the device was not operated (standby). The following settings are available.

• Off / 2H / 3H / 4H (In hours)

OSD Timer

With this menu item you can set the time after which the menu is automatically closed when no operation takes place. The following settings are available.

- Off / 5s / 15s / 30s (In Seconds)

LOCK MENU

In this menu you can make various settings.

1. Press the [MENU] key to open the "Main Menu".
2. Navigate to the menu item "LOCK" and press the [OK] key.
3. The following settings are available.
4. System Lock / Set Password / Channel Lock / Parental Guidance / Key Lock / Hotel Mode

System Lock

Set this setting to "On" or "Off" to access the "Channel Lock / Parental Lock / Keylock / Hotel Mode" settings. In addition, the menu item activates the password prompt for certain menu items.

Note:

• The default password is: 0000

LOCK MENU

Set Password

In this menu you can change the password.

Please enter old password	Enter the current password
Please enter new password	Enter the new password
Confirm new password	Enter the new password again to confirm the password
The password is now adjusted.

Note:

- Make a note of the new password.

Channel Lock

In this menu you can lock channels. The blocked channels are provided with a password prompt.

1. Navigate to the desired station that is to be blocked.
2. Press the [Green] button to lock the station.
3. The marked station is marked with a lock symbol.
4. Repeat steps "1-3" until the desired stations are locked.
5. If you no longer wish to lock a station, navigate to the station and press the [Green] button again.
6. The station is no longer locked.

Parental Guidance

In this menu you can set the value for the parental control query. The following choices are available.

• Off / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18

Key Lock

In this menu you can switch the lock for the control buttons on the device "On" or "Off".

• On: The operating lock is activated and the operating buttons on the device have no function.
• Off: The operating lock is deactivated and the operating buttons on the device work.

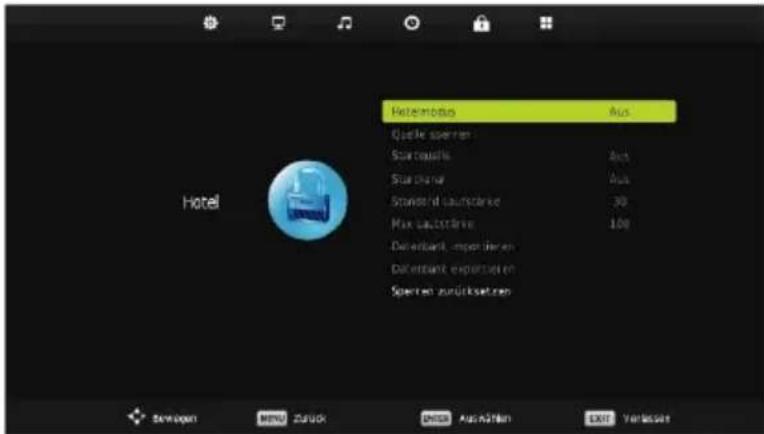

HOTEL MODE

In the hotel mode, you can set and lock various settings. The following settings are available.

Hotel Mode	On / Off
Source Lock	With this menu item you can lock the "input sources".
Default Source	Select an "input source" with which the device should start when switching on.
Default Prog	Select a "start channel" with which the device should start when switching on. The setting is only possible if "Satellite, DTV or ATV" was selected as the "start source".
Default Volume	Set the "volume" which is set as default when switching on.
Max Volume	Set the maximum volume available for selection.
Import Database	Import the exported data from a USB stick to restore the previously set settings.
Export Database	Export the settings made and created the station list as a backup to a USB stick.
Clear Lock	With this menu item, you reset all the settings made in the hotel mode.

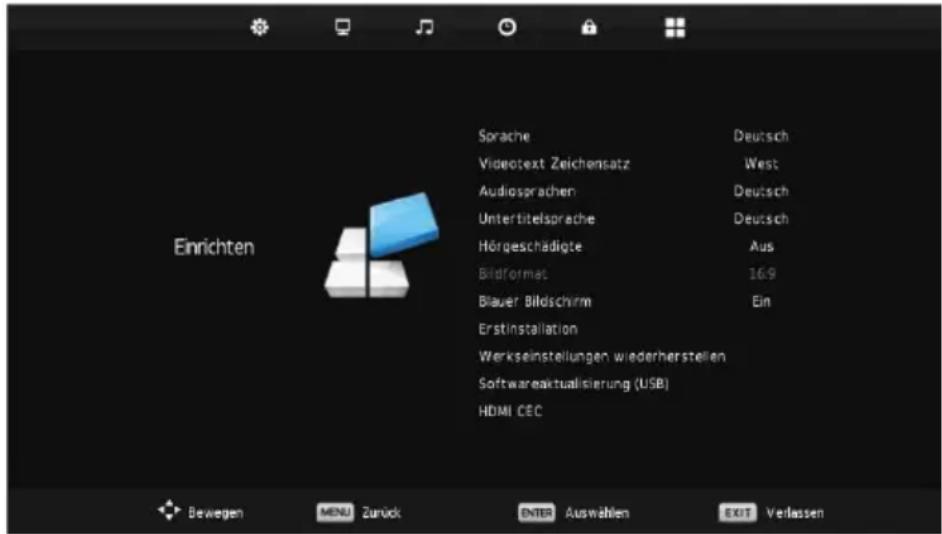

SETUP MENU

In this menu you can make various settings.

1. Press the [MENU] key to open the "Main Menu".
2. Navigate to the menu item "Configuration" and press the [OK] key.
3. The following setting options are available.

- Language / TT Language / Audio Language / Subtitle Language / Hearing Impaired / Aspect Ratio / Blue Screen / First Time Installation / Reset / Software Update (USB) / HDMI CEC

In this menu item you can set the menu language.

TT Language

In this menu item you can adjust the character set for teletext.

Audio Language

In this menu item you can set the preferred audio language. You can set a primary and secondary audio language.

Subtitle Language

This item allows you to set the preferred subtitle language. You can set a primary and secondary subtitle language.

Hearing Impaired

Set this item On or Off to enable or disable the automatic display of the subtitle.

• On: Subtitle is automatically turned on
• Off: Subtitle is off

Aspect Ratio

Use this menu item to set the image format. The following settings are available for selection.

• Auto / 4:3 / 16:9 / Zoom1 / Zoom2

SETUP MENU

Blue Screen

With this menu item you can set whether the device displays a black or blue image when no signal is present.

• On: Blue screen
• Off: Black Screen

First Time Installation

With this menu item you can execute the first installation again.

Reset

With this menu item you reset the device to the factory settings. All settings made are reset.

Note:

- The password is not reset.

Software Update (USB)

With this menu item you can perform a software update. The software can only be updated via USB. For more information contact the manufacturer's service with the device type and serial number.

With this menu item you can set various CEC settings for the automatic "on" and "off" switching of the TV set. The following settings are available.

Note:

- Only if supported by the external HDMI device.

CEC Control	If the TV set is switched on, the external device connected via HDMI switches on.When the external device is turned on, the TV automatically turns on.On / Off
ARC	With this menu item you can transfer the TV sound via HDMI to other external playback devices.On / Off
Device Auto Power off	On: The function is switched on.If the TV set is switched off, the external device connected via HDMI switches off as well.If the TV set is switched on, the external device connected via HDMI switches on.Off: The function is switched off.
TV Auto Power on	On: The function is switched off.If the external device connected via HDMI is switched on, the TV set also switches on.Off: The function is switched off.
Device List	Displays the device connected via HDMI.
Device Control	Displays the device menu of the device connected via HDMI.

MEDIA MODE (USB)

1. To enter Media mode, press the [INPUT] key.
2. Use the [▲▼] buttons to navigate to Media.
3. Confirm the entry with the [OK] key.
4. Insert a USB stick into the USB socket of the device.
5. Select one of the categories (Photo / Music / Movie / Text).

Buttons for the USB playback

The following buttons are important for USB playback.

• ▶ /II: Play / Pause
- ■ / Stopp: Stop playback
• : Next chapter / title
• : Previous chapter / title
- : Fast rewind
- : Fast forward

Photo / music / movie / text playback

1. To select a file, press the [▲ ▼ ◀▶] buttons.
2. To start the file in full screen view, press the [▶ /III] button.
3. To select several files, mark the files with the [OK] key.
4. Stay on a file for a moment and start playing a preview.
5. During playback, press the [OK] key to access the menu bar.
6. Use the [▼] key to close the menu bar.

Photo menu bar

The following menu items are available in the photo menu bar.

Play / Pause	Continue playback normally / pause playback
Prev.	Previous picture
Next	Next picture
Stop	Stop playback
Repeat	Repeat1 / Repeat ALL / Repeat NONE
Music On / Off	Music playback when music is highlighted.
Playlist	Displays the playlist.
Info	Displays file information.
Rotate (left)	Picture rotate to the left direction.
Rotate (right)	Picture rotate to the right direction.
Zoom In	Zoom into the picture.
Zoom Out	Zoom out of the picture.
Move view	Move zoom section

Music menu bar

The following menu items are available in the Music menu bar.

Play / Pause	Continue playback normally / pause playback
FB	Fast backward
FF	Fast forward
Prev.	Previous title
Next	Next title
Stop	Stop playback
Repeat	Repeat1 / Repeat ALL / Repeat NONE
Set A-B	Set start and end point.
Mute	Mute mode on / off
Playlist	Displays the playlist
Info	Displays file information
Goto time	Switch to a desired playback point.

Movie menu bar

The following menu item are available in the movie bar.

Play /Pause	Continue playback normally / pause playback
FB	Fast backward
FF	Fast forward
Prev.	Previous title
Next	Next title
Stop	Stop playback
CharSet	Select subtitle font
Repeat 1 Repeat ALL Repeat NONE	Only the current file is repeated.All selected files will be repeated.No file is repeated.
Set A-B	Set start and end point.
Playlist	Displays the playlist
Info.	Displays file information
Slow	Slow playback
Step	Step by step playback
Goto time	Switch to a desired playback point
Zoom In	Zoom into the picture
Zoom Out	Zoom out of the picture
Aspect Ratio	4:3 / 16:9 / Auto
Move view	Move zoom section

SPECIFICATIONS USB CONNECTION

USB output voltage: 5V / 500mA (Smartphones are not be detected as storage,

Devices that need to be installed are also not detected).

Max. USB stick / HDD size: max. 1TB

Formatting: FAT and NTSF

MEDIA	FORMAT	CODEC		COMMENT
		VIDEO	AUDIO
MOVIE	avi	Xvid, MPEG-2, MPGEG-4, H.264	MP3WMA AAC MP2 PCM	Max. Resolution: 1080PMax. Refresh rate : 30fps
	mp4	MPEG-2, MPEG-4, H.264
	mpg	MPEG-1, MPEG-2
	mkvmov	MPEG-1/2/4, H.264
	dat	MPEG-1	MP2	Max. Resolution: 352 x 288
	vob	MPEG-2		Max. Resolution: 720 x 576
	rm	RV8, RV9, RV10, RA8-LBR	COOK	Max. Resolution: 800 x 600 (RV30)Max. Resolution: 1280 x 720 (RV40)
	rmvb
MUSIC	ADPCM, LPCM
	MP3
	MPEG1 Layer1,2
	AC3
	AAC, HE-AAC
	WMA7, WMA8, WMA9 STD
	CDDA (wav)
	Real Audio8 LBR
	DD51
	DD Plus
PHOTO	JPEG			Max. Resolution: 8192 x 8192
	Progressive JPEG			Max. Resolution: 1024 x 768
	BMP			Max. Resolution: 3000 x 3000
	PNG			Max. Resolution: 3000 x 3000
TEXT	txt	ANSI / UNICODE GB / UTF8		Max. Data size: 1MB

Errors and technical changes reserved.

DATA SHEET LED2223

Device Type		Reflexion LED2223
Energy efficiency class		F
Screen size		22" / 55cm
Type of display		LCD / TFT with LED Backlight (Pixel Class 1)
Power consumption „On“ according to EN62087		18W
Average annual consumption		18kWh
Power consumption standby		0,5W
Resolution		1920x1080
Aspect ratio		16:9
Contrast		3000:1
Brightness		200cd/m2
Reaction time		8ms
Colours		16.7M
Viewing angle		Horizontal: 178° / Vertical: 178°
Colour system		PAL / SECAM
TV function	TV standard	BG, DK, I, L/L
	Channels (ATV/DVB-T / C / S)	100 / 600 (T/C) / 3000 (S)
	Teletext (ATV / DTV)	1000 / 1000 pages
Inputs	DC IN (12V)	1
	VGA	1
	PC Audio	1
	SCART	1
	TV1 (DVB-S2)	1
	TV2 (DVB-T2HD/C)	1
	COAX	1
	HDMI (ARC)	1
	USB (DC 5V / 500mA)	1
	HEADPHONE JACK (3,5mm)	1
	Mini YPbPr (3,5mm)	1
	Mini AV (3,5mm)	1
	CI+Slot (Common Interface)	1
OSD language		English / German etc.
Audio output		2x 3 Watt
Total weight		3,65Kg
Weight TV (with foot)		2,50Kg
Power supply		DC 12V / 3A
Max. power consumption		36W
Peak luminance %		<75%
Contains mercury content in mg / lead		0,00mg / No
VESA		100 x 100
Dimensions only device (B/T/H) mm		510 x 49 x 314
Dimensions with foot (B/T/H) mm		510 x 146 x 359

NOTE: Design and specifications are subject to change without notice.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, UltraMedia GmbH & Co. Handels KG declares that the radio equipment type LED2223 is in compliance with Directive 2014/53 / EU.

The full text of the EU Declaration of Conformity can be requested at the following email address.

We hope you enjoy using the device.

Your UltraMedia team

CE

DISPOSAL INSTRUCTIONS

This symbol on the product or in the instructions means that the device as well as electrical and electronic devices and batteries must be disposed of separately from your household waste at the end of its service life. There are separate collection systems for recycling in the EU. For more information, please contact your local authority or your dealer.

BATTERIES AND RECHARGEABLE BATTERIES MUST NOT BE DISPOSED OF WITH HOUSEHOLD WASTE! NON-PROFESSIONAL DISPOSAL OF BATTERIES AND RECHARGEABLE BATTERIES CAUSES ENVIRONMENTAL POLLUTION / DAMAGE.

EVERY CONSUMER IS REQUIRED BY LAW TO RETURN BATTERIES AND ACCUMULATORS AT THE END OF THEIR WORKING LIFE CYCLE TO APPROPRIATE COLLECTION POINTS, SUCH AS THEIR MUNICIPALITY/BOROUGH OR RETAIL OUTLET. DROP-OFF AT COLLECTION POINTS IS FREE OF CHARGE. BY HANDING THEM IN AT COLLECTION POINTS, BATTERIES AND ACCUMULATORS ARE RECYCLED AND THUS DISPOSED OF IN AN ENVIRONMENTALLY FRIENDLY WAY.

DISPOSING OF BATTERIES AND RECHARGEABLE BATTERIES IN HOUSEHOLD WASTE DOES NOT ENSURE ENVIRONMENTALLY FRIENDLY DISPOSAL AND MAY CAUSE DAMAGE TO THE ENVIRONMENT.

BATTERIES AND ACCUMULATORS MUST BE REMOVED FROM THE DEVICE BEFORE DISPOSAL. PLEASE RETURN ONLY IN DISCHARGED CONDITION!

*) MARKED WITH:

CD = CADMIUM,

HG = MERCURY,

PB = LEAD

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

ENERGY LABEL

ENERG

LED2223

Reflexion

18 kWh/1000h

2019/2013

Warranty

Dear Customer,

Thank you for choosing one of our products. Our products undergo precise quality control in the course of production. If one of our devices gives you cause for complaint, or you have questions about one of our devices, please call our customer support.

We give a 36 month warranty on TV and SAT devices, and a 24 month warranty on portable DVD and audio devices from the date of purchase. Outside of the warranty, we offer you a paid repair based on a cost estimate. Please contact our customer support before submitting.

The warranty relates to material and production defects. Your device will be repaired or replaced during the warranty period. Unfortunately, UltraMedia cannot reimburse the purchase price. Damage caused by improper use, the use of third-party accessories, falls, dust, water damage and signs of wear (e.g. scratches, optical wear and tear) caused by the customer or external influences are excluded from the guarantee.

In order to assert the warranty claims, send the device with all accessories, a copy of the invoice and the description of the fault to the address given below. Devices that do not have a proof of purchase cannot be guaranteed. Please do not forget to include your full address and a telephone number / email address for any queries.

Shipping to us takes place at your own expense. Unpaid parcels cannot be accepted and are returned to the sender.

Please pack the device securely for transport. UltraMedia assumes no liability for damage in transit that occurs on the way to us. After receiving your submission, we will process your device as soon as possible and send it back to you.

Before sending your device in, please contact our customer support or your specialist dealer, as many problems can also be solved over the phone.
