Product Type	40-inch TFT-LED TV with DVD Player
Model	Reflexion LDDW400
Energy Efficiency Class	F (default SD)
Power Consumption (On)	43 W
Power Consumption (Standby)	< 0.5 W
Power Consumption (Off)	0 W
Annual Energy Consumption	43 kWh/1000h
Display Technology	LCD/LED, 1920x1080 (Full HD)
Screen Diagonal	100 cm / 40 inches
Aspect Ratio	16:9
Refresh Rate	60 Hz
Contrast Ratio	4000:1
Brightness	200 cd/m²
Response Time	9.5 ms
Viewing Angle	178° horizontal / 178° vertical
Audio Output	2 x 5 W
Dimensions (with stand)	912 x 225 x 568 mm (B x T x H)
Weight (total)	9.30 kg
VESA Mount	200 x 200 mm
Input Voltage	100-240 V ~ 50/60 Hz
Device Input Voltage	12 V / 24 V (via DC input)
Tuner Types	DVB-T/T2HD, DVB-S/S2, DVB-C
Connections	3x HDMI (1 ARC), 2x USB, VGA, SCART, CI+ Slot, COAX digital audio out, Headphone, Mini YPbPr, Mini AV
DVD Playback Formats	DVD, CD, CD-R/RW, DVD-R/+R, DVD-RW/+RW, MP3, JPEG, VCD
Special Features	USB Media Player, PVR Recording, HDMI CEC/ARC, Hotel Mode, Parental Control
Spare Parts / Repairability	Contact customer support; warranty 36 months for TV, 24 months for portable devices
Cleaning Instructions	Clean with a soft, damp cloth; do not use solvents or oil-based liquids
Safety Notes	Disconnect power during storms; avoid moisture; keep ventilation clear

Frequently Asked Questions - LDDW400 Reflexion

How do I turn on the Reflexion LDDW400 TV for the first time?

Connect the power cord and set the toggle switch on the back to 'On'. Press the POWER button on the remote or the unit. Follow the on-screen First Installation wizard to select language, country, and tune channels.

How can I connect external devices like a gaming console or Blu-ray player?

Use the HDMI ports (3 available, HDMI 1 supports ARC). For older devices, use SCART, VGA (with PC Audio), or Mini AV/YPbPr adapters. Press INPUT on the remote to select the appropriate source.

How do I set up satellite channels?

Go to Menu > Channel > Receive Source and select 'Satellite'. In Auto Tuning, choose your satellite (e.g., Astra 19.2E) and scan mode. You can also load a preset channel list if prompted. Press OK to start the search.

Can I record TV programs?

Yes, using the PVR Recording function. Insert a USB stick (up to 1TB, formatted FAT or NTFS) into the USB port. Go to Menu > Configuration > PVR File System to format the drive. Then press EPG to schedule recordings or press the EMPTY button on the remote to start recording immediately.

How do I play a DVD on this TV?

Press INPUT and select 'DVD' as the source. Insert a disc with the printed side facing the back. Playback starts automatically. Use the remote buttons for play, pause, stop, and navigation. Press D.SET to adjust DVD settings.

What should I do if there is no picture or sound?

Check that the TV is plugged in and the toggle switch is on. Ensure the correct input source is selected. Verify antenna or cable connections. Try a different channel. If using an external device, check its power and cables.

How do I use the CI+ slot for pay-TV?

Insert the CAM module into the CI+ Slot with the TV off, then insert the smart card. Turn on the TV and select a DTV channel. A message 'CI module inserted' will appear. Press OK to enter the CI menu for details. Contact your pay-TV provider for subscription.

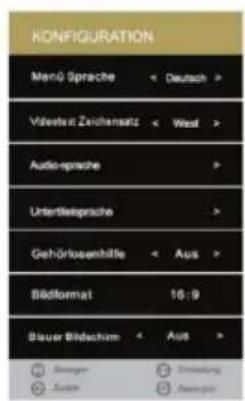

How can I reset the TV to factory settings?

Go to Menu > Configuration > Reset. Enter the password (default 0000) and confirm. The TV will turn off and restart, clearing all tuner, picture, and sound settings. After restart, the first installation wizard will appear.

What formats are supported via USB?

Video: .avi, .mp4, .mkv, .ts, .mov, .vob, .rmvb (up to 1920x1080, H.265, MPEG-4, Xvid). Audio: .mp3, .wma, .aac. Photo: .jpg, .jpeg, .bmp, .png. Text: .txt (max 10MB). Note: Some formats may not play due to codec limitations.

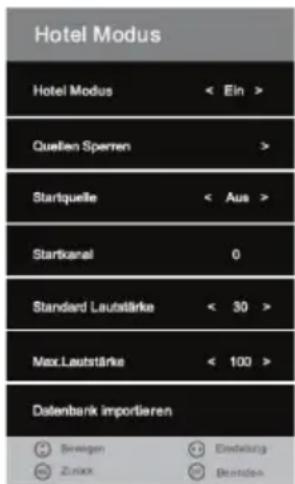

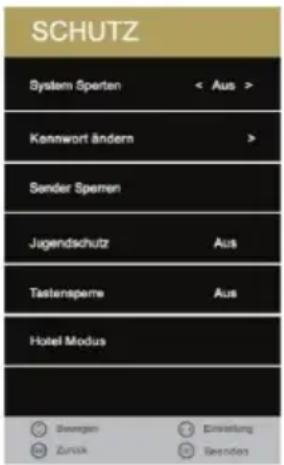

How do I enable hotel mode and what does it do?

Go to Menu > Protection > Lock System, enter password 0000, set to 'On', then select Hotel Mode. In hotel mode, you can lock input sources, set a default source/channel, limit volume, and export/import settings. Ideal for commercial use. To disable, repeat steps and turn Hotel Mode off.

USER MANUAL LDDW400 Reflexion

Bedienungsanleitung

32" / 40" (80cm / 100cm)

Model No: LDDW320 LDDW400

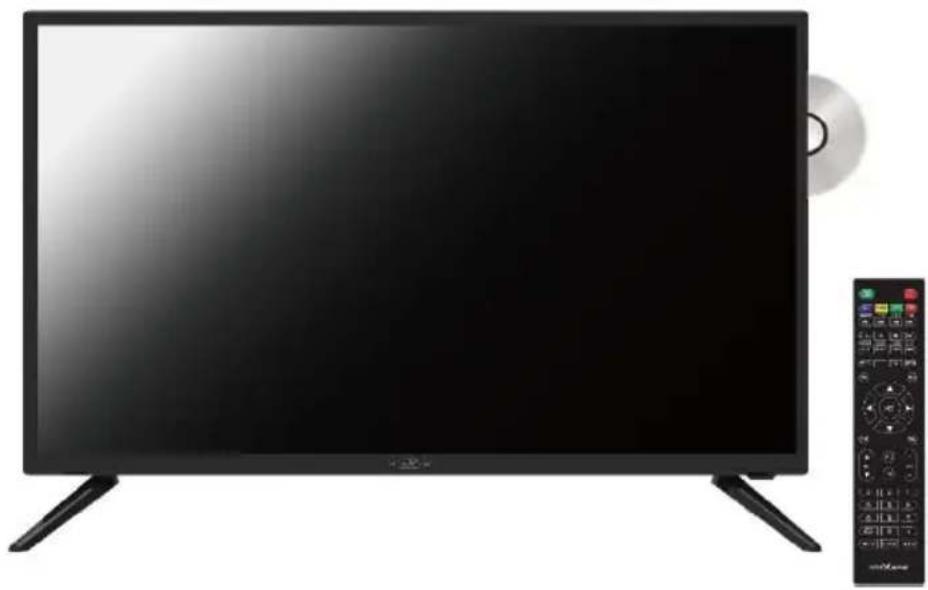

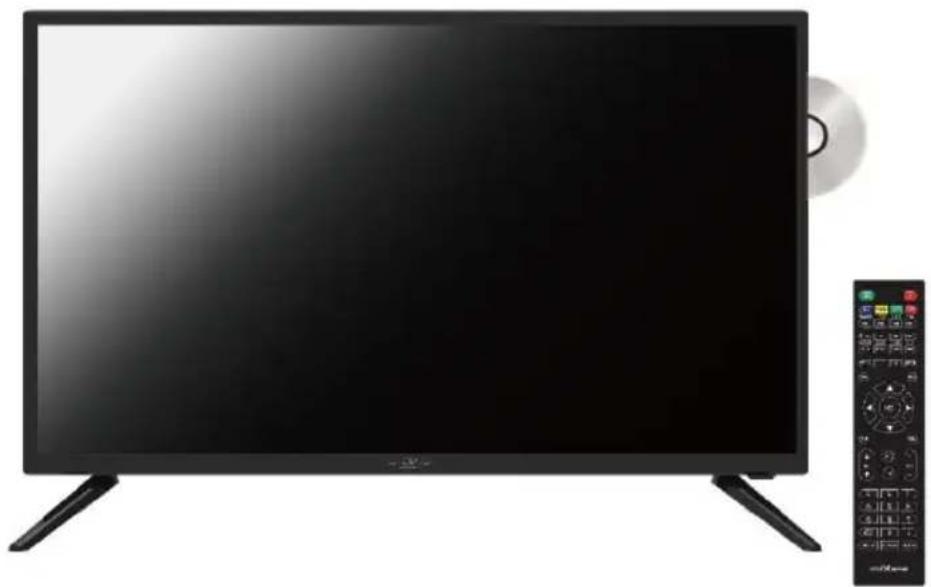

Exterior view of a modern flat-screen TV with a CD and remote control (no visible text or symbols)

English	German
CI+ Slot	CI+ Steckplatz
CAM	CAM
Smart Card	Smart Card

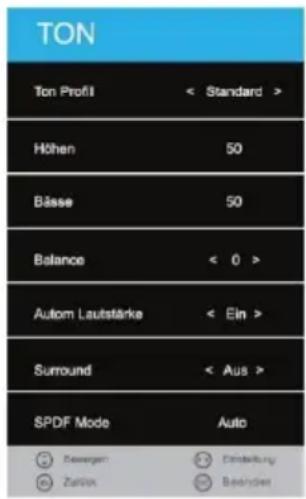

Surround Sound: Ein, Aus.

HINWEIS:

USER MANUAL

32" / 40" (80cm / 100cm)

TFT-LED-TV with DVB-T/T2HD, DVB-S/S2, DVB-C, CI+ SLOT & DVD drive

Model No.: LDDW320 LDDW400

Exterior view of a modern flat-screen TV with a CD and remote control (no visible text or symbols)

Read the entire instructions for the TV carefully before using the device. Keep the manual for further use.

SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS - PLEASE READ CAREFULLY BEFORE USE.

Follow the safety instructions on the back of the TV.

Warning to Prevent Electric Shock. Do not remove the covers. No user-serviceable parts in the device. Have the device serviced by qualified personnel.

This symbol indicates important operating / maintenance instructions of this device in the operating instructions.

This symbol indicates the risk of electrical shock due to life-threatening voltage in this device.

Follow these instructions:

• Do not use this TV near water.
• Use a lightly moistened cloth for cleaning.
• Do not cover any of the ventilation holes.
• Set up the unit according to the supplied Quick Start Guide and this manual.
• Be careful not to pinch or run the power cord, especially when plugged into the power outlet and DC input.
• Avoid routing the power cord over sharp edges.
• Disconnect the TV from the mains during thunderstorms or prolonged periods of non-use.

Be careful not to expose the unit to rain or moisture to reduce the risk of fire or electrical shock. The TV should be kept away from spray and dripping water and no objects filled with liquids should be placed on the TV.

Note:

Do not place any open heat sources (stoves, candles, etc.) near or on the TV.

IMPORTANT SAFETY INSTRUCTIONS

This device complies with all current safety regulations. The following safety tips are intended to protect the user from reckless use and the resulting dangers.

• This device was manufactured with the greatest care and subjected to a strict final inspection. However, as with any other electrical device, there is a possibility that problems can arise. In the event of smoke development, excessive heat development or any other unnatural phenomenon, immediately disconnect the device from the mains.
• The power plug or device plug is used to separate the device from the power supply and should be easily accessible at all times.
• Only connect the device to power sources that meet the specifications of the device. You can find these on the back of the device and in the operating instructions.
  • The mains socket should be close to the device and must be easy to reach.
• Pull the power cord out of the socket by the plug. Never pull on the power cord itself, it could be damaged and cause a short circuit.
• When using a multiple socket, do not connect too many devices to the multiple socket to avoid overloading.

EN

• Keep rodents away from the device to avoid damaging the cables.
  • To avoid injury, make sure that young children cannot reach or unplug the power cord.
• Do not place the device near heat sources. The case and the power cord could be damaged by the influence of heat.
• The screen is made of plastic that can flake off if damaged. To prevent injuries, carefully collect sharp-edged plastic splinters.
• When setting up the device, make sure that the surface is firm and level.
  • To protect the device from lightning strikes, disconnect the device from the mains and pull out the antenna. Warning: Do not touch the RF antenna connector.
• Disconnect the device from the mains if you are not going to use the device for a long period of time or if you leave it unattended.
• When setting up the device, make sure that there is sufficient ventilation. Never place the device near heat sources and do not cover any of the ventilation openings.
• Avoid direct sunlight on the device. Leave a space of 5 cm (2") from the surroundings when placing it on a shelf.
• Keep water and moisture away from the device. Do not use the device in a wet or damp environment such as the bathroom, steam room or near a swimming pool.
  • Do not use the device if moisture condensation can occur.
  • Any repairs may only be carried out by qualified specialists.
• Never open the device. Repairs that have not been carried out by qualified personnel can be a possible cause of fires.
• Liquids spilled into the device can cause serious damage. Switch the device OFF and disconnect it from the mains. Contact your dealer or customer service.
• Never remove the safety covers. There are neither usable nor serviceable components inside the device. You would lose your warranty. The device may only be repaired by the manufacturer's service.
• Never hit or shake the screen as this could damage the internal circuitry. Handle the remote control carefully and do not drop it.
• Clean the device with a soft cloth. Never use solvents or oil-based liquids. For stubborn stains, you can use a damp cloth with diluted detergent.

Headphone Warning

Loud music listening can lead to permanent hearing loss. Therefore, do not set too loud a volume level when listening to music with headphones, especially when listening to music for a long time.

About the installation site

Place the TV in a location away from direct sunlight or strong light sources. For a comfortable look, soft, indirect light is recommended. To prevent direct sunlight from entering the screen, use curtains or roller blinds / blinds. Place the TV on a firm and level surface. This serves as a prevention against falling down of the device. Place the TV so that objects can not get into the unit. Make sure that nothing on the device and the monitor acts as this may cause damage.

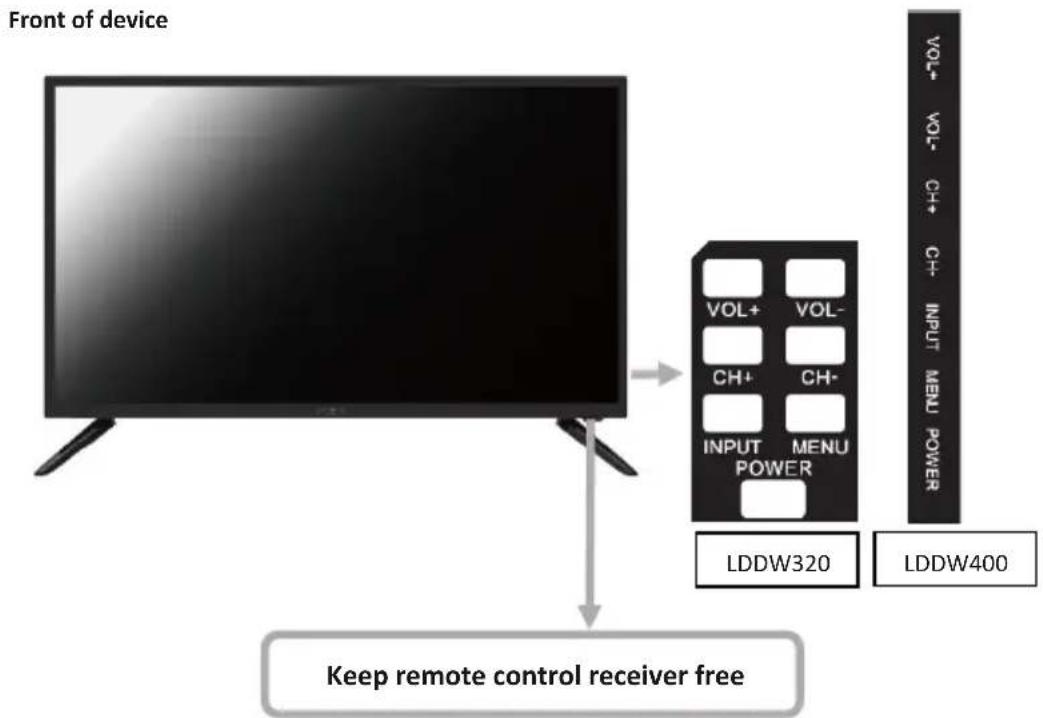

CONTROL PANEL

Description of the buttons and their function on the TV:

• VOL +/-: Volume up / down
• CH +/-: Switch programs forwards and backwards.
- INPUT: Displays the input sources.
- MENU: Open / close the OSD menu.
• POWER: Switches the television on / off (standby).

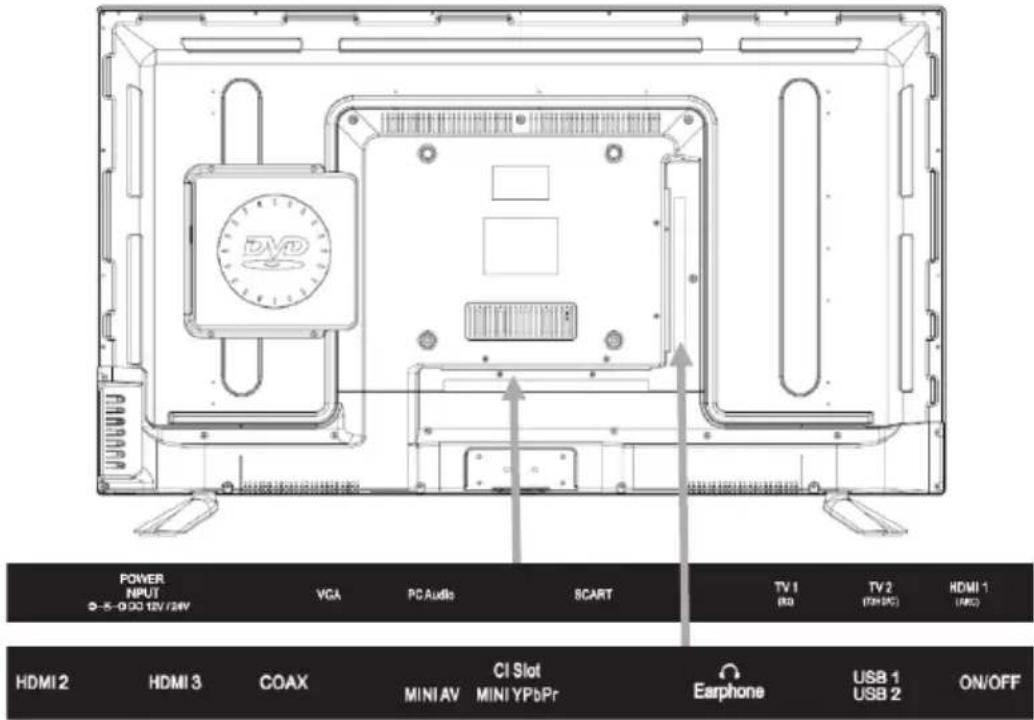

CONNECTIONS

Back oft he device

POWER INPUT (DC12V/24V)	Input socket for the power supply unit / 12V car adapter.
VGA:	Connection to use the television as a PC monitor.
PC AUDIO	PC audio input. Only in combination with VGA connection.
SCART	Connection for a Scart device (e.g. video recorder).
TV1 (S2) Satellit	Connection of the satellite antenna.
TV2 (T2HD/C) Kabel / Antenne	Connection of the DVB-T antenna or the cable system.
COAX-S/PDIF	Digital audio output for e.g. AV receivers, soundbars.
HDMI	3x HDMI input (HDMI 1 ARC)
USB BUCHSE	2x connection for USB sticks and hard drives (5V / 500mA).
Ω EARPHONE	3.5mm headphone output.
MINI YPbPr	Connection of external AV device via adapter (not included).
MINI AV	Connection of external AV device via adapter (not included).
CI+ SLOT	Slot for CI + modules for decrypting blocked TV programs. Module not included.
On / Off (toggle switch)	Toggle switch to completely disconnect the device form the power.

REMOTE CONTROL

DISP	Opens the TV information bar.
INPUT	Show input sources.
▲	Navigation key: Up.
▼	Navigation key: Down.
◀	Navigation key: Left.
▶	Navigation key: Right.
OK	Confirm menu item / open station list.
MENU	Open menu
EXIT	Exit menu.
EPG	EPG menu: Open / Close.
CH.L	Open station list.
VOL (+/-)	Volume: louder / quieter.
CH ▲/▼	Switch program up / down.
NUMERIC KEYS0-9	Enter the program number directly.
-/-	Digit selection. Set how many numbers can be entered for changing channels.
PICTURE	Select picture mode.
ASPECT	Select picture format.
SOUND	Select sound mode.

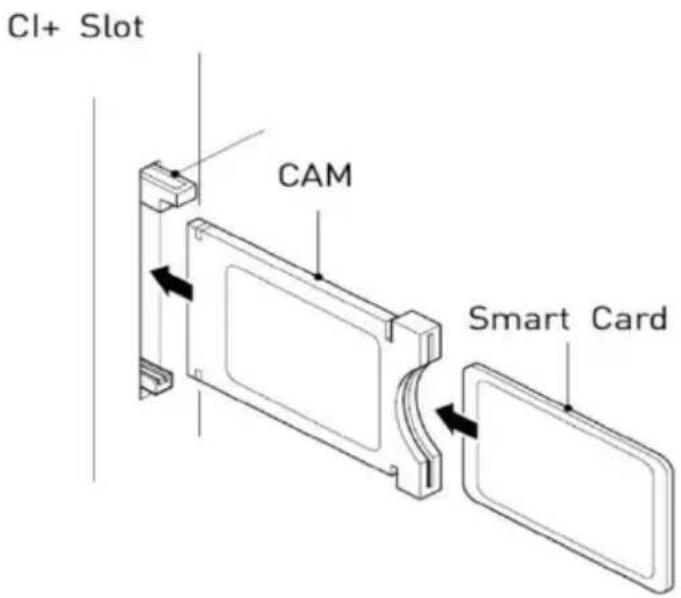

COMMON INTERFACE / CI - SLOT

This TV is equipped with a CI + slot and supports the following digital standards: DVB-T / T2HD,

DVB-S / S2 and DVB-C

Common Interface / Slot

The CI slot (CI +) is designed to accept conditional access modules (CAM) and smart cards to access pay-TV and other services. Contact your pay-TV service provider for more information about modules and subscriptions.

Note:

• Conditional Access modules and smart cards are sold separately.
• Turn off your TV before inserting modules into the CI slot. Then insert the smart card into the module.

1. Turn on the TV and make sure source DTV is selected.

2. When the CAM is detected, the following text is displayed on the screen: "CI module inserted". Wait a few seconds for the card to activate.

3. Now select the desired pay-TV program.

English	German
CI+ Slot	CI+ Steckplatz
CAM	CAM
Smart Card	Smart Card

1. Detailed information about the used smart card is displayed.

2. Press the [OK] key to enter the CI menu. See the module manual for details about the settings.

3. When the module is removed, the following text appears on the screen: "CI module removed".

TURN TV ON / OFF

• Make sure the power cord is plugged in and the toggle switch is pressed.
• Turn on the unit by pressing the [POWER] button (RED button on the left side of the remote control) on the unit or remote control.

Note:

- The device has a toggle switch with which the device can be completely de-energized. To operate the unit, make sure that the toggle switch is set to On.

GENERAL CONTROL BUTTONS

	Device on / off (standby)
Toggle switch	Completely off (off) or standby (on).
INPUT	Input source menu open / close.
Navigation buttons(▲▼◄►)	Menu (up / down / left / right).
OK	Select or confirm a menu item. Open station list.
MENU	Open or close the main menu.
EXIT	Menu item back.
VOL+ / VOL-	Adjust the volume (louder / quieter).
CH▲ / CH▼	Switch programs (up / down).
	Mute the sound (On / Off).

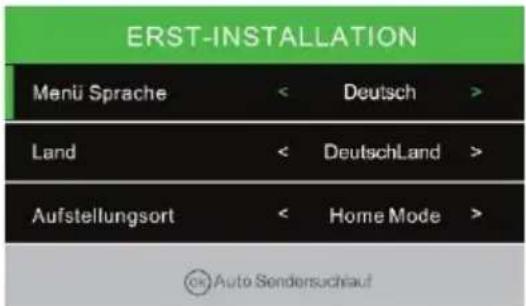

FIRST INSTALLATION

1. Press the [POWER] button on the unit or remote control to turn on the unit.
2. Press the [▲▼] key to navigate the menu.
3. Press the [◀▶] button to change the menu settings.

1. Select the menu language; the country and the site.

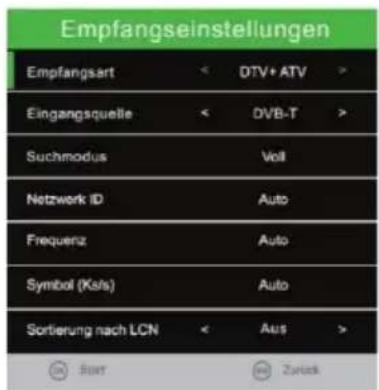

1. Press the [OK] key to confirm the entry and enter the tuner selection.

Note:

• If you have selected Satellite / DVB-S for the "input source". After the confirmation, you can load the "Standard sender list".

• Set the "LCN" function to "Off" for the DVB-T / C station search. If the setting is "On", this prevents the stations from being sorted and assigns each station a fixed program slot.

• Set the "LCN" function to "Off" for the DVB-T / C station search. If the setting is "on", this prevents the stations from being sorted and assigned to each other.

• You can change the settings with the [▲ / ▼ / ◀ / ▶] buttons.

• For different input sources, the following setting options are available:

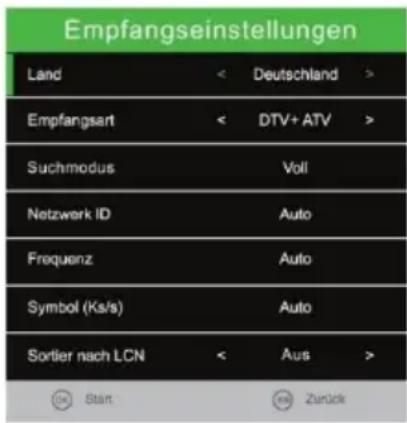

DVB-C

Tune Type: DTV / ATV

Scan Type: Full / Network Scan

Netzwork ID: The menu item is only active if network search is selected.

Frequency: The menu item is only active if network search is selected.

Symbol (ks/s): The menu item is only active if network search is selected.

Sorting by LCN: On / Off (Turn the option off because otherwise the station sorting will not work).

DVB-T

Tune Type: DTV / ATV

Scan Type: The menu item is fixed and can not be edited.

Netzwork ID: The menu item is fixed and can not be edited.

Frequency: The menu item is fixed and can not be edited.

Symbol (ks/s): The menu item is fixed and can not be edited.

Sorting by LCN: On / Off (Turn the option off because otherwise the station sorting will not work).

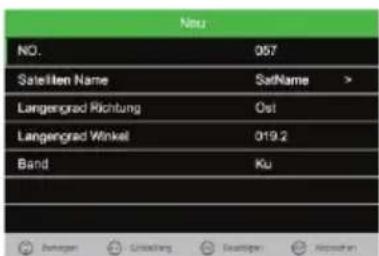

SATELLITE

Satellite: Select the satellite. Astra 19,2E is the default.

Scan Mode: Default / Blind Scan / Network Scan

Cannel Type: All Channels / FTA Channels

Service Type: All / DTV / Radio

1. If you have selected "DVB-C" or "DVB-T" and confirmed the settings with the [OK] key. Starts the automatic search.

EN

1. When the scan is complete, the unit enters TV mode and the initial installation is complete.
2. If you have selected "Satellite" and confirmed the settings with the [OK] button, you will be asked to load the standard station list.

Do you want to load presat channel list?

If you have selected satellite as the input source, after confirming the settings you will be asked to load the standard station list. It is recommended to confirm the setting with "Yes". The station list is adapted and pre-sorted for the German TV reception and can be further processed afterwards.

• YES: Go to "Yes" to load the standard station list.
• NO: Go to "No" to start the channel search normally.

1. Select "Yes" or "No" and press the [OK] key to confirm.
2. The search is started now or the default sender list is loaded. The process can take some time.
3. Afterwards, the TV set switches to TV mode and the initial installation is complete.

Channel Menu DVB-C/ T

1. Press the [INPUT] key.
2. Use the [▲▼] buttons to navigate in the menu.
3. Select "DTV" and confirm your entry with the [OK] key.
4. Press the [MENU] key and navigate to "Channel".
5. Confirm the entry with the [OK] key.

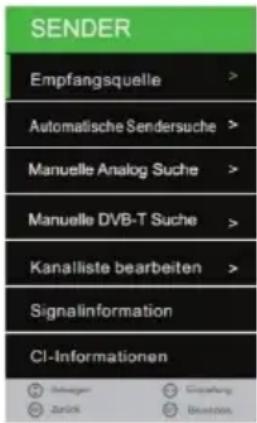

6. The following menu items are available in the "Channel" menu:
7. Use the following keys to navigate in the menu.

▲▼◀▶: Navigate / select menu item

OK: Confirm selection

MENU: Open menu / menu item back.

EXIT: Exit menu.

Note:

- In the "Channel" menu, set the "5V antenna power" option to "On" when the supplied active antenna or other active antenna is used.

Choose between: DVB-T / DVB-C

1. Select the menu item "Receive Source" and press the [OK] key.
2. Use the [▲ / ▼] buttons to choose between "DVB-T" (aerial) and "DVB-C" (cable).
3. Confirm with the [OK] key to select the respective "Reception source".
4. You will now return to the station menu.

• DVB-T:

Select DVB-T to enter the Antenna Settings menu.

• DVB-C:

Select DVB-C to enter the cable setup menu.

Auto Tuning

Calls up the menu for the automatic station search.

1. Select the menu item "Automatic station search" and press the [OK] key.
2. Use the [▲ ▼ ◀▶] buttons to select the various setting options.
3. Confirm the entry with the [OK] key.
4. The search starts.
5. To pause the station search, press the [EXIT] key.
6. The following setting options and menu items are available:

DVB-C Auto Tuning

Tune Type: DTV / ATV

Scan Type: Full / Network Scan

Netzwork ID: The menu item is only active if network search is selected.

Frequency: The menu item is only active if network search is selected.

Symbol (ks/s): The menu item is only active if network search is selected.

Sorting by LCN: On / Off (Turn the option off because otherwise the station sorting will not work).

Scan Type: The menu item is fixed and can not be edited.

Netzwork ID: The menu item is fixed and can not be edited.

Frequency: The menu item is fixed and can not be edited.

Symbol (ks/s): The menu item is fixed and can not be edited.

Sorting by LCN: On / Off (Turn the option off because otherwise the station sorting will not work).

Note:

• The Network ID / Frequency / Icon (ks / s) settings are only available for DVB-C.
• Manual entry will only be experienced by users.

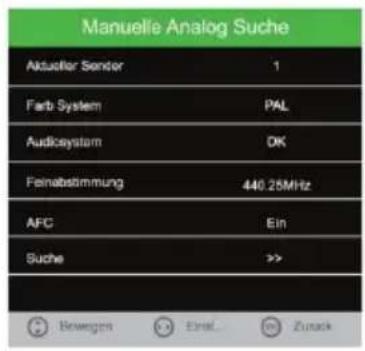

ATV Manual Tuning

Calls up the menu for the manual analogue search.

1. Select the menu item "Manual Analogue Search" and press the [OK] key.

2. Use the [▲▼◀▶] buttons to select the various setting options.

3. Go to "Search" and press the [OK] button to confirm the settings and start the search.

Current Channel:

Select the station to be adapted.

Colour System:

PAL / NTSC / SECAM / NTSC-44 / PAL-M / PAL-N / PAL-60

Sound System:

DK/MN/I/BG

Fine-Tune:

Press the [◀ / ▶] button to fine-tune.

Go to "Search" and press the [OK] key to start the search.

CADTV Manual Tuning (DVB-C / T / T2HD)

Calls up the menu for Manual DVB-T / DVB-C Search.

1. Select the menu item "Manual DVB (T / C) Search" and press the [OK] key.
2. Use the [▲▼◀▶] buttons to select the various setting options.
3. Confirm the entry with the [OK] key.
4. The search starts.

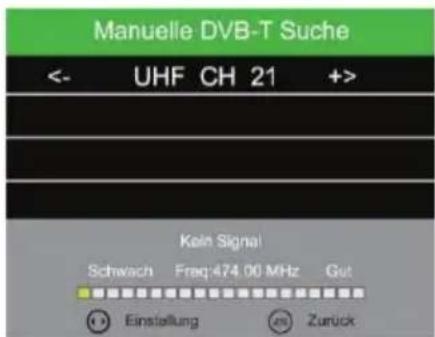

DVB-T Manual Search

1. Press the [◀▶] buttons to select the different frequency channels.
2. Once you have found the desired frequency, press the OK button to start the search.

Note:

• The signal bar shows you the strength of the selected frequency.

DVB-C Manuell Tuning

Frequency:

Enter the frequency using the [0-9] buttons.

Symbol (ks/s):

Enter the symbol rate keys [0-9].

QAM Type:

Select the QAM type: 16 QAM / 32 QAM / 64 QAM / 128 QAM / 256 QAM

Note:

- The setting is only recommended for experienced users.

Programme Edit

Opens the menu to edit the channel list.

1. Select the menu item "Edit channel list" and press the [OK] key.
2. Use the [▲▼] buttons to navigate in the menu item.

Note:

- A detailed description can be found in the operating instructions under the item "Programme Edit".

Signal Information

Shows transmitter / transponder and signal information.

The menu item is only available in DTV (DVB-C / T) / satellite mode.

The signal information includes:

Transmitter / Quality / Signal / Network / Modulation

1. Select the menu item "Signal Information" and press the [OK] key.
2. Use the [MENU] key to return to the "Station" menu.
3. Using the [EXIT] key

Note:

- The menu item can only be selected when a signal is present.

CI Information

Displays information about the inserted CI module and the smart card.

The menu item gives you information about the inserted CI module and the card.

1. Select the "CI Information" item and press the [OK] key.
2. Use the [▲ ▼ ◀▶] buttons to select the various menu items.
3. Confirm the entry with the [OK] key.
4. To exit the menu, press the [EXIT] key.

Note:

• The following types of reception are supported: DVB-C, DVB-T / T2HD, DVB-S / S2.

5V antenna power

Use the [◀▶] buttons to set the "On" or "Off" setting.

Switch the menu item to "On" to activate the 5V power supply for active antennas. For passive antennas, switch the setting to off.

Note:

- Please note the details of your DVT-T antenna.

CHANNEL MENU (SATELLITE)

Sender Menu Satellite

1. Press the [INPUT] key.
2. Use the [▲▼] buttons to navigate in the menu.
3. Select "Satellite" and confirm your entry with the [OK] key.
4. Press the [MENU] key and navigate to "Sender".
5. Confirm the entry with the [OK] key.
6. The following menu items are available in the "Channel" menu:

Auto Tuning / Programme Edit / Signal Information / CI Information / Dish Setup

Auto Tuning

1. Select the menu item "Automatic station search" and press the [OK] key.
2. Use the [▲▼◀▶] buttons to select the various setting options.
3. Confirm the entry with the [OK] key.
4. The search starts.
5. To pause the station search, press the [EXIT] key.
6. The following setting options and menu items are available:

Country: Select the country.

Satellite: Select the satellite. Astra 19.2E is set as default.

Scan Mode: Default / blind Scan / Network Scan

Channel Type: All Channels / FTA Channels

Service Type: All / DTV / Radio

Programme Edit

1. Select the menu item "Edit channel list" and press the [OK] key.
2. Use the [▲▼] buttons to navigate in the menu item.

Note:

- A detailed description can be found in the operating instructions under the item "Programme Edit".

Signal Information

The menu item is only available in DTV (DVB-C / T) / satellite mode.

The signal information includes:

Transmitter / Quality / Signal / Network / Modulation

1. Select the menu item "Signal Information" and press the [OK] key.
2. Use the [MENU] key to return to the "Station" menu.
3. Using the [EXIT] key

Note:

- The menu item can only be selected when a signal is present.

CI Information

The menu item gives you information about the inserted CI module and the card.

1. Select the "CI Information" item and press the [OK] key.
2. Use the [▲▼◀▶] buttons to select the various menu items.
3. Confirm the entry with the [OK] key.
4. To exit the menu, press the [EXIT] key.

Note:

• The following types of reception are supported: DVB-C, DVB-T / T2HD, DVB-S / S2.

Dish Setup

1. Select the menu item "Sat configuration" and press the [OK] key.
2. Use the [▲▼◀▶] buttons to navigate in the menu.
3. Use the [MENU] key to return to the "Station" menu.
4. With the [EXIT] key.
5. In the "Dish Setup" menu, you have three menu columns to choose from.

EN

• In the satellite and transponder list you will see a list of all satellites and the associated transponders.

• In the right column you will find the LNB settings.

• The following options for editing satellites and transponders are available in the "Sat configuration" menu:

Satz-Antenne Konfiguration
ldestell	Transpender	v1,ag/ke-lass
01 Ku_ASTRA 19 SE	01 10744 H 22000	LNB Typ	05/30/10H00
02 Ku_HOTBRD 6.TALI	02 10773 H 22000	LNB Versorgung	18/16V
03 Ku_NB.ESAT W1.10	03 10900 H 22000	Zinkr	Autin
04 Ku_BUTELSAT VDA	04 10502 H 22000	Torabend	Kahn
05 Ku_BUTELSAT V1	05 10991 H 22000	DBSiC1.0	Kahn
06 Ku_BADR2.3.4EURO	06 10501 H 22000	DBEqC1.1	Kahn
07 Ku_BUTELSAT SESAT	07 10994 H 22000	Motor	Nate
08 Ku_BUTELSAT V2	0810994 H 22000

Delete [Red]:

1. Select a satellite or transponder to be deleted with the [▲▼◀▶] buttons.
2. Press the [OK] key to mark the satellite or transponder.
3. Press the [RED] key to delete the selected satellite / transponder.
4. Confirm the entry with the [OK] key.
5. A confirmation prompt appears.

• [OK]: Press the [OK] key to confirm the deletion.

- [EXIT]: Press the [EXIT] key to cancel the deletion.

1. Select a satellite or transponder you want to edit with the [▲▼◀▶] buttons.
2. Press the [OK] key to mark the satellite or transponder.
3. Press the [Green] button to enter the satellites and transponder settings.
4. Press the [OK] button when you have made all the settings to apply the setting.
5. Settings for editing satellites and transponders.

Satelite editing:

Satellite Name: Edit the name of the satellite.

Longitude Direction: East / West

Frequency: Enter a new frequency.

Symbol (ks/s): Enter a new symbol rate.

Polarity: H (Horizontal) / V (Vertical)

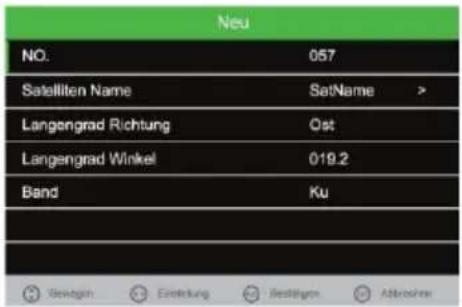

Add [Yellow]

1. In the transponder or satellite list, press the [Yellow] key to manually add a satellite or transponder.
2. Press the [OK] button when all settings have been made to apply the setting.
3. Settings for adding new satellites or transponders.

Satellite Name: Edit the name of the satellite.

Longitude Direction: East / West

Frequency: Enter a new

frequency.

Symbol (ks/s): Enter a new symbol

rate.

Polarity: H (Horizontal) / V

(Vertical)Search

[Blau]:

1. Use the [▲ ▼ ◀▶] buttons to select a satellite or transponder that you want to scan.

2. Press the [OK] key to mark the satellite or transponder.

3. A red rake marks the selection.

4. Now press the [Blue] key to open the search settings.

5. Press [OK] when all the settings have been made to start the search.

6. The following setting options are available:

Scan Mode: Default / Network / FastScan

Channel Type: All Channels / FTA Channels

Service Type: All / DTV / Radio

Note:

- The found channels are appended to the list.

LNB SETTINGS

The LNB settings on the right side of the menu usually do not need to be changed and are only required for multi-switch configurations or if a motorized SAT system is used without its own control unit. The following setting options should only be changed by experienced persons or by qualified personnel.

1. Navigate in the menu with the [▲▼] buttons.

2. Use the [◀▶] button to adjust the settings.

3. Use the [OK] key to confirm the entry.

4. Press the [MENU] key to return to the previous menu.

5. Use the [EXIT] key to close the menu display.

KU_ASTRA 19.2E
LNB Typ	09750/10600
LNB Versorgung	13/18V
22KHz	Auto
Toneburst	Kein
DISEqC1.0	Kein
DISEqC1.1	Kein
Motor	None

1. The following selection and setting options are available in the menu:

LNB Type:

9750/10600, 9750/10750, 5150/5750, 05150, 05750,

09750, 10600, 10750, 11300, 11475, User Single, User Dual, Unicable

LNB Power:

13/18V, 13V, 18V, Aus

22KHz:

Auto, Off, On

Toneburst: Kone, BurstA, BurstB

FastScan is a provider based search with automatic update of the transmitter data.

1. Press the [MENU] button and use the [▲▼◀▶] buttons to move to "Station".
2. Press the [OK] button and use the [▲▼] buttons to navigate "Satellite configuration".
3. Confirm the entry with the [OK] key.
4. Use the [▲ ▼ ◀▶] buttons to select a satellite.
5. Press the [OK] button to highlight the satellite.
6. Press the [BLUE] key to enter the search setting.
7. In "Search mode, select FastScan" and press the [OK] key.
8. Use the [◀▶] buttons to select a FastScan provider.
9. Then press the [OK] key to confirm the setting and start the search.

PROGRAMME EDIT

1. Press the [MENU] key and use the [▲▼◀▶] keys to move to "Channel".
2. Press the [OK] key.
3. Use the [▲▼] buttons to navigate to "Edit channel list".
4. Confirm with the [OK] key.
5. Use the [▲▼] buttons to navigate in the menu.
6. The following options for editing the station list are available:

Delete [RED]:

1. Select a station to be deleted using the [▲▼] buttons.
2. Press the [RED] button to delete the station.
3. The following stations slip up the list.
4. Repeat steps 1 and 2 until all desired stations have been deleted.

Move [YELLOW]:

1. Select a station to be moved using the [▲▼] buttons.
2. Press the [YELLOW] button to highlight the selected station.
3. Press the [▲▼] button to move the station up or down.
4. Press the [OK] button to store the station to the desired slot.
5. Repeat step 1-4 until the desired station order is reached.

1. Select a channel to be skipped using the [▲▼] buttons.
2. Press the [BLUE] key to highlight a channel for skipping.
3. An icon indicates that a station will skip when switching.

EN

1. To stop skipping a station, select a station that is highlighted and press the [BLUE] button.

2. The icon disappears. The station will not be skipped anymore.

Favorites [FAV]:

1. Select a station to be added to the favorites list with the [▲▼] buttons.

2. Press the [FAV] button to add a station to the favorites list.

3. The station is marked with a symbol.

4. If a station is to be removed from the favorites list, select a station that is marked as a favorite and press the [FAV] button.

5. The symbol disappears and the station is removed from the favorites list.

Open favorites list

1. In DTV or Satellite mode, press the [FAV] button to open the favorites list.

2. Select a station with the [▲▼] button.

3. Press the [OK] button to switch to the desired channel.

4. Press the [EXIT] button to exit the favorites list.

EPG

1. Press the [EPG] button on the remote control to open the EPG menu.

2. Navigate in the menu with the [▲▼◀▶] buttons.

3. In the EPG menu, the stations and broadcasts are displayed with start and end time.

4. The information will be displayed for up to 7 days in the future.

Note:

- The company TV Grawe Service GmbH has no influence on the displayed information. The information given comes directly from the broadcasters.

- EPG is only available for DVB-S / T / C

PVR RECORDING FUNCTION

1. Insert an empty USB stick or hard drive into the USB socket of the device.

2. Press the [MENU] button and navigate to "Configuration".

3. Press the [OK] button and select the menu item PVR file system.

4. Press the [OK] button to open the menu.

5. The following menu items are available in the menu.

Select disc: Select the storage location.

Check PVR file system: Press the OK button to check the USB medium.

Format: Press the OK button to prepare the USB medium for recording.

Time Shift Size: Shows the maximum file size for the time shift function.

Speed: Displays the USB medium recording speed.

Remaining recording time: Displays the remaining recording time in hours.

Note:

- While a USB medium is being prepared for recording, all data from the USB medium is deleted.

• You cannot switch during recording.

- The recording function is only available for non-encrypted TV channels / programs.

Programming EPG recording

1. Press the EPG button.
2. Use the [▲▼] buttons to select a TV program.
3. Press the [▶] button to switch to the TV programs.
4. Use the [▲▼] buttons to navigate and search for the desired TV show.
5. Press the [Red] button to mark the TV show for recording.
6. By repeatedly pressing, you can change the recording function or delete the recording again.
   R: Starts a one-time recording
   D: Starts a daily recording for programs daily at the same time be broadcast.
   W: Starts a weekly recording for broadcasts once a week be broadcast.

Programming manual recording

1. Press the [MENU] button and navigate to "Transmitter".
2. Press the [OK] button and go to "Timer list".
3. Press the [OK] button to open the menu.
4. Existing timers are displayed in the menu or new timers can be set. The timers made in the EPG menu are also displayed here.
5. The following settings are available in the menu.

Delete: Press the [Red] button to delete a highlighted timer.

New: Press the [Yellow] button to create a new timer.

Program: Select current program.

Type: Reminder / RECORDER

Mode: Once / Daily / Weekly

Start time: Set the time and date.

End time: Set the time and date.

Edit: Press the [Blue] button to edit an existing timer.

Exit: Press the [Exit] button to exit the menu.

Start recording immediately

1. Press the [EMPTY] button on the remote control to start recording.
2. To stop recording, press the [STOP] button.
3. Press the [◀] or [▶] key to stop or continue recording.

HDMI CEC / ARC

1. To activate the HDMI CEC control press connect an HDMI CEC compatible device to the HDMI port of the device.
2. Press the [Menu] button and go to the "Configuration" menu.
3. Select the menu item "HDMI CEC".
4. You have the following setting options in the menu:

HDMI CEC: On / Off

Activate / deactivate the HDMI CEC control.

HDMI ARC: On / Off

Audio transmission via HDMI cable. Only possible with ARC compatible devices.

Auto Power: On 7 Off

Compatible devices connected via HDMI are automatically switched "On" or "Off" when the TV is switched on..

Device Menü:

Displays the device menu. Only possible with compatible devices.

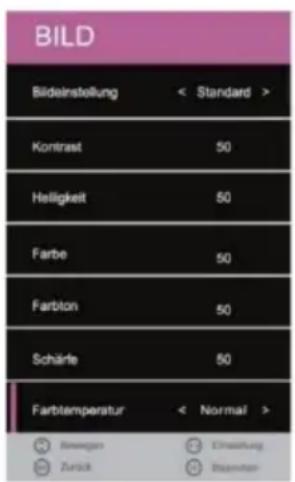

PICTURE MENU

1. Press the [MENU] key on the remote control.
2. Press the [▲ ▼ ◀▶] buttons to navigate in the menu.
3. Select the "PICTURE" menu item and press the [OK] key.
4. In the menu, use the [◀▶ ▲ ▼] buttons to navigate.
5. Confirm the entry with the [OK] key.
6. Press the [MENU] key to return to the previous menu.
7. Close the menu with the [EXIT] key.
8. The following selection and setting options are available in the menu:

Note:

- Contrast, Brightness, Color, and Sharpness are only available in the "PERSONAL" picture setting.

Picture Mode: Standard / Dynamic / Personal / Mild

Contrast: Regulates the difference between the brightest and the darkest Areas of the picture.

Brighness: Regulates the overall brightness of the picture.

Colour: Regulates the color.

Sharpness: Set the sharpness value of the TV set.

Tint: Adjust hue (only if an NTSC signal is present).

Colour Temp: Warm / Cold / Normal:

Nois Reduction: Off / Low / Medium / High.

Screen: The menu item in only active if a PC via the VGA

Input is connected.

Dynamic CR: On / Off

Face Colour: Adjust the thickness of the facial colors to your senses.

Note:

• The menu items "Contrast / Brightness / Color / Sharpness" are only available in the "Picture setting" "Personal".
  • The "Hue" menu item is only available if an NTSC signal is present.

SOUND MENU

1. Press the [MENU] key on the remote control.
2. Press the [▲ ▼ ◀▶] buttons to navigate in the menu.
3. Select the menu item "SOUND" and press the [OK] key.
4. In the menu, use the [◀▶ ▲ ▼] buttons to navigate.
5. Confirm the entry with the [OK] key.
6. Press the [MENU] key to return to the previous menu.
7. Close the menu with the [EXIT] key.
8. The following selection and setting options are available in the menu:

Note:

• Treble and bass are only available in the sound profile "PERSONAL".
• If an audio device is plugged into the headphone jack, the integrated loudspeakers are muted.

Sound Mode: Standard / Music / Movie / Sports / Personal

Treble: Change the value to adjust the heights to your listening needs. The menu item is only available in the "Sound Mode Personal".

Bass: Change the value to adjust the bass to your listening needs.

The menu item is only available in the "Sound Mode Personal".

Balance: Regulates the audio output of the left and right speakers.

The left or right speaker can also complet be switched off.

Auto Volume: On / Off.

Surround Sound: Off / TruSuround

SPDIF-Mode: Off / Auto / PCM

AD Switch: Off / On

AD Volume: Adjust the volume for the AD settings.

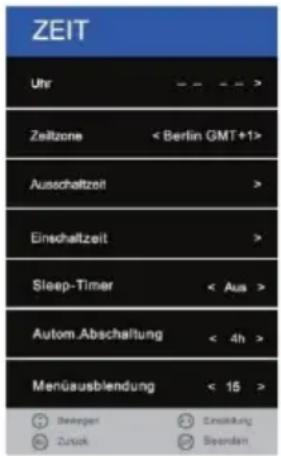

TIME MENU

1. Press the [MENU] key on the remote control.
2. Press the [▲ ▼ ◀▶] buttons to navigate in the menu.
3. Select the menu item "TIME" and press the [OK] key.
4. In the menu, use the [◀▶ ▲ ▼] buttons to navigate.
5. Confirm the entry with the [OK] key.
6. Press the [MENU] key to return to the previous menu.
7. Close the menu with the [EXIT] key.
8. The following selection and setting options are available in the menu:

Note:

- The menu item Clock adjusts itself automatically and if a cable / satellite / antenna signal is present.

Clock: Automatic adjustment when an input signal is present

Time Zone: Set the time zone according to your whereabouts.

Off Time: Set the automatic switch-off time "On" or "Off".

On Time: Set the automatic switch-on time "On" or "Off". The following settings can be made for the switch-on time in the menu: Hour / Minute / Source / Channel / Volume

Sleep-Timer: Set the time after which the unit automatically switches to standby mode. Off / 10min / 20min / 30min / 60min / 90min / 120min / 180min / 240min (Details in minutes)

Auto Stanby: Set the time after which the device should switch to standby mode when there is no signal or no operation. Off / 3H / 4H / 5H (Details in hours)

OSD Off Timer: Set the time after which the menu displays will be automatically hidden when no operation is taking place. Off / 5 /10 / 15 / 20 / 25 / 30 / 35 (Details in seconds)

SETUP MENÜ

1. Press the [MENU] key on the remote control.
2. Press the [▲ ▼ ◀▶] buttons to navigate in the menu.
3. Select the "CONFIGURATION" menu item and press the [OK] key.
4. In the menu, use the [◀▶ ▲ ▼] buttons to navigate.
5. Confirm the entry with the [OK] key.
6. Press the [MENU] key to return to the previous menu.
7. Close the menu with the [EXIT] key.
8. The following selection and setting options are available in the menu:

Language:

Set the menu language:

German / English / French / Dutch / Italian etc.

TT Language:

Select the character set for teletext.

Audio Language:

Select the audio language one and two.

Subtitle Language:

Select the subtitle language one and two.

Hearing Impaired:

Select Deafness Aid to turn On or Off auto subtitle. Only if supported by the channel.

Aspect Ratio:

Set the picture aspect ratio:

16:9 / Zoom2 / Zoom1 / Auto / 4:3

Blue Screen:

Enable this option if you want to display a blue image when there is no signal.

Turn off the option "On" or "Off".

First Time Installation:

Select the setting to go to the first installation menu.

Energy Mode:

Choose between the "Home Mode" (for the buyer) and the "Store Mode" (for the dealer).

Reset:

Start the factory setting. All tuner / picture and sound settings are reset. The device turns off. After the next switch on, the device starts with the first installation.

Software Update (USB):

Start a software update via USB stick.

VERSION:

Displays the "Model", the "Panel Type" and the "Software Version".

Sat Channel Import (USB):

Import a Satellite Channel List Exported to a USB Stick.

Sat Channel Export (USB):

1. Press the [MENU] key on the remote control.
2. Press the [▲ ▼ ◀▶] buttons to navigate in the menu.
3. Select the "PROTECTION" menu item and press the [OK] key.
4. In the menu, use the [◀▶ ▲ ▼] buttons to navigate.
5. Confirm the entry with the [OK] key.
6. Press the [MENU] key to return to the previous menu.
7. Close the menu with the [EXIT] key.
8. The following selection and setting options are available in the menu:

1. Select the menu item to change the password, block channels and access the parental control settings.
2. A password request takes place. The standard password is: "0000".
3. Set the "Lock System" menu item to "On" to access the following menu items: Parental Guidance / Key Lock / Hotel Mode

Set Password:

Adjust the password in this menu.

1. „Please enter old password“ Enter the current password.
2. „Please enter new password“ Enter a new password.
3. „Confirm new password“ Enter the new password again to confirm the new password.

Note:

• Press the [◀] key to clear the entry. Press the [▶] key to cancel the password change.
• The default password for the TV settings is [0000]

Channel Lock:

Lock channels to provide them with a password prompt. The password query is only active if "lock system" is activated.

1. Select the menu item "Lock transmitter" and press the [▶] key.
2. Use the [▲▼] buttons to select a channel that is to be locked / unlocked.
3. Use the [Green] key to lock / unlock the selected station.
4. Use the [MENU] key to return to the "PROTECTION" menu.
5. Use the [EXIT] key to close the menu display.

Parental Guidance:

Press the [◀▶] buttons to select the different parental levels.

The following settings are available:

Off / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18

Key Lock:

Activate the key lock to deactivate the control buttons on the device.

The following settings are available.

On / Off

HOTEL MODE

1. Press the [MENU] key on the remote control.
2. Press the [▲ ▼ ◀▶] buttons to navigate in the menu.
3. Select the menu item "PROTECTION".
4. Press the [OK] key to confirm.
5. Navigate to the menu item "Lock System" and press the [▶] key.
6. Enter the four-digit password.
7. Press the [◀▶] button and set the item to "On".
8. Use the [▲▼] buttons to navigate to "Hotel mode" and confirm with the [▶] button.
9. Press the [MENU] key to return to the previous menu.
10. Use the [EXIT] key to close the menu display.
11. The following settings are available in the menu:

Press the [◀▶] button to switch the "On" or "Off" setting.

If the menu item "On" is switched, you have access to the following menu items:

Lock Source / Start Source / Start Channel / Default Volume / Max Volume / Import Database / Export Database / Reset Settings

Source Lock:

In this menu item you can block access to the input sources.

1. Select the menu item with the [▶] key.
2. Navigate in the menu with the [▲▼] buttons.
3. To turn an input source "On" or "Off", press the [◀▶] buttons.

Note:

• If a source is locked, you can no longer select the input source via the INPUT key.

Default Source:

1. Press the [◀▶] buttons to select one of the various sources as the start source.
2. The following options are available: Off / Satellite / DTV / ATV / AV / SCART / YPbPr / DVD / PC / HDMI / USB

Note:

- If you have selected satellite / DTV / ATV as the start source, you can select a "start channel".

Default Prog.:

1. Use the [◀▶] buttons to select a start channel with which the device should start when it is switched on.
2. The menu item is only active if "Satellite / DTV / ATV" has been selected for "Start source".

Default Volume:

1. Set a standard volume with which the device should start.
2. You can set the value with the [◀▶] buttons.

Max Volume:

1. Set the maximum volume that can be set on the device.
2. You can set the value with the [◀▶] buttons.

Import Database:

Import the exported database.

1. Insert the USB stick with the exported data into the USB socket on the back of the device.
2. Press the menu item with the [▶] button.
3. The exported data will now be exported from the USB stick to the device.
4. The device switches off and on again after a short time.
5. The database is now imported.

Export Database:

Export your settings: Sound / Picture / Satellite / DTV / Time etc.

1. Insert an empty USB stick into the USB socket on the back of the device.
2. Press the menu item with the [▶] key to export the database.
3. The device now displays "Database exported successfully".
4. The database has been exported and can now be used to import to a device with the same device type and software version.

Clear Lock:

Reset the hotel mode settings to the default settings.

1. Press the [▶] button to reset all settings made in Hotel mode.
2. The "Hotel Mode" is then set to "Off" and the "Hotel Mode" settings are no longer selectable.

USB MEDIA PLAYER

1. Press the [Input] button on the remote control.
2. Press the [▲▼] key to navigate in the menu.
3. Select the menu item "USB".

EN

1. Press the [OK] key to confirm the entry.

2. Navigate in the menu with the [◀▶ ▲ ▼] buttons.

3. Confirm your entry with the [OK] button and select files for playback.

4. Use the [▶] (Play / Pause) button to start or pause full-screen playback.

5. Close the menu display with the "EXIT" button.

6. The following selection and setting options are available in the menu:

Note:

• USB hard disks up to 1TB are supported.

FOTO	Select the menu item to save photo files from your USB device to reproduce.
MUSIK	Select the menu item to play audio files from your USB device.
FILM	Select the menu item to play video files from your USB device.
TEXT	Select the menu item to play text files from your USB device.
PHOTO	Select the menu item to select photo files from your USB device play.
MUSIC	Select the menu item to get audio files from your USB device play.
MOVIE	Select the menu item to capture video files from your USB device play.
TEXT	Select the menu item to save text files from your USB device play.

Example: Movie

USB MEDIA PLAYBACK

1. Press the [◀▶] buttons and navigate to the Movie menu item.

2. Press the [OK] key to confirm the entry

3. Select the folder containing the video files with the [▲▼◀▶] buttons.

4. Confirm the entry with the [OK] key.

5. Now select the file to be played back using the [▲ ▼ ◀▶] buttons.

6. Confirm the entry with the [▶] key.

7. Playback now starts in full screen view.

8. To select several files for playback, mark the files with the [OK] key.

9. Then start playback with the [▶] key.

10. For USB playback, a menu bar is also displayed:

11.

Keys for USB media playback

▲▼◀▶	Navigation keys
OK	Confirm, Mark
■(STOP / EXIT)	End playback / return to menu
▶II(PLAY / PAUSE)	Start / pause playback
▶▶(Fast forward)	Multiple pressure to select forward speed.
◀◀Fast backward)	Multiple pressure to select return speed.
▶▶|(Skip forward)	Next play file.
|◀◀(Skip backward)	Previous play file.

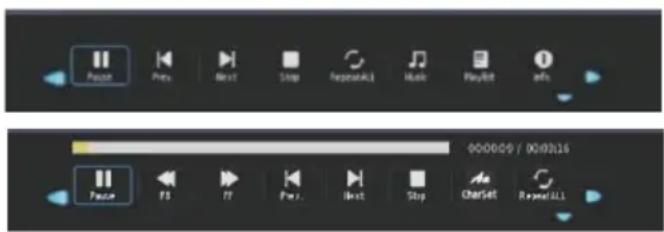

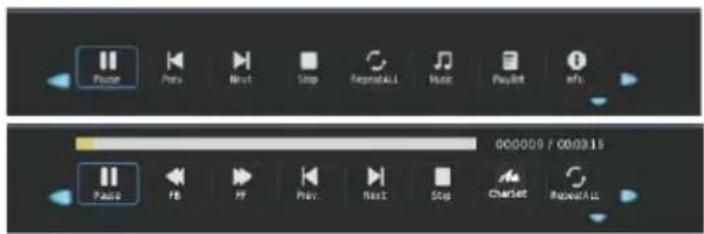

A control bar menu is also displayed for USB playback:

NOTE:

• Press the [OK] key to display the control bar.
• Press the [EXIT] button to fade out the menu.
• Press the [▲ ▼ ◀▶] buttons to navigate in the menu.
• Press the [OK] key to confirm the entry.

DVD PLAYBACK

1. Press the [Input] button on the remote control
2. Press the [▲▼] key to navigate in the menu.
3. Select the menu item [DVD].
4. Press the [OK] key to confirm.

Start DVD Playback

1. If no disc is inserted, the device displays "no disc".
2. Insert a disc on the right side of the DVD drive.
3. Playback starts automatically.
4. To eject the disc, press the [] button.

Note:

• The printed side of the disc must face backwards.
• The unit will pull in the disc itself. Do not force yourself into the device.

CD / DVD Setup- Mode

1. Press the [D.SET] button on the remote control.
2. The menu window is shown on the display.
3. Press the [▲▼◀▶] buttons to navigate in the menu.
4. Confirm your entry with the [OK] key.
5. Press the [◀] key to return to the previous menu item.
6. Press the [D.SET] button to close the DVD menu display.
7. The following setting options are available to you: General, audio, Dolby, settings

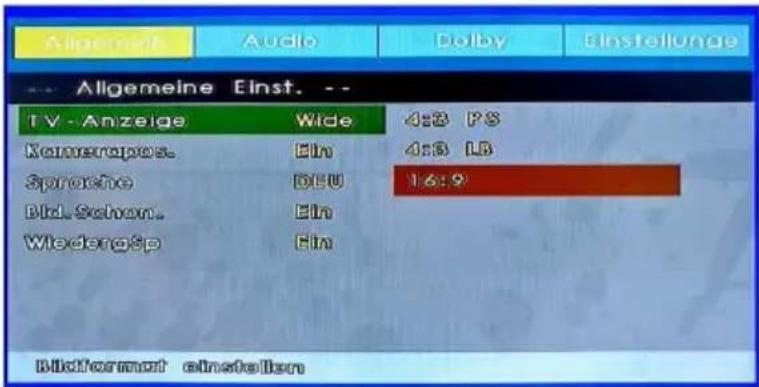

General Setup

Set the picture / aspect ratio for DVD playback. The following settings are available:

4:3 PS / 4:3 LB / Wide

Angle Mark:

Some DVDs have multiple camera positions for certain scenes. To see this switch the menu item to "On".

OSD Lang:

Some DVDs have multiple camera positions for certain scenes. To see this switch the menu item to "On".

English / French / German / Italian / Spanish / Dutch / Swedish / Danish / Finnish

Screen Saver:

Set the screen saver to "On" to protect the TV from burn-in effects if the still images are too long.

Last Memory:

Set the option to "On" if the last playback point is to be saved. The unit will start from the last playback point during the next playback.

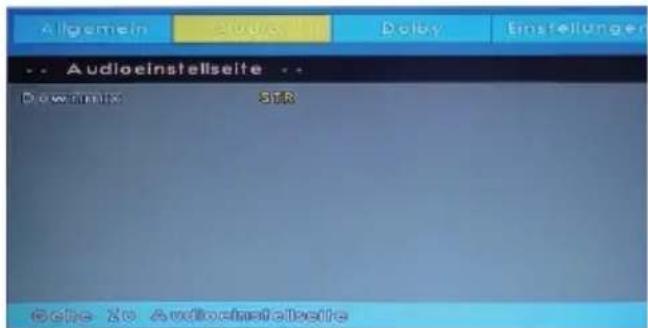

Audio Setup

Set the audio settings. You can choose from:

• LT/RT:

In a CD / DVD recorded in multi-channel technique, the output signal is outputted bundled to the left and right channels.

• STEREO:

In a CD / DVD recorded in multi-channel technique, the output signal is bundled to a stereo signal.

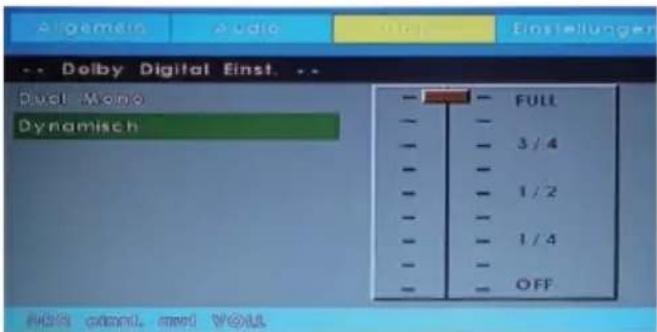

Dolby Setup

Choose from the settings:

• Stereo
  • L-Mono
  • R-Mono
• Mix-Mono

Dynamic:

Use this option to adjust the compression rate and thus control the sound contrast.

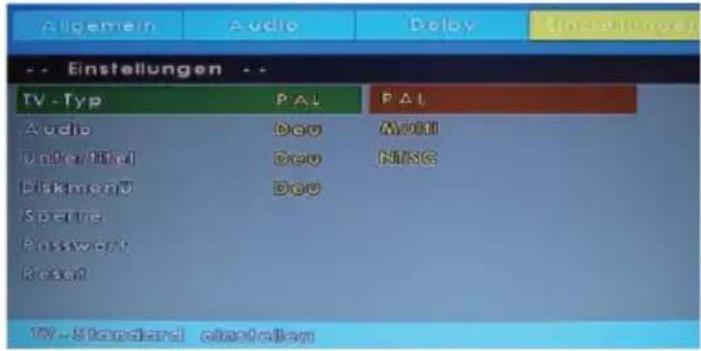

Preference Page

TV Type:

Set the colour system for CD / DVD playback here.

• PAL:

Select this setting if the inserted CD / DVD matches the PAL colour system.

- MULTI:

The device automatically selects the correct colour system based on the inserted CD / DVD.

• NTSC:

Select this setting if the inserted CD / DVD matches the NTSC colour system.

Audio:

Select the default audio language. This is automatically selected if the inserted CD / DVD has multiple audio tracks. If the selected audio track is not available on the inserted CD / DVD, the first option English is automatically selected.

Subtitle:

Select the subtitle language selected as default. This is automatically selected if the inserted CD / DVD has multiple subtitle tracks. If the selected subtitle track is not available on the inserted CD / DVD, the first option English is automatically selected.

Disc Menu:

Select the subtitle language selected as default. This is the selected CD / DVD has multiple subtitle tracks. If the selected subtitle track is not available on the CD / DVD, the first option English is automatically selected.

Parental Control:

Choose a level of parental control to protect your child from inappropriate footage.

Password:

Set the password for the parental control prompt.

Note:

• The default password is: 000000
- Write a good password when assigning a new password.
• If the factory settings are activated, the password will not be reset.

Default:

Activate the factory settings for the DVD menu and reset all settings.

SPECIFICATIONS USB CONNECTION

USB output voltage: 5V/500mA. Smartphones and devices that need to be installed are not recognized.

USB Stick: max. 1TB

External hard drive (HDD): max. 1TB

Formatting: FAT and NTSF

Supported USB formats:

Media	Format	Format		Remark
		Video	Audio
Movie	.avi	MJPEG	MP3, WMA, AAC, PCM	Max. resolution: 1280x720Max. Frame rate: 30fpsMax. Data rate: 20Mbps
		Xvid, MPEG-4, H.265, WMV9 /VC-1		Max. resolution: 1920x1080Max. Frame rate: 30fpsMax. Data rate: 20Mbps
	.mp4.MPEG4	MPEG-2, MPEG-4, H.265, Xvid, MJPEG	MP3, AAC, PCM
	.ts / .trp	MPEG-1, MPEG-2, H.265, VC-1	MP1, MP2, MP3, AAC
	.mpg.mpeg	MPEG-1, MPEG-2	MP1, MP2, MP3, AAC, PCM
	.mkv	MPEG-2/4, H.265, Xvid, RV30, RV40, VC-1	MP3, AAC, PCM, COOK
	.mov	MPEG-4, H.265, MJPEG	MP3, AAC, PCM, AMRNB
	.dat	MPEG-1	MP1
	.vob	MPEG-2	MP1, MP2, MP3, PCM
	.rm.rmvb	RV30RV40	AAC, COOK	Max. resolution: 800x600Max. resolution:1280x720
Picture	.jpg	Progressive DCT		Max. resolution: 1920x1080
	.jpeg	Baseline DCT		Max. resolution: 7680x4320
	.bmp			Max. resolution: 1920x1080Pixel depth: 8/24/32 bit
	.png			Max. resolution: 1920x1080
Music	.mp3		MP3	Sample Rate: 32K ~ 48KHzBit Rate: 32K ~320 KbpsChannel: Mono / Stereo
	.wmv		PCM
	.mp4.aac.m4a		AAC	Sample Rate: 8K ~ 48KHzBit Rate: 24K ~ 384KbpsKanal: Mono / Stereo
Text	.txt	ANSI/UNICODE GB/UTF8		File Size: Max. 10MB

Errors and technical changes reserved.

EASY TROUBLESHOOTING

If the screen goes down or the power goes down greatly, check the screen according to the following instructions: Also, check connected equipment to identify the source of the problem. If the screen still does not work as expected, contact Customer Support.

No electricity

• Check the connections on the TV and on the external devices.
• Check if the toggle switch is set to On.

No picture or no sound

• Make sure the TV is plugged in and turned on.
• Check if the antenna is connected correctly.
• Switch to another program.

Bad picture quality

• Check if the antenna cable is connected correctly.
• Make sure that the channel is tuned correctly.
• Change the picture settings: Brightness, Colour, Sharpness, Contrast, Hue.
• Make sure the TV is away from other electrical appliances that may cause radio frequency interference.

No colour

• Adjust the colour settings.
• Check if the selected program is broadcast in colour.
• Make sure that the channel is tuned correctly.

The TV does not respond to the remote control

• Make sure there are no obstacles between the remote control and the TV.
• Make sure the remote control is within range.
• Make sure that the batteries in the remote control are not empty.

No DVD playback possible

• Make sure the input source "DVD" is selected.
• Make sure that the DVD with the printed side is facing the back.
• Make sure that the CD / DVD is not scratched too much.

This TV is intended for home use and classified as harmless with respect to electromagnetic waves. Therefore, you can use the device anywhere, including residential areas.

DATA SHEET

Model			LDDW320	LDDW400
Manufacture			Reflexion
Energy efficiency (default SD)			F
Power consumption „On“ (default SD)			32W	43W
Power consumption „Off“			0W
Power consumption „Standby“			<0,5W
Type of electrical display / panel technology			TV / LCD/LED (Pixel Class 1)
Aspect ratio			16:9
Screen resolution (Pixel)			1920x1080
Screen diagonal (cm / Inch)			80cm / 32"	100cm / 40"
Visible screen area			27,43dm2	42,58dm2
Refresh rate			60Hz
Type of power supply		Input voltage	100 - 240V ~ 50/60Hz
		Output voltage	12V 5A	12V 6A
Input voltage device			12V 5A / 24V 2,5A	12V 6A / 24V 3A
Average annual consumption (kWh/1000h)			32kWh/1000h	43kWh/1000h
Contrast			4000:1
Brightness (cd/m2) / response time			220cd/m2 / 8ms	200cd/m2 / 9,5ms
Colours			16.7M colours
Viewing angle			Horizontal: 178° / Vertical: 178°
TV function	TV Standard		BG, DK, I, L/L
	Channels (ATV/DVB-T/C/S)		100 / 1000 (T+C) / 5000 (S)
	Teletext (ATV/DTV)		1000 / 1000 pages
Connections	VGA		1
	PC Audio (Ipnut)		1
	SCART		1
	TV1 (S2) Stellit		1
	TV2 (T2HD/C) Terrestrial / Cable		1
	COAX (Digital audio output)		1
	HDMI		3 (HDMI 1 ARC)
	USB (5V/500mA)		2
	CI+Slot / Earphone (3,5mm)		1 / 1
	Mini YPbPr / Mini AV		1 / 1
	POWER INPUT (DC 12V/24V)		1
	DVD drive		1
DVD playback formats			DVD, CD, CD-R/-RW, DVD-R/+R, DVD-RW/+RW, MP3, JPEG, VCD
OSD language			English / Deutsch/ French usw..
AUDIO output			2x5 Watt
Total weight			6,15Kg	9,30Kg
Weight device with TV stand			4,65Kg	6,70Kg
Max. power consumption			60W	72W
Peak luminace ratio in %			<75%
Mercury content contained in mg /lead			0,0mg / No
VESA			200 x 100 mm	200 x 200 mm
Dimensions only device (B/T/H) mm			731 x 86 x 432	912 x 81 x 525
Dimensions with TV stand: (B/T/H) mm			731 x 211 x 491	912 x 225 x 568

Note: Design and specifications are subject to change without notice.

STORAGE AND OPERATION INFORMATION

Humidity storage and operation	< 80%
Storage temperature	-10°C to +60°C
Use temperature	0°C to +40°C

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, UltraMedia GmbH & Co. Handels KG declares that the radio equipment type LDDW320 and LDDW400 is in compliance with Directive 2014/53 / EU.

The full text of the EU Declaration of Conformity can be requested at the following email address.

[e-mail]

We hope you enjoy using the device.

Your UltraMedia team

ENERGY LABEL LDDW320 / LDDW400

LDDW320 LDDW400

WARRANTY

Dear Customer,

Thank you for choosing one of our products. Our products undergo precise quality control in the course of production. If one of our devices gives you cause for complaint, or you have questions about one of our devices, please call our customer support.

We give a 36 month warranty on TV and SAT devices, and a 24 month warranty on portable DVD and audio devices from the date of purchase. Outside of the warranty, we offer you a paid repair based on a cost estimate. Please contact our customer support before submitting.

The warranty relates to material and production defects. Your device will be repaired or replaced during the warranty period. Unfortunately, UltraMedia cannot reimburse the purchase price. Damage caused by improper use, the use of third-party accessories, falls, dust, water damage and signs of wear (e.g. scratches, optical wear and tear) caused by the customer or external influences are excluded from the guarantee.

In order to assert the warranty claims, send the device with all accessories, a copy of the invoice and the description of the fault to the address given below. Devices that do not have a proof of purchase cannot be guaranteed. Please do not forget to include your full address and a telephone number / email address for any queries.

Shipping to us takes place at your own expense. Unpaid parcels cannot be accepted and are returned to the sender.

Please pack the device securely for transport. UltraMedia assumes no liability for damage in transit that occurs on the way to us. After receiving your submission, we will process your device as soon as possible and send it back to you.

Before sending your device in, please contact our customer support or your specialist dealer, as many problems can also be solved over the phone.

Electronic and electrical equipment as well as batteries contain materials, components and substances that may be detrimental to you and your environment if the waste materials (discarded and waste electronic equipment and batteries) are not handled correctly.

Electrical and electronic equipment as well as batteries are marked with the crossed-out wheelie bin, as shown. This symbol means that old electrical and electronic equipment and batteries must not be disposed of with the trash and must be disposed of separately.

As an end user, it is necessary that you deliver your depleted batteries to the appropriate collection points. In this way you ensure that the batteries are recycled according to the legislation and do not cause any environmental damage.

Cities and municipalities have set up collection points where electrical and electronic waste and batteries can be returned free of charge for recycling, alternatively pickup is also provided. Further information can be obtained directly from your city administration.
