Product Type	Refrigerator-Freezer Combo
Brand	Koenic
Model	KFK 661 E NF W
Color	White
Energy Efficiency Class	E
Climate Class	N-ST
Total Net Capacity	260 L
Refrigerator Net Capacity	180 L
Freezer Net Capacity	80 L
Freezing Capacity	4 kg/24h
NoFrost Technology	No
Defrost Method	Manual (Fridge) / Manual (Freezer)
Cooling Type	Static
Temperature Control	Thermostat dial
Lighting	LED
Shelves Material	Glass
Number of Shelves	4 (Fridge) + 1 (Freezer)
Door Hinge	Reversible (Right/Left)
Noise Level	42 dB
Power Supply	230 V, 50 Hz
Rated Power	90 W
Dimensions (H x W x D)	185 x 60 x 65 cm
Weight	70 kg
Adjustable Feet	Yes
Warranty	2 years
Spare Parts Availability	Via manufacturer or authorized service
Maintenance	Clean condenser coils annually, defrost when ice layer > 5 mm

Frequently Asked Questions - KFK 661 E NF W Koenic

How do I adjust the temperature on my Koenic KFK 661 E NF W?

Use the thermostat dial inside the fridge compartment. Turn it towards higher numbers for colder temperatures. Typically, setting 3-4 is suitable for normal use.

Why is my refrigerator not cooling properly?

Check if the thermostat is set correctly, ensure the door closes properly, and verify that the condenser coils at the back are not dusty. Also, allow 24 hours for temperature stabilization after first installation.

How often should I defrost the freezer?

Defrost when the ice layer reaches 5 mm thickness. For best efficiency, defrost every 6-12 months or when ice build-up is noticeable.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need to swap the door hinges and handles to the opposite side.

What does the 'NF' in the model number stand for?

'NF' typically indicates 'No Frost' in some brands, but for this model it refers to the design series. This model requires manual defrost.

How can I clean the interior of my refrigerator?

Unplug the appliance, remove all items, and wipe interior surfaces with a soft cloth dampened with warm water and mild detergent. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners.

Why is there water pooling at the bottom of the fridge?

This is usually due to a blocked defrost drain. Clean the drain hole at the back of the fridge using a pipe cleaner or a small brush. Ensure the drain is not clogged with debris.

What should I do if the appliance makes unusual noises?

Normal sounds include humming from the compressor, gurgling from refrigerant, and clicking from the thermostat. Excessive noise may be due to uneven placement or loose parts. Ensure the appliance is level on the floor.

How do I change the interior light bulb?

This model uses an LED light that is not user-replaceable. If the light fails, contact customer service for assistance.

Is the Koenic KFK 661 E NF W energy efficient?

It belongs to energy class E, which is standard for many appliances. To save energy, keep the appliance away from heat sources, ensure proper ventilation, and avoid frequent door openings.

USER MANUAL KFK 661 E NF W Koenic

No Frost cooling combi with water dispenser

XOK SET FND

Eckn. g:1618

30141787.01

图 1.1.2.1

F

图F-1a1-01

Front view of a modern white refrigerator with a single black door on top (no visible text or symbols)

Deutsch 4 12

English:25

a^2 - b^2 = 0

10.40:30 30

Port-pues 1-03

EN Caution: Risk of fire! Flammable materials. WARNING! During using, service and disposal of the appliance, pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor). It's the risk of fire warning symbol.

There are flammable materials in the refrigerant pipes and the compressor. Keep sources of fire and open flames away during using, service and disposal.

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they are being supervised or have received instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by an authorized service agent in order to avoid hazards.
• The product is designed for the storage of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Warning! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Safety Instructions

• Warning! Do not damage the refrigerant circuit.
• Warning! Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
• The light source (LED) is only to be replaced by a recognized electrician/qualified person. *
• Follow the instructions in the chapter Cleaning and care.
• Warning! The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.
• To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean surfaces, that come into contact with food, as well as the accessible drainage systems on a regular basis.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

English

Safety Instructions

-Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three-star compartments are not suitable for the freezing of fresh food.

-If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold from developing within the appliance.

* Note to service technician/qualified persons: Dismantling instruction can be obtained from the free website www.koenic-online.com.

Safety Instructions

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.
3. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorized service agent.
4. The mains voltage must match the information on the rating label of the product.
5. Only unplugging from the power socket can separate the product completely from the mains.
6. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
7. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
8. Only unplug from the power socket by the plug itself. Do not pull on the cord.
9. Unplug the product ...
10. when the product is not being used,
11. in case of malfunctions,
12. before attaching / detaching accessories and
13. before cleaning the product.
14. Use this product in dry indoor areas only and never outdoors.
15. This product is not intended for commercial use. It is designed for household use only.
16. Make sure that electrical components, live parts and the power cord do not become wet.
17. Use accessories supplied with the device or recommended by the manufacturer only!

18. Do not cover the product while in use. Fire hazard!

19. Warning! When positioning the appliance, ensure the supply cord is not trapped or damaged.

20. Warning! Do not locate portable socket-outlets or portable power suppliers at the rear of the appliance.
21. Caution! Risk of fire! Flammable materials.
22. Warning! During using, service
    and disposal of the appliance, please pay attention to the which is located on the rear of the (rear panel or compressor).
23. It's the risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Keep sources of fire and open flames away during using, service and disposal.
24. Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or if it's suspected to be defect.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries. This refrigerant appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C. This product is intended to be used as a built-in appliance.

The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Delivery contents

1 x Fridge and freezer combination

1 x Egg holder for 8 eggs

1 x Ice cube tray

1 x User manual

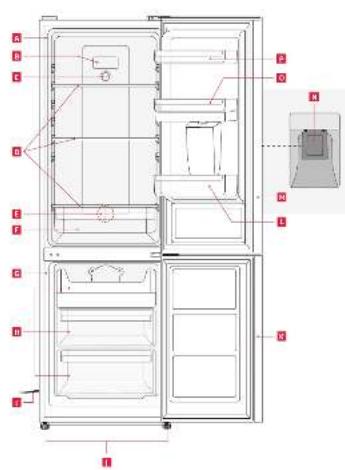

Controls and components

A Refrigerator
B Lamp
c Temperature dial
D Glass tray (3x)
E Freezer temperature control
F Vegetable compartment
G Freezer
H Freezer trays (1x), freezer drawer (2x)
Power cord with plug (not shown)
1 Adjustable feet, front
K Freezer door
L Bottle tray
M Refrigerator door
N Water dispenser
0 Water tank
P Door shelf

Accessories

1 x Egg holder for 8 eggs (not shown)
1 x Hinge cover for changing the door mounting (not shown)
1 x ice cube tray (not shown)
2 x Door stopper (for reversing door, not shown)

Installation

Fig. 1 Place the unit on a level and stable surface. Keep the minimum distances to all sides.
Fig. 2 Unevenness can be compensated with the adjustable front feet. Make sure, the product is levelled. Us a spirit level for correct adjustment.
Fig. 3 The refrigerator is equipped with three glass shelves, which, if desired, can be removed by pulling them forward. The upper two glass shelves can be used at different heights.

Warning

If the refrigerator has been stored, transported or tipped sideways during transport or installation, it must be in an upright for 12 hours before being connected to the mains.

Operation

Plug the power plug into an appropriate mains socket outlet.

Note: Allow the product to precool for about 2-3 hours before storing food in it.

Setting the refrigerator temperature

Fig. 4 Turn the temperature dial to adjust the temperature of the refrigerator. Check the set temperature with a refrigerator thermometer.

OFF: fridge off

COLD: highest temperature

COLDER / RECOMMENDED:

recommended setting for normal use at normal ambient temperatures.

COLDEST: lowest temperature

Note, that the energy consumption increases, the lower the set temperature is.

Fig. 5 You can use the temperature control slider to adjust the temperature of the freezer.

• Slider is at the top highest temperature
• Slider is at the bottom ⚙: lowest (coldest) temperature
• Slider is set to >> recommended setting for normal use at normal ambient temperatures.

Check the set temperature with a suitable thermometer.

Note, that the energy consumption increases, the lower the set temperature is.

Cold water dispenser

Warning! Before drawing water for the first time, remove the cover with gasket from the discharge opening on the inside of the refrigerator door. If the cover is not removed water cannot be dispensed.

Remove the cover from the water tank and fill it up with a maximum of 2 liters of water.

Depending on the amount and the initial temperature, the water takes several hours to cool down to the preset temperature.

Fig. 6 Press the drinking cup against the dispenser stop to start the water dispensing. Remove the cup to stop dispensing.

Warning! Never reach into the dispenser opening of the refrigerator door!

Note: If you have not taken cold water for several days, pour the first X cups of water away to avoid bacterial infections.

Door Open Alarm

If the door isn't closed for 90 seconds the LED light will flash 3 times and will light off for 3 seconds. This cycle will be repeated until the door is closed.

English

Adjust the sides of the doors

Note:

• If necessary, or if the premises require it, the mounting of the doors can be changed. To do this, follow the instructions below in the given order.
• The following tools are required: Hex-wrench 13 mm, wrench 8 mm, phillips screwdriver. Due to the uniqueness of the appropriate tools, they are not mentioned separately in the following instructions.
• For this work a different cover is needed, which is provided with the unit.
• For safety, remove the door trays to prevent them from being damaged.

Upper door

1 Loosen and remove the screws in the plastic caps left and right and remove the caps. Unplug the connector on the right cap switch and store this plastic cap in a safe place. Unscrew the upper hinge plate. When unscrewing, be sure to hold the refrigerator door firmly, otherwise it will be damaged.

② Pull out the door, by moving it upwards and place it on a soft and clean surface.

Lower door

Hold the freezer door and remove the two screws on the middle hinge.
② Pull the freezer door upwards and place it on a soft and clean surface.
3 Remove the two blind caps above the freezer compartment and the blind plug on the top of the freezer door and insert them into the holes on the opposite sides.

Refrigerator bottom

Caution

Pull out the mains plug!

① Tilt the refrigerator so you can work at the bottom or place the refrigerator fully on its back. Make sure the back is placed on a soft and clean surface.
Unscrew the feet on both sides using a hexwrench. Loosen the screws and remove the lower hinge plate.
2 Remove the door hinge bolt, turn the hinge plate over and screw the door hinge pin in the same hole from the other side.
3 Attach the turned hinge plate onto the left side by screws. Screw the feet into the plates on both sides. Place the refrigerator back on its feet and adjust them if necessary.

Door stoppers, blind caps and sleeves

Remove the screws and door stoppers (plastic stops and stop plates) on the bottom of both doors.

Take the two plastic stoppers provided and screw them together with the stop plate to the left undersides of both doors.

Remove the plastic block on the bottom right of the refrigerator door and screw it back on the bottom left.

Remove blind caps and sleeves from the top of the two doors and replace them on the opposite sides.

Mounting the doors

Caution

After you have placed the refrigerator upright on its feet, wait for 2 hours before you connect it to the mains to permit the cooling system to regain full capacity.

1 Remove the original aid-closers from upper and lower door, then install the aid-closers from the internal bag (with instruction manuals) to the opposite side. Place the freezer door on the lower hinge. Turn the middle hinge and insert the bolt into the left hole of the freezer door and screw the hinge firmly. The freezer door is now fixed. Check for correct function and fitting.
② Unscrew the bolt from the top hinge. Turn the hinge, insert and screw in the bolt from the other side again through the hole.
3 Place the hole provided on the left side of the refrigerator door onto the bolt of the middle hinge and hold the door firmly. Insert the top hinge bolt into the left hole provided on the top of the refrigerator door. Screw the upper hinge plate to the refrigerator. Check for correct function and fitting. Insert the plug on the left side into the switch on the underside of the left cap. Place the cables so that they cannot be squeezed.
4 Screw the cover cap onto the upper hinge plate with the refrigerator door open.
5 Attach the cap of the left side to the right side with a screw. Make sure the cables are properly placed and not squeezed.

Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
• Ensure unobstructed air flow around the refrigerator and freezer.
• If a layer of ice has built, defrost the unit. A thick layer of ice affects the transmission of the cold, thus the energy consumption will be increased.
• When opening the door and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.
• Select the temperature regulator setting according to the filling amount of the product.
• Use drawers, baskets or shelves to store the food. If the energy of the product is used efficiently, the energy consumption can be minimized.
• It's advised not to remove the provided accessories, such as drawers, shelves balconies, as this might increase the energy consumption.

Cleaning and care

Warning

• Unplug the product before cleaning.
- When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
- Never use oil or grease on the door seal. This will make it porous over time.
- Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.
- Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
• Make sure that no water enters the product interior (for example, through the temperature control).
- Wipe the door seal with clean water only, and dry it thoroughly afterwards.
- Removable parts, e.g. glass shelves, can be taken out for cleaning.

Decommissioning

If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Empty the product.
- Unplug the product.
- Clean the interior of the freezer compartment and let it dry.
- Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.).
- Leave the door open to avoid the formation of unpleasant odors and mold.

English

Technical data

Rated current : 0.9 A

Total input power : 110 W

Defrost Power : 160 W

Energy Consumption

kWh/24h : 0,638 kWh

kWh/year : 233 kWh

Net capacity of refrigerator : 208 L

Net capacity of freezer : 83 L

Freezing capacity : 3.8 kg/24 h

Ambient temperature : 16°C - 38°C

Measurement: 600 x 600 x 1850 mm

Depth with door open : 1200 mm

Refrigerant : R600a (49g)

Based on EN 62552: 2020

This product is intended to be used in climate classes from N to ST.

Climate class	Ambient temperature
N +16 to	+32 °C
ST +16 to	+38 °C

Use the link https://eprel.ec.europa.eu/ to access the European product database (EPREL), in which more information about the product is saved. Type in the model identifier, the EPREL registration number 1657931 or simply scan the QR-code on the energy label to access the model information.

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes	Solution
Product does not work.	Interrupted power supply.	Check the power supply.
Temperature in the compartments is not low enough.	The door is not closed firmly or it is opened to often.	Re-arrange the food so that the door can be closed firmly.Open the door less frequently
	The ambient temperature is lower than 16°C or higher than 38°C.	The product is intended to be operated in an ambient temperature of 16°C to 38°C.
Water gathers in the lower part of the compartment.	The food comes in contact with the rear wall of the compartment.	Move away the food or container from the rear wall.
The interior lamp doesn't shine.	Light source (LED) of the lamp is defect.	Contact the service center.

Error codes

If there is an error, the LED will flash several times as indicated in the table below.

Cause	Interior lighting LED flashes
Failure of temperature sensor	1x
Failure of defrost sensor	2x
Door is not closed for 90 seconds	3x

In the event of error codes, please contact the customer service. The respective hotlines can be found in the provided warranty card.

Storage of food and beverages

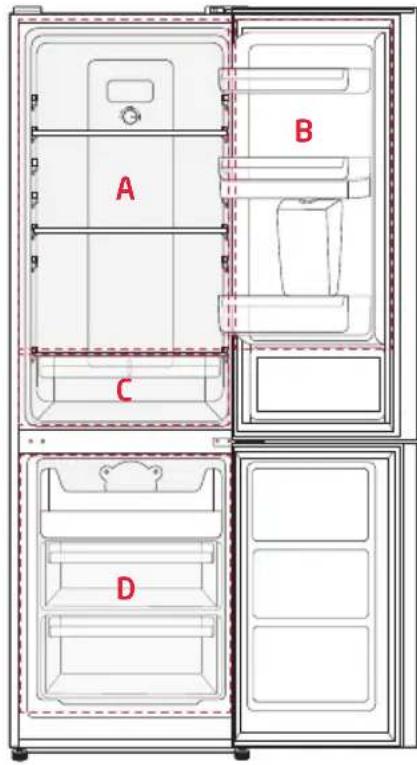

Area

Recommended food and temperature setting

A Fridge compartment (4°C)

- Storage of food for daily consumption, delicacies, yogurt, sauces, pickled vegetables, desserts - Storage of meat, fish, sausages, fresh filled pasta, cooked foods, leftovers

B Door shelf (4°C)

• Storage of drinks, milk, yogurt, eggs, butter and cold water dispenser.

C Fruit and vegetable compartment (8°C)

D Freezer (-18°C)

Foods for long-term storage

• Top drawer: Storage of frozen food and ice cream.

• Middle drawers: Storage for raw meat, poultry, fish

• Bottom drawers: Storage for frozen vegetables, chips

How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

Fridge compartment

• Use containers made from recycled plastic, metal, aluminium and glass as well as plastic wrap to pack food.
• Liquids, as well as foods that lead to odor formation or can easily spoil or that can transfer taste, should be covered.
• If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.

• Foods that give off a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one another or packaged in order not to shorten the storage time; for example, do not keep tomatoes with kiwi or cabbage together.

• Use the bottle holder to prevent bottles from tipping over.

• Do not store food too close to one another to allow sufficient air circulation.
• The recommended temperature setting for the fridge compartment is "COLDER". If set, foodstuffs can be usually stored for a few days.

English

Recommendations when refrigerating food

• Store fresh and undamaged food. The quality and freshness will then be retained for longer.
• In the case of convenience products and bottled goods, do not exceed the sell-by date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours from being transferred between foods and the plastic parts from becoming discoloured.
• Leave warm food and beverages to cool down before placing them in the refrigerator compartment.

Freezer

• Ideal for storing frozen food, preparing ice cubes and freezing fresh food.
• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).
• The recommended temperature for the freezer compartment is ❄️.
• The storage period specified on the packaging is decisive for commercially available frozen products.

Recommendations when freezing food

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.
• Distribute food in the compartments or frozen food containers.
• Do not bring food which is to be frozen into contact with frozen food. If required, re-stack frozen food in the frozen food containers.
• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop.

Note: Storage of foods at the wrong temperature may lead to an increase of food waste.

Storage times and temperature

Note: Overlong storage or storage at inappropriate freezing temperature may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18 °C or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months.
  • Fish, shrimp, lamb, meat: 4-8 months.
• Vegetables, fruits, poultry, beef: 6-12 months.
