Product Type	Passive Bookshelf Speaker
Enclosure Type	Bass reflex via rear firing port
Recommended Amplifier Power	10 - 100 watts
Frequency Response	83 Hz - 20 kHz
Nominal Impedance	4 ohms
Sensitivity	85 dB (1W/1m)
Drivers	0.75" silk dome tweeter, 3" carbon fiber glass bass/mid
Dimensions (H x W x D)	175 x 119 x 152 mm
Weight	1.69 kg each
Recommended Placement	At least 60 cm from walls; 1.8 - 4 m apart; tweeter at ear level
Connection	Use high-quality speaker cables; observe polarity (+ red, - black)
Amplifier Compatibility	4-8 ohm impedance load
Speaker Grills	Removable; recommended to operate without for best treble
Wall Mount	Optional brackets available separately
Power Handling Warning	Avoid clipping; reduce volume if distortion heard
Safety Precautions	Keep away from liquids; no naked flames; not for damp locations
Maintenance	Wipe with dry cloth; do not use solvents
Warranty	Standard manufacturer warranty; see dealer for details
Repairability	Contact dealer or distributor for service; do not modify
Environmental Compliance	WEEE directive: recycle at end of life

Frequently Asked Questions - Speaker Box 3E PRO-JECT

How far should the speakers be from walls and each other?

Ideally, place speakers at least 60 cm from walls and 1.8 meters apart. For best stereo imaging, form an equilateral triangle with the listening position, with speaker spacing between 2 and 4 meters.

What amplifier power is recommended for the Speaker Box 3E?

The recommended amplifier power is 10 to 100 watts. Ensure your amplifier can handle a 4-8 ohm impedance load.

How do I connect the speakers to my amplifier?

Use high-quality speaker cables. Connect the positive (red) terminal of the speaker to the positive (red) amplifier terminal, and the negative (black) to negative. Always turn off the amplifier before connecting.

Should I use the speaker grills?

We recommend operating without grills for the best treble reproduction. The grills are acoustically transparent but can be used to protect the drivers from pets or dust.

Can I mount the speakers on a wall?

Yes, wall mount brackets are available separately. Contact your dealer for compatible brackets and follow the installation instructions provided.

What should I do if I hear distortion?

Distortion indicates the amplifier is being overdriven (clipping). Reduce the volume immediately. Continuous clipping can damage the speakers. Always listen at moderate levels.

How do I clean the speakers?

Wipe the enclosure with a dry, soft cloth. Do not use any solvents, abrasives, or liquids. Avoid moisture entering the ports or drivers.

What is the warranty coverage?

The manufacturer provides a standard warranty against defects. Modifications or unauthorized repairs void the warranty. For details, contact your dealer or distributor.

Can I use these speakers with a subwoofer?

Yes, the Speaker Box 3E can be integrated into a home theater system. Connect your amplifier's subwoofer output to a powered subwoofer for enhanced low frequencies.

What is the nominal impedance and sensitivity?

The nominal impedance is 4 ohms, and sensitivity is 85 dB (1W/1m). Pair with an amplifier rated for 4-ohm loads for optimal performance.

USER MANUAL Speaker Box 3E PRO-JECT

thank you for purchasing a speaker from Pro-Ject Audio Systems.

In order to achieve maximum performance and reliability you should study these instructions for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

Safety instructions

Avoid spilling liquids on speaker, connection terminal or speaker cable. Never place any item containing liquid, such as a flower vase on or near the device. Never place any naked flame sources, such as lighted candles on or near the speakers. The product shall not be used in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar conditions.

Loudspeaker positioning

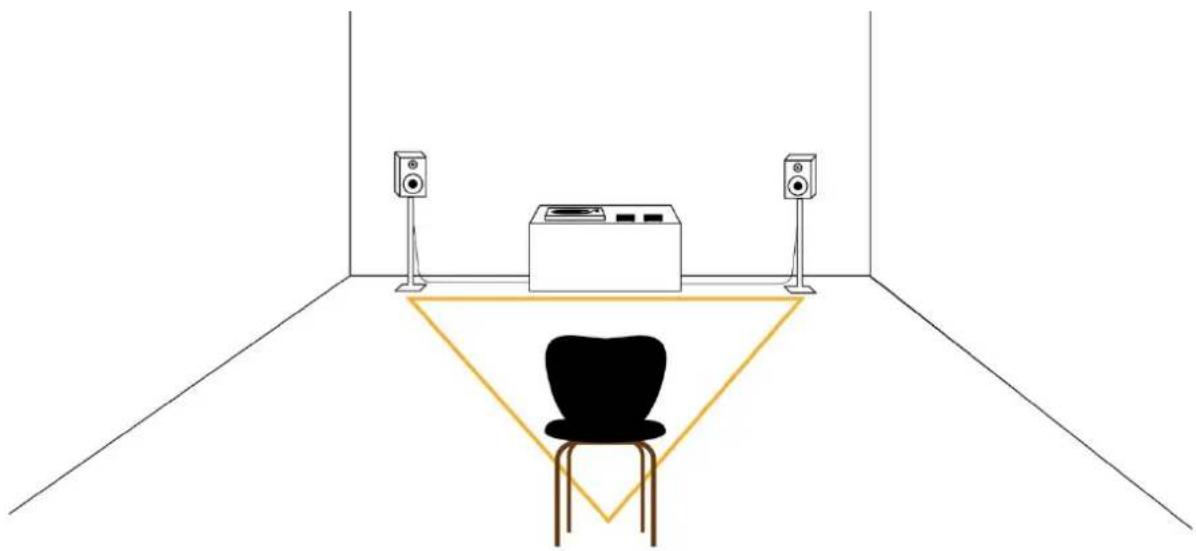

Ideally, the loudspeakers should be positioned at least 60 cm away from walls and 1,8 meters apart. The space between the two loudspeakers and the distance to the listeners are important. If loudspeakers are placed too close together or too far apart, stereo images will not be fully developed. In average living rooms, speaker spacing between 2 and 4 meters will usually produce satisfactory results. The listener's distance to the loudspeakers should be equal to the distance between the loudspeakers (equilateral triangle).

Simple line drawing of a room with a seated chair, two speakers, and a washing machine (no text or symbols)

The height is also an important factor. The tweeter of the speaker should be on the same height as your ears. If you have the space, we always recommend using speaker stands. If not, we recommend using "Damp it" underneath your speakers. It decouples the speaker from the surface of the furniture, and you can also slightly adjust the height of the speaker.

Angle your speakers inward, so the drivers directly point to your ears. Toeing-in the speakers helps with the perception of the stereo image. You can decrease the toe-in angle to create a wider stereo image. Experiment to find your sweet spot!

Amplifier capacity - power handling

Your loudspeaker system will operate satisfactorily with any good amplifier designed for use with an 4-8 Ohm impedance load. Although loudspeakers are designed to handle high power loadings, you must remember that any loudspeaker that is abused with excessive use of volume, tone controls and graphic equalizers is likely to cause damage to the drive-units. Be careful especially with small amplifiers constantly driven on high power levels as these may be liable to go into "clipping mode" and distort the signal causing possible damage. If you hear a distorted signal through the loudspeakers, you must reduce the power level.

Connection to your amplifier

We strongly recommend the use of high-quality speaker cables, colour coded or grooved cables are recommended to assist checking polarity, your local dealer should be able to advise you on this point. Always switch OFF your amplifier before making any connections or adjustments to the system. Wire the right-hand channel cable so that the positive (RED) terminal of your loudspeaker is connected to the positive (RED) on your amplifier, and the negative (BLACK) terminal of your loudspeaker is connected to the negative (BLACK) terminal on your amplifier. Repeat the instructions for the left-hand channel. Do NOT connect more than one loudspeaker to one terminal on your amplifier.

Set the volume level to minimum before switching on the amplifier!

Speaker Grills

We recommend operating the speakers without grills, as the delicate treble can spread absolutely freely. Our almost acoustically transparent speaker grilles only serve as protection against outer influences (e.g. pets).

Wall mount

Wall mount brackets are available separately. Please contact your dealer for further information.

Technical specifications Speaker Box 3E Carbon

Enclosure type: bass reflex via rear firing port

Recommended amplifier power: 10 to 100 watts

Frequency response: 83Hz - 20kHz

Nominal impedance: 4 ohms

Sensitivity: 85dB (1w /1m)

Chassis: 0,75" silk dome tweeter

3" carbon fiber glass bass/mid

Dimensions H x W x D: 175 x 119 x 152 mm

Weight: 1,69 kg each

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information, please contact your dealer for further advice. Only if the problem cannot be resolved there, the unit should be sent to the responsible distributor in your country.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions for use. Modification or changes to any part of the product by unauthorized persons release the manufacturer from any liability over and above the lawful rights of the customer.

Copyright, trademarks

Pro-Ject Audio Systems is a registered Trademark of H. Lichtenegger.

This guide was produced by: Pro-Ject Audio Systems Copyright © 2024. All rights reserved.

The information was correct at the time of going to press. The manufacturer reserves the right to make changes to the technical specification without prior notice as deemed necessary to uphold the ongoing process of technical development.

Waste from Electrical and Electronic Equipment (WEEE): This directive mandates the collection and recycling of electronics and component materials in order to reduce the amount going to landfills. Outside North America, when the user decides to discard this product, it must be sent to a separate collection facility for recycling. Please contact your point of purchase for more details.
