Brand	ECS
Model	LIVA P500 H610
Product Type	Mini Desktop Computer
Dimensions (with stand)	250 x 200 x 98.8 mm
Dimensions (without stand)	250 x 200 x 95 mm
CPU Support	Intel LGA1700 12th/13th/14th Gen Core i9/i7/i5/i3, Pentium, Celeron (TDP up to 65W)
Chipset	Intel H610
Memory	2x DDR5 SO-DIMM slots, up to 128GB (64GB per DIMM), DDR5 5600 MT/s (i9/i7) / 4800 MT/s (i5/i3)
Storage	1x M.2 2280 PCIe Gen3 x4 / SATA SSD, 1x 2.5" SATA III HDD/SSD bay
Graphics	Integrated Intel UHD Graphics 700 series (supports up to 3 displays)
Video Outputs	1x HDMI, 1x DisplayPort 1.4a, 1x VGA
Audio	Realtek ALC256 with 2W amplifier, Mic-in / Line-out combo
Ethernet	1x 2.5GbE (Intel i226-V), 1x 1.0GbE (Intel i219V)
Wireless	Wi-Fi 6E (802.11ax) + Bluetooth 5.3 (via M.2 2230 module)
Front USB	1x USB 2.0 Type A, 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type C
Rear USB	4x USB 2.0 Type A (2 dual-stack)
COM Ports	1x RS232, 1x RS232/422/485 (BIOS selectable)
Expansion Slots	1x PCIe x16 Gen5 (riser), 1x M.2 Key E, 1x M.2 Key B (LTE/5G), 1x nano SIM
Power Adapter	180W, 19V/9.47A (main); optional 240W, 12V/20A for external GPU
Operating Temperature	0°C to 40°C
OS Support	Windows 11, Windows 10 IoT, Linux
Security	TPM 2.0, Kensington lock, case open detection

Frequently Asked Questions - LIVA P500 H610 ECS

How do I enter the BIOS setup on the LIVA P500 H610?

Press the Delete key repeatedly during system startup (when the prompt 'Press DEL to enter SETUP' appears) to access the BIOS setup utility.

What should I do if the system fails to boot?

First, ensure the provided ECS adapter is correctly plugged into the DC-in port and the power cord is connected. Check the power button operation; the LED should light up. If the issue persists, try disconnecting all external devices and booting with minimal hardware. Contact your dealer or repair center if the problem continues.

How can I enable virtualization technology in BIOS?

Go to the Advanced menu, then CPU Configuration. Set Intel (VMX) Virtualization Technology to Enabled. Save and exit.

Why is there no display output?

Verify the monitor is powered on and the video cable (HDMI, DP, or VGA) is securely connected to both the system and monitor. Check if the system is powered on (LED indicator). If using a discrete graphics card, ensure the monitor is connected to the card's output. If the issue persists, test with a different monitor or cable.

How to reset the BIOS to default settings?

In the BIOS setup, go to the Exit menu and select Restore Defaults. Alternatively, you can choose Load Optimized Defaults from the main menu. Confirm and save changes.

How many displays can the LIVA P500 H610 support?

It supports up to three independent displays simultaneously via the HDMI, DisplayPort, and VGA outputs.

What type of memory is supported?

The system supports DDR5 SO-DIMM modules. It accepts up to 64GB per slot (128GB total) with speeds up to 5600 MT/s for i9/i7 processors and 4800 MT/s for i5/i3 processors.

Can I install a dedicated graphics card?

Yes, via the PCIe x16 Gen5 slot (using the included riser card). An optional external power input (240W adapter) is required if the graphics card power consumption exceeds 75W. The maximum card size is 225.5mm length, 123.2mm width, and 40.1mm height.

How to troubleshoot no audio output?

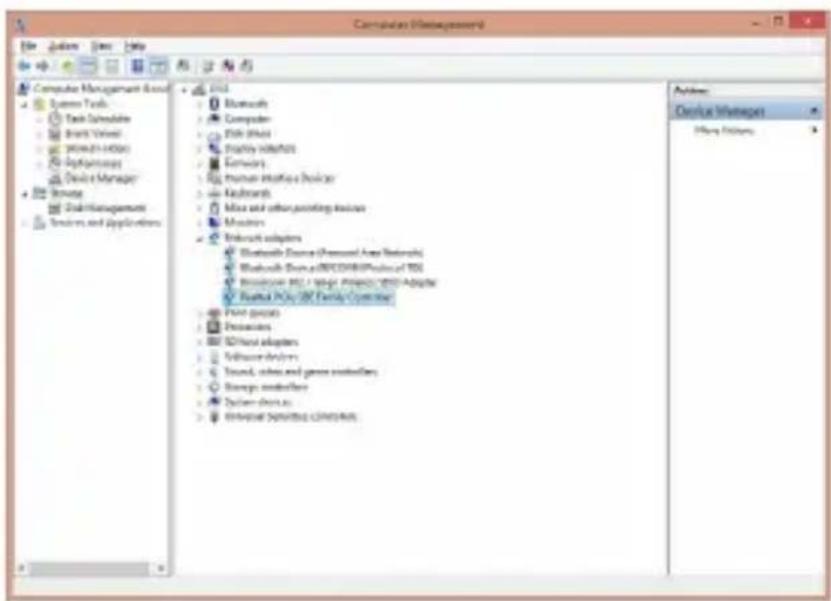

Ensure the audio driver is correctly installed in Device Manager. Check that the speaker or headset is plugged into the correct audio combo jack. Adjust audio settings in Control Panel > Hardware and Sound > Sound. If using HDMI audio, ensure the display supports audio and is set as default playback device.

Is it possible to upgrade the wireless module?

Yes, the system has a M.2 2230 Key E slot reserved for wireless cards. It supports Wi-Fi 6E and Bluetooth 5.3 modules. Ensure the new module is compatible with the system's antenna connectors.

USER MANUAL LIVA P500 H610 ECS

Black hardware unit with ventilation grille and ports (no visible text or symbols)

USER GUIDE

Version: 1.0

ISO-9001 ISO-14001

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Windows®11 are registered trademarks of Microsoft Corp.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

We hereby certify that the above product has been tested by us with the listed standards and found in compliance with the council EMC directive 2014/30/EU.

☐ EN 55032 Electromagnetic compatibility of multimedia equipment - Emission requirements
☐ EN 55035 Electromagnetic compatibility of multimedia equipment - Immunity requirements
☐ EN 61000-3-2 Electromagnetic Compatibility (EMC) Part 3-2: Limits-Limits for harmonic current emissions (equipment input current 16A per phase)
☐ EN 61000-3-3 Electromagnetic Compatibility (EMC) Part 3-3: Limits-Limitation of voltage changes, voltage fluctuations and flicker in public low voltage supply systems, for equipment with rated current 16A per phase and not subject to conditional connection

LIVA P500 H610 Complies below directives:

RED (Radio Equipment Directive)

(2014/53/EU)

EN 301-489-1 V2.2.3: 2019-11

EN 301 489-17 V3.2.4: 2020-09

ETSI EN 300 328 V2.2.2

ETSI EN 301 893 V2.1.1

ETSI EN 300 440 V2.2.1

ETSI EN 303 687 V1.1.1

EN 50663: 2017 or EN 62479: 2010

EN 50665: 2017 or EN 62311: 2020

☐ EN 62368 Safety for information technology equipment including electrical business equipment

CE marking

	AT BE	BG CZ	DK EE DE
	CY IE	IT EL ES	FR LV
	LT LU	HU MT	NL PL PT
	RO SI	SK FI SE	HR UK(NI)

UKCA marking

Safety Instructions

Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• The equipment inside should be serviced only by a trained service technician. Do not operate your equipment with any cover(s) removed. The equipment is not intended to be installed and used in a home, school or public area accessible to the general population; and thumbscrews should be tightened with a tool after both initial installation and subsequent access to the panel.
• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source such as a radiator.
• Set up the system on a stable surface.
• Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
• Use this product in environments with ambient temperatures between 0°C and 40°C.

• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

• Disconnect all power sources before opening the top/bottom cover. After completing work inside the computer, ensure all covers, panels, and screws are replaced before connecting to the electrical outlet.

• Ensure the power cables are plugged into properly grounded electrical outlets. Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

Attention during use

• Do not step on the power cord or let anything rest on top of it.
• Do not spill water or any other liquid on your system.
• When the system is turned OFF, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.
• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.
• The power cord or plug is damaged.
• Liquid has been spilled into the system.
• The system does not function properly even if you follow theo perating instructions.
• The system was dropped or the cabinet is damaged.
• The system performance changes.

The warranty does not apply to products that have been disassembled by users.

Safety cautions and warnings

Product disposal notice

IMPORTANT:

This symbol if the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION:

Danger of explosoin if battery is incorrectly replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Product disposal notice

1. Do not place this product underneath heavy loads or in an unstable position.
2. Do not use or expose this product around magnetic fields as magnetic interference may affect the performance of the product.
3. Do not expose this product to high levels of direct sunlight, highhumidity or wet conditions.
4. Do not block the air vents to this product or impede the airflow in any way.
5. Do not place or drop objects on top and do not shove any foreign objects into this product.

About the Manual

The manual consists of the following:

Chapter 1 Describes features of the

Introducing the PC

PC.

page 1

Chapter 2 Provides information

Using BIOS

on using the BIOS Setup Utility.

page 9

Chapter 3 Describes installation of

Installing the Motherboard Software

motherboard software.

page 49

Chapter 4 Provides basic trouble

Trouble Shooting

shooting tips.

page 55

Preface i

Chapter 1

Introducing the PC

Introduction ...... 1

Specifications 2

Front and Rear I/O 6

Chapter 2

Using BIOS

About the Setup Utility 9

The Standard Configuration.... 10

Entering the Setup Utility......10

Press DEL to enter SETUP......10

Using BIOS....11

BIOS Navigation Keys....12

Main Menu 13

Advanced Menu....14

Chipset Menu....31

Tweak Menu 35

Security Menu....43

Boot Menu 44

Exit Menu....46

Updating the BIOS 48

Chapter 3

Using the Motherboard Software

Installing the Windows OS 49

Manual Installation. 49

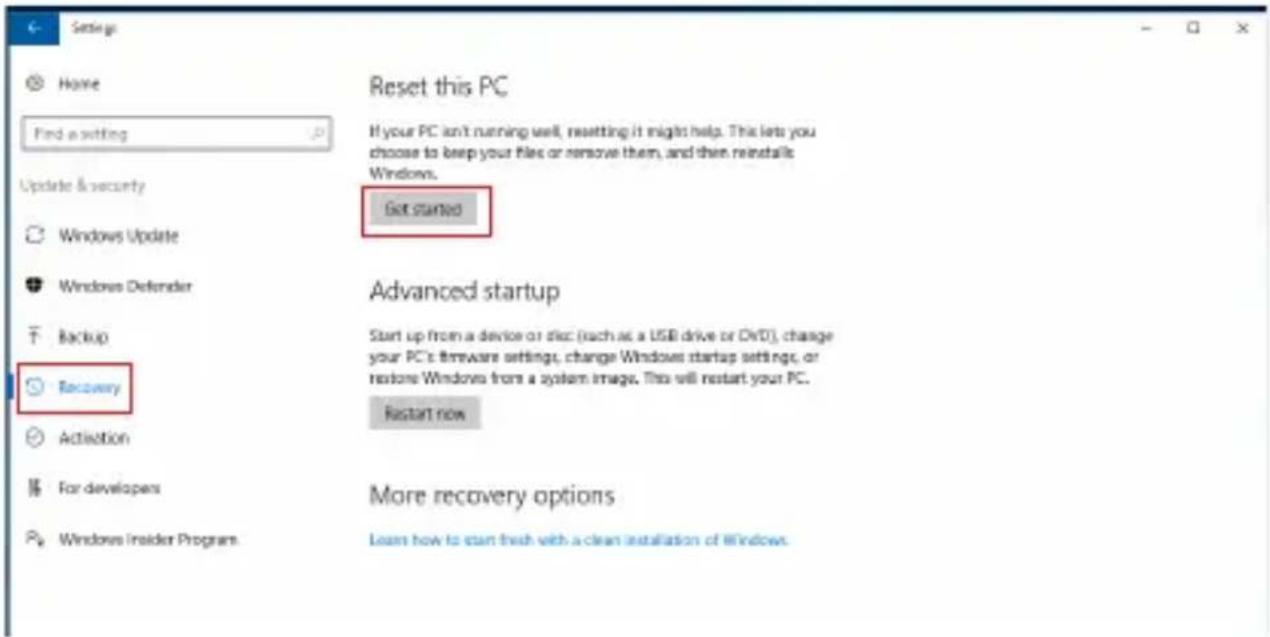

Windows 11 OS Recovery .... 50

Chapter 4

Trouble Shooting

Troubleshooting and problem solution.... 55

Chapter 1

Introducing the Motherboard

Introduction

Thank you for choosing LIVA P500 H610 4.75L case of great performance and with stylish and flexible design.

LIVA P500 H610 computer supports Intel ^® 14 ^th /13 ^th /12 ^th Gen LGA1700 processors. With Intel ^® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment also can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

Support up to three displays via one HDMI™ and one 1.4a Display and 1x VGA Port for display productivity and flexibility, It supports DDR5 up to 64GB per DIMM (Max 128GB), DDR5 5600 MT/s for i9/i7 &DDR5 4800 MT/s for i5/i3, 2.5" SATA III HDD, 3 independent displays. Dual channel SO-DIMM memories. It also can add additional storage from M.2 SSD.

The system is equipped with I/O ports at the front and rear panel, including 1x DC_IN port for MB, 1 x DC-in for external Graphic card ZOTEC RTX 4060 Ti (option), 2x Audio port (MIC-IN/LINE-OUT), 1 x 2.5 GbE (Intel i226-V), 1 x 1.0 GbE (Intel i219V), 1x HDMI™ out ports, 1x display port, 1x VGA port, 2x RJ45 ports, 5x USB2.0 Gen 1x1 TypeA, 2x USB3.2 Gen 1x1 TypeA, 1x USB3.2 Gen 2x1 TypeC, 2 x COM(COM1 support RS232 and COM2 support RS232/422/485 by BIOS select) and 1 x Kensington lock.

Black LVM desktop computer case with ventilation grille and ports (no visible text or labels)

LIVA P500 H610

Note: ID design and specification may vary, please refer to actual goods you purchase.

Specifications

Chipset • Intel® H610 Chipset
CPU • LGA1700 12 th /13 th /14 th gen Intel® CoreTMi9/i7/i5/i3, Intel® Pentium® processorsGold/Celeron® processors (up to 65W),TDP 65W* The listed components are compatible with LIVA P500 H610.
Memory • 2 x DDR5 SODIMM slots• 64GB per DIMM (Max 128GB)• DDR5 5600 MT/s for i9/i7• DDR5 4800 MT/s for i5/i3* The listed components are compatible with LIVA P500 H610.
Video Output • 1 x HDMI TM• 1 x DP 1.4a• 1 x VGA• (Without HBR3)
Storage Interface	• 1 x m.2 2280 PCIe (NVME) Gen3 x 4/ SATA3.0 SSD (add switch)
Audio • CODEC ALC 256 + Amplifier (2 watts)
Ethernet • 1 x 2.5 GbE (Intel i226-V)• 1 x 1.0 GbE (Intel i219V)
Expansion Slots	• 1 x PCIE x 16 Gen5 slot for Riser card• 1 x M.2 2280 Key M (PCIe Gen3 x 4/ SATA3.0 for SSD• 1 x M.2 2230 Key E (PCIe/BT & CNVI) for Wireless/BT• 1 x M.2 3052 Key B (USB) for LTE/5G module• 1 x Socket nano Sim support LTE/5G
Wi-Fi • Supports Wi-Fi 6E (802.11ax) and Bluetooth 5.3
Onboard Connectors & Header	• 3 x 4pin smart fan (1 for CPU, 2 for SYS, Fan carve support)• 1 x SATA3 connector (FPC ZIF Bottom 12P 2R SMD)• 2 x COM 2*5pin (1 for RS232 + 1 for RS232/ 422/485)• 1 x COM_SEL 2*3 pin (RI/5V/12V)• 1 x Battery (2*1pin)• 1 x internal Speaker (2*1pin)• 1 x case open buzzer (2*1pin)• 1 x power on button (2*1pin)

Front Panel • 1 x USB 2.0 Gen 1x1 (480Mbps) Type A• 2 x USB 3.2 Gen 1x1 (5Gbps) Type A• 1 x USB 3.2 Gen 2x1 (10Gbps) Type C• 2 x Audio port (MIC-IN/LINE-OUT)• 1 x Power Button• 1 x Power LED• 1 x HDD LED

Rear Panel • 2 x RJ45 ports• 1 x HDMI TM• 1 x DP• 1 x VGA• 2 x Dual USB 2.0 x 1 (480Mbps) Type A• 2 x COM:- COM1 support RS232- COM2 support RS232/422/485 by BIOS select• 1 x Kensington lock• 2 x Antenna Hole• 1 x DC-in for MB• 1 x DC-in for External Graphic card ZOTEC RTX 4060 Ti (option)• 1 x External power bottom

Drive Bays • 2.5" HDD

Dimensions (mm) • 250L x 200W x 98.8H mm (w stand rubber)• 250L x 200W x 95H mm (w/o stand rubber)

Adapter • Adapter 180W, 19V/9.47A• Adapter 240W, 12V/20A for External Graphic card ZOTEC RTX 4060 Ti (option)* If Graphic Card power consumption is over 75W, then plug in external power input.

Riser Card • 1 x PCIe x16• 1 x PCIe x1• 1 x 12V power inputNote:1. Graphic Card size < L225.5 x M123.2 x H40.1 mm2. If Graphic Card power consumption is over 75W, then plug in external power input.

Accessories • 1 x Adapter 180W, 19V/9.47A• 1 x Power Cord• 1 x Quick Guide

Others • 1 x TPM2.0 IC (BOM Option)

OS Support • windows 11/win10 IOT• Linux

Operating • 0°C ~ 40°C for system Temperature

NOTE: The rating label of the device attached on the bottom of device.

WARNING:

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, or using the third-party overclocking tools. Overclocking may affect your system stability, or even case damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage casesd by overclocking.

Front and Rear I/O

Note: ID design and specification may vary, please refer to actual goods you purchase.

1. Power Button with LED Press the power button to turn the system on and off
2. HDD LED This is the HDD LED light
3. USB 3.2 Gen 1x1 Type A You can connect Type-A USB 3.0 devices to these ports
4. USB 2.0 Gen 1x1 Type A You can connect Type-A USB 2.0 devices to these ports
5. USB 3.2 Gen 2x1 Type C You can connect USB 3.2 Gen 2x1 Type-C devices to these ports
6. Mic In Jack Connecting microphone
7. Combo Jack Connecting headset

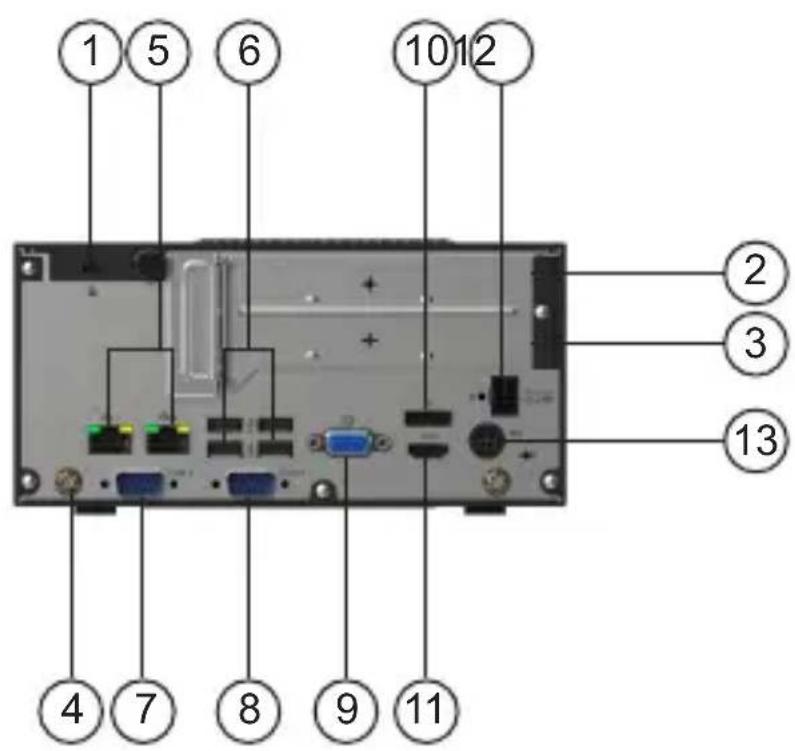

1. Kensington lock This is the security lock
2. PCIe x 1 slot You can connect PCIEx1 compatible devices
3. PCIe x 16 slot You can connect PCIEx16 compatible devices
4. Antenna hole You can connect Antenna compatible devices
5. LAN port You can connect the Network
6. USB 2.0 Gen 1x1 Connect your Type-A USB 2.0 Type A devices to these ports

7. COM1 port (Support RS232) You can connect a device withCOM port to these ports

8. COM2 port (RS232/422/485 by BIOS) You can connect a device with COM port to these ports

9. VGA port You can connect the display devices to the VGA port
10. DP port Connecting DP compatible devices.
11. HDMI ^TM port You can connect the display devices to the HDMI ^TM port
12. External adapter port DC-in for external Graphic
13. Adapter port DC-in for MB

About the Setup Utility

The computer uses the latest “American Megatrends Inc.” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backedup CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals
  • Video display type and display options
• Password protection from unauthorized use
  • Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration
• when a configuration error is detected and you are prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Press the delete key to access BIOS Setup Utility.

Aptio Setup - AMI
Main	Advanced	Chipset	Tweak	Security	Boot Exit
BIOS Information					Choose the system default language
System Language [English]
System Date [Wed 01/31/2024] : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Version 24.01.31
Ver. 2.22.1289. Copyright (C) 2024 AMI

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing .

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle ▶) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle ▶.

The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION
ESC Exits the current menu
↑↓←→	Scrolls through the items on a menu
+/- Change Opt.
Enter Select
F1 General Help
F2 Previous Value
F3 Optimized Defaults
F4 Save & Exit

For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture's website for updated manual.

Main Menu

When you enter the BIOS Setup program, the main menu appears, giving you an overview of the basic system information. Select an item and press to display the submenu.

Aptio Setup - AMI
Main	Advanced	Chipset	Tweak	Security	Boot Exit
BIOS Information					Choose the system default language
System Language [English]
System Date [Wed 01/31/2024] : Select Item
System Time [00:03:36]
BIOS Version 24.01.31
Ver. 2.22.1289. Copyright (C) 2024 AMI

System Language (English)

This item is used to set system language.

System Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

BIOS Version (24.01.31)

This item shows the information of Project version.

Advanced Menu

The Advanced menu items allow you to change the settings for the CPU and other system.

Aptio Setup - AMI
Main	Advanced	Chipset	Tweak	Security	Boot Exit
LAN ConfigurationPC Health StatusPower Management SetupACPI SettingsCPU ConfigurationSATA ConfigurationUSB ConfigurationSuper IO ConfigurationTrusted Computing					LAN ConfigurationParameters
					→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

▶ LAN Configuration

The item in the menu shows the LAN-related information that the BIOS automatically detects.

Aptio Setup - AMI
Advanced
LAN ConfigurationOnboard LAN Controller (I226-LM) [Enabled]Onboard LAN Controller (I219-V) [Enabled]		Enabled/Disabled Onboard LAN Controller
		→←: Select Screen↑↓: Select Item Enter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Onboard LAN Controller (I226-LM) (Enabled)

Use these items to enable or disable Onboard LAN (I226-LM) controller.

Onboard LAN Controller (I219-V) (Enabled)

Use these items to enable or disable Onboard LAN (I219-V) controller.

Press to return to the Advanced Menu page.

▶ PC Health Status

On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds.

Aptio Setup - AMI Advanced
PC Health StatusCPU Temperature (DTS) 38System Temperature 30°CCPU Fan Speed 3245 RPMSystem Fan 1 Speed 1461 RPMSystem Fan 2 Speed 1030 RPMCore Voltage 0.737VDIMM Voltage 1.133V+12V 12.210V+5V 5.170V+3.3V 3.388V+5VSB 5.192VTCC Activation Temperature (DTS) 100
	→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

These items display the monitoring of the overall inboard hardware health events, such as System temperature, CPU & DIMM voltage, CPU & System fan speed... etc.

• CPU Temperature (DTS)
- System Temperature
- CPU Fan Speed
- System Fan1 speed
- System Fan2 speed
- Core Voltage

• DIMM Voltage
  • +12V
  • +5V
  • +3.3V
  • +5VSB

TCC Activation Temperature (DTS) (100)

This item is used to set the value from the factory TCC activation temperature.

Press to return to the Advanced Menu page.

▶ Power Management Setup

This page sets up some parameters for system power management operation.

Aptio Setup - AMI Advanced
Power Management SetupResume By Ring [Disabled]Resume By PME [Disabled]Resume By USB [Disabled]Resume By RTC Alarm [Disabled]EUP Funtion [Enabled]Power LED Type [Dual Color LED]	About Resume By Ring
	→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Resume By RING (Disabled)

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens the system from a soft off state.

Resume By PME (Disabled)

This item specify whether the system will be awakened from power saving modes when activity or input signal of the specified hardware peripheral or components is detected.

Resume By USB (Disabled)

This item allows you to enable/disable the USB device wakeup function from S3 mode.

Resume By RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system's RTC (realtime clock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.

EUP Funtion (enabled)

This item allows user to enable or disable EUP support.

Resume Power LED Type (Disabled)

This item allows user to select Single/Dual LED support.

Press to return to the Advanced Menu page.

▶ ACPI Settings

This page provides items for ACPI configuration.

Aptio Setup - AMI Advanced
ACPI SettingsACPI Sleep State [S3 (Suspend to RAM)]		Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.
		→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

ACPI Sleep State [S3(Suspend to RAM)]

This item allows user to select the highest ACPI sleep state that the system will enter.

Press to return to the Advanced Menu page.

▶ CPU Configuration

The item in the menu shows the CPU Configuration.

Aptio Setup - AMI Advanced
CPU ConfigurationIntel(R) Core(TM) i5-14600TProcessor Speed 1800 MHzID 0XB0671Microcode Revision 11DVMX SupportedSMX/TXT SupportedHyper-Threading [Enabled]Limit CPUID Maximum [Disabled]Intel (VMX) Virtualization Technology [Enabled]Package C State Limit [Auto]Enhanced Halt (C1E) [Enabled]Intel(R) Spead Shift Technology [Enabled]	Enabled or Disable Hyper-Threading Technology.
	→←: Select Screen↓↓: Select ItemEnter: Select+/- : Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Intel(R) Core(TM) i5-14600T

This item shows the information of the CPU type.

Processor Speed (1800 MHz)

This item shows the current processor speed.

ID (0XB0671)

This item shows the processor ID.

Microcode Revision (11D)

This item shows the revision of Microcode.

VMX (Supported)

This item shows your computer supports VMX or not.

SMX/TXT (Supported)

This items show your computer supports SMX/TXT or not.

Hyper-Threading (Enabled)

This item is only available when the chipset supports Hyper-threading and you are using a Hyper-threading CPU.

Use this item to enable or disable the maximum CPUID value limit, you can enable this item to prevent the system from “rebooting” when trying to install Windows NT 4.0.

Intel (VMX) Virtualization Technology (Enabled)

When enabled, a VMM can utilize the additional hardware capabilities provided by Vandor Pool Technology.

Package C State Limit (Auto)

Use this item to set the package C state limit.

Enhanced Halt (C1E) (Enabled)

Enable/Disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-State.

Intel(R) Speed Shift Technology (Enabled)

This item shows your compututer supports Intel speed shift technology or not.

Press to return to the Advanced Menu page.

▶ SATA Configuration

This page provides the information and configuration for SATA storages.

Aptio Setup - AMI
Advanced
SATA Configuration	Determines how SATA controller(s) operate.
SATA Mode Selection [AHCI]
SATA Port 1Not Present	→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
M2Not Present
▶ NVMe Configuration
Ver. 2.22.1289. Copyright (C) 2024 AMI

SATA Mode Selection (AHCI)

Use this item to select SATA mode.

SATA Port 1/M.2 (Not Present)

This motherboard supports two SATA channels, each channel allows one SATA device to be installed. Use these item to configure each device on the SATA channel.

Press to return to the Advanced Menu page.

▶ NVMe Configuration

NVMe Device Options Settings.

Aptio Setup - AMI Advanced
NVMe controller and Drive informationBus:2 Dev:0 Func:0 INTEL SSDPEKKW512G7Nvme Size 512.1GB
	→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

NVMe controller and Drive information

This item shows NVMe device information (Model Name, Size).

Press to return to the Advanced Menu page.

▶ USB Configuration

This page provides the configuration for USB devices.

Aptio Setup - AMI Advanced
USB ConfigurationAll USB Devices [Enabled]	USB supportParameters
	→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

All USB Devices (Enabled)

Use this item to enable or disable all USB devices.

Press to return to the Advanced Menu page.

▶ Super IO Configuration\*

This page provides information and configuration for Super IO.

Aptio Setup - AMI Advanced
Super IO ConfigurationSuper IO Chip IT8637EC Firmware Version 1.04Serial Port 1 ConfigurationSerial Port 2 ConfigurationCOM2 Mode [Rs232 Mode]COM2 Speed [High]	Set Parameters of Serial Port 1 (COMA)→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Super IO Chip (IT8637)

This item shows the information of the Super IO chip.

EC Firmware Eersion (1.04)

This item shows the information of EC firmware version.

*This submenu is available LIVA P500 H610 only.

▶ Serial Port 1 Configuration

Scroll to this item and press to view the following screen:

Aptio Setup - AMI Advanced
Serial Port 1 Configuration Serial Port [Enabled] Change Settings Auto		Enabled or Disabled Serial Port (COM) IO=3F8h; IRQ=4; Device Sett
		→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Serial Port (Enabled)

This item allows you to enable or disable the serial port.

Device Settings (IO=3F8h; IRQ=4;)

This item shows the resource consumed by the serial port.

Change Settings (Auto)

Use this item to change device settings.

▶ Serial Port 2 Configuration

Scroll to this item and press to view the following screen:

Aptio Setup - AMI
Advanced
Serial Port 2 Configuration		Enabled or Disabled Serial Port (COM)
Serial Port	[Enabled]	IO=2F8h; IRQ=3; Device Settings
Change Settings	[Auto]
		→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Serial Port 2 (Enabled)

This item allows you to enable or disable the serial port.

Device Settings (IO=2F8h; IRQ=3;)

This item shows the resource consumed by the serial port.

Port 2 Settings (Auto)

Use this item to change device settings.

▶ Trusted Computing

This page provides configuration for Trusted Computing.

Aptio Setup - AMI Advanced
TPM 2.0 Device FoundFirmware Version : 600.18Vendor : INTCTPM Support [Enabled]Active PCR banks SHA256Available PCR banks SHA256, SHA384, SM3SHA256 PCR Bank [Enabled]SHA384 PCR Bank [Disabled]SM3_256 PCR Bank [Disabled]Pending operation [None]Platform Hierarchy [Enabled]Storage Hierarchy [Enabled]Endorsement Hierarchy [Enabled]Physical Presence Spec Version [1.3]TPM 2.0 InterfaceType [CRB]	Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
	→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Firmware Version (600.18)

This item shows the information of firmware version.

Vendor (INTC)

This item shows the information of TPM2.0 device found vendor.

TPM Support (Enabled)

This item allows you to enable or disable the security device support.

Active PCR banks (SHA256)

This item shows activated PCR banks.

Available PCR banks (SHA256, SHA384, SM3)

This item shows available PCR banks.

SHA256 PCR Bank (Enabled)

Use this item to enable or disable the SHA256 PCR Bank.

SHA384 PCR Bank (Disabled)

Use this item to enable or disable the SHA384 PCR Bank.

SM3\_256 PCR Bank (Disabled)

Use this item to enable or disable the SHA384 PCR Bank.

Pending operation (None)

Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.

Platform Hierarchy (Enabled)

Use this item to enable or disable the Platform Hierarchy.

Storage Hierarchy (Enabled)

Use this item to enable or disable the Storage Hierarchy.

Endorsement Hierarchy (Enabled)

Use this item to enable or disable the Endorsement Hierarchy.

Physical Presence Spec Version (1.3)

Select to tell OS to support PPI Spec Version 1.2 or 1.3.

TPM 2.0 InterfaceType (CRB)

Select the Communication Interface to TPM 2.0 device.

Press to return to the Advanced Menu page.

Chipset Menu

The chipset menu items allow you to change the settings for the SoC chip and other system.

Aptio Setup - AMI
Main	Advanced	Chipset	Tweak	Security	Boot	Exit
System Agent ConfigurationPCH ConfigurationME Configuration					System Agent (SA)Parameters
					←→: Select Screen↑↓: Select ItemEnter: Select+/- : Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

▶ System Agent Configuration

Scroll to this item and press and view the following screen:

Aptio Setup - AMIChipset
System Agent ConfigurationIGD Memory [64M]DVMT/FIXED Memory [256M]IGD Multi-Monitor [Disable]RE-Size BAR Support [Disable]	Select DVMT 5.0Pre-Allocated (fixed) Graphics Memory size used by the Internal Graphics Device.
	→←:Select Screen↑↓:Select ItemEnter : Select+/- : Change Opt.F1:General HelpF2:Previous ValuesF3:Optimized DefaultsF4:Save & ExitESC:Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

IGD Memory (64M)

This item shows the information of the IGD (internal Graphic Device) memory.

DVMT/FIXED Memory (256MB)

When set to DVMT Mode, the graphics chip will dynamically allocate system memory as graphics memory, according to system and graphics requirements.

IGD Multi-Monitor [Disable]

Use this item to enable or disable IGD Multi-Monitor Device.

RE-Size BAR Support [Disable]

Use this item to enable or disable RE-Size BAR Support Device.

▶ PCH Configuration

Scroll to this item and press and view the following screen:

Aptio Setup - AMIChipset
PCH ConfigurationRestore AC Power Loss [Power Off]Audio ConfigurationHD Audio [Enabled]Case Open Warning [Disabled]Chassis Opened [No]	Select AC power state when power is re-applied after a power failure.→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Resotre AC Power Loss (Power Off)

This item enables your computer to automatically restart or return to its operating status.

HD Audio (Enabled)

This item enables or disables HD audio.

Case Open Warning (Disabled)

Use this item to enable or disable the warning if the case is opened up, and the item below indicates the current status of the case.

Chassis Opened (No)

This item indicates whether the case has been opened.

Press to return to the Chipset Menu page.

▶ ME Configuration

Scroll to this item and press and view the following screen:

Aptio Setup - AMIChipset
Management Engine Technology ConfigurationME Control [Enabled]ME FW Version 16.1.30.2264	Enable/Disable ME Firmware
	→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

ME Control (Enabled)

Use this item to enable or disable the ME control.

ME FW Version (16.1.30.2264)

This item shows the ME FW version.

Press to return to the Chipset Menu page.

Tweak Menu

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

Aptio Setup - AMI
Main Advanced Chipest Tweak Security Boot Exit
TweakCPU OverClocking ConfigurationMemory configurationIntel(R) Core(TM) i5-14600TProcessor Speed 1800 MHzMemory Frequency 5600 MHzTotal Memory 32768 MB	CPU OverClockingConfiguration→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

▶ CPU OverClocking Configuration

Scroll to this item to view the following screen:

Aptio Setup - AMITweak
EIST [Enabled]Turbo Boost [Enabled]Power Limited 1 Override [Enabled]Power Limited 1 Value MaximumPower Limited 1 Time Window [0]Power Limited 2 Override [Enabled]Power Limited 2 Value MaximumPower Limited 3 SettingsPower Limited 4 SettingsBoot performance mode [Max Non-Turbo Perf...]TDP Lock [Disabled]TDP Lock 18P-core Turbo Ratio Limit Ratio0 51P-core Turbo Ratio Limit Ratio1 51P-core Turbo Ratio Limit Ratio2 47P-core Turbo Ratio Limit Ratio3 47P-core Turbo Ratio Limit Ratio4 42P-core Turbo Ratio Limit Ratio5 42E-core Turbo Ratio Limit Ratio0 36E-core Turbo Ratio Limit Ratio1 36E-core Turbo Ratio Limit Ratio2 36E-core Turbo Ratio Limit Ratio3 36	Enhanced IntelSpeedStep Technology→←: Select Screen↑↓: Select ItemEnter: Select+/- : Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

EIST (Enabled)

This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep Technology).

Turbo Boost (Enabled)

Use this item to enable or disable the turbo boost.

Power Limit 1 Override (Enabled)

Use this item to enable or disable the Power Limit 1 Override. If this option is disabled, BIOS will program the default values for Power Limit 1.

Power Limit 1 Value (Maximum)

This item shows Power Limit 1 Value in milliwatt.

Power Limit 1 Time Window (0)

Power limit 1 Time Window value in seconds. The value may vary from 0 to 128. If the value is 0, default values will be programmed (28 sec for Mobile and 1 sec for Desktop). Indicates the time window over which TDP value should be maintained.

Power Limit 2 Override (Enabled)

Use this item to enable or disable the Power Limit 2 Override. If this option is disabled, BIOS will program the default values for Power Limit 2.

Power Limit 2 Value (Maximum)

This item shows Power Limit 2 Value in milliwatt.

Press to return to the CPU OverClocking Configuration page.

▶ Power Limit 3 Settings

Scroll to this item and press to view the following screen:

Aptio Setup - AMI
Tweak
Power Limit 3 SettingsPower Limit 3 Override	[Disabled]	Enable/DisablePowerLimit 3 Override, If thisoption is disabled,BIOS will leave thedefault values forPower Limit 3 andPower Limited 3 TimeWindow.
		→←: Select Screen↑↓: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Power Limit 3 Override (Disabled)

Ues this item to enable or disable the Limit 3 Override. If this option is disabled, BIOS will leave the default values for Power Limit 3 and power limit 3 time window.

Press to return to the CPU OverClocking Configuration page.

▶ Power Limit 4 Settings

Scroll to this item and press to view the following screen:

Aptio Setup - AMITweak
Power Limit 4 Settings		Enable/Disable PowerLimit 4 Override. If thisoption is disabled,BIOS will leave thedefault values forPower Limit 4.
Power Limit 4 Override	[Enabled]
Power Limit 4	800000
Power Limit 4 Lock	[Disabled ]
		→←: Select Screen↑↓: Select ItemEnter: Select+/- : Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Power Limit 4 Override (Enabled)

Ues this item to enable or disable the Limit 4 Override. If this option is disabled, BIOS will leave the default values for Power Limit 4 and power limit 4 time window.

Power Limit 4 (500000)

Use this item to set the value of Power Limit 4.

Power Limit 4 Lock (Disabled)

Use this item to enable or disable Power Limit 4 lock.

Press to return to the CPU OverClocking Configuration page.

Boot Performance Mode (Max Non-Turbo Perfor...)

Uses this item to select the performance state that the BIOS will set before OS handoff.

TDP Lock (Disabled)

This item allows you to enable or disable the package TDP lock.

Press to return to the Tweak page.

▶ Memory Configuration

Scroll to this item and press to view the following screen:

Aptio Setup - AMITweak
Memory Configuration Memory profile Memory Frequency Timing Current Command Rate tCL tRCD/tRP tRAS tRFC tREFI tWR tWTR_L tWTR_S tRRD_L tRRD_S tRTP tFAW tCWL eDRAM Mode Retrain on Fast Fail Exit on Failure (MRC) Ch Hash Support	[Default SPD profile] [5600] Target 2 46 45 90 824 5460 84 28 7 14 8 21 32 44	Select DIMM timing profile. The below values start with the currently running values and don't auto populate.
			→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
	[eDRAM HW Mode] [Enabled] [Enabled] [Enabled]
Ver. 2.22.1289. Copyright (C) 2024 AMI

Memory Profile (Default SPD profile)

This item enables you to set the memory profiles. The selection of memory profiles impacts memory sizing behavior.

Memory Frequency (5600)

This item shows the memory frequency.

eDRAM Mode (eDRAM HW Mode)

Use this item to set the eDRAM mode.

Retrain on Fast Fail (Enabled)

Use this item to enable or disable restrain on fast fail.

Exit On Failure (MRC) (Enabled)

Use this item to enable or disable the exit on failure (MRC).

Ch Hash Support (Enabled)

Use this item to enable or disable the Ch Hash support.

Press to return to the Tweak page.

Inter(R) Core(TM) i5-14600T

This is display-only field and displays the information of the CPU installed in your computer.

Processor Speed (1800 MHz)

This item shows the processor speed.

Memory Frequency (5600MHz)

This item shows the information of the memory frequency.

This item shows the information of the total memory.

Security Menu

This page enables you to configure system security settings.

Aptio Setup - AMI
Main	Advanced	Chipset	Tweak	Security	Boot Exit
Administrator Password					Set Administrator Password
Administrator Password Status Not Install
User Password Status Not Install
System Mode state Setup					←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Secure Boot state Not Active
Secure Boot [Enabled] Secure BootMode [Standard]
Ver. 2.22.1289. Copyright (C) 2024 AMI

Administrator Password Status (Not Install)

This item shows administrator password installed or not.

User Password Status (Not Install)

This item shows user password installed or not.

System Mode sate (Setup)

This item shows system of secure boot (can be setup or user).

Secure Boot (Not Active)

This item shows the active state of secure boot.

Secure Boot (Enabled)

Use this item to enable or disable the secure boot.

Secure Boot Mode (Standard)

Use this item to enable or disable the secure boot mode.

Boot Menu

This page enables you to configure the system boot related parameters.

Aptio Setup - AMI
Main Advanced Chipset Tweak Security Boot Exit
Boot ConfigurationLaunch PXE OpROM [Disabled]Launch Storage OpROM [Enabled]Fast Boot [Disabled]Bootup NumLock State [On]Quiet Boot [Enabled]Boot mode select [UEFI]FIXED BOOT ORDER PrioritiesBoot Option #1 [Hard Disk]Boot Option #2 [NVME: Windows Boot...]Boot Option #3 [CD/DVD]Boot Option #4 [USB Floppy]Boot Option #5 [USB CD/DVD]Boot Option #6 [USB Hard Disk: UEFI...]Boot Option #7 [USB Key]Boot Option #8 [Network]Boot Option #9 [Other Device]▶UEFI NVME Drive BBS Priorities▶UEFI USB Hard Disk Drive BBS Priorities	Enable or Disable BootOption for LegacyNetwork Devices.
	→← : Select Screen↑↓: Select ItemEnter: Select+/- : Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Launch PXE OpROM (Disabled)

This item enables or disables launch PXE Option ROM.

Lunch Storage OpROM (Enabled)

This item enables or disables launch Storage Option ROM.

This item enables or disables boot with initialization of a minimal set of device required to launch active boot option. Has no effect for BBS boot options.

Bootup Numlock State (On)

This item enables you to select Numlock state.

Quiet Boot (Enabled)

This item enables or disables the quiet boot.

Boot mode select (UEFI)

Use this item to select boot mode.

Boot Option #1\~9

These items show the boot priorities and can be used to set the boot priorities of various device categories.

UEFI Hard Disk Drive BBS Priorities

This item enables you to specify the sequence of loading the operating system from the installing UEFI Disk drive. Press to view the submenu.

UEFI USB Hard Disk Drive BBS Priorities

This item enables you to specify the sequence of loading the operating system from the installing USB Key drive. Press to view the submenu.

Exit Menu

This page enables you to exit system setup after saving or without saving the changes.

Aptio Setup - AMI
Main Advanced Chipset Security Boot Exit
Save Changes and ExitDiscard Changes and ExitSave Changes and ResetDiscard Changes and ResetSave OptionsSave ChangesDiscard ChangesRestore DefaultsSave as User DefaultsRestore User DefaultsBoot OverrideWindows Boot Manager (INTEL SSDPEKKW512G7)UEFI: USB, Partition 1 (USB)	Exit system setup after saving the changes.
	→← : Select Screen↑↓: Select ItemEnter: Select+/- : Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit
Ver. 2.22.1289. Copyright (C) 2024 AMI

Save Changes and Exit

This item enables you to exit the system setup after saving the changes.

Discard Changes and Exit

This item enables you to exit the system setup without saving any changes.

Save Changes and Reset

This item enables you to reset the system setup after saving the changes.

Discard Changes and Reset

This item enables you to reset the system setup without saving any changes.

Save Options

This item enables you to save the options that you have made.

Save Changes

This item enables you to save the changes that you have made.

Discard Changes

This item enables you to discard any change that you have made.

Restore Defaults

This item enables you to restore the system defaults.

Save as User Defaults

This item enables you to save the changes that you have made as user defaults.

This item enables you to restore the user defaults.

Boot Override

Use this item to select the boot device.

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer's Website. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Advanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer's Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer. (You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the bootable device first.)
6 At the fs0:>prompt, type the Flash Utility program name and the file name of the new BIOS and then press . Example: AFUEFIX64.EFI 240131_CAP.cap
7 When the installation is complete, remove the bootable device from the computer and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.

This concludes Chapter 3. Refer to the next chapter for information on the software supplied with the motherboard.

Installing the Windows OS

Install Windows OS via USB flash drive.

a) Create an ISO file from the Windows 11 DVD.

This free program from Microsoft properly formats your flash drive and then copies the contents of the Windows 11 installation ISO file to the flash drive.

b) Boot from the USB device that you just created to start the Windows 11 installing process.

You need to change the booting priority in BIOS in order to boot from USB device. Enter into BIOS and select the Boot in menu (or press the hotkey F7), set USB drive as the first booting priority.

Manual Installation

Most drivers have a setup program (SETUP.EXE)

that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

Windows 11 OS Recovery

Windows 11 Recovery has basically 2 categories. Keep my files & Remove everything. Each types of recovery was defined by Microsoft, you can check their website “Reset my PC” section for further definition and recovery scenarios. https://support.microsoft.com/en-us/help/12415/windows-10-recoveryoptions

1. Select "Setting"

2. Select "Update & security"

3. Select "Recovery" "Reset this PC – Get started"

Once “Get started” was selected, there are 2 types of recovery mode will be presented.

Choose an option

Keep my files

Removes apps and settings, but keeps your personal files

Remove everything

Removes all of your personal files, apps, and settings.

Cancel

[Keep my files]

Keep my files • Reinstalls Windows 11 and keeps your personal files.

• Removes apps and drivers you installed.
• Removes changes you made to settings
• Removes any apps your PC manufacturer installed. (if you PC came with Windows11, apps from your PC manufacturer will be reinstalled.)

Ready to reset this PC

Resetting will:

• Remove all apps and programs that didn't come with this PC
  • Change settings back to their defaults
  • Reinstall Windows without removing your personal files

This will take a while and your PC will restart.

Reset

Cancel

Click "Reset" and start the recovery process.

[Remove everything]

Remove • Reinstalls Windows 11 and removes all your personal files.

everything Removes apps and drivers you installed.

• Removes changes you made to settings
• Removes any apps your PC manufacturer installed. (if you PC came with Windows11, apps from your PC manufacturer will be reinstalled.)

[Remove everything – Just remove my files]

[Remove everything – Remove files and clean the drive]

Select "Reset" to start the recovery process.

Memo

Troubleshooting and problem solution

After assembling the motherboard for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips.

a) Boot up failed.

1. Use the specified adapter provided by ECS.
2. Check whether the adapter has been plugged in.
3. Check the connection between adapter and the system.
4. Check that the power button can bu push normally. If it is successfully power on, the light from LED will show up.
5. If the boot up problem still exists after these checking steps, please turn to local dealer or repair center for further customer service.

b) Black screen or no image is displayed on the monitor.

1. Check whether the monitor has been turned on or works normally on other system.
2. Check whether the system has been power on successfully.
3. Check the cable is securely inserted into rear IO ports (DP/HDMI ^TM ) and also at monitor side (VGA/HDMI ^TM ).
4. If the display problem still exists after checking steps, please turn to local dealer or repair center for further customer service.

c) Display Error

1. Check whether the driver is correctly installed in “Device Manager”. If there is yellow mark or unknown devices message shown in the list, please reinstall the driver via ECS official website.

1. Adjust the screen to the best resolution to get better using experience.

d) Wire LAN connecting failed.

1. Check whether the LAN driver is correctly installed in "Device Manager". If there is yellow mark or unknown devices message shown in the list, please reinstall the driver via ECS official website.
2. Ensure the LAN cable is securely inserted to the RJ45 port and the LED light flashes normally.
3. Check IP address.
4. If the LAN connection problem still exists after these checking steps, please turn to local dealer or repair center for further customer service.

e) Wireless LAN connecting failed

1. Check whether the WLAN card driver is correctly installed in “Device Manager”. If there is yellow mark or unknown devices message shown in the list, please reinstall the driver via ECS official website.
2. Check the WIFI in your working area is well functional and has good reception.
3. If the WIFI connection problem still exists after these checking steps, please turn to local dealer or repair center for further customer service.

f) No sound from audio combo jack

1. Check whether the audio driver is correctly installed in "Device Manager". If there is yellow mark or unknown devices message shown in the list, please reinstall the driver via ECS official website.
2. After connecting the speaker or header phone, adjust audio setting in Control panel> Hardware and sound.

1. If the audio problem still exists after these checking steps, please turn to local dealer or repair center for further customer service.

Manufacturer: ECS Industrial Computer Co., Ltd.

Address: 9F, No. 22, Sec. 3, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104427, Taiwan (R.O.C.)

Tel: [phone]

FAX: [phone]

For more information, visit www.ecsipc.com
