USER MANUAL KGC231-60-E-050CB Exquisit

Pure architectural line drawing of a two-story refrigerator with no text or symbols

Inhoud

Bedieningspaneel

Simple line drawing of a table with a tray and a stand, no text or symbols present

Simple line drawing of a curved object with an arrow indicating direction (no text or symbols)

Line drawing of a car door frame with a numbered label (3) and a small object on the side (no text or symbols present)

Simple line drawing of a mechanical component with a pin and arrow indicator (no text or symbols)

Pure mechanical diagram showing a pulley system with a magnified inset of the shaft (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a tray with a lid and a small object on top, no text or symbols present

Simple line drawing of a folded document with arrows indicating rotation (no text or symbols)

Positie

Technical diagram showing a mechanical component with an inset view of a curved component (no text or symbols)

Simple line drawing of a ladder with two plates and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical frame or enclosure with no visible text or symbols

https://www.exquisitbenelux.nl

domestic and professional appliances

MULTIBRAND SALES & SERVICES

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

SALES & SERVICES

MULTIBRAND

User manual

Fridge-Freezer

KGC231-60-E-050CB

Pure electrical circuit lines without any symbols

Contents

1. Getting to know your appliance Page 3
2. For yor safety Page 4
3. Setting up & Connecting device Page 7
4. Putting into operation Page 10
5. Service and Maintenance Page 17
6. Operating noises/ troubleshooting Page19
7. Disposal of the device Page 21
8. QR code Warranty conditions Page 22

Introduction

It is essential to read the instruction manual carefully before operating the appliance. The instruction manual contains important safety information for the operation and maintenance of the appliance. Proper operation makes a major contribution to efficient energy use and minimises the energy consumption of the appliance.

Improper use of the appliance can be dangerous, particularly for children.

Keep the instruction manual for future reference and pass it on to any subsequent owners.

The manufacturer is working constantly on the further development of all types and models. We therefore reserve the right to make changes in form, equipment and technology.

CE Conformity

At the time of its placement on the market, this appliance conforms to the requirements laid down in the Council directives on the approximation of the laws of the Member States relating to electromagnetic compatibility, Directive 2014/30/EU, and relating to the making available on the market of electrical operating equipment designed for use within certain voltage limits, Directive 2014/35/EU.

This appliance bears the CE mark and has a declaration of conformity that can be examined by the responsible market supervisory authorities.

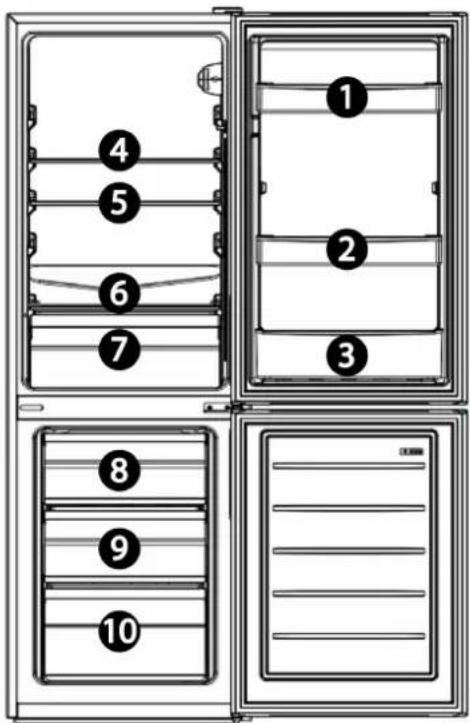

Scope of supply

1x appliance ^2
1x Instruction manual

Refrigerating compartment

3x Glass shelves
1x Vegetable drawer
1x Egg tray
3x Door compartments

Freezer compartment

3x Freezer drawers

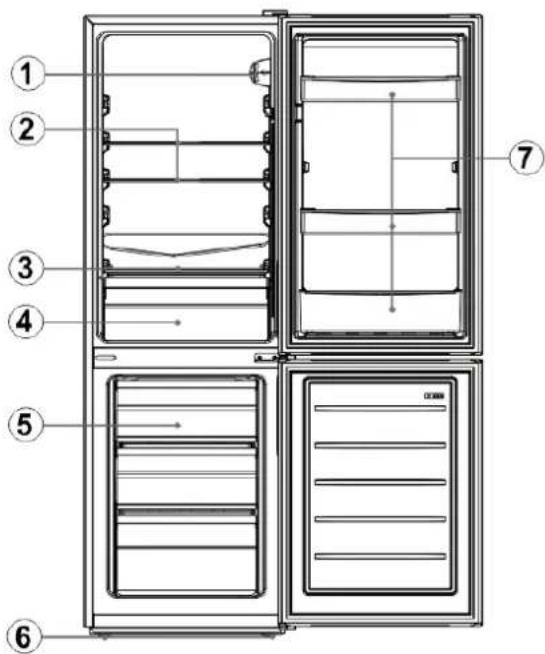

Designation

1) Temperature controller / lighting
2) Adjustable glass shelves
3) Glass shelf above the vegetable drawer
4) vegetable drawer
5) Freezer drawers
6) adjustable feet / castors at the back
7) Door compartments

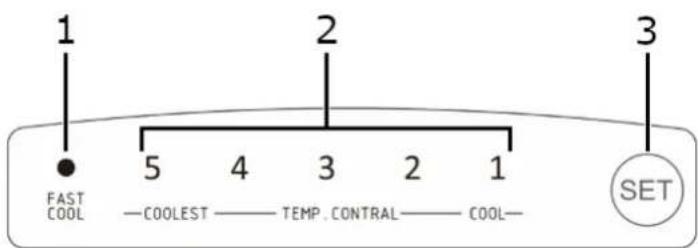

Control panel

1) Super function (FAST COOL)
2) Temperature levels
3) Temperature setting button

For safe and proper use of the appliance, read the instruction manual and other documentation accompanying the product and keep in a safe place for future reference. All safety instructions in this instruction manual are marked with a warning symbol. They draw your attention to potential hazards. Be sure to read and observe this information.

Explanation of the safety instructions

DANGER

Indicates a hazardous situation which, if not avoided, will lead to very serious injuries or even death!

WARNING

Indicates a hazardous situation which, if not avoided, can lead to very serious injuries or even death!

CAUTION

Indicates a hazardous situation which, if not avoided, can lead to minor or moderate injuries!

ATTENTION

Indicates a situation which, if not avoided, will lead to material damage.

ELECTRIC SHOCK HAZARD!

RISK OF SCALDING!

FIRE HAZARD!

➢ Information and instructions to be observed.

- Indicates a list

√ Indicates inspection steps in sequence

1. Indicates work steps in sequence

→ Describes the response of the appliance to the work step

Intended use

The appliance is intended for private/household use. It is suitable for refrigerating/freezing food.

• Do not use the appliance for purposes other than refrigerating/freezing food. The manufacturer accepts no liability for any damage.
• For safety reasons, modifications or alterations to the appliance are not permitted.
  • The appliance is not intended for built-in use.
• Appliances with a mechanical temperature regulator are intended for use up to a maximum altitude of 2000 metres above sea level.
• Any use outside these areas of application is not in accordance with the intended use and is therefore considered improper use.

Improper use

The following activities are considered improper use and are therefore prohibited:

Do not store or refrigerate medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Devices Directive 2007/47/EC in the refrigerator.

• Do not store explosive substances or spray cans with flammable propellants such as butane, propane, pentane etc. in the appliance.
• Do not store carbonated, sparkling drinks in the freezer compartment.
• Do not store bottles in the freezer compartment unless approved by the manufacturer.
• Do not squeeze food into the freezer compartments.
• Do not operate electrical appliances in the food store room that have not been approved by the manufacturer.
  • The appliance is not suitable for commercial use.
• Do not set up the appliance outdoors.
• Do not connect the appliance to the mains power supply using multiple socket strips.
• Do not route the mains power cable under voltage.
• Do not kink the mains power cable.
• Set up the appliance so that the mains plug is accessible at all times.
• Do not pull the mains plug out of the plug socket at the mains power cable.

Safety for specific groups of people

The appliance may be operated by children over 8 years of age and persons whose physical, sensory or mental aptitude are impaired or who lack experience and/or knowledge. However, they must be supervised or instructed in the safe use of the appliance and understand the possible risks.

• Children may only clean and service the appliance under adult supervision.
• Supervise children to ensure that they do not play with the appliance.

DANGER

RISK OF STRANGULATION DUE TO MAINS POWER CABLE!

Keep children under 8 years of age away from the mains power cable of the appliance.

DANGER

DANGER OF SUFFOCATION DUE TO PACKAGING MATERIALS!

Keep children away from the packaging materials.

DANGER

RISK OF SUFFOCATION FROM OLD APPLIANCE!

• Children playing can get trapped inside the appliance or get into other life-threatening situations.
• Remove or destroy existing locks and fasteners.
• Do not let children play with the appliance.
  • Always supervise children near the old appliance.

Residual risks

DANGER

ELECTRIC SHOCK HAZARD!

• Never touch the mains plug on the mains power cable with wet or damp hands when plugging it in or unplugging it.
• Install and connect the appliance only in accordance with the description in the instruction manual.
  • In an emergency, pull the mains plug out of the plug socket immediately.
• Remove the mains plug from the plug socket before starting cleaning or service work.
• A damaged mains power cable must be replaced by our After Sales Service without delay.
• If the mains power cable or mains plug is damaged, do not use the appliance any more.
• Do not carry out any work on the appliance other than the cleaning and service work described in this instruction manual.

WARNING

FIRE HAZARD!

• An inadequate circulation of air can cause a build-up of heat that can lead to a fire.
• It is essential to observe the prescribed clearances for the rear, side and top of the appliance (see chapter Minimum Clearances).
• Keep the compressor and condenser (depending on model) free of dust and objects.

Hazards due to refrigerant

WARNING

HEALTH HAZARD!

If the refrigeration circuit is damaged, R600a isobutane refrigerant will escape. The refrigerant poses a health hazard on contact with the eyes and if inhaled.

WARNING

FLAMMABLE GAS!

EXPLOSION AND FIRE HAZARD!

• The refrigeration circuit of the appliance contains the refrigerant isobutane (R600a), a natural gas with high environmental compatibility; it is flammable.
• Only authorised specialists are allowed to work on the refrigerant system.
• Do not damage the refrigeration circuit, e.g. by puncturing the refrigerant channels with sharp objects, kinking the pipework, etc.
• Do not damage any parts of the refrigeration circuit when transporting, setting up, servicing or disposing of the appliance.
• In order that an explosive gas/air mixture cannot form in the event of a leak in the refrigeration circuit, the room in which the appliance is installed must have a minimum size according to standard EN 378 of 1 m ^3 per 8 g of refrigerant. The quantity of refrigerant in the refrigerating appliance/freezer can be found on the type plate.

Residual risks

What to do if the refrigeration circuit is damaged:

• Avoid naked flames and ignition sources.
• Ventilate the room in which the appliance is installed thoroughly.
• Contact After Sales Service.

Setting up and connecting

Before setting up and connecting the appliance, ensure that

• the appliance is disconnected from the mains power supply (see residual risks chapter) and
• the installation conditions are fulfilled (see chapter Minimum Clearances).

Unpacking the appliance

The packaging materials must be undamaged. Inspect the appliance for transport damage. On no account should a damaged appliance be connected to the mains power supply. In case of damage, contact the supplier.

CAUTION

RISK OF INJURY AND APPLIANCE DAMAGE!

Always carry out transport with a second person.

Do not cut packaging material with a sharp object, e.g. carpet knife.

Removing transport protection

The appliance and some of the interior parts are secured for transport.

√ Remove all adhesive tape on the right and left side of the appliance door.
√ Remove styrofoam parts above the compressor on the rear of the unit, if present.
√ Remove all adhesive tapes and packaging parts from the interior of the appliance.
√ Remove residues of adhesive with alkaline water.

There may be stickers with warnings on the appliance. These must be observed and not removed from the appliance.

Changing the doorhinges

The door hinge of the appliance can be shifted from left to right or vice versa.

ATTENTION

APPLIANCE DAMAGE!

Do not tilt the appliance more than 45^ when mounting the door in order not to damage the refrigerating system.

Tools required for changing door hinges:

TOOL	DESIGNATION
Cross-head screwdriver
Flat screwdriver
Fork Wrench (English)

STEP-BY-STEP INSTRUCTIONS	FIGURE
1. Remove the hinge cover and the upper hinge from the upper right side of the unit.
2. Remove the screw hole cover from the upper left side of the unit.
3. Lift the refrigerator door out of the middle hinge. Slide the hinge plug from the upper left side to the upper right side of the door.
4. Remove the centre hinge from the right-hand side. Remove the covers of the screw holes on the left side.
5. Lift the freezer door out of the bottom hinge. Slide the hinge plug from the upper left to the upper right side of the door.
6. Remove thedoor stop from the lower right side of the door and attach it to the lower left side of the door.
7. Remove the lower hinge from the lower right side of the unit. Remove both adjustable feet. Remove the lower hinge pin from the hinge, turn the hinge over and replace the hinge pin on the other side. Screw the lower hinge onto the bottom left side of the unit. Screw on both adjustable feet.
8. Attach freezer door and attach the centre hinge on the left side of the unit. Fit the cover to the screws holes
9. Carefully fit the appliance door onto the pin of the middle hinge and close the door. Place the hinge on the appliance door with the pin facing downwards and screw it tight with 3 screws. Fit the screw hole cover on the upper right side of the unit.

Setting up the appliance

Place the appliance

• in accordance with the prescribed minimum clearances.
- Set up the appliance in a dry, well-ventilated room whose ambient temperature corresponds to the climate class for which the appliance is designed.

ATTENTION

APPLIANCE DAMAGE!

Leave the appliance to stand for 12 hours after transport to allow the refrigerant to collect in the compressor. Failure to observe this may damage the compressor and cause the appliance to fail. This would void all warranty claims.

CLIMATE CLASS	TEMPERATURE RANGE
(SN) Extended temperature range	+10 °C to +32 °C
(N) Temperature range	+16 °C to +32 °C
(ST) Subtropical temperature range	+16 °C to +38 °C
(T) Tropical temperature range	+16 °C to +43 °C

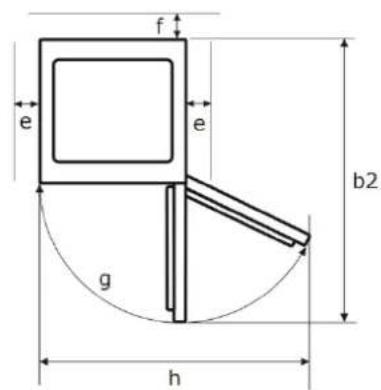

Minimum clearances for ventilation

Air circulation at the rear, side and top of the appliance influences energy consumption and refrigerating/freezing performance (depending on model). It is essential that the minimum clearances for ventilation of the appliance are observed as shown in the following drawing. If the minimum clearances are not observed, the accumulated air cannot escape and the compressor is in continuous operation, which shortens the life of the appliance.

Appliance dimensions in mm and degrees

a	b	b2	c	d	e	f	g	h
470	495	923	1440	50	100	50	135°	792

Simple line drawing of a rectangular frame with a square cutout and dimension label 'b' (no text or symbols beyond the label)

➢ Failure to observe the minimum distances increases power consumption.
If the accumulated heat cannot dissipate around the appliance, the function of the appliance will be impaired.
To achieve the specified energy class, comply with the above mentioned clearances.
Do not install refrigerator/freezer combinations with only one temperature regulator in refrigerated rooms below 16 °C

Levelling

If the surface is slightly uneven, level the appliance with the front feet.

Putting into operation

Clean the appliance and the interior parts thoroughly before putting into operation (see chapter "Service and Maintenance").

• Set the temperature according to the ambient temperature at the installation location if the equipment is changed or if the appliance door is opened and closed frequently.
• With very high summer temperatures, set the temperature regulator to a higher level to maintain the desired cooling temperature.
• For optimum energy consumption, leave the glass shelves/drawers in the appliance as shown (see section 3.2 Proper storage of food).
• The freezer compartment is ready for use after about 3 hours.

Switch appliance ON/OFF

1. Connect the appliance to the mains power supply.
   → When the appliance door is opened, the interior light comes on.
2. To switch on the appliance, turn the temperature regulator to the desired freezing temperature. The temperature regulator is located at the top of the appliance interior.
3. To switch off the appliance, pull out the mains plug.

ATTENTION

APPLIANCE DAMAGE!

Do not switch on the appliance immediately after a power interruption. Possible overload of the compressor or fuse blows.

Setting the temperature

The temperature depends on certain factors, such as the place of installation, how often the appliance door is opened and closed or how the appliance is loaded.

1. Adjust the internal temperature of the appliance with the temperature control.
2. When switching on for the first time, turn the temperature regulator to the highest setting.
   → The appliance reaches its normal working temperature after approx. 2 hours and is then ready for operation.
3. Turn the temperature regulator back to a medium setting.

Locating the coldest position in the refrigerating compartment

The adjacent symbol indicates a temperature of at least +4 °C and colder in the refrigerator (above the glass shelf over the vegetable drawer).

If the "OK" symbol is not visible (temperature is not optimal): Only change the temperature regulator gradually and wait for approximately 12 hours before checking again). Repeat this step until the "OK" symbol is visible.

Putting into operation

To determine whether it is too cold (below +4°C) in the area where the "OK" symbol is visible:

1. Only change the temperature regulator gradually and wait for approximately 12 hours before checking again).

2. If "OK" is still visible, set one or half step warmer (wait approx. 12 hours before checking again).

3. As long as OK is displayed, repeat step 1 until the midpoint for the target temperature of +0.4 °C is reached.

The "OK" sticker is intended for use in this appliance only.

If the appliance door remains open for a longer period of time, the temperature inside the appliance will rise. The "OK" indicator may fade or no longer be visible.

Cooling temperature

1. Press the "SET" button.
   → The selected temperature level lights up.
2. Press the key "SET" until the desired temperature setting is reached.

The set temperature may differ from the temperature in the interior.

The temperature depends on the following factors:

• Ambient temperature
  • Installation site
• Mounting
  • Frequency of door opening

Super Function (Fast Cool)

Food cools faster and stays fresh longer.

1. Press the "SET" button.
   → LED "FAST COOL" lights up.
2. To deactivate manually press the "SET" key.
   → LED "FAST COOL" goes out.
3. Set the appliance to the desired temperature.

The Fast Cool function also influences the freezing temperature. I.e. it gets colder in the freezer. Ideal for freezing fresh food.
After 26 hours, the function "Fast Cool" switches off automatically.

Proper storage of food

Proper storage can help maintain food quality.

WARNING

HEALTH HAZARD!

If the appliance is switched off or the power has failed, the food is not sufficiently refrigerated. Stored food can thaw or defrost and spoil. There is a risk of food poisoning if the thawed food is consumed.

• After a power failure, check whether the stored food is still fit for consumption.
- Dispose of frozen food that has visibly thawed after a power failure.
• Do not freeze food that has already been thawed or defrosted.

The refrigerating compartment is suitable for the storage of fresh food and beverages.

Observe the following when storing in a refrigerating compartment:

• Use only food that is fit for consumption.
- Keep the period between the purchase of the food and its storage in the appliance as short as possible.
- Only store fresh meat and fresh fish well packed in protective film or airtight containers in the coolest place in the appliance for a maximum of 1 to 2 days. Avoid contact with cooked food.
- Avoid contamination of food with raw meat and raw fish. Meat juice must not come into contact with other foodstuffs.
- Do not store potatoes, onions, garlic, tomatoes, bananas and avocados in the refrigerator. If this is necessary, then only for a short time and well packed.
- Cover food before placing into the appliance, particularly cold meals, cooked foods and spiced foods.
- Allow warm meals to cool down before placing into the refrigerator.
- Increased temperature in the appliance makes food spoil faster. The medium temperature setting is best suited for optimum food preservation.
- Place food in the refrigerator in such a way that the air can circulate freely in the compartment.
- When storing bottles in the bottle compartment of the inner door, make sure that they are not too heavy; the compartment could come away from the door.
• Children aged 3 to 8 years may load and unload the appliance.

The following are suitable for packing:

• For food: suitable plastic bags and films
• Special plastic hoods with rubber draw tape
- Aluminium foil

To store larger quantities in the refrigerating/freezer compartment, the glass shelves are removable.

The storage shelf is removable / height-adjustable.

The glass shelves are removable and height adjustable.

1. Pull the glass shelf forward.
2. Pivot the glass shelves up or down and remove.

The glass shelf above the vegetable drawer always remains in the same position to ensure correct air circulation.

Observe the following information when refrigerating fresh food:

If the appliance doors are open for a long period of time, this leads to a considerable increase in temperature in the compartments of the appliance. Stored food can therefore spoil faster.

The freezer compartment is suitable for the longer-term storage of frozen goods and for freezing fresh food.

CAUTION

RISK OF INJURY!

• Touching frozen goods, ice and metallic parts inside the freezer compartment of the appliance can cause burn-like symptoms on very sensitive skin.
• Do not touch frozen goods with damp or wet hands; your hands could freeze to the goods.

Observe the following when storing in a freezer compartment:

- Keep the appliance doors closed in the event of a power failure. The food remains frozen for several hours (see "Storage time in the event of faults" product fiche).

• Use only food that is fit for consumption.

- Do not interrupt the refrigerating chain of frozen products.

- Keep the period between the purchase of the frozen food and its storage in the appliance as short as possible.

- Do not freeze large quantities at once. The quality of the food is best retained if it is quickly frozen through to the core. The maximum amount of food you can freeze within 24 hours is stated on the type plate and in the product fiche.

- The temperature during the freezing phase can be influenced via the temperature regulator in the refrigerating compartment.

- Store high-proof alcoholic beverages only tightly closed and upright. Observe the beverage manufacturer's instructions.

For safety reasons, freezer drawers are fitted with a stop device. However, you can remove them completely by pulling them up and then removing them. They are inserted in the reverse order.

Description of freezer compartment according to number of stars (*)

COMPARTMENT TYPE	TARGET STORAGE TEMPERATURE	SUITABLE FOR...
"0-star compartment"	-6°C ~ + 0°C	Storage of fresh meat and fresh fish for a period of one to a maximum of three days and for storing or making ice cubes. Not suitable for freezing fresh food.
	≤ - 6°C	Storage of frozen products for a maximum period of one month. Not suitable for freezing fresh food.
	≤ - 12°C	Storage of frozen products for a maximum period of two months and for storing or making ice cream and ice cubes. Not suitable for freezing fresh food.
	≤ - 18°C	Storage of frozen products for a maximum period of three months. Not suitable for freezing fresh food.
	≤ - 18°C	Storage of frozen products and for freezing fresh food over a longer period of time.

Overview of storage recommendations for refrigerator/freezer compartment

REFRIGERATING COMPARTMENT		FREEZER COMPARTMENT
1		8
2		9
3		10
4
5
6
7

Freezing capacity of the maximum amount of food within 24 hours can be seen on the type plate (inside or on the back of the appliance) and the product fiche.

Making ice cubes

Fill an ice cube tray (not included in the scope of supply) three-quarters full with water and place horizontally on the bottom of the freezer compartment. Loosen a frozen ice cube tray only with a blunt object (e.g. the handle of a spoon). Hold frozen ice cubes under running water for a short time to make them easier to remove.

Saving energy

• Do not install the appliance near stoves, radiators or other heat sources. At higher ambient temperatures, the compressor runs longer and more frequently and results in a higher energy consumption.
• Ensure adequate ventilation space at the base, on the sides and back of the appliance. Never cover ventilation openings. Observe the clearances (see chapter 2 "Setting up and Connecting").
• The arrangement of the drawers, shelves and compartments as shown in the figure "Getting to know your appliance" offers the most efficient use of energy and should therefore be maintained where possible.
• For more storage space (e.g. for large refrigerated/frozen goods) remove the middle shelves/drawers. Remove the top and bottom shelves/drawers last if necessary.
• A uniformly filled refrigerator/freezer compartment contributes to an optimum use of energy. Avoid empty or half-empty compartments.
• Do not place hot food in the refrigerator/deep freezer. Let food cool down first.
• Allow frozen food to thaw in the refrigerator. The cold from the frozen food lowers the energy consumption of the refrigerating compartment and thus increases the energy efficiency.
• Do not set the temperature lower than necessary. This also contributes to an optimum energy utilisation.
• The door seals must be absolutely intact so that the doors close correctly and the energy consumption is not unnecessarily increased.
• Open the appliance only when necessary, and then for as short a time as possible. Energy consumption and the temperature inside the appliance can increase if the appliance door is opened frequently or for a long time, or if it is not closed properly.

For hygiene reasons, regularly clean the appliance inside and out, including the door seal and interior fittings.

Before carrying out any maintenance and servicing work, ensure that the appliance is disconnected from the mains power supply (see safety chapter » Electric Shock).

CAUTION

RISK OF INJURY!

• Do not use electric heaters, naked flames, knives, etc. for defrosting.
• Never clean the appliance with a steam cleaner. Moisture could get into electrical components.

ATTENTION

APPLIANCE DAMAGE!

• Do not use abrasive or aggressive cleaning agents.
• Do not use abrasive sponges.
• Essential oils and organic solvents, e.g. the juice of lemon or orange peel, butyric acid or cleaning agents containing acetic acid can attack plastic parts. Do not allow such substances to come into contact with parts of the appliance.

Cleaning the appliance

1. Remove the goods. Store everything covered and in a cool place.
2. To clean the glass shelves, lift them slightly upwards and pull them out until they can be pivoted up or down and removed.
3. Push up and remove the door compartments.
4. Clean the appliance, including the door seal and interior parts, using a cloth and lukewarm water with a little household detergent.
5. Rinse with clear water and wipe dry.
6. Check the condensation drain hole. Clean at regular intervals using cotton swabs.
7. Install the cleaned glass shelves, door compartments, drawers, etc. again.
8. Make sure that the interior of the appliance is completely dry.
9. Connect the appliance to the mains power supply and switch it on.

Simple line drawing of a ladder with two horizontal plates and a vertical rod, no text or symbols present.

Pure technical line drawing of a mechanical frame or bracket (no text or symbols)

Cleaning/replacing the appliance door seal

Checking the airtightness of the door seals or cover seals

1. Clamp a sufficiently long strip of paper 50 mm wide and 0.08 mm thick at various points on the appliance.
   → If the paper can be pulled through with a slight resistance, the appliance door seal is tight. (The thickness test of the paper used is carried out according to ISO 534)
   or

2. Place a torch on a glass shelf in the appliance, direct the light towards the appliance door seal and close the door. If no direct light shines through, the appliance door seal is tight.

→ If direct light shines through the closed door, the appliance door seal is not tight.

Tight

Leaking

Leaking

Replacing the appliance door seal

1. Remove food from the appliance.
2. Pull the appliance door seals out of the appliance.
3. Clean the appliance door as usual.

4. Insert the new appliance door seal in the gaps.

5. Insert appliance door seal in the corners first and press/stroke it with your thumb.

6. If the appliance door seal is not evenly applied everywhere: carefully heat the relevant areas with a hairdryer and pull out a little with your fingers.

Inspect the appliance door seals regularly for soiling and damage.
Grease and oil make the appliance door seals porous and brittle. If grease or oil gets on door seals: Clean the appliance door seals, including the interior parts, using a cloth and luke-warm water with a little household detergent.

Defrosting

Automatic defrosting in the refrigerating compartment

The refrigerated area is equipped with an automatic defrosting system. Frost and ice defrosts automatically. The condensation flows through the channel into the defrosting hole and out into a condensation bowl on the rear of the appliance. The heat from the motor evaporates the condensation.

Set the temperature so that the appliance does not constantly cool down – without a defrost phase. The temperature in the refrigerator drops (to below 0^ C) and drinks and fresh food freeze. The icing of the rear wall causes the energy consumption to rise very sharply and the appliance efficiency drops.

If the condensation does not run properly through the drain line into the drip tray, check whether the drain line is clogged (see chapter "Troubleshooting").
There must be no water on the floor or in contact with electrical components.

Manual defrosting in the freezer compartment

After prolonged operation, a frost or ice layer may form in the freezer compartment. If this ice layer reaches a thickness of 6 – 8 mm, defrost and clean the freezer compartment. An excessive frost or ice layer increases the energy consumption. Before defrosting, set the temperature regulator to the highest settings; the frozen goods store the cold for a certain length of time.

1. Pull out the mains plug.
2. Empty the appliance and store the goods in a cool room.
3. For faster defrosting, place a vessel with warm water into the freezer compartment.
4. Do not use mechanical objects to remove the ice layer.
5. First remove the large pieces of ice, then the small pieces from the appliance.
6. Clean the freezer compartment, including the interior parts, using a cloth and luke-warm water with a little household detergent.
7. Rinse with clear water and wipe dry.
8. After cleaning, connect the appliance to the mains power supply again and switch on.

Operating noises/ Troubleshooting

Lamp (LED)

The appliance is equipped with maintenance-free LED lighting. This product contains a light source for energy efficiency class "F".

➢ Repairs to this LED lighting should only be carried out by After Sales Service.

Decommissioning the appliance

To switch off the appliance, remove the mains plug or switch off and unscrew the fuse.

√ Remove the food.
√ Remove the mains plug or switch off and unscrew the fuse.
√ Defrost the appliance and clean thoroughly (see chapter Service and Maintenance).
√ Leave the appliance doors open to prevent odour and mould formation.

Operating noises / troubleshooting

Repairs to electrical appliances may only be carried out by After Sales Service (see chapter "Spare parts/After Sales Service"). An incorrectly performed repair can pose dangers for the user.

If the repair is not carried out professionally, the warranty claim is voided.

Operating noises

NOISES	TYPE OF NOISE	CAUSE / REMEDY
Normal noises	Gurgling	Caused by the compressor when in operation.
	Liquid noises	Caused by the circulation of the refrigerant in the appliance.
	Clicking noises	The temperature regulator switches the compressor on or off.
Disturbing noises	Bottle noises	Leave a safe distance between the bottles and other vessels.
	Vibration of the condenser (only where the condenser is visible on the rear of the appliance)	Check whether the condenser is loose on the rear of the appliance. Secure condenser.

Troubleshooting

FAULT	POSSIBLE CAUSES	MEASURES
Interior light does not function, but compressor is running.	Lamp is defective.	Replace lamp (see chapter 4.4).
Water inside the appliance.	The condensation drain hole is completely clogged.	Clean the condensation drain hole, e.g. using a cotton swab.
The refrigeration system starts too often and runs too long.	The appliance door is opened too often.	Do not open the appliance door unnecessarily.
	The air circulation around the appliance is obstructed.	Keep the area around the appliance free.
The appliance does not refrigerate.	The appliance is switched off or is not connected to the mains power supply.	Check the power supply and fuses. Check whether the mains plug is correctly plugged in to the plug socket. Check that there is voltage at the plug socket.
	Ambient temperature is too low.	(See chapter 2.2)
Side wall is very warm (models with foamed-in condenser only).	The condenser gives off warm air to the environment. If the ambient temperature is too high, heat accumulation can occur. Once the ambient temperature has dropped, the appliance will refrigerate again normally. Be sure to maintain the prescribed clearances (see chapter 2.2).	No actions necessary.
"OK" sticker does not appear.	Average temperature in this area is set too high.	Set the temperature regulator to a colder setting. Only change the temperature regulator gradually and wait for approximately 12 hours before checking again.
A layer of frost or ice forms on the rear inner wall.	High room temperatures (such as on hot summer days) and a high temperature regulator setting can lead to continuous refrigerating operation. The compressor must run continuously to maintain the set temperature in the appliance. The appliance is not able to defrost automatically as this is only possible when the compressor is not running (see chapter "Defrosting).	Set the temperature regulator to a lower setting. The compressor will start and stop as usual and automatic defrosting will continue.

Spare parts are available from the After Sales Services.

A visit by an After Sales Service technician is not free of charge even during the warranty period in the event of incorrect operation or one of the faults described above.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Warranty conditions

Dear user,

For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.

https://www.exquisitbenelux.nl

For questions regarding sales you can email to: [e-mail]

For questions regarding service you can email to: [e-mail]

For other questions you can email to: [e-mail]

We can also be reached by phone : [phone]

DOMEST

domestic and professional appliances

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

MULTIBRAND SALUS & SERVICES

Pure electrical circuit lines without any symbols

Table de matières

Simple line drawing of a table with a tray and a pushpin, no text or symbols present

Simple line drawing of a curved object with an arrow indicating direction (no text or symbols)

Line drawing of a car door frame with a numbered label (3) and a small object on the side (no text or symbols present)

Simple line drawing of a mechanical component with a pin and arrow indicator (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a table with a tray and a lid, no text or symbols present

Simple line drawing of a folded document or envelope with arrows indicating rotation (no text or symbols)

Place approprié

Diagram showing a mechanical component with an inset view of a curved joint or knob (no text or symbols present)

Simple line drawing of a mechanical setup with two horizontal plates and a downward arrow, no text or symbols present.

Line drawing of a mechanical frame or enclosure with no visible text or symbols

https://www.exquisitbenelux.nl

domestic and professional appliances

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

SALES & SERVICES

MULTIBRAND

Gebrauchsanweisung

Pure architectural line drawing of a two-story refrigerator (no text or symbols)

Inhalt

Bedienfeld

Simple line drawing of a rectangular frame with a square cutout and dimension label 'b' (no text or symbols beyond the label)

Simple line drawing of a shelving unit with two shelves and a pulley, no text or symbols present

Line drawing of a mechanical frame or enclosure with no visible text or symbols

https://www.exquisitbenelux.nl

domestic and professional appliances

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

MULTIBRAND SALES & SERVICES
