USER MANUAL DAB Easy Nabo

Two NABO radio devices, one black and one white, displayed against a plain background with no visible text or symbols.

INHALTSVERZEICHNIS

1. VORWORT .... 5

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Two NABO radio devices, one black and one white, displayed against a plain background with no visible text or symbols.

CONTENTS

1. FOREWORD....47

1.2. Proper use according to design 47

2. SAFETY INFORMATION .... 48

2.1. Explanation of symbols....48
2.2. Safety note....50
2.3. Operational safety.... 51
2.4. Connecting the device .....52
2.5. Protecting the device against damage....53
2.6. Risk of injury....54
2.7. Notes on the radio interface....54
2.8. Handling batteries....55
2.9. Cleaning the device....56
2.10. Legal information....57

3. SCOPE OF DELIVERY .....57

4. OVERVIEW OF CONTROLS .... 58

5. OPERATION AND FIRST USE 59

5.1. Device properties ..... 59
5.2. Prepare the device for use 59
5.2.1. Optional: insert batteries ..... 59
5.2.2. Connect the power unit ..... 59
5.2.3. Orienting the telescopic antenna 60
5.2.4. Using headphones....60
5.2.5. Switching on the device 61
5.2.6. Switching off the device.... 61
5.2.7. Switching DAB+/FM mode 61
5.2.8 Volume settings....62
5.2.9. Display....62
5.2.10.Open displays 62

7.1 What is DAB+? 63

7.1.1 Data compression 64

7.1.2 Audio stream 64

7.2 DAB+ (Digital Radio) reception 64

7.2.1 Running a complete search scan 64

7.2.2 Choosing a station....65

7.2.3 Storing a DAB+ station in a memory slot....65

7.2.4 Playing a DAB+ station stored in a memory slot....65

7.2.5 Overwriting/Deleting a programme slot save . . . . . . . . . . . . . . . . . . . . . . 65

7.2.6 Signal strength....66

7.2.7 Manual settings....66

7.2.8 DRC 66

7.2.9 Prune 67

8. THE FM-FUNCTION 67

8.1 Switching on the FM radio mode 67

8.2 FM (UKW) reception with RDS information .....68

8.3 Automatic station scan....68

8.4 Manual station search....68

8.5 Scan settings 68

8.6 Storing an FM station in a memory slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

8.7 Playing an FM/UKW station stored in a memory slot....69

8.8 Overwriting/Deleting a programme slot save....69

9. SYSTEM SETTINGS ....70

9.1 Sleep timer....69

9.2 Alarm clock 70

9.2.1 Set up alarm clock 1 ..... 70

9.2.2 Switching off the alarm clock .....71

9.2.3 Snooze 71

9.3 Date and time settings....71

9.3.1 Manually set the time/ date....71

9.3.2 Automatic time update 72

9.3.3 Set the time format 72

CONTENTS

9.3.4 Set the date format 72
9.4 Display brightness 73
9.5 Language 73
9.6 Factory Reset....73
9.7 SW version 74

1. STORAGE 75
2. TROUBLESHOOTING....75
3. TECHNICAL DATA....76

E

1. DISPOSAL INFORMATION 77
   13.1. Disposing of the packaging 77
   13.2.Device disposal....77
   13.3. Disposing of the batteries 77
2. CE INFORMATION....78
3. SERVICE AND SUPPORT ....79

1. FOREWORD

Dear customer,

Thank you for choosing this product.

Please read these instructions carefully, and keep them for future reference.

These operating instructions are an integral part of the device! If you sell or distribute the device, please hand over this manual.

1.2. Proper use according to design

This product is an entertainment device.

The device serves as a receiver for DAB/DAB+/UKW radio signals.

Any other use or operation of the device is seen as not intended and may cause personal or material damage.

Do not use this device for any other purpose.

Only use the device indoors.

The device is intended for private use, and thus non-commercial use, only.

We assume that the user of the device has some general knowledge about using electronic entertainment devices. Any liability is voided in the case of improper use of the device.

2. SAFETY INFORMATION

2.1. Explanation of symbols

Symbol	Meaning
DANGER!	This signal word describes a hazard with a high level of risk, that may lead to death or severe injury if not followed.
WARNING!	This signal word describes a hazard with a medium level of risk, that may lead to death or severe injury if not properly followed.
ATTENTION!	This signal word describes a hazard with a low level of risk, that may lead to minor or moderate injuries if not properly followed.
NOTE!	This signal word warns against possible material damages and indicates specific instructions to operate the device. This sign warns against danger.
	This sign warns of dangers.

2. SAFETY INFORMATION

Symbol	Meaning
	Protection class IIElectric devices with a protection classII have an increased ordouble insulation at therated insulation voltagebetween the active and touchableparts (VDE 0100 component 410, 412.1).They are usually not connected to theprotective conductor. Even if they haveelectrically conductive surfaces,they are protected against contact withlive parts through an increased ordouble insulation.
	Products labelled with this symbolmeet the requirements of the guidelinesof the European Community.
	Devices with this symbol mayonly be used indoors in a dryenvironment.

2. SAFETY INFORMATION

2.2. Safety note

WARNING!

Inspect the device prior to use.

Should there be any damage or a defect on the device it may not be used.

Risk of injury!

There is a risk of injury for children and persons with reduced physical, sensory or mental capacities (for example partially disabled, older persons with limited physical or mental abilities) or a lack of experience and knowledge.

Store the device in a place that is out of reach for children.
This device may be used by children as of the age of 8 as well as by persons with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge, if they are supervised or instructed regarding the safe use of the device and have understood the related risks.
Never allow children to use the device unsupervised.

Risk of choking!

The packaging material is not a toy!
Store the used packaging materials (bags, polystyrene parts etc.) out of reach for children.
Children may not play with the packaging.
The packaging foil poses a particular risk of choking.

2. SAFETY INFORMATION

2.3. Operational safety

DANGER!

Risk of injury!

There is a risk of injuring oneself through electrocution on the live parts. There is a risk of electrocution or fire due to unintentional short circuiting.

Check the device for damages prior to every use. Should you detect visible damages or the device has visible damages, do not use it.
Should you detect a technical or mechanical problem please contact the TELESTAR service.
Only use the power unit that was included! Never use a different power unit.
Never open the casing of the device.
If there is a malfunction, immediately unplug the device from the power supply. To do so, promptly unplug the power unit from the power socket and the device.
Only use replacement parts and accessories that are shipped and approved by us.
Do not physically alter the device and do not use any spare parts or additional devices that were not explicitly approved or shipped by us.
Do not use the device in areas that have a high explosion risk. These include, for example, petrol storage areas, petrol stations, or areas in which solvents are stored or processed.
Do not use the device in areas with air that is polluted with particles (e.g. flour or wood-chip dust).

Performance errors may become apparent in the shape of the device becoming hot or smoke developing from the device or the power unit.

2. SAFETY INFORMATION

Loud or unusual sounds may also be a sign of a malfunction.

In such an event, immediately remove the power unit from the socket.
Only touch the casing of the power unit. Never pull the power unit's plug from the socket.

The device may not be used after a malfunction, until a trained person has inspected or repaired it.

If you introduce the device to a cold or warm environment, moisture may develop inside the device.

In such an event, wait approximately one hour before using the device.

Should you be gone for a longer period or in the event of a thunderstorm, unplug the device.

Take care to prevent moisture, water or splash water from coming into contact with the device and ensure that receptacles filled with water - e.g. vases - are not placed on or near the power unit.

In the event that foreign objects or liquid should enter the device or power unit, immediately unplug the power unit. Have a qualified specialist inspect the device before using it again. Otherwise there is a risk of electrocution.

Make sure that the device and power unit is not at risk of dripping or splash water and that there are no open flames (e.g. lit candles) near the device or the power unit.

The power unit must never be touched or grabbed with wet or moist hands.

2.4. Connecting the device

Only plug the device into properly installed, earthed and electrically secured power sockets.
Please keep the power source (socket) easily accessible.
Do not bend or squeeze any cables.
Before using the device, check whether the voltage specification on the device corresponds to your local power voltage.

2. SAFETY INFORMATION

The specifications on the power unit must correspond to the local power grid.

Only plug the device into a properly installed grid socket with 220-240 V alternating current, 50-60 Hz.
Place the radio on a solid, even surface.
The device consumes power in standby mode.

To fully switch off the device, the power plug must be pulled from the socket or the power unit on the back of the device must be switched off.

2.5. Protecting the device against damage

NOTE!

Unfavourable surrounding conditions, such as moisture, excessive heat or a lack of ventilation may damage the device.
Only use the device in dry rooms.

Avoid direct proximity to heat sources, such as radiations, open fires (e.g. from candles), devices with a strong magnetic field, such as loudspeakers.

Do not expose the device to extreme conditions, such as direct sunlight, severe humidity, moisture, extremely high or low temperatures, open flames.

Ensure sufficient distance to other objects to prevent the device from being obstructed, so that sufficient air ventilation is guaranteed.
Avoid direct sunlight and places with an exceptional amount of dust.
Do not place any heavy objects on the device or the power unit.
Do not use the device in areas that have a high explosion risk.

These include, for example, petrol storage areas, petrol stations, or areas in which solvents are stored or processed.

Do not use the device in areas with air that is polluted with particles (e.g. flour or wood-chip dust)

2. SAFETY INFORMATION

2.6. Risk of injury

WARNING!

Excessive sound pressure levels when using ear- or headphones may lead to damaging or loss of hearing.

Listening with earphones or headphones at an increased volume over a longer period of time may injure the user.

Please check the volume before putting the earphones or headphones in or onto the ears.

Set the volume at a lower level and only raise the volume to a point that is still comfortable.

2.7. Notes on the radio interface

The device generates an electro-magnetic field.

Please pay attention to any indications in your surroundings that may prohibit or restrict the use of electronic devices.

This may be the case in hospitals, petrol stations and patrol depots or airports, for example.

If there are such warning signs, promptly unplug the device from the power source.

The components contained in the device generate electro-magnetic energy and magnetic fields. These may inhibit medical devices such as a cardiac pacemaker or defibrillator. Therefore, please maintain sufficient and safe distance between the radio and medical devices.

Should you have reason to believe that the radio has caused a disruption of a medical device, immediately switch off and unplug the radio from the power source.

2. SAFETY INFORMATION

2.8. Handling batteries

DANGER!

Risk of injury!

An improper use or handling of batteries may cause a risk of injury! Never open batteries, short-circuit these or toss them into flames. Never charge these batteries. There is a risk of explosion when charging these batteries.

Make sure to note the polarity! Take care to properly connect the plus (+) and minus (-) poles, to avoid a short circuit.

Only use the batteries specified for this product.

Remove batteries from the device if it is not in use for a longer period of time.

Immediately remove drained or leaking batteries from the device. Leaking batteries pose a risk of acid-related injuries.

Store new as well as used batteries out of children's reach.

Swallowing batteries poses a risk of internal injuries. The battery acid contained inside the batteries may cause injuries if it comes into contact with skin.

After accidental swallowing or if there are signs of skin burns, rinse the affected area with sufficient clear water and seek medical attention immediately.

Batteries are not toys!

Always keep new and used batteries away from children.

Remove leaking batteries from the device and clean the contact points before inserting new batteries.

2. SAFETY INFORMATION

WARNING!

Improper use of batteries may pose a risk of explosion!

Only use batteries of the same type.
Please refrain from combining new and old batteries in one device.
Pay attention to the correct polarisation when inserting batteries.
Never charge these batteries.
Batteries should be stored in a cool and dry place.
Never toss batteries into fire.
If the device is not used for a longer period of time please remove the batteries from the device.
Never expose the batteries to major heat or direct rays of sun light.
Batteries may not be bent or opened.
Stop using the remote if the battery lid no longer closes properly.

2.9. Cleaning the device

Unplug the device from the socket prior to cleaning.

Use a dry, soft cloth to clean the device. Please refrain from using liquids when cleaning the device.

Do not use any solvent or cleaning agents, as these may damage the surface or labelling on the device.

Children may not clean the device.

2. SAFETY INFORMATION

2.10. Legal information

The device is intended for us in all countries of the European Union as well as Switzerland, Norway, Liechtenstein and Iceland.

The range of radio signals to be received meets all legal regulations of these countries.

If the device is to be used in a different country, the laws of that country must be considered and complied with.

3. SCOPE OF DELIVERY

Please remove the parts from the packaging and completely dispose of all packaging materials.

Please contact us if one or more of the specified parts are missing:

1x instruction manual

4. OVERVIEW OF CONTROLS

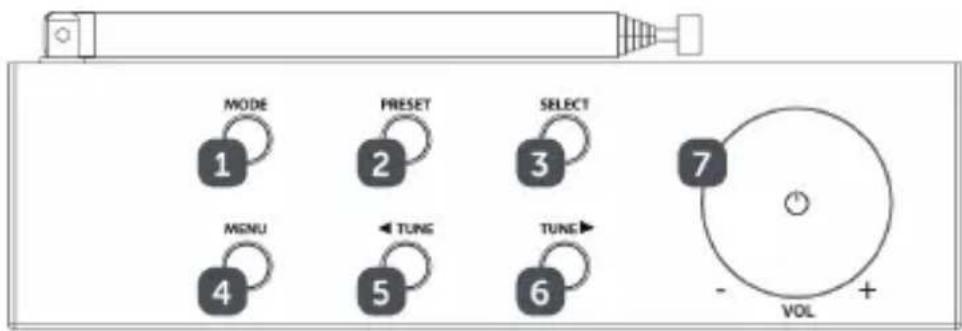

1 Mode (on/standby/source selection)
2 Preset (saved favourites)
3 Select (select/confirm)
4 Menu (menu controls/change displays)
5 <Tune (selection on the left/ lower figure)
6 <Tune (selection on the right/ raise figure)
7 Standby/on/off/vol+/- (increase/decrease volume)
8 DAB+/FM telescopic antenna

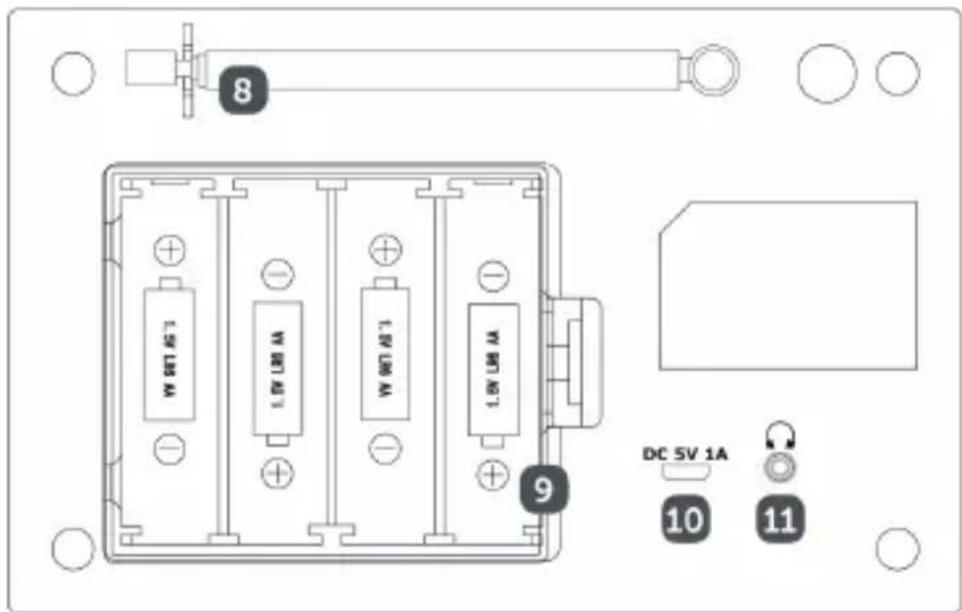

9 Battery compartment (4x AA LR6 1.5V)
10 DC-IN (external power supply 5.9V)
11 Headphone jack (3.5mm jack)

5. OPERATION AND FIRST USE

5.1. Device properties

The radio comprises a DAB+/FM receiver with the following functions:

• You can store 10 DAB+ and 10 FM stations.
• The radio receives signals on the frequencies FM 87.5-108 MHz (analogue) and DAB+ 174.9-239.2 MHz (digital).
• The device has a time and date display.
• Optional operation with 4 type AA batteries.(not included)

5.2. Prepare the device for use

5.2.1. Optional: insert batteries

Open the battery compartment on the back of the device by pressing the latch and removing the lid.
Insert 4 type AA 1.5V batteries, while paying attention to the direction indicated.
Replace the battery compartment lid on and close it properly you hear it lock into place.

Make sure to replace drained batteries in time. Battery packs cannot be charged in the radio.

5.2.2. Connect the power unit

Only use the original power unit included in delivery.

Plug one end into the socket labelled DC-IN (11) on the back of the DAB Easy.

Then connect the power supply unit to the mains supply.

5. OPERATION AND FIRST USE

Make sure that the operating voltage of the power supply corresponds to the local mains voltage before plugging it into a wall outlet. After the first connection to the power supply, 'NABO' will be displayed.

Following that, you may select the operating language.

To do so, select one of the available languages with the buttons and confirm your selection by pressing the Select button.

After that, a station search via DAB+ is performed for the first time.

5.2.3. Orienting the telescopic antenna

The number and signal quality of the stations to be received depends on the reception conditions at the setup site. Excellent signal reception can be achieved with the telescopic antenna.

Straighten the telescopic antenna and extend it lengthwise.

The exact alignment of the telescopic antenna is often important, especially in the peripheral areas of DAB+ reception.

You can quickly find the location of the nearest transmitter mast online, for example at www.dabplus.de.

Start the first search near a window in the direction of the transmitter mast. In the case of poor weather, DAB+ reception may be limited. Do not touch the telescopic antenna while playing a station. This may negatively impact the reception and lead to interruptions.

5.2.4. Using headphones

WARNUNG!

Hearing loss!

Do not listen to the radio at high volume when using headphones.

This may lead to permanent hearing loss. Before using headphones, set the device volume to minimum. Only use headphones with a 3.5 mm plug.

5. OPERATION AND FIRST USE

Plug the headphone plug into the headphone jack. (11) on the back of the device. The sound is now solely played via the headphones; the loudspeaker is muted.
If you want the sound to be played by the speakers again, unplug the headphone plug from the headphone jack on the device.

5.2.5. Switching on the device

To ensure a good DAB+/FM(UKW) signal, completely pull out the antenna located on the back of the device. Please note section 5.2.3 on this matter.

First prepare the radio for operation as described in section 5.2.

Press the Standby button (7) to switch on the radio. After switching on for the first time, you must first set the [Language].
To do so, select one of the available languages with the buttons and confirm your selection by pressing the Select button. The device then automatically performs a complete search in DAB mode. During the search, the progress and the number of digital radio stations found are displayed. The first DAB+ programme is played after the station search has been completed.

5.2.6. Switching off the device

When connected to the power:

Press and hold the Standby button (7) to switch the unit to Standby mode. The message [Standby] appears briefly on the display. The time and date are displayed. You can change the display brightness in standby mode as described in section 9.4.

In battery mode:

In battery mode, the device is always switched off by holding down the standby button (7). The display briefly displays the information [Power off]. The time and date are not shown. The standby mode is not available in battery mode.

5.2.7. Switching DAB+/FM mode

Press the MODE button (1) briefly to switch between DAB+ (Digital Radio) and FM (UKW).

5. OPERATION AND FIRST USE

5.2.8 Volume settings

Adjust the volume using the volume control.

The set volume is shown on the display as a bar graph. Please note section 5.3.4 on using the device with connected headphones.

5.2.9. Display

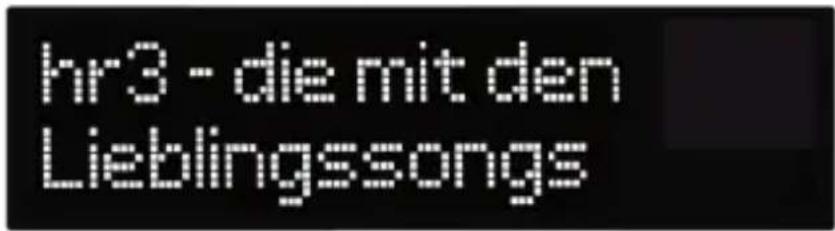

Depending on the selected function or option, the display will show the following information: Station name, frequency, menu name, displays, menu option, volume.

5.2.10. Open displays

By briefly pressing the Menu button several times, the following information can be displayed (depending on the chosen source):

In DAB+ mode:

[Scrolling Text] (scrolling text with additional information that stations may provide), [Signal Strength], [Programme Type], [Ensemble], [Frequency], [Signal Quality], [Bit Rate and Codec], [Time], and [Date].

In FM/UKW mode:

[Radio text] (if transmitted), [Programme type] (PTY), [Ps] (Programme Service Name or station name or frequency), [Audio information], [Time] and [Date].

6. MENU OPERATION

The menu provides access to all functions and settings of the DAB Easy.

The menu is navigated by using the MENU buttons,

and Select. The menu is divided into submenus and contains different menu items or activatable functions depending on the mode (DAB+ or FM).

To open the menu, simply hold down the Menu button briefly. To switch to submenus, first press the buttons to display a submenu and then press the Select button to display the submenu.

An asterisk (*) indicates the current selection.

Close menu:

Press the Menu button several times (depending on which submenu you are in) until the current radio programme is displayed again. Settings are saved by pressing the Select button. If the Menu button is pressed instead, the settings are not adopted and saved (the Menu button assumes the function of a 'Back' button here). Functions and buttons to be pressed are shown in bold in this instructions manual. Display indications in [square brackets]. Some text displays (e.g. menu entries, channel information) may be too long for the display. These are then displayed as scrolling text after a brief time.

7. The DAB+ (DIGITAL RADIO) -FUNCTION

7.1 What is DAB+?

DAB+ is a new digital format that lets you hear crystal clear sound without any static. Unlike conventional analogue radio stations, DAB+ broadcasts several stations on the same frequency. This is called Ensemble or Multiplex. An ensemble consists of the radio station as well as several service components or data services, which are broadcast individually by the radio stations. Find out more at www.dabplus.de or www.dabplus.ch for example.

6. MENU OPERATION

7.1.1 Data compression

Digital radio makes use of the effects of human hearing. The human ear does not perceive sounds below a certain minimum volume. Data below the so-called resting hearing threshold can therefore be filtered out. This is possible because the relative volume to other units is stored in a digital data stream for each data unit. In a single sound signal, at a certain threshold value, the quieter components are superimposed by the louder components. All sound information in a piece of music that falls below the so-called listening threshold can be filtered out of the signal to be transmitted. This leads to a reduction of the data stream to be transmitted, without any noticeable sound difference for the listener (HE AAC v2 -method as supplementary coding method for DAB+).

7.1.2 Audio stream

Audio streams in Digital Radio are continuous data streams that contain MPEG 1 Audio Layer 2 frames and thus represent acoustic information. This allows familiar radio programmes to be transmitted and listened to by the receiver. Digital Radio brings you not only radio in excellent sound quality, but also additional information. These can refer to the current programme or be independent of it (e.g. news, weather, traffic, tips).

7.2 DAB+ (Digital Radio) reception

Keep pressing the MODE button (1) until [DAB] is displayed. When starting DAB+ for the first time, a complete station scan is run.
Make sure that the telescopic antenna is fully extended during this process. After a search cycle is completed, the first station in alphabetical order is played.

7.2.1 Running a complete search scan

The full scan searches for all DAB+Band III channels and finds all stations broadcast in the coverage area.

After a search cycle is completed, the first station in alphabetical order is played.

7. The DAB+ (DIGITAL RADIO) -FUNCTION

To run a complete scan, open the menu by pressing and holding the Menu button and using the and Select buttons to select the menu item [Full scan].
The display shows [Scanning...].

During the search, a progress bar and the number of stations found are displayed.

If no station is found, check the telescopic antenna and change the setup location if necessary.

7.2.2 Choosing a station

By pressing the buttons, you can call up the station list and switch between the available stations.

7.2.3 Storing a DAB+ station in a memory slot

The programme memory can store up to 10 stations in the DAB+ range.

Choose the desired station first (see section 7.2.2).
To save this station in a favourite's slot, while the station is playing, press and hold the preset button. Then use the buttons to choose a station memory slot (1...10).

Press the Select button to save.
Repeat this procedure to save more stations.

7.2.4 Playing a DAB+ station stored in a memory slot

To play a station that has been saved on a favourite's slot, briefly press the Preset button and use the buttons to choose a station memory slot (1...10). Press the Select button, to play that station.

If no station has been saved to that station slot, the display will show [(empty)].

7.2.5 Overwriting/Deleting a programme slot save

Simply save a new station to a favourite memory slot as described. When resetting to the factory settings, all stored stations are deleted.

7. The DAB+ (DIGITAL RADIO) -FUNCTION

7.2.6 Signal strength

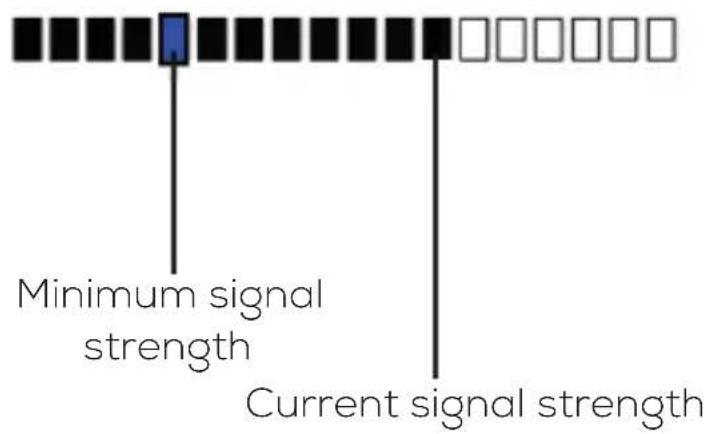

Repeatedly press the Menu button briefly until the signal strength is displayed.

Stations whose signal strength is below the required minimum signal strength do not send a sufficient signal. If necessary, align the telescopic antenna as described under point 5.2.3.

7.2.7 Manual settings

This menu item serves to check the reception channels and can be used to align the antenna.

Press and hold the Menu button, then use the buttons to select [Set Manually] and then press the Select button.
Use the and Select buttons to choose a channel (5A to 13F). Its signal strength is now shown in the display.

If a DAB+ station is received on a channel, the ensemble name of the station is displayed. The antenna can now be adjusted to maximum signal strength. Stations whose signal strength is below the required minimum signal strength do not send a sufficient signal. If necessary, align the telescopic antenna as described in point 5.2.3.

7.2.8 DRC

With the menu item DRC adjustment you can modify the compression rate, which compensates for dynamic fluctuations and associated volume variations.

7. The DAB+ (DIGITAL RADIO) -FUNCTION

Press and hold the Menu button, then use the buttons to select [volume adjustment].
Press the Select button.
Use to select the compression rate:
DRC high - high compression DRC low - low compression DRC off - compression switched off
Use the Select button to confirm.

7.2.9 Prune

This menu item is used to remove old and no longer receivable stations from the station list. Inactive channels are marked with a question mark in the station list.

Press and hold the Menu button, then use the button to select [Delete inactive stations].

Press the Select button.

The prompt [Delete?] asks whether the inactive stations shall be deleted.

Use to select [Yes] and confirm using the Select button.

8. THE FM-FUNCTION

8.1 Switching on the FM radio mode

Press the MODE button (1) briefly to switch to the FM mode.

[FM] is displayed.

Press the MODE button (1) briefly to switch to the FM mode. [FM] is displayed.

The frequency is set to 87.5 MHz when the unit is switched on for the first time.

If you have already set or saved a station, the radio plays the last station set.

For RDS stations, the station name appears.

To improve reception, re-orient the telescopic antenna (point 5.2.3.).

8. THE FM-FUNCTION

8.2 FM (UKW) reception with RDS information

RDS is a method of transmitting additional information via FM/UKW stations. Broadcasters use RDS to send their station name or programme type, for example. It is shown in the display. The device can display the RDS information RT (radio text), PS (station name), PTY (programme type).

8.3 Automatic station scan

Press and hold the buttons (2 to 3 seconds) to automatically search for the next station with a sufficient signal. If an FM station with a sufficiently strong signal is found, the search stops and the station is played. If an RDS station is received, the station name and, if applicable, the radio text appear. To set up stations with a weaker signal, please use the manual station search function.

8.4 Manual station search

Repeatedly press the briefly to set the desired station station or frequency. The display shows the frequency in 0.05 MHz steps.

8.5 Scan settings

The search's sensitivity can be set in this menu item.

Press and hold the Menu button, then use the buttons to select [Scan settings] and then press the Select button.
Select whether the scan shall pause only on strong signals [Strong signals only] or on all stations (also weak signals) [All stations]. When set to 'All stations', the auto scan stops at each available station. This may cause weak-signal stations to be played with noise and static.

8.6 Storing an FM station in a memory slot

The programme memory can store up to 10 stations in the FM/UKW range.

First set the desired station frequency (Section 8.3, 8.4).
To save this station in a favourite's slot while the station is playing, press and hold the Preset button.

8. THE FM-FUNCTION

Then use the to pick a favourite's slot (1...10). Press the Select button to save.

Repeat this procedure to save more stations.

8.7 Playing an FM/UKW station stored in a memory slot

To play a station that has been previously saved on a favourite's slot briefly press the Preset button and use the buttons to pick a favourite's slot (1...10).

Press the Select button to start playing the station.

If you have not stored a station on the selected programme slot, [(empty)] appears in the display.

8.8 Overwriting/Deleting a programme slot save

Simply save a new station to a respective slot as described.

When resetting to factory settings, all stored stations are deleted. All settings explained in this section apply equally to both DAB+ and FM mode.

To access the System submenu, proceed as follows:

Press and hold the Menu button, then use the buttons to select [System].

Press the Select button. You can then use the buttons to select a system setting.

9.1 Sleep timer

The sleep timer automatically switches the DAB Easy to standby mode after the set time.

In the submenu [System] use the button to select [Sleep].

Press the Select button.

Use to select a time period after which the DAB Easy should turn off. You can select off, 10, 15, 30, 45 or 60 minutes.

To adopt the settings press the Select button. The remaining time will be displayed in the top right corner.

9. SYSTEM SETTINGS

9.2 Alarm clock

The alarm clock will switch the DAB Easy on at the set alarm time. 2 alarm times can be programmes. How to set the alarm clock 1 is given as an example. For the alarm clock to work, the DAB Easy must be supplied with power by the power supply unit. The alarm function is disabled in battery mode.

9.2.1 Set up alarm clock 1

In the submenu [System] use the button to select [Alarm].
Press the Select button.
Use to select the alarm you want to set. So [alarm 1] in this example and then press the Select button once more. [Alarm 1 Setup] appears on the display.

Press the Select button to start the setup.

The display shows [Time On 06:00] with the first digit flashing.

You can now enter a new time for the alarm. First select the hours with the buttons and press the Select button to apply the changes.

Then the minutes are entered. Adopt these changes with the Select button as well.

Then enter the duration with . Then adopt this entry by pressing the Select button.

Then enter the source. BUZZER, DAB and FM are always available.

To adopt these settings press the Select button. If you have selected DAB or FM, you can then specify whether you want to be woken up with the last station you listened to, or by one of your set favourites.

The next step is the alarm repetition. You can choose between daily (every weekday), once, week days (Mon-Fri) or weekends (Sa and Sun).

To adopt the settings press the Select button.

9. SYSTEM SETTINGS

The alarm volume is the last setting to be made with the buttons.
To adopt the change press the Select button.
Finally, you can generally switch on the alarm clock or leave it deactivated for now.

Select [On] and press the Select button to activate the alarm. The settings are saved and the alarm clock is active. This is indicated by a bell symbol in the display.

9.2.2 Switching off the alarm clock

If the alarm tone is active, the alarm can be switched off by pressing the Standby button (7).

9.2.3 Snooze

If the alarm tone is active, the snooze function can be activated by pressing the Select button. The alarm tone will be muted for the next 10 minutes and then repeats.

9.3 Date and time settings

9.3.1 Manually set the time/ date

Depending on the setting of the time update (item 9.3.2), you will have to set the time and date manually.

In the submenu [System] use the button to select [Time] and press the Select button.
Use to select [set time/ date] and press Select.
The first digits (hours) of the time flash and can be changed with the buttons.

The Tune> button increases the figure, the <Tune button decreases the figure.

To adopt the settings press the Select button.
After that, the next digits (minutes) of the time flash and can also be changed as described above.
After each setting, press the Select button to jump to the next setting.

9. SYSTEM SETTINGS

Proceed as described above to set the date.
After all settings have been made and the Select button was pressed for the last time, [Time saved] appears in the display.

9.3.2 Automatic time update

In this submenu you can specify whether the time is to be automatically updated via DAB+ or FM (UKW) or entered manually (section 9.3.1).

In the submenu [System] use the button to select [Time] and press the Select button.
Use to select [Autom. update] and press Select.
Use the and Select buttons to choose the following options:

[Update all] (update via DAB+ and FM) [Update by DAB] (Update only via DAB+) [Update by FM] (Update only via FMW) [No update] (Time/date must be entered manually, see section 9.3.1).

9.3.3 Set the time format

You can activate the 12- or 24-hour format in the 'Set 12/24-hour time' submenu.

In the Clock/time submenu, select [Set 12/24 Hrs] with the buttons and press Select.
Use the buttons to choose one of the following options:

[set it at 24 hrs.]

[set it at 12 hrs.]

To adopt the change press the Select button.

9.3.4 Set the date format

In the Clock/Time submenu 'set date format' you can set the format for displaying the date.

In the Clock/time submenu, select [Set 12/24 Hrs] with the buttons and press Select.

Use the buttons to choose one of the following options:

9. SYSTEM SETTINGS

[DD-MM-YYYY] (day, month, year)

[MM-DD-YYYY] (month, day, year)

To adopt the change press the Select button.

9.4 Display brightness

You can adjust the display brightness for both operation and standby mode (only available when the radio is connected to the power main).

In the submenu [System] use the button to select [backlight] and press Select.

Use the and Select buttons to choose one of following functions:

[On level] controls the brightness in the normal, switched-on state. You can choose between [High], [Medium] and [Low] brightness levels.

Use the buttons to choose a brightness level and press the Select button to store you setting. [Dim level] adjusts the brightness in standby mode. You can choose between [High], [Medium] and [Low] brightness levels.

Use the buttons to choose a brightness level and press the Select button to store you setting. When set to [Off], the display always remains active with the On setting.

9.5 Language

In the submenu [System] use the button to select [Language] and press the Select button.

Use the buttons to choose one of the available languages and confirm your selection by pressing the Select button.

9.6 Factory Reset

If you change the location of the device, e.g. when moving house, the stored stations may no longer be receivable. In this case, by restoring the factory settings, you can delete all stored stations and then start a new station scan.

9. SYSTEM SETTINGS

In the submenu [System] use the button to select [factory setting] and press the Select button.
Use the buttons to select the entry [Yes] for the factory reset and press Select.

All previously stored stations and settings will be deleted.

The device is now in its original factory settings.

The display shows [Restart...] and the device starts with the language selection [Language].

Use the buttons to choose one of the available languages and confirm your selection by pressing the Select button.

The device then automatically performs a complete search in DAB mode. During the search, the progress and number of digital radio stations found are displayed.

The first DAB+ programme is played after the station search has been completed.

9.7 SW version

Under SW version you can query the currently installed SW version.

In the submenu [System] use the button to select [SW version] and press Select.

The current SW version is displayed.

10. TROUBLESHOOTING

Symptom	Possible cause and remedy
Device won’t switch on.	The device is not connected to a power source. Connect the power unit properly to the power socket and device. Replace empty batteries.
No sound can be heard.	Increase the volume.
The display won’t switch on.	Disconnect the device from the power source/ briefly remove the batteries and resupply the device with power.
The DAB+/FM signal is poor.	Fully pull out the antenna. Change the position of the antenna or the radio.

11. STORAGE

When not in use, please remove the power unit from the socket, disconnect the radio's cable from the device and store the device in a dry place, protected against dust.

Please remove the batteries when the device is not used for a longer period of time.

12. TECHNICAL DATA

DAB Easy
Reception options DAB/DAB+, FM
Power supply AC input: 100-240V, 50/60HzDC output: 5.9V / 1A
Frequencies FM/UKW: 87.5-108MHzDAB/DAB+: Band III 174-240MHz
Power consumption (mains operation)	in operation max.: 5WStandby: 0.81W (with time/ date)
Audio Output capacity	1.3W RMS @ 1kHz 5% THD
Weight 238g (without batteries)
Dimensions (WxHxD) 150mm x 106mm x 50mm

13. DISPOSAL INFORMATION

13.1. Disposing of the packaging

The packaging consists exclusively of materials that may be recycled. Please dispose of this according to the 'Dual system'.

13.2. Device disposal

The symbol on the right of a crossed-out waste bin on wheels indicates that this device is subject to Directive 2012 / 19 / EU.

This directive specifies that this device may not be disposed of in normal household waste at the end of its service life but must be taken to specific collection centres, recycling centres or waste disposal companies.

This type of disposal is free of charge. Protect the environment and ensure a proper disposal.

Further information is available at your local waste collection company or your city or municipal office.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

13.3. Disposing of the batteries

Batteries and power units may not be disposed of with household waste.

The symbol on the right means that you as a consumer are required to separately dispose of all batteries and battery packs. Suitable collection bins are provided at specialist shops and numerous public facilities.

Simple line drawing of a trash bin with diagonal lines indicating no text or symbols (no text or labels)

Information about the disposal of old batteries and power

units are additionally provided by waste collections specialists, city and municipal administrations.

This type of disposal is free of charge. Protect the environment and ensure a proper disposal.

An additional chemical symbol Pb (lead) or Hg (mercury) beneath the crossed-out waste bin indicates that the battery/ power unit contains a share of more than 0.0005% mercury or 0.004% lead.

14. CE INFORMATION

CE

Your device is labelled with the CE mark and complies with all required EU standards.

baytronic Handels GmbH hereby declares that the NABO DAB Easy device complies with the essential requirements and other relevant provisions of RoHS Directive 2011/65/EU, RE Directive 2014/53/EU and ErP Directive 2009/125/EC.

Distributor:

Thank you for choosing one of our products. Our product meets the legal requirements and has been manufactured under constant quality control. The technical data correspond to the current status at the time of printing. Subject to change.

The warranty period for the DAB Easy corresponds to the statutory provisions at the time of purchase.

We also offer a HOTLINE telephone service with professional support.

Professional specialists are ready to offer their assistance in our service area. Here you can ask any questions you may have about NABO products and get suggestions on troubleshooting.

Our technicians are available Monday- Friday from

08:00 - 16:45 at the following phone number:

0900 / 15 00 52

or by email at: [e-mail]

If the Service Hotline cannot help you, please send your device to the following address, preferably in its original packaging, but safely packed for transport:

Two white and black electronic devices, one with a black speaker and display screen, the other with a white speaker and antenna (no visible text or symbols on main body)

IT

INDICE

1. PREFAZIONE....85

Simple geometric diagram of two concentric squares (no text or symbols)

Simple line drawing of a house with no text or symbols

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

14. AVVERTENZA CE

CE

All technical data and functions described in this manual reflect the current state at time of printing and may be changed without prior notice. We are not liable for any misprints or mistakes.

Reproduction and duplications are only permitted with the express permission of baytronic Handels GmbH.
