USER MANUAL DTP3 T 203 Extron
Three Input 4K/60 Switcher with Integrated DTP3 Transmitter
User Guide DTP System
68-3702-01 Rev. C
Safety Instructions
Safety Instructions • English
WARNING: This symbol, ⚠, when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.
ATTENTION:
This symbol, ⚠️ when used on the product, is intended user of important operating and maintenance (servicing) in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks ^® , registered service marks ^SM , and trademarks ^TM are the property of RGB Systems, Inc. or Extron (see the current list of trademarks on the Terms of Use page at www.extron.com):
| Registered Trademarks® |
| Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Everlast, Flat Field, FlexOS, Glitch Free, Global Configurator, Global Scripter, GlobalViewer, Hideaway, HyperLane, IP Intercom, IP Link, Key Minder, LinkLicense, LockIt, MediaLink, MediaPort, NAV, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VN-Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTP Systems, and ZipClip |
| Registered Service MarkSM: S3 Service Support Solutions |
| TrademarksTM |
| AAP, AFL (Accu-RATE Frame Lock), ADSP (Advanced Digital Sync Processing), AVEdge, CableCover, CDRS (Class D Ripple Suppression), Codec Connect, DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSVP (Digital Sync Validation Processing), EQIP, FastBite, Flex55, FOX, FOXBOX, InstaWake, IP Intercom HelpDesk, MAAP, MicroDigital, Opti-Torque, PendantConnect, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, True4K, True8K, VectorTM 4K, WebShare, XTRA, and ZipCaddy |
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.
ATTENTION:
- This unit was tested with shielded I/O cables on the peripheral devices. Shielded cables must be used to ensure compliance with FCC emissions limits.
- For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.
Battery Notice
This product contains a battery. Do not open the unit to replace the battery. If the battery needs replacing, return the entire unit to Extron (for the correct address, see the Extron Warranty).
CAUTION: Risk of explosion. Do not replace battery with an incorrect type. Dispose of used batteries according to the instructions.
Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
CAUTION: Risk of minor personal injury.
NOTE: A note draws attention to important information.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
Esc X1*X17*X20*X23* X21CE←
NOTE: For commands and examples of computer or device responses mentioned in this guide, the character "O" is used for the number zero and "O" is the capital letter "o."
Computer responses and directory paths that do not have variables are written in the font shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in italics as shown here:
ping xxx.xxx.xxx.xxx -t
SOH R Data STX Command ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:
From the File menu, select New. Click the OK button.
Specifications Availability
Product specifications are available on the Extron website, https://www.extron.com.
Extron Glossary of Terms
A glossary of terms is available at https://www.extron.com/technology/glossary.aspx.
Contents
Introduction....1
About this Guide....1
Product Description .... 1
Features 1
Application Diagram 3
Installation....4
Installation Overview 4
Rear Panel Features 5
Connection Details 7
TP Cable Recommendations for DTP Communication....7
TP Cable Recommendations for Ethernet Communication 8
Over TP and Remote RS-232 Control Wiring 8
Contact Closure Wiring 9
Tally Wiring....9
LockIt Lacing Bracket Installation....10
Operation....11
Front Panel Features....11
Operation 12
Powering on the Switcher 12
Selecting an Input 12
Auto-input Switching 13
Front Panel Lockout (Executive Mode) 13
EDID Minder....14
HDCP 14
Resetting....15
TMDS Output Format....16
5V Output Modes 17
Video Mute 17
Audio Mute 17

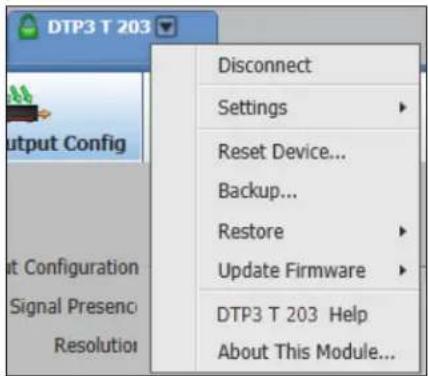

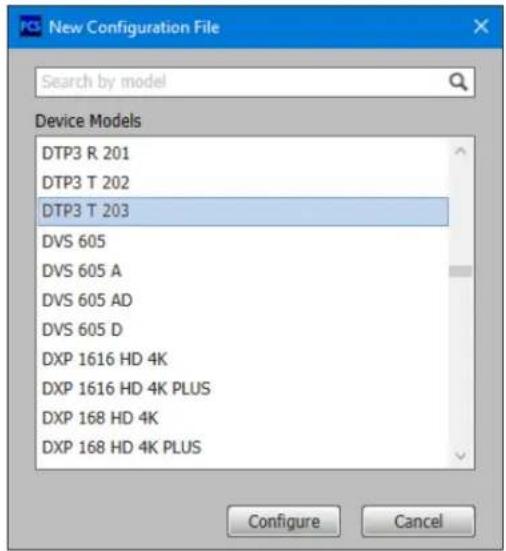

Product Configuration Software 18
Software and Firmware Installation 18
Connecting to PCS 20
Device Discovery Panel 20
TCP/IP Panel 21
Offline Device Preview 22
Software Overview 23
Software Menu....23
Device Menu 25
SIS Configuration and Control 26
Host Control Ports 26
Rear Panel RS-232 Port 26
Front Panel Configuration USB Port 26
Ethernet (LAN) Port....26
Establishing a Connection....27
Enabling and Disabling Telnet....27
Verbose Mode....28
Simple Instruction Set Control....28
Host-to-Unit Instructions 28
Device-Initiated Power-Up Message 28
Error Responses 28
Timeout 28
Unsolicited Responses....28
Using the Command and Response Table....29
Symbol Definitions 29
Command and Response Table for SIS Commands....34
Command and Response Table for CEC SIS Commands 41
Internal Web Page 43
Accessing the Internal Web Page....43
Web Pages Panel 44
Details 44
Status....44
About....48
Equipment Mounting....49
Mounting the DTP3 T 203....49
Tabletop Use 49
Mounting Kits 49
Introduction
This section gives an overview of the DTP3 T 203 and its features. Topics include:
- About this Guide
• Product Description - Features
• Application Diagram
About this Guide
This user guide contains installation, configuration, and operating information for the DTP3 T 203.
NOTE: Throughout this guide, the general terms “switcher,” “transmitter,” and “switching transmitter” are used interchangeably to refer to DTP3 T 203.

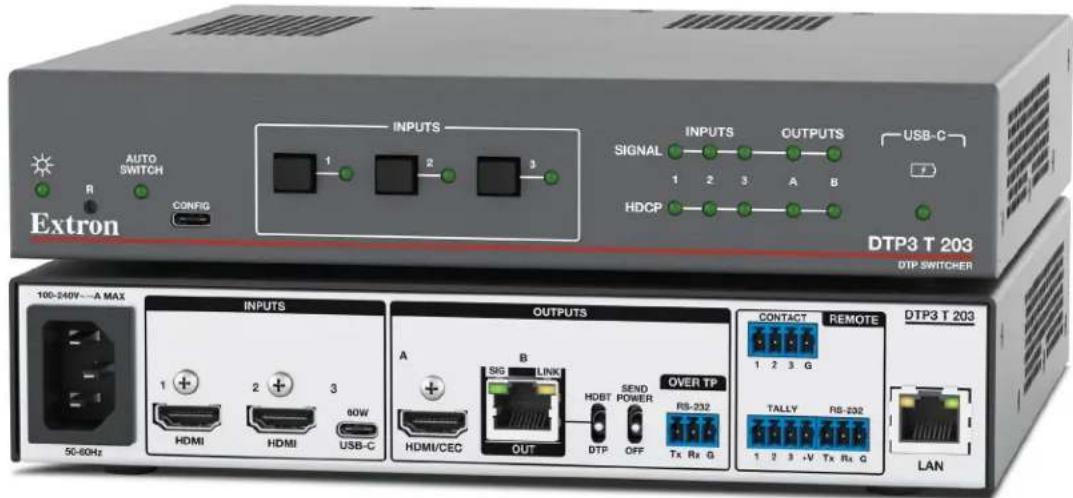

Product Description
The DTP3 T 203 is a three-input, multi-format switching transmitter consisting of a USB-C and two HDMI inputs with simultaneous DTP3 and HDMI outputs. The switcher supports resolutions up to 4K @ 60 Hz at 4:4:4 chroma sampling and embedded audio.
It provides reliable switching and transmission of HDMI video at data rates up to 18 Gbps, along with HDR, Deep Color up to 12-bit, 3D formats, and HDBT compatibility.
Integrator-friendly features include EDID Minder, HDCP authorization, auto-switching between inputs, and bidirectional RS-232 control up to 330 feet (100 meters) using one shielded twisted pair (STP) cable as the transmission medium.
The switcher features can be integrated into many applications that use a DTP3-equipped receiver or HDBT-capable products. Alternatively, the transmitter can be configured to provide power to the connected DTP3 receiver, allowing both devices to share one power supply.
The switcher can be controlled via the front panel, the RS-232 interface, USB, or LAN. Inputs can be selected by pressing the front panel buttons, enabling auto-input switching, entering Simple Instruction Set (SIS) commands, or using Extron Product Configuration Software (PCS) via LAN or USB.
Features
- Transmits USB-C ^ video, HDMI, and control up to 330 feet (100 meters) over a shielded CAT6A cable — The DTP3 T 203 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Inputs: One USB-C, two HDMI
• Output: One DTP3 twisted pair output on RJ-45, one mirrored HDMI - Supports computer and video resolutions up to 4K/60 @ 4:4:4 — Support of 4K/60 at 4:4:4 chroma sampling requires connection to matching DTP3 products.
- Provides up to 60 watts of power to the USB-C source — Supports USB Power Delivery to negotiate power to the USB-C device.
-
Auto-switching between inputs — Auto-switching allows for intuitive operation in collaboration spaces. Multiple switching priority modes are available, including last-connected input and user-selectable priority.
-
Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC
- Remote power capability with DTP3 products — For simplified installation, the transmitter can be configured to provide power to the connected DTP3 receiver product.
- Connects USB-C sources that support DisplayPort Alt Mode
- DTP3 output is compatible with HDBaseT-enabled devices — The DTP3 output can be configured to send video and bidirectional RS-232 signals to an HDBaseT-enabled display.
- HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.

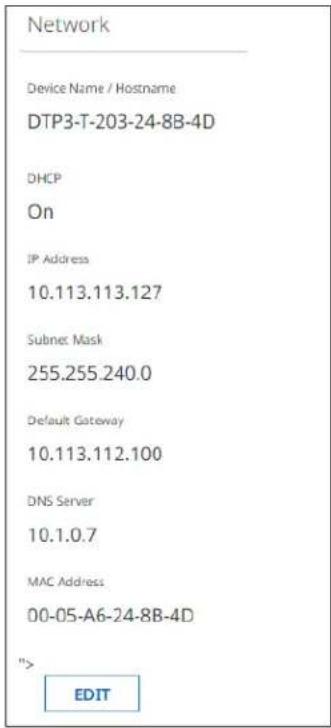

- Ethernet monitoring and control — Enables control and proactive monitoring over a network.
- Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CAT6A shielded twisted pair cable
- Support for HDR – High Dynamic Range — The DTP3 T 203 enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
- Bidirectional RS-232 pass-through for AV device control — Bidirectional RS-232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- RS-232 insertion from the Ethernet control port — Saves system resources and simplifies installation by enabling a control processor to access remote RS-232 devices over Ethernet.
- CEC insertion — A control processor can insert CEC commands via SIS, to control devices connected at the HDMI output.
- Supports multiple embedded audio formats — The DTP3 T 203 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
- User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
- EDID Minder automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.
- Comprehensive EDID management — Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.0 software is available for advanced EDID editing and creating custom EDID files.
- HDCP authentication and signal presence confirmation — Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs, USB, or Ethernet, providing valuable feedback to a system operator or helpdesk support staff.
- HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display — A full-screen green signal is sent when HDCP-encrypted content is transmitted to a non-HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
- HDMI to DVI Interface Format Correction — Automatically enables or disables embedded audio and InfoFrames, and sets the correct color space for proper connection to HDMI and DVI displays.
- Automatic color bit depth management — Automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and displays.
• Output muting control — Provides the capability to mute the video or audio output at any time.
- Front panel security lockout — This feature locks out all front panel functions; all settings however, are available through USB or Ethernet.

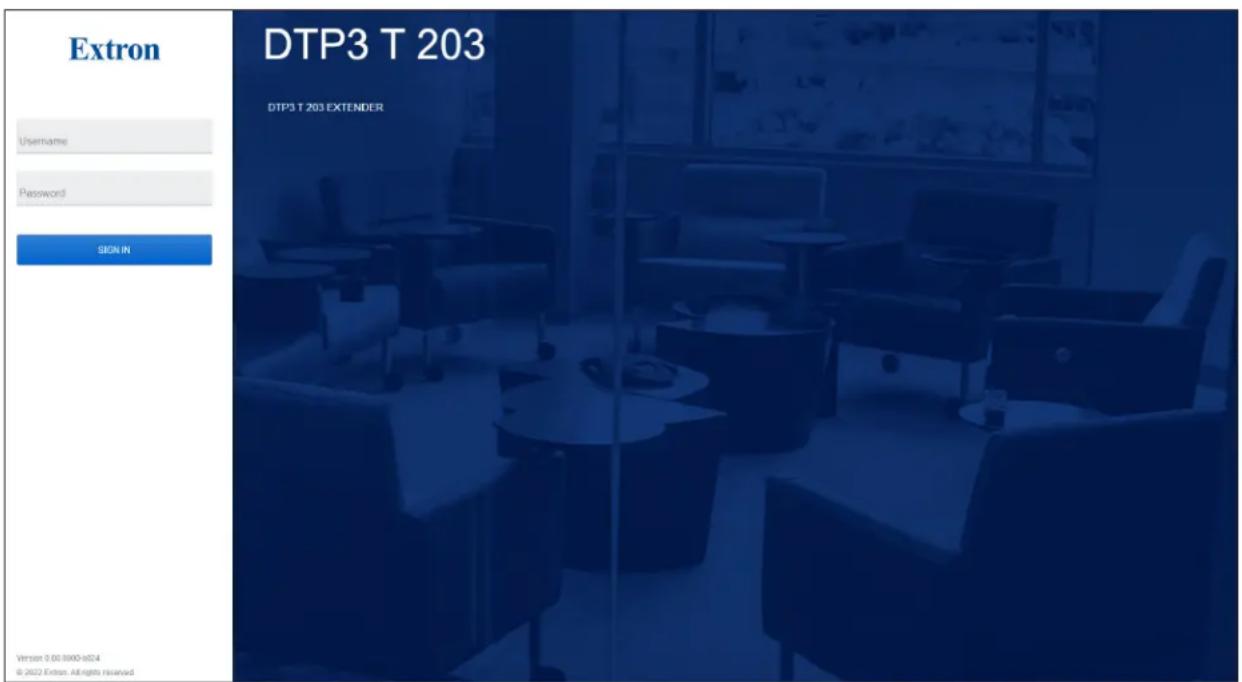

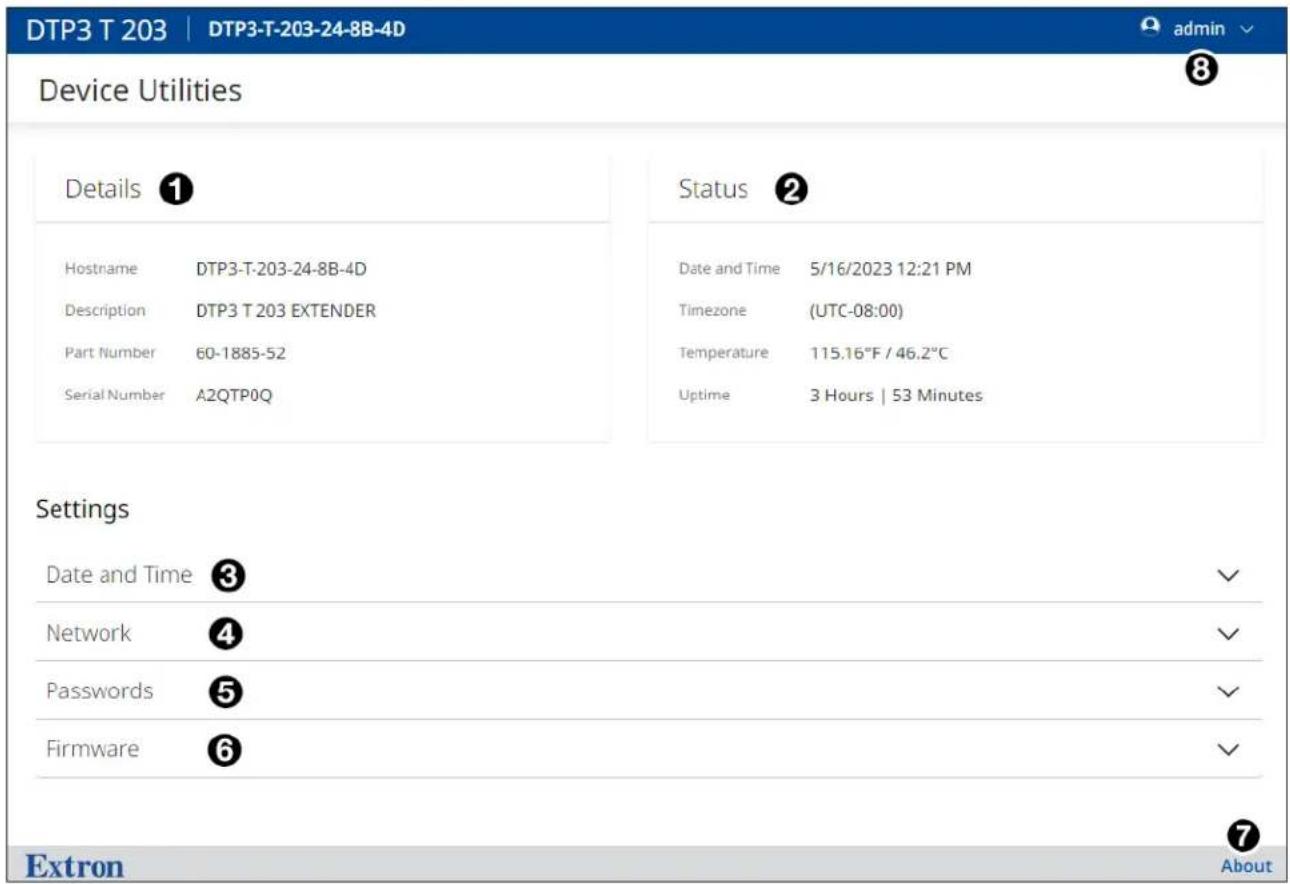

• Built-in Web pages — Enables the use of a standard browser for device monitoring over a Web interface.
- Contact closure remote control with tally output — Allows for remote selection of an input channel, while a tally output provides +5 VDC to light an LED to indicate the currently selected input.
- Compatible with TeamWork Show Me Cables — Show Me cables provide convenient connectivity and user input selection and control for TeamWork Collaboration Systems. Visit the TeamWork System Builder to create a customized system for your collaboration environment.
- Front panel USB-C configuration port — Provides convenient access for information and firmware updates.
- LED indicators for HDCP, signal presence, USB-C charging — Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
- RJ-45 signal and link LED indicators for DTP3 port — Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- Easy setup and commissioning with Extron PCS — Product Configuration Software — Conveniently configure multiple products using a single software application.
- Half rack width metal enclosure — With a compact enclosure, the device can be installed discreetly wherever needed.
- Includes LockIt HDMI cable lacing brackets
- Internal Extron Everlast power supply — Provides worldwide power compatibility with high-demonstrated reliability and low power consumption
- Extron Everlast Power Supply is covered by a 7-year parts and labor warranty.

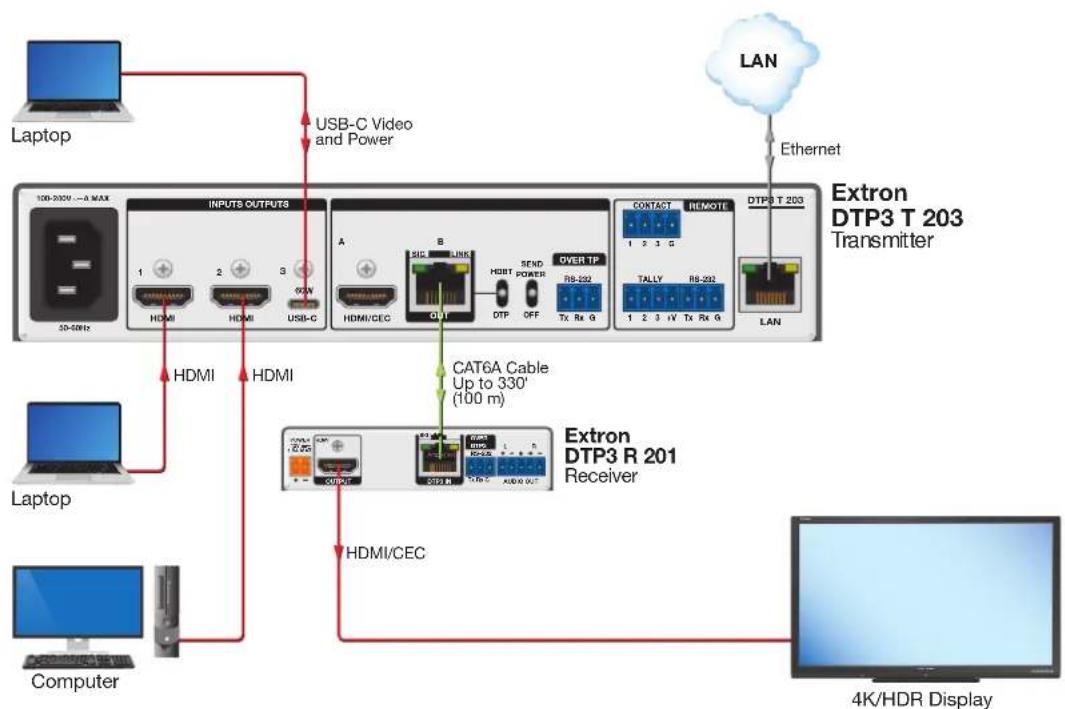

Application Diagram
The following diagram shows a typical application for a DTP3 T 203.
Figure 1. Typical Application of the DTP3 T 203
Installation
This section details the installation of the DTP3 T 203, including:
• Installation Overview
- Rear Panel Features
- Connection Details
Installation Overview
Follow these steps to install and set up the DTP3 T 203 transmitter for operation:
- Turn off all of the equipment. Ensure that the video source and the output display are all turned off and disconnected from the power source.
- If desired, mount the transmitter (see Equipment Mounting on page 49).

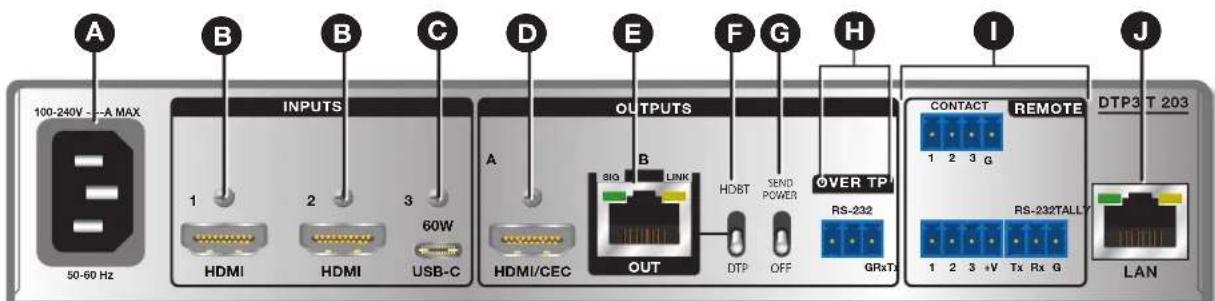

- Connect an HDMI source to the HDMI inputs (see figure 2, B on page 5).

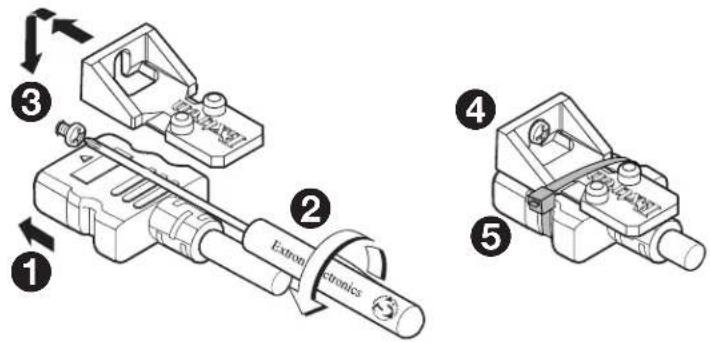

NOTE: See LockIt Lacing Bracket Installation on page 10 to use the included lacing bracket.
- If desired, connect a USB-C source to the USB-C input ( C ).
-

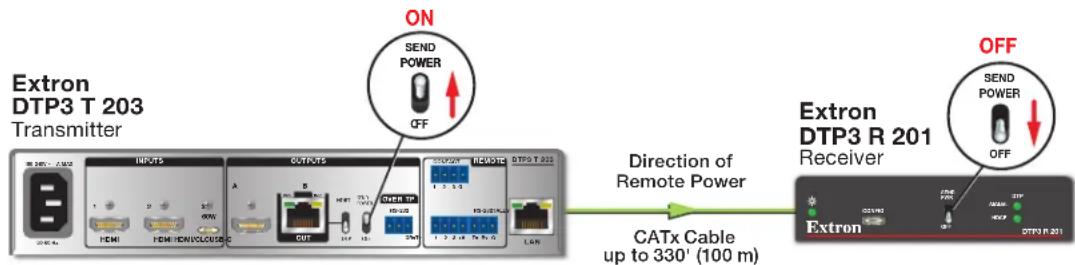

Set the DTP/HDBT toggle switch (F) and the Send Power toggle switch (G).
-
If the receiving device is in the Extron DTP3 series, set the DTP/HDBT toggle switch to the DTP position and the Send Power toggle switch to the SEND POWER position.
- If the receiving device is HDBaseT enabled, set the DTP/HDBT toggle switch to the HDBT position and the Send Power toggle switch to the OFF position.
ATTENTION:
- Position these switches BEFORE connecting the appropriate device to the TP connector. Failure to comply can damage the endpoint.
-
Positionnez les sélecteur AVANT de connecter l'appareil approprié au connecteur TP. Ne pas respecter cette procédure pourrait endommager le point de connexion.
-
Connect an HDMI output device to the HDMI/CEC output (D).
- Connect a DTP or HDBT receiving device to the DTP/HDBT output (E).

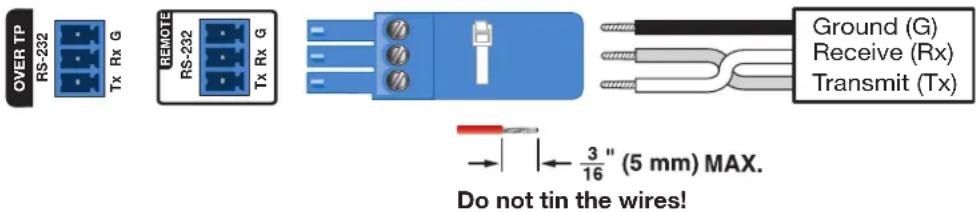

- If desired, connect a serial RS-232 signal to the OVER TP port (H) for bidirectional RS-232 communication.
- If desired, connect a push-button contact closure device to the CONTACT port (1) to enable input switching via contact closure.

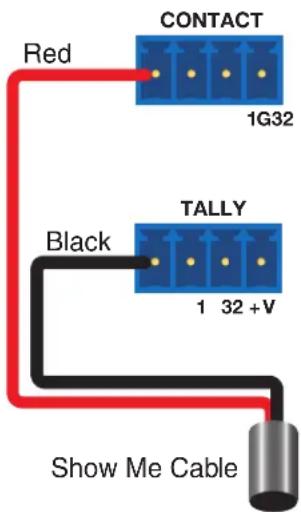

- If desired, connect an indicator device to the TALLY port (①) to identify the currently selected input when the front panel buttons are not visible.
- Connect a host device, such as a computer or control system, to one of the following ports to configure and control the switcher via Simple Instruction Set (SIS), PCS, or internal web page:
- Remote RS-232 — Insert a 3-pole captive screw connector to this port for remote control (1).
• LAN port — Insert an RJ-45 cable to this port for Ethernet connectivity (J).
- Configuration port — Connect a USB-C cable to the front panel USB-C port for USB control (see figure 8, D on page 11).
- Plug in the power supply (see figure 2, A).
- Power on the sources and output devices.
Rear Panel Features
A Power port
B HDMI inputs
USB-C input
D HDMI output
E DTP/HDBT output
F DTP/HDBT toggle switch
G Send Power toggle Switch
Over TP RS-232 port
Remote Contact/Tally/RS-232 ports
J LAN (Ethernet) port
Figure 2. DTP3 T 203 Rear Panel Connectors
Power port — Plug a standard IEC power cord into this connector to connect the unit to a 100 VAC to 240 VAC, 50-60 Hz power source.
B HDMI inputs — Connect an HDMI input device to one of the HDMI inputs.
NOTE: LockIt Lacing Brackets are provided to secure the HDMI cables to the rear panel ports to reduce stress on the HDMI connectors and prevent signal loss due to loose cable connections (see LockIt Lacing Bracket Installation on page 10 to use the included lacing bracket).
USB-C input — Connect a USB-C source to the USB-C input.
NOTE: The USB-C port provides up to 60 W of power to a connected source device. If the source is already connected to an external power supply, the USB-C dock does not send power to the source.
HDMI/CEC output — Connect an HDMI output device to the HDMI/CEC output (see LockIt Lacing Bracket Installation to use the included lacing bracket).
Consumer Electronics Control (CEC) — CEC control commands control basic control functions such as power on and off, input switching, volume, and mute. The DTP3 T 203 can issue CEC commands to a display device through HDMI and DTP3 ports.
E DTP/HDBT output — Connect the input of a DTP3 or HDBaseT compatible device to this RJ-45 port (see TP Cable Recommendations for DTP Communication on page 7 for wiring details). The port has two LEDs:
• Signal LED — Lights green when the unit is outputting a TMDS clock signal.
- Link LED — Blinks amber to indicate a valid link is established between the units.
F DTP/HDBT toggle switch — Set this switch to DTP or HDBT according to the receiving device connected to the switcher.
ATTENTION:
NOTE: The DTP3 T 203 is compatible with DTP3 models only.
- DTP mode — Set this switch to the DTP position. The output transmits HDMI digital video with embedded audio, analog audio, RS-232, and remote power up to 330 feet (100 meters) to any Extron device with a DTP3 330 input. The transmitter can provide remote power to the receiver.
- HDBaseT mode — If the receiving device is HDBaseT enabled receiver, set this switch to the HDBT position. The TP output transmits HDMI digital video with embedded audio along with RS-232 and IR control up to 330 feet (100 meters) to any device with an HDBaseT input. The transmitter and receiver each require its own power supply.
Send Power toggle switch (see figure 2 on page 5) — In a DTP3 transmitter to DTP3 receiver setup, set the toggle switch to the SEND POWER (up) position on the powered DTP3 unit to enable sending remote power to the far end. Set the toggle switch to the OFF (down) position on the DTP3 unit receiving power.
NOTES:
- The DTP3 T 203 device is configured to output power to DTP3 models only.
- When the output is configured for HDBT mode, remote power is not available and both the transmitter and receiver require their own 12 VDC power supply.
DTP3 Endpoint Connected to a DTP3 Endpoint
Figure 3. Send Power Toggle Switch Configuration
Over TP RS-232 port — If desired, connect a serial RS-232 signal to this 3.5 mm, 3-pole captive screw connector for bidirectional RS-232 communication (see Over TP and Remote RS-232 Control Wiring on page 8 to wire the connector). This port is used to extend RS-232 over the DTP connection to control devices such as projectors and DVD players.
Remote ports
- Contact — If desired, plug a contact closure device into this 3.5 mm, 4-pole captive screw connector. Momentarily short the pin for the desired input (1, 2, or 3) to G to select that input. To force an input to be always selected, leave the short in place (see Contact Closure Wiring on page 9 for wiring details).
NOTE: Contact closure control overrides front panel or SIS input selection. For contact closure control, auto-switch mode must be off (see Selecting an Input on page 12).
- Tally — If desired, plug a device into this 3.5 mm, 4-pole captive screw connector to remotely identify the currently selected input. When an input is selected, by either contact closure, front panel selection, or SIS commands, the corresponding Tally pin shorts to ground, closing the circuit and lighting the connected indicator (see Tally Wiring on page 9 for wiring details).
- RS-232 — If desired, connect a host device, such as a computer or control system, to switcher via this 3-pole captive screw connector for serial RS-232 control (see Over TP and Remote RS-232 Control Wiring on page 8 for wiring details).
J LAN (Ethernet) port — If desired, use an RJ-45 cable to connect this jack to a LAN via Ethernet for control of the device (see TP Cable Recommendations for Ethernet Communication on page 8 for wiring details). This port has two LEDs:
- Link LED — Lights green steadily to indicate a LAN connection.
• Signal LED — Blinks amber to indicate LAN signal activity
Connection Details
For connectors that require additional wiring details or recommendations, see the following sections pertaining to the type or connection.
TP Cable Recommendations for DTP Communication
Use the following configuration for twisted pair cables used for DTP communication.

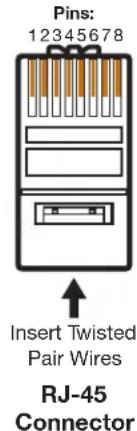

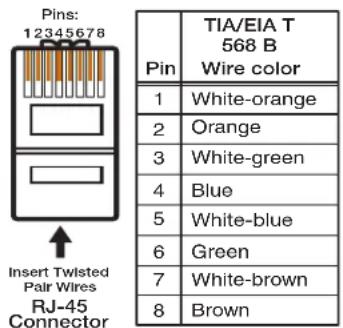

Figure 4. RJ-45 Pin Assignment for DTP Communication
Supported cables
The DTP3 T 203 is compatible with shielded twisted pair (STP) and unshielded twisted pair (U/UTP) cable. However, Extron strongly recommends that you use STP cable to achieve best performance.
ATTENTION:
Cable recommendations
Extron recommends using the following practices to achieve full transmission distances up to 330 feet (100 meters) and reduce transmission errors.
- Use Extron XTP DTP22 STP cable for the best performance.
- At a minimum, Extron recommends 22 AWG, solid conductor, STP cable with a minimum bandwidth of 500 MHz.
- Terminate cables with shielded connectors to the TIA/EIA T 568 B standard.
- Use no more than two pass-through points, which may include patch points, punch down connectors, couplers, and power injectors. If these pass-through points are required, use shielded couplers and punch down connectors.
NOTE:
When using shielded twisted pair cable in bundles or conduits, consider the following:
- Do not exceed 40% fill capacity in conduits.
- Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles.
- Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.
- Separate twisted pair cables from AC power cables.
TP Cable Recommendations for Ethernet Communication
It is vital that your Ethernet cable be the correct cable type and that it be properly terminated with the correct pinout. Ethernet links use Category (CAT) 3, 5e, or CAT 6, unshielded twisted pair (UTP) or shielded twisted pair (STP) cables, terminated with RJ-45 connectors. Ethernet cables are limited to a length of 330 feet (100 meters).
The cable can be terminated as either a patch cable or a crossover cable (see figure 5) and must be properly terminated for the application:
- Patch (straight-through) cable — Connection of the device to an Ethernet hub, router, or switch that also hosts a controlling computer.
• Crossover cable — Direct connection between the switcher and a controlling computer.
| Crossover Cable(for direct connection to a PC) | |||
| End 1 Pin | End 2 Wire Color Pin | Wire Color | |
| 1 | white-orange 1 | white-green | |
| 2 | orange 2 green | ||
| 3 | white-green | 3 | white-orange |
| 4 | blue | 4 | blue |
| 5 | white-blue | 5 | white-blue |
| 6 | green | 6 | orange |
| 7 | white-brown | 7 | white-brown |
| 8 | brown | 8 | brown |
| Straight-through Cable(for connection to a switch, hub, or router) | ||
| End 1 Pin | End 2 Wire Color Pin | Wire Color |
| 1 | white-orange 1 | white-orange |
| 2 | orange 2 orange | |
| 3 | white-green 3 | white-green |
| 4 | blue 4 | blue |
| 5 | white-blue 5 | white-blue |
| 6 | green 6 | green |
| 7 | white-brown 7 | white-brown |
| 8 | brown 8 | brown |
T568B T568A T568B T568B
A cable that is wired as TIA/EIA T568A at one end and T568B at the other (Tx and Rx pairs reversed) is a "crossover" cable.
A cable wired the same at both ends is called a "straight-through" cable because no pin/pair assignments are swapped.
Figure 5. RJ-45 Pin Assignment for Ethernet Communication
Over TP and Remote RS-232 Control Wiring
Use a female 9-pin D connector to bare wire RS-232 cable or a universal control cable (UC50' or UC100') to connect your computer or control system to the OVER TP or REMOTE port (see figure 6 to wire this 3-pole connector).
Figure 6. Remote RS-232 Wiring
-
Wire the unterminated end of the RS-232 cable to the three pins of the 3-pole captive screw connector as described below. Connect the transmit, receive, and ground wires of the cable to the three pins on the connector, starting at the left:
-
Connect the transmit wire to pin 1 which plugs into the Rx (receiver) port.
- Connect the receive wire to pin 2 which plugs into the Tx (transmit) port.
-
Connect the ground wire to pin 3 which plugs into the G (ground) port.
-
Plug the 3-pole connector into the OVER TP or REMOTE port on the rear panel of the device.
-
Connect the other end of the cable to the appropriate computer or control system port.
Contact Closure Wiring
Connect a push-button contact closure device to the CONTACT port (see figure 2, ① on page 5) to enable input switching via contact closure.
- Wire and plug one of the provided 4-pole connectors into the Contact port (see the image on the right) representing the desired input number on the DTP3 T 203.
• Pin 1 = Contact input 1
• Pin 3 = Contact input 3
• Pin 2 = Contact input 2
- Pin G = Ground
- Press the button on the contact closure device to switch the connected input to the output.
CONTACT
Tally Wiring
To identify the currently selected input when the front panel buttons are not visible, connect a device such as an LED to the TALLY port (see figure 2, 1). When the input you are using is selected, the corresponding tally pin shorts to the ground and activates the connected indicator.
Wire and plug one of the provided 4-pole connectors into the Tally port (see the image on the right).
• Pin 1 = Tally output 1
• Pin 3 = Tally output 3
• Pin 2 = Tally output 2
• +V = +5VDC
TALLY
Show me cables
The CONTACT and TALLY ports can also be used with Extron Show Me (SM) cables. The cables feature a share button for remote input source selection and a control pigtail, which can be wired directly into Extron switchers with contact closure and tally outputs.
To wire the SM cables:
- Connect the input end of the SM cable to the source device.
- Connect the output end to the switcher.
- Connect the black (Tally) and red (Contact) pigtail wires (see the image on the right). The number under the CONTACT and TALLY pins corresponds to that particular video input on the switcher.
NOTE: The ground or drain wire on the cable does not need to be wired to the switcher. The wire can be tied back and shielded.
Locklt Lacing Bracket Installation
HDMI signals run at a very high frequency and are especially prone to errors caused by bad video connections, too many adapters, or excessive cable length. To avoid the loss of an image or jitter, follow these guidelines:
- Limit or avoid the use of adapters.
- Use only cables specifically intended for HDMI or DVI signals.
To securely fasten an HDMI cable to a device:
- Plug the HDMI cable into the panel connection (see figure 7, ①).
Figure 7. LockIt Lacing Bracket
-
Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing bracket to be placed over it (②). The screw does not have to be removed.
-
Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the screw to secure the bracket (③).
ATTENTION:
- Do not overtighten the HDMI connector mounting screw. The shield to which it fastens is very thin and can easily be stripped.
-
Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est attachée est très fin et peut facilement être dénudé.
-
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket (④).
- While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length (⑤).
Operation
This section describes the operation of the DTP3 T 203. Topics include:
- Front Panel Features
- Operation
Front Panel Features
A Power LED
D Configuration port
G HDCP status LEDs
B Reset button
E Input selection buttons and LEDs
USB-C power delivery LED
© Auto Switch LED
F Signal status LEDs

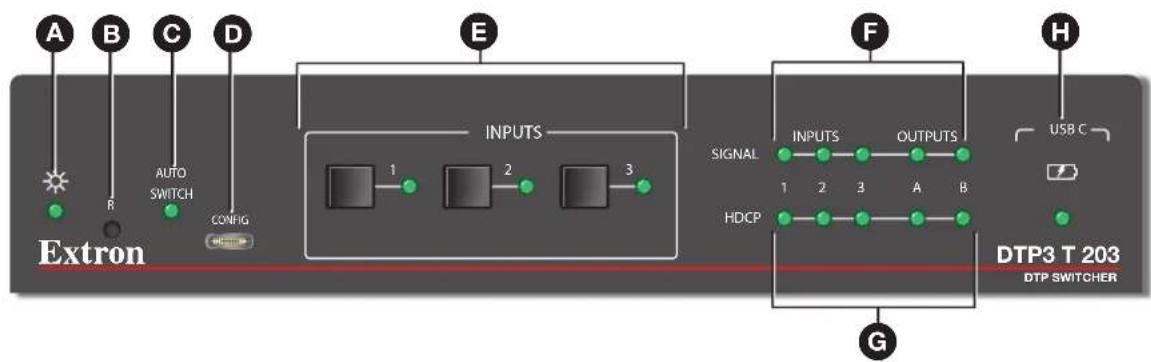

Figure 8. DTP3 T 203 Front Panel
Power LED — Lights green when the unit is receiving power and operational.
B Reset button — This recessed button initiates three levels of reset on the DTP3 T 203. To initiate the different reset levels, use a pointed object such as a small Phillips screwdriver or stylus to press and hold the button while the switcher is running or while it is being powered up (see Resetting on page 15 for details).
NOTE: The switcher can also be reset to its factory default settings using SIS commands (see Resets on page 40) or PCS (see the DTP3 T 203 Help File).
Auto Switch LED — Lights green when auto-input switching is enabled (see Auto-input Switching on page 13 for procedure to set up automatic input selection).
Configuration port — Connect a USB-C cable to a computer to configure the device and update the firmware via PCS, SIS commands, or internal web pages. To enter SIS commands, use a secure communication utility that supports Secure Shell (SSH). Enter 203.0.113.22 for the IP address where requested on port 22023. The IP address cannot be changed.
E Input selection buttons and LEDs — Press one of these buttons to select an input to switch to the output. The LED at the right of each button lights when the corresponding input is selected. If auto-input switching is in effect, these buttons are disabled, but the LEDs continue to light to indicate the selected input. If the switcher has been reset prior to powering down, the default input selected is input 1.
F Signal status LEDs
- Inputs — Each input has a corresponding numbered SIGNAL LED which lights when a source is connected to the input connector and TMDS clock activity is detected.
NOTE: If the source device connected to the selected input is HDCP encrypted (requires HDCP authentication), the corresponding signal LED may not light unless HDCP has been authenticated.
- Outputs — Lights when an active sink (output) device is connected to the HDMI output.
G HDCP status LEDs (see figure 8 on page 11)
- Inputs — Each input has a corresponding numbered HDCP LED. If the connected source requires HDCP, the corresponding LED lights when authentication is successful.
NOTE: HDCP is authenticated on each input regardless of the currently selected source.
- Outputs — Lights if the currently selected input requires HDCP and the connected output device has been successfully authenticated.
NOTE: HDCP is re-authenticated on the output whenever a new input is selected.
USB-C power delivery LED — Lights green when the unit is powering a connected USB-C source.
Operation
After the switcher and the connected devices are powered up, the system is fully operational. If any problems are encountered, ensure all cables are routed and connected properly.
NOTE: The transmitter can be configured via PCS (see the DTP3 T 203 Help File) and SIS commands (see SIS Configuration and Control on page 26).
Powering on the Switcher
To power on the unit:
- Connect all input and output devices to the rear panel connectors on the switcher (see Rear Panel Features on page 5 for rear panel connections).
- Power on the display.
- Power on the DTP3 T 203 unit. Plug a standard IEC power cord into the power port on the switcher rear panel. During the boot process:
a. The unit performs a self-test, during which the front AUTO SWITCH, INPUTS, SIGNAL, and HDCP LEDs each blink once in sequence from left to right.
b. The power LED blinks for approximately 45 seconds. During this time, the switcher reads the available EDID information from the connected output device and writes it to memory on each input. When power is removed, these settings remain in the memory and are in effect when power is reapplied.
c. At the end of the boot process, the power LED turns off, and the LED for the most recently input lights.
- Power on the input devices.
Selecting an Input
To switch (tie) an input to the output, you have the following options:
- Front panel buttons — Press the desired input button on the front panel (ensure auto-input switching is not enabled). The LED corresponding to the selected input button lights.
- The appropriate front panel input LED lights to indicate the selected input. The LED remains lit until a new input is selected.
- Only one input can be switched to the output at a time.
NOTE: Buttons are disabled in auto-switch mode, but LEDs still indicate the selected input.
- Contact closure — Plug one of the provided 4-pole captive screw connectors into the rear panel CONTACT port. If a push-button contact closure device is attached to a CONTACT port, press the button that is connected to the slot that corresponds to the desired input (see Contact Closure Wiring on page 9 for more information).
NOTE: If an input pin is latched permanently to the ground pin, input switching by any other method is disabled while those pins are connected.
- Remote control — Inputs can be selected using Extron SIS commands (see Input Selection on page 35) and PCS (see the DTP3 T 203 Help File).
Auto-input Switching
Auto-input switching allows the DTP3 T 203 to automatically select the active, connected input based on the detection of an active video signal (TMDS clock activity).
When auto-input switching is enabled, the green AUTO SWITCH LED on the front panel lights and input selection (front panel input buttons, SIS commands, and contact tally) are disabled.
Auto-input switch modes
The DTP3 T 203 switchers provide three auto-switch modes, which can be selected via SIS commands (see Auto-Switch Mode on page 36) or PCS (see the DTP3 T 203 Help File):
Disabled (Mode 0)
- Auto-switch disabled (default). Inputs must be manually selected.
User-defined priority (Mode 1)
- Default priority is to select the highest active input (High to Low) in the following order: 3, 2, 1. Using SIS commands and PCS, the order of the priority can be defined. If no priority is defined, the default priority is used.
Input-memory priority (Mode 2)
- The unit switches automatically to the most recently applied input, and retains a history of the order in which the active inputs are connected to the unit. In the event that one of those active inputs are removed, the unit reverts to the last applied input.
Mode 2 timeout — Using SIS commands or PCS, you can set the number of seconds (0 to 500) the switcher delays before switching to the most recent input. The default is 3 seconds.
Enabling and disabling auto-input switching
By default, auto-input switching is disabled. To toggle auto-switching between disabling (Mode 0) and enabling (Mode 1 or 2) auto-input switching:
-
Press and hold input button 1 on the front panel.
-
While holding down input button 1, press and release the input button 2 to toggle through all three modes.
LED indications for auto-input switch modes
The LED indication for auto-switch mode are as followed:
• No switch LED = Auto-switch Mode 0
- Input 1 LED only = Auto-switch Mode 1
- Input 1 and input 2 LED = Auto-switch Mode 2
Front Panel Lockout (Executive Mode)
Front panel lockout mode disables all front panel controls, locking out users from those functions. RS-232, USB, and LAN controls are still available while in executive mode. Putting the switcher in lock mode enhances security by protecting against inappropriate or accidental changes to settings. If a front panel button is pressed during lock mode, all front panel LEDs (except for the power LED and USB-C power LED) blink once.
NOTE: Front panel lockout can only be enabled or disabled via SIS commands (see Front Panel Lockout (Executive Mode) on page 40) or PCS (see the DTP3 T 203 Help File).
EDID Minder
EDID Minder ensures that a source device connected to the switcher input continuously recognizes the EDID of a sink device, even if the sink is not physically connected.
EDID can be set to match output rate, a custom user-defined EDID, or a factory setting. A variety of EDID are available to be loaded via PCS and assigned to the inputs (see the DTP3 T 203 Help File to assign EDID).
The following table lists the available EDID slots. By default, the EDID is set to 1080p @ 60 Hz with 2-channel audio. Two slots are automatically populated by EDID from connected sink device.
| EDID Look Up Table | |||
| Slot | Slot Default EDID Details | ||
| 1 | Input 1 (store) slot 1080p @ 60 Hz_2Ch Manually populated via PCS. | ||
| 2 | Input 2 (store) slot 1080p @ 60 Hz_2Ch Manually populated via PCS. | ||
| 3 | Input 3 (store) slot 1080p @ 60 Hz_2Ch Manually populated via PCS. | ||
| 4 | Output A N/A Automatically populated w/ sink EDID from Output A. | ||
| 5 | Output B N/A Automatically populated w/ sink EDID from Output B. | ||
Input (store) slot
Each input has a dedicated store slot, which contains a default factory EDID. The EDID from these inputs can be imported to these slot, via PCS, and overwrite the default EDID.
Output slot
The two output slots are automatically populated by the EDID from the connected sink device. When HDP is detected, the EDID of the sink is automatically stored in the output slots. The output slots exist solely for the purpose of exporting to PCS.
EDID memory retention
The assigned EDID is stored to an EEPROM, which is located at the HDMI input. The stored EDID is retained until a reset is initiated, when it reverts back to the default EDID.
Hot Plug Detect (HPD)
HPD remains high on all inputs while the unit is powered on. The HPD drops low only while EDID is updated.
HDCP
Input
The HDMI and USB-C inputs negotiate and authenticate HDCP with the source device if the source requires HDCP encryption. The authentication process is repeated whenever the stored EDID is changed or updated, which is indicated by pulling HPD low.
Output
The output is pre-authenticated and encrypted, in accordance with the configured HDCP output mode using SIS commands (see Output HDCP Mode on page 34) or PCS (see the DTP3 T 203 Help File).
HDCP output modes
- Follow Input (default) — Output authentication and encryption follows input status. Authentication times out after \~10 seconds.
- Always Encrypt Output — The output is always authenticated and encrypted. Authentication times out after \~10 seconds.
HDCP authorization
The HDCP Authorized setting, configurable via SIS commands (see HDCP Authorized Device on page 34) or PCS (see the DTP3 T 203 Help File), is for devices such as Mac computers, iPhones, iPads, and some Windows ^® sources that always encrypt their output, if the downstream sink is HDCP compliant.
- HDCP Authorized On — The HDMI inputs indicate to the sources that they are capable of handling HDCP content.
When an encrypted or unencrypted source is connected, the video is passed through the system.
- HDCP Authorized Off — The HDMI inputs indicate to the sources that they are not capable of handling HDCP content.
When a MacBook ^® , or any of the other devices listed above, is connected, the output video is unencrypted.
When a source playing content that requires video encryption (for example, Blu-ray) is connected, the source does not output video.
HDCP notification
HDCP Notification provides an indication that encrypted content is trying to be displayed on a non-HDCP compliant sink or display device. HDCP Notification can be set using SIS commands (see HDCP Notification on page 35) or PCS (see the DTP3 T 203 Help File).
- HDCP Notification Enabled (default) — When the input signal is encrypted and the connected display is not HDCP compliant, a green screen is displayed on the output.
- HDCP Notification Disabled — When the input signal is encrypted and the connected display is not HDCP compliant, a black screen is displayed on the output.
Resetting
The front panel RESET button (see figure 8, B on page 11) initiates three levels of resets. Use a pointed stylus, ballpoint pen, or small screwdriver to access the recessed button.
See the Reset Modes table on page 16 for a summary of the resets.
ATTENTION:
- The switcher can also be reset to its factory default settings using SIS commands (see Resets on page 40) or PCS (see the DTP3 T 203 Help File).

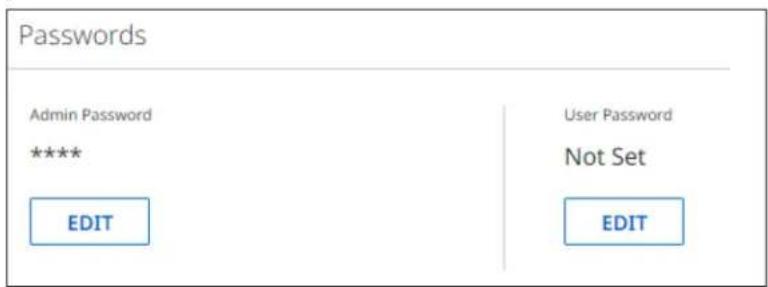

- The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords reverts to the default, extron. A new password would need to be configured to secure the device.
| Reset Modes | |||
| ModeA | Activation Result Purpose and Notes | ||
| Run Factory Boot Code | Hold in the recessed front panel RESET button while applying power to the unit. All front panel LEDs blink twice for confirmation upon power up. | The device reverts to the factory default firmware for a single power cycle. | Use this mode to revert to the factory default firmware for a single power cycle if incompatibility issues arise with user-loaded firmware. All user files and settings are maintained. |
| NOTE: Do not operate with the default firmware loaded by a factory firmware reset. Use it only to load the most current firmware to the device. | |||
| * Reset Network Settings | Hold in the RESET button until all front panel LEDs blink twice (once at 3 seconds, again at 6 seconds). Then, release and press the RESET button again within 1 second*. | Sets the following back to factory default:Port mappingIP address (192.168.254.254).Subnet mask address (255.255.255.0).Gateway IP address (0.0.0.0).Enable ARP capability.Turns DHCP off. | Use this mode to reset all IP settings back to factory defaults.Equivalent to SIS command 1ZQQQ (see Resets on page 40). |
| * Full Factory Reset | Hold in the RESET button until all front panel LEDs blink three times (once at 3 seconds, again at 6 seconds, again at 9 seconds). Then, release and press the RESET button again within 1 second*. | Performs a complete reset to factory defaults (except the firmware).Does everything the Reset Network Settings mode does.Clears port configurations.Resets all IP options.Clears all user settings Presets all passwords.Clears all files from the unit. | Use this mode to start over with default configuration and uploading, and also to replace events.Equivalent to SIS command ZQQQ (see Resets). |
| NOTES:*For these modes, nothing happens if the momentary press does not occur within 1 second.The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords reverts to the default, extron (see Passwords on page 46 to change a password). | |||
TMDS Output Format
The TMDS output format has three components:
• Video format — either DVI or HDMI
• Color space — RGB 4:4:4, YCbCr 4:2:2, or YUV 4:4:4
• Quantization range — either Full (0-255) or Limited (16-235)
By default, the output format is automatically configured for Auto, which forces RGB 4:4:4 Full, with the video format dependent on the source signal and sink capabilities.
Alternatively, the TMDS output format can be forced using SIS commands (see Output TMDS Format on page 35) or PCS (see the DTP3 T 203 Help File).
5V Output Modes
There are two modes for the 5V output:
- Always enabled (default) — The 5V pin is always active, regardless of input signal status. This is necessary to detect hot-plug assertion for reading EDID from a connected sink.
- Auto — The 5V output is only active when a source is connected to the input. If no source is connected, the 5V output will be disabled. This configuration is necessary for some sinks to enter sleep mode.
This can be changed via SIS commands (see 5V Output Mode on page 35) or PCS (see the DTP3 T 203 Help File).
Video Mute
There are three options for video mute:
• Output Mute Off (default) — The video input and audio signals are passed to the output.
- Output Mute On — The video output is muted (black) and 5V is on. If present, the embedded audio is still passed to the sink device.
- Output Sync Mute On — The video output and 5V are off. The embedded audio is not passed to the sink device. This allows the display to sleep.
This applies to the HDMI and DTP/HDBT outputs and can be changed via SIS command (see Video Mute on page 35) or PCS (see the DTP3 T 203 Help File).
NOTE: Video mute reverts to default (disabled) after a power cycle.
Audio Mute
The audio outputs can be muted individually or globally via SIS commands (see Audio Mute on page 37) or PCS (see the DTP3 T 203 Help File).
NOTE: Audio mute reverts to default (disabled) after a power cycle.
Product Configuration Software
The DTP3 T 203 can be easily configured using Extron Product Configuration Software (PCS). This section describes the software installation and communication (see the DTP3 T 203 Help File for detailed control information). Topics include:
• Software and Firmware Installation
- Connecting to PCS
- Software Overview
Software and Firmware Installation
Visit www.extron.com to download and install the PCS software.
NOTES:
- Download the latest version of software and firmware of your product.
-
An Extron Insider account is required to download and use the firmware or software. Contact an Extron support representative to obtain an insider account.
-
Access the Extron website, and log in to your Extron Insider account.
- Mouse over the Download tab at the top of the page (see figure 9, ①).

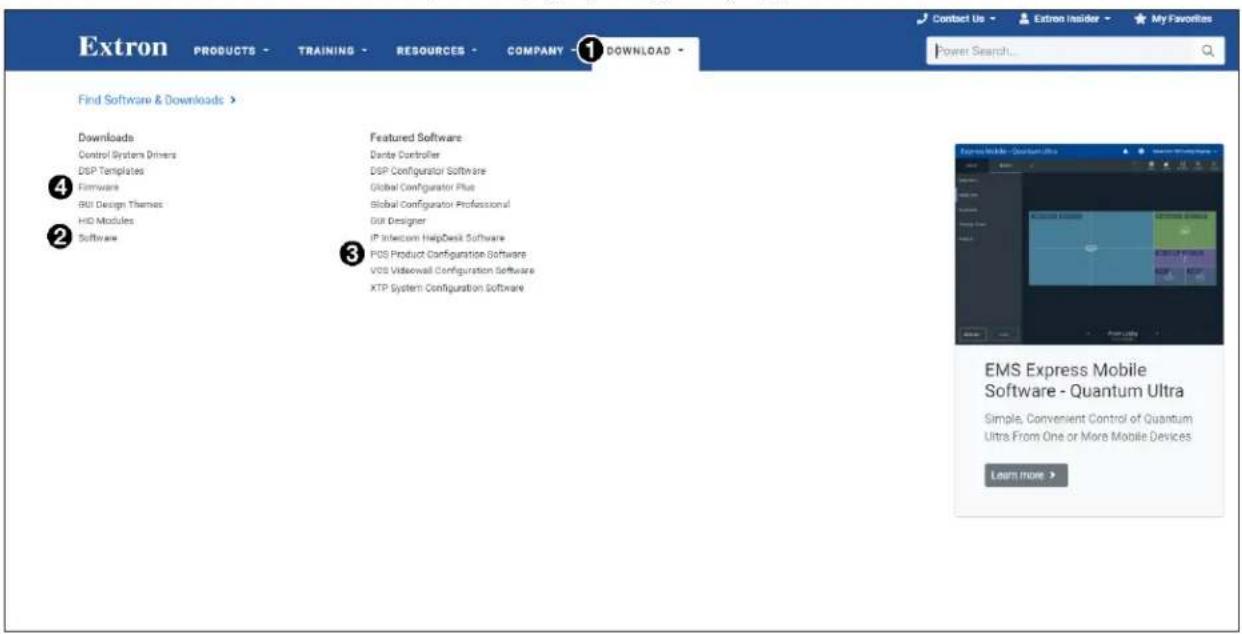

Figure 9. Software Links on Download Screen
- Click the appropriate link on the drop-down list.
For software, click the Software link (②).
The Download Center Software page opens (see figure 10 on page 19).
NOTE: If the software is listed, click that link (see the PCS Product Configuration Software link in figure 9, ③). The software product page opens. Skip to step 5 on page 20.
For firmware, click the Firmware link (see figure 9, 4).
The Download Center Firmware page opens (see figure 11 on page 19).
- For software, type the name of the software into the Search Software field (see figure 10), and select the desired software. The selected software page opens below the search.

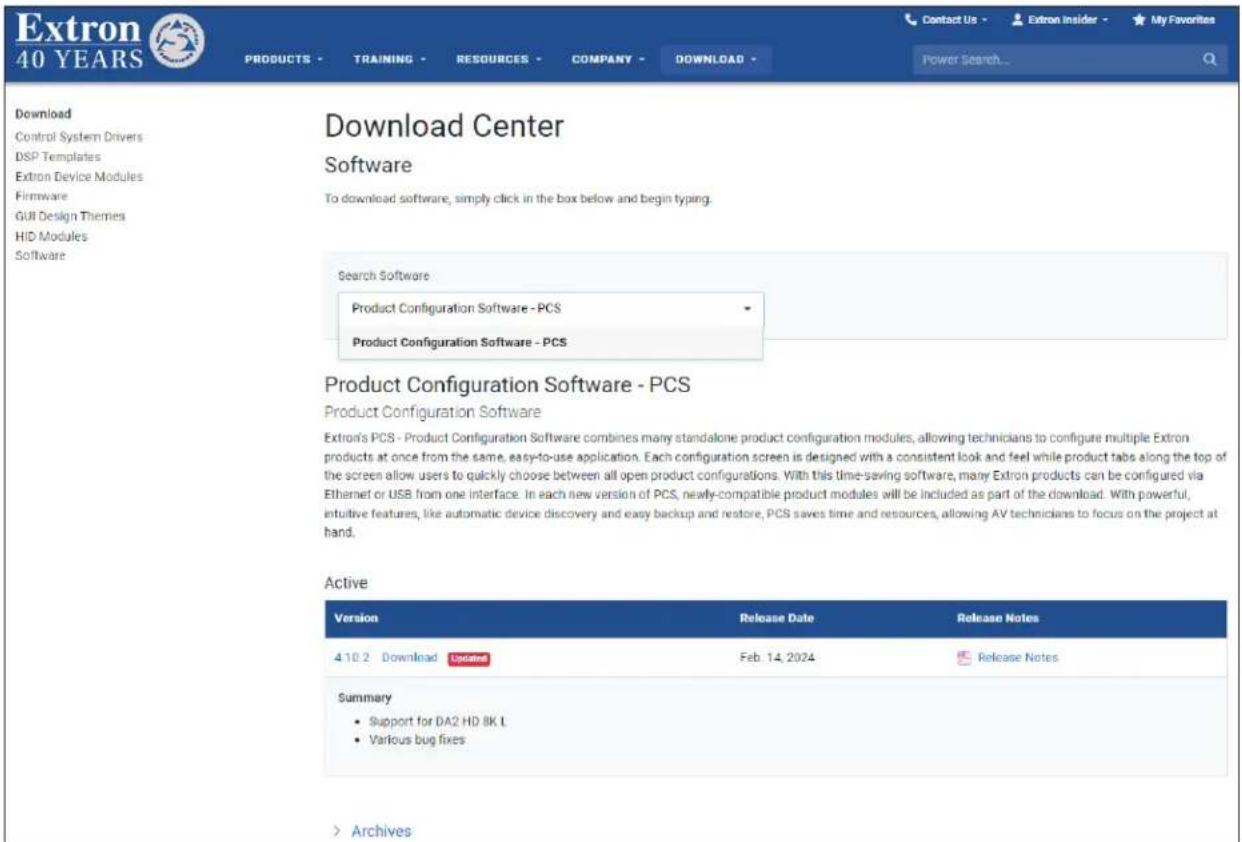

Figure 10. Software Download Center
For firmware, type in the name of the device into the Search Firmware field (see figure 11), and select the desired device. The selected firmware page opens below the search.
NOTE: The desired device is not listed unless a firmware update is available.

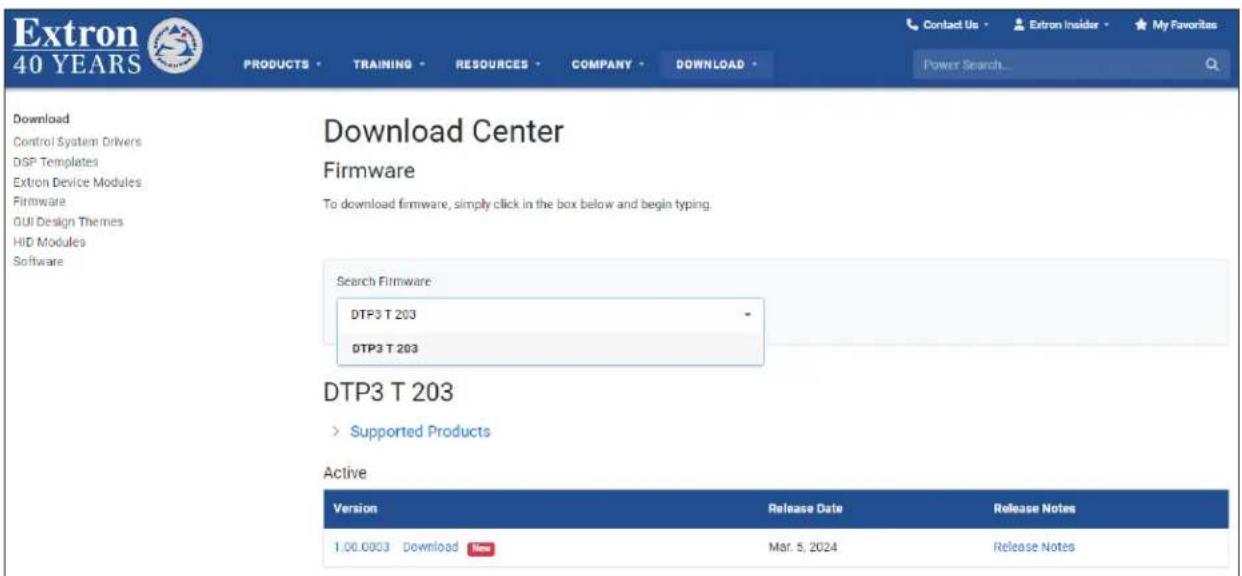

Figure 11. Firmware Download Center
-
Click Download (see figure 10 and figure 11 on page 19), and follow the on-screen instructions. An executable (.exe) file is downloaded to the PC. Run the firmware executable file to place the firmware on the PC for future use. Make a note of the folder where the software or firmware file was saved.
-
(Optional) Click Release Notes for more information about the firmware or software update.
-
(Optional) Click Archives to download previous versions of firmware or software.
NOTE: The Archives link is listed only if there is previous firmware.
- Install the software.
a. Navigate to the folder where the software file was downloaded. b. Double-click the executable file and follow the on-screen directions to install the software.
For firmware:

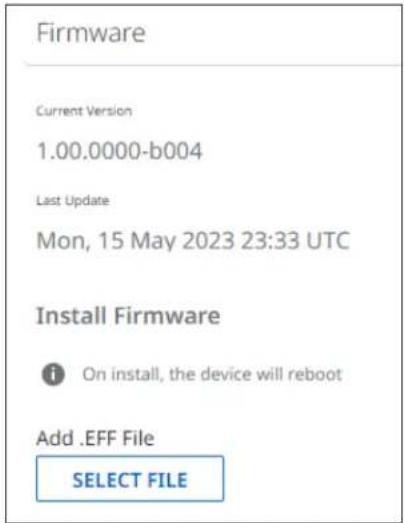

a. To install via PCS, see Update Firmware on page 25. b. To install via internal webpage, see Firmware on page 47.
Connecting to PCS
The Extron Product Configuration Software window opens with the Device Discovery panel open. Connect to the device using the Device Discovery panel or the TCP/IP panel.
Device Discovery Panel
The Device Discovery panel displays accessible Extron devices connected directly to the PC or to a LAN. Devices are identified and sorted by model, IP address, device name, or connection method.
-
Connect the control PC to the device. The Windows-based PCS communicates with the device via the front panel configuration port with a standard USB-C port.
-
Open the Product Configuration Software program from the desktop shortcut. The Extron PCS window opens to the Device Discovery panel (see figure 12).

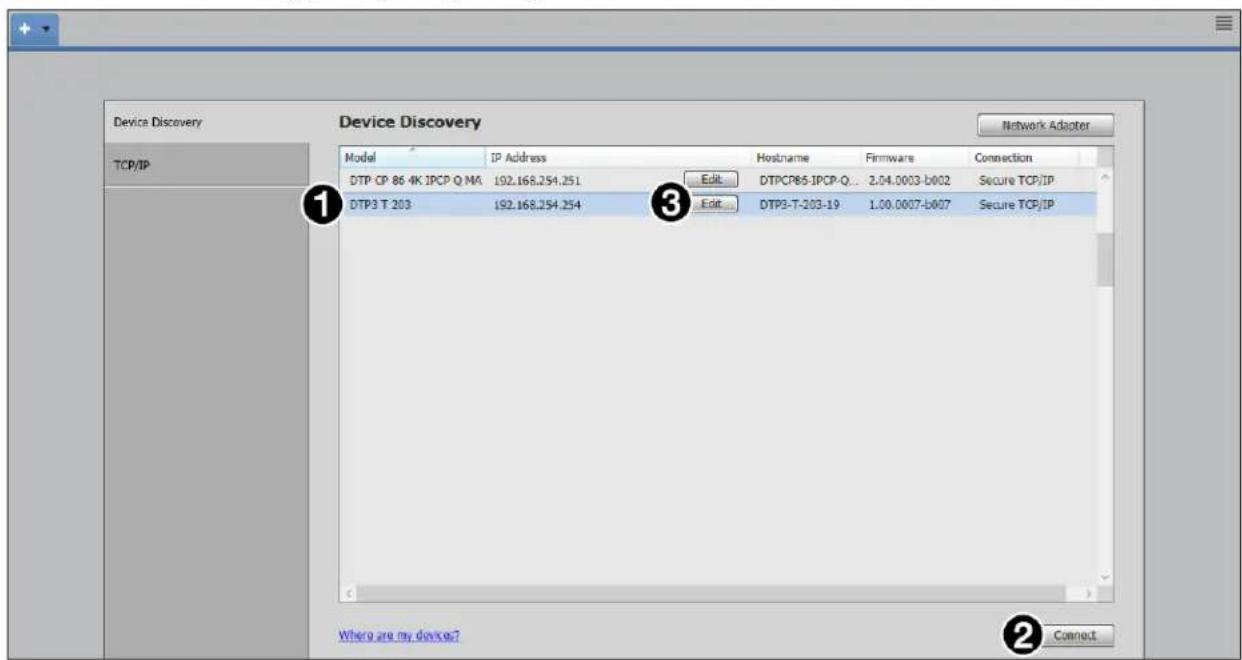

Figure 12. Device Discovery Screen
-
Select the DTP3 T 203 device by clicking on it to highlight it in the list (1).
-
Click Connect (②).
To edit the IP address:
a. Click on the Edit button (see figure 12, ③ on page 20). The Communication Settings dialog box opens (see figure 13).
b. Click in the IP Address field to edit the address.
c. Click Apply to complete and close.
d. Alternatively, click Apply and Connect to complete and connect to the device.
Click Cancel to close the box without changes.

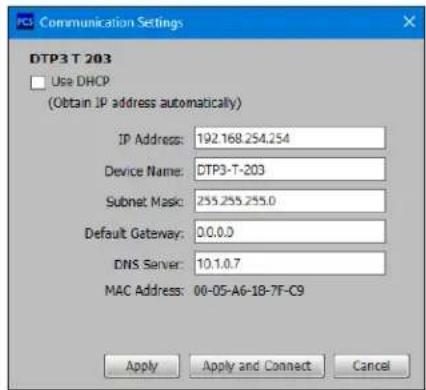

Figure 13. Comm Settings
TCP/IP Panel
The TCP/IP panel connects PCS to a specific device through IP over USB.

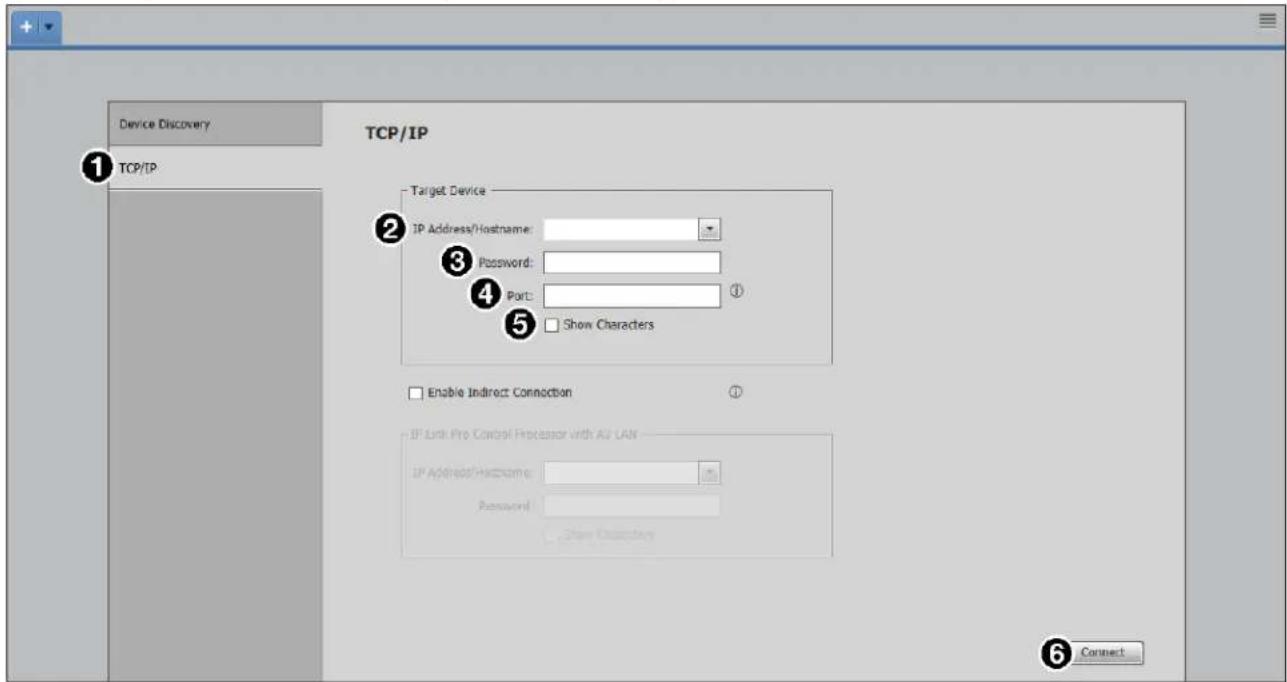

Figure 14. Comm Port Selection Window
- Click the TCP/IP tab (see figure 14, ①).
- In the IP Address/Hostname field (②), enter the IP address of the desired device.
NOTE: The default IP address is 192.168.254.254.
- In the Password field (③), enter the device password.
NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords convert to the default, which is extron.
- In the Port field (④), enter the port number or leave the field blank. PCS scans for the port if blank.
NOTE: Select the Show Characters checkbox (5) to display the password characters.
- Click the Connect button (⑥). A new device tab opens.
Offline Device Preview
Opening a new device tab for an offline device displays the interface and configuration options for the device without connecting to it. However, settings cannot be changed.
To open the transmitter in offline mode:
- From the blue configuration file drop-down list, select New Configuration File (see figure 15).
Figure 15. Configuration File Drop-Down List
The New Configuration File dialog box opens (see figure 16).
Figure 16. New Configuration File Dialog Box
- Select the desired device model from the Device Models list (see figure 16).
- Click Configure.
A new offline device configuration tab opens.
NOTE:
The DTP3 T 203 device tab (see the image at the right) has a grayed out indicator (circle) to indicate that there is no device connected and the software is running in offline configuration mode.
NOTE: For details about specific software features, see the DTP3 T 203 Help File.
Software Menu
The software menu contains options pertaining to PCS settings (see figure 17).

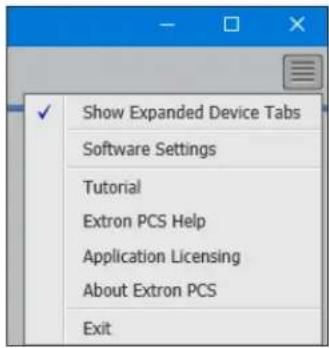

Figure 17. Software Menu
Show Expanded Device Tabs
Selecting Show Expanded Device Tabs from the Software menu displays the device IP address or connection method in the Device tab (see figure 18).
Figure 18. Expanded Device Tab
Software Settings
This option resets all disabled confirmation dialogs to the default settings.
- From the Software menu, select Software Settings. The Software Settings dialog box opens.
- Click the Re-enable Confirmation Dialog button (see figure 19, ①). The dialog box closes and the re-enable is complete.
Alternatively, click the Close button (2) to close the dialog box withoutre-enabling the confirmation dialogs.

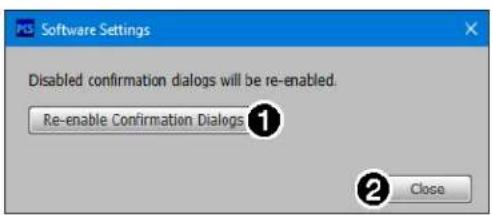

Figure 19. Settings Dialog Box
Tutorial
Display a general overview of where to find features in the PCS framework.
- From the Software menu, select Tutorial. The Tutorial dialog box opens.
- Click the I Get It! button to close the dialog box.
Extron PCS Help
Open the PCS help file for general PCS operations.
From the Software menu, select Extron PCS Help.
Application Licensing
Log into PCS with your Extron Insider account or check licensing details.

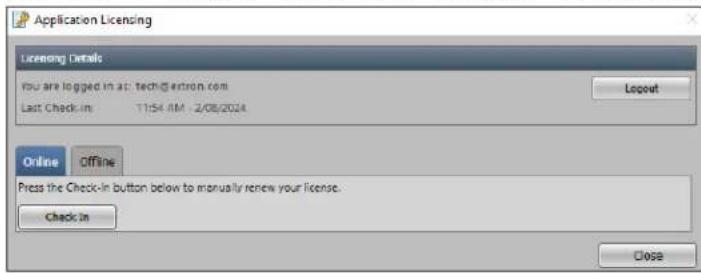

Figure 20. Application Licensing
About Extron PCS
Display information about the current PCS version.
- From the Software menu, select About Extron PCS. The About - Extron PCS dialog box opens.

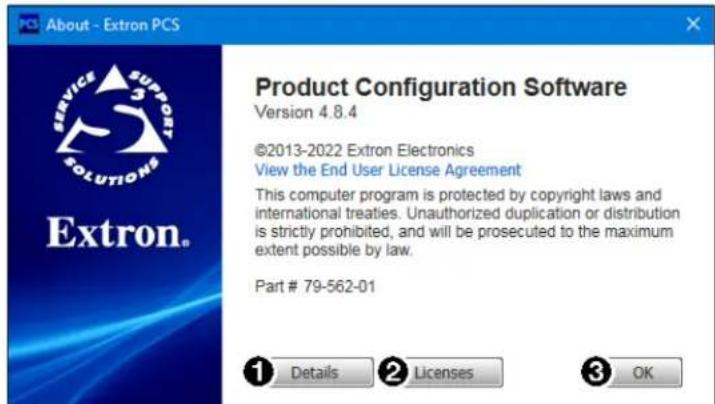

Figure 21. About - Extron PCS Dialog Box
- Click the Details button (see figure 21, ①) for more information.
- To display details about third-party software packages and associated licensing, click Licenses (②).
- Click OK (③) to close the dialog box.
Exit
Disconnect connected devices and close the application.
- From the Software menu, select Exit. If the device tabs are open, the Exit dialog box opens (see figure 22).

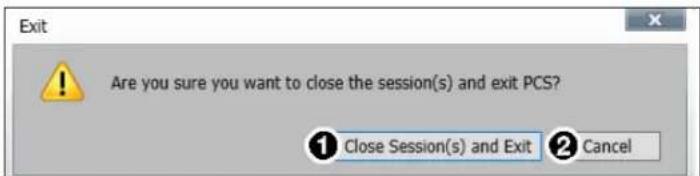

Figure 22. Exit Dialog Box
- Click the Close Session(s) and Exit button (①) to disconnect the software from connected devices, close all offline device tabs, and close the software.
Alternatively, click the Cancel button (②) to leave the software open.
Device Menu
The Device menu contains options pertaining to device connection, configuration, and information. For details about these options, see the DTP3 T 203 Help File.
- Disconnect — Disconnect the device from the PCS program and close the Device tab.
- Settings — Open a submenu with the following options:
- Hardware Settings — Display the Hardware Settings dialog box with device information and side tabs to change the device name, internal clock, and password of connected device.
It also contains an Edit Communication Settings button, which provides an alternative method of accessing the Communication Settings dialog box.
- Communication Settings —Open the Communication Settings dialog box to change IP settings of the connected device.
Figure 23. Device Menu
- Reset Device — Open the Reset Device dialog box, with selectable models for resetting the connected device, as well as the Unit Information (also displayed in the Hardware Settings dialog box).
NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the password convert to the default, which is extron.
- Backup — Export all audio, video, and communication settings of the connected device to the PC. This exported configuration can be saved as a backup file (with a .extz extension), or used to replicate settings from one device to other devices of the same model. When restoring a configuration, select specific device settings.
-
Restore — Open a submenu containing restore options:
-
Restore this Device — Upload a saved configuration for the DTP3 T 203 to the connected device.
- Restore to Multiple Devices — Upload a saved configuration file for the DTP3 T 203 to multiple devices on the network.
NOTE: The connected devices must be connected via LAN.
- Update Firmware — Open a submenu to upload firmware from the host device to the connected device or to multiple devices.
NOTE: If necessary, download a new firmware from the Extron website (see Software and Firmware Installation on page 18).
- Update Firmware to this Device... — Upload firmware from the host device to the connected device only.
- Update Firmware to Multiple Devices... — Upload firmware to multiple devices on the network.
NOTE: The connected devices must be connected via LAN.
• DTP3 T 203 Help — Open the DTP3 T 203 Help File in a separate window.
- About this Module — Open the About This Module dialog box, with the module part number and firmware version of the connected device.
SIS Configuration and Control
Use Simple Instruction Set (SIS) commands to configure the DTP3 T 203. This section provides information about using those commands. Topics include:
- Host Control Ports
• Simple Instruction Set Control
• Command and Response Table for SIS Commands
• Command and Response Table for CEC SIS Commands
Host Control Ports
Rear Panel RS-232 Port
The DTP3 devices have a rear panel serial port (see figure 2, ① on page 5) that can be connected to a host device such as a computer running Extron DataViewer, available at www.extron.com. The port makes serial control of the switcher possible (see Over TP and Remote RS-232 Control Wiring on page 8 to connect the port). Use the protocol information listed below to make the connection.
The protocol for the Remote serial port is as follows:
- 9600 baud
- no parity
- 8 data bits
- 1 stop bit
- no flow control
Front Panel Configuration USB Port
The front panel USB-C Configuration port (see figure 8, D on page 11) can be connected to a host computer for configuration using SIS commands via SecureShell (SSH) client and IP address 203.0.113.22 on port 22023. To connect the switcher to a host computer, download the USB driver, follow the on-screen instructions, and configure the switcher as required.
Ethernet (LAN) Port
The rear panel Ethernet connector (see figure 2, Ⓙ) can be connected to an Ethernet LAN. Communications between the switcher and the controlling device is via Telnet, using port 23. The Telnet port can be changed, if necessary, via SIS using Dataviewer, or other port configuration application. This connection makes SIS control of the unit possible using a computer connected to the same LAN (see TP Cable Recommendations for Ethernet Communication on page 8 to wire the LAN connector).
Default IP address
To access the DTP3 T 203 switcher via the LAN port, the IP address, subnet mask, and the gateway address for the devices are needed. If the address have not been changed, the factory-specified defaults are:
- DHCP Off
• IP address 192.168.254.254
• Gateway address 0.0.0.0 - Subnet mask 255.255.255.0
Establishing a Connection
The Ethernet cable can be terminated as a straight-through cable or a crossover cable and must be properly terminated for your application (see TP Cable Recommendations for Ethernet Communication on page 8).
• Crossover cable — Direct connection between the computer and the device.
- Patch (straight) cable — Connection of the device to an Ethernet LAN.
To establish a network connection to the device:
- Open a TCP socket to port 23 using the device IP address.
NOTE: If the local system administrators have not changed the value, the factory-specified default, 192.168.254.254, is the correct value for this field.
- The device responds with a copyright message including the name of the product, firmware version, part number, and the current date and time.
- Enter the appropriate administrator or user password.
a. If the password is accepted, the device responds with Login User or Login Administrator.
b. If the password is not accepted, the Password prompt reappears.
NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords revert to the default, extron.
Connection Timeouts
The Ethernet link times out after a designated period of time with no communication. By default, this timeout value is 5 minutes, but the value can be changed.
NOTE: Extron recommends leaving the default timeout at 5 minutes and periodically issuing the Query (Q) command to keep the connection active. If there are long idle periods, disconnect the socket and reopen the connection when another command must be sent.
Enabling and Disabling Telnet
By default, Telnet on port 23 is disabled.
NOTE: The symbol represents a carriage return, but pressing the
To enable Telnet communication, remap the Telnet port as follows:
- Use a SSH client (such as PuTTY) to connect to the switcher over port 22023.
- Enter the following SIS command to remap the Telnet port to 00023:
Esc Z23PMAP
NOTE: See Reset Telnet port map on page 39 for the SIS commands.
To disable Telnet communication, remap the Telnet port as follows:
- Connect to the switcher using one of the following method:
• Use a SSH client (such as PuTTY) to connect to the switcher over port 22023.
• Use a Telnet client (such as Extron DataViewer or PuTTY) to connect to the switcher over port 23.
- Enter the following SIS command to remap the Telnet port to 00000:
Esc Z0PMAP←
NOTE: See Disable Telnet port on page 39 for the SIS commands.
Verbose Mode
Telnet connections can be used to monitor for changes that occur, such as SIS commands from other Telnet sockets or serial port changes. For a Telnet session to receive change notices, the Telnet session must be in verbose mode 1 or 3. In verbose mode 1 or 3, the Telnet socket reports changes in messages that resemble SIS command responses. Front panel changes are also sent to users who are in verbose mode (see Verbose Mode on page 40).
Simple Instruction Set Control
Host-to-Unit Instructions
SIS commands consist of one or more characters per field. No special characters are required to begin or end a command character sequence. When a command is valid, the transmitter executes the command and sends a response to the host device. All responses from the transmitter to the host end with a carriage return and a line feed (CR/LF = ←), which signals the end of the response character string. A string is one or more characters.
Device-Initiated Power-Up Message
When the device completes its start-up, it issues the following message to the host:
© Copyright 2022, Extron DTP3 T 203, Vx.xx, 60-1885-52
- Vx.xx is the firmware version number.
• 60-1885-52 is the part number of the unit.
Error Responses
When the transmitter receives a valid command, it executes the command and sends a response to the host device. If the transmitter is unable to execute the command because the command is invalid or it contains invalid parameters, the transmitter returns an error response to the host. The error response codes are:
• E01 —Invalid input channel number (too large)
• E06 — Auto-switch, cannot select input via SIS
• E10 — Invalid command
• E13 — Invalid parameter
• E14 — Invalid for this configuration
• E17 — Invalid command for signal type
• E28 — Bad filename/File not found
Timeout
Pauses of 10 seconds or longer between command ASCII characters result in a timeout. The command operation is aborted with no other indication.
Unsolicited Responses
The unit provides unsolicited status updates for items that can change their state externally, so that the configuration software and control system does not need to poll the device. The responses for the following are initiated automatically when the state changes on the device:
- Input selection • Input HDCP status
- Input/Output Signal status
- Output HDCP status
- DTP/HDBT toggle switch status
- Send Power toggle switch status
- Auto-switch Mode 1 enable or disable (due to front panel toggle)
Using the Command and Response Table
The Command and Response Table for SIS Commands starts on page 34. Symbols are used throughout the table to represent variables in the command response fields. Command and response examples are shown throughout the table. The ASCII to HEX conversion table (see figure 24) is for use with the command and response table.

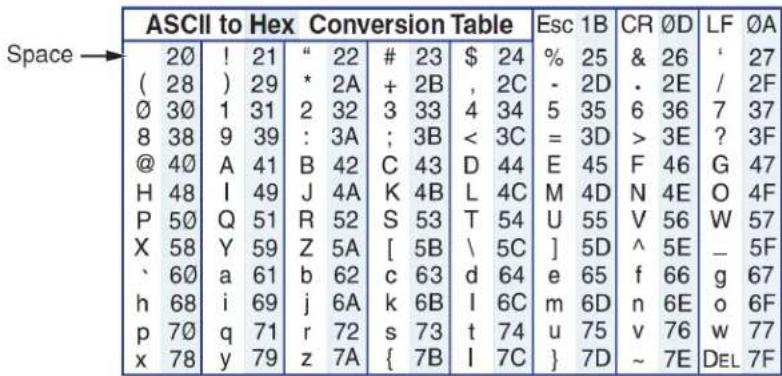

Figure 24. ASCII to Hex Conversion Table
NOTE: For commands and examples of computer or device responses used in this guide, the character "0" is the number zero and "0" is the capital letter "o".
Symbol Definitions
← = CR/LF (carriage return with line feed)
← = Soft carriage return (no line feed)
| = Pipe (vertical bar) character (URL equivalent to carriage return)
- = Space
* = Asterisk character (which is a command character, not a variable)
Esc or W = Escape key
NOTE: If unit does not support or recognize the entered commands, nothing happens and no response is issued.
x1 = Status
θ = Disabled/off/undetected
1 = Enable/on/detected (default)
2 = Enable video sync mute (for video mute feature only)
2 = Output number (1-2)
x3 = Bit depth
1 = Auto based on sink (default)
2 = Force 8-bit
X4 = HDCP output mode
1 = Encrypt as required by input. Continuous trials for HDMI sinks, attempt for 10s on DVI sinks (then fail) (default).
2 = Always encrypt. Continuous trials for HDMI sinks, attempt for 10s on DVI sinks (then fail).
x5 = TMDS output format
1 = Pass through if HDMI sink, force DVI format if DVI sink (auto default)
2 = DVI RGB 44
3 = HDMI RGB "Full"
4 = HDMI RGB "Limited"
5 = HDMI YUV 444 "Limited"
6 = HDMI YUV 422 "Limited"
X6 = Input HDCP status
= No source detected 1 = Source detected with HDCP 2 = Source detected without HDCP
X7 = Output HDCP status
= No sink detected 1 = Sink detected with HDCP 2 = Sink detected without HDCP
X8 = HDCP Notification
= Black screen 1 = Green screen enabled (default)
X9 = Slot on EDID look up table (see EDID Look Up Table on page 14).
10 = Output 5V mode
1 = Auto 5V enable when source with 5V present, else off
2 = 5V always enabled (default)
X11 = Remote power
θ = No remote power/off
1 = DTP3 48 VDC
12 = Text string of up to 63 alphanumeric characters and hyphen (-). No spaces allowed, and no distinction between upper and lower case. First character must be a letter and the last must not be a hyphen.
Default is “DTP3-T-203-xx-xx-xx.”
X13 = Verbose mode
= Clear/none (default for LAN port)
1 = Verbose mode (default for RS-232)
2 = Tagged responses for queries
3 = Verbose mode and tagged responses for queries
X14 = DTP/HDBT toggle switch status
1 = DTP mode
2 = HDBT mode
X19 = Serial UART port configuration
= RS-232 Pass Through (default) 1 = Ethernet to RS-232 insertion 2 = Host mode
x20 = Port number
01 = Remote RS-232 port
02 = Unused
03 = Output B over DTP UART
x21 = Baud rate
300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600 (default), 14400, 19200, 28800, 38400, 57600, 115200; Port 1 is fixed at 9600
22 = Parity off, even, none, mark, space (only the first letter is required)
x23 = Data bits 7-8 (8 is default)
X24 = Stop bits 1, 2 (1 is default)
x25 = Port timeout internals
1 (=10 seconds) — 65000 (default is 30 = 300 seconds = 5 minutes, in 10-sec. increments.
x26 = Start point for UART ports, 3001 (default)
X27 = Auto switch mode
θ = Disable (default)
1 = User defined priority
2 = Input memory priority
X28 = Input number (1-3)
X29 = Inactive signal timeout for Auto-Switch Mode 2
0-500 = seconds (in 1 second intervals), default = 3 seconds
x30 = Contact/Tally action
θ = Open
1 = Closed
X31 = Contact/Tally ports (1-3)
x32 = Contact closure behavior
= Stays on current channel if re-selected (default)
1 = Select 0 channel if current channel is re-selected
[X33] = Tally pin mode on channel mute
θ = Always on (default)
1 = Off when muted
2 = Blinking when mute
X34 = 128 or 256 Byte EDID raw HEX (text form) from currently assigned EDID. Arranged in 16x16 Byte or 6x32 Byte grid.
X35 = Native resolution and refresh rate from currently assigned EDID
Ex: 1920x1080 @60Hz
X36 = Specific port number (01-99). Response is 2-digits.
[X37] = Time in 10s of milliseconds to wait for characters coming into a serial port terminating
(1-32767; default = 10 (100 ms). The response is returned with leading zeros. Commands using both and X20 must have both values = 0 or both set non-zero.
X17
X38 = Time in 10s of milliseconds to wait between characters coming into a serial port before terminating
(0-32767; default = 2 (20ms). The response is returned with leading zeros. commands using both
x20 must have both values = 0 or both set non-zero. In the RS command, x20 is optional.
x17 and
X39 = Parameter to set either Length of message to receive or Delimiter value.
L = # = byte count (min = 0, max = 32767; default = 0L = 0 bye count)
D = decimal value for ASCII character (min = 0, max = 00255; default = 00000L)
Value is placed prior to parameter: 3 byte length = "3L" and ASCII 0A delimiter is "10D." The parameter is case sensitive, must use capital D or capital L. The response is returned with leading zeros.
X40 = Priority status for receiving timeouts
θ = use Send data string command parameters (if they exist).
1 = use Configure receive timeout command parameters instead (default = 0)
X41 = Set local date and time format (MM/DD/YY-HH:MM:SS).
Read local date and time format (day of the week, date month year HH:MM:SS)
42 = IP address in dotted decimal notation (xxx.xxx.xxx.xxx)
Default: 192.168.254.254
Default gateway IP address: 0.0.0.0
Default DNS server IP address: 0.0.0.0
X43 = Subnet mask Default: 255.255.255.0
[X44] = Hardware MAC address — (00-05-A6-NN-NN-NN)
45 = Password length is 0-128 characters. All man-readable ASCII characters are permitted except “|” Password cannot be single space. Passwords are case-sensitive.
X46 = Prefix (subnet mask bit). Subnet 255.255.255.0 is represented as a Prefix value by /16.
X47 = CEC mode
θ = Disable CEC operation for this IO port (default)
2 = Enable insertion (unidirectional)
4 = Enable insertion and publish received CEC messages (bidirectional, recommended mode)
X48 = CEC status
θ = CEC mode θ disabled
2 = CEC mode 2 enabled but no device detected (unidirectional)
3 = CEC mode 2 enabled and device detected (unidirectional)
4 = CEC mode 4 enabled but no device detected (bidirectional)
5 = CEC mode 4 enabled and device detected (bidirectional)
X49 = Source logical address (our pseudo): 0 through 15
(-1 = not found or port not enabled)
50 = Destination logical address (theirs): 0 through 15 (-1 = not found or port not enabled)
| CEC Logical Addresses | |||
| Address D | Device Address Device | ||
| 0 | TV | 8 | Playback Device 2 |
| 1 | Recording Device 1 | 9 | Recording Device 3 |
| 2 | Recording Device 2 | 10 | Tuner 4 |
| 3 | Tuner 1 | 11 | Playback Device 3 |
| 4 | Playback Device 1 | 12 | Reserved |
| 5 | Audio System | 13 | Reserved |
| 6 | Tuner 2 | 14 | Free Use |
| 7 | Tuner 3 | 15 | Unregistered (as initiator address)Broadcast (as destination address) |
[X51] = CEC command: Predefined actions as strings within double quotes:
"Pwr on"
"PwrOff"
"ShowMe"
x52 = Send result
θ = Failed (NAK)
1 = Success (ACK) of entire message
2 = Unable to send
53 = CEC physical address: 4 hexadecimal digits
(Example: %32%00)
x54 = CEC device presence
θ-F = Device address
X = Missing
— = CEC port is off
×55 = CEC data: User selected elements (0-15) in the form of percent sign followed by 2 hex digits (Example: %2A%07%77)
56 = CEC address byte: In the form of percent sign followed by 2 hex digits (Example: %E0 = Extron output (14) to TV (0))
Command and Response Table for SIS Commands
| Command ASCII command (host to device) | Response (device to host) | Additional description | |
| Signal Status (unsolicited) | |||
| View signal status | Esc0LS←Verbose mode 2/3 | X1•X1•X1*X1•X1←SigX1•X1•X1*X1•X1← | Inputs*outputs |
| KEY: X1 = Status: θ = Disabled/off/undetected 1 = Enable/on/detected | |||
| HDCP Status (unsolicited) | |||
| View input HDCP status | EscIHDCP←Verbose mode 2/3 | X6•X6•X6←HdcpI X6•X6•X6← | |
| View output HDCP status | EscOHDCP←Verbose mode 2/3 | X7•X7←HdcpO X7•X7← | |
| KEY: X6 = Input HDCP Status: θ = No source detected 1 = Source detected with HDCP 2 = Source detected without HDCP X7 = Output HDCP Status: θ = No sink detected 1 = Sink detected with HDCP 2 = Sink detected without HDCP | |||
| Output HDCP Blocked State (unsolicited) | |||
| View output HDCP encryption status | EscB X2 HDCP←Verbose mode 2/3 | X1←HdcpB X2 * X1← | |
| KEY: X1 = Status: θ = Disabled/off/undetected 1 = Enable/on/detected X2 = Output number (1-2) | |||
| USB-C Power Delivery Status | |||
| View USB-C power delivery status | Esc35STAT←Verbose mode 2/3 | X1←Stat35* X1← | |
| KEY: X1 = Status: θ = Disabled/off/undetected 1 = Enable/on/detected | |||
| HDCP Authorized Device | |||
| Set HDCP authorization per input | EscE X28 * X1 HDCP← | HdcpE X28 * X1← | |
| Set HDCP authorization all inputs | EscE X1 HDCP← | HdcpE X1← | |
| View HDCP authorization status | EscEHDCP←Verbose mode 2/3 | X1•X1•X1←HdcpE X1•X1•X1← | |
| KEY: X1 = Status: θ = Disabled/off/undetected 1 = Enable/on/detected (default) X28 = Input number (1-3) | |||
| Output HDCP Mode | |||
| Set output HDCP mode per output | EscS X2 * X4 HDCP← | HdcpS X2 * X4← | |
| Set output HDCP mode all outputs | EscS X4 HDCP← | HdcpS X4← | |
| View output HDCP mode | EscSHDCP←Verbose mode 2/3 | X4•X4←HdcpS X4•X4← | |
| KEY: X2 = Output number (1-2) X4 = HDCP output mode: 1 = Default; encrypt as required by input. Continuous trials for HDMI sinks, attempts for 10s on DVI sink (then fail) 2 = Always encrypt. Continuous trials for HDMI sinks, attempt for 10s on DVI sink (then fail). | |||
| HDCP Notification | |||
| Set HDCP notification |  |  | |
| View HDCP notification |  |  | |
 |  | ||
| KEY: 2 = Output number (1-2) 8 = HDCP notification: θ = Black screen 1 = Green screen enabled (default) | |||
| Input Selection | |||
| Select input | 28!In | 28 A11← | Unsolicited |
| View selected input | ! | 28← | |
| Verbose mode 2/3 | 28 A11← | ||
| KEY: 28 = Input number (0-3) | |||
| Video Mute | |||
| Set video mute per output | 2*X1B Vmt | 2*X1← | Video mute |
| Set video mute all outputs | 1B Vmt | 1← | |
| View video mute status | B | 1*X1← | Outputs 1-max. |
| Verbose mode 2/3 | 1*X1← | ||
| KEY: 1 = Status: θ = Disabled/off/undetected (default) 1 = Enable/on/detected2 = Enable video sync mute (for video mute feature only) 2 = Output number (1-2) | |||
| Output TMDS Format | |||
| Set output TMDS format per output | 2*X5VTPO← | 2*X5← | |
| Set output TMDS format all outputs | 5VTPO← | 5← | |
| View output TMDS format status | ← | 5*X5← | |
| Verbose mode 2/3 | 5*X5← | ||
| KEY: 2 = Output number (1-2) 5 = TMDS output formal: 1 = Auto default, pass through HDMI sink, force DVI format if DVI sink.2 = DVI RGB 444 5 = HDMI YUV 444 "Limited"3 = HDMI RGB "Full" 6 = HDMI YUV 422 "Limited"4 = HDMI RGB "Limited" | |||
| 5V Output Mode | |||
| Set 5V output mode per output | 2*X10HPLG← | 2*X10← | |
| View 5V output mode status | ← | 10*X10← | |
| Verbose mode 2/3 | 10*X10← | ||
| KEY: 2 = Output number (1-2) 10 = Output 5V mode: 1 = Auto 5 V enabled when source with 5V present, else off 2 = 5 V always enable (default)EDID Transfer | |||
| Upload file to unit | Esc+UFsize,← | UPL← | Upload file from PC to, size =128 or 256. |
| Import EDID (.bin) to input (store) slot | EscTX9,EDID← | EdidTX9← | Import EDID frominto specified input slotX9. |
| Export EDID (.bin) to the unit | EscEX9,EDID← | EdidEX9← | Export EDID from specified EDID table slot (X9) to. |
| Send file from unit to PC | EscSF← | filedata(128/256bytes) | Sendfrom unit to PC. |
| KEY:X9= Slot on EDID look up table (see EDID Look Up Table on page 14). | |||
| EDID Other | |||
| View assigned EDID in HEX format | EscRX28EDID←X34← | HEX data from EDID assinged to inputX28 | |
| View assigned EDID native rate | EscNX28EDID←X35← | Native rate of EDID assinged to inputX28 | |
| KEY:X28= Input number (1-3)X34= 128 or 256 Byte EDID raw HEX (text form) from currently assigned EDID. Arranged in 16x16 Byte or 16x32 Byte grid.X35= Native resolution and refresh rate from currently assigned EDID (Ex. 1920x1080 @60 Hz) | |||
| Auto-Switch Mode | |||
| Set auto-switch mode | EscX27AUSW← | AuswX27← | |
| View auto-switch mode status (unsolicited) | EscAUSW←Verbose mode 2/3 | X27←AuswX27← | |
| Set user priority order for mode 1 | EscPX28●X28●X28AUSW← | AuswPX28●X28●X28← | Default is highest to lowest (3 2 1) |
| View user priority order for mode 1 | EscPAUSW←Verbose mode 2/3 | X28●X28●X28←AuswPX28●X28●X28← | |
| View machine priority for mode 1 | EscOAUSW←Verbose mode 2/3 | X28●X28●X28←AuswO(X28●X28●X28← | |
| Set auto-switch timeout for mode 2 | EscTX29AUSW← | AuswTX29← | |
| View auto-switch timeout | EscTAUSW←Verbose mode 2/3 | X29←AuswTX29← | |
| KEY:X27= Auto switch mode: θ = Disabled (default) 1 = User defined priority 2 = Input memory priorityX28= Input number (1-3)X29= Inactive signal timeout for auto-switch mode 2; θ-500 = seconds (in 1 second intervals), default = 3 seconds | |||
| Contact/Tally Behavior | |||
| Set mode | EscX32*X33MUTM← | MUTMX32*X33← | |
| View mode setting | EscMUTM←Verbose mode 2/3 | X32*X33←MUTMX32*X33← | |
| KEY:X32= Contact closure behavior: θ = Stays on current channel if re-selected (default)1 = Select 0 channel if current channel is re-selectedX33= Tally pin mode on channel mute: θ = Always on (default) 1 = Off when muted 2 = Blinking when mute | |||
| Command ASCII command (host to device) | Response (device to host) | Additional description | |
| EDID Transfer | |||
| Upload file to unit | Esc+UFsize,← | UPL← | Upload file from PC to, size =128 or 256. |
| Import EDID (.bin) to input (store) slot | EscI X9,EDID← | EdidI X9← | Import EDID frominto specified input slot X9. |
| Export EDID (.bin) to the unit | EscE X9,EDID← | EdidE X9← | Export EDID from specified EDID table slot (X9) to. |
| Send file from unit to PC | EscSF← | filedata(128/256bytes) | Sendfrom unit to PC. |
| KEY: X9= Slot on EDID look up table (see EDID Look Up Table on page 14). | |||
| EDID Other | ||
| View assigned EDID in HEX format | EscR X28 EDID← X34← | HEX data from EDID assinged to input X28 |
| View assigned EDID native rate | EscN X28 EDID← X35← | Native rate of EDID assinged to input X28 |
| KEY: X28 = Input number (1-3)X34 = 128 or 256 Byte EDID raw HEX (text form) from currently assigned EDID. Arranged in 16x16 Byte or 16x32 Byte grid.X35 = Native resolution and refresh rate from currently assigned EDID (Ex. 1920x1080 @60 Hz) | ||
| Auto-Switch Mode | |||
| Set auto-switch mode | EscX27AUSW← | AuswX27← | |
| View auto-switch mode status (unsolicited) | EscAUSW←Verbose mode 2/3 | X27←AuswX27← | |
| Set user priority order for mode 1 | EscP X28●X28●X28AUSW← | AuswP X28●X28●X28← | Default is highest to lowest (3 2 1) |
| View user priority order for mode 1 | EscPAUSW←Verbose mode 2/3 | X28●X28●X28←AuswP X28●X28●X28← | |
| View machine priority for mode 1 | EscOAUSW←Verbose mode 2/3 | X28●X28●X28←AuswO X28●X28●X28← | |
| Set auto-switch timeout for mode 2 | EscTX29AUSW← | AuswTX29← | |
| View auto-switch timeout | EscTAUSW←Verbose mode 2/3 | X29←AuswTX29← | |
| KEY: X27 = Auto switch mode: 0 = Disabled (default) 1 = User defined priority 2 = Input memory priorityX28 = Input number (1-3)X29 = Inactive signal timeout for auto-switch mode 2; 0-500 = seconds (in 1 second intervals), default = 3 seconds | |||
| Contact/Tally Behavior | |||
| Set mode | Esc X32* X33 MUTM← | MUTM X32* X33← | |
| View mode setting | Esc MUTM← | X32* X33← | |
| Verbose mode 2/3 | MUTM X32* X33← | ||
| KEY: X32 = Contact closure behavior: θ = Stays on current channel if re-selected (default)1 = Select 0 channel if current channel is re-selectedX33 = Tally pin mode on channel mute: θ = Always on (default) 1 = Off when muted 2 = Blinking when mute | |||
| Command ASCII command (host to device) | Response (device to host) | Additional description | |
| Audio Mute | |||
| Set audio mute per output | X2*X1Z Amt | X2*X1← | Audio mute |
| Set audio mute all outputs | X1Z Amt | X1← | |
| View audio mute status | Z | X1*X1← | Outputs 1-max |
| Verbose mode 2/3 | AmtX1*X1← | ||
| KEY: X1 = Status: θ = Disabled/off/undetected (default) 1 = Enable/on/detected X2 = Output number (1-2) | |||
| Serial UART Port Configuration | |||
| Set output UART mode | EscO X19 LRPT← | Lrpt0 X19← | |
| View output UART setting | EscOLRPT← | X19← | |
| Verbose mode 2/3 | Lrpt0 X19← | ||
| KEY: X19 = Serial UART Port configuration: θ = RS-232 pass through (default) 1 = Ethernet to RS-232 insertion 2 = Host mode | |||
| Configure Serial Port | |||
| Set serial port parameters | Esc X20*X21, X22, X23, X24 CP← | Cpn X20*Ccp X21, X22, X23, X24← | |
| View serial port status | Esc X20CP← X21 | ,X22, X23, X24← | |
| Configure current port timeout | Esc 0* X25TC← | Pti0*X25← | |
| View current port timeout | Esc 0TC← | X25← | |
| Verbose mode 2/3 | Pti0*X25← | ||
| Configure receive timeout | Esc X36*X37*X38*X40*X39 CE← | Cpn X36*Cce X37, X38, X40, X39← | |
| View receive timeout | Esc X36CE← X37 | ,X38, X40, X39← | |
| Set UART start point | Esc X26MD← | Pmd X26← | |
| Read UART start part | EscMD← | X26← | |
| Verbose mode 2/3 | Pmd X26← | ||
| KEY: X20 = Port number: θ1 = Remote RS-232 port θ2 = Unused θ3 = Output B over DTP UART X21 = Baud rate: 300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600 (default), 14400, 19200, 28800, 38400, 57600, 115200; Port 1 is fixed at 9600. X25 = Port timeout intervals: 1 to 65000 (in 10 seconds intervals: 1 = 10 seconds). Default is 30 = 300 seconds (5 minutes) X26 = Start point for UART ports, 3001 (default) X28 = Input number (1-3) X36 = Specific port number (01-99). Response is 2-digits. X37 = Time in 10s of milliseconds to wait for characters coming into a serial port terminating (1-32767; default = 10 (100 ms). The response is returned with leading zeros. Commands using both X17 and X20 must have both values = 0 or both set non-zero. X38 = Time in 10s of milliseconds to wait between characters coming into a serial port before terminating (0-32767; default = 2 (20ms). The response is returned with leading zeros. commands using both X17 and X20 must have both values = 0 or both set non-zero. In the RS command, X20 is optional. X39 = Parameter to set either Length of message to receive or Delimiter value. L = # = byte count (min = 0, max = 32767; default = 0L = 0 bye count) D = decimal value for ASCII character (min = 0, max = 00255; default = 00000L Value is placed prior to parameter: 3 byte length = "3L" and ASCII 0A delimiter is "10D." The parameter is case sensitive, must use capital D or capital L. The response is returned with leading zeros. NOTE: X20 is an optional parameter. X40 = Priority status for receiving timeouts: θ = Use Send data string command parameters (if they exist) 1 = Use Configure receive timeout command parameters instead (default = 0) | |||
| Command ASCII command | (host to device) | Response (device to host) | Additional description |
| LAN/IP Configuration | |||
| Set date and time | EscX41CT← | Ipt●X41← | |
| View date and time | EscCT← X41← | ||
| Set DHCP on | Esc1DH← | Idh1← | |
| Set DHCP off | Esc0DH← | Idh0← | |
| View DHCP mode | EscDH← X1← | ||
| Set IP address | EscX42CI← | Ipi●X42← | Default = 192.168.254.254 |
| View IP address | EscCI← X42← | ||
| Set subnet mask | EscX43CS← | Ips●X43← | Default = 255.255.255.0 |
| View subnet mask | EscCS← X43← | ||
| Set gateway IP address | EscX42CG← | Ipg●X42← | Default = 0.0.0.0 |
| View gateway IP address | EscCG← X42← | ||
| Set DNS server IP address | EscX42DI← | Ipd●X42← | Default = 0.0.0.0 |
| View DNS server IP address | EscDI← X42← | ||
| View hardware MAC address | EscCH← X44← | ||
| View connection listing | EscCC← | {number of connections}← | |
| Set administrator password | EscX45CA← | Ipa●X45← | |
| Clear administrator password | Esc●CA← | Ipa← | |
| View administrator password | EscCA← X45← | ||
| Set user password | EscX45CU← | Ipu●X45← | |
| Clear user password | Esc●CU← | Ipu← | |
| View user password | EscCU← X45← | ||
NOTE: In response to the View administrator password and the View user password commands, X45 is displayed as **** if a password exists. An empty line is displayed if no password exists.
KEY:
X1 = Status:
θ = Disabled/off/undetected
1 = Enable/on/detected
X41 = Set local date and time format (MM/DD/YY-HH:MM:SS).
Read local date and time format (day of the week, date month year HH:MM:SS)
X42 = IP address (XXX.XXX.XXX.XXX)
Leading zeros in each of the 4 fields are optional in setting values and are expressed in returned values:
Factory Default IP address: 192.168.254.254
Default Gateway IP address: 0.0.0.0
Default DNS Server IP address: 0.0.0.0
x43 = Subnet mask (xxx.xxx.xxx.xxx)
Leading zeros in each of the 4 fields are optional in setting values and are expressed in returned values:
Default subnet mask: 255.255.255.0
X44 = Hardware (MAC) address (00-05-A6-NN-NN-NN).
X45 = Password length is 0-128 characters. All man-readable ASCII characters are permitted except" | ." Passwords cannot be a single space. Passwords are case-sensitive.
| Command ASCII command (host to device) | Response (device to host) | Additional description | |
| LAN/IP Configuration (continued) | |||
| NOTE: Setting any values with a CISG command changes the DHCP setting to Off and Cisg response is followed by Boot2 response (when in verbose mode 2 or 3). | |||
| Set IP address, subnet mask, gateway | Esc1*X42/X46*X42CSIG← | Csig•1*X42/X46*X42← | |
| View IP address, subnet mask, gateway | Esc1CISG← X42 | /X46*X42← | |
| Enable NTP to set the time | Esc1NTEN← | Nten1← | |
| Disable NTP | Esc0NTEN← | Nten0← | |
| View NTP status | EscNTEN← X1← | ||
| Set port timeout | Esc0*X25TC← | Pti0*X25← | |
| View port timeout | Esc0TC← X25← | ||
| Set SIS-over-SSH port mapping | EscB{port number}PMAP← | PmapB{port number}← | |
| Disable SIS-over-SSH port | EscB0PMAP← | PmapB00000← | |
| View SIS-over-SSH port mapping | EscBPMAP← | {port number}← | |
| Set Telnet port map | EscZ{port number}PMAP← | PmapZ{port number}← | |
| NOTE: Telnet port 23 is disabled by default. | |||
| Reset Telnet port map | EscZ23PMAP← | PmapZ00023← | Set the Telnet port number to 23. |
| Disable Telnet port | EscZ0PMAP← | PmapZ00000← | |
| View Telnet port mapping | EscZPMAP← | {port number}← | |
| KEY: X1 = Status: 0 = Disabled/off/undetected 1 = Enable/on/detectedX25 = Port timeout intervals: 1 to 65000 (in 10 seconds intervals: 1 = 10 seconds). Default is 30 = 300 seconds (5 minutes)X42 = IP address (xxx.xxx.xxx.xxx)Leading zeros in each of the 4 fields are optional in setting values and are expressed in returned values:Factory Default IP address: 192.168.254.254Default Gateway IP address: 0.0.0.0Default DNS Server IP address: 0.0.0.0X46 = Prefix (subnet mask bit). Subnet 255.255.255.0 is represented as a Prefix value by /16. | |||
| General/Info | |||
| View DTP/HDBT toggle switch status | EscDHDBT←Verbose mode 2/3 | X14←HdbtoX14← | |
| View Send Power toggle switch status | EscRPWR←Verbose mode 2/3 | X11←RpwrX11← | View remote power setting on DTP in/out. |
| KEY: X11 = Remote power: 0 = No remote power/Off 1 = DTP3 48 VDCX14 = DPT/HDBT toggle switch status: 1 = DTP mode 2 = HDBT mode | |||
| Unit Name | |||
| Set the unit name | EscX12CN← | Ipn•X12← | |
| Set unit name to factory default | Esc•CN← | Ipn•DTP3-T-203-xx-xx-xx← | xx-xx-xx = Last 3 sections of MAC address. |
| View unit name | EscCN←Verbose mode 2/3 | X12←Ipn•X12← | |
| KEY: X12 = Text string of up to 63 alphanumeric characters and hyphen (-). No spaces allowed, and no distinction between upper and lower case. First character must be a letter and the last must not be a hyphen. Default is “DTP3-T-203-xx-xx-xx.” | |||
| Command ASCII command | Response (device to host) | Additional description | |
| (host to device) | |||
| Verbose Mode | |||
| Set verbose mode | EscX13CV← | VrbX13← | |
| View verbose mode | EscCV← X13← | ||
| KEY: X13 = Verbose mode: θ = Clear/none (default for LAN port) 2 = Tagged response for queries | 1 = Verbose mode (default for the RS-232 port) 3 = Verbose mode and tagged responses for queries | ||
| Information Requests | |||
| Request part number | N/n | 60-1885-52← | |
| Verbose mode 2/3 | Pno60-1885-52← | ||
| View firmware version | Q/q | x.xx← | Firmware build w/ 2 decimals (major.minor) |
| Verbose mode 2/3 | Ver01*x.xx← | ||
| View firmware version w/ patch | *Q/q | x.xx.xxxx← | (major.minor.patch) |
| Verbose mode 2/3 | Bld*x.xx.xxxx← | ||
| View detailed firmware version | 0Q/q bootloader version - factory base code version - updated firmware version] | Show bootstrap, factory-installed, and updated firmware version | |
| Example: 0.01-0.00.0000-b023-Fri, 20 May 2022 18:01 UTC> | |||
| View model name | 1I | DTP3•T•203← | |
| Verbose mode 2/3 | Inf01*DTP3•T•203← | ||
| View model description | 2I | DTP3•T•203•EXTENDER← | |
| Verbose mode 2/3 | Inf02*DTP3•T•203•EXTENDER← | ||
| View active signal information | 33I | H_Active*V_Active*V_Freq*Pixel_Clock← Inf33*H_Active*V_Active*V_Freq*Pixel_Clock← | |
| Front Panel Lockout (Executive Mode) | |||
| Set front panel lockout mode | X1X/x Exe | X1← | |
| View front panel lockout mode | X/x | X1← | |
| Verbose mode 2/3 | ExeX1← | ||
| KEY: X1 = Status: θ = Disabled/off/undetected 1 = Enable/on/detected | |||
| Resets | |||
| Partial factory reset | EscZXXX← | Zpx← | Reset all device settings but retain network settings. |
| Reset network settings | Esc1ZQQQ← | Zpq1← | Reset all network settings. |
| Full factory reset | EscZQQQ← | Zpq← | Reset all settings back to factory default. |
| Command ASCII command | Response (device to host) | Additional description | |
| Verbose Mode | |||
| Set verbose mode | Esc X13CV← | Vrb X13← | |
| View verbose mode | Esc CV← X13← | ||
| KEY: X13 = Verbose mode: θ = Clear/none (default for LAN port) 1 = Verbose mode (default for the RS-232 port) 2 = Tagged response for queries 3 = Verbose mode and tagged responses for queries | |||
| Information Requests | |||
| Request part number | N/n | 60-1885-52← | |
| Verbose mode 2/3 | Pno60-1885-52← | ||
| View firmware version | Q/q | x.xx← | Firmware build w/ 2 decimals (major.minor) |
| Verbose mode 2/3 | Ver01*x.xx← | ||
| View firmware version w/ patch | *Q/q | x.xx.xxxx← | (major.minor.patch) |
| Verbose mode 2/3 | Bld*x.xx.xxxx← | ||
| View detailed firmware version | 0Q/q bootloader version - factory base code version - updated firmware version] | Show bootstrap, factory-installed,and updated firmware version | |
| Example:0.01-0.00.0000-b023-Fri, 20 May 2022 18:01 UTC>-0.00.0000-b024*<2.09LX-dtp3_t_203 -Thus, 14 Jul 2022 23:18 UTC> | |||
| View model name | 1I | DTP3•T•203← | |
| Verbose mode 2/3 | Inf01*DTP3•T•203← | ||
| View model description | 2I | DTP3•T•203•EXTENDER← | |
| Verbose mode 2/3 | Inf02*DTP3•T•203•EXTENDER← | ||
| View active signal information | 33I | H_Active*V_Active*V_Freq*Pixel_Clock←Inf33*H_Active*V_Active*V_Freq*Pixel_Clock← | |
| Front Panel Lockout (Executive Mode) | ||
| Set front panel lockout mode | X1X/x Exe | X1← |
| View front panel lockout mode | X/xVerbose mode 2/3 | X1←ExeX1← |
| KEY: X1 = Status: θ = Disabled/off/undetected 1 = Enable/on/detected | ||
| Resets | |||
| Partial factory reset | EscZXXX← | Zpx← | Reset all device settings but retain network settings. |
| Reset network settings | Esc1ZQQQ← | Zpq1← | Reset all network settings. |
| Full factory reset | EscZQQQ← | Zpq← | Reset all settings back to factory default. |
Command and Response Table for CEC SIS Commands
| Command ASCII command(host to device) | Response(device to host) | Additional description | |
| CEC Enabled/Disable | |||
| Enable/disable one input CEC | EscI X28 *X47 CCEC← | Ccec I X28 *X47← | |
| Enable/disable all inputs CEC | EscI X47 *CCEC← | Ccec I X47← | |
| View input CEC status | EscI X28 CCEC←Verbose mode 2/3 | X48* X49* X50←Ccec I X28 *X48* X49* X50← | |
| Enable/disable one output CEC | EscO X2 *X47 CCEC← | Ccec O X2* X47← | |
| View output CEC status | EscO X2 CCEC←Verbose mode 2/3 | X48* X49* X50←Ccec O X2* X48* X49* X50← | |
| KEY: X2 = Output number (1-2)X28 = Input number (1-3)X47 = CEC mode: θ = Disable CEC operations for this IO port (default)2 = Enable insertion (unidirectional)4 = Enable insertion and publish received CEC messages (bidirectional) (recommended mode)X48 = CEC status: θ = CEC mode θ disabled2 = CEC mode 2 enabled but no device detected (unidirectional)3 = CEC mode 2 enabled and device detected (unidirectional)4 = CEC mode 4 enabled by no device detected (bidirectional)5 = CEC mode 4 enabled and device detected (bidirectional)X49 = Source logical address (our pseudo): θ through 15 (-1 = not found or port not enabled)X50 = Destination logical address (theirs): θ through 15 (-1 = not found or port not enabled) (see CEC Logical Addresses on page 32) | |||
Send CEC Commands
NOTE: Attempting to send a CEC command to an input or output that is disabled returns an E14 error.
Default discovered target logical address
| Send CEC data to Input(upstream source) | EscI 28 * 51 DCEC←orEscI 28 * 55 DCEC← | DcecI 28 * 56 X 55 * 52 ← | For Send CEC Commands, 51 and 55 can be used interchangeably. |
| Send CEC data to Output(downstream sink) | EscO 2 * 51 DCEC←orEscO 2 * 55 DCEC← | DcecO 2 * 56 X 55 * 52 ← | However, the response is always a hex representation ( 55 ), for example:%2A%07%FF. |
| Broadcast to all devices | |||
| Send CEC data to Input(upstream source) | EscI 28 *15* 51 DCEC←orEscI 28 *15* 55 DCEC← | DcecI 28 * 56 X 55 * 52 ← | |
| Send CEC data to Output(downstream sink) | EscO 2 *15* 51 DCEC←orEscO 2 *15* 55 DCEC← | DcecO 2 * 56 X 55 * 52 ← | |
KEY: 2 = Output number (1-2)
X28 = Input number (1-3)
X51 = CEC command: Predefined actions as strings within double quotes: "PwrOn," "PwrOff," "ShowMe"
X52 = Send result: = Failed (NAK) 1 = Success (ACK) of entire message 2 = Unable to send
x55 = CEC data: User selected elements (0 to 15) in the form of percent sign followed by 2 hex digits (Example: %2A%07%FF)
x56 = CEC address byte: In the form of percent sign followed by 2 hex digits (Example: %E0 = Extron output (14) to TV (0))
| Command ASCII command(host to device) | Response(device to host) | Additional description | |
| NOTE: CEC Usage ExamplesUnidirectional mode — No CEC received data messages (including answers to queries) desired | |||
| Set mode | Esc02*1CCEC← | Ccec01*2← | Power on TV on output 1. |
| Set data | Esc02* "PwrOn" DCEC←orEsc02* %04DCEC← | Dcec01* %E0%04*1← | |
| Bidirectional mode — CEC received data messages desired | |||
| Set mode | Esc02*4CCEC← | Ccec03*4← | Switch TV on output 1 to our signal (HDMI 2 on TV). |
| Set data | Esc02* "ShowMe" DCEC←orEsc02*15* %82%20%00DCEC← | Dcec03* %EF%82%20%00*1← | |
| Examples of possible unsolicited messages | Ceco3* %0F%32%65%6E%67*1← | TV broadcast command to set the menu language to English ("eng"). | |
| Ceco3* %0E*1← | TV pings us to confirm we are still there. | ||
| NOTE: Asynchronous received data messages from CEC in bidirectional mode (4) format: Cec1X28* X56X55* X52←X2* X56X55* X52← | |||
| Other CEC Commands | |||
| List CEC device presence | EscLQCEC←Verbose mode 2/3 | X54* X54..X54←QcecL* X54* X54..X54← | Input*output1 ... output x |
| Rediscover device on input | EscI X28 QCEC← | Qcec I X28*1←Qcec I X28*1* X52←...Qcec I X28*14* X52← | |
| Rediscover device on output | EscO X2 QCEC← | Qcec O X2*1←Qcec O X2*0* X52←...Qcec O X2*13* X52← | |
| Report physical address of output port | EscO X2 PCEC←Verbose mode 2/3Example | X53←Pcec O X2* X53←%10%00 | For 1000 (usually first HDMI input on TV). |
| KEY: X2= Output number (1-2)X28= Input number (1-3)X52= Send result: 0 = Failed (NAK) 1 = Success (ACK) of entire message 2 = Unable to sendX53= CEC physical address: 4 hexadecimal digits (Example: %32%00)X54= CEC device presence: 0-F = Device address X = Missing - = CEC port is off | |||
Internal Web Page
The DTP3 T 203 features an internal web server, displayed as a web page. This page allows you to monitor and adjust certain settings of the DTP3 T 203 via LAN connection.
This section gives an overview of the internal web page, which is always available and cannot be erased or overwritten. Topics in this section include:
- Accessing the Internal Web Page
- Web Page Panels
Accessing the Internal Web Page
To access the internal web page:
- Connect the DTP3 T 203 to a LAN using the rear panel LAN connector.
- On a connected PC, open a web browser.
- Enter the IP address of the device in the browser Address field.
NOTE: If the local system administrators have not changed the value, the factory-specified default is 192.168.254.254.
- Press the
key on the keyboard. The web page password page opens.
Figure 25. Network Password Prompt
- The transmitter is password protected. Enter a user name entry (user or admin) in the Username field and the password in the Password field when prompted.
NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of the complete system reset, the password reverts to the default, which is extron.
- Click SIGN IN.
Web Page Panels
The DTP3 T 203 internal web page (see figure 26) provides an overall, read-only view of the status of the transmitter, with some editable fields for the following categories:
① Details
③ Date and Time
⑤ Passwords
② Status
4 Network
6 Firmware
The panels in the accordion section that can be edited have an EDIT link. Click the link to access the panel. To access each panel in the accordion, click the name or the arrow for each panel.
• To view general information about the DTP3 T 203, click the ABOUT link (⑦ About).
• To sign out of the internal web page, click the user profile at the top right of the window (⑧).
Figure 26. DTP3 T 203 Internal Web Page
The internal web page does not automatically update. To see an updated page, click the refresh button on the web browser.
Details
The Details panel (1) displays the device hostname, a brief product description, part number, and serial number. To edit the hostname, see Network on page 46 for details.
Status
The Status panel (②) displays the current date, time, timezone, internal temperature in degrees Fahrenheit and Celsius, and the amount of time the device has been running(Uptime). To edit the date, time, and timezone, see Date and Time on page 45 for details.
Date and Time
The Date and Time settings panel (see figure 26, ③ on page 44 and figure 27) displays the mode last used to set the date and time, current date, and time. There are three options to set the date and time: manual mode, sync to NTP (Network time Protocol) servers, and sync to the connected PC.
Figure 27. Date and Time Panel
To set the date and time in Manual mode:
- Click EDIT in the Date and Time settings panel. The editable fields are displayed (see figure 28).
- Select the Manual radio button.
- Edit the Date/Time, as desired, by typing in the date and time or using the calendar and clock icons.
- Edit the Timezone, as desired, using the drop-down list.
- Click SAVE to confirm changes or CANCEL to close the window without making changes.
- Alternatively, click SYNC TO PC to set the date and time according to your PC.
To set the date and time in sync to the NTP servers mode:
- Click EDIT in the Date and Time panel. The editable fields are displayed (see figure 29).
- Select the Sync to NTP Servers radio button.
- Click in an NTP Server field and enter the IP address or host name of the desired NTP Server.
- Click SAVE to confirm changes or CANCEL to close the window without making changes.
- Alternatively, click SYNC TO PC to set the date and time according to your PC.
To sync the date and time with your PC, click SYNC TO PC to set the date and time according to your PC.

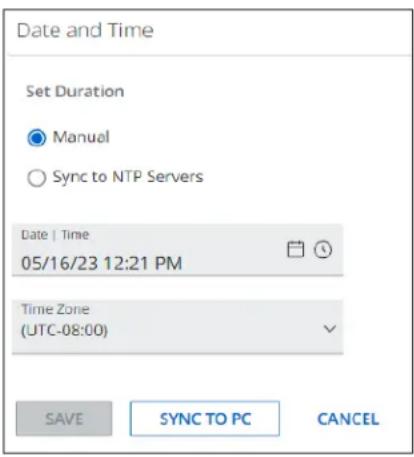

Figure 28. Date and Time

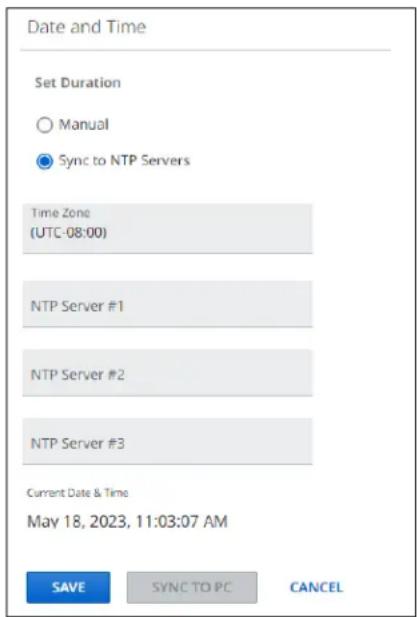

Figure 29. Sync to NTP Servers
Network
The Network settings panel (see figure 26, 4 on page 44) displays the hostname and IP adresse, which can be changed.
To change the hostname or set the IP addresses:
- Click EDIT in the Network settings panel (see figure 30).
The editable fields are displayed (see figure 31). - Click in the Device Name/Hostname field and enter the desire device name.
-
Edit the network settings, as desired:
-
Click the DHCP switch to toggle DHCP on and off. When DHCP is enabled, the device configures its IP address and other network settings from the DHCP server. The default is off.
-
To set any of the addresses (IP Address, Subnet Mask, Default Gateway), click in the desired field and enter the address.
-
Click SAVE to confirm changes or CANCEL to close the window without making changes.
Figure 30. Network Panel

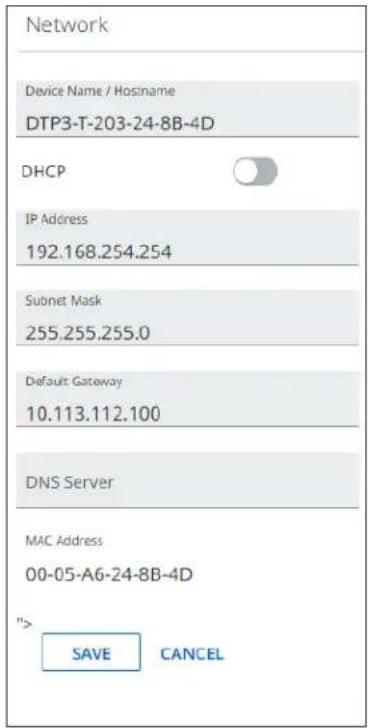

Figure 31. Network Edits
Passwords
The Passwords settings panel (see figure 26, 5 and figure 32) displays whether Admin and User passwords have been set and provides an option to set administrator or user passwords. It does not display the actual passwords.
Figure 32. Password Panel
NOTE: The following rules apply to passwords:
• Length is 1-128 characters.
- All human-readable characters are permitted except |.
- The password cannot be a single space.
- Passwords are case-sensitive.
- If the Admin password is cleared, the user password is cleared as well.
- The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the password reverts to the default, extron.
To edit or assign administrator and user passwords:
- Click EDIT from the desired Admin Password or User Password panel.
The editable fields are displayed (see figure 33).
NOTE: The user password cannot be set until the admin password has been set.

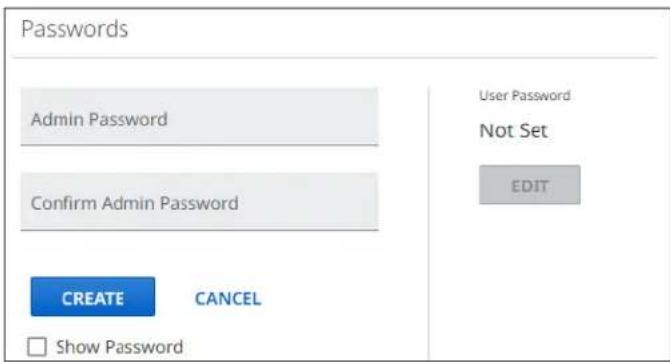

Figure 33. Editable Password Fields
- Enter the desired password in the password field.
- Re-enter the password in the confirm password field.
NOTE: Select the Show Password checkbox to display the password characters.
- Click CREATE to assign or SAVE to save the password.
Firmware
The Firmware settings panel (see figure 26, ⑥ on page 44 and figure 34) displays the current firmware version and the date it was lasted updated. Update firmware on the DTP3 T 203 from this panel (see Software and Firmware Installation on page 18 to download the firmware).
To update the firmware:
- Ensure the firmware files are downloaded onto your computer.
- In the Firmware panel, click the SELECT FILE button.
- In the Open dialog box, browse to locate the new firmware file on your computer (by default the file is stored at C:\Program Files (x86)\Extron\ Firmware\DTP3 T 203 after being downloaded from the Extron website).
NOTE: Firmware files for DTP3 T 203 have a .eff extension. Do not attempt to load any other file types.
- Double-click the firmware file name. The Open dialog box closes, and the selected firmware file name appears under the Add .EFF File section.
- Click INSTALL to begin. To cancel the update or select a new firmware file, click the REMOVE link next to the firwmare file name.
NOTE: The device will reboot on install.
Figure 34. Firmware Panel
About
Click the ABOUT link (see figure 26, ⑦ on page 44) to open the About page to view general information about the DTP3 T 203, such as the firmware version, copyright, part number, licenses, patents and web page version (see figure 35). Click on the View the End User License Agreement link to view the user license.
< About
About DTP3 T 203
Version 1.00.0000-b004
Copyright © 2022 - 2023 Extron. All Rights Reserved. www.extron.com
This application is protected by copyright law and international treaties. Unauthorized duplication or distribution is strictly prohibited and will be prosecuted to the maximum extent possible by law.
View the End User License Agreement
Part #: 60-1885-52
Licenses
Patents
Version History
Figure 35. About
Equipment Mounting
This section provides procedures for mounting the DTP3 T 203.
Mounting the DTP3 T 203
ATTENTION:
The switcher can be set on a table, mounted in a rack, or mounted under a desk or table.
Tabletop Use
Four adhesive rubber feet are included with the DTP3 T 203. For tabletop use, attach one foot at each corner on the bottom of the transmitter, and place it where desired.
Mounting Kits
Mount the unit using any optional compatible mounting kit listed on the Extron website (www.extron.com), in accordance with the directions included with the kit. For rack mounting, see "UL Rack-Mounting Guidelines" starting below.
UL Rack-Mounting Guidelines
The following Underwriters Laboratories (UL) requirements pertain to the installation of the DTP3 T 203 into a rack.
CAUTION:
- Elevated operating ambient temperature — If the equipment is installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by Extron.
- Reduced air flow — Install the equipment in the rack so that the amount of air flow required for safe operation of the equipment is not compromised.
- Mechanical loading — Mount the equipment in the rack so that uneven mechanical loading does not create a hazardous condition.
- Circuit overloading — When connecting the equipment to the supply circuit, consider the connection of the equipment to the supply circuit and the effect that circuit overloading might have on overcurrent protection and supply wiring. Consider equipment nameplate ratings when addressing this concern.
- Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (such as the use of power strips).
Extron warrants its powered products against defects in materials and workmanship for a period of three years from the date of invoice. In the event of malfunction during the warranty period, Extron will repair or replace a products to whatever extent it shall deem necessary to restore the product to proper operating condition.
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product. Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage. Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.
Powered Warranty Exception
Everlast™ Power Supplies — Extron warrants Everlast power supplies against any defects in materials and workmanship for a period of seven years from the date of invoice. In the event of a malfunction during the warranty period, Extron will repair or replace the power supply to its original operating condition. Extron engineers will examine the returned product and determine whether the Everlast Power Supply Warranty or Powered Product Warranty applies.
Speakers — Extron warrants Flat Field ^® , SoundField ^® , SpeedMount ^® , Column Array, and System INTEGRATOR ^® speakers against any defects in materials and workmanship for a period of five years from the date of invoice.
Touchscreens — Extron warrants touchscreen display and overlay components against any defects in materials and workmanship for a period of one year from the date of invoice.
Annotator 300 — Extron warrants the Annotator 300 against any defects in materials and workmanship for a period of five years from the date of invoice.
Non-Powered Warranty Exception
Cable Cubby, Hideaway Surface Access Enclosures and Retractors — Extron warrants Cable Cubby cable access enclosures, HSA Hideaway Surface Access enclosures, and Retractor cable retraction modules for a period of three years from the date of invoice.
Active Cables and Active Adapters — Extron warrants active cables and active adapter cables for a period of three years from the date of invoice.
Cable Termination Tools and Dies — Extron warrants cable termination tools for a period of three years from the date of invoice, excluding the die.
Return Information
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.
NOTE: To assure the highest level of service, a return authorization number must be obtained from Extron before products are returned for service. Products must be shipped to Extron, prepaid along with proof of purchase only after obtaining a Return Authorization (RA) number from the Extron Customer Support department.
Please contact Extron to receive an RA (Return Authorization) number:
USA: 714.491.1500 or 800.633.9876
Asia: 65.6383.4400
Europe: 31.33.453.4040 or 800.3987.6673
Japan: 81.3.3511.7655
Africa and Middle East: 971.4.299.1800
- User Guide DTP System
- Safety Instructions
- Safety Instructions • English
- FCC Class A Notice
- ATTENTION:
- Battery Notice
- Conventions Used in this Guide
- Notifications
- Software Commands
- Specifications Availability
- Extron Glossary of Terms
- Contents
- Introduction....1
- Installation....4
- Operation....11
- Product Configuration Software 18
- SIS Configuration and Control 26
- Internal Web Page 43
- Equipment Mounting....49
- Introduction
- About this Guide
- Product Description
- Features
- Application Diagram
- Installation
- Installation Overview
- NOTES:
- Connection Details
- TP Cable Recommendations for DTP Communication
- Supported cables
- Cable recommendations
- NOTE:
- TP Cable Recommendations for Ethernet Communication
- T568B T568A T568B T568B
- Over TP and Remote RS-232 Control Wiring
- Contact Closure Wiring
- Tally Wiring
- Show me cables
- To wire the SM cables:
- Locklt Lacing Bracket Installation
- To securely fasten an HDMI cable to a device:
- Operation
- Powering on the Switcher
- Selecting an Input
- Auto-input Switching
- Auto-input switch modes
- Disabled (Mode 0)
- User-defined priority (Mode 1)
- Input-memory priority (Mode 2)
- Enabling and disabling auto-input switching
- LED indications for auto-input switch modes
- Front Panel Lockout (Executive Mode)
- EDID Minder
- Input (store) slot
- Output slot
- EDID memory retention
- Hot Plug Detect (HPD)
- HDCP
- Input
- Output
- HDCP output modes
- HDCP authorization
- HDCP notification
- Resetting
- TMDS Output Format
- 5V Output Modes
- Video Mute
- Audio Mute
- Product Configuration Software
- Software and Firmware Installation
- For firmware:
- Connecting to PCS
- Device Discovery Panel
- To edit the IP address:
- TCP/IP Panel
- Offline Device Preview
- To open the transmitter in offline mode:
- Software Menu
- Show Expanded Device Tabs
- Software Settings
- Tutorial
- Extron PCS Help
- Application Licensing
- About Extron PCS
- Exit
- Device Menu
- SIS Configuration and Control
- Host Control Ports
- Rear Panel RS-232 Port
- Front Panel Configuration USB Port
- Ethernet (LAN) Port
- Default IP address
- Establishing a Connection
- Connection Timeouts
- Enabling and Disabling Telnet
- Verbose Mode
- Simple Instruction Set Control
- Host-to-Unit Instructions
- Device-Initiated Power-Up Message
- Error Responses
- Timeout
- Unsolicited Responses
- Using the Command and Response Table
- Symbol Definitions
- Command and Response Table for SIS Commands
- KEY:
- Command and Response Table for CEC SIS Commands
- Send CEC Commands
- Internal Web Page
- Accessing the Internal Web Page
- To access the internal web page:
- Web Page Panels
- Details
- Status
- Date and Time
- To set the date and time in Manual mode:
- To set the date and time in sync to the NTP servers mode:
- Network
- To change the hostname or set the IP addresses:
- Passwords
- Firmware
- To update the firmware:
- About
- Equipment Mounting
- Mounting the DTP3 T 203
- Tabletop Use
- Mounting Kits
- UL Rack-Mounting Guidelines
- CAUTION:
- Powered Warranty Exception
- Non-Powered Warranty Exception
- Return Information
Brand : Extron
Model : DTP3 T 203
Category : Audio/video extender
