USER MANUAL DeS 1503 SPL

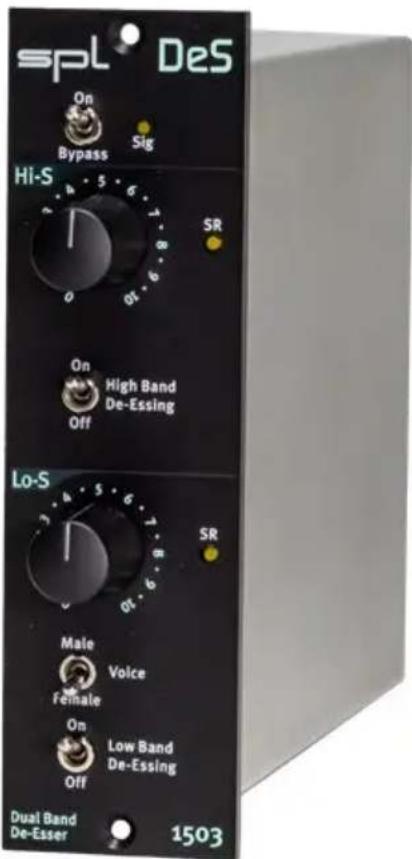

DeS

Dual-Band De-Esser

The well-known SPL De-Esser in the Dual-Band version as 500 series module

Introduction

Developer

Wolfgang Neumann

Version 2.0 - 12/2022

This manual contains a description of the product. In no way it represents a guarantee of particular characteristics or results of use. The information in this document has been carefully compiled and verified and, unless otherwise stated or agreed upon, correctly describes the product.

Specifications are subject to change without notice.

Specifications

General

Frequency range (-3 dB): 10 Hz – 100 kHz

Common mode rejection (1 kHz, 0 dBu): >82 dB

THD + N (0 dBu, 10 Hz - 22 kHz): 0.03%

Noise (A-weighted): -92.3 dBu

Dynamic range: 113 dB

Input (balanced)

Impedance: 20 kΩ

Maximum input gain: +22 dBu

Output (balanced)

Impedance: 150 Ω

Maximum output gain: +22 dBu

Scope of Delivery

DeS module, 500 Series

Manual

Measurement & Weight

Single-slot module, 500 Series

Weight: 1.43 lbs (0.65 kg)

Please keep the original packaging. In a service case the original packaging ensures a safe transport.

Installation

Installation into a 500 Series rack:

• Please read the manual that comes with the 500 Series rack. You should receive all necessary information for the installation process.
• For the installation or exchange of DeS, your 500 Series rack should be switched off and the power cable should not be connected.
• Insert the DeS module into your rack. Make sure the connector of the DeS is precisely aligned with the rack connector.
• Press the DeS module carefully into the rack connector and tighten the screws.
• Connect the DeS module with your audio environment using the connections from your 500 series rack.
• Insert the power cable to the 500 Series rack and switch it on.

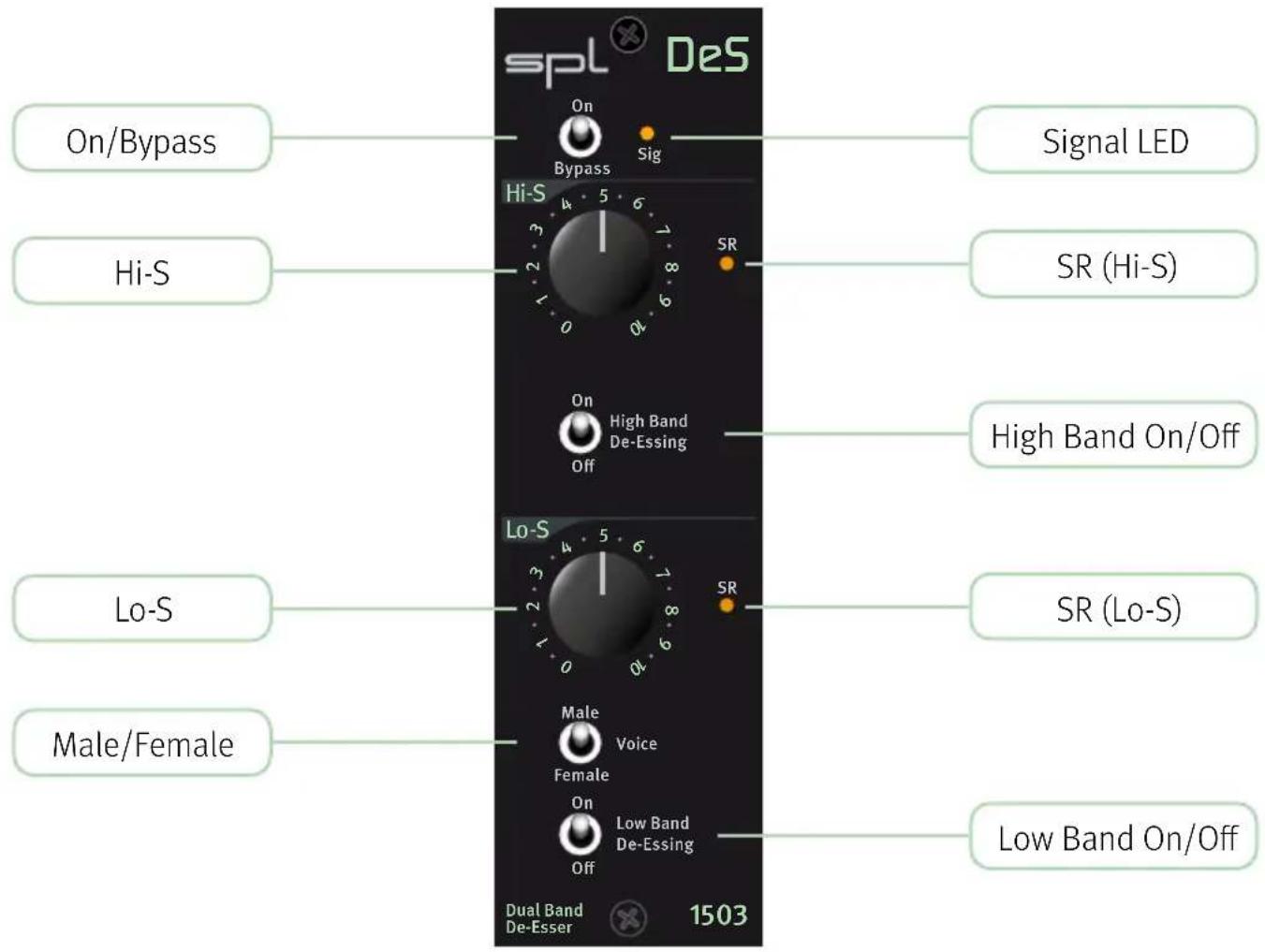

Control Elements

Signal LED

The signal LED Sig indicate whether an audio signal is present with a level higher than -20 dBu.

This LED serve as an assistant to quickly detect whether a signal arrives at the DeS within a complex studio cabling.

On/Bypass

The On/Bypass switch activates or deactivates (Bypass) the module.

Hi-S

The Hi-S control adjusts the intensity of the S sound reduction in the upper frequency band. The center frequency for sibilance detection is 11.2 kHz with a bandwidth of 3 kHz.

Lo-S

The Lo-S control adjusts the intensity of the S sound reduction in the lower frequency band.

Male/Female Voicing

The Voice switch is used to adjust the Lo-S signal. The center frequency for the sibilance detection can be chosen with this switch. Female: 7.6 kHz / Male: 6.4 kHz – The processing bandwidth in the low band is 1.44 kHz.

High Band On/Off

The High Band On/Off switch activates or deactivates (Bypass) the High Band De-Essing.

Low Band On/Off

The Low Band On/Off switch activates or deactivates (Bypass) the Low Band De-Essing.

SR (Hi-S/Lo-S)

The SR LED shows the processing of the respective bands.

Auto-Threshold

The DeS features our Auto-Threshold which automatically adjusts the threshold if the input level fluctuates due to varying distance to the microphone which leads to fluctuating input levels.

Security Advices

Before starting up the device:

• Read thoroughly and follow the security advices.
• Read thoroughly and follow the manual.
• Observe all warning instructions on the device ad on your 500 Series rack.
• Please keep the user manual as well as the security advices in a safe place for future reference.
• Module installation and replacement should only be carried out by qualified technicians.
• Please refer to and heed the safety and assembly instructions of your 500 Series rack.

Warning

Always follow the security advices listed below to avoid serious injuries or even deadly accidents due to electric shocks, short circuit, fire or other dangers. The following are examples of such risks and do not represent an exhaustive list:

Do not open

This device contains no user-serviceable parts. Do not open the device or attempt to disassemble the internal parts or modify them in any way. If it should appear to be malfunctioning, turn off the power of your 500 Series rack immediately, unplug the power cord from the mains socket outlet and have it inspected by a qualified professional.

Water warning

Do not expose the device to rain, or use it near water or in damp or wet conditions, or place anything on it (such as vases, bottles or glasses) containing liquids which might spill into any openings. If any liquid such as water seeps into the device, turn off the power of your 500 Series rack immediately and unplug the power cord from the mains socket outlet. Then have the device inspected by a qualified professional.

Fire warning

Do not put burning items, such as candles, on the unit. A burning item may fall over and cause a fire.

Lightning

Before thunderstorms or other severe weather, disconnect your 500 Series rack from the mains socket outlet; do not do this during a storm in order to avoid life threatening lightning strikes. Similarly, disconnect all the power connections of other devices, antenna and phone/network cables which may be interconnected so that no damage results from such secondary connections.

If you notice any abnormality

When one of the following problems occur, immediately turn off the power switch and disconnect the electric plug of your 500 Series rack from the mains socket outlet. Then have the device inspected by a qualified professional.

• The device emits unusual smells or smoke.
• An object has fallen into the unit.
• There is a sudden loss of sound during the use of the device.

Caution

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following:

Location

Do not place the device in a location where it may come into contact with corrosive gases or salty air. This may result in malfunction.

Before moving the device, remove all connected cables.

Connections

Before connecting the device to other devices, power down all devices. Before power on or off the devices, set all volume levels to minimum.

Only use appropriate cables to connect the device with other devices. Make sure that the cables you use are intact and comply with the electrical specifications of the connection. Other connections can lead to health risks and damage the equipment.

Handling

Operate the controls and switches only as described in the manual. Incorrect adjustments outside safe para meters can lead to damage.

Never use excessive force on the switches or controls.

Do not insert your fingers or hands in any gaps or openings of the device.

Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any gaps or openings of the device. If this happens, power down immediately and unplug the power cord from the mains socket outlet. Then have the device inspected by a qualified professional.

Do not expose the device to excessive dust or vibrations or extreme cold or heat (such as direct sunlight, near a heater or in a car during the day) to prevent the possibility of causing damage to the housing, the internal components or unstable operation.

If the ambient temperature of the device suddenly changes, condensation can occur (if for example the device is relocated or is affected by a heater or air conditioning).

Using the device while condensation is present may result in malfunction. Do not power on the device for a few hours until the condensation is gone. Only then it is safe to power on.

Cleaning

Disconnect the device from your mains socket outlet before cleaning.

Do not use any solvents, as these can damage the chassis finish. Use a dry cloth, if necessary, with an acid-free cleaning oil.

Disclaimer

The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

SPL and the SPL Logo are registered trademarks of SPL electronics GmbH.

SPL cannot be held responsible for damage caused by improper use or modification of the device or data that is lost or destroyed.

Notes on Environmental Protection

At the end of its operating life, this product must not be disposed with regular household waste but must be returned to a collection point for the recycling of electrical and electronic equipment.

The wheelie bin symbol on the product, user manual and packaging indicates that.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation and the Directives 2012/19/EU.

The materials can be reused in accordance with their markings. Through reuse, recycling of raw materials, or other forms of recycling of old products, you are making an important contribution to the protection of our environment.

Your local administrative office can advise you of the responsible waste disposal point.

This directive only applies to countries inside the EU. If you wish to discard devices outside the EU, please contact your local authorities or dealer and ask for the correct method of disposal.

WEEE-Reg-No.: 973 349 88

Support & Contact

help.spl.audio

SPL electronics GmbH

Sohlweg 80

SPL can of course also be found on Facebook, Instagram, Twitter and Youtube and we are happy to welcome new friends, followers and viewers.

Website & Blog: www.spl.audio

Videos: youtube.spl.audio

Instagram: instagram.spl.audio

Twitter: twitter.spl.audio

Facebook: facebook.spl.audio

© 2022 SPL electronics GmbH

This manual/document is protected by copyright. All rights, technical modifications and printing errors reserved.

Copying, reproduction, translation or conversion into any electronic medium or machine-readable form in whole or in part is only permitted with the express written consent of SPL electronics GmbH.
