Product Type	Portable Toilet
Brand	SereneLife
Model	SLCATL220
Dimensions (L x W x H)	16.3" x 14.4" x 15.3"
Weight Capacity	330 lbs
Fresh Water Tank Capacity	12.1 Liters
Waste Holding Tank Capacity	15 Liters
Flush Pump Type	Bellows Pump with Fresh Water Reserve
Number of Flushes per Fill	100-120 flushes
Construction Material	High-Density Polyethylene (HDPE), PP
Seat Type	Extra Large Comfortable Seat
Flush Coverage	Full Bowl Coverage (T-type water outlet)
Odor Control	Leak-Proof & Odorless Sealing Design, Double-sealed Drain Valve
Discharge Opening	Large Discharge Opening (no clogging)
Additional Features	Phone holder, Hand sprayer, Plastic funnel for easy filling
Recommended Use	Indoor and Outdoor (camping, RV, emergency)
Maintenance	Lubricate slide valve seals periodically with silicone spray or white grease; clean with mild non-abrasive bathroom cleaner
Safety Warnings	Do not lean against lid when in use; do not add chemicals to fresh water tank; avoid prolonged direct sunlight; handle with care
Waste Tank Emptying	Detachable 15L waste tank with slide valve; empty into permanent toilet facility
Included Accessories	Portable toilet, Hand sprayer, Plastic funnel

Frequently Asked Questions - SLCATL220 SereneLife

How do I use the portable toilet?

Fill the upper water tank with clean water. Pull out the slide valve handle before use to release pressure, then use the toilet. Flush by depressing the pump 2-3 times. After flushing, push the handle back in.

How do I empty the waste holding tank?

Ensure the slide valve is closed. Separate the two tanks by disengaging the side latches. Carry the waste tank to a permanent toilet and empty it. Rinse thoroughly before reassembling.

Can I add chemicals to the fresh water tank?

No, do not add any chemicals to the fresh water tank. Only use clean water. Chemicals can damage the unit.

What is the weight capacity of the SLCATL220?

The weight capacity is 330 lbs (150 kg).

What are the dimensions of the toilet?

The product dimensions are 16.3" x 14.4" x 15.3" (L x W x H).

How many flushes does it provide per tank?

It provides 100-120 flushes per full fresh water tank (12.1 liters).

Is the toilet odorless?

Yes, it features a leak-proof and odorless sealing design with a double-sealed drain valve to prevent odors.

How do I clean the portable toilet?

Clean the exterior with a mild, non-abrasive bathroom cleaner. Lubricate the slide valve seals periodically with silicone spray or white grease.

What is included in the box?

The box includes the portable toilet, a hand sprayer, and a plastic funnel for easy water filling.

Can I use this toilet for camping or RV?

Yes, it is ideal for indoor and outdoor use, including camping, RV, boating, and emergency situations.

USER MANUAL SLCATL220 SereneLife

Blue and white portable toilet with open lid, no visible text or symbols

SLCATL220

15 Liter Outdoor Portable Toilet

USER GUIDE

Features:

• Compact Design with Extra Large Comfortable Seat
  • Supports 100-120 Flushes
• Detachable 15 Liters Waste Tank
  • Strong and Full Bowl Coverage Flush
  • Rugged & Durable Construction
  • Corrosion Resistant & Easy to Clean
  • Lightweight and Portable
• Leak-Proof & Odorless Sealing Design
• Easy to Clean and Install
  • Made from High-density Polyethylene
• Double-sealed Drain Valve Protects Against Leaks & Odors
  • Water-saving, T-type Water Outlet for Full-bowl Flush Coverage
  • Large Discharge Opening and No Clogging
• Includes a Plastic Funnel for Easy and Precise Water Filling into the Flush Tank
• Comes with a Hand Spray to Enhance Toilet Cleaning Efficiency
  • Equipped with a Phone Holder for Added User Convenience
• Ideal for Indoors and Outdoor Use

What's in the Box:

• Portable Toilet
• Hand Sprayer
• Plastic Funnel

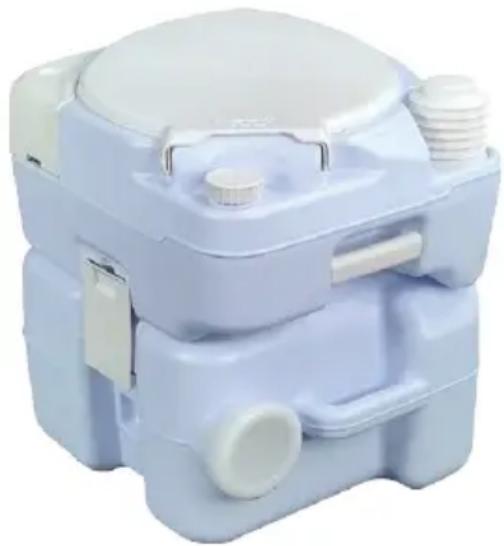

Technical Specs:

• Construction Material: HDPE, PP
- Waste Holding Tank Capacity: 15 Liters
- Fresh Water Tank Capacity: 12.1 Liters
- Flush Pump Type: Bellows Pump with Fresh Water Reserve
• Empty Type: Large Discharge Opening
- Construction Material: High-Density Polyethylene
• Weight Capacity: 330 lbs.
- Product Dimensions (L x W x H): 16.3" x 14.4" x 15.3" -inches

Stacked light blue plastic water purifier device with white fittings and a circular top (no visible text or symbols)

Introduction

The portable toilet provides simple operation and convenient disposal of waste. Before using your portable toilet, we recommend that you read this manual completely. Become familiar with your portable toilet and its component parts. As with any quality product, proper use and operation eliminate unnecessary maintenance.

Operation/How to Use

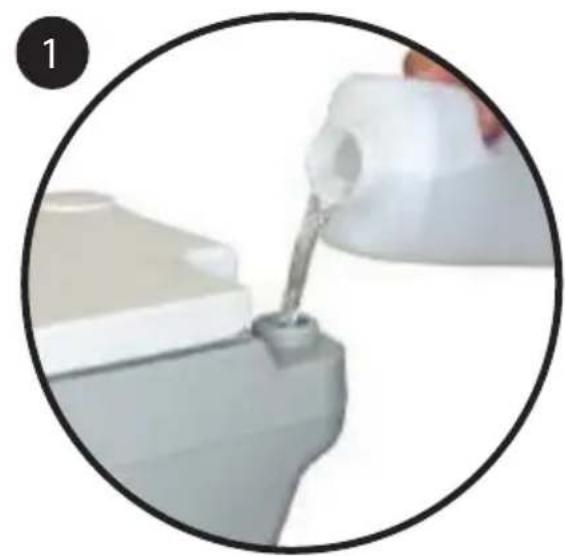

1. Fill the upper water tank with clean water (Fig. 1).

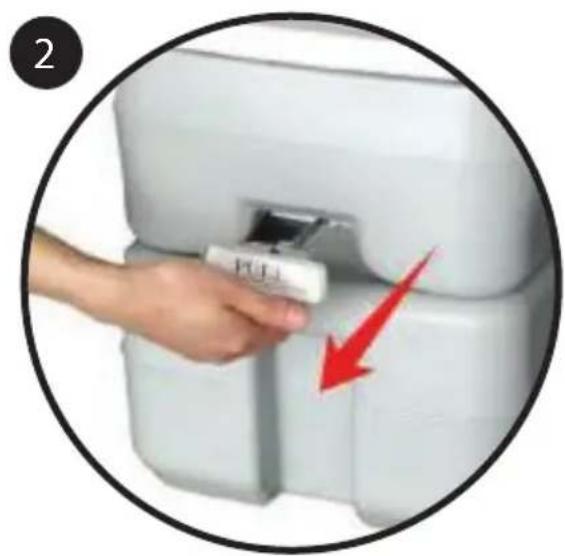

2. Pull out the slide valve handle and use the toilet (Fig. 2).

Caution: Before using the toilet, always pull out the slide valve first while keeping the cover closed to release the high pressure of the waste holding tank caused by the change of temperature or altitude.

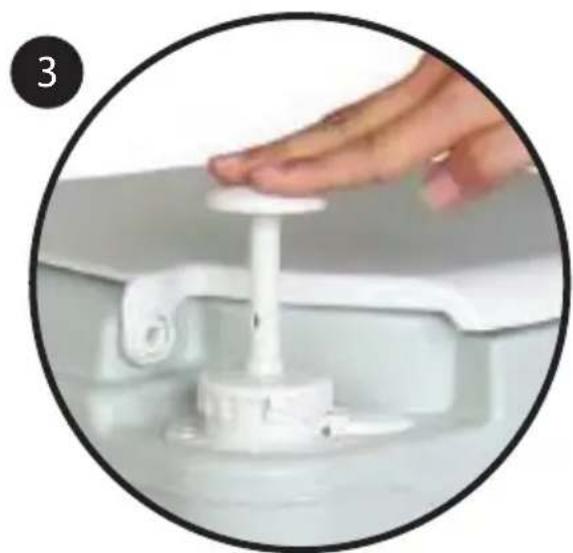

1. Flush the toilet by depressing the piston pump up and down 2 or 3 times (Fig. 3).

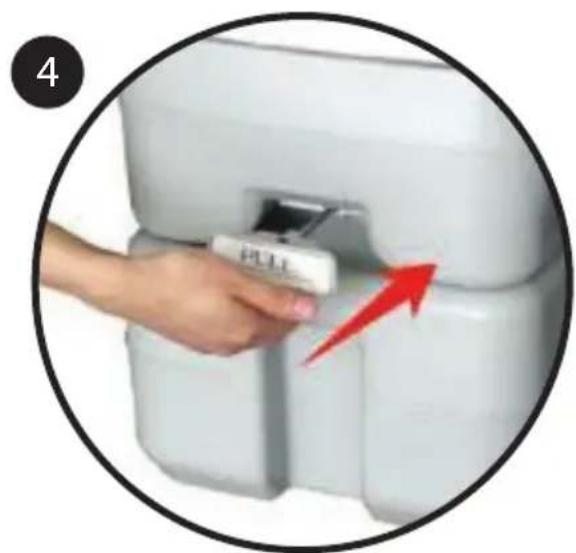

2. After flushing, push the handle back in (Fig. 4).

Close-up of a hand pouring liquid from a bottle into a container, no text or symbols visible

Hand inserting a device into a white cylindrical device, with a red arrow indicating the insertion point (no text or symbols visible)

Close-up of a hand adjusting a white plastic component with a circular inset showing the number 3 (no text or symbols on the diagram itself)

Hand inserting a device into a white cylindrical device, with a red arrow indicating the process (no text or symbols visible)

To Empty Holding Tank

1. DO NOT OVERFILL THE TANK. Empty the waste holding tank when it's full.

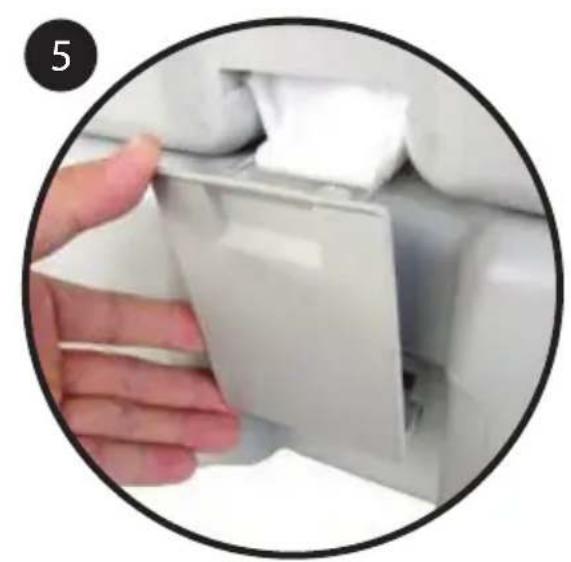

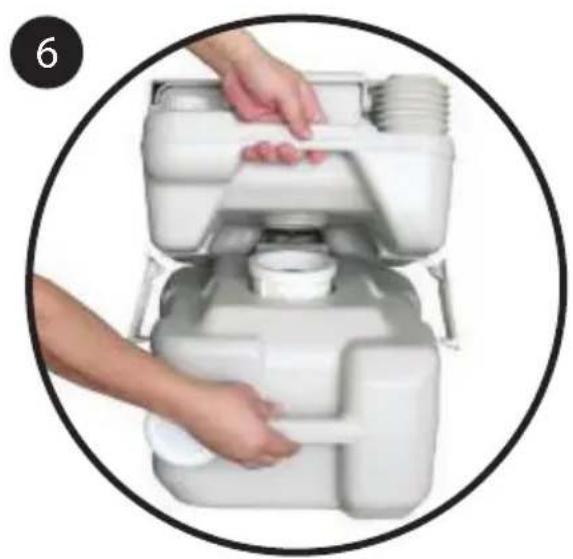

2. Make sure the slide valve is closed and separate the two tanks by disengaging the side latches (Fig. 5 & Fig. 6).

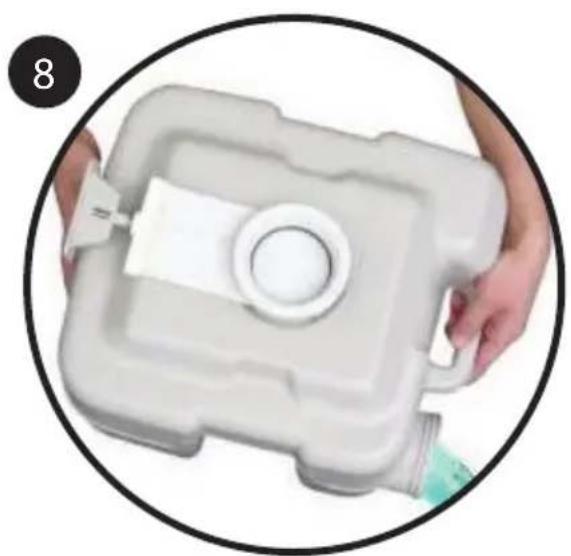

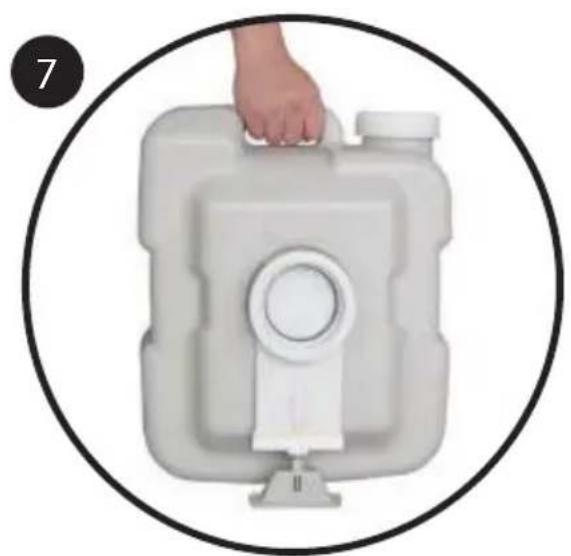

3. Carry the holding tank to a permanent toilet facility and empty the contents into a permanent toilet (Fig. 8).

4. Rinse the tank thoroughly. Reassemble the unit and prepare for the next use.

5. The plastic funnel can be used to add water into the flush water tank.

6. The hand sprayer can be used to help clean the toilet.

Close-up of a hand holding a white plastic container, with no visible text or symbols

Person assembling a white plastic washing machine with a cup and lid (no text or symbols visible)

White plastic water dispenser with a handle and control knob, enclosed in a circular frame (no text or symbols visible)

Close-up of hands holding a white plastic container with a circular top and handle, no visible text or symbols

WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Safety Instructions

1. Handle with care.
2. Avoid exposure to direct sunlight for extended periods.
3. To avoid injury, DO NOT lean against the lid when being used.
4. Ensure the waste tank is cleaned regularly.
5. DO NOT add any chemicals to the fresh water tank.

Maintenance

1. Lubricate slide valve seals periodically with silicone spray or white grease lubricant.
2. Clean the exterior of the toilet with a mild, non-abrasive bathroom cleaner.

Storage

To store the portable toilet when not in use:

1. Empty the top tank and waste holding tank.
2. Make sure all water is cleared from the flush pump by depressing the pump several times.
3. Store away from direct sunlight.

Note:

A small amount of water may remain in the top tank but will be harmless during storage.
