Product Type	Portable Toilet
Brand	SereneLife
Model	SLCATL200
Waste Holding Tank Capacity	20 Liters
Fresh Water Tank Capacity	12.1 Liters
Flush Pump Type	Bellows Pump
Weight Capacity	330 lbs (150 kg)
Product Dimensions (L x W x H)	16.3" x 14.4" x 16.5" (41.4 x 36.6 x 41.9 cm)
Construction Material	High-Density Polyethylene (HDPE), PP
Flush Type	Piston Pump with Full Bowl Coverage
Number of Flushes per Tank	100–120
Discharge Opening Type	Large Discharge Opening
Sealing Design	Double-Sealed Drain Valve (Leak-Proof & Odorless)
Special Features	Phone Holder, Hand Sprayer, Plastic Funnel, Carry Bag
Intended Use	Indoor & Outdoor
Weight (approx.)	~10 lbs (4.5 kg) empty
Water-saving Feature	T-type Water Outlet for Efficient Flush
Maintenance	Lubricate slide valve seals periodically with silicone or white grease
Cleaning	Mild, non-abrasive bathroom cleaner; hand sprayer included
Safety Warning	Cancer and Reproductive Harm - www.P65warnings.ca.gov
Registration	Register at Serenelifehome.com/register for warranty

Frequently Asked Questions - SLCATL200 SereneLife

How do I flush the SereneLife SLCATL200 portable toilet?

Depress the piston pump up and down 2 or 3 times to flush. Ensure the slide valve is pulled out before use.

How do I empty the waste holding tank?

Close the slide valve, release the side latches, separate the tanks, carry the waste tank to a permanent toilet, and empty it. Rinse thoroughly before reassembly.

Can I add chemicals to the fresh water tank?

No, do not add any chemicals to the fresh water tank. Only clean water should be used.

How many flushes can I get per tank?

The SLCATL200 supports 100-120 flushes per full fresh water tank (12.1 liters).

What materials is the toilet made of?

It is made of high-density polyethylene (HDPE) and polypropylene (PP), which are durable, corrosion-resistant, and easy to clean.

How do I lubricate the slide valve seals?

Periodically apply silicone spray or white grease lubricant to the slide valve seals to maintain smooth operation.

Is the toilet leak-proof?

Yes, it features a double-sealed drain valve that protects against leaks and odors.

Can I use the toilet indoors?

Yes, it is suitable for both indoor and outdoor use. For RV, camping, boating, or emergency use.

How should I store the portable toilet when not in use?

Empty both tanks, remove all water from the flush pump by depressing it several times, and store away from direct sunlight.

What accessories are included?

The package includes the portable toilet, carry bag, hand sprayer, and plastic funnel.

USER MANUAL SLCATL200 SereneLife

Blue and white portable toilet with open lid, no visible text or symbols

SLCATL200

20 Liter Outdoor Portable Toilet

USER GUIDE

Features:

• Compact Design with Comfortable Seat
  • Supports 100-120 Flushes
• Detachable 20 Liters Waste Tank
  • Strong and Full Bowl Coverage Flush
  • Rugged & Durable Construction
  • Corrosion-Resistant & Easy-to-Clean
  • Lightweight and Portable
• Leak-Proof & Odorless Sealing Design
• Easy to Clean and Install
  • Made from High-density Polyethylene
  • Large Discharge Opening and No Clogging
• Ideal for Indoors and Outdoor Use

- Double-sealed Drain Valve Protects Against Leaks & Odors

• Water-saving, T-type Water Outlet for Full-bowl Flush Coverage

- Includes a Plastic Funnel for Easy and Precise Water Filling into the Flush Tank

- Comes with a Hand Spray to Enhance Toilet Cleaning Efficiency

• Equipped with a Phone Holder for Added User Convenience

What's in the Box:

• Portable Toilet
• Carry Bag
• Hand Sprayer
• Plastic Funnel

Technical Specs:

• Construction Material: HDPE, PP
- Waste Holding Tank Capacity: 20 Liters
- Fresh Water Tank Capacity: 12.1 Liters
- Flush Pump Type: Bellows Pump with Fresh Water Reserve
• Empty Type: Large Discharge Opening
- Construction Material: High-Density Polyethylene
• Weight Capacity: 330 lbs.
- Product Dimensions (L x W x H): 16.3" x 14.4" x 16.5" -inches

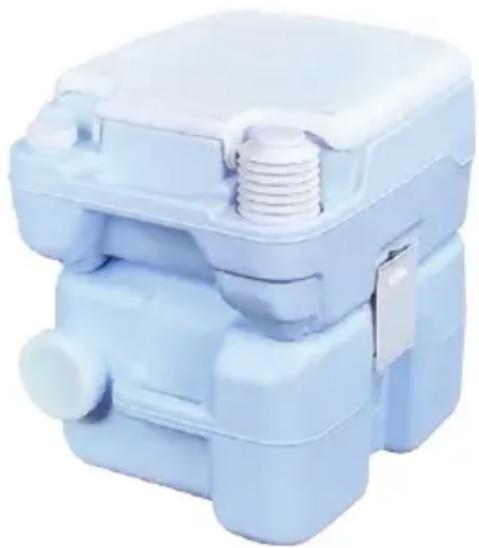

Blue plastic mechanical component with threaded spring and side ports (no text or symbols visible)

Introduction

The portable toilet provides simple operation and convenient disposal of waste. Before using your portable toilet, we recommend that you read this manual completely. Become familiar with your portable toilet and its component parts. As with any quality product, proper use and operation eliminate unnecessary maintenance.

Operation/How to Use

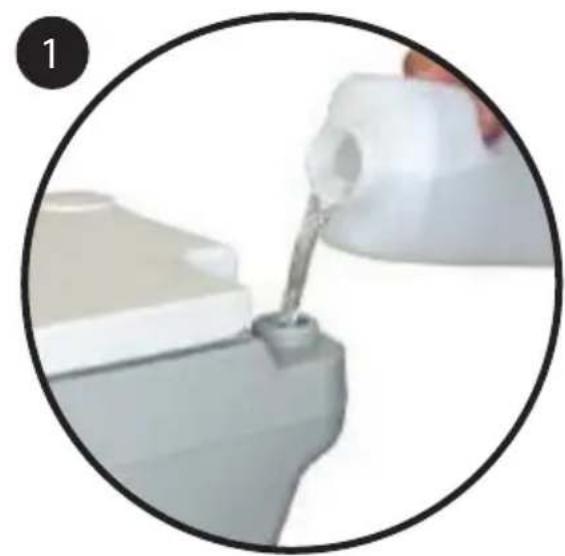

1. Fill the upper water tank with clean water (Fig. 1).

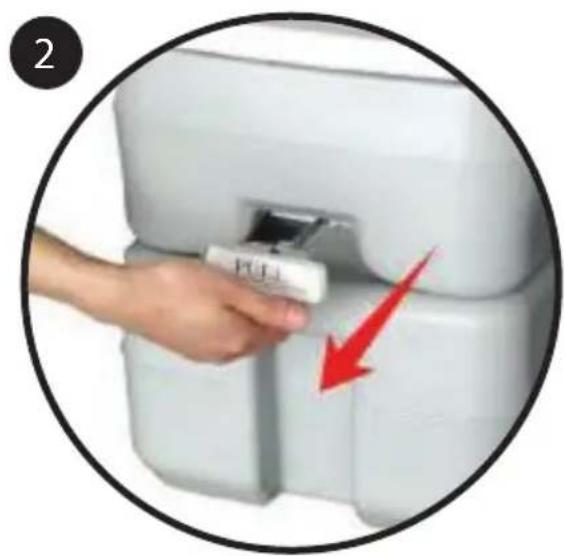

2. Pull out the slide valve handle and use the toilet (Fig. 2).

Caution: Before using the toilet, always pull out the slide valve first while keeping the cover closed to release the high pressure of the waste holding tank caused by the change of temperature or altitude.

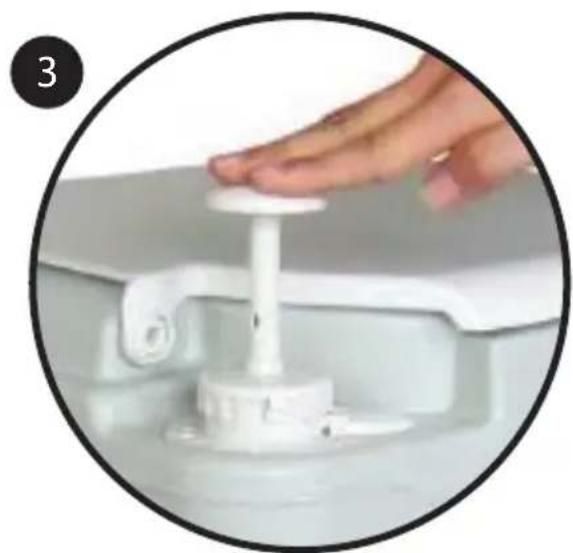

1. Flush the toilet by depressing the piston pump up and down 2 or 3 times (Fig. 3).

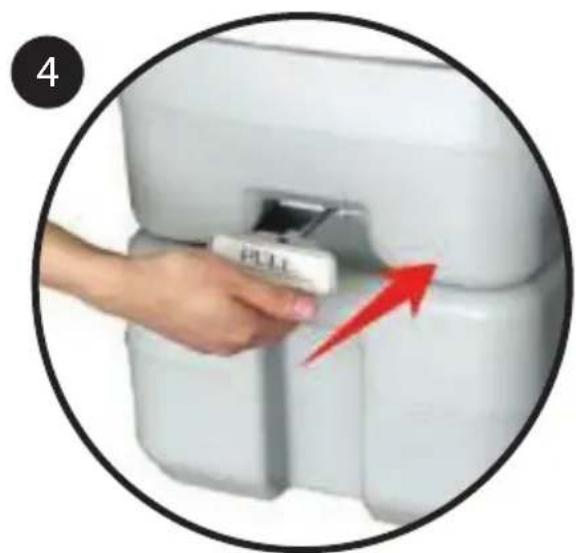

2. After flushing, push the handle back in (Fig. 4).

Close-up of a hand pouring liquid from a bottle into a container, no text or symbols visible

Hand inserting a device into a white cylindrical device, with a red arrow indicating the insertion point (no text or symbols visible)

Close-up of a hand adjusting a white plastic component with a circular inset showing the number 3 (no text or symbols on the diagram itself)

Hand inserting a device into a white cylindrical device, with a red arrow indicating the process (no text or symbols visible)

To Empty Holding Tank

1. DO NOT OVERFILL THE TANK. Empty the waste holding tank when it's full.

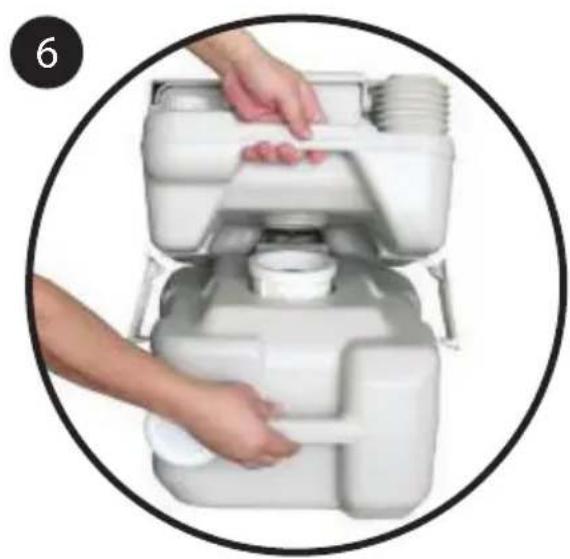

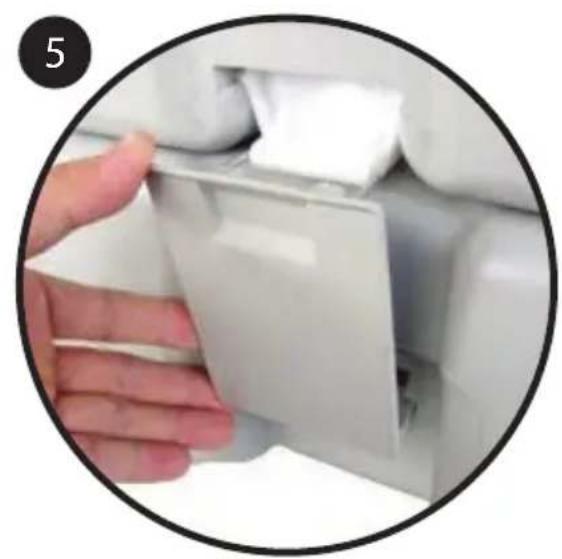

2. Make sure the slide valve is closed and separate the two tanks by disengaging the side latches (Fig. 5 & Fig. 6).

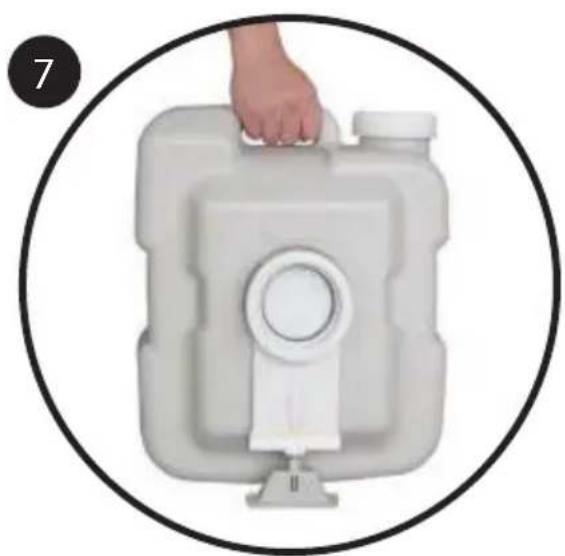

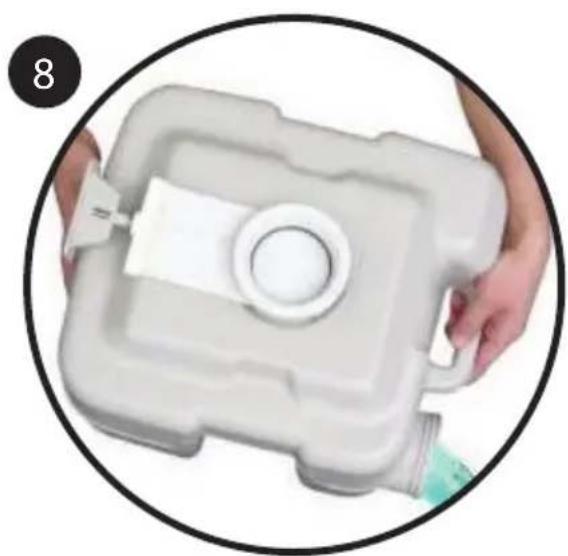

3. Carry the holding tank to a permanent toilet facility and empty the contents into a permanent toilet (Fig. 8).

4. Rinse the tank thoroughly. Reassemble the unit and prepare for the next use.

5. The plastic funnel can be used to add water into the flush water tank.

6. The hand sprayer can be used to help clean the toilet.
7. Carry bag can be used to transport the toilet easily

Close-up of a hand holding a white plastic bag, with no visible text or symbols

Person assembling a white plastic container with a small cup, enclosed in a circular frame (no text or symbols visible)

White plastic water dispenser with a handle and control knob, enclosed in a circle (no text or symbols visible)

Close-up of hands holding a white plastic container with a circular top and handle, no visible text or symbols

WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Safety Instructions

1. Handle with care.
2. Avoid exposure to direct sunlight for extended periods.
3. To avoid injury, DO NOT lean against the lid when being used.
4. Ensure the waste tank is cleaned regularly.
5. DO NOT add any chemicals to the fresh water tank.

Maintenance

1. Lubricate slide valve seals periodically with silicone spray or white grease lubricant.
2. Clean the exterior of the toilet with a mild, non-abrasive bathroom cleaner.

Storage

To store the portable toilet when not in use:

1. Empty the top tank and waste holding tank.
2. Make sure all water is cleared from the flush pump by depressing the pump several times.
3. Store away from direct sunlight.

Note:

A small amount of water may remain in the top tank but will be harmless during storage.

Register Product

Thank you for choosing SereneLife. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support.

Complete the form to access expert support and to keep your SereneLife purchase in perfect condition.
