USER MANUAL SLCATL380 SereneLife

Blue portable toilet with open lid and white base, no visible text or symbols

SLCATL380

20 Liter Outdoor Portable Toilet

USER GUIDE

Features:

• Compact Design with Extra Large Comfortable Seat
  • Supports 100-120 Flushes
• Detachable 20 Liters Waste Tank
  • Strong and Full Bowl Coverage Flush
  • Rugged & Durable Construction
  • Corrosion Resistant & Easy to Clean
  • Lightweight and Portable
• Leak-Proof & Odorless Sealing Design
• Easy to Clean and Install
  • Made from High-density Polyethylene
• Double-sealed Drain Valve Protects Against Leaks & Odors
  • Water-saving, T-type Water Outlet for Full-bowl Flush Coverage
  • Large Discharge Opening and No Clogging
• Includes a Plastic Funnel for Easy and Precise Water Filling into the Flush Tank
• Comes with a Hand Spray to Enhance Toilet Cleaning Efficiency
  • Equipped with a Phone Holder for Added User Convenience
• Ideal for Indoors and Outdoor Use

What's in the Box:

• Portable Toilet
• Hand Sprayer
• Plastic Funnel

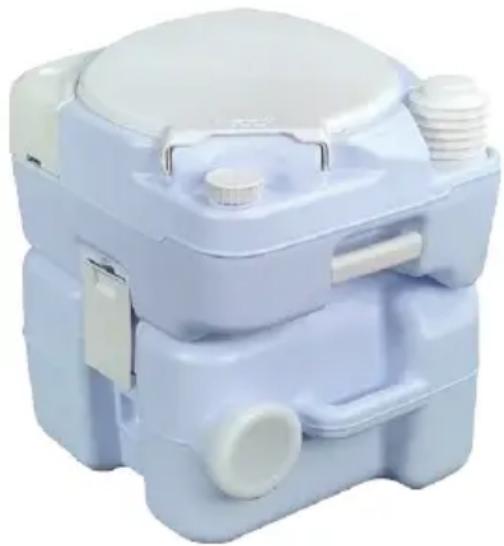

Technical Specs:

• Construction Material: HDPE, PP
- Waste Holding Tank Capacity: 20 Liters
- Fresh Water Tank Capacity: 12.1 Liters
- Flush Pump Type: Bellows Pump with Fresh Water Reserve
• Empty Type: Large Discharge Opening
- Construction Material: High-Density Polyethylene
• Weight Capacity: 330 lbs.
- Product Dimensions (L x W x H): 16.3" x 14.4" x 16.5" -inches

Stacked light blue plastic water purifier device with white fittings and a circular top (no visible text or symbols)

Introduction

The portable toilet provides simple operation and convenient disposal of waste. Before using your portable toilet, we recommend that you read this manual completely. Become familiar with your portable toilet and its component parts. As with any quality product, proper use and operation eliminate unnecessary maintenance.

Operation/How to Use

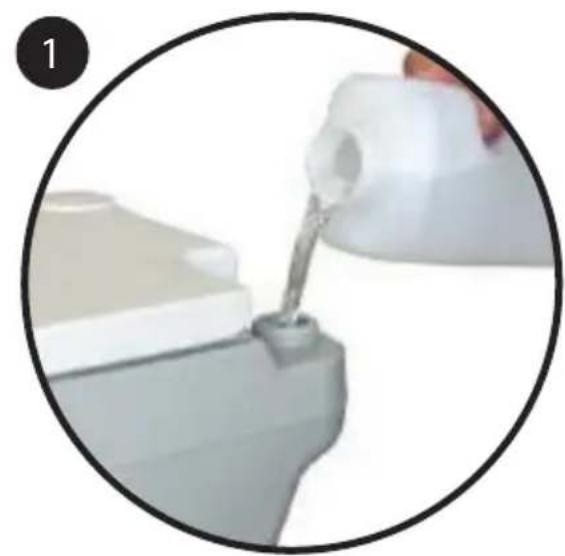

1. Fill the upper water tank with clean water (Fig. 1).

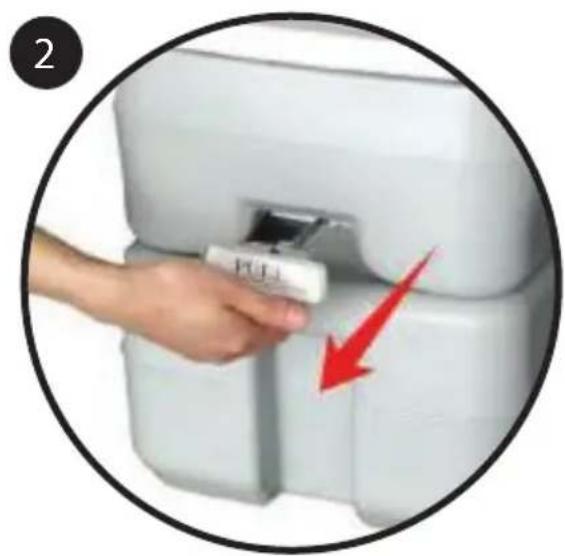

2. Pull out the slide valve handle and use the toilet (Fig. 2).

Caution: Before using the toilet, always pull out the slide valve first while keeping the cover closed to release the high pressure of the waste holding tank caused by the change of temperature or altitude.

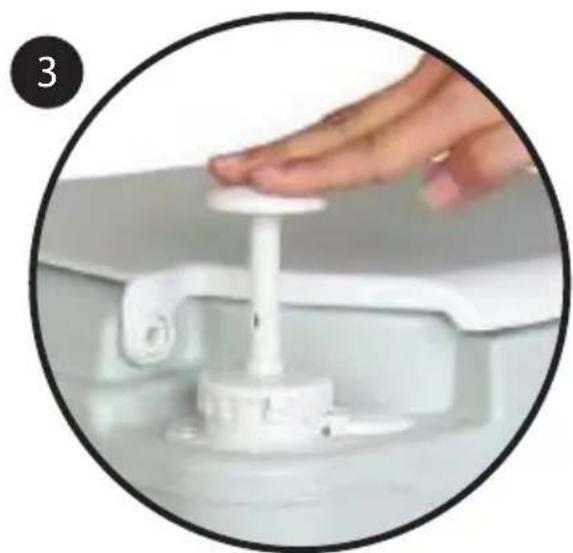

1. Flush the toilet by depressing the piston pump up and down 2 or 3 times (Fig. 3).

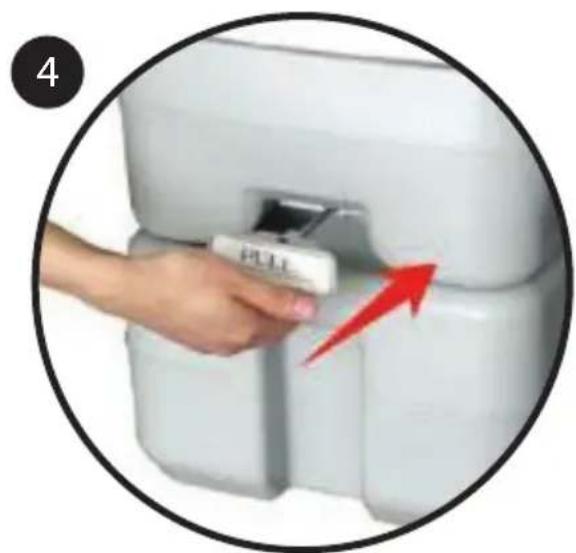

2. After flushing, push the handle back in (Fig. 4).

Close-up of a hand pouring liquid from a bottle into a container, no text or symbols visible

Hand inserting a device into a white cylindrical device, with a red arrow indicating the insertion point (no text or symbols visible)

Close-up of a hand adjusting a white plastic component with a circular inset showing the number 3 (no text or symbols on the diagram itself)

Hand inserting a device into a white cylindrical device, with a red arrow indicating the process (no text or symbols visible)

To Empty Holding Tank

1. DO NOT OVERFILL THE TANK. Empty the waste holding tank when it's full.

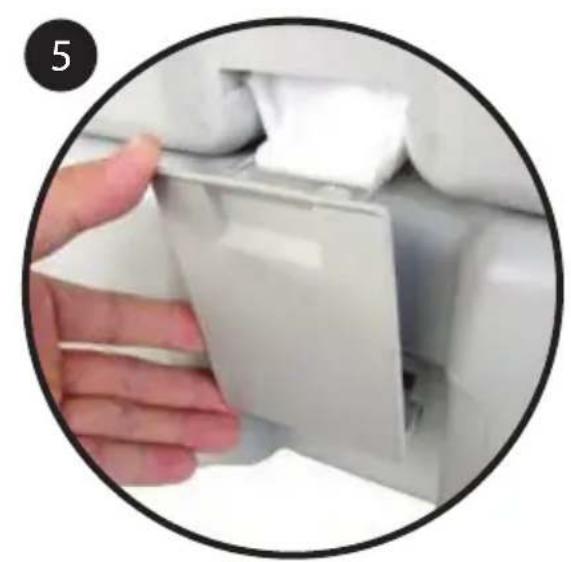

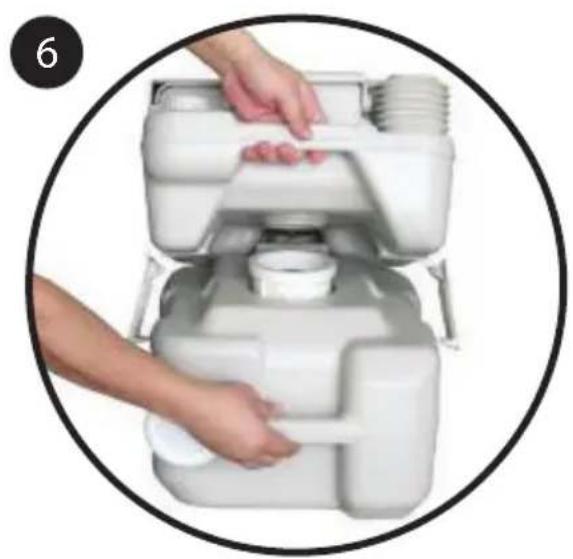

2. Make sure the slide valve is closed and separate the two tanks by disengaging the side latches (Fig. 5 & Fig. 6).

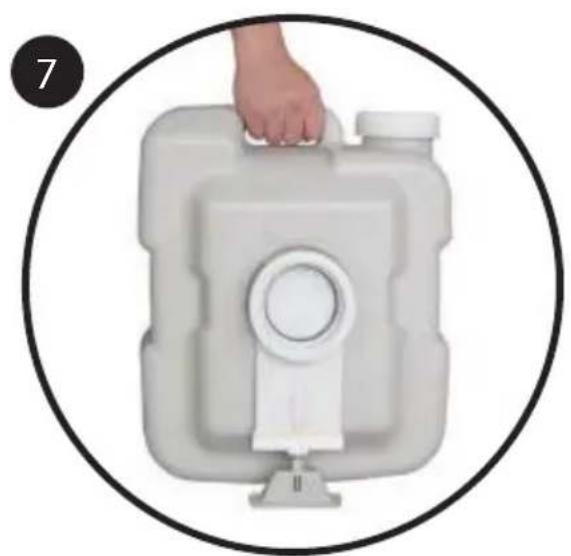

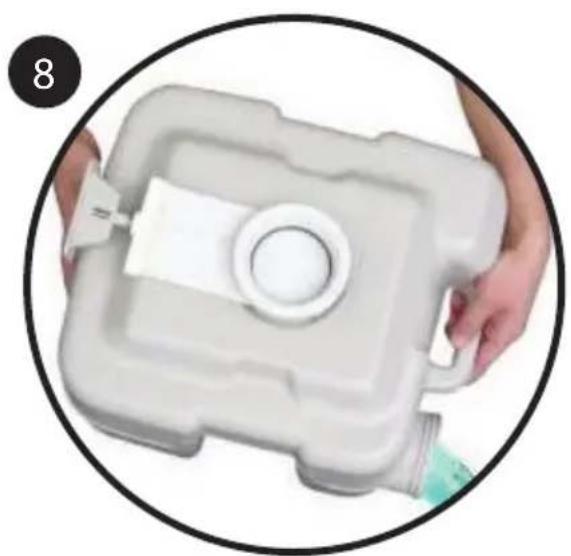

3. Carry the holding tank to a permanent toilet facility and empty the contents into a permanent toilet (Fig. 8).

4. Rinse the tank thoroughly. Reassemble the unit and prepare for the next use.

5. The plastic funnel can be used to add water into the flush water tank.

6. The hand sprayer can be used to help clean the toilet.

Close-up of a hand holding a white plastic container, with no visible text or symbols

Person assembling a white plastic washing machine with a cup and lid (no text or symbols visible)

White plastic water dispenser with a handle and control panel, enclosed in a circular frame (no text or symbols visible)

Close-up of hands holding a white plastic container with a circular top and handle, no visible text or symbols

WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Safety Instructions

1. Handle with care.
2. Avoid exposure to direct sunlight for extended periods.
3. To avoid injury, DO NOT lean against the lid when being used.
4. Ensure the waste tank is cleaned regularly.
5. DO NOT add any chemicals to the fresh water tank.

Maintenance

1. Lubricate slide valve seals periodically with silicone spray or white grease lubricant.
2. Clean the exterior of the toilet with a mild, non-abrasive bathroom cleaner.

Storage

To store the portable toilet when not in use:

1. Empty the top tank and waste holding tank.
2. Make sure all water is cleared from the flush pump by depressing the pump several times.
3. Store away from direct sunlight.

Note:

A small amount of water may remain in the top tank but will be harmless during storage.

Register Product

Thank you for choosing SereneLife. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support.

Complete the form to access expert support and to keep your SereneLife purchase in perfect condition.
