Megalo - High chair Caretero - Free user manual and instructions

Product Type	High Chair
Brand	Caretero
Model	Megalo
Suitable Age	6 to 36 months
Maximum User Weight	15 kg
Safety Standards	EN 14988+A1:2020-07
Frame Material	Steel and plastic
Seat Material	Upholstery (clean with damp cloth)
Tray	Removable, with clip
Harness Type	Crotch belt
Height Adjustment	Yes, via side buttons
Footrest Adjustment	Yes, angle adjustable
Backrest Recline	3 positions
Folding	Yes, for compact storage
Cleaning	Damp cloth with mild soap; lubricate with silicon oil
Usage	Indoor only
Assembly Required	Yes, by an adult

Frequently Asked Questions - Megalo Caretero

What age is the Caretero Megalo high chair suitable for?

The high chair is suitable for children aged 6 to 36 months who can sit up unaided.

What is the maximum weight limit?

The maximum user weight is 15 kg.

How do I assemble the high chair?

Insert both frames into the seat, ensuring the tray clip faces the back and the open/fold button faces outward. Then insert base frames with the curved side outward, press both buttons, and slide to open.

How do I adjust the height?

Press both buttons on the left and right sides of the seat to adjust the height to the desired position.

Can the footrest be adjusted?

Yes, press both buttons to adjust the footrest angle to the original position.

How do I fold the high chair for storage?

Press the buttons on the left and right sides below the armrest to complete the folding.

How do I clean the high chair?

Clean the upholstery and frame with a damp cloth and mild soap. Do not use strong detergents. Lubricate moving parts with silicon oil regularly.

What safety precautions should I take?

Always use the restraint system, never leave the child unattended, place on a stable surface, and avoid open flames or heat sources. Do not move the chair with the child inside.

Is the tray removable?

Yes, the tray is removable and has a clip for secure attachment. Ensure the clip faces the back when installed.

What safety standards does this high chair meet?

The high chair complies with the European safety standard EN 14988+A1:2020-07.

USER MANUAL Megalo Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Line drawing of a baby height seat with no text or symbols

Megalo

CARETERO

Megalo

Thank you for choosing the Caretero Megalo high chair.

You bought a modern, high quality product.

We are sure it will help your child in safe, harmonious growth.

We encourage you to learn about our full offer on our website: www.caretero.pl

Should you have any remarks about this product, feel free to share them with us.

Caretero Team.

Technical line drawing of a folding tool with a magnified inset showing the bracket detail (no text or symbols)

Line drawing of a bipod with an upward arrow indicating motion (no text or symbols)

1. Wlóż tace

Line drawing of a baby boom chair with seat, legs, and tray (no text or symbols)

Technical line drawing of a folding chair component before and after assembly (no text or symbols)

7 / SKŁADANIE KRZESEŁKA

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• Your child's safety may be affected if you do not follow these instructions carefully.
• The highchair must be opened, adjusted and closed only by an adult.
• When unfolding, adjusting or folding the highchair, ensure to keep any children away from the chair.
  • Always have the child sitting in the chair in sight.
• Do not use the highchair if some of its parts are broken, torn or missing.
• Never allow the child to stand up while in the chair.
• When it is not used, the highchair must be kept away from the reach of children.
• Always place the highchair on a horizontal, stable surface. Never place the highchair near stairs or steps. Do not let other children playing unattended close to the highchair or climb on it.
• This product is intended for children able to sit up unaided, aged between 6 and 36 months, weighing up to 15kg .
• Do not move the chair while the baby is inside.
• It is forbidden to use the product near swimming pools and other dangerous places,
• This high chair complies with the norm EN 14988+A1:2020-07.

WARNING: NEVER LEAVE THE CHILD UNATTENDED!

WARNING: ALWAYS USE THE RESTRAINT SYSTEM.

WARNING: FALLING HAZARD: PREVENT YOUR CHILD FROM CLIMBING ON THE PRODUCT.

WARNING: DO NOT USE THE PRODUCT UNLESS ALL COMPONENTS ARE CORRECTLY FITTED AND ADJUSTED!

WARNING: BE AWARE OF THE RISK POSED BY OPEN FIRE AND OTHER SOURCES OF STRONG HEAT (E.G. ELECTRIC BAR HEATERS, GAS FLAMES ETC.) IN THE VICINITY OF THE PRODUCT!

WARNING: BE AWARE OF THE RISK OF TILTING WHEN YOUR CHILD CAN PUSH ITS FEET AGAINST A TABLE OR ANY OTHER STRUCTURE.

WARNING: DO NOT USE THE HIGH CHAIR BEFORE YOUR CHILD CAN SIT UP STRAIGHT UNAIDED!

WARNING: ALWAYS SECURE YOUR CHILD WITH CROTCH BELT TO PREVENT HIM OR HER FALLING OR SLIDING OUT. MAKE SURE THE HARNESS IS PROPERLY ADJUSTED!

WARNING: DO NOT USE THE HIGH CHAIR IF ANY PART IS BROKEN, TORN OR MISSING!

3 CLEANING AND MAINTENANCE

The upholstery and the frame should be cleaned with a damp cloth with addition of soap. Do not use strong detergents as they may damage the plastic parts of the chair. Please check all movable parts of the chair regularly and lubricate them with silicon oil. This chair is made for indoor use only.

Technical line drawing of a car interior with handlebars and control panel, showing a close-up inset of the blade (no text or symbols)

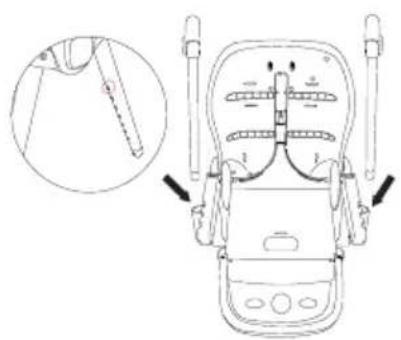

1. Insert both frames into the seat. Make sure tray clip is facing the back when installed. Make sure open and fold button located on seat frame is facing outside when installed.

Line drawing of a folding pliers with an inset showing two bracket designs (no text or symbols)

1. Insert base frames into the seat frame. Make sure the curve side of each base frame is facing outside when installed. Press both button on left and right and then slide to open the high chair.

Line drawing of a bipedal tool with an upward arrow indicating motion (no text or symbols)

1. Press both button on left and right to adjust height.

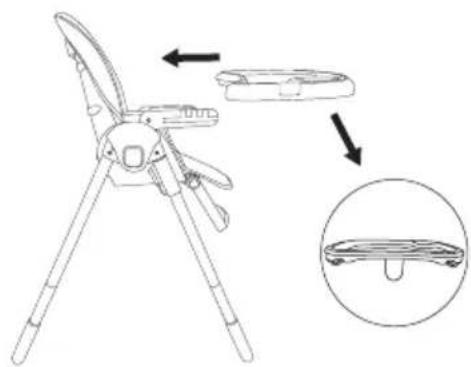

1. Insert plate

Line drawing of a baby boom chair with seat, tray, and seatbelt (no text or symbols)

1. Highchair is ready to use

5

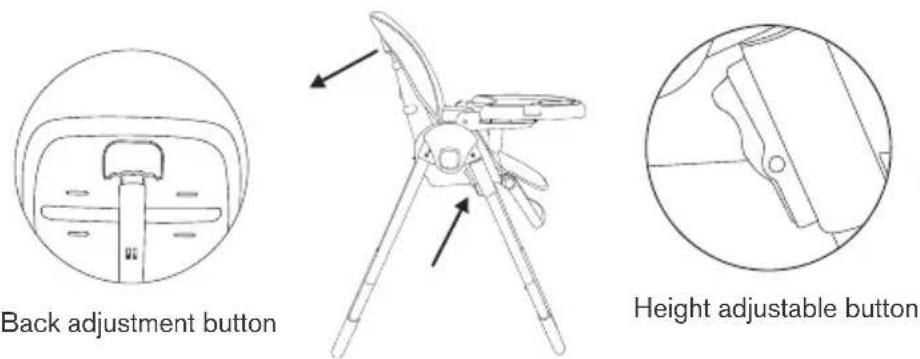

SEAT ADJUSTMENT

The back button can be adjusted in three gears

Adjust the height of the dining chair by pressing two buttons on the side of the seat.

6

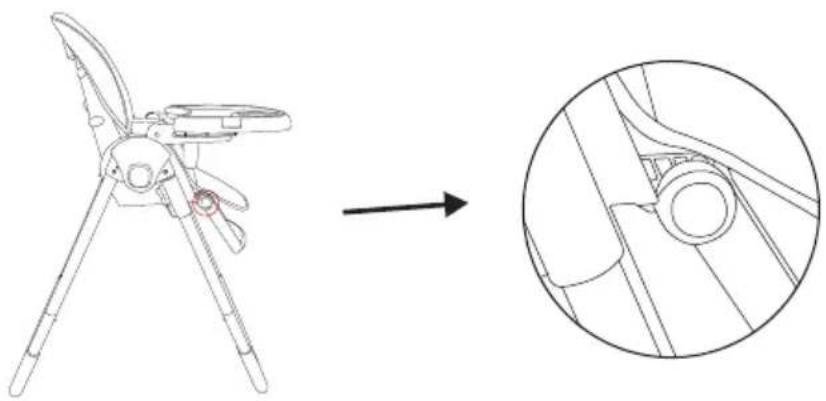

FOOT ANGLE ADJUSTMENT

As shown in the picture, Press both buttons to adjust footrest to original position

Technical line drawing of a mechanical device before and after assembly, showing a close-up of the component (no text or symbols)

7

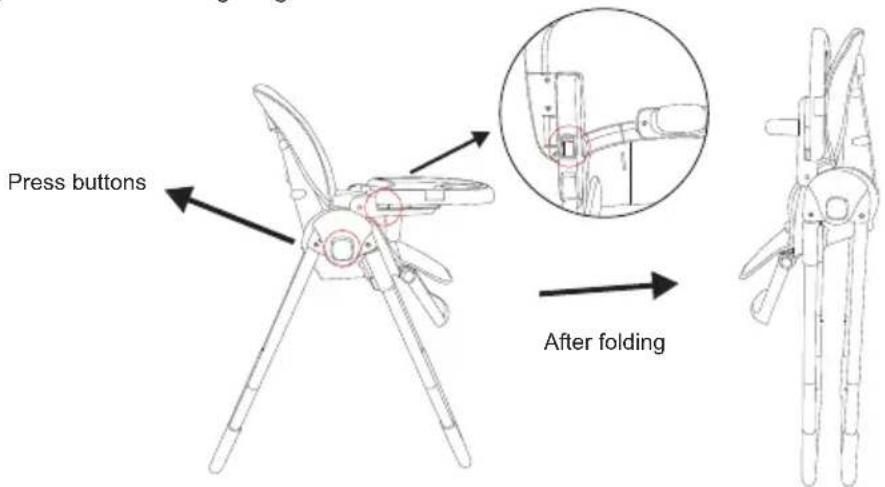

FOLDING THE HIGHCHAIR

Press the buttons on the left and right sides of the baby high chair and below the armrest to complete the folding, as shown in the right figure

Technical line drawing of a mechanical device with a close-up inset showing a detail of a folded garment (no text or symbols present)

Technical line drawing of a folding tool with a magnified inset showing the bracket detail (no text or symbols)

Line drawing of a mechanical device with a lever and handle, showing an upward arrow (no text or symbols)

1. Platte einsetzen

Line drawing of a baby boom chair with seat, tray, and seatbelt (no text or symbols)

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

Technical line drawing of a tripod-mounted device with directional arrows indicating components (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Technical line drawing of a folding tool with an inset close-up showing the detail (no text or symbols)

7

ZUSAMMENKLAPPEN DES HOCHSTUHLS
