| Product Type | Freestanding Dishwasher |
| Brand | KKT Kolbe |
| Model | DW4504ED |

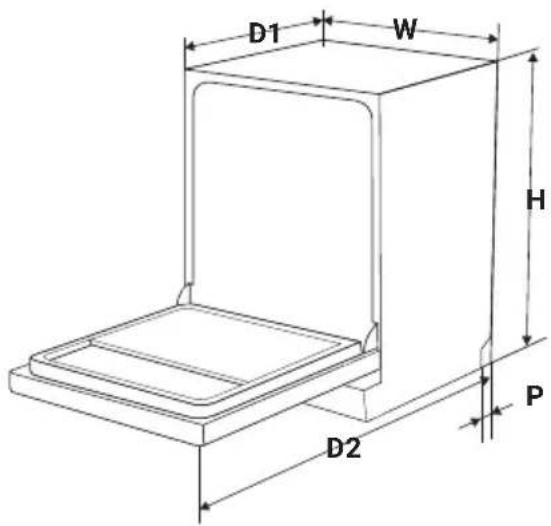

| Dimensions (H x W x D) | 845 x 450 x 600 mm |
| Weight | Approx. 38 kg |
| Power Supply | 220-240 V ~ 50 Hz, 10 A |
| Energy Consumption per Cycle | 0.92 kWh |
| Water Consumption per Cycle | 9.5 L |
| Noise Level | 49 dB(A) |
| Number of Place Settings | 10 |
| Number of Programs | 6 (Eco, Intensive, Fast, Glass, Rinse, Pre-wash) |
| Energy Efficiency Class | A+ |
| Drying Performance Class | A |
| Main Functions | Delay start, Salt & Rinse aid indicator, Child lock, Half load option |
| Safety Features | Aquastop system, Anti-flood protection, Child lock |
| Maintenance & Cleaning | Clean filters regularly, descale every 3 months, clean spray arms |
| Spare Parts Availability | Filters, spray arms, detergent dispenser, salt cap, hoses available |
| Repair Information | User-replaceable parts: filters, spray arms; professional service for electronics |
Frequently Asked Questions - DW4504ED KKT Kolbe

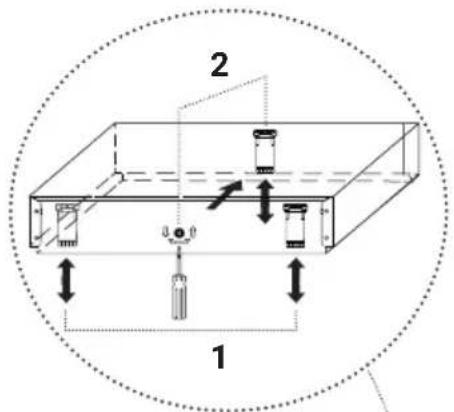

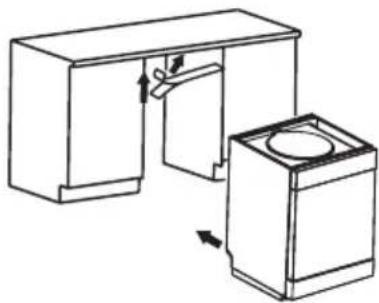

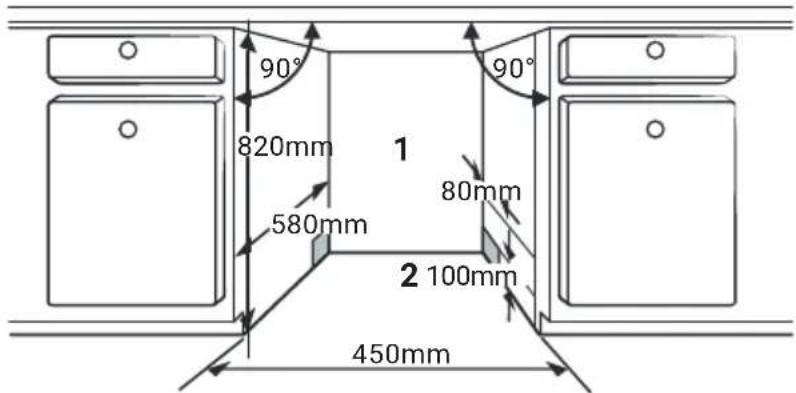

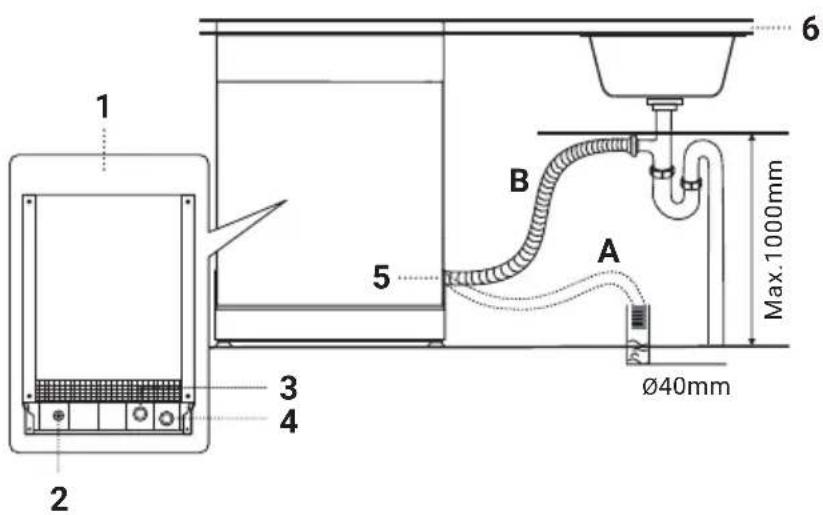

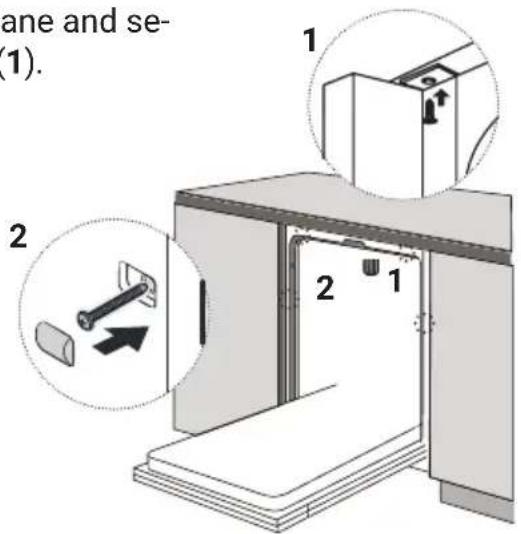

How to install the dishwasher DW4504ED?

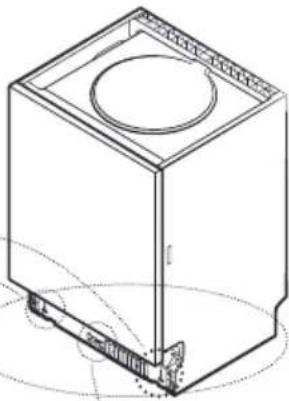

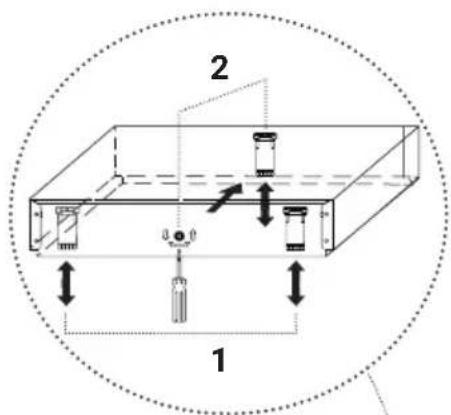

Ensure the appliance is level and connected to a cold water supply with a pressure of 0.04-1.0 MPa. The drain hose must be properly secured to a drain pipe. Refer to the installation guide in the manual for detailed steps.
What should I do if the dishwasher does not start?
Check if the door is properly closed, the power cord is plugged in, and the circuit breaker is not tripped. Also ensure the water supply is turned on and the child lock is deactivated.

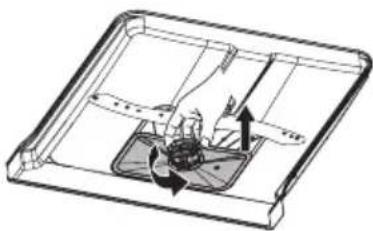

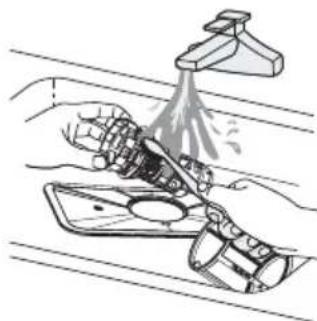

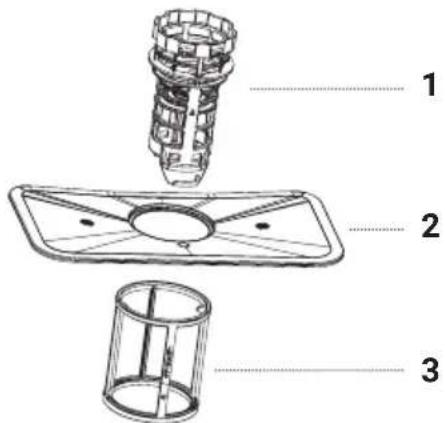

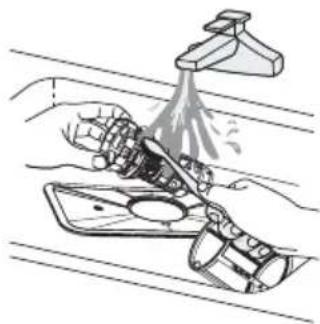

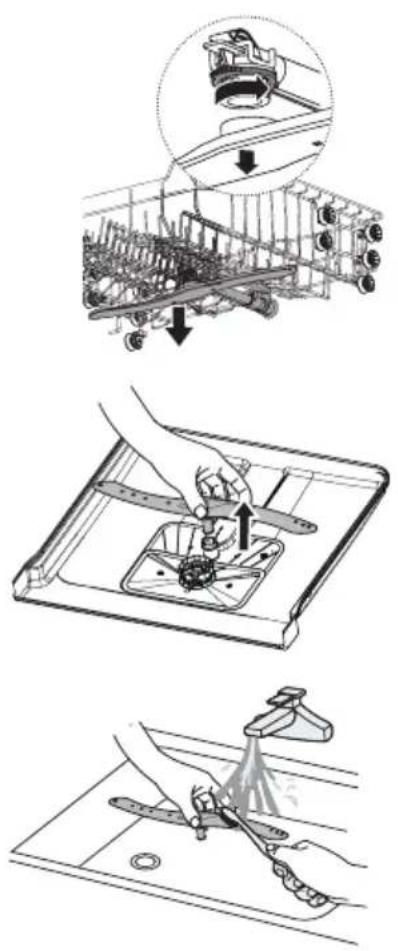

How to clean the filters?

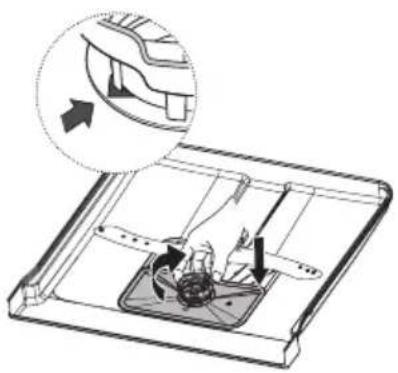

Turn off the appliance and remove the lower basket. Unscrew the filter assembly and rinse under running water. Use a soft brush to remove debris. Reassemble and lock in place. Do not use abrasive cleaners.
Why is my dishwasher not drying dishes properly?
Ensure the rinse aid dispenser is filled and the drying option (where available) is selected. Also check that the water temperature is at least 50°C during the rinse cycle and that the dishwasher is not overloaded.

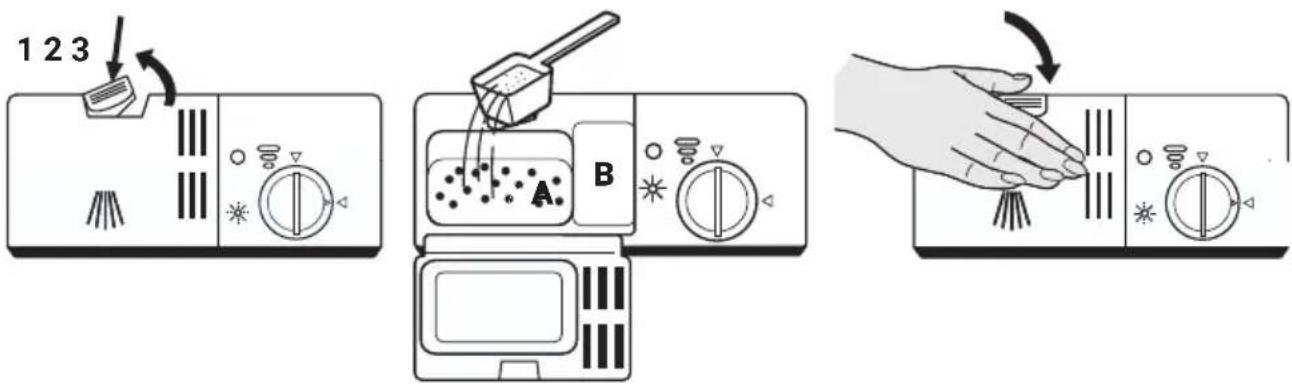

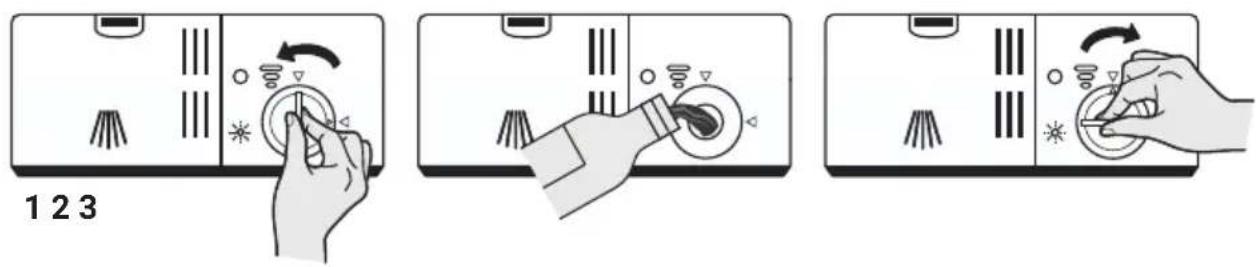

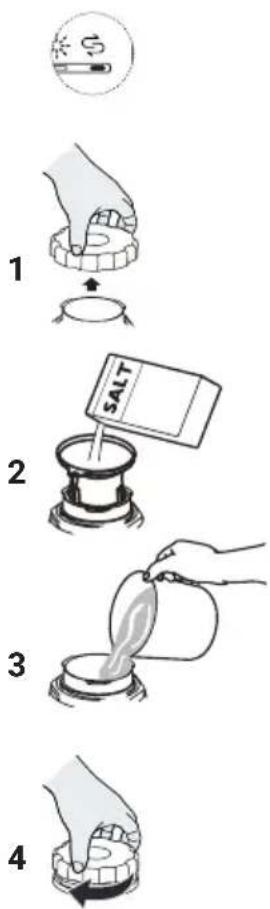

How to add salt and rinse aid?

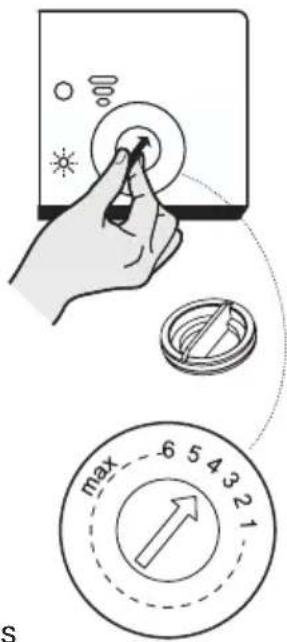

Open the salt compartment at the bottom of the dishwasher and fill with dishwasher salt until the water overflows. For rinse aid, open the dispenser on the door and fill to the max level. Both have indicators on the control panel.
What does the E1 error code mean?
Error code E1 indicates a water supply issue. Check if the water tap is fully open and the inlet hose is not kinked. If the problem persists, the water inlet filter may be clogged. Clean it and restart.
Can I use regular dish soap in this dishwasher?
No, only use dishwasher-specific detergents, salt, and rinse aid. Regular dish soap can cause excessive foam, leading to leaks and poor cleaning results.
How do I enable the child lock?
Press and hold the Child Lock button (if available) for 3 seconds. A lock icon will appear on the display. To unlock, repeat the same procedure.

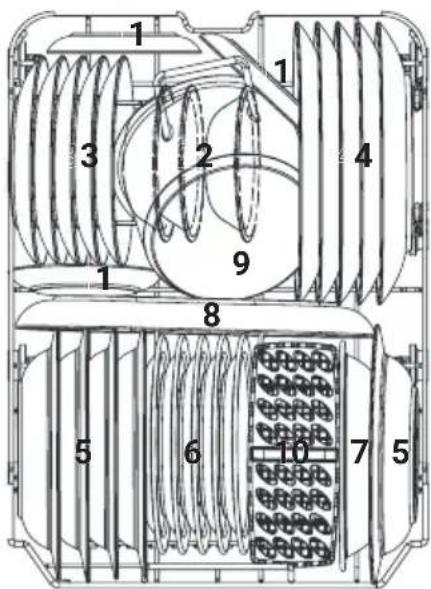

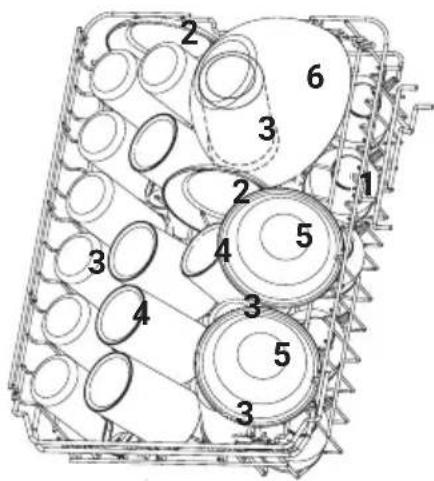

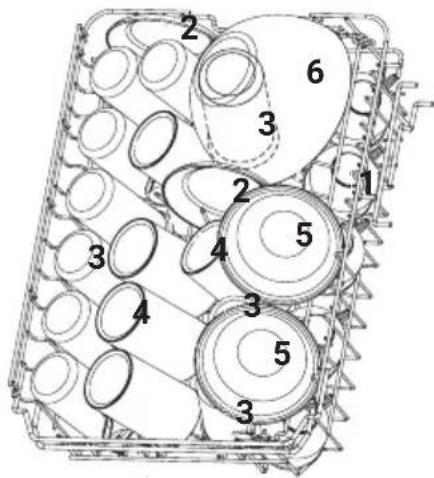

What is the maximum number of place settings?
The DW4504ED can accommodate up to 10 place settings when loaded according to the recommended arrangement in the manual.
How to descale the dishwasher?
Use a commercial dishwasher descaler or a mixture of citric acid. Run a 65°C program without dishes. Repeat every 3 months depending on water hardness. Refer to the manual for specific instructions.
