Product Type	Upright cordless vacuum cleaner
Brand	Blaupunkt
Model	VCH701
Power Supply	DC 26V, 0.5A; adapter input 100-240V~50/60Hz, output 0.5A 13W
Battery Type	Lithium-ion battery pack
Charging Time	Up to 4–5 hours
Runtime	Approx. 15 minutes at max suction, 40 minutes at lower suction
Filtration System	Pre-filter and HEPA filter (replace HEPA every 4 months)
Accessories Included	Universal floor electro-brush, long crevice nozzle, flexible hose, wall bracket
Suction Power Adjustment	Yes, via button
Dust Container Emptying	Press container opening button; flap drops to eject dust
Usage	Domestic use only, dry surfaces only
Safety Features	Do not vacuum fine dust (flour, cement, gypsum), hot ashes, or wet surfaces. Keep away from children under 8.
Maintenance	Clean filters after each use; empty container regularly; wipe main unit with damp cloth
Compliance	CE, LVD, EMC, WEEE, RoHS (batteries)

Frequently Asked Questions - VCH701 BLAUPUNKT

How long does it take to charge the battery?

Charging the lithium battery takes 4–5 hours. Use the provided adapter.

How long does the battery last on a full charge?

At maximum suction, runtime is about 15 minutes. At lower suction, it can last up to 40 minutes.

How do I empty the dust container?

Press the container opening button; the bottom flap drops and ejects the dust. For thorough cleaning, detach the container and filter.

How often should I clean or replace the HEPA filter?

Clean the HEPA filter after each dust container emptying. Replace it every 4 months depending on usage.

Can I use this vacuum on wet surfaces or carpets?

No, this vacuum is designed for dry surfaces only. Do not use on damp or wet carpets or floors.

Can I vacuum fine dust like flour, cement, or toner?

No, do not vacuum very fine dust (flour, cement, gypsum, toner) or hot materials (ash, cigarette butts, matches).

What accessories are included with the VCH701?

It comes with a universal floor electro-brush, long crevice nozzle, flexible hose, and a wall bracket for storage.

How do I adjust the suction power?

Press the suction power adjustment button on the handle to switch between power levels.

Is the vacuum suitable for pet hair?

Yes, the power brush helps pick up pet hair. Clean the brush regularly to maintain performance.

How should I store the vacuum cleaner?

Use the included wall bracket to store the vacuum upright. Keep it out of reach of children under 8.

USER MANUAL VCH701 BLAUPUNKT

Exterior view of a black and silver vacuum cleaner (no text or symbols visible)

Enjoy it.

Upright vacuum cleaner battery powered Akku-Stielstaubsauger

Three technical diagrams showing different types of electrical components: a power plug, a cable with wires, and a socket (no text or symbols present)

Technical line drawing of two cylindrical mechanical components with threaded ends and mounting brackets (no text or symbols)

Fig. 1

Fig. 2

Fig. 3

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- Only Original accessories should be used, as well as

accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

• The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.
- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.
- Unplug the AC adapter from the electrical outlet when not in use.
- Do not connect or disconnect the adaptor from the power source with wet hands.

Do not vacuum without first ensuring that filters are installed correctly.

- You cannot vacuum very fine dust such as flour, cement, gypsum powder, toners, or dirt that may be hot, such as ash, cigarette butts, and matches.

- You should use the vacuum cleaner to clean dry surfaces only. Do not use the vacuum cleaner on damp and wet cleaned carpets and flooring.

- Keep the cable out of reach of children and babies to avoid the risk of electrocution and strangulation, keep the appliance and its cable out of the reach of children under 8 years of age.

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

DEVICE SPECIFICATIONS

Power Supply: DC 26V, 0.5A

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

Input voltage:100-240V\~50/60Hz

Maximum output current: 0,5A 13 W

Average active efficiency: 85.49%

No-load power consumption:<0,085W

1. Suction cups:
   a) Universal floor electro-brush
   b) Long crevice nozzle
2. Power cord with power adapter
3. Handle
4. Lithium battery pack
5. Charging socket
6. Battery pack release buttons
7. Power on/off switch button
   8 Suction power adjustment button

8. Button for opening the dust container

9. Tube fixing element

10. Dust container
    a) Container
    b) Container cover latch
    c) Container attachment latch
    d) Pre-filter
    e) HEPA filter
    f) Knob of cleaning the HEPA filter
11. Flexible hose
12. Wall bracket for storing the device

BEFORE STARTING THE VACCUUM CLEANER

To charge the vacuum cleaner's battery, plug the power cord into the vacuum cleaner's power socket, and the power adapter into an electrical outlet. Charging takes up to 4-5 hours.

Make sure that the vacuum cleaner's dust chamber is empty and the filters are correctly inserted.

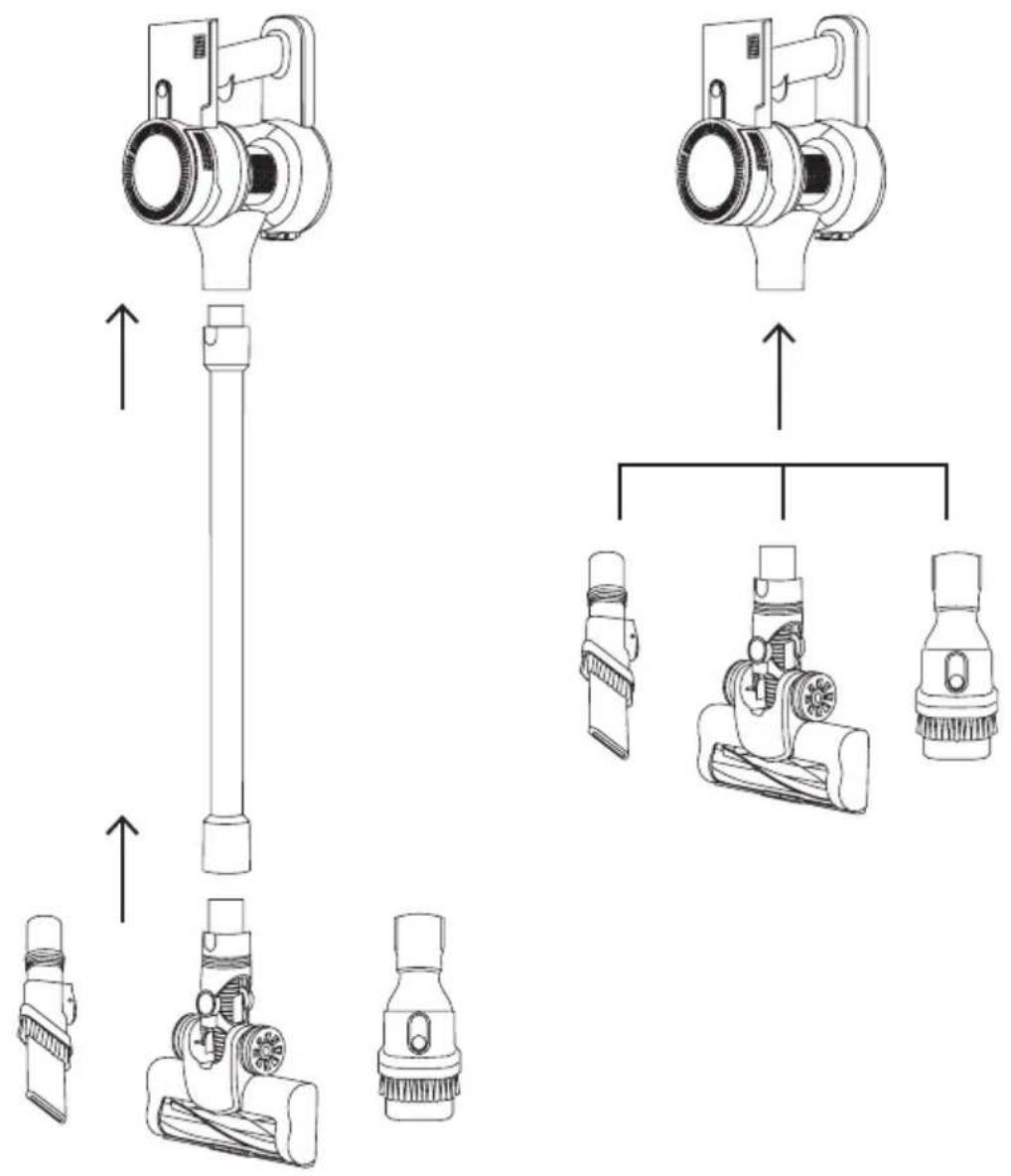

Attach the hose and the general-purpose nozzle brush with the power brush or the crevice nozzle.

To switch on the vacuum cleaner, press the power button. To adjust the suction power, press the suction-adjustment button. A fully charged battery provides approximately 15 minutes of operation with maximum suction power, or 40 minutes with less suction power.

AFTER VACUUMING

Remove the nozzle. Clean the accessories. Empty the container.

EMPTYING THE DUST CONTAINER

To open the dust container, press the container opening button. When the button is pressed, the flap that closes the container will drop down and eject the collected dust.

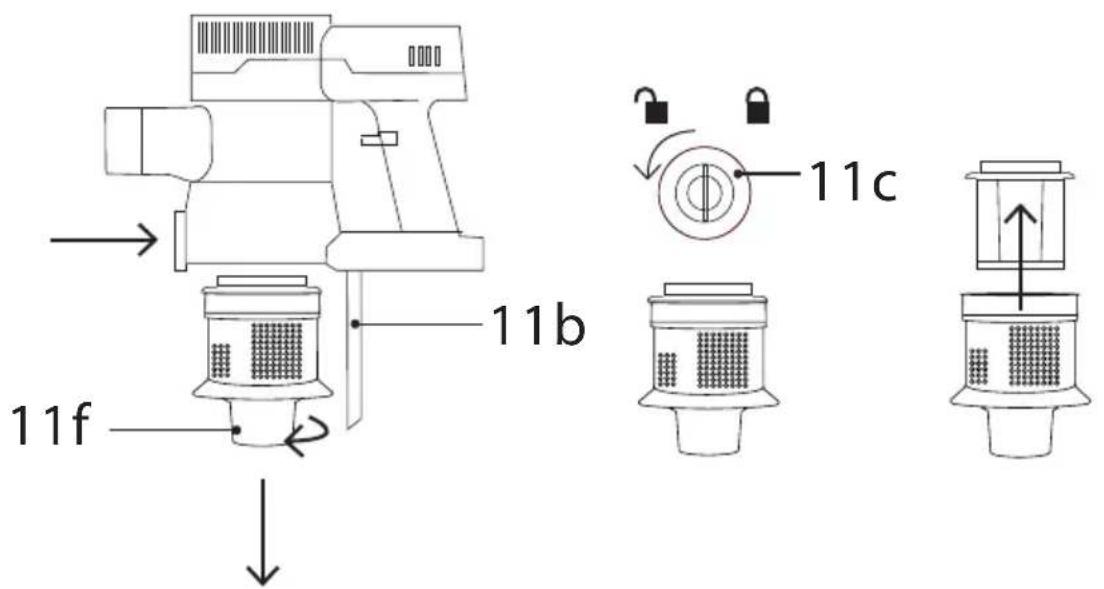

To thoroughly clean the container, detach the dust container part from the motor part, detach the filter by unscrewing it according to the picture diagram.

CLEANING AND MAINTENANCE

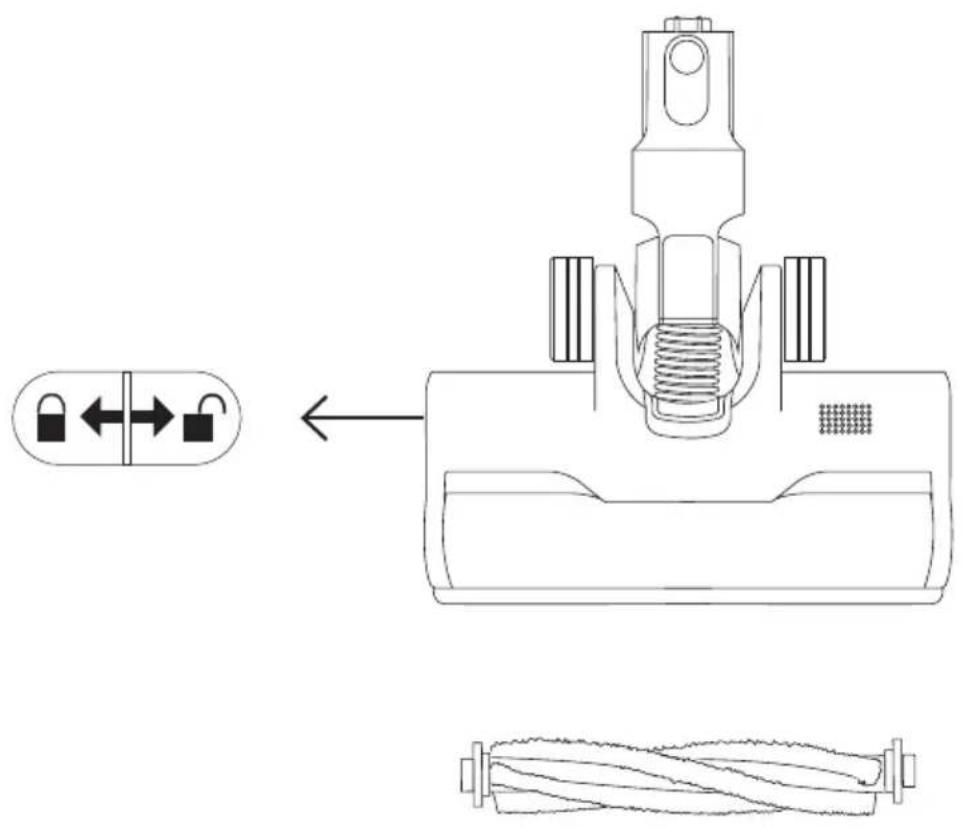

Clean the nozzles and container and remove the dust on a regular basis.

The main unit can be wiped with a damp cloth and then immediately wiped dry.

Clean the filters each time you empty the dust container. It is recommended to clean the filters thoroughly under running water. After cleaning the filters, replace them only when they are completely dry.

It is recommended to replace the HEPA filter every 4 months, depending on the frequency of use. Replace the filters according to the instructions provided in the section on emptying the container.

Device is compliant with EU directives:

- Low voltage directive (LVD) - Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

CHANZEHO Technology Park114-1 Longxing North Road,

Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen,

Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

1. Ssawki:

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

Vhodna napetost: 100-240V\~50/60Hz

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

Ulazni napon: 100-240V\~50/60Hz

Shenzhen CHANZEHO Technology Co., Limited CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118

Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

CHANZEHO Technology Park114-1 Longxing North Road,

Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen,

Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

Tensiune de intrare: 100-240V\~50/60Hz

Curentul maxim de ieşire: 0,5A 13W

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

léjimo jtampa: 100-240V\~50/60Hz

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

Sisendpinge: 100-240V\~50/60Hz

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.

Enjoy it.
