Product Type	Range Hood
Brand	PKM
Model	S20-90ABTH

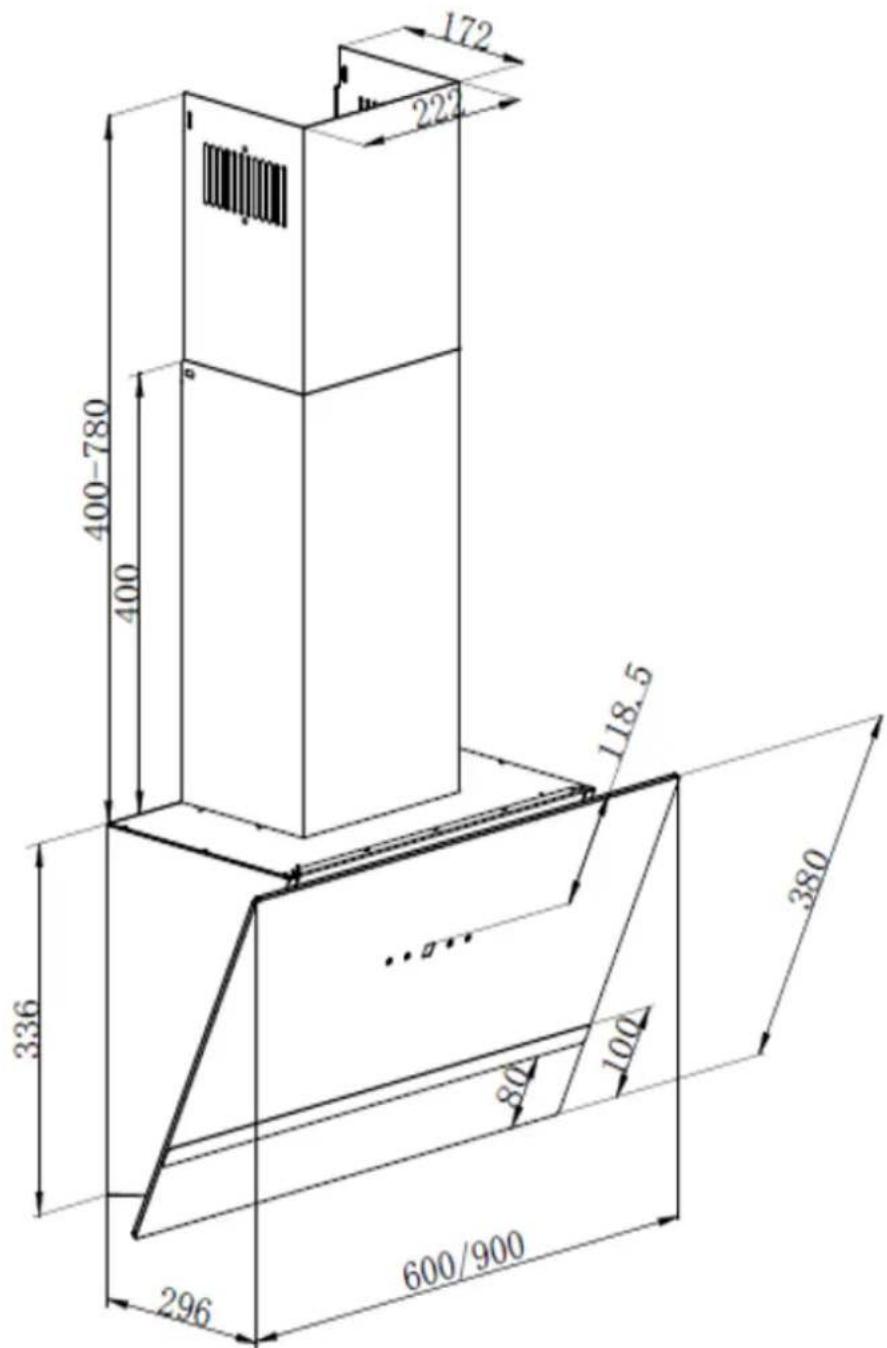

Dimensions (H x W x D)	33.6-111.6 cm x 60.0/90.0 cm x 29.6 cm
Net Weight	12.0 kg
Voltage / Frequency	AC 220-240V / 50Hz
Connected Load	113 W
Lighting Power	3.0 W (LED)
Airflow (Min/Max)	200.5 / 562.6 m³/h
Noise Level (Min/Max)	46 / 68 dB(A)
Energy Efficiency Class	A+ (EEI Λ+)
Grease Separation Class	D (74.1%)
Fluid Dynamic Efficiency Class	A (29.4)
Lighting Efficiency Class	A (52.3 lux/W)
Control Type	Touch control with timer
Number of Speeds	3 (low, medium, high)
Grease Filter Type	Aluminium (1 piece, dishwasher safe)
Carbon Filter (optional)	2 x CF 150 (not included)
Installation Types	Exhaust air or recirculation
Minimum Distance to Hob	65 cm (electric), 75 cm (gas), 85 cm (coal/oil/wood)
Exhaust Duct Diameter	120/150 mm
Telescopic Chimney	40.0 - 78.0 cm
Warranty	24 months (manufacturer)
Standby Power Consumption	0.48 W
Off Power Consumption	0.00 W

Frequently Asked Questions - S20-90ABTH PKM

What is the minimum distance required between the hood and the hob?

The minimum distance depends on the hob type: 65 cm for ceramic-glass rings/hotplates, 75 cm for gas cookers, and 85 cm for coal/oil/wood fired stoves. Never install below these distances to avoid fire risk.

How do I install the hood in recirculation mode?

Follow the installation steps for exhaust air operation but ignore steps 5 and 6 (exhaust pipe connection). Ensure the carbon filters (CF 150, not included) are installed on the motor. The exhaust hose is not required.

How often should I clean the grease filters?

Clean the aluminium grease filters at least once a month. They can be cleaned by hand or in a dishwasher at a maximum of 30°C. Do not use aggressive or alkaline detergents.

How often should I replace the carbon filters?

Conventional carbon filters cannot be cleaned and should be replaced every 3 to 6 months depending on usage. They are only used in recirculation mode.

What should I do if the hood is not working at all?

Check if the plug is connected, the socket has power, and the fuse is on. If the voltage is too low, compare with the rating plate. If these are fine, contact a qualified professional.

Can I use the hood together with a gas fireplace?

If operating in exhaust air mode, ensure sufficient air supply in the room to avoid negative pressure above 4 Pa. In recirculation mode, simultaneous use is generally safe. Always consult a chimney sweep.

How do I replace the LED light?

Disconnect the hood from the mains. Remove the grease filter, then pull out the old LED lamp (3.0 W max) and insert a new one of the same type. Use a cloth to avoid touching the lamp with bare hands. Reinstall the filter.

Why is the motor running but no suction?

Check if the ventilation damper is blocked or the motor mounting is defective. Also ensure the exhaust duct is not obstructed and the filters are clean. If the problem persists, contact service.

What diameter should the exhaust hose be?

The recommended diameter is 120 mm or 150 mm. Using a smaller diameter will reduce performance and increase noise. The hose should be as short and straight as possible with bends no less than 120°.

Does the hood come with carbon filters?

No, carbon filters (model CF 150, 2 pieces) are not included in the delivery. They must be purchased separately for recirculation operation.

USER MANUAL S20-90ABTH PKM

Exterior view of a black stainless steel kitchen range hood (no text or symbols visible)

Deutsch

English

Seite 2

Page 24

www.pkm-online.de

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Pic 3

Diagram of a brick wall with a cylindrical component mounted on a cabinet, showing airflow direction (no text or symbols)

Bild 4

Bild 5
Bild 6

Technical line drawing of a brick wall-mounted air duct or chimney with mounting bracket (no text or symbols)

Bild 7

HINWEISE FÜR DIE INSTALLATION VON ABLUFTKANÄLEN

Pure geometric diagram of a T-shaped object with dashed centerline (no text or symbols)

Simple line drawing of a T-shaped object with a vertical dashed centerline and internal dots (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

2.5 Kohlefilter

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

Index 24

1. Safety information....25

1.1 Signal words....26

1.2 Safety instructions.... 26

1. Installation....29

2.1 Important safety information.... 29

2.2 General information 30

2.3 Installation: Exhaust air operation.... 30

2.3.1 Installation steps 31

2.4 Installation: Air recirculation 34

2.5 Carbon filter 35

1. Operation....36

3.1 Control panel 36

1. Cleaning/maintenance 37

4.1 Grease filter(s)....37

4.2 Carbon filter(s) 38

4.3 Replacing of the illuminant 38

1. Trouble shooting....39

2. Technical data....40

6.1 Information in accordance with Regulation (EU) 66/2014....40

6.2 Relevant data for installation....41

1. Waste management....42

2. Guarantee conditions....43

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case.

i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

1. Safety information

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety information and the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
The appliance is intended for extracting/recirculating cooking vapours in a private household only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.

Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards. involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER

1. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
2. The power cord must be replaced by a qualified professional only.
3. Never repair the appliance yourself.
4. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

5. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel.
c) Do not touch the appliance until the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

WARNING!

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa ( 4 × 10^-5 bar).

2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.

3. Only connect the appliance to a properly grounded and dedicated socket.

4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock. The technical data of your energy supply must meet the data on the rating label.

5. Your domestic circuit must be equipped with an automatic circuit breaker.

6. Strictly observe the minimum distance between hood and hob (Please be sure to observe the information in chapter 2.1 of this instruction manual).

7. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.

8. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.

9. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.

10. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.

11. The exhaust hose must not be made of flammable materials or contain any flammable materials.

12. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.

13. Disconnect the appliance from the mains before cleaning and maintenance.

14. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!

15. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of

the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1. Always supervise children so they will not play with the appliance.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Carry out the installation of the appliance with at least two persons. RISK OF DAMAGE!. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.
2. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney
3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
4. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.
5. Take the enclosed parts from the packaging and its polystyrene-components.
6. Check that the power cord and the appliance are not damaged before electrical connection.
7. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

2.1 Important safety information

Required minimum distance hood to:

Ceramic-glass rings/hotplates	65 cm min.
Gas cooker	75 cm min.
Coal / oil / stove wood firing	85 cm min.

⚠ WARNING! If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

1. The minimum distances do not represent the required total height but a minimum value generated by adding the height of the hob (floor hob) and the required minimum distance of the hob to the extractor hood (hob extractor hood)

(floor hob) + & (hob extractorhood) = & Minimuminstallation height

1. Adapt the total installation height to the height of the user. Please note that the extraction capacity of the appliance can decrease if installed at a large distance to the hob.

⚠ WARNING! Never install the appliance below the required minimum distance.

⚠ WARNING! Any potential user has to be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!

2.2 General information

1. ⚠️ WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.
2. For extracting the exhaust air always observe the current legal regulations.
3. The diameter of the exhaust hose must meet the diameter of the connecting ring.
4. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.
5. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.
6. The proper maximum bending angle outwards is 120^ .
7. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
8. When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^-0 is required. Otherwise condensate will get into the motor of the hood.
9. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.
10. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
11. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.
12. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.

2.3 Installation: Exhaust air operation

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

⚠ WARNING! Do not damage the wiring in the wall while drilling. RISK OF ELECTRIC SHOCK!

NOTICE! At least two persons are required for installation.

If you have an exhaust air duct to the outside, the extractor hood can be installed by using an exhaust hose (Diameter of the exhaust hose: s. chapter 6. TECHNICAL DATA).

S. fig. below

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

2.3.1 Installation steps

Pic 1

1. After deciding the cooker hood height, measure the position of the holes for hanging hood and inside chimney bracket. Drill 8 8 holes and keep the hood level. The fixed position of the inside chimney bracket is the highest place of inside chimney. See pic 2.

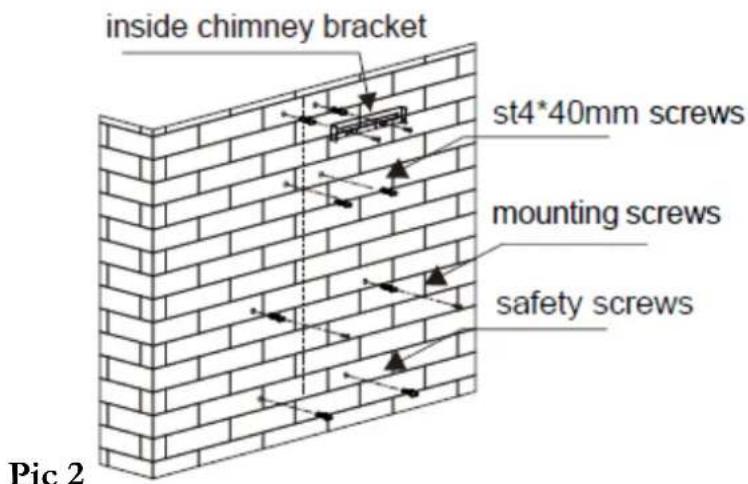

2. Screw 2pcs 4 x 30mm screws on the wall with wall plugs and the mounting screws installed should leave for 3-5mm out of the wall to hang the hood, then use 2pcs 4mm x 40mm screws to fix the inside chimney bracket. See Pic 2.

Pic 2

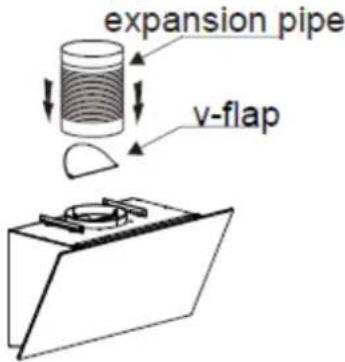

1. Install the v-flap and expansion pipe onto the cooker hood. See Pic 3.

Pic 3

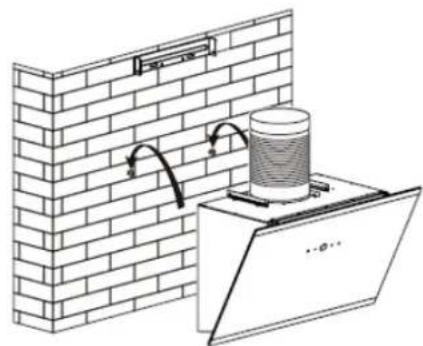

1. Put the hood hang on the wall in the fixed position, adjusting the cooker hood position, fix the cooker hood with 2pcs ST4*30mm safety screws. Note: The two safety vents are positioned on the back housing, with a diameter of 6mm. See pic 4&6.

Diagram of a brick wall with a cylindrical component mounted on a cabinet, showing airflow direction (no text or symbols)

Pic 4

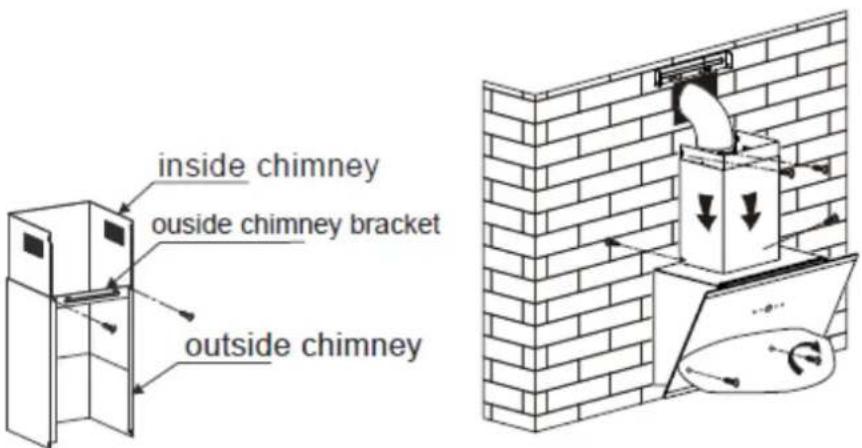

1. Install the outside chimney bracket onto the outside chimney with 2 pcs ST4*8mm screws, make sure the inside chimney can be flexed freely. See Pic 5. And then put the chimney to the hood, use 2 pcs ST4*8mm screws fix the outside chimney to the hood body and the use 2pcs ST4*40mm fix it on the wall. Lay the expansion pipe to the outside at the same time. See pic 6.

Pic 5
Pic 6

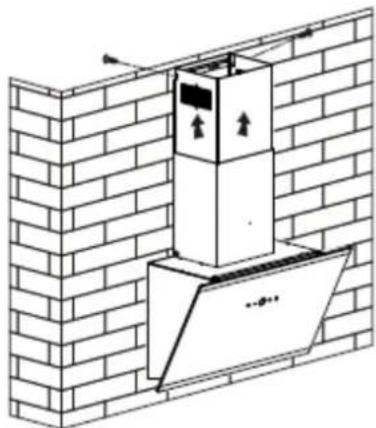

1. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix it with 2pcs ST4*8mm screws. See Pic 7.

Architectural diagram of a brick wall with a chimney and ventilation system (no text or symbols)

Pic 7

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent person.

• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.

• The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.
  • After the installation, make sure that the cooker hood is level to avoid grease collection at one end.

• Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

Pure geometric diagram of a T-shaped block with dashed centerline (no text or symbols)

Simple geometric diagram showing two rectangles with a dashed vertical line and a dot at center (no text or symbols)

Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.

WARNING:

For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2.4 Installation: Air recirculation

If you do not use an exhaust air pipe to the outside for the installation of the extractor hood, the exhaust hose is not required.
The installation of the extractor hood is similar to chapter 2.3.1 INSTALLATION STEPS (please ignore point 5. and point 6.).

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

2.5 Carbon filter

Product code: CF 150 (2 Pcs.)

⚠ WARNING! Unplug the appliance or disconnect it from the mains (use the relevant fuse in your household fuse box).

⚠ WARNING! Use the carbon filters in recirculation mode only.

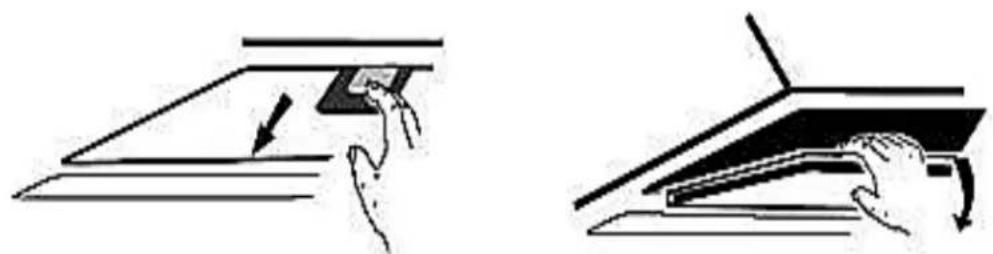

1. Remove the grease filter(s).

Two-step diagram showing hand positioning of a device on a flat surface, with no text or symbols present.

1. The carbon filters are intended to be installed on both sides of the motor.

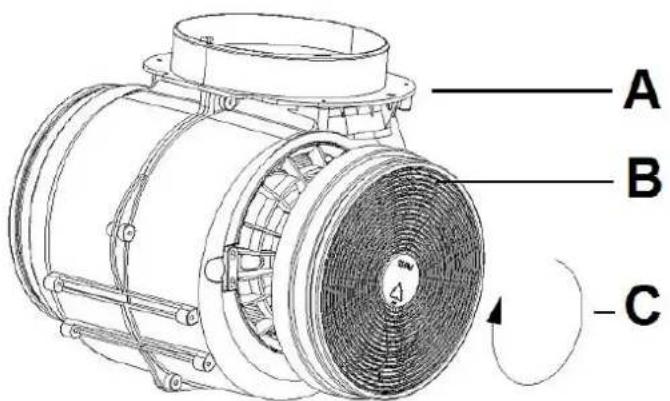

2. Place the carbon filter on the motor and turn it clockwise until it is firmly tightened (s. fig. below).

A Motor

B Carbon filter

C Clockwise rotation = Place the carbon filter on the motor und turn t filter clockwise until it is installed properly.

1. Repeat the procedure on the other side of the motor.

2. Install the grease filter(s).

3. If you want to uninstall the carbon filters, turn the filters anti-clockwise and remove them.

NOTICE! If the carbon filters are installed, the suction power is reduced.

NOTICE! Carbon filters are not included in delivery.

NOTICE! Depending on frequency of use, replace the carbon filters every three to six months. Clean the grease filter(s) regularly for proper operation of the motor.

3. Operation

3.1 Control panel

⚠️ CAUTION! The lamp must not be covered by thermal insulation or other materials. Do not touch the illuminant within 30 minutes after operation.

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room.

Touch control

Timer

Lamp

Speed

Power

1. Press the "Power" button, the button control the "on" & "off" of the hood.
2. Press the button "Speed" time after time, the motor runs as low / mid / high / low / mid..., the speed runs circularly; and the LED display will indicate as 1-2-3-1-2... circularly.
3. Press "Lamp" button, the light is on, press this button again, the light is off. Please note the Lamp is not under control of the on/off button.
4. When the hood is working, if press the "Timer" button, the hood will go into the status of acquiescent working (acquiescent time is 9mins), and then, LED display will be shown 9.8.7.6 ...decreasing by 1, when time is up, the hood will be off

automatically, and the lamp will extinguish. If pressing "Timer" button, the hood will go in or go out "Timer" function.

4. Cleaning/maintenance

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it.

⚠ WARNING! Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE! Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.
3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.
4. Clean the glass panels ^2 with a suitable detergent only.
5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents.
7. Such changes do not influence the capacity of the appliance and are no reason for complaint.
8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!
9. Do not use any abrasive detergents.

4.1 Grease filter(s)

⚠ WARNING! There is RISK OF FIRE when cleaning is not carried out according to these instructions!

You do not need to replace grease/aluminium filters.

➢ Clean them once a month by hand or in a dishwasher (30°C max.).
➢ Do not use any acrid or corrosive detergents.
Do not use any abrasive detergents!
➢ Do not use any alkaline dishwasher-detergents! (ph more than 7).
➢ Do not put the filter in the dishwasher together with tableware.
Filters which are blocked with food debris do not carry a guarantee.
➢ Dry the filters properly before you reinstall them.

4.2 Carbon filter(s)

Conventional carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. Find further information on the filter packaging.

4.3 Replacing of the illuminant

⚠ WARNING! Disconnect the appliance from the energy supply.

Do not touch the illuminant with your hands. The sweat on your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a thin glove.

1. The illuminant should have cooled down before you remove it.
2. Open the front panel and remove the grease filter
3. Pull the old illuminant out of its holder and replace it by a new one of the same kind and power carefully / 2 W max.
4. Insert the grease filter and close the front panel.

Required minimum distance to surfaces such as pot lids, oven cloths etc. to avoid any hot parts and risk of fire.

Only use self shielded illuminants to avoid hot parts, risk of fire and exposure to UV-radiation.

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse.
The voltage is too low. Compare the data on the model plate with the data of your energy supplier.

Light is on but motor does not work.

▶ ventilation damper blocked.
▶ motor mounting defective.

remove blockage.
replace motor.

Abnormal motor-smells.

▶ motor defective

replace motor

Smear of oil.

▶ one-way valve is leaky
➢ connection base chimney-telescopic chimney is leaky

seal the valve
➢ seal the connection with a suitable material

Appliance vibrates.

▶ motor not properly fixed
▶ hood not properly fixed

fix motor properly
fix hood properly

Insufficient extracting capacity.

▶ too much distance hood-hob
too much draught because of open doors and/or windows

▶ lower position of hood
▶ close the doors/windows

Appliance is unstable.

➢ mounting rail is not firmly fixed
▶ screws are not firmly tightened

➢ fix mounting rail properly
▶ tighten the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule below:

◆ Incorrect dimension of the air duct.
◆ Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120/150 mm (s. TECHNICAL DATA); otherwise the capacity of the motor may be decreased.

If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
❖ Install a cover panel with moveable slats, which do not obstruct the air vent.
◆ Check condition and cleanliness of the filters.
- Check if the air which is extracted by the hood is replaced to avoid negative pressure.
When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months).
If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the shop you purchased the appliance at.

6. Technical data

6.1 Information in accordance with Regulation (EU) 66/2014

Brand/trademark	PKM
Model identifier	S20-90ABTH
Annual energy consumption (AEC _hood )	17,70	kWh/year
Energy efficiency index (EEI _hood )	Λ+
Fluid dynamical efficiency (FDE _hood )	29,40
Fluid dynamical efficiency index	A
Grease separation	74,10
Grease separation index	D
Air flow at minimum speed/standard operation	200,50	m ^3 /h ^(1)
Air flow at maximum speed/standard operation	562,60	m ^3 /h ^(1)
Connected load	113	W
Power consumption lighting system (Wi)	3.0	W
Lighting efficiency (LE _hood )	52,3	lux/Watt
Lighting efficiency index	A
Power consumption standby (Ps)	0.48	W
Power consumption off (Po)	0.00	W
A-rated noise emission at minimum speed/standard operation	46	dB ^(2)
	68	dB ^(2)

Explications:

(1) measurement of air flow

Range hoods with a maximum air flow, which is more than 650 m^3/h at an available setting, must automatically change to an air flow, which is max. 650 m^3/h .

(2) Airborne acoustical noise

According to dB(A) rc 1 pW.

To determine the results, and in accordance with the requirements in relation to the labelling of energy-related products and with regard to ecodesign requirements, the following calculation and measurement methods were applied:

➢ Directive of the European Parliament and of the Council 2010/30/EU; REGULATION NO 65/2014.
➢ Directive of the European Parliament and of the Council 2009/125/EC; REGULATION NO 66/2014.
➢ EN 50564 - Electrical and electronic household and office equipment. Measurement of low power consumption
EN 60704-2-13 - Household and similar electrical appliances. Test code for the determination of airborne acoustical noise. Particular requirements for range hoods.
EN 61591 - Household range hoods and other cooking fume extractors - Methods for measuring performance.

6.2 Relevant data for installation

Voltage/frequency	AC 220-240V/50Hz
Grease filter/material/dishwasher-proof	1 aluminium	√
Carbon filter	2*CF 150
Exhaust hose	√
Installation material	√
Exhaust air operation	√
Air recirculation	√
Instruction manual	√
Telescopic chimney extractable from-to	40.00-78.00 cm
Installation with ventilation stack or air duct outwards	Wall penetration = 150 mm ∅Drilling = approx. 160 mm ∅
Dimensions H*W*D in cm	(33.60-111.60) X 60.00 X 29.60
Weight net/gross in kg	12.00/14,00

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are Please contact your local authorities to recyclable. receive further information.

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees.

These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within

24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Abmessungen in mm.

Dimensions in mm.

Aftersales service information on the leaflet inside this instruction manual

Subject to alterations

Updated

05/10/2024
