USER MANUAL IB-G1826MF-C31 Icy Box

Manual IB-G1826MF-C31

External Type-C® gaming enclosure for M.2 NVMe SSD

Handbuch IB-G1826MF-C31

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
  • Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

Sharp components

CAUTION

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

Safety information IB-G1826MF-C31

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

Environmental pollution, unsuitable for recycling

IMPORTANT

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.raidsonic.de.

Handbuch IB-G1826MF-C31

The IB-G1826MF-C31 with pulsating ARGB illumination not only visually enhances your SSD. With USB 3.1 (Gen 2) Type-C ^® and up to 10 Gbit/s, gaming content can be loaded at lightning speed. Take your gaming library with you wherever you go. The IB-G1826MF-C31's robust aluminium design fits in any pocket and is ideal for on-the-go.

Please note the following information about compatibility of USB Type-C® enclosures and adapters, including this device!

• Your host computer must have a USB Type-C ^® or Type-A interface.
• The IB-G1826MF-C31 also works with computers and notebooks with USB 3.0/2.0/1.1 Type-A interfaces by using the enclosed USB-Type-C® to Type-A cable.
• The enclosure also works on devices with a Thunderbolt™ 3 Type-C® interface with a transfer rate of up to 10 Gbit/s specified by USB 3.1 (Gen 2) by using the USB Type-A to Type-C® adapter.
• The Type-C ^ or Type-A plug can be connected with USB 3.0 or 2.0 standard in some notebooks and computers. The enclosure only supplies the full data transfer rate of up to 10 Gbit/s to USB 3.1 (Gen 2) interfaces.

Attention: This device supports only M.2 PCIe NVMe SSDs. No support for M.2 SATA (AHCI) SSDs!

External USB Type-C® enclosure for M.2 NVMe SSD

With the external USB 3.1 Type-C ^® enclosure IB-G1826MF-C31 you can take one NVMe SSD with you comfortably. It allows access to M.2 SSDs of up to 2 TB no matter to which host you connect it. The IB-G1826MF-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, suitable for a variety of applications such as high-speed storage, gaming or running a mobile operating system.

The ARGB illumination can be configured with the appropriate software tool according to your wishes or can be switched off completely by the ON/OFF switch on the housing.

Manual IB-G1826MF-C31

Package content

• 1x IB-G1826MF-C31 (drive not included)
- 1x Type-C ^ to Type-A cable
- 1x Type-A to Type-C ^® adapter
- 1x Silicon thermal pad
- 1x Heat sink
- 1x Tool
- 2x M.2 rubber mount
- 2x Rubber ring
- 1x Manual

Key features

• High-grade gaming aluminium housing with ARGB LED illumination
- Interface to host computer: USB 3.1 (Gen 2) Type-C ^® and Type-A
• Data transfer rates of up to 10 Gbit/s
• M-Key socket for NVMe SSDs, 22x 30/42/60/80 mm
• Heat sink and thermal pad
- Toolless M.2 mount
• Supports Windows ® and macOS®

System requirements

One free USB 3.1 (Gen 2) Type-A or Type-C ^® port on your host computer. Alternatively a Thunderbolt ^™ 3 Type-C ^® port can be used with data transfer rates of up to 10 Gbit/s.

Product overview

3.2.1.

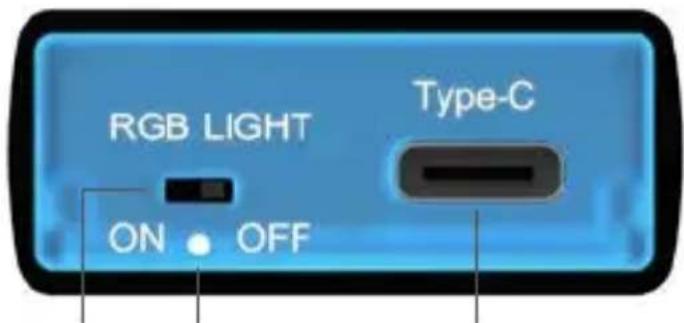

1. ON/OFF switch for ARGB LED illumination
2. LED for power and access
3. USB 3.1 (Gen 2) Type-C ^® interface to host computer

Manual IB-G1826MF-C31

SSD installation

Attention: During the SSD installation the cabling of the enclosure has to be disconnected from the computer or notebook.

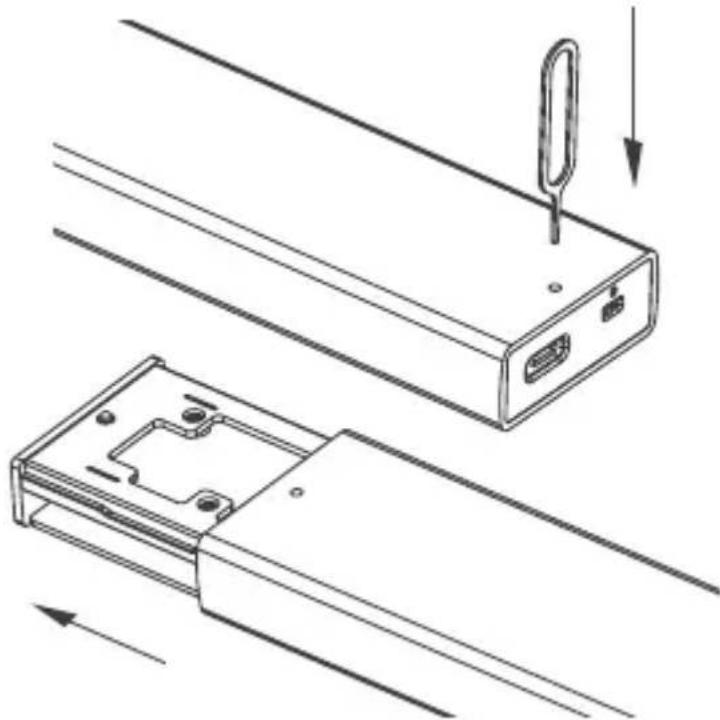

Remove the PCB using the tool provided. Press the tip side of the tool into the small hole on the bottom of the front of the host port.

Technical line drawing of a device rear panel with internal components and directional arrows indicating movement (no text or symbols)

Place your SSD carefully with the connector side and at an angle of about 30^ into the M.2 slot so that it fits without resistance. Now place the M.2 rubber mount on the semicircular notch at the end of the M.2 SSD and carefully press it down until it is locked into the PCB.

Manual IB-G1826MF-C31

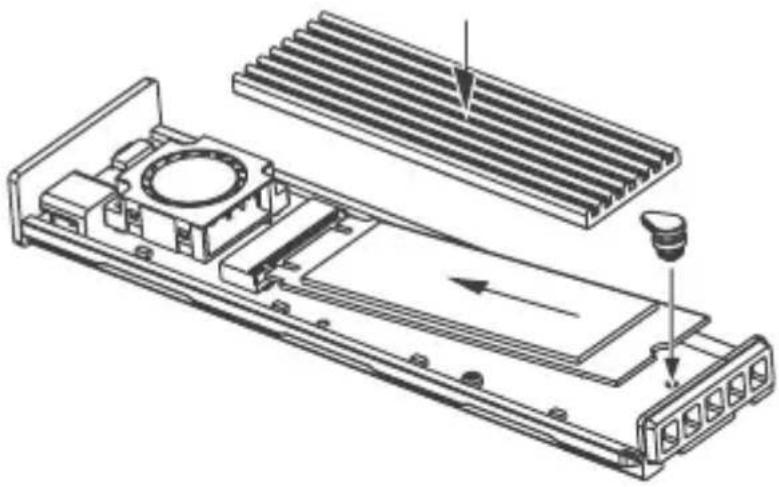

Place the delivered thermal pad directly onto the M.2 NVMe SSD.

Technical line drawing of an electronic device with cooling panel and internal components (no text or symbols)

Place the supplied heat sink on the thermal pad and carefully press it down.

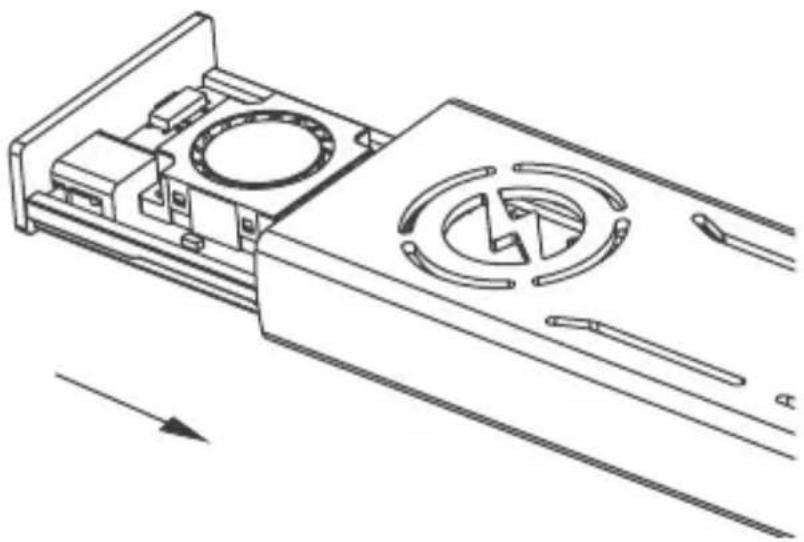

Carefully slide the inner frame of the PCB together with the SSD and heat sink into the housing as far as it will go until it locks in place and is flush with the outer housing. Pay attention to the correct alignment!

Technical line drawing of a mechanical component with internal circular features and directional arrows (no text or symbols)

Manual IB-G1826MF-C31

Usage

• Connect the IB-G1826MF-C31 via the delivered cable to the corresponding port of your host computer.
• When the IB-G1826MF-C31 has been plugged correctly the LED will turn on white!

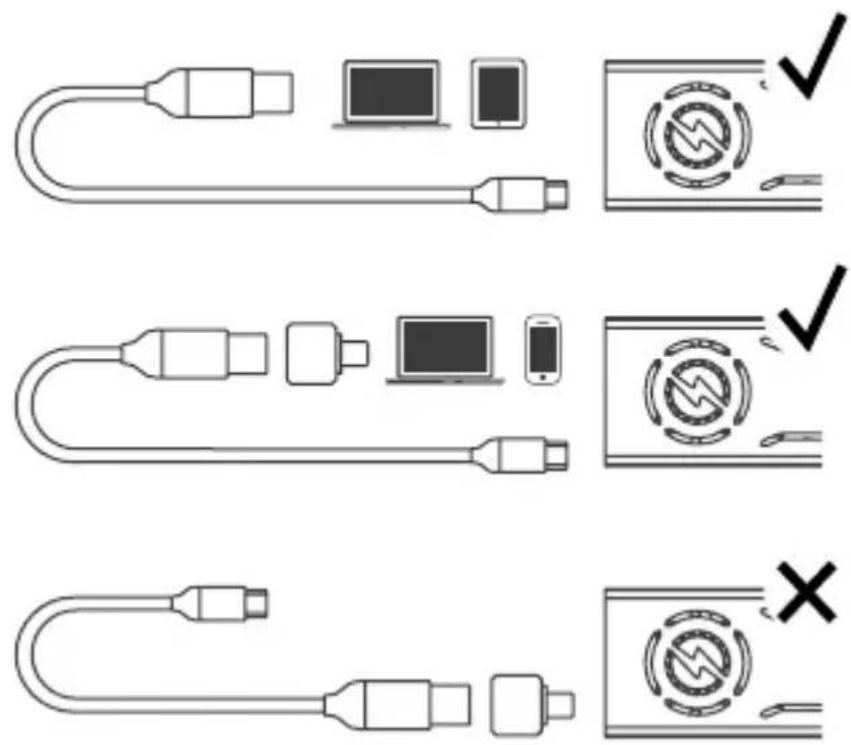

Hint: Please pay attention to the right direction by using the Type-A to Type-C® adapter. Please use the adapter only for the computer connection, not on the enclosure!

Application

• The external enclosure can be connected or disconnected while the computer is running.
• Please await the end of read/write operations before disconnecting the enclosure to avoid data lost.
• A new SSD must first be initialized, partitioned and formatted by the operation system to be displayed by the system.
• If the drive is not recognized instantly by the operating system, please check if the driver software is installed (USB) if the SSD is initialized, partitioned and formatted.

Handbuch IB-G1826MF-C31

Technical line drawing of a device with two views: top shows internal components and bottom shows external casing (no text or symbols)

Technical line drawing of an electronic device chassis with cooling fan and heat sink components (no text or symbols)

Technical line drawing of a mechanical component with internal circular features and directional arrows (no text or symbols)

Handbuch IB-G1826MF-C31

Verwendung

Abstract black-and-white geometric cube icon with no text or symbols

ICY BOX®

© Copyright 2021 by RaidSonic Technology GmbH. All Rights Reserved.

The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above-mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have. DisplayPort® and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. The terms HDMI® and HDMI® High-Definition Multimedia Interface, and the HDMI® logo are trademarks or registered trademarks of HDMI® LA, Inc. in the United States and other countries. Apple and macOS are registered trademarks of Apple Computer Inc. Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.
