Product Type	External Hard Drive Enclosure
Brand	ICY BOX
Model	IB-246FP-C3
Interface	USB 3.0 Type-C (USB 3.0 backward compatible with USB 2.0)
Data Transfer Rate	Up to 5 Gbit/s (USB 3.0), up to 480 Mbit/s (USB 2.0)
Supported Drive	2.5-inch SATA HDD/SSD, height up to 9.5 mm
Drive Installation	Toolless, slide lid open and connect at 30-degree angle
Security	Fingerprint encryption with AES 256-bit, up to 8 fingerprints
Administrator Password	Default: 666666 (user-changeable)
Auto-Lock	After 5 minutes of inactivity
LED Indicators	Blue (power/activity), Green (drive unlocked), Red (error)
Material	High-grade aluminum
Power Supply	Bus-powered via USB (no external power adapter)
System Requirements	Windows or Mac with a free USB 3.0 Type-C port
Software	ICY BOX FPTool (included on virtual CD drive)
Dimensions (approx.)	130 x 80 x 15 mm (typical for 2.5" enclosure)
Weight (approx.)	120 g (typical aluminum enclosure without drive)
Package Contents	Enclosure, USB cable, manual (may vary)
Certifications	WEEE compliant
Warranty	As per manufacturer policy

Frequently Asked Questions - IB-246FP-C3 Icy Box

How do I install a hard drive into the IB-246FP-C3 enclosure?

Slide the lid open in the direction indicated by the sticker. Insert the 2.5-inch SATA drive at approximately a 30-degree angle into the SATA connector, then gently push it down flat. Close the lid until it clicks. No tools are required.

What is the default administrator password and how do I change it?

The default administrator password is 666666. To change it, open the ICY BOX FPTool, click on 'Password', enter the old password, then your new password twice. It is recommended to use a combination of upper/lower case letters, numbers, and special characters.

How many fingerprints can I store?

You can store up to 8 different fingerprints. To add a fingerprint, click the plus icon in the FPTool, then touch the sensor repeatedly until 100% scanned. You can name each fingerprint.

Can I use the enclosure without fingerprint unlocking?

Yes. You can unlock the drive using the administrator password via the FPTool. Click 'Disk' then 'Unlock the Disk' and enter the password.

What happens if I forget my administrator password?

If you forget the administrator password, you can reset the enclosure to factory defaults via the FPTool (Disk > Restore to Default). Warning: This will erase all data on the drive.

Does the enclosure support USB 2.0?

Yes, it is backward compatible with USB 2.0. However, data transfer speed will be limited to a maximum of 480 Mbit/s (USB 2.0) instead of 5 Gbit/s (USB 3.0).

How do I initialize a new hard drive in Windows?

After unlocking the drive, open Disk Management. Right-click on the unallocated drive (left side) and select 'Initialize Disk'. Choose GPT partition style. Then right-click the unallocated space (right side) and create a 'New Simple Volume'.

Why is the red LED blinking?

The red LED blinks when there is an incorrect fingerprint scan or operation error. Ensure your finger is clean and placed correctly on the sensor. If using password, verify you entered it correctly.

Can I use a 15mm thick hard drive?

No, the enclosure supports only 2.5-inch drives with a height of up to 9.5 mm. Thicker drives will not fit.

Is the enclosure compatible with macOS?

Yes, the enclosure works with macOS. The FPTool software includes a Mac version. After connecting the enclosure, a virtual CD drive named 'FPTool_MAC_WIN' appears; you can install the tool from there.

USER MANUAL IB-246FP-C3 Icy Box

Exterior view of a modern black rectangular electronic device (no visible text or symbols)

Safety information

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
  • Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

- Read the operating instructions prior to assembly

- Avoid coming into contact with sharp edges or pointed components

• Do not force components together

- Use suitable tools

• Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air

- Do not cover the fan outlet and passive cooling elements

- Avoid direct sunlight on the device/power unit

• Guarantee sufficient ambient air for the device/power unit

- Do not place objects on the device/power unit

- Prevent externally heating up components and ensure an exchange of air - Do not cover the fan outlet and passive cooling elements - Avoid direct sunlight on the device/power unit - Guarantee sufficient ambient air for the device/power unit - Do not place objects on the device/power unit

Safety information

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/Manual
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.raidsonic.de.

Sicherheitshinweise

Dear Costumer, thank you very much that you choose an ICY BOX® Product. Please pay attention to the following information in this manual.

1. Blue LED glows when power on, and blink when in the data access mode.
2. Green LED glows when the drive is unlocked.
3. Red LED blinks when the fingerprint or operation is incorrectly.
4. Fingerprint sensor
5. USB 3.0 Type-C ^TM Port
6. Lid

DE:

Before using an HDD, make sure that the HDD is empty or your data is backed up externally. Data will be lost during installation and configuration of the HDD!

2. Main features

• Fingerprint encryption with AES 256 bit
• Up to 8 different fingerprints
• USB 3.0 Type-C ^ with up to 5 Gbit/s
• Made of high-grade aluminum
• Supports 2.5" drives with up to 9.5 mm height
- Toolless drive installation

3. Package content

4. System requirements

One free USB 3.0 Type-C ^® port on your host computer.

Manual IB-246FP-C3

5. Drive installation

1. Slide the lid open (A small sticker indicates in which direction)

Line drawing of hands holding a smartphone (no text or symbols)

1. Install your drive by plugging it into the SATA connector at an angle of about 30 degrees and then gently pushing it down.

Line drawing of a smartphone with a partially open cover and a 'HDD' logo on the cover (no text or symbols beyond branding)

1. Put the lid back on and close it again. A small haptic feedback will show you that the lid is locked in place.

Line drawing of a rectangular electronic device with a lid and base (no text or symbols)

Manual IB-246FP-C3

6. Starting up

- Ideally, use a USB 3.0 Type-C™ or Type-A port on your host computer.

- Hint: The maximum data transfer rate of 5 Gbit/s can only be achieved with a USB 3.0 port. USB 2.0 ports can be used, but only with the maximum USB 2.0 data transfer rate of 480 Mbit/s.

Starting up with Windows®

- Connect the USB 3.0 cable to the enclosure. - Then connect the enclosure to your Windows ^ host computer.

- After the USB device is detected by Windows®, a CD drive named "ICY BOX FPTool" will be displayed in "This PC". Click it.

- A .exe file named "FPTool_Windows" is displayed on this CD drive. Please run this file.

Icon representing a Windows application (no text or symbols on the icon itself)

Starting up with MacOS®

• Connect the USB 3.0 cable to the enclosure.
• Then connect the enclosure to your MacOS® host computer.
• After the USB device is detected, a CD drive named "FPTool_MAC_WIN" will be displayed on desktop. Click it.

Manual IB-246FP-C3

• A folder will be opened.
• Click to MAC folder.
• Run the Setup file

• Now the ICY BOX FPTool will be installed.
  • After installing the ICY BOX FPTool, the ICY BOX FPTool can be found by Applications.

• Run the ICY BOX FPTool.
  • The FPTool gets started

The configuration tool is started.

1. Setting up your fingerprints
2. Administrator password configuration
3. Unlock via administrator password / reset to factory settings (all data will be lost)

Manual IB-246FP-C3

6.2. The configuration tool is started.

To configure your fingerprints please click on "Fingerprint" (1.). You will now be prompted to enter the administrator password.

The administrator password is: 666666 Confirm the entry with "OK".

ATTENTION! We urgently recommend to change the administrator password in order to guarantee security. See point 6.4.

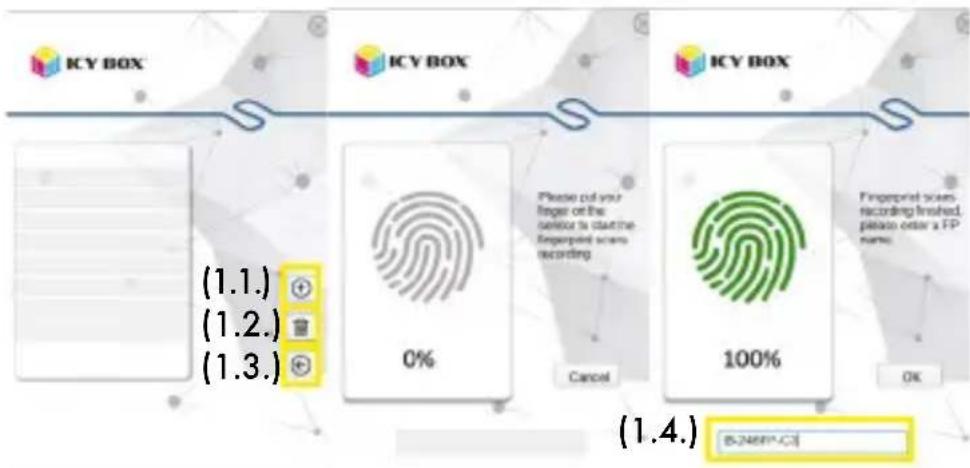

6.2. To configure a new fingerprint, click on the circled plus icon (1.1.). Now touch the fingerprint sensor in different positions with the desired finger. The software will show you when the fingerprint is 100% scanned.

Manual IB-246FP-C3

If your fingerprint is 100% scanned, name the fingerprint you have saved according to your preferences. Type the name in the text box at the bottom of the window (1.4.). Then click "OK" to confirm.

To delete a stored fingerprint, mark the corresponding fingerprint and then click on the trash can symbol (1.2.). Confirm the deletion process with "OK".

To return to the start screen, click on the symbol with the arrow (1.3.).

You can save up to 8 different fingerprints.

6.3. To be able to use the HDD, you must initialize it in Disk Management.

To do this, right-click on the HDD left side (A) and select Disk initialization.

Select the partition style "GPT" and confirm with "OK".

Then right-click on the HDD right side (B) to create a "New Simple Volume".

Click through the settings with "Next" and adjust them according to your wishes.

Now the HDD is initialized and petitioned and can be used. The HDD is displayed in the system after unlocking by fingerprint or administrator password.

Hint: The HDD is locked automatically after 5 minutes of inactivity to prevent unauthorized access.

Manual IB-246FP-C3

6.4. To set a new administrator password, click on "Password" (2.).

You will now be prompted to enter the old administrator password.

Then enter your new password and confirm the entry by re-entering your new password.

Hint: Choose a password that is easy to remember and ideally consists of upper- and lower-case letters, special characters and numbers to increase the security of your password. We do not recommend using birth dates or names.

Confirm the entry of your new password with "OK".

2.1. Enter old admin password

2.2. Enter new admin password

2.3. re-enter new admin password

6.5. If you want to unlock the enclosure without the fingerprint, you can use the FPTool and the administrator password. To do this, click on "Disk" (3.) On the FPTool start page.

Click "Unlock the Disk" (3.1) to unlock the drive.

You will be prompted to enter the administrator password.

To unlock the drive, enter the administrator password and confirm with "OK".

Manual IB-246FP-C3

6.6. To restore the enclosure and all settings to factory defaults, click on "Disk" (3.) and then on "Restore to the default" (4.1).

ATTENTION: If you restore the enclosure to factory defaults, all data on the drive will be lost. Please back up your data before restoring to factory defaults!

Confirm the process with "OK".
