USER MANUAL IB-1916M-C32 Icy Box

Black rectangular electronic device with horizontal ridges, no visible text or symbols

Safety information IB-1916M-C32

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
• Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

Safety information IB-1916M-C32

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.icybox.de.

thank you for choosing an ICY BOX ^® product.

Product overview

1.2.

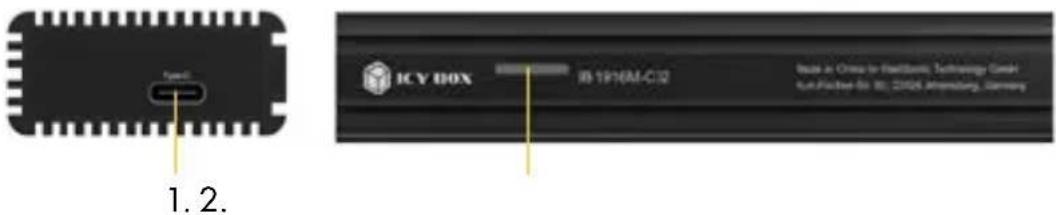

1. USB 3.2 (Gen 2x2) Type-C ^TM interface to host connection
2. LED for power and SSD access

Please note the following information about the compatibility of USB Type-C™ enclosures and adapters, including this device!

• The enclosure only supplies the full data transfer rate of up to 20 Gbit/s via a USB 3.2 (Gen 2x2) USB Type-C™ host interface and an available Asmedia chipset ASM3242 at host PC.
• Currently a macOS ^ based computer does not support the USB 3.2 (Gen 2x2) standard
• A USB Type-A host interface can be connected with USB 3.1, 3.0 or 2.0 standard in some notebooks and computers by using the enclosed USB-Type-C™ to type-A cable.
• The enclosure also works on devices with a Thunderbolt ^TM 3 Type-C ^TM interface only with the transfer rate of up to 10 Gbit/s specified by USB 3.1 (Gen 2).
• The following operating systems are supported: Windows ^ , macOS ^

External USB Type-C™ Enclosure for M.2 NVMe SSD

With the help of the external USB 3.2 Type-C ^™ enclosure IB-1916M-C32 you can take one NVMe SSD with you quickly and easily. It allows access to M.2 SSDs of up to 2 TB no matter to which host you connect it. The IB-1916M-C32 is compatible with M.2 cards of 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. A PCIe controller from Asmedia give the NVMe inside the IB-1916M-C32 incredible speeds of up to 2000 MB/s read and write via USB Type-C ^™ while also making your M.2 SSD more durable and more efficient.

Manual IB-1916M-C32

Packing content:

1x IB1916M-C32
1x Type-C ^TM to Type-C ^TM cable
1x Type-C ^TM to Type-A cable
1x screw driver
1x screw for M.2 fixation
1x acrylic side cover
1x copper heat sink
2x silicone thermal pads
1x user manual

Key features

• High-grade aluminium enclosure with innovative heatsink design
- PCIe 3.0 x4 data transfer rates of up to 2000 megabyte per second
• M-Key socket for M.2 NVMe SSDs, 22x80 mm
- Interface to host computer: USB 3.2 (Gen 2x2) Type-C ^TM
- Backwards compatible to USB 3.1/3.0/2.0.
- Provides an additional copper heatsink and silicone thermal pad inside
• Supports Windows ^® , macOS ^®

Installation

Important: During the drive assembly all cabling has to be disconnected from the computer. It may cause electric shock accident or malfunction.

When connecting the hard drive, please note the electrostatic! Body's static electricity may cause malfunction of the device. Please touch a metal object to discharge or wear antistatic gloves before the operation.

Attention!

• PCB of this device and SSDs are precision machinery, please be careful do not collision and please notice the right direction of SSD.
- Be careful the cutting edge inside may cut hand!
- If hard disk already contains data, please backup data before installation to prevent data loss.

Manual IB-1916M-C32

M.2 NVMe SSD installation

Diagram showing a device with a grid array and a tool emitting arrows, no text or symbols present.

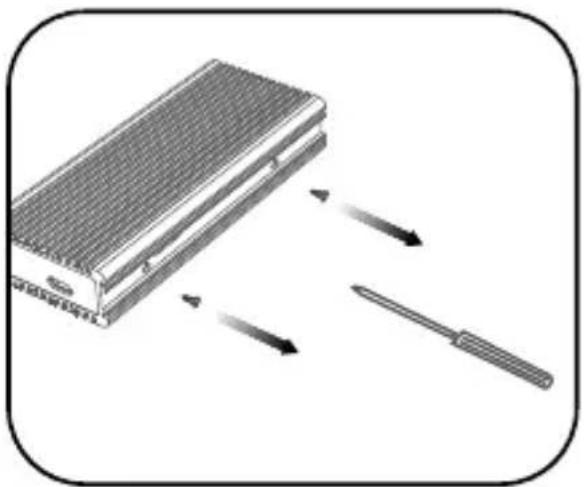

1. Unscrew the screws as displayed.

3D diagram of a heat exchanger or cooling unit with internal cooling fins and a downward arrow indicating direction (no text or symbols)

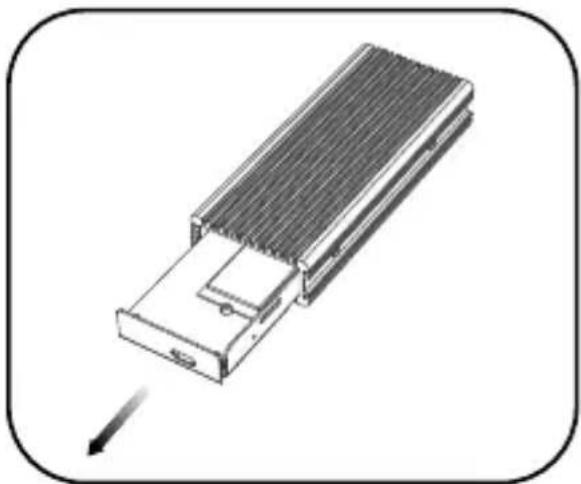

1. Take out the PCB.

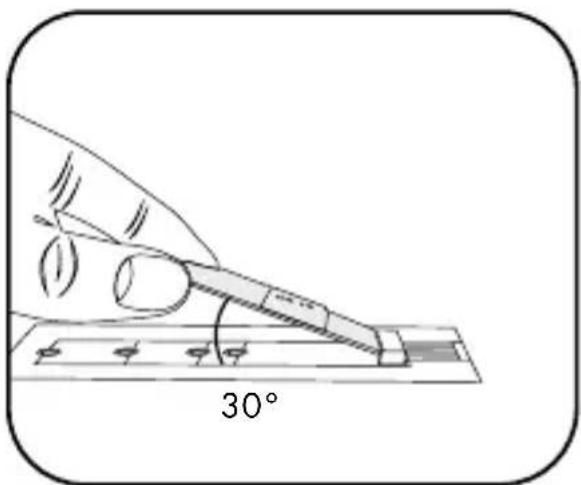

1. Insert your SSD carefully with the connection side into the M.2 socket at an angle of about 30^ so it fits in smoothly.

Manual IB-1916M-C32

Illustration of a hand using a screwdriver to adjust or install an electronic device with a grid-like component (no text or symbols visible)

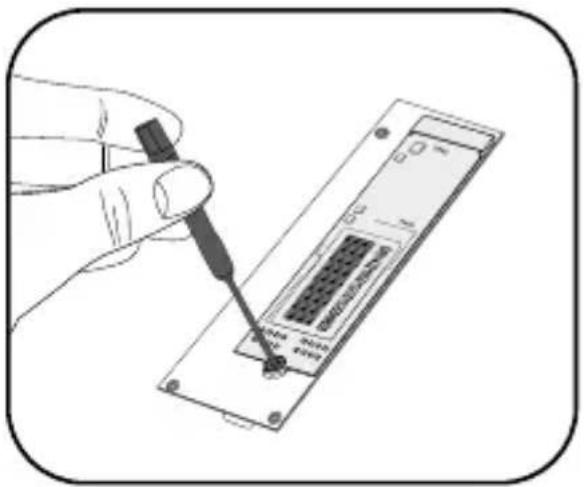

1. Then push the SSD card down and fix it with the delivered screw at the PCB.

3D diagram of a layered electronic device with a rectangular panel and mounting base, showing internal components and directional arrows (no text or symbols)

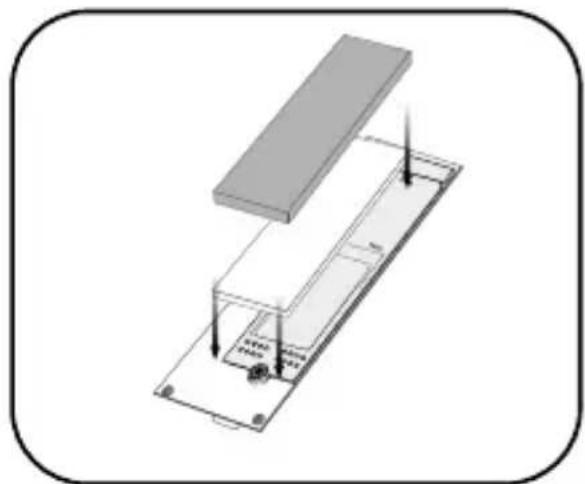

1. Place the delivered thermal pad directly to the M.2 NVMe SSD nearby the fixation screw (depends on SSD design) and add the copper heatsink on the thermal pad.

Diagram of a heat exchanger or cooling unit with internal components and directional arrows (no text or symbols)

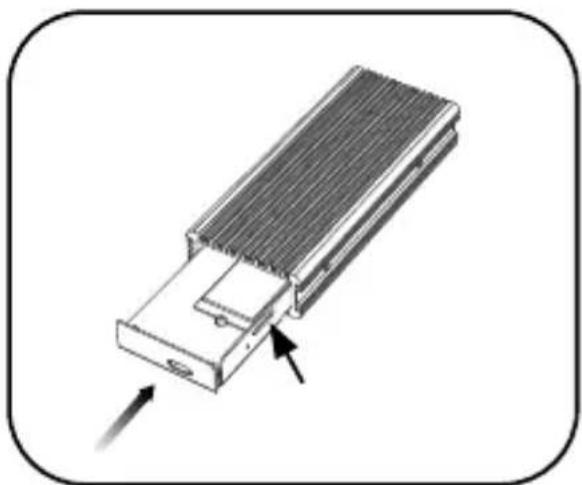

1. Install the PCB back into the track inside the housing. Pay attention to the correct alignment of the LED window!

Manual IB-1916M-C32

Diagram of a rectangular electronic device with two screwdrivers and directional arrows indicating motion (no text or symbols)

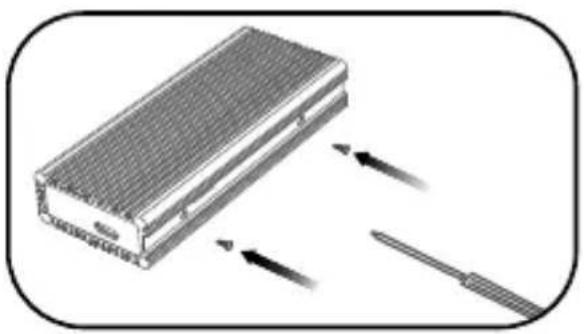

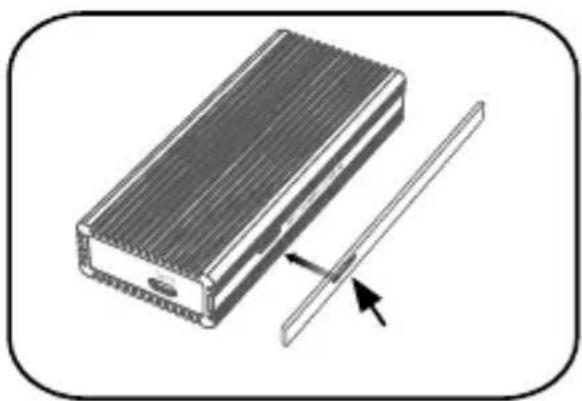

1. Fasten the two screws and install the delivered acrylic cover. Pay attention to the correct alignment of the LED window!

Illustration of a rectangular electronic device with a ruler and pointer, no text or symbols present

Usage

• Connect the IB-1916M-C32 via the delivered cable to the corresponding port of your host computer.
• When the IB-1916M-C32 has been plugged correctly the LED will turn on blue!

Application

• The external SSD can be connected to or disconnected from the computer without shutting down the computer.
• Please await the end of read/write operations before disconnecting the SSD to avoid data loss.
• A new SSD must first be initialized, partitioned and formatted by the operation system to be displayed by the system.
• If the drive isn't recognized instantly by the operating system please check: if the driver software is installed (USB), if the SSD is initialized, partitioned and formatted.

Info: Drives must be initialized and have active partitions to be immediately recognized as volumes in the operating system. If this is not the case, initialize the drives in the volume management of your operating system.

The full USB 3.2 (Gen 2x2) transfer rate can only be achieved with a compatible USB 3.2 (Gen 2x2) host computer. Furthermore, the USB 3.2 drivers must be installed by the operating system. If this is not the case, install the appropriate drivers for your operating system (Windows®).

Handbuch IB-1916M-C32

Close-up of a black integrated circuit chip with a small metallic connector (no visible text or symbols)

1.2.

1. USB 3.2 (Gen 2x2) Type-C

Diagram showing a device with a grid array and a tool emitting arrows, no text or symbols present.

3D diagram of a heat exchanger or cooling unit with internal cooling fins and a downward arrow indicating direction (no text or symbols)

Hand inserting a USB into a device panel (no text or symbols visible)

3D diagram of a layered electronic device with mounting holes and internal components (no text or symbols)

Diagram of a heat exchanger or cooling unit with internal components and directional arrows (no text or symbols)

Illustration of a rectangular electronic component with two screwdriver handles, showing internal structure and directional arrows (no text or symbols)

Illustration of a rectangular electronic device with a ruler extending to its side, showing internal structure and an arrow indicating direction (no text or symbols present)

Verwendung

© Copyright 2022 by RaidSonic Technology GmbH. All Rights Reserved.

The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have. Apple and macOS are registered trademarks of Apple Computer Inc. Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.
