Product Type	Stand Fan
Brand	Izzy
Model	IZ-9042
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	70W
Number of Speeds	3 (Low, Medium, High)
Operating Modes	Normal, Nature, Sleep
Oscillation	Yes (Swing function)
Timer	1 to 7 hours (1-hour increments)
Remote Control	Included
Control Panel	On unit and remote
Height Adjustment	Yes (adjustable tube)
Blade Material	Plastic
Grilles	Front and rear safety grilles
Base	Round base with locking screw
Cleaning	Wipe with soft cloth; do not immerse
Spare Parts	Use only original parts; contact service center
Warranty	2 years (by BENRUBI)
Indoor Use Only	Yes
Safety Features	Overheat protection not specified; follow safety instructions

Frequently Asked Questions - IZ-9042 Izzy

How do I assemble the fan?

Insert the outer tube into the base and tighten the base screw. Adjust the height using the adjustment ring. Attach the rear grille to the motor, secure with the nut. Install the fan blades, then the front grille, and tighten the wreath screw. Refer to the manual for detailed steps.

How to set the timer on the IZ-9042?

While the fan is on, press the Timer button repeatedly to select 1 to 7 hours. The corresponding indicator lights will illuminate. The fan will automatically turn off after the set time. To cancel, press the Timer button until all lights turn off.

What are the different modes (Normal, Nature, Sleep)?

Normal: constant speed at your chosen setting. Nature: alternates between normal operation and brief stops to simulate natural breeze. Sleep: automatically increases and decreases speed for comfort during sleep.

How do I clean the fan?

Switch off and unplug the fan. Use a soft damp cloth to wipe the body and grilles. Do not use abrasive cleaners or immerse the fan in water. Keep the rear air outlets clean for proper airflow.

Can I use the fan outdoors?

No, the fan is intended for indoor use only. Do not expose it to rain, moisture, or direct sunlight.

Why is my fan not oscillating?

Press the Swing button on the control panel or remote control. The Swing indicator light should turn on. If it still doesn't oscillate, check if the fan head is properly assembled and not obstructed.

What should I do if the remote control stops working?

First, replace the batteries. Ensure there are no obstacles between the remote and the fan. If it still doesn't work, contact an authorized BENRUBI service center. The control panel on the unit can be used as an alternative.

Is it safe to leave the fan unattended?

No, never leave the fan unattended while operating. Always turn off and unplug when not in use, especially when children or pets are nearby.

How do I adjust the height of the fan?

Loosen the height adjustment ring on the outer tube, slide the inner tube to the desired height, then retighten the ring securely.

What does the warranty cover?

BENRUBI provides a 2-year warranty against manufacturing defects and materials. It does not cover normal wear, misuse, or unauthorized repairs. Keep your purchase receipt for service.

USER MANUAL IZ-9042 Izzy

Two electric fans on stands, one black and one white, with no visible text or symbols.

ΜΩΕΝΡΟΥΜΩΗ

Simple line drawing of a circular mechanical component with a handle and shaft (no text or symbols)

Diagram of a mechanical or electrical component with curved internal structure and directional arrow (no text or symbols)

Thank you for having chosen an appliance from the IZZY range.

Safety Interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any us which does not conform to the instructions will absolve IZZY from an liability.

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
• Never leave the appliance unattended when operating.
• Close supervision is necessary when your appliance is being used near children or infirm persons. Ensure that they do not play with the appliance.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instructing concerning use of the appliance by a person responsible for their safety.
  WARNING: Do not expose babies and the elderly many hours in front of the fan's air.

- Switch off and unplug:

- When not in use.

- When you move it.

- Before cleaning.

- Never use the appliance for any other use than indicated.

- The device is intended for indoor use. Do not use the device outdoors.

- The device is intended only for domestic use. Any other use will cancel the warranty.

• Always use the mixer on a secure, dry level surface.

- Do not operate or place the device or parts in places of high humidity or where it may get wet.

- Do not use this appliance in the immediate surroundings of a bath,

shower or a swimming pool or in places where it may get wet.

- Never let the power unit, cord or plug get wet. If the appliance does get wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centers.

CAUTION: To prevent injury, do not place foreign objects, pencils, e through the grills when the appliance is plugged in or when it is in operation. CAUTION: To avoid injury, do not put your fingers through the grilles when the appliance is plugged in or when it is in operation.

• Leave plenty of free space around the appliance so that you do not block the grilles and the fan movement.
• Do not let the power cord of the appliance hang over the edge of a table or bench edge or where a child can grab it. Do not allow the power cord to touch any warm surface.
• Ensure that the power cord is not clamped from any object, e.g. furniture. Do not press the power cord and never place it under carpets or mat where there is a risk of stepping on it. Keep the power cord in a place when there is no danger of stumbling.
• Do not place the appliance next to fabrics, e.g. hanging curtains, etc. Do not place clothes on the appliance to dry or for any other reason.
• Before inserting or removing the socket, make sure the appliance turned OFF.
• Never use the cord to pull the plug out of the socket. Disconnect always by pulling on the plug.
• Ensure that the power cord does not come into contact with moving parts of the appliance.
• Do not use the appliance if it has been dropped or damaged in any way and contact an authorized BENRUBI Service Center.
• In case that you notice some strange noise, smell, smoke or anything unusual, do not use the appliance. Disconnect it from electricity and contact an authorized BENRUBI Service Center.
• Failure to use properly may cause injury.
• Never leave the power cable wrapped during use. Unwind it completely.
• Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.
• Do not move the appliance when it is in operation.
• Do not touch the appliance with wet or damp hands.

• Do not use an extension power cord.

• This appliance is not intended to be operated by means of an external timer or separate remote control system.

• Check the power cord periodically for possible damages.
• If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.
• Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.
• Any misuse of the device cancels the warranty.
• Only use original spare parts
• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/ EU Low Voltage Directive, the2011/65/EU RoHS Directive and the directive 2009/125/EC for eco-design.

SAVE THESE INSTRUCTIONS

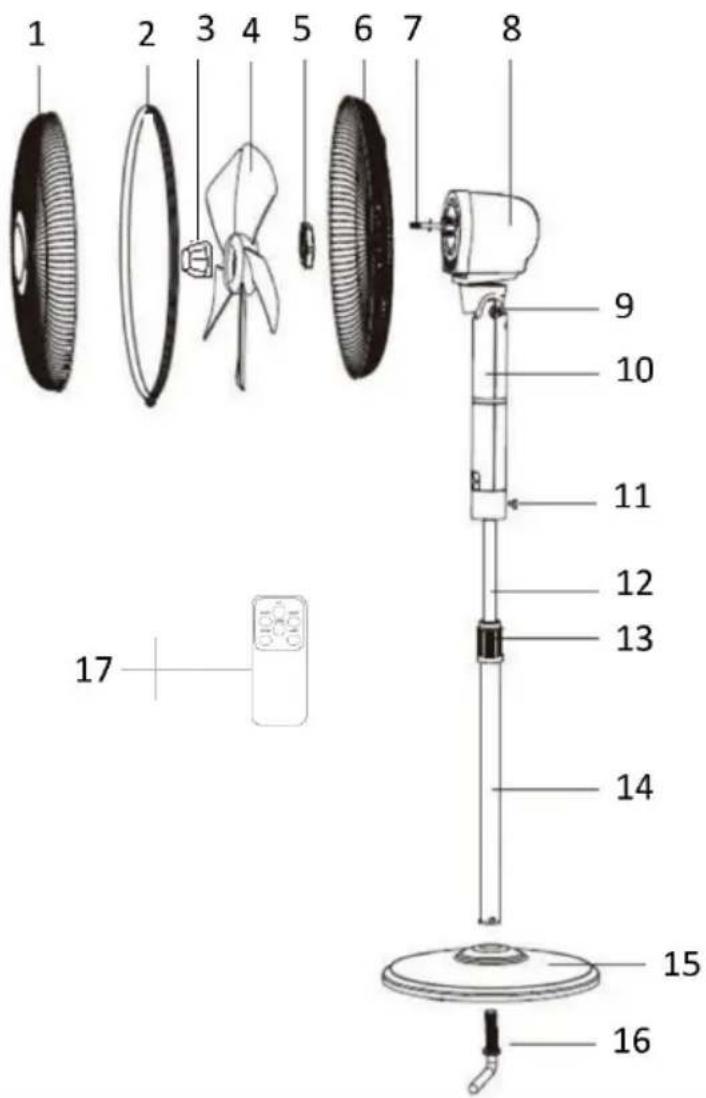

Parts of the Appliance

1. Front guard
2. Wreath
3. Spinner/Blades support nut
4. Fan blades
5. Rear grill support nut
6. Rear guard
7. Clutch knob
8. Oscillating
9. Rod
10. Fan Body
11. Screw
12. Inner tube
13. Height adjustment ring
14. Outer tube
15. Base
16. Base Screw
17. Remote control

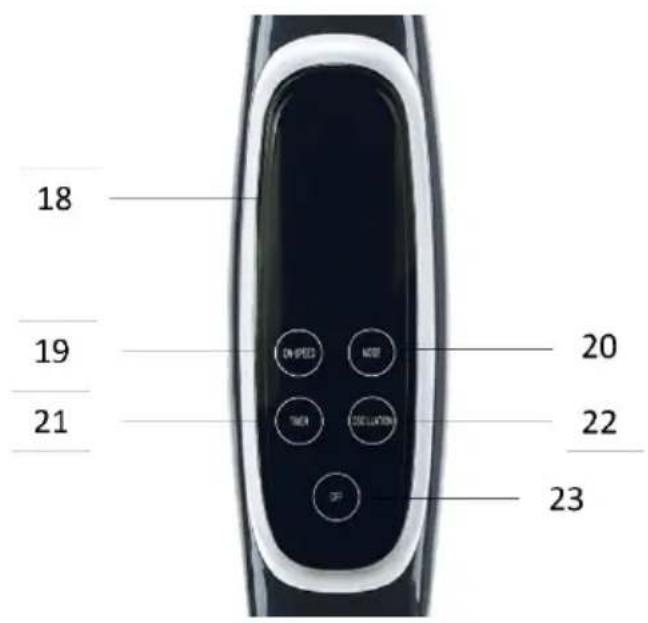

Control Panel

1. Functions indication lights
2. "ON/SPEED" button
3. "MODE" button
4. "TIMER" button
5. "SWING" button
6. "OFF" button

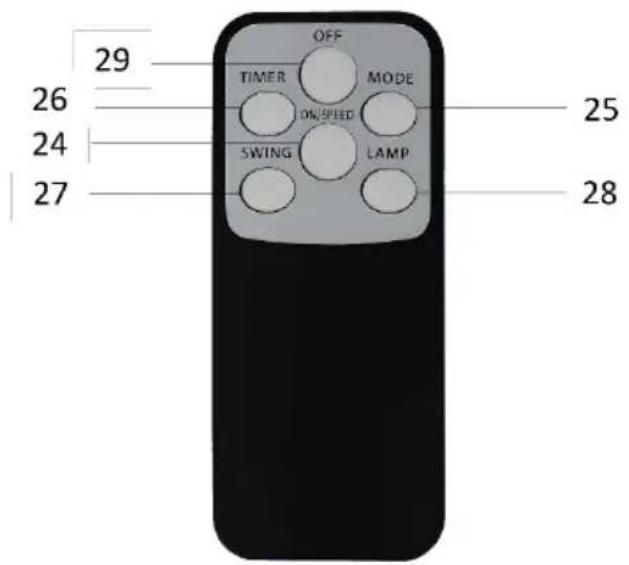

Remote Control

1. "ON/SPEED" button
2. "MODE" button
3. "TIMER" button
4. "SWING" button
5. "LAMP" button
6. "OFF" button

Fan Assembly

Remove the packaging.

Motor assembly

1. Install the rear fan grille (6) on the motor shaft (7) and securely fasten the rear grille support nut (5).
2. Fit the blades (4) and fasten the blades support nut (3).
   CAUTION: The blade support nut bolts counterclockwise.
3. Place the grilles' wreath (2) without screwing in. Make sure the screw is at the bottom.
4. Install the front fan grille (1) and tighten the wreath's screw.

Simple line drawing of a circular mechanical component with a handle and shaft, no text or symbols present.

1. Place the support tube (14) at the reception of the base (15) and tighten securely the nut at the bottom of the base.
2. Place the height adjustment (13) and tighten at the desired height.
3. Insert the upper part of the fan at the support tube (14) and screw tightly the support screw.

Using the Fan

CAUTION:

• Before use, make sure that all parts of the device are properly assembled and that there are no parts that have been damaged.
  • Always place the device on a flat, dry and stable surface. There is a risk of damage if it is not installed on a flat and level surface.

• Plug in the appliance.

• Press the "ON/SPEED" button (19) on the control panel or the "ON/SPEED" button (24) on the remote control.
• Select the desired speed by pressing consecutively the "ON/SPEED" button (19) on the control panel or the "ON/SPEED" button (24) on the remote control. The speed indicator lights (1, 2, 3) will turn on. The fan has 3 speed options:

1 - Low speed
2 - Medium speed
3 - High speed
4. Set the mode (oscillating or static) by pressing the "SWING" button (22) on the control panel on the "SWING" button (27) on the remote control. The "SWING" indicator light (22) will turn on for oscillation or will turn off for static.

Diagram of a mechanical or electrical component with curved internal structure and directional arrow (no text or symbols)

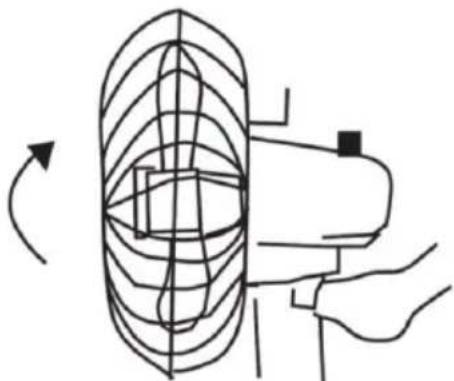

1. Adjust the desired angle by moving the head up or down respectively.
2. Press the "MODE" button (20) on the control panel or "MODE" button (25) on the remote control to select the function of your choice.

The fan has 3 functions:

NOR (NORMAL): The fan runs normally at the speed you have selected. The “NOR” indicator is on. NAT (NATURE): The fan will start operating normally, then stop for a few seconds and then continue operating normally. The “NAT” indicator is on.

SLP (SLEEP): The fan will increase and decrease the speed consecutively. The “SLP” indicator is on.

1. Press the "OFF" button (23) on the control panel or the "OFF" button (29) on the remote control to stop the operation.
2. Disconnect from the power outlet when not in use.

Timer Setting

Timer setting (control panel)

1. While the fan is on, press consecutive the “TIMER” button (21) until the desired time is selected and the corresponding indicator lights (18) illuminate on the control panel. The timer settings range from 1 to 7 hours (with an 1 hour setting).
2. When the time you set is complete, the fan will stop working automatically.
3. Unplug when not using the fan.

Timer setting (remote control)

1. When the fan is on, press consecutively the “TIMER” button (26) until the desired time is selected and the corresponding indicator lights (18) illuminate on the control panel. The timer settings range from 1 hour to 7 hours (with an 1 hour setting).
2. When the time you set is complete, the fan will stop working automatically.
3. Unplug when not using the fan.

Note:

If you want to stop the timer earlier than the selected time, press consecutively the "TIMER" button (21) on the control panel or the "TIMER" button (26) on the remote control until all the indicator lights (21) turn off.

Care and Cleaning

• Switch off and unplug the appliance before cleaning.
• Do not disassemble the fan to clean it.
• At regular intervals, clean the main body of the appliance with a soft cloth and dry thoroughly.
• Never use highly corrosive or abstractive cleaning agents. Never use metal brushes or sponges for cleaning and do not immerse the appliance in water.
• To ensure that the air circulates properly on the motor, keep the air outlets at the rear of the motor clean.

Storage

• Switch off and unplug the appliance before storing it.
• Store the appliance in a dry place without humidity.
• Before using the appliance for a long time, make sure it is clean and dry.
• Store the appliance where it is not reachable by children.

Technical Information

Model: Fan IZ-9042

Voltage: AC 220\~240V

Frequency: 50/60Hz

Rated input: 70W

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).
